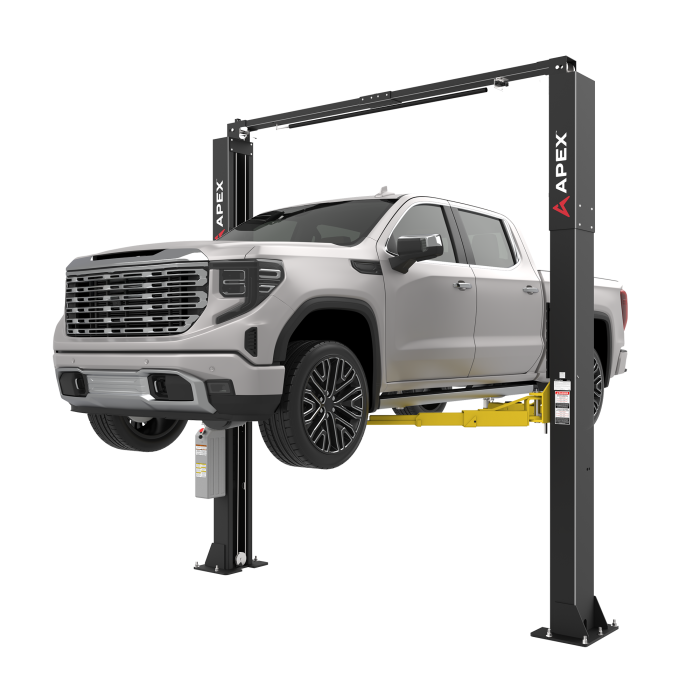

APEX AL10C Two Post Car Lift - 10,000-Lb Capacity

Clearfloor Design for Maximum Shop Efficiency

The APEX AL10C is designed for professional shops and serious garages that want complete freedom of movement beneath the vehicle. Its clearfloor design eliminates the floor beam found on traditional two-post lifts, allowing transmission jacks, oil drains, tool carts, and other shop equipment to move freely without obstruction.

This open workspace improves efficiency, reduces clutter, and makes it easier to service everything from low-profile performance cars to lifted trucks. With a 10,000-lb lifting capacity, the AL10C delivers the strength needed for modern vehicles while maintaining excellent access and workflow.

From GrandPrix to APEX: Proven Engineering, Unified Brand

The APEX AL10C was previously sold under the GrandPrix brand and has transitioned into the APEX lineup as part of BendPak’s effort to streamline and strengthen its product families. This transition represents a branding evolution, not a design change.

The AL10C retains the same clearfloor architecture, direct-drive hydraulic lifting system, heavy-duty structural components, and safety features that made it a trusted lift in professional and enthusiast shops. It continues to be built to the same specifications and performance standards.

By bringing this model under the APEX name, BendPak has aligned it with a broader APEX product lineup focused on delivering professional-grade capability at a smart value, supported by U.S.-based customer service and industry-leading warranty and support.

Flexible Arm Geometry for Faster Vehicle Positioning

Positioning vehicles correctly on a two-post lift can slow productivity, but the AL10C is built to make setup fast and predictable. Dual symmetric and asymmetric arm configurations allow technicians to position the arms exactly where they are needed for balanced lifting.

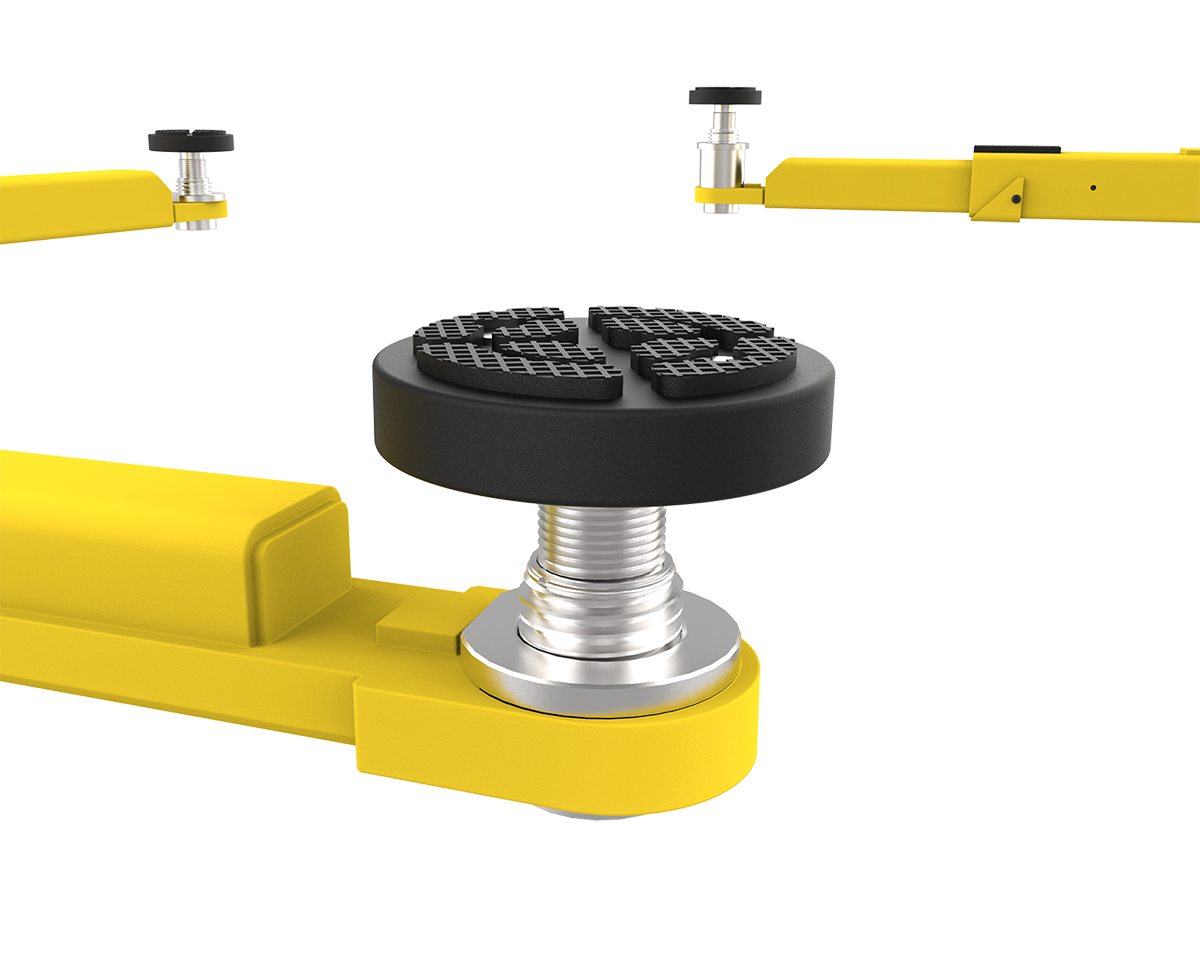

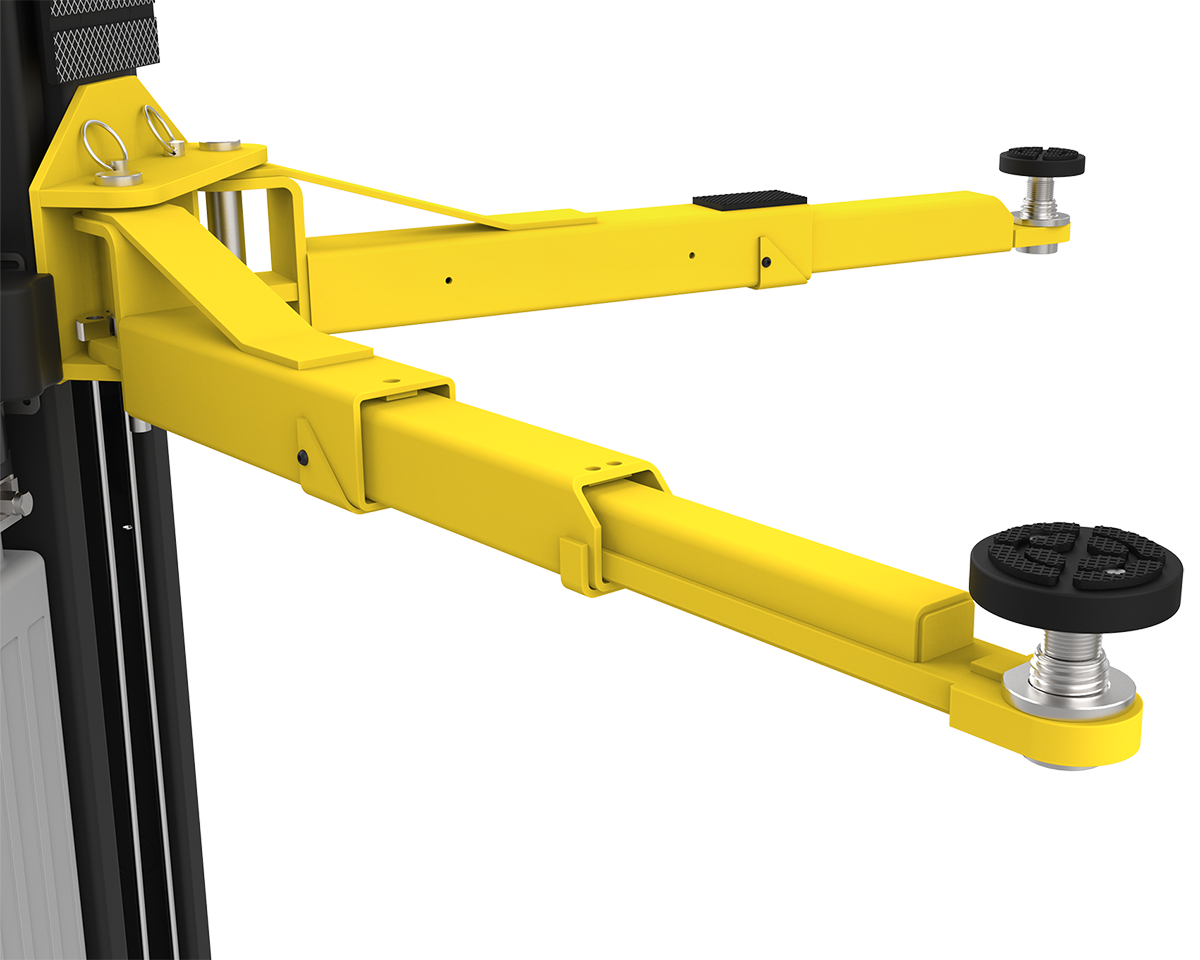

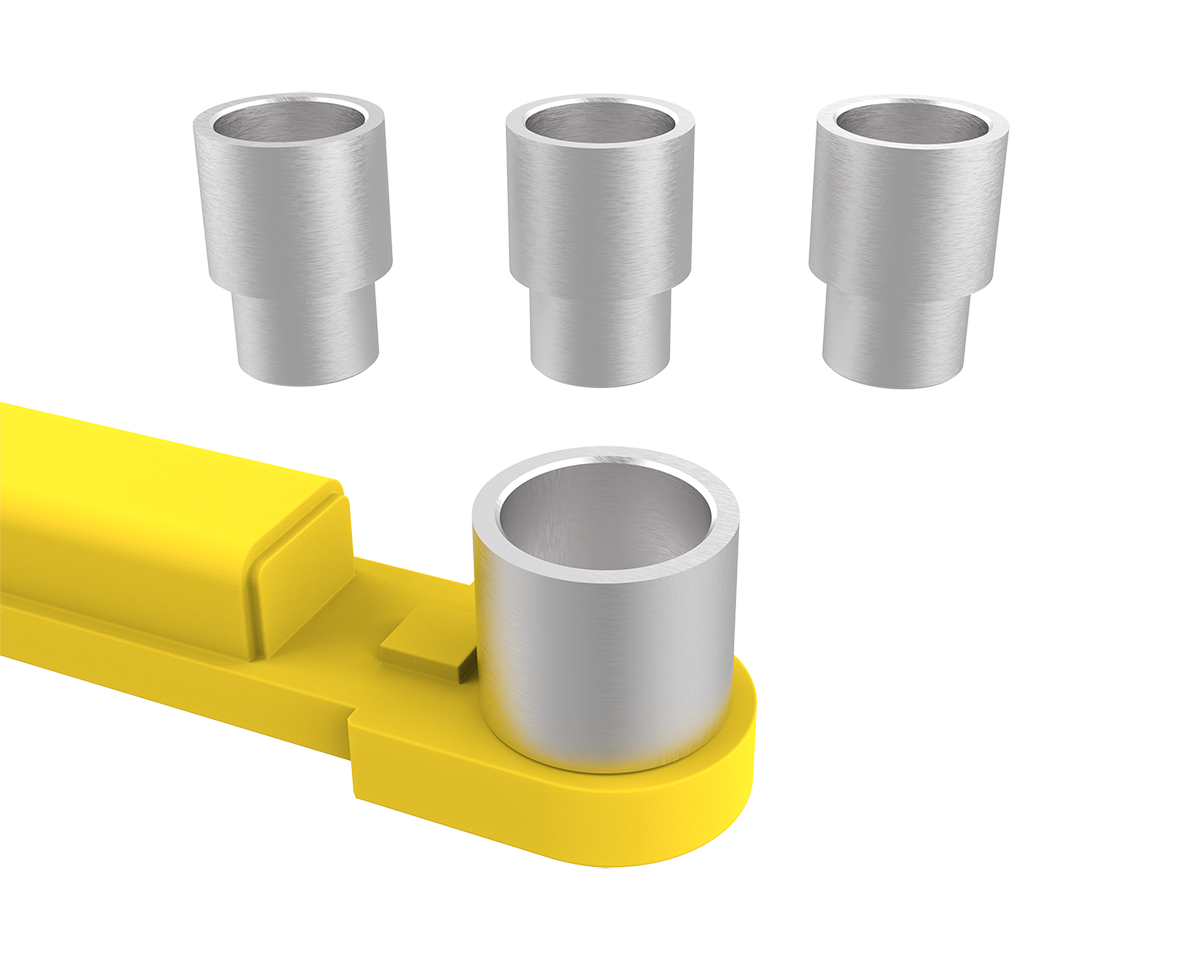

Triple-telescoping front arms and dual-stage extended rear arms provide exceptional reach, accommodating a wide range of wheelbases and vehicle types. Double-telescoping screw pads and a 4-piece 63 mm stackable adapter set ensure secure, stable contact across varying frame designs.

Direct-Drive Hydraulic Lifting System

Unlike many clearfloor lifts that rely on complex chain-over systems, the AL10C features a direct-drive design with dual full-stroke hydraulic cylinders. This approach significantly reduces the number of moving parts, minimizing wear while delivering smooth, consistent lifting performance.

The result is lower maintenance, improved long-term reliability, and quiet, efficient operation under daily shop use.

Built for Safety and Structural Stability

Safety is engineered into every aspect of the AL10C. Automatic safety locks engage every three inches throughout the lift range, providing consistent, secure load holding at working height. These locks release easily via single-pull lanyards on each carriage for straightforward operation.

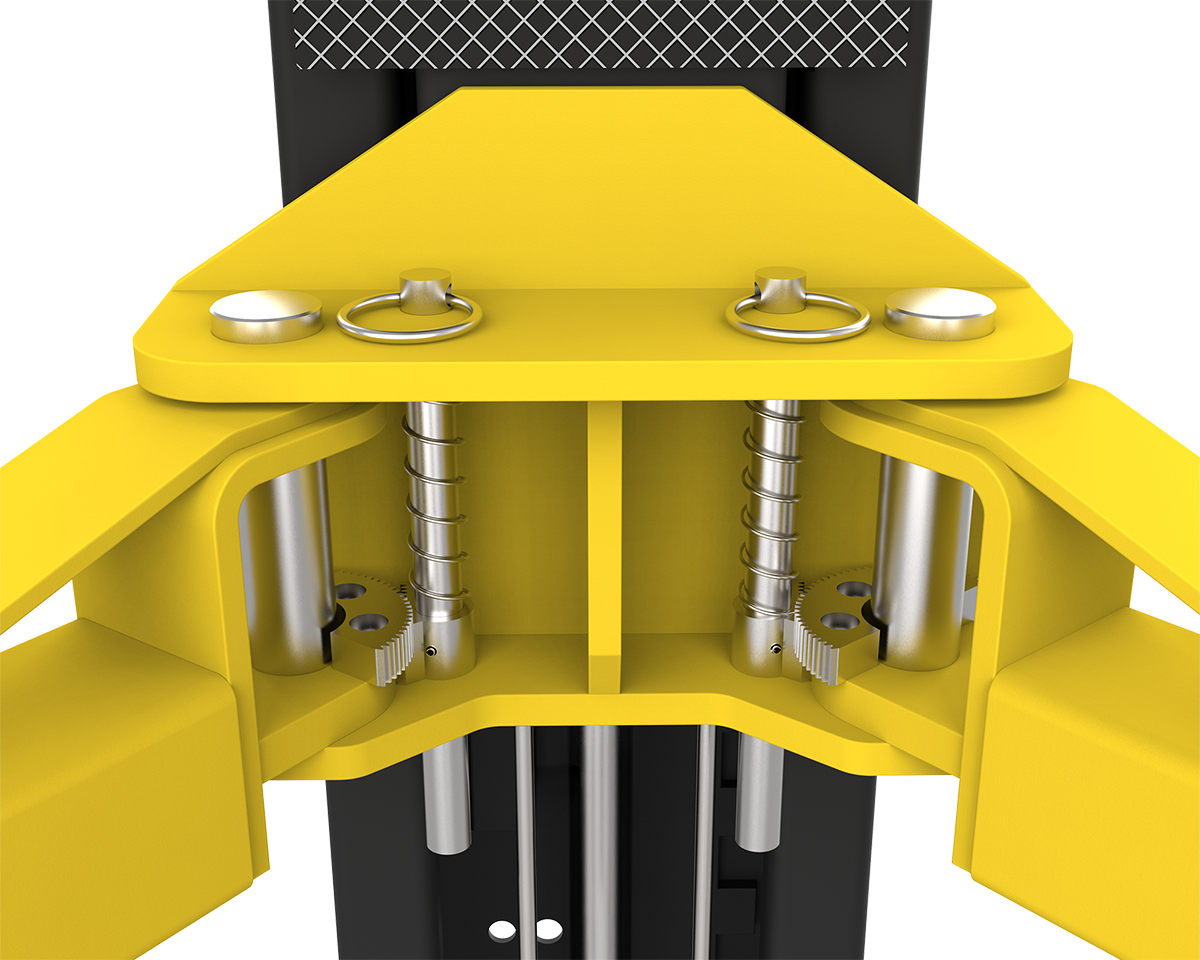

A rugged overhead box-beam structure reinforces the lifting frame, reducing column stress and enhancing overall stability. A padded overhead shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Automatic arm restraints secure the arms when the lift is elevated, preventing unintended movement during service.

Heavy-Duty Construction for Daily Shop Use

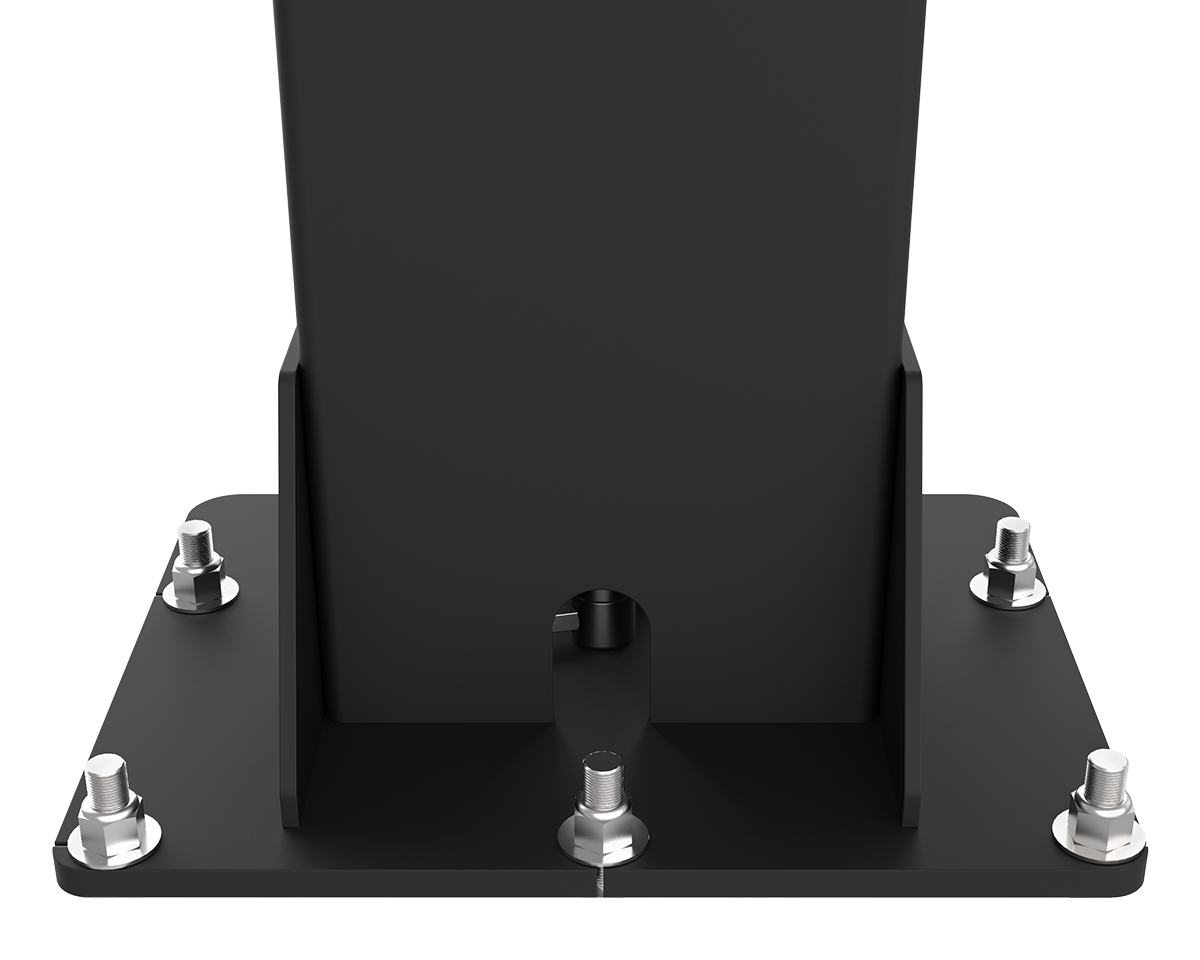

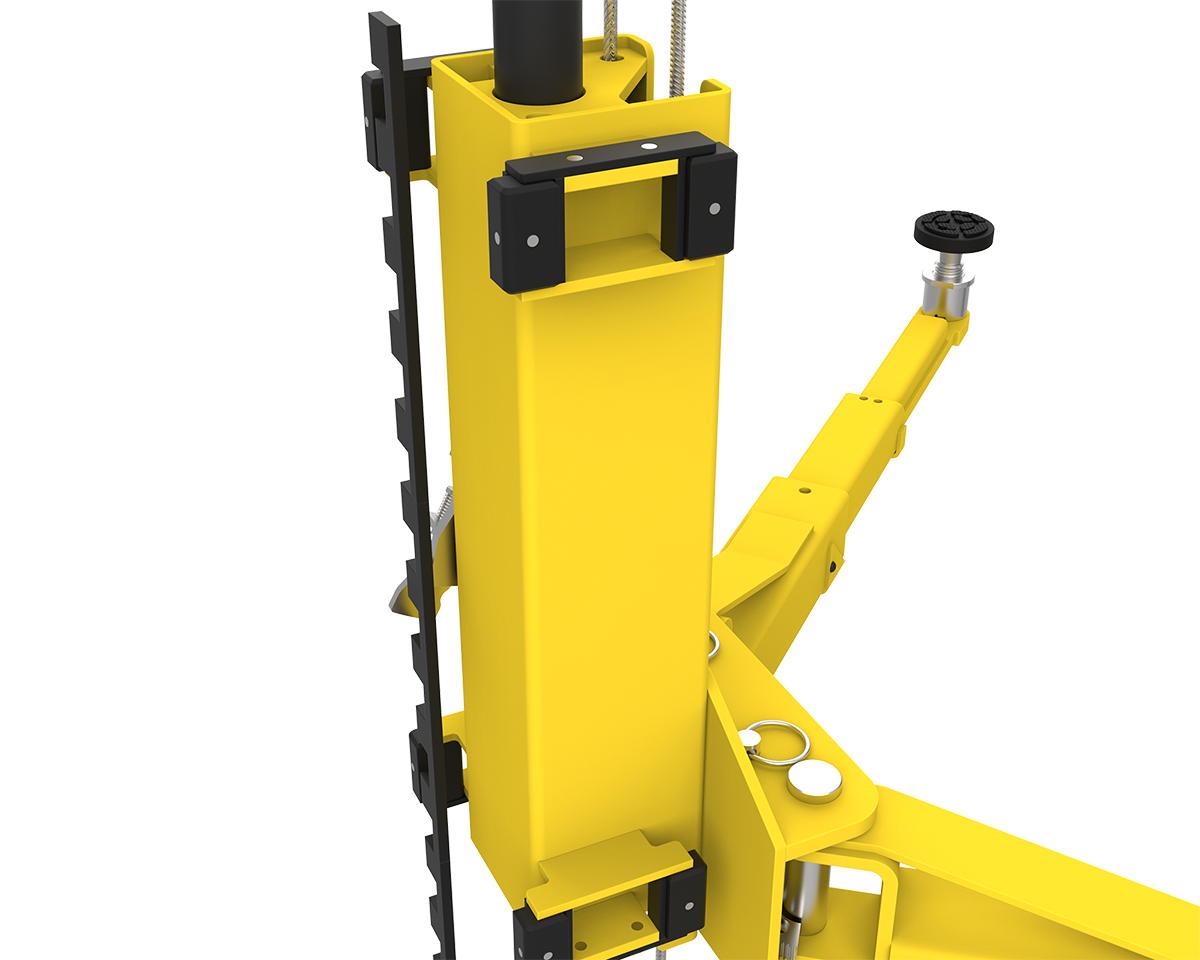

The AL10C is built to withstand the rigors of demanding shop environments. A heavy-duty 6” x 6” tubular steel carriage delivers exceptional load-bearing strength, while oversized 20.5” x 15.5” base plates distribute weight evenly for rock-solid stability.

Self-lubricating UHMW polyethylene guide blocks eliminate the need for frequent greasing, while oversized cable sheaves and aircraft-quality equalizer cables reduce fatigue and extend component life.

Built as a Long-Term Investment

Backed by BendPak’s industry-leading 36-month warranty and a nationwide support network, the APEX AL10C is designed to be a dependable, long-term investment in shop efficiency, safety, and productivity.
