HD-7PXW

Starting at $8,395.00
In stock
SKU
5175516
Questions?
Add to Compare Add to Wish List
7,000-lb. Capacity / Super-Tall Four-Post Lift / Vehicle Display Platform
The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!

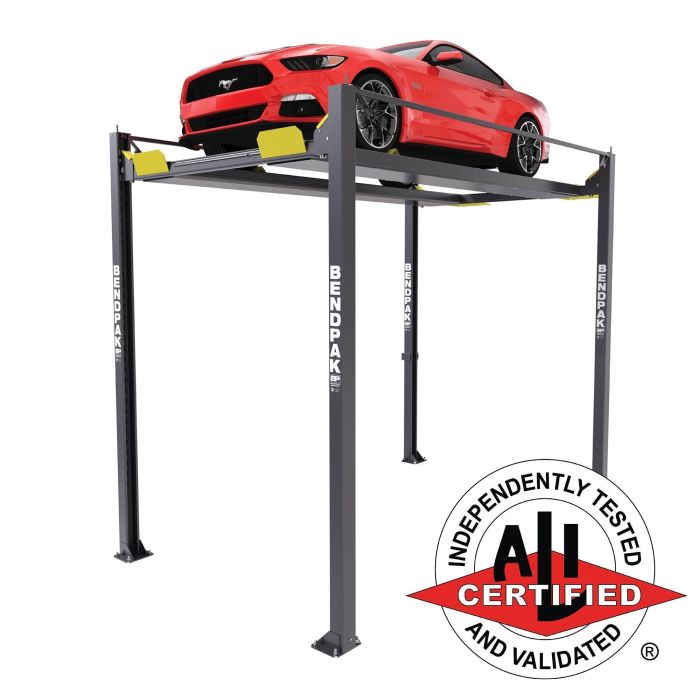

main product photo
description

Amazingly Tall ​Four-Post Lift

The HD-7PXW four-post lift has a 7,000-lb. lift capacity and 182" long runways to accommodate a variety of vehicle types and wheelbases.

Same great benefits as other lifts

The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching ​car lift on the market than the HD-7PXW.

Specifications HD-7PXW
  • 7,000-lb. maximum lifting capacity
  • Super tall rise delivers 12-feet of lifting height
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8” aircraft cable
  • Rugged 1.25” roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Ramps feature non-skid surface
  • Push-button pneumatic safety release

Capacity

Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)

Rise

A - Min. Runway Height:
5" (127 mm)
B - Max. Rise:
140.25" (3,562 mm)
C - Max. Lifting Height:
145.25" (3,689 mm)
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
110.25" (2,800 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length (includes ramps):
213" (5,688 mm)
G - Height of Columns:
158" (4,013 mm)
Top Lock Height:
143.82in" (3,653 mm)

Inside Dimensions

H - Width Between Columns:
100.25" (2,546 mm)
I - Drive-Thru Clearance:
86.5" (2,197 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
182.25" (4,629 mm)
L - Width Between Runways:
35" (889 mm) or 41" (1,041 mm)
M - Runway Centerline:
57" (1,448 mm) or 63" (1,600 mm)
N - Outside Edge of Runways:
75.75" (1,924 mm) or 82" (2,083 mm)

Minimum Wheelbase

Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)

Locking

Locking Positions:
31
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
208-230 VAC / 50-60 Hz / 1Ph
Noise:
45 dB

Shipping

Weight:
2,254 lbs. (1022 kg)
Dimensions:
192'' x 22'' x 31'' (4,876 mm x 558 mm x 787 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
