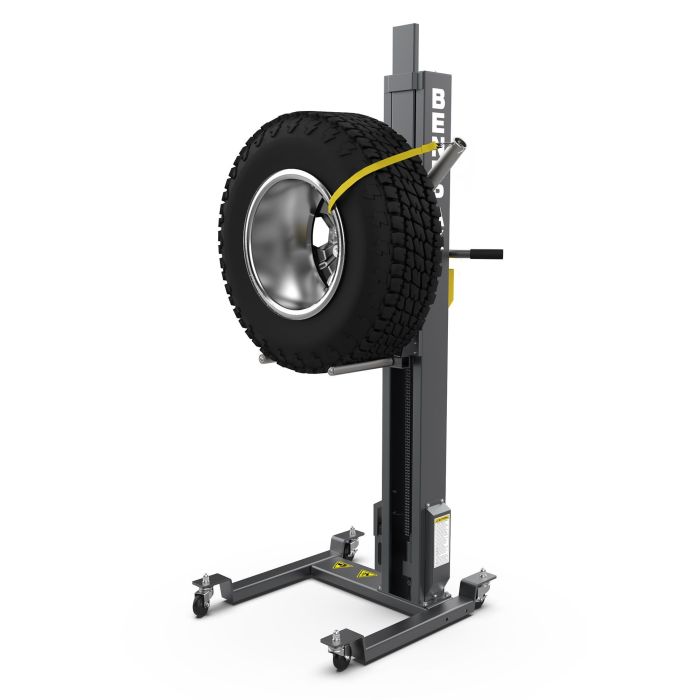

RWS-200WL Rechargeable Portable Wheel Lift

Take the strain out of heavy wheel service with the BendPak RWS-200WL Portable Wheel Lift – the next evolution in wheel-handling equipment. Unlike pneumatic models that must stay tethered to an air supply, the RWS-200WL runs on a powerful 24V lithium-ion battery for true cordless freedom. Move it anywhere in the shop and position it exactly where you need it – no hoses, no cords, no compromises.

With double the voltage of many competing 12V units, the RWS-200WL delivers faster lift speeds, superior torque, and a full 200-lb. lifting capacity to easily handle the oversized wheels and tires found on today's trucks and SUVs.

At its core is a heavy-duty 24V DC linear actuator with a hardened acme lead screw and reduction gearbox. This advanced drive system eliminates the inconsistent, "spongy" feel of pneumatic lifts, delivering steady, predictable motion at 1.6 in./sec. for precise vertical positioning. Lug-bolt alignment, hub centering, and delicate mounting tasks become faster, easier, and safer.

With fewer moving parts than hydraulic or pneumatic systems, the sealed, factory-lubricated linear actuator provides long service life with minimal maintenance. Precision-machined components, hardened screw threads, and a permanently lubricated gearbox ensure peak performance over thousands of cycles, reducing downtime and lowering total cost of ownership.

The RWS-200WL is ideal for removing and installing heavy wheels on vehicles raised on car lifts or floor jacks, elevating wheels to waist height for mounting on wheel balancers or positioning them gently on tire-changing machines, eliminating the strain and risk of injury from manual lifting.

A low-profile 2.5" frame height makes it easy to roll even the heaviest wheels into position, while offset carriage arms provide better access to lug bolts during installation or removal. Side-mounted thrust rollers let you rotate the wheel effortlessly for perfect alignment without straining your back.

Charging is simple and universal with an integrated smart charger that accepts 110–240V AC input without the need for transformers, making it ideal for shops anywhere in the world. Extra touches like the onboard 12V accessory outlet, quick-glance battery status indicator, rugged powder-coated steel construction, and smooth-rolling casters (with locking rears) make the RWS-200WL a shop essential you’ll rely on every day.

When it comes to mobility, performance, and operator comfort, nothing else in its class compares. The RWS-200WL doesn’t just lift wheels–it lifts your whole workflow.

• Rechargeable 24V lithium-ion battery
• Ideal for removing and installing heavy wheels on vehicles raised on car lifts or floor jacks
• Integrated smart charger that accepts 110–240V AC input
• Onboard 12V accessory outlet
