Rolling Bridge Jacks by BendPak

RJ9W (5175252)

9,000-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels


BendPak’s 9,000-lb. capacity rolling bridge jack is ideal for use on the HDS-18E four-post lift, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.

Starting at $3455
FREE SHIPPING!

$3455
$
Save $
FREE SHIPPING!
Buy Now

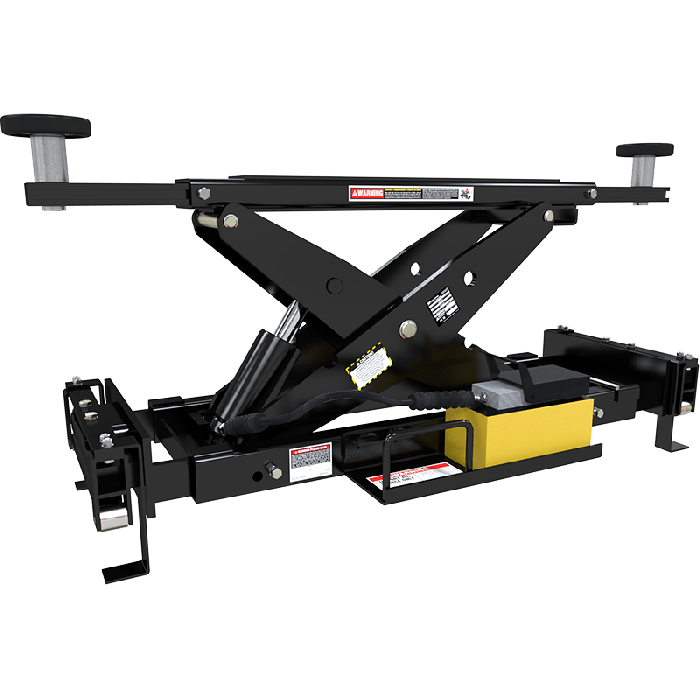

BendPak RJ9W Rolling Bridge Jack
User Manual Download
Sales Sheet Download
Warranty Download
BendPak Financing Credit Card

Lift Now,
Pay Over Time

with the Synchrony Car Care™ Credit Card.

Convenient monthly payments make your equipment purchase simple.

Learn More

Lift 9,000 lbs. for Full Wheel Service Capability

With a 14,000-lb. capacity lift, you might think the R​J7W rolling bridge jack is sufficient for your vehicle. However, vehicles that max out a lift's capacity might have offset centers of gravity. In such cases, the RJ7W is not suitable to lift those vehicles. That’s why we offer the RJ9W. A heavier-duty bridge jack can save you from having to swap your perfectly fine four-post lift for a heavier-duty model.

Easy-Roll Wheels Come Standard

The RJ​​9W rolling bridge comes standard with easy-roll wheels that fit inside the runway channels on standard four-post lift models 18,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

Rubber contact pads are essential lifting components. They increase rise and firmly engage your vehicle’s undercarriage lift points. The durable yet non-marring surface ensures vehicles are not scraped or damaged during rolling bridge jack or car lift operation.

Stackable adapters

The ability to stack and unstack BendPak contact pads increases the versatility of your rolling bridge jack. These adapters are also useful for lifting vehicles that may have drastically different front-and-rear suspensions. With two rolling bridge jacks employed at once, the front may need an extra adapter to ensure an even lift.

High-pressure hydraulic power unit

BendPak’s rolling bridge jacks include a pneumatic-hydraulic power unit that comes attached to the jack. The car lift runs off its own power unit, so there’s no “sharing” of hydraulic power between the two. An airline must be attached to the rolling bridge jack with 125 psi and 10 – 20 CFM. Easy foot pedal control is included for your safety and convenience.

Three lock levels

With three lock positions, your rolling bridge jack can be raised to the level most comfortable for you. Find the perfect height for the perfect job as you also adjust the height of your car lift.

Features & Specs

  • 9,000-lb. lifting capacity
  • Easy-Roll Wheels
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

RJ9W specs diagram

Capacity

Lifting Capacity*

Rise

A - Max. Height + Pad Only:
B - Max. Height + Pad + Adapter:
C - Min. Height + Pad Only:
D - Min. Height + Pad + Adapter:
Time to Full Rise:

Reach

F - Support Arm Width:
-
G - Max. Arm Reach:
H - Min. Arm Reach:

Power Unit

Motor:
Noise:

Shipping

Weight:
Dimensions:

RJ9W Specifications

Lifting Capacity
9,000 lbs. (4,082 kg)
Suitable Lift Model(s)
HDS-18E, HDS-27 Series

Min. Drive-Over Height*

Pad Only:
5.25" (133 mm)
Pad + 2.75" Adapter:
8" (203 mm)
Pad + 5.5" Adapter:
10.75" (273 mm)

Max. Lifting Height*

Pad Only:
16.25" (413 mm)
Pad + 2.75" Adapter:
19" (483 mm)
Pad + 5.5" Adapter:
21.75" (552 mm)

Reach

Support Base Width:
45" (1,143 mm) - 50" (1,270 mm)
Max. Arm Reach:
56" (1,422 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
5,020 PSI
Power Requirement:
None
Shipping Weight:
478 lbs. (217 kg)
Shipping Dimensions:
47" x 25" x 15" (1,206 mm x 635 mm x 381 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
