A Study in Lift Design

BendPak vs. Rotary Two-Post Lift

*Design features and specifications are subject to change. Please consult factories for updates.

ROTARY® and ROTARY LIFT® are registered trademarks of the Dover Corporation®.
BENDPAK® and RANGER PRODUCTS® are registered trademarks of BendPak Inc.

Recently, Rotary distributed a document favorably comparing a Rotary two-post lift to a BendPak two-post lift. Never ones to back down from a challenge, the BendPak engineering team responded the only way they knew how—with a thorough investigation of their own. After exhaustively reviewing the merits of both BendPak and Rotary standard 10,000-lb. capacity asymmetric two-post lifts, BendPak released the following report. In it, critical design features are compared, evaluated and illustrated in broad detail. The findings were enlightening, to say the least.

BendPak Engineering Report

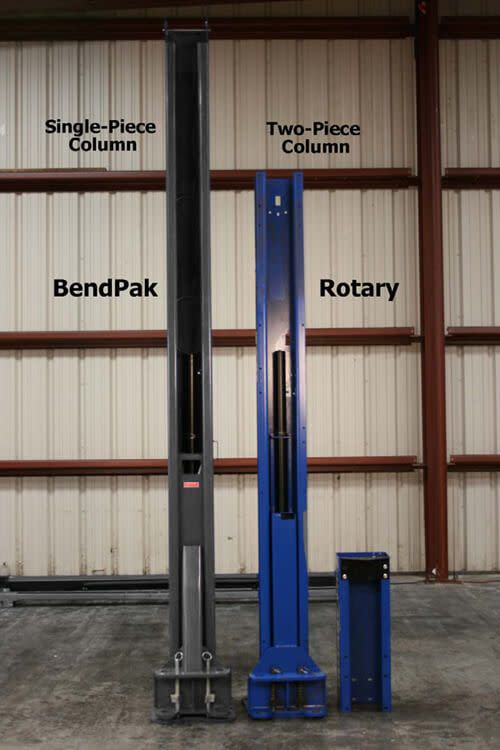

Column / Front

BendPak's single-piece columns result in a stronger, longer-lasting structure.

Two Post Column Comparison

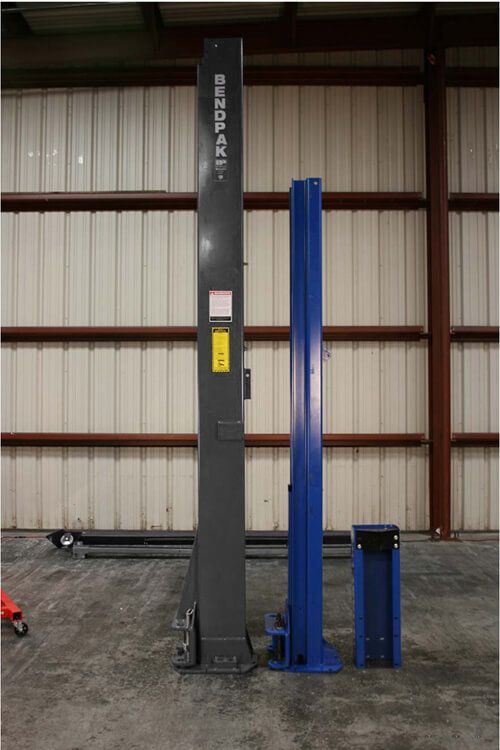

Column / Side

Note the difference in thickness between BendPak and Rotary.

BendPak Two Post Lift Comparison

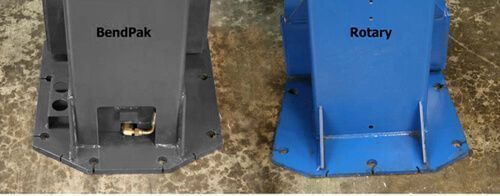

Column / Rear Bottom

BendPak's larger base offers a more stable lift.

Two Post Lift Comparison

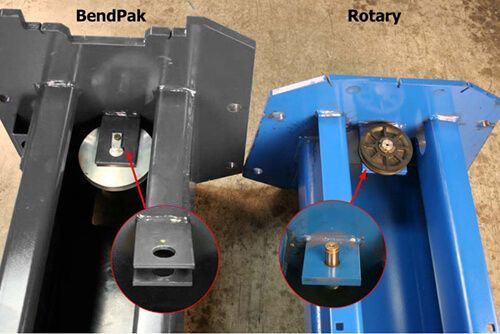

Column / Bottom Sheave

Increased sheave size and support.

BendPak Sheave Rollers

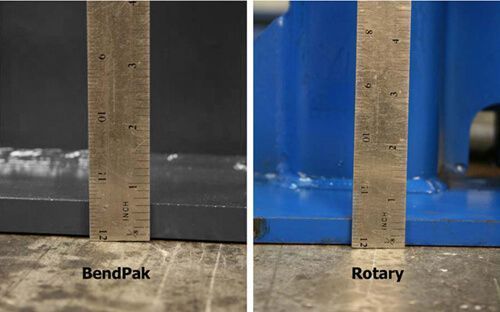

Column / Base Plate

Thicker base plates for maximum stability.

Two Post Baseplate

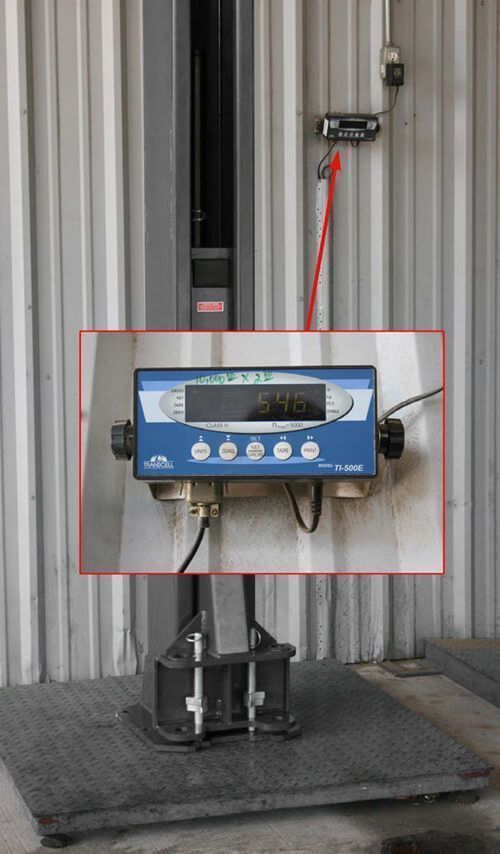

Column Assembly / BendPak® on Scale

BendPak offers heavier-duty, more rugged design.

BendPak Column Assembly

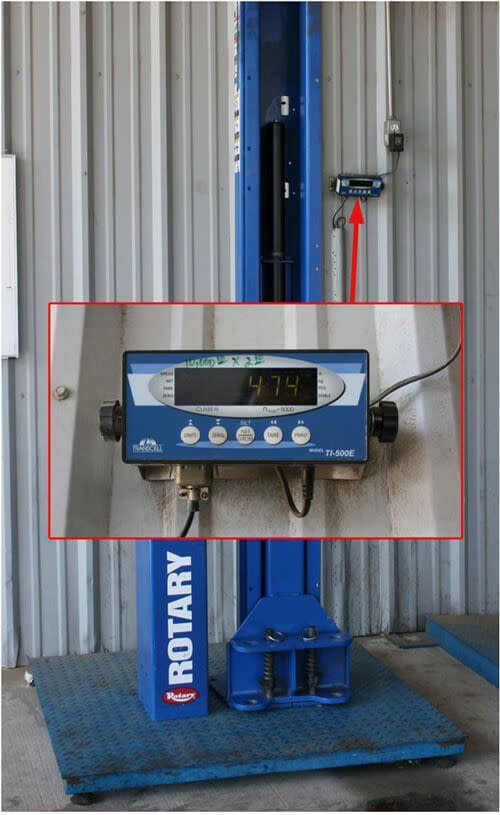

Column Assembly / Rotary® on Scale

Rotary column less heavy-duty than BendPak.

Rotary Column Assembly

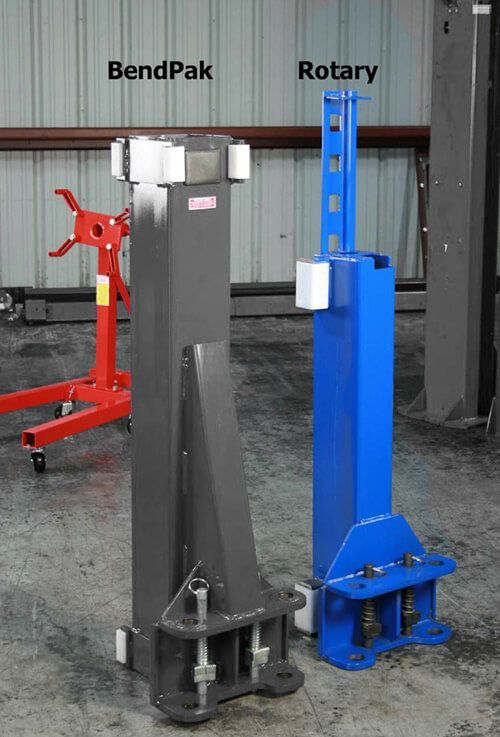

Carriage / Front

Taller lift carriages reduce column stress and increase the lift's lifespan.

BendPak Carriage

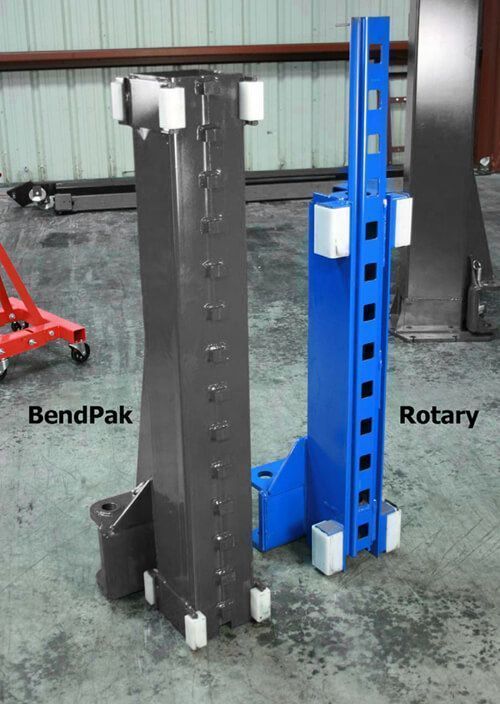

Carriage / Rear

BendPak locks are built into the full carriage, not included as a less stable extension piece.

Rotary Carriage

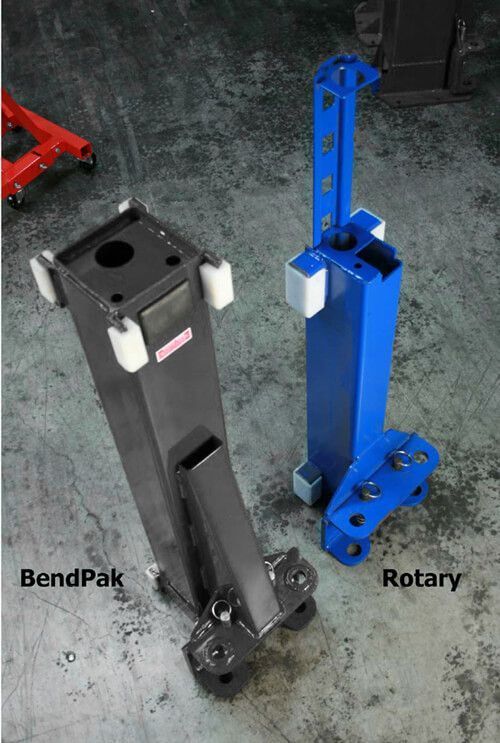

Carriage / Top View

Top view of BendPak's taller lift carriage.

BendPak Slide Blocks

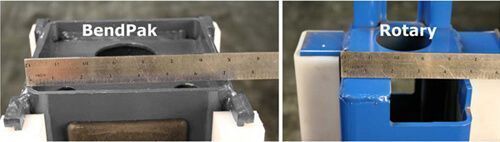

Carriage / Top Dimensions

Wider carriage dimensions on BendPak.

BendPak Carriage Dimensions

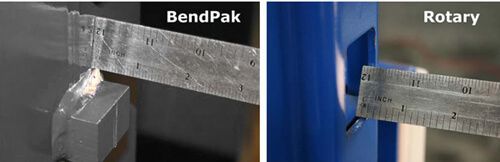

Carriage / Safety Lock Thickness

BendPak safety locks are significantly thicker and better-built.

BendPak Safety Locks

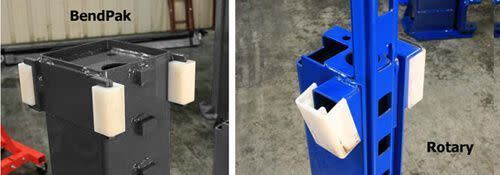

Carriage / UHMW Slide Blocks

More slide blocks, more reliable design.

Rotary Slide Blocks

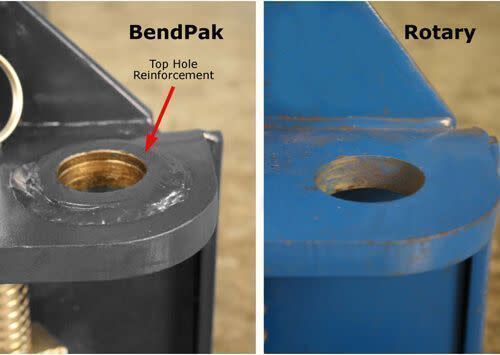

Carriage / Pin Hole Location

Reinforced top at carriage's pin hole location

BendPak Pin Hole Location

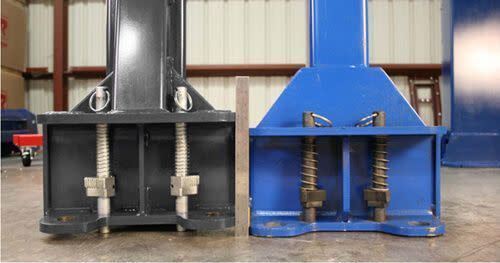

Carriage / Arm Attachment Location

Taller arm attachments.

Arm Attachment Location

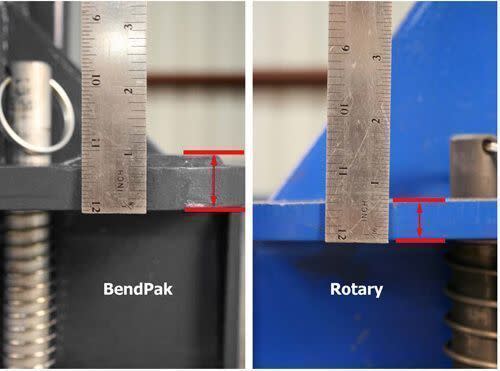

Carriage / Top Plate Thickness

Thicker top plates on the lift carriage.

Top Plate Carriage Thickness

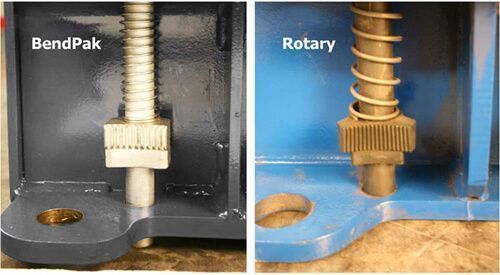

Carriage / Arm Restraints

Taller, more tightly designed restraints within carriage,

BendPak Arm Restraints

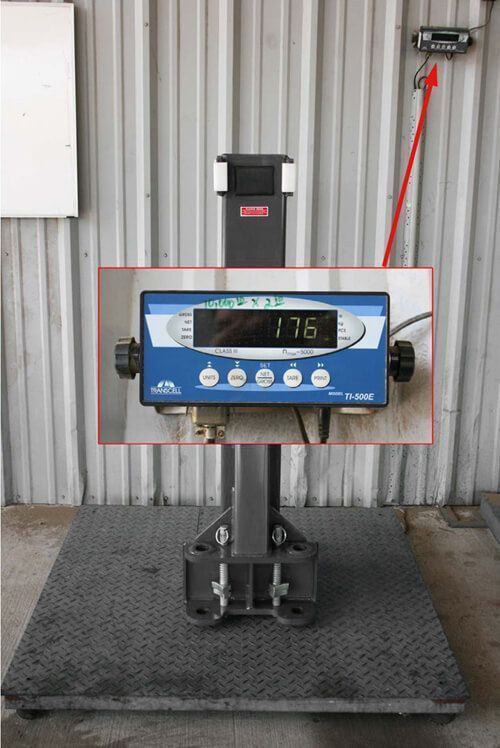

Carriage / BendPak® on Scale

BendPak lifts feature heavier-duty lift carriages.

BendPak Carriage Weight

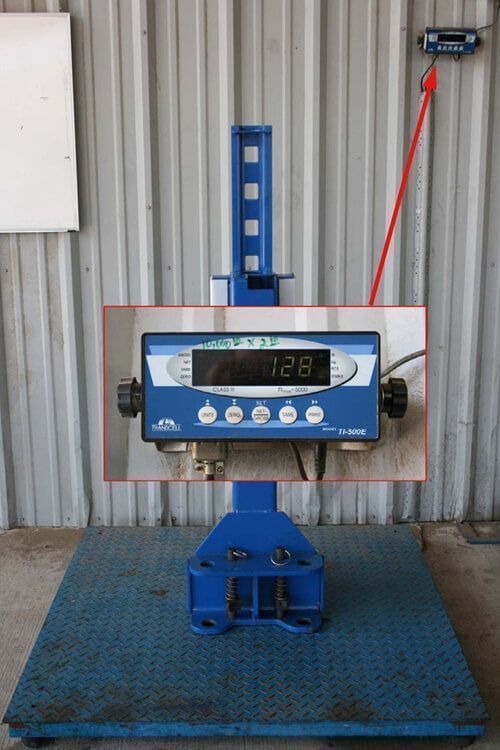

Carriage / Rotary® on Scale

Rotary's smaller, less heavy-duty carriage

Rotary Carriage Weight

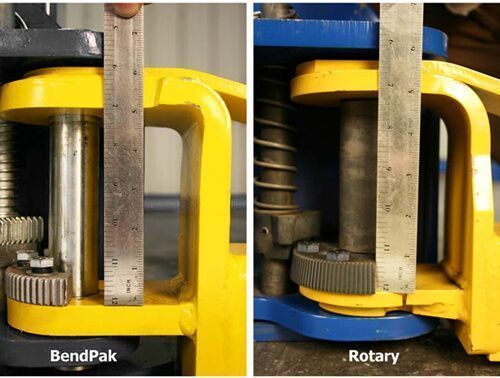

Arms / Side Detail

BendPak displays a more robust arm design from the side.

BendPak Lift Arms

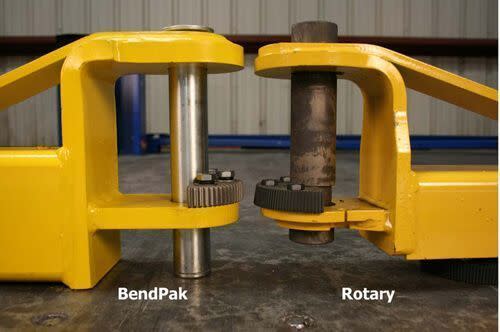

Arms / Side Detail

Sturdier arm restraints with longer locking pin.

Rotary Lift Arms

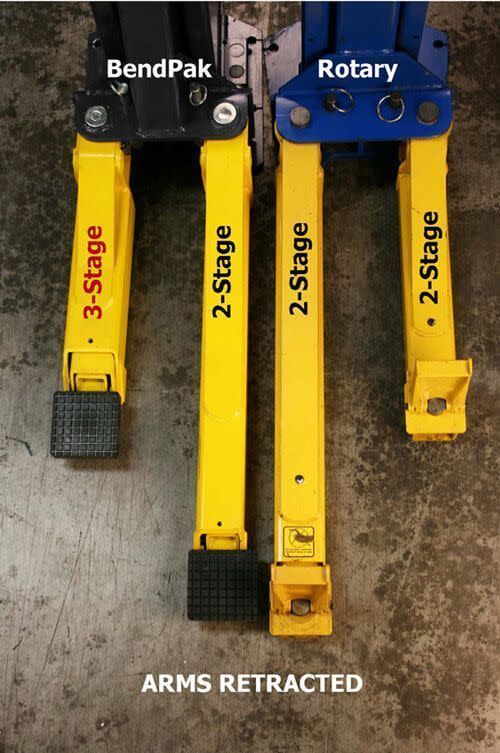

Arms / Reach / Retracted

Retracted arm comparison.

BendPak Arm Reach

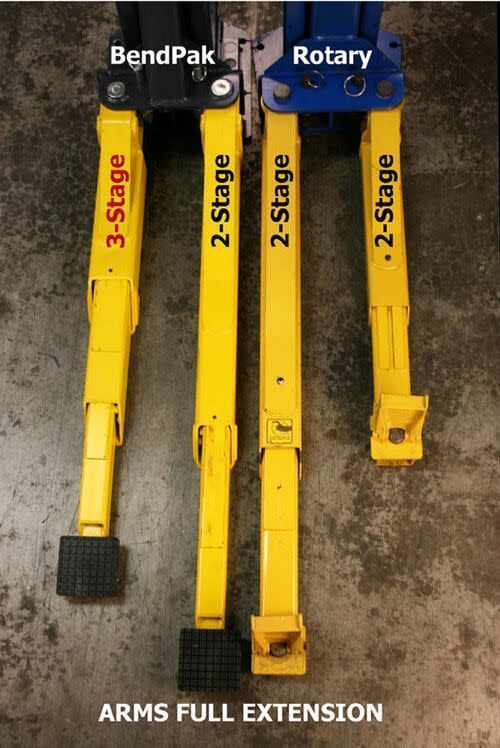

Arms / Reach / Extended

More reach with BendPak with arms fully extended.

Rotary Arm Reach

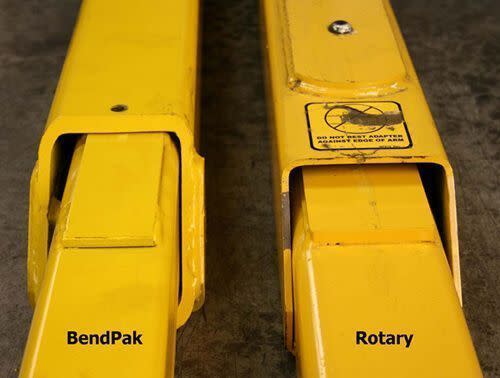

Arms / Construction

Difference in thickness of arm construction.

BendPak Arm Construction

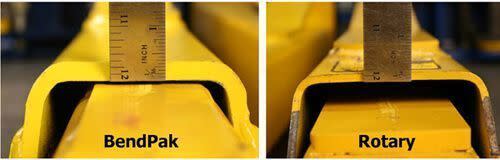

Arms / Construction / Thickness

Thicker steel in each stage of telescoping arm to improve longevity.

BendPak Arm Thickness

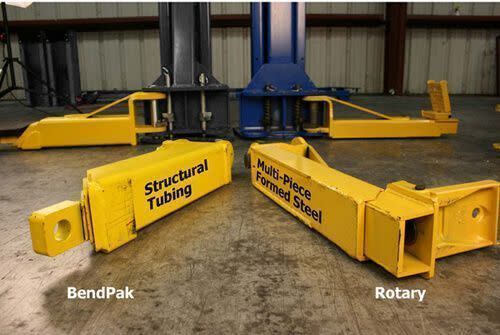

Arms / Construction / Method

BendPak uses superior structural tubing vs. Rotary's multi-piece formed steel.

Construction Method

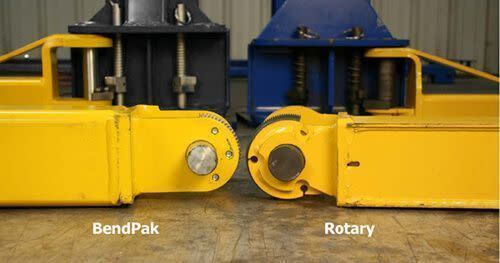

Arms / Construction / Underside

Great view of BendPak's overall arm construction compared to Rotary.

Underside Lift Arm Construction

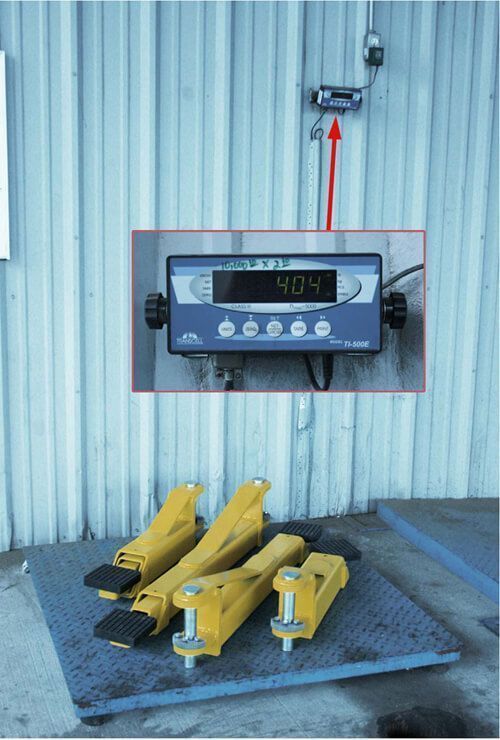

Arms Set / BendPak® on Scale

Arms that are made to last.

Weight of BendPak Arm Set

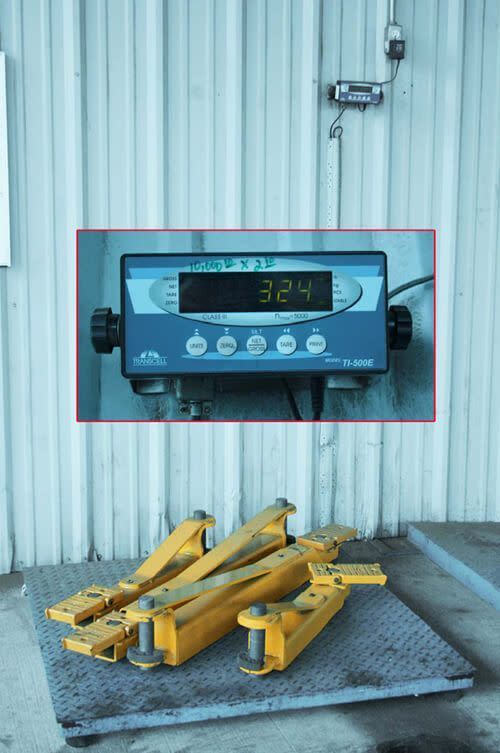

Arms Set / Rotary® on Scale

Smaller and lighter in build than BendPak

Weight of Rotary Arm Set

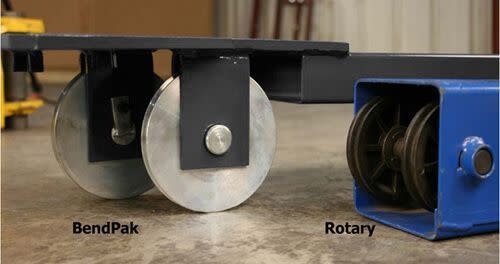

Top Beam / Sheave Detail

BendPak offers oversized sheaves to last longer and cost less over time.

BendPak Top Beam Detail

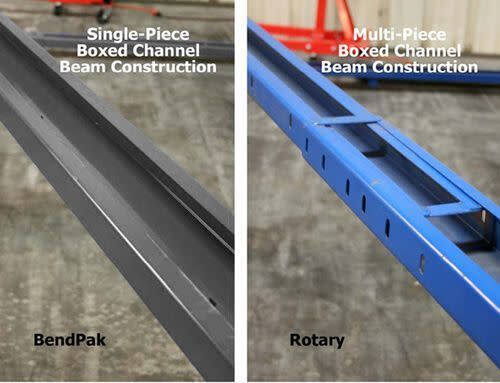

Top Beam / Beam Construction

BendPak single-piece boxed channel beam construction vs. Rotary multi-piece construction.

Rotary Top Beam Construction

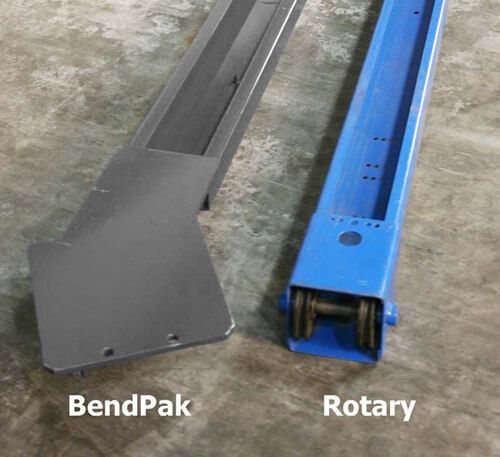

Top Beam / Top View

Wider, improved top beam construction with BendPak.

Top Beam Two Post Lift

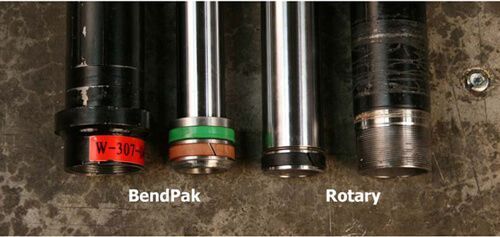

Hydraulic Cylinder / Rod End

Throttle valve opens to 100% max pump flow during lift rise, then close and reduce flow during descent.

BendPak Cylinder

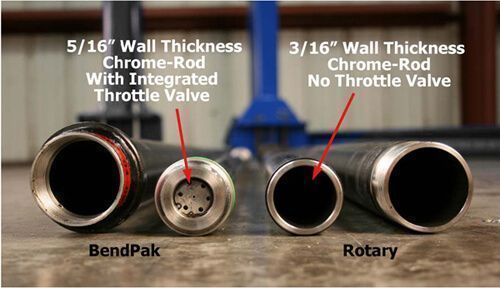

Hydraulic Cylinder / Thickness

BendPak hydraulic cylinder offers 5/16" wall thickness with an integrated throttle valve vs. Rotary's 3/16" wall thickness with no throttle valve.

Rotary Cylinder Thickness

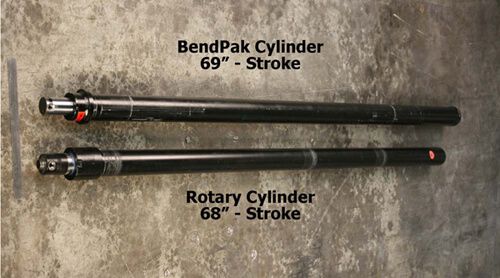

Hydraulic Cylinder / Full View

The comparable BendPak cylinder offers offers a full extra inch of stroke.

Rotary BendPak Cylinder Comparison

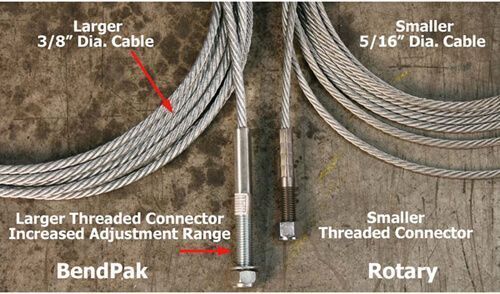

Equalizer Cables

BendPak uses larger 3/8" diameter cables (compared against Rotary's smaller 5/16" cable), as well as a larger threaded connector with an increased adjustment range.

Two Post Lift Equalizer Cables

Cable Sheaves

Massive cable sheaves reduce wear on all moving components and result in a lower cost of ownership.

Two Post Lift Cable Sheaves

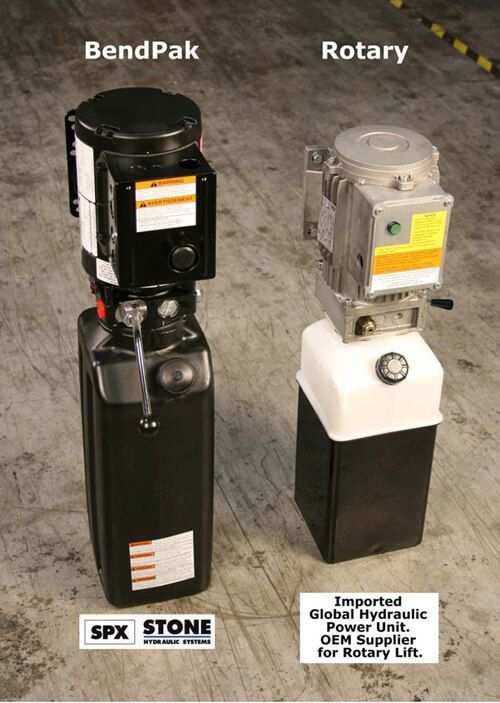

Power Unit

Superior electric-hydraulic power units with BendPak.

BendPak Power Unit

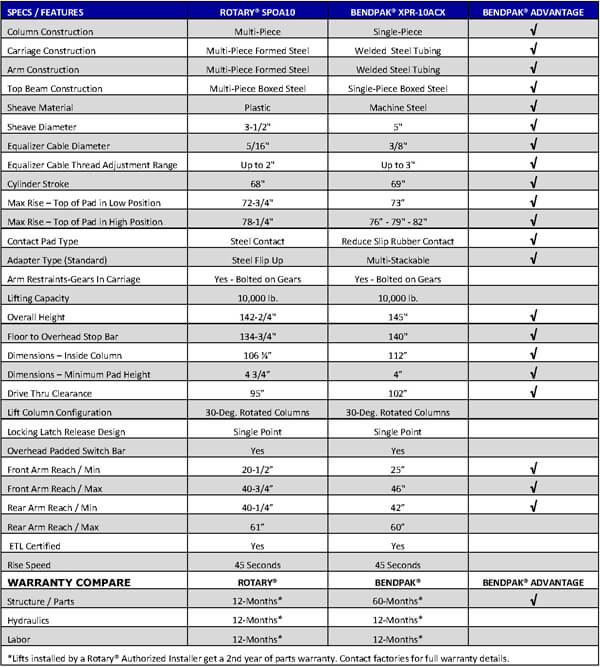

Features-Specifications Comparison

Compare BendPak car lift features and specs to Rotary.

Features and Specifications Comparison

2-Post Lift

2-Post Lifts

BendPak Two-Post Lifts

BP Two-Post Lift

Classics on a Car Lift

Two-Post Lifts for Dealerships

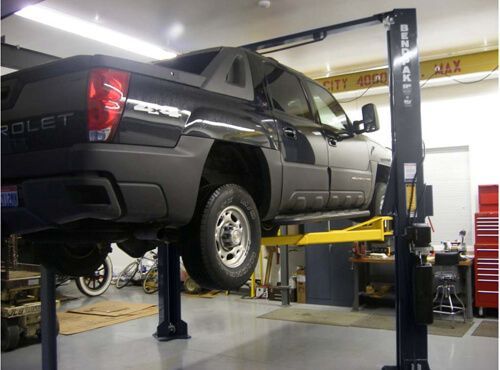

Garage Lift

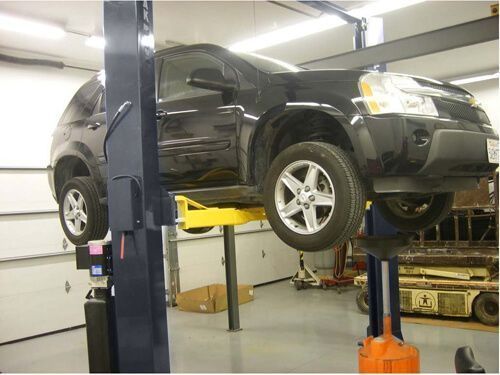

Home garage lift

Jay Leno's Garage

Mini Cooper

SoCal Speed Shop

Truck Two-Post Lift

Two-Post Lift Export

Two-Post Lift Dealer

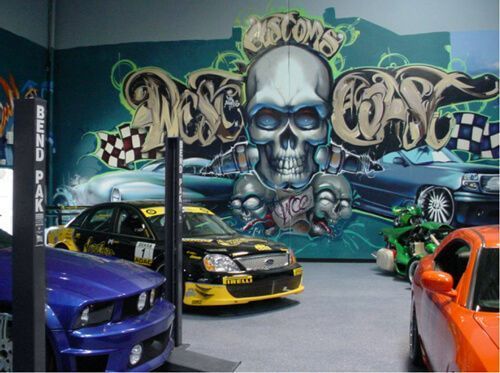

World Famous West Coast Customs
