Two-Post Service Lift / 12,000-lbs. Capacity / 6,000-lbs. Auxiliary Lift-Assist System

BendPak OctaFlex 12DPS Two-Post Car Lift - Auxiliary Lift-Assist Arms
$29,895.00

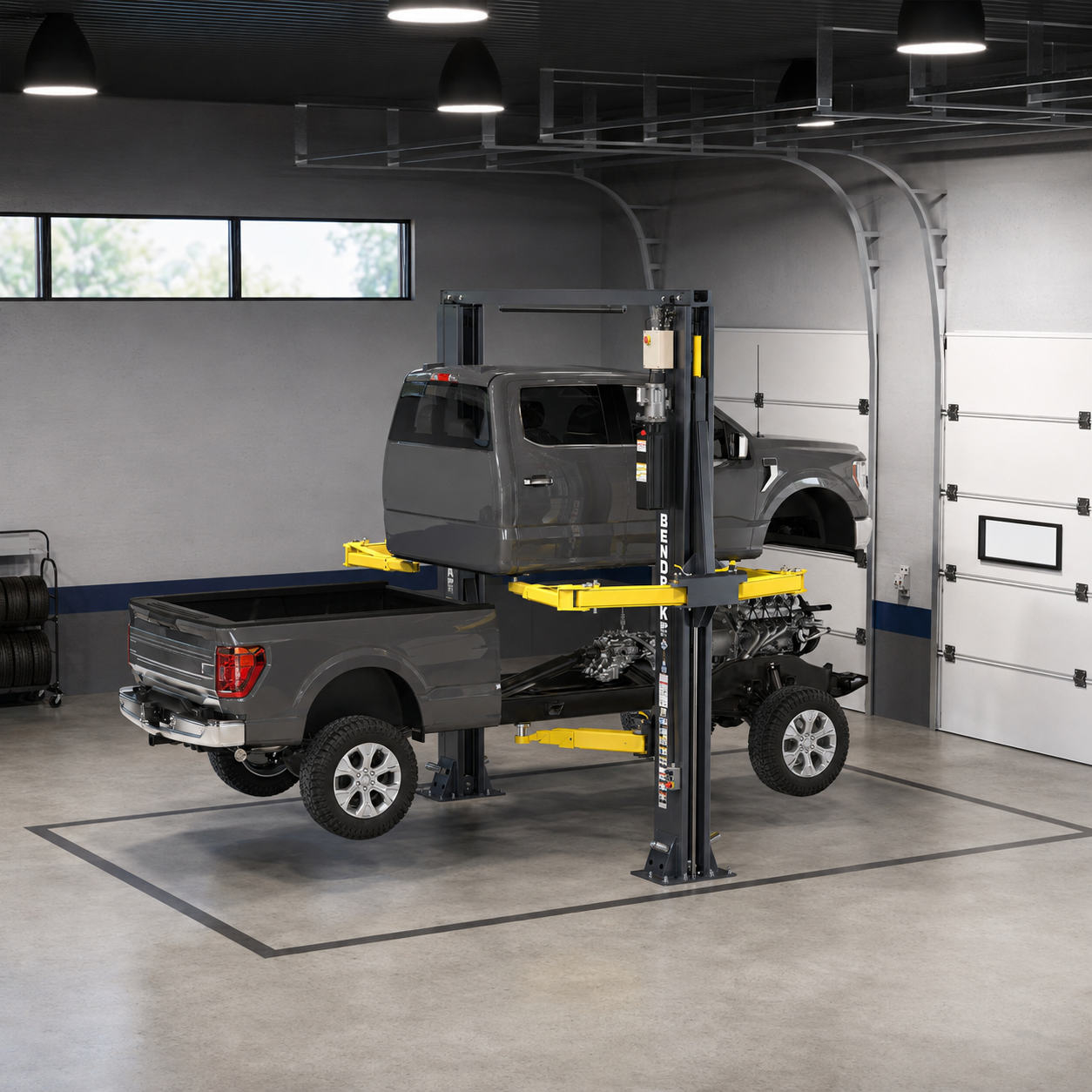

Eight Arms, One Serious Service Advantage

Eight Arms, One Serious Service Advantage

The BendPak OctaFlex 12DPS is a purpose-built two-post service lift for the realities of modern repair work. Electric vehicles require controlled handling of large battery packs, while diesel trucks often demand cab-off service, drivetrain separation, subframe work, and other procedures that involve supporting both the vehicle and major components at the same time. At its core, the OctaFlex combines a 12,000-lb. primary two-post lift with an integrated 6,000-lb. auxiliary lift-assist system. Four primary arms and four auxiliary arms create an eight-arm service platform that helps technicians raise the vehicle while maintaining controlled support of cabs, drivetrains, EV batteries, suspension assemblies, and other heavy components.

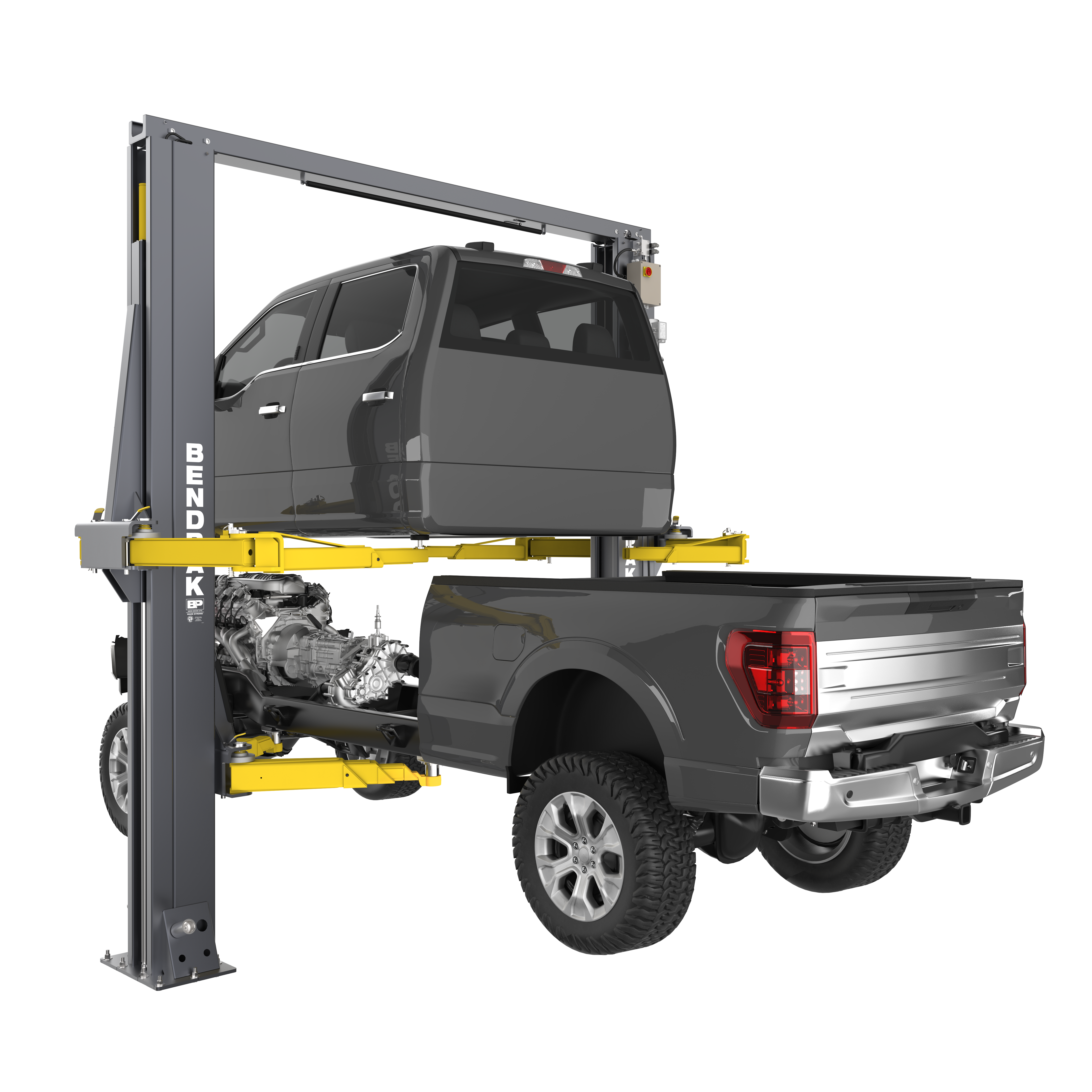

Cab-Off Truck Service and EV Battery Replacement Capability

Cab-off diesel service is one of the clearest reasons to choose the OctaFlex 12DPS. By supporting the vehicle and major assemblies on the same system, technicians can maintain better alignment between the cab, chassis, and drivetrain from disassembly through reassembly. That can reduce repeated adjustments and help difficult jobs come back together more naturally. For EV service, the auxiliary lift-assist system gives technicians a controlled way to support battery packs beneath the vehicle while the primary lift holds the vehicle above. This integrated approach reduces reliance on separate lifting equipment and helps create a more stable, repeatable workflow for high-value, high-complexity repairs.
Cab-Off Truck Service and EV Battery Replacement Capability

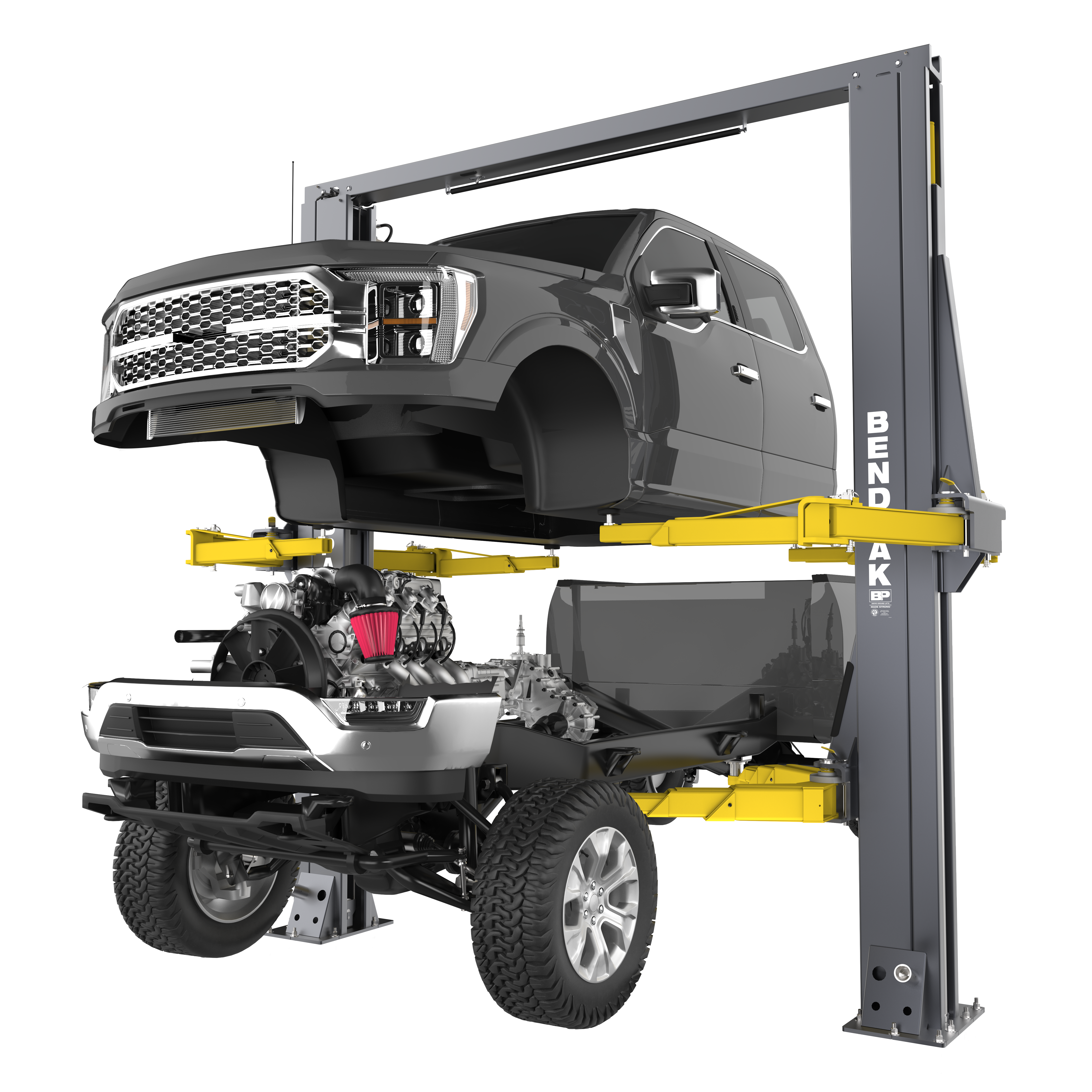

Eight-Arm Platform with Triple-Telescoping Reach

Eight-Arm Platform with Triple-Telescoping Reach

The OctaFlex platform is built around four primary lifting arms and four auxiliary arms that work together as one coordinated service system. Patent-pending triple-telescoping swing arms extend farther and retract shorter than conventional arms, giving technicians more reach and more flexibility when positioning lift points across trucks, SUVs, EVs, and passenger vehicles. Bi-Metric™ arm geometry allows quick adjustment between symmetric and asymmetric configurations, helping shops balance heavier vehicles while maintaining cabin access. This combination of reach, support, and arm layout makes the OctaFlex more than a traditional two-post lift with extra parts bolted on.

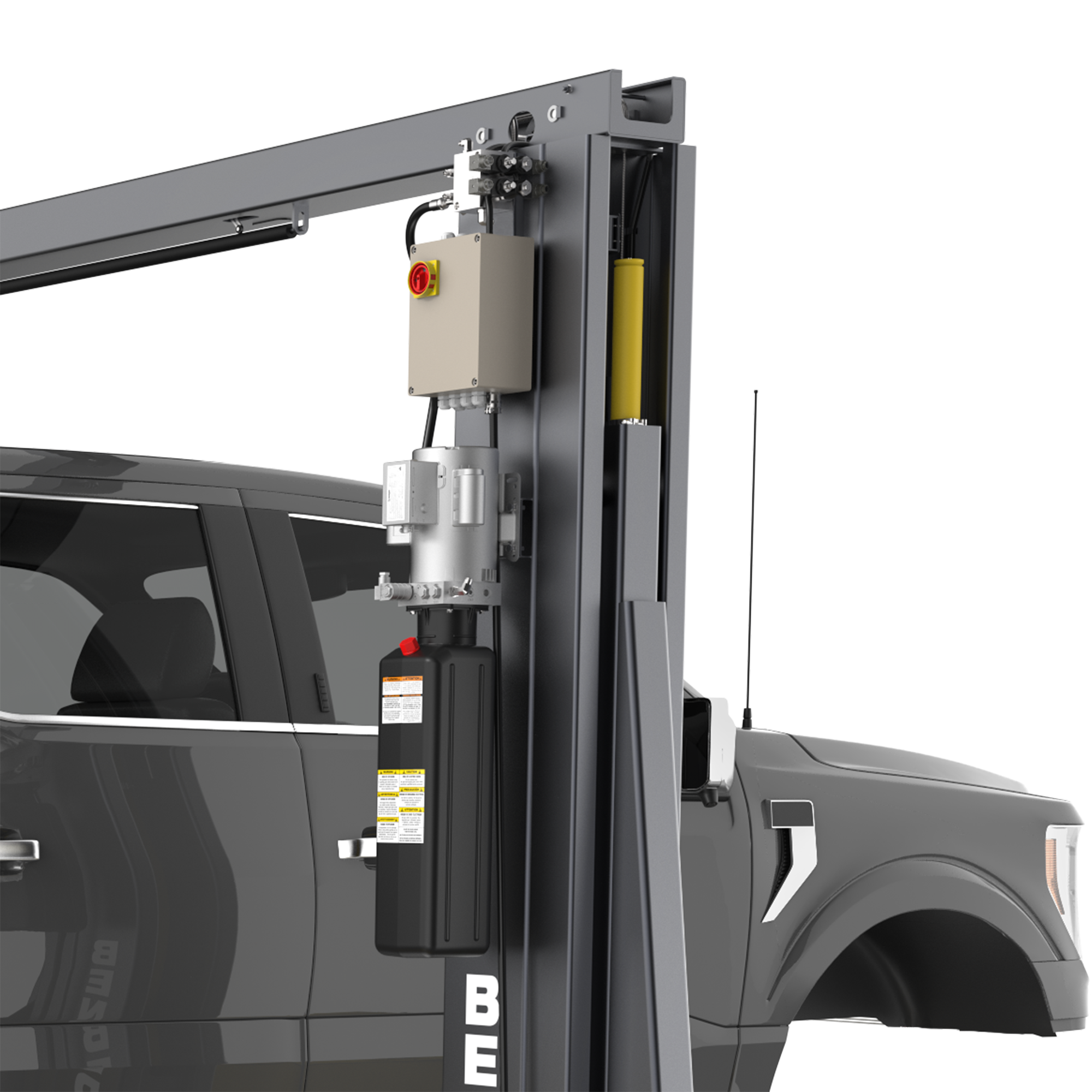

Direct-Drive Hydraulics and Shop-Focused Control

Twin direct-drive hydraulic cylinders eliminate chains and screw lifting mechanisms, delivering smooth lifting performance while reducing maintenance requirements. The high-volume, low-pressure hydraulic system lowers stress on internal components while maintaining consistent lift operation in high-use dealership, fleet, and professional repair environments. A handheld pendant gives technicians precise control of lift operation and safety-lock release during lowering. Clearfloor layout, maintenance-free UHMW load bearings, industrial-grade components, single-piece columns, oversized carriages, and durable finishes help the OctaFlex 12DPS support the increasing complexity of modern vehicle service.
Direct-Drive Hydraulics and Shop-Focused Control
Eight-Arm Service Platform

Eight-Arm Service Platform

Four primary arms and four auxiliary arms support both the vehicle and major components. It is designed for work that traditional two-post lifts do not handle as efficiently.

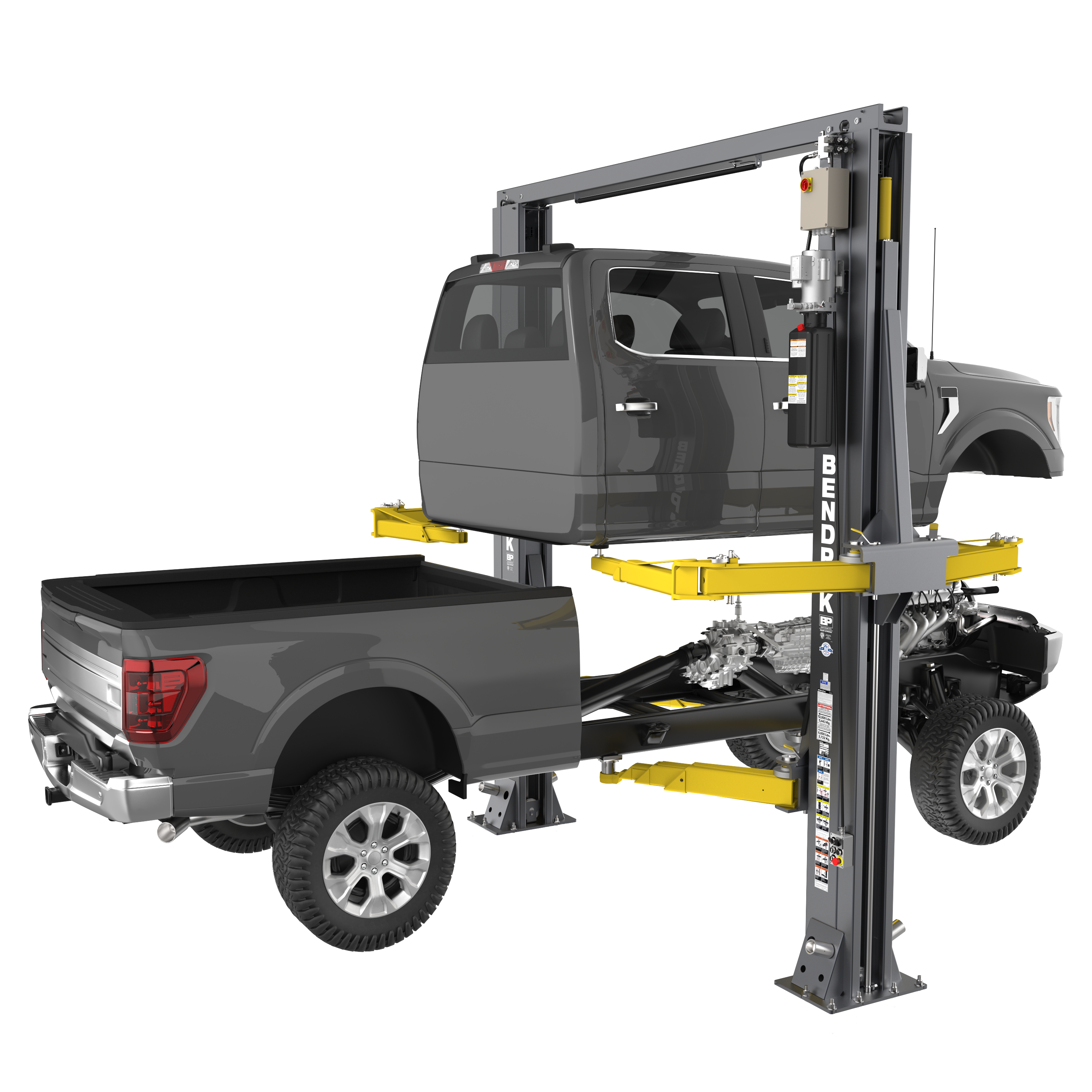

Cab-Off Repair Support

Cab-Off Repair Support

The OctaFlex helps keep the cab, chassis, and drivetrain stabilized during separation. That controlled alignment can reduce time spent repositioning parts during reassembly.

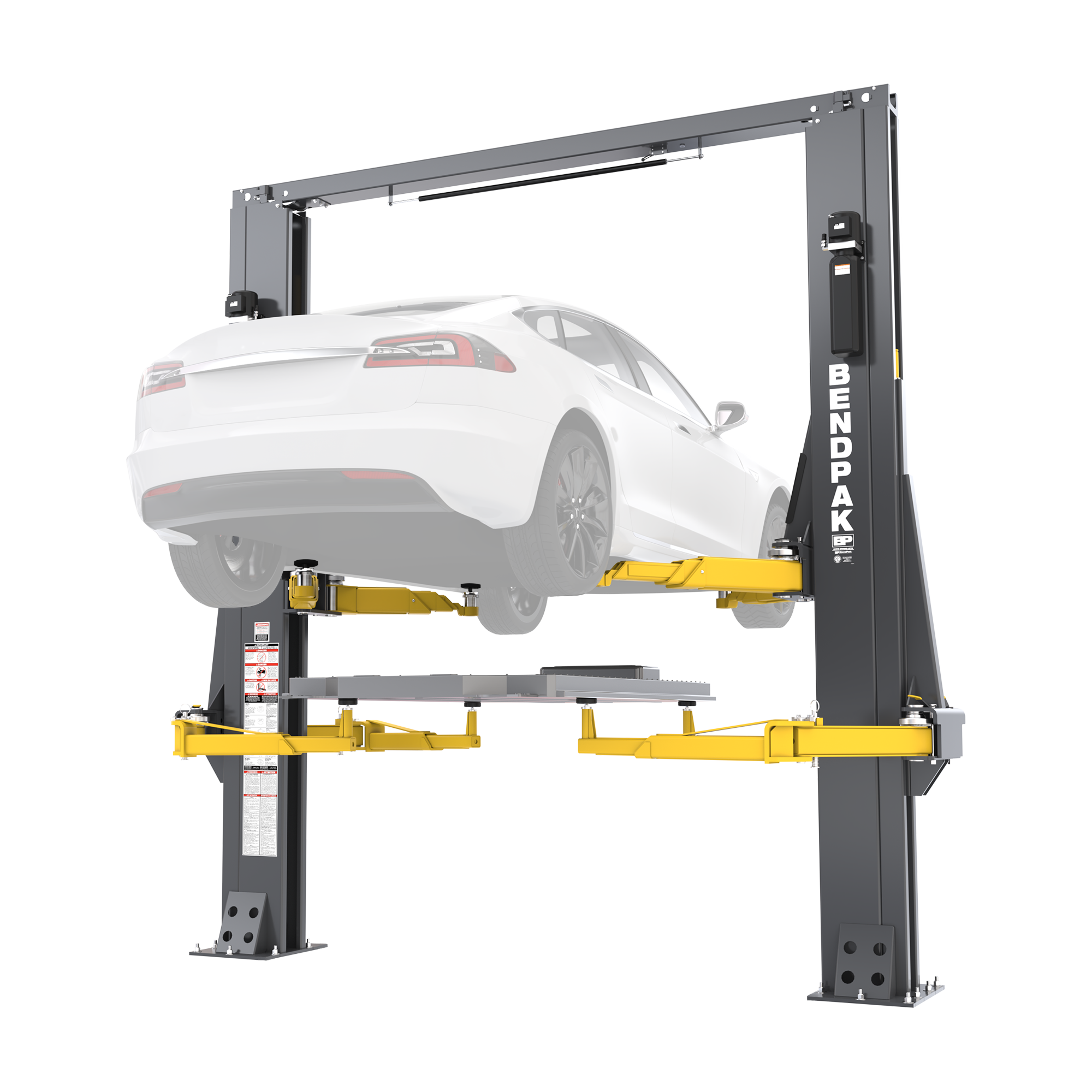

EV Battery Capability

EV Battery Capability

The auxiliary system supports large EV battery packs beneath the vehicle while the primary lift holds the vehicle above. This helps technicians manage battery service with better control.
6,000-lb. Lift Assist

6,000-lb. Lift Assist

The integrated auxiliary lift-assist system provides up to 6,000 lbs. of support for drivetrains, subframes, suspension assemblies, battery packs, and other heavy components.
Triple-Telescoping Arms

Triple-Telescoping Arms

Patent-pending arms extend farther and retract shorter than conventional designs. That added range helps reach more vehicle lifting points with fewer setup compromises.

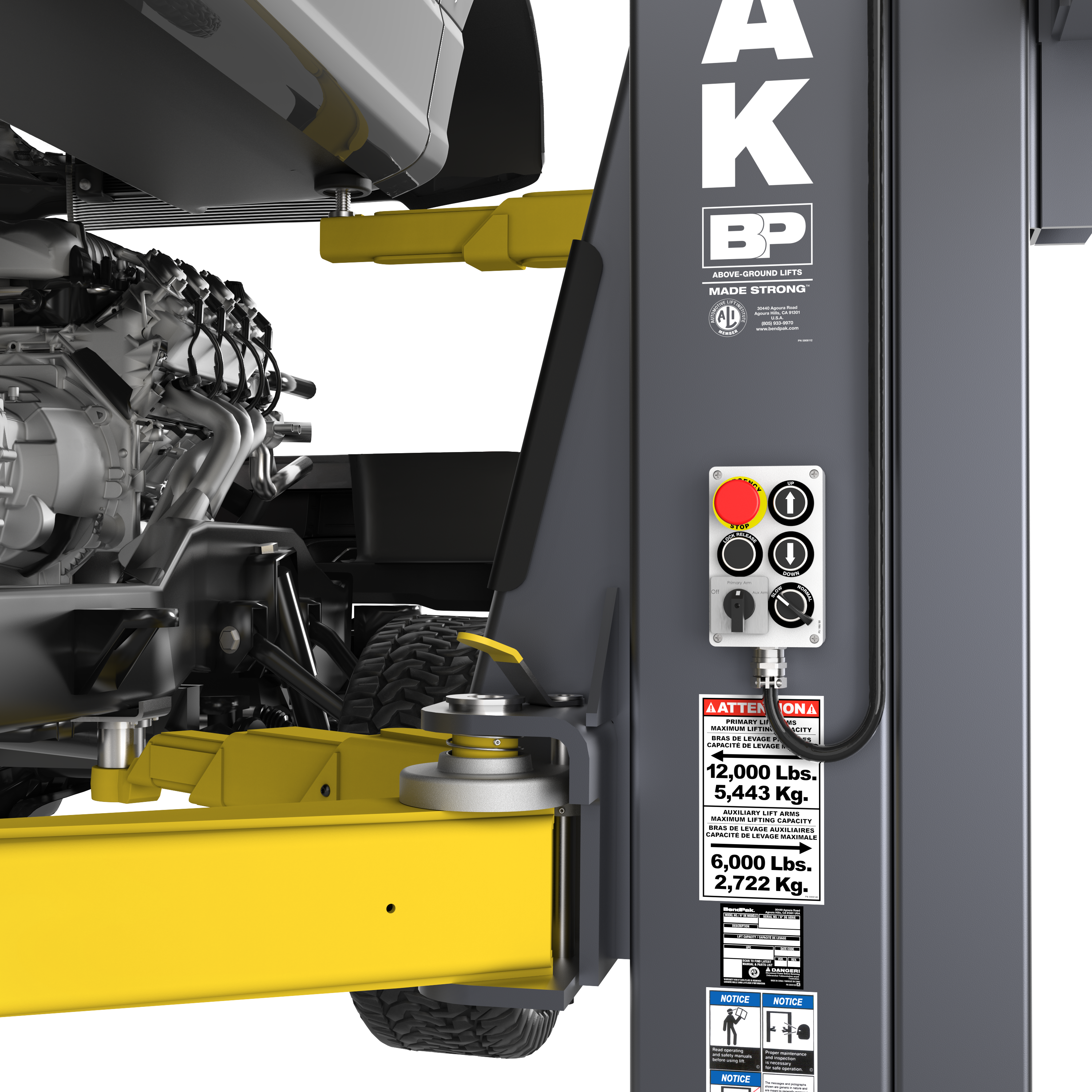

Pendant Control

Pendant Control

A handheld pendant gives technicians precise control over lift movement and safety-lock release. It helps simplify complex service procedures that demand careful positioning.

Recommended Add-ons

Accessories for the BendPak OctaFlex 12DPS Two-Post Car Lift - Auxiliary Lift-Assist Arms

LiteStix LS36SMDX rechargeable underhood work light with 1,200-lumen output
LITESTIX LS36SMDX Rechargeable Underhood Work Light
$126.00
LEARN MORE
Ergochair ERGO-RS Ergonomic Height-Adjustable Creeper Seat
Ergochair ERGO-RS Ergonomic Height-Adjustable Creeper Seat
$700.00
LEARN MORE
Ranger RD-9G Upright Portable Oil Drain - 9-Gallon
Ranger RD-9G Upright Portable Oil Drain - 9-Gallon
$120.00
LEARN MORE
BendPak 60mm pin adapter holder kit for two-post lift accessories
BendPak Adapter Holder Kit for 60mm Pin Adapters - Pair
$80.00
LEARN MORE
BendPak super-wide frame cradle pad with 60 mm pin for secure lift contact.
BendPak Super Wide Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 2
$256.00
LEARN MORE
BendPak 60 mm pin frame cradle pad set for two-post lift vehicle contact points.
BendPak Wide Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 2
$196.00
LEARN MORE
BendPak 60mm frame cradle pads for secure frame engagement on compatible two-post lifts
BendPak Standard Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 4
$270.00
LEARN MORE
BendPak 60 mm pin extra-tall adapters with 240 mm height for vehicle lifting
BendPak Extra Tall Truck and Van Adapters for Two-Post Lifts - 240mm - 60mm Pin - Set of 2
$250.00
LEARN MORE
BendPak 60 mm pin super-tall 190 mm height adapter for vehicle lift contact
BendPak Super Tall Truck and Van Adapters for Two-Post Lifts - 190mm - 60mm Pin - Set of 2
$196.00
LEARN MORE
BendPak 60 mm pin tall adapters with 125 mm height for two-post lifts
BendPak Tall Truck and Van Adapters for Two-Post Lifts - 125mm - 60mm Pin - Set of 4
$206.00
LEARN MORE
BendPak medium 60 mm two-post lift adapters in a set of four.
BendPak Medium Truck and Van Adapters for Two-Post Lifts - 63mm - 60mm Pin - Set of 4
$196.00
LEARN MORE
BendPak 60 mm pin low adapter set of four with 56 mm height
BendPak Low Truck and Van Adapters for Two-Post Lifts - 56mm - 60mm Pin - Set of 4
$176.00
LEARN MORE
BendPak 60 mm pin telescoping screw pad assembly with Tuf-Pad contact surface
BendPak Telescoping Screw Pads for Two-Post Lifts - 60mm Pin - Set of 4
$376.00
LEARN MORE
BendPak 60 mm pin drop-in lift pad assembly with Tuf-Pad contact surface
BendPak Lift Pad Assemblies for Two-Post Lifts - 60mm Pin - Set of 4
$286.00
LEARN MORE
BendPak 60 mm pin drop-in steel lift pad set of four for heavy-duty lifts
BendPak Steel Lift Pads for Two-Post Lifts - 60mm Pin - Set of 4
$250.00
LEARN MORE
BendPak round polyurethane Tuf-Pad set of four for vehicle lift contact protection
BendPak Round Polyurethane Tuf-Pads for Two-Post Lifts - Set of 4
$80.00
LEARN MORE
BendPak slip-over square rubber pads set of four for lift arm contact protection
BendPak Square Polyurethane Lift Pads for Two-Post Lifts - Set of 4
$126.00
LEARN MORE
BendPak slip-over round pinch weld pucks set of four for vehicle lift points
BendPak Round Pinch Weld Pucks for Two-Post Lifts - Set of 4
$180.00
LEARN MORE
BendPak slip-over round pinch weld pads set of four for car lift adapters
BendPak Round Pinch Weld Pads for Two-Post Lifts - Set of 4
$166.00
LEARN MORE
BendPak wheel spotting dish kit for accurate vehicle positioning
BendPak Wheel Spotting Dish Kit
$96.00
LEARN MORE
BendPak MLS-18 Mobile Jack Stand - 18,000-lbs. Capacity
BendPak MLS-18 Mobile Jack Stand - 18,000-lbs. Capacity
$1,325.00
LEARN MORE
BendPak WSA-100 air electric work station for compatible lift models
BendPak WSA-100 Air-Electric Workstation
$416.00
LEARN MORE
Ranger RWS-200WL portable electric wheel lift with 200-lb. capacity for tire service.
Ranger RWS-200WL Off-Center High-Speed Tire and Wheel Lift
$1,500.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
12000 lb
Max Capacity Per Arm
3000 lb

Rise

A Rise
76 in
C Max Lifting Height with Pad
86.75 in
D Min Lifting Height with Pad
4.25 in
Lifting Time
45 seconds

Outside Dimensions

E Height
173.5 in

Inside Dimensions

H Inside Columns
119.75 in
I Drive-Thru Clearance
102.75 in
J Floor to Overhead Switch
166.25 in

Arms and Pads

K Front Arm Reach Min
26 in
K Front Arm Reach Max
55.25 in
L Rear Arm Reach Min
29.25 in
L Rear Arm Reach Max
60 in
Screw Pad Adjustment
1.5 in

Power Unit and Voltage

Horsepower
5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
< 70 dB

Shipping and Delivery

Shipping Dimensions
31 x 186 x 37 in
Shipping Weight
4168 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
