BendPak HDSO14AX Open-Front Alignment Lift - 14,000-lbs. Capacity
$13,600.00$14,395.00SAVE $795

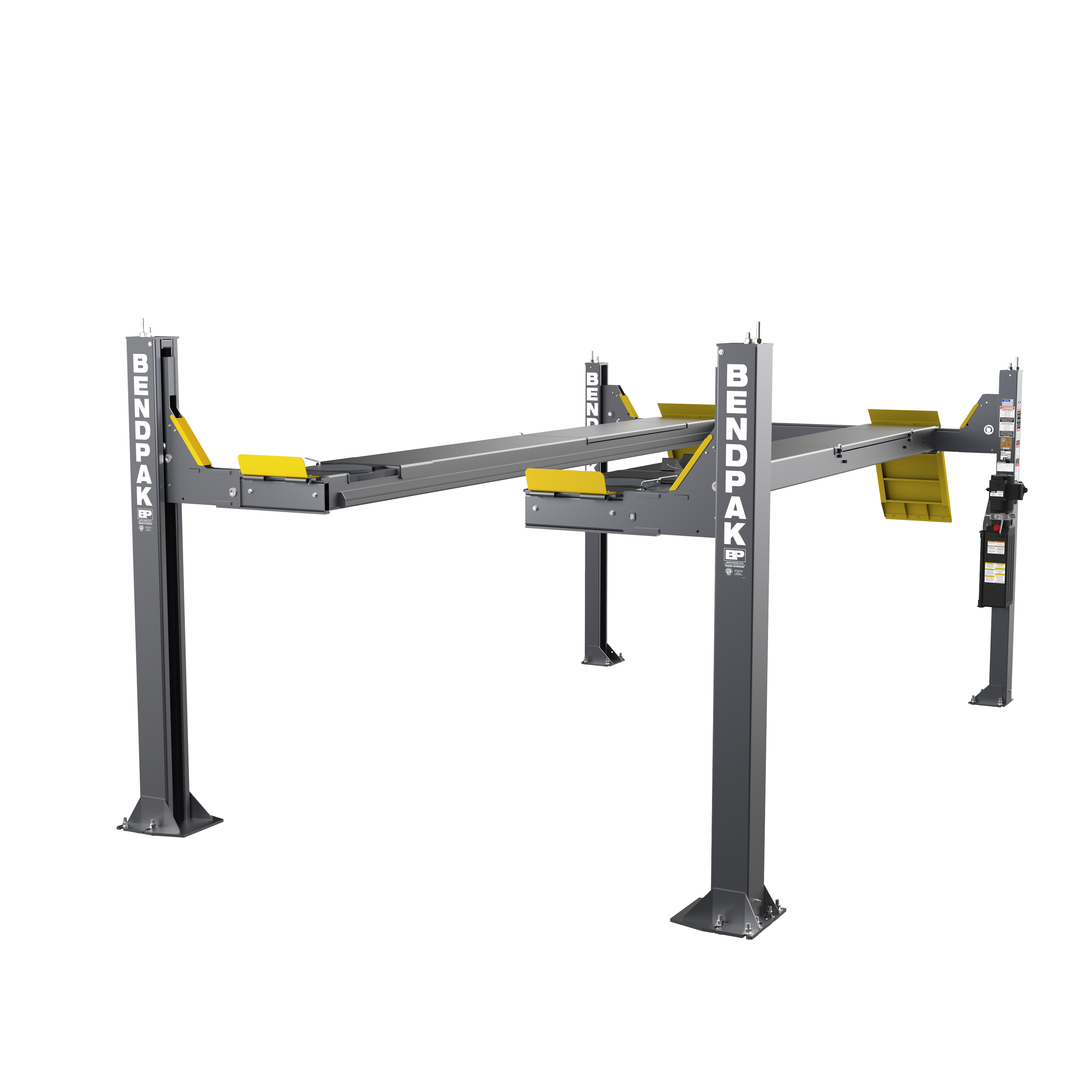

Open-Front Alignment Access Without the Front-End Fight

Open-Front Alignment Access Without the Front-End Fight

The BendPak HDSO14AX Open-Front Alignment Lift is built for shops that want heavy-duty alignment capability without a front crossbar blocking the work area. With 14,000-lb. lifting capacity, extended alignment runways, front turn plates, and rear multi-caster slip plates, this open-front four-post lift gives technicians the access and precision needed for serious alignment and front-end service. The open-front design makes it easier to enter and exit beneath the vehicle, helping speed up front-end adjustment, steering work, suspension inspection, and alignment setup. For busy alignment bays, that difference is not subtle. It is the kind of access advantage technicians notice immediately.

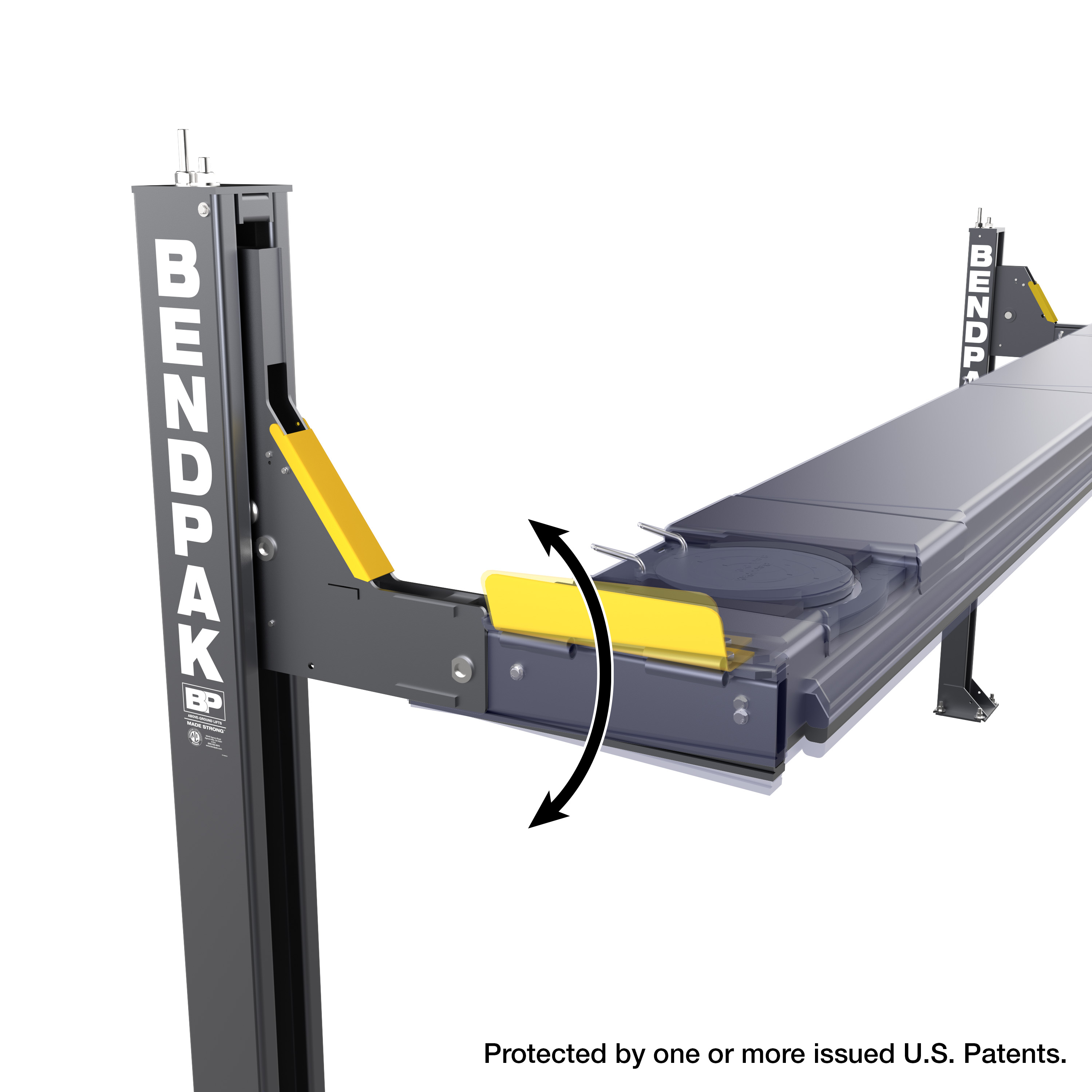

Patented Outriggers and Free-Floating Alignment Hardware

Patented Outriggers and Free-Floating Alignment Hardware

The HDSO14AX uses patented adjustable front outrigger tubes that help fine-tune front-lift leveling. Their infinitely adjustable pitch can compensate for heavier loads and sloped floors, which is especially valuable when alignment accuracy and runway position matter. Rear-facing multi-caster slip plates and front-facing turn plates support precise, free-floating alignment work. Two recessed turn plate pockets allow technicians to position galvanized, corrosion-resistant turn plates as needed, while runways adjust for different tread widths and include rail kits for optional accessories.

Oversized Sheaves, Aircraft Cables, and Built-In Lubrication

BendPak equips the HDSO14AX with oversized 10.5-inch cable sheaves, 2.25-inch sheave axles, and four heavy-duty 1/2-inch, 6 x 25 aircraft-quality steel lifting cables routed through the columns. These components are built to support years of commercial alignment work while helping reduce cable wear and service demands. Grease fittings help keep the sheaves lubricated and the cable system operating smoothly. The lift structure routes cables, sheaves, airlines, and critical components internally, keeping the system cleaner, better protected, and visually cleaner in the bay.
Oversized Sheaves, Aircraft Cables, and Built-In Lubrication
Auto-Leveling Safety Locks and Push-Button Pneumatic Release

Auto-Leveling Safety Locks and Push-Button Pneumatic Release

The HDSO14AX includes an automatic leveling system, multiple auto-leveling locking positions, and spring-loaded safety locks that engage as the platforms rise. This design helps keep the lift stable and level, even when the shop floor has a slight slope. A push-button pneumatic lock release disengages the locks simultaneously for even platform descent, while a secondary slack-cable lock system helps stop operation if dangerous cable slack is detected. Optional RJ-7 bridge jacks add wheel-service capability, giving this open-front alignment lift the flexibility to support alignments, wheel work, brake service, and suspension jobs.
Open-Front Access

Open-Front Access

No front crossbar gives technicians easier under-vehicle entry for alignment, front-end, steering, and suspension work.

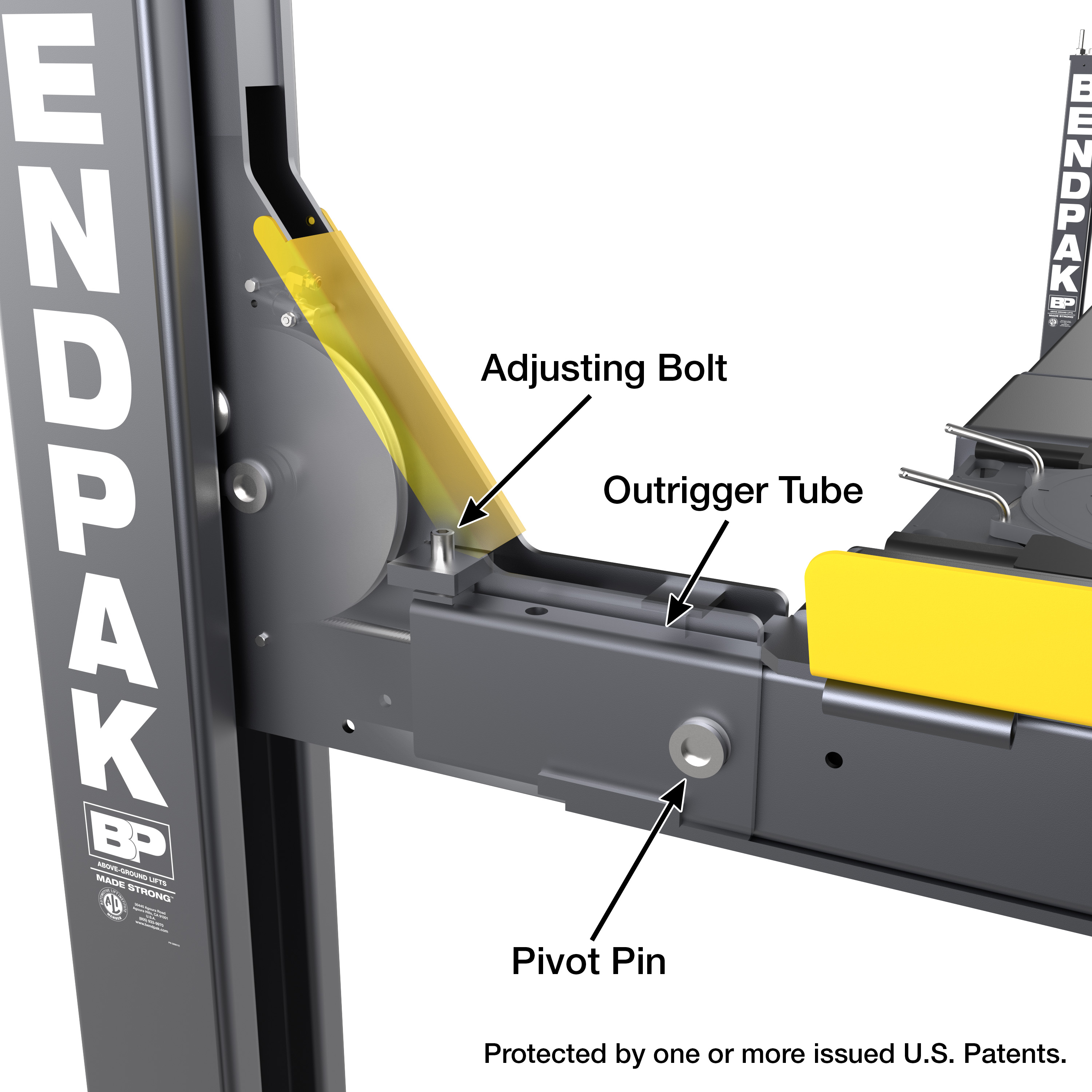

Patented Outriggers

Patented Outriggers

Adjustable front outrigger tubes help fine-tune lift leveling under heavy loads or uneven floor conditions.

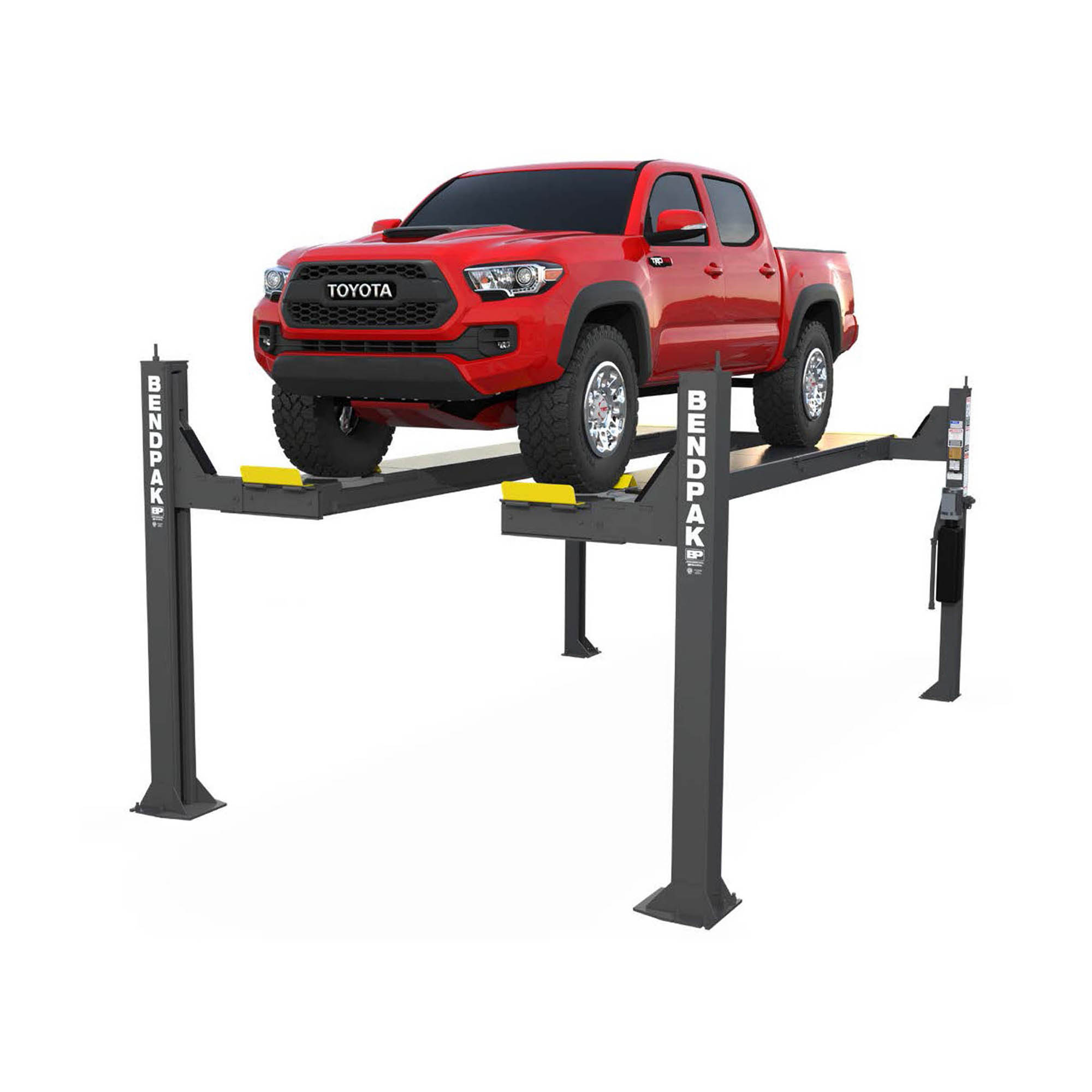

14,000-lb. Capacity

14,000-lb. Capacity

Heavy-duty lifting strength supports demanding alignment work on cars, trucks, SUVs, and commercial service vehicles.

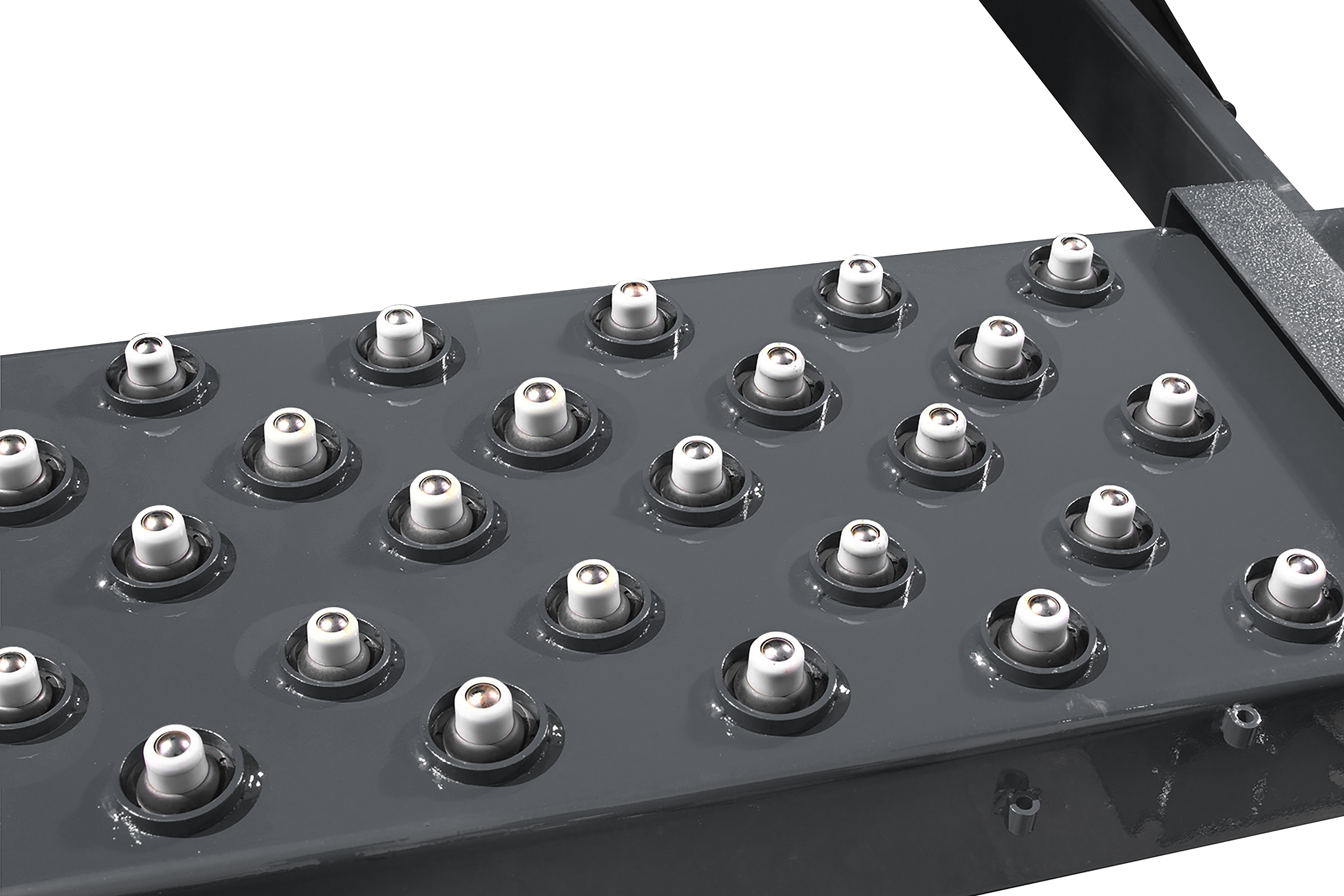

Free-Floating Alignment

Free-Floating Alignment

Front turn plates and rear multi-caster slip plates help wheels move cleanly during alignment adjustments.
Push-Button Release

Push-Button Release

Pneumatic lock release helps all four locks disengage at once for smooth, even lowering.

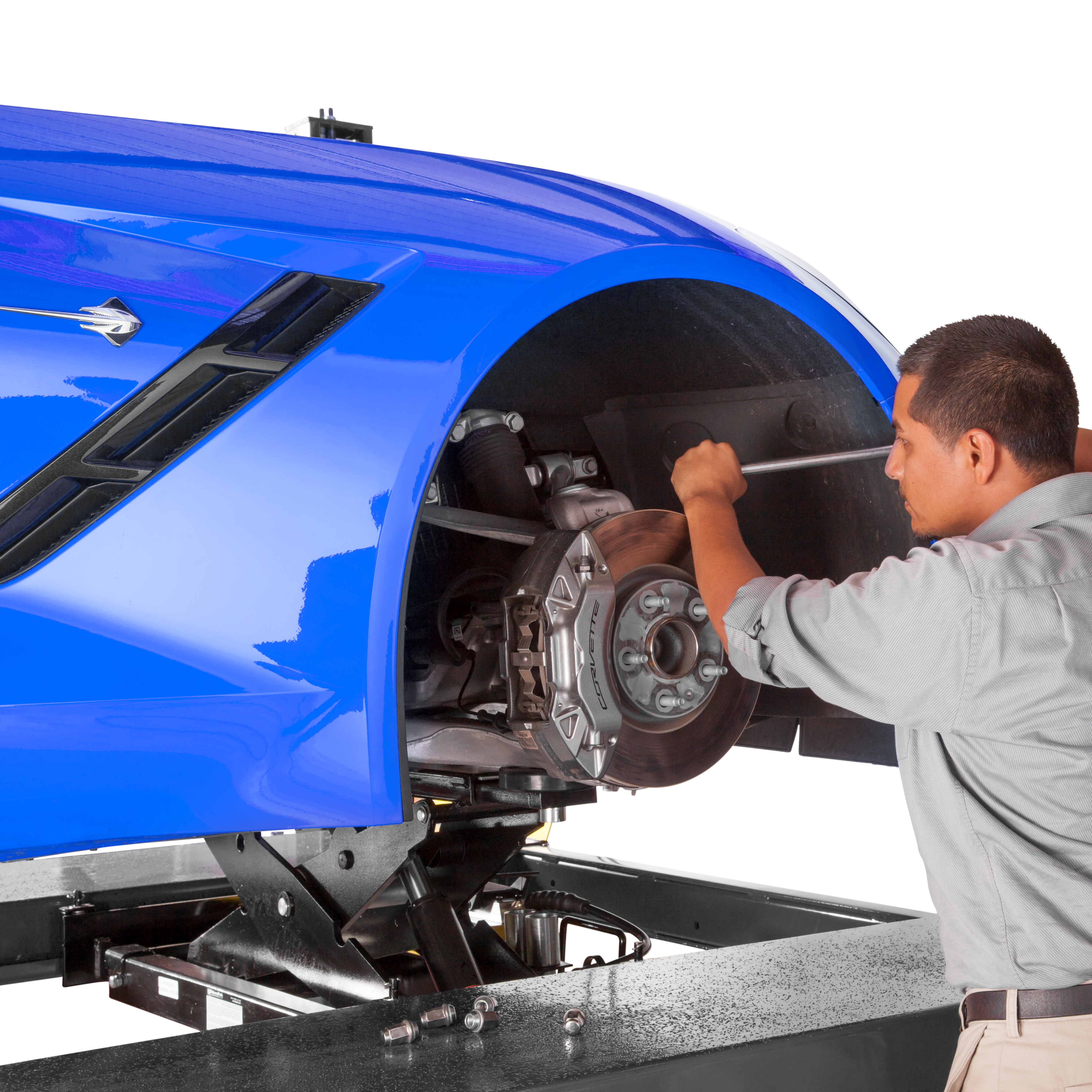

Bridge Jack Compatible

Bridge Jack Compatible

Optional RJ-7 bridge jacks add full wheel-service capability for brake, tire, and suspension jobs.

Specifications

Capacity

Lifting Capacity
14000 lb

Rise

A Min Runway Height
7.75 in
B Max Rise
77.5 in
C Max Lifting Height
70 in

Outside Dimensions

D Width
143.25 - 130 in
E Outside Length
215.5 in
F Length
244.5 in
G Height
103.25 - 92 in

Inside Dimensions

H Inside Columns
123 - 120 in

Runways

J Runway Width
20.5 in
K Runway Length
197.5 in
L Width Between Runways
42 in

Alignment

M Min 4-Wheel Alignment
89 in
N Max 4-Wheel Alignment
156 in
O Max 2-Wheel Alignment
182 in

Minimum Wheelbase

Rated Wheelbase Capacity
140 in
75% Capacity
120 in
50% Capacity
100 in
25% Capacity
80 in

Locking

Locking Positions
15
Locking Spacing
4 in

Power Unit and Voltage

Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
< 70 dB(A)

Shipping and Delivery

Shipping Dimensions
25 x 219 x 48 in
Shipping Weight
3828 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
