BendPak HDS40X Four-Post Lift - 40,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175178
$35,995.00
Financing as low as $756/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 40,000-lbs. Capacity / Extended Length

BendPak HDS40X Four-Post Lift - 40,000-lbs. Capacity
$35,995.00

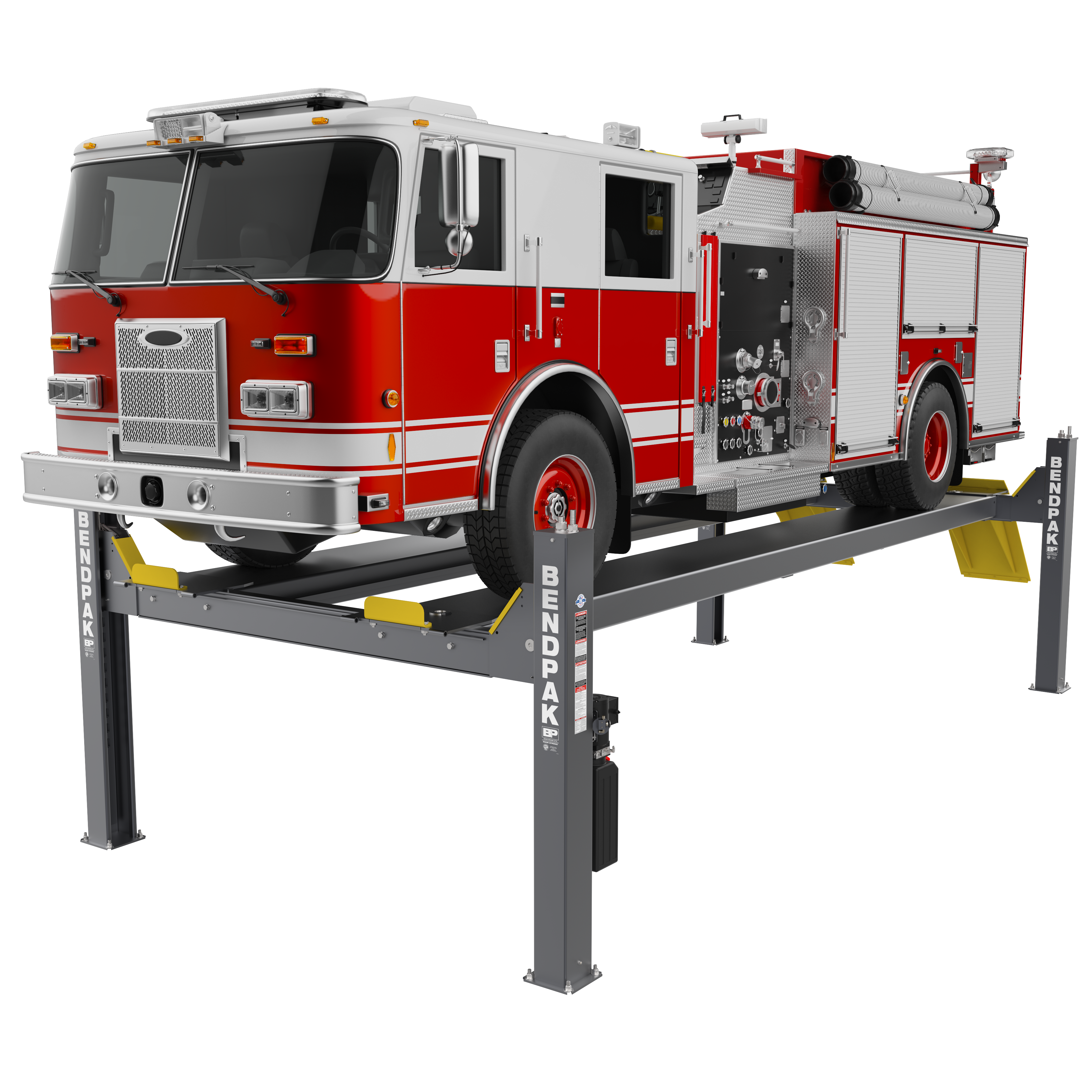

Extended Heavy-Duty Four-Post Capacity for the Longest Loads

Extended Heavy-Duty Four-Post Capacity for the Longest Loads

The BendPak HDS40X Four-Post Lift is the extended-length giant of the heavy-duty lineup, built for shops that need to raise the longest and heaviest vehicles on the road. With 40,000 lbs. of lifting capacity and massive 310-inch runways, this extended four-post lift is made for buses, long commercial trucks, large fleet vehicles, and serious industrial maintenance spaces that need maximum runway length with maximum lifting authority. This is not a casual garage lift with a tough-looking badge. The HDS40X is built for military contractors, government fleets, commercial truck repair operations, and large maintenance facilities that need a real industrial-grade lift. If your bay has the ceiling height, floor space, and workload to match it, the HDS40X gives you the reach and muscle to service vehicles most shops cannot even invite inside.

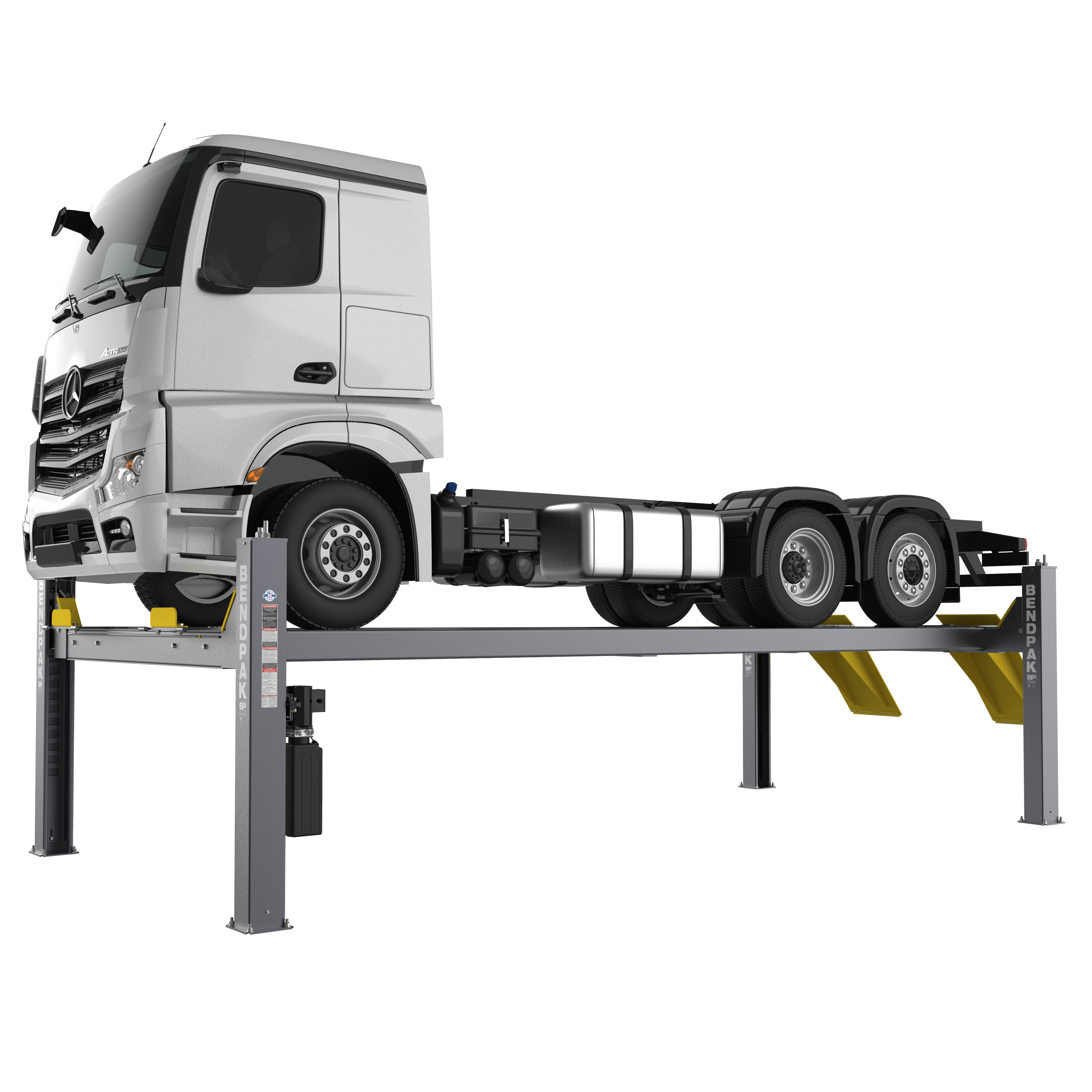

310-Inch Runways for Long Commercial Wheelbases

310-Inch Runways for Long Commercial Wheelbases

The defining advantage of the HDS40X is its extended 310-inch runway length. Those longer runways give super-duty commercial vehicles, buses, and long wheelbase trucks the support they need during loading, lifting, parking, and maintenance. For facilities that service longer vehicles, that added runway length is not a luxury. It is the difference between making the job possible and turning it away. The treaded matte-finish runways help provide tire grip and a durable working surface for high-capacity applications. Combined with BendPak's heavy four-post structure and broad commercial stance, the HDS40X gives technicians a stable platform for long, heavy vehicles that demand more than standard lift dimensions.

40,000-lb. Lifting Hardware Built for Industrial Shops

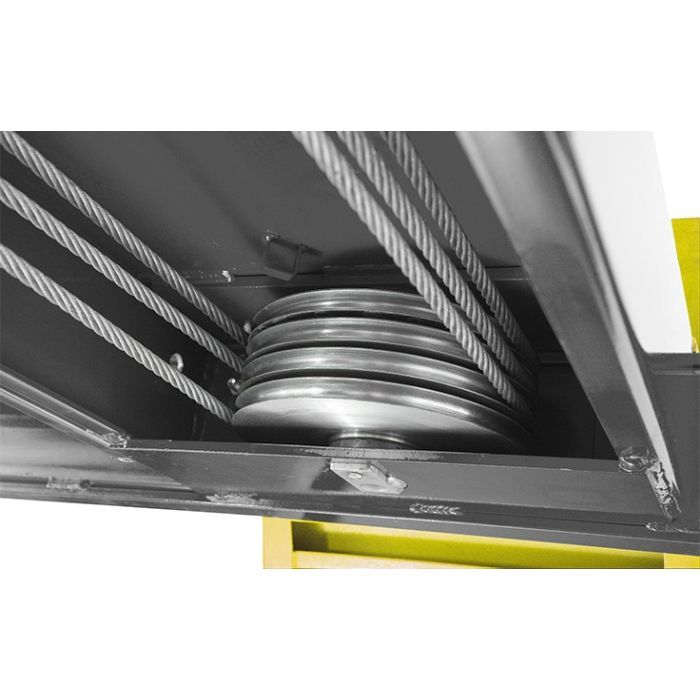

BendPak backs the HDS40X with supersized 12-inch diameter cable sheaves, galvanized lifting cables, grease nipples, a single hydraulic under-runway cylinder, and an integrated flow restrictor. These heavy-duty systems are designed to deliver controlled lifting performance under the kind of loads found in real fleet and commercial service environments. A maintenance-free electric hydraulic power system helps keep operation straightforward, while fully enclosed lifting cables help protect critical lifting components. The HDS40X is engineered for shops that expect their lift to work hard, work often, and not flinch when the next long commercial vehicle rolls into the bay.
40,000-lb. Lifting Hardware Built for Industrial Shops

Safety, Control, and Optional Wheel Service Expansion

The HDS40X includes spring-loaded safety locks, multiple adjustable height locking positions, and a second lock system on constant guard. These safety systems help support secure service at working height, while conveniently positioned operator controls keep daily lift operation practical for commercial technicians. Large 12-inch by 12-inch base plates, durable powder coat, fully enclosed lifting cables, and optional rolling bridge jacks complete the heavy-duty package. For facilities that need the longest BendPak 40K four-post platform, the HDS40X is the big-bay answer with no small-lift excuses.
Safety, Control, and Optional Wheel Service Expansion

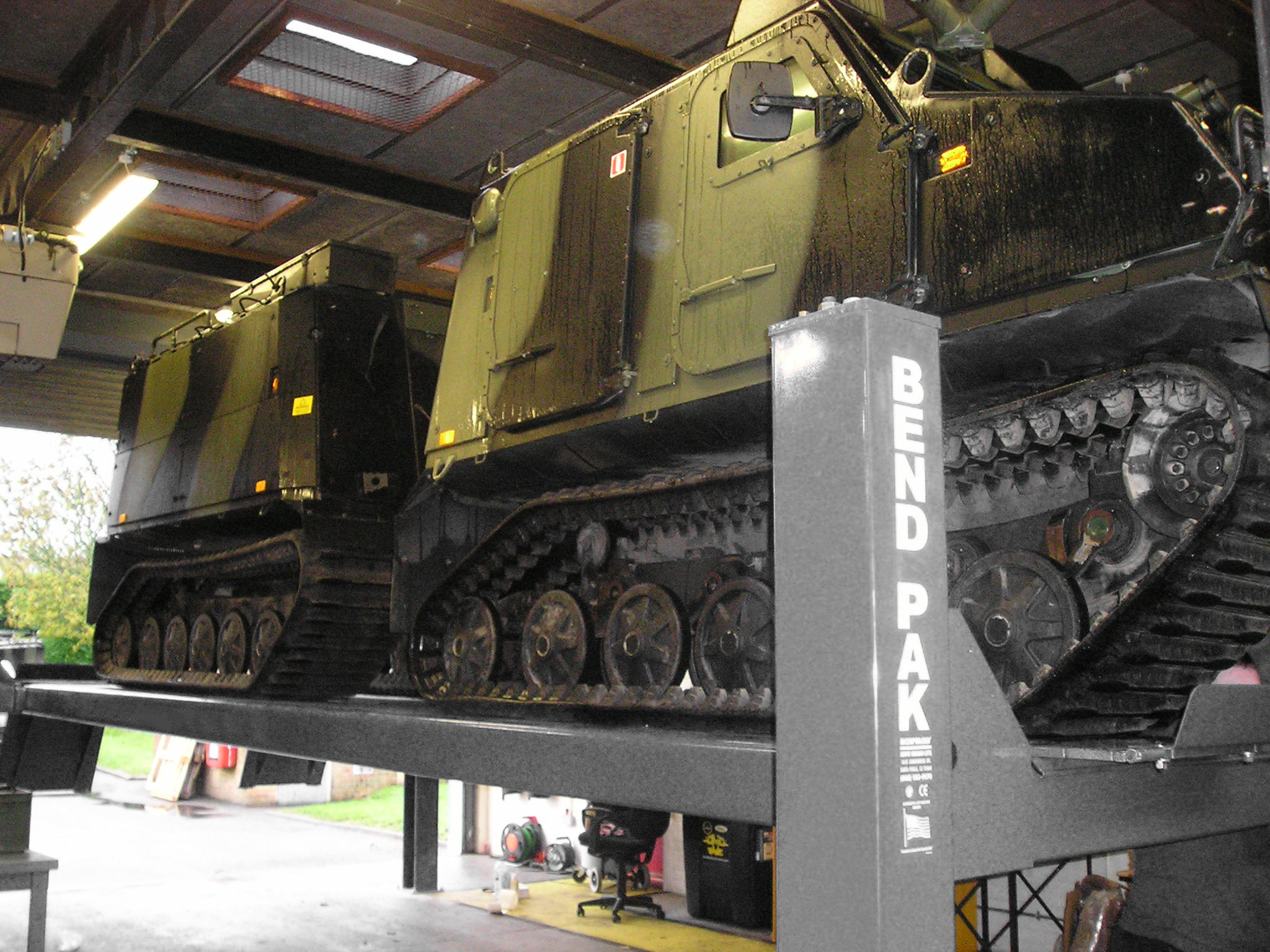

40,000-lb. Capacity

40,000-lb. Capacity

The HDS40X is built for the heaviest vehicles in serious commercial, government, fleet, and industrial maintenance environments.

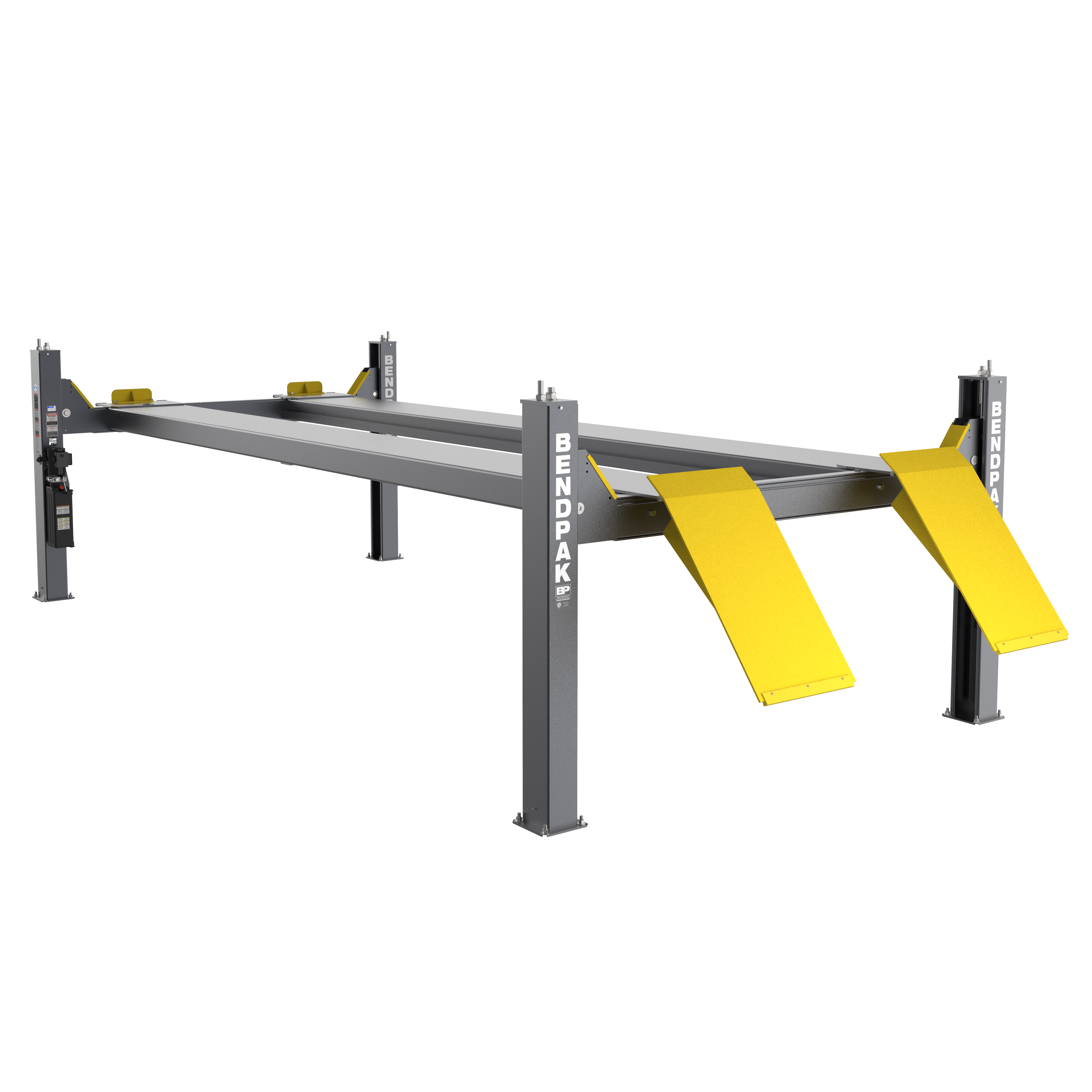

Extended 310-Inch Runways

Extended 310-Inch Runways

Extra-long runways support long wheelbase trucks, buses, and commercial vehicles that standard-length platforms cannot handle comfortably.
Industrial-Grade Lift Hardware

Industrial-Grade Lift Hardware

Supersized sheaves, galvanized cables, enclosed cable routing, and hydraulic power give the HDS40X the backbone needed for 40K service.
Commercial Fleet Ready

Commercial Fleet Ready

This lift is designed for shops that service large trucks, buses, and heavy-duty vehicles as a regular part of the business, not once in a while.

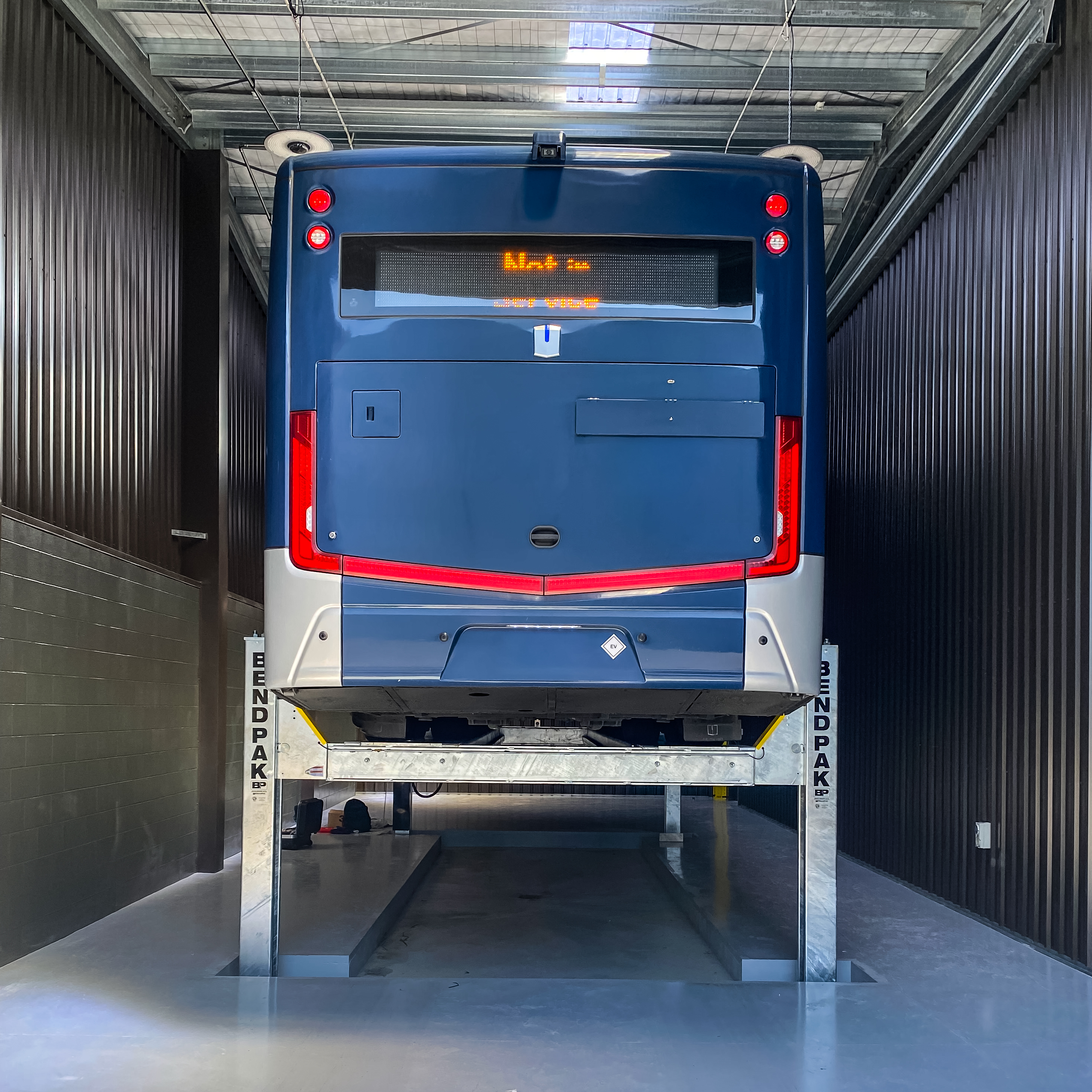

Built-In Safety Locks

Built-In Safety Locks

Spring-loaded safety locks and multiple locking positions help keep raised vehicles secure during heavy-duty service operations.

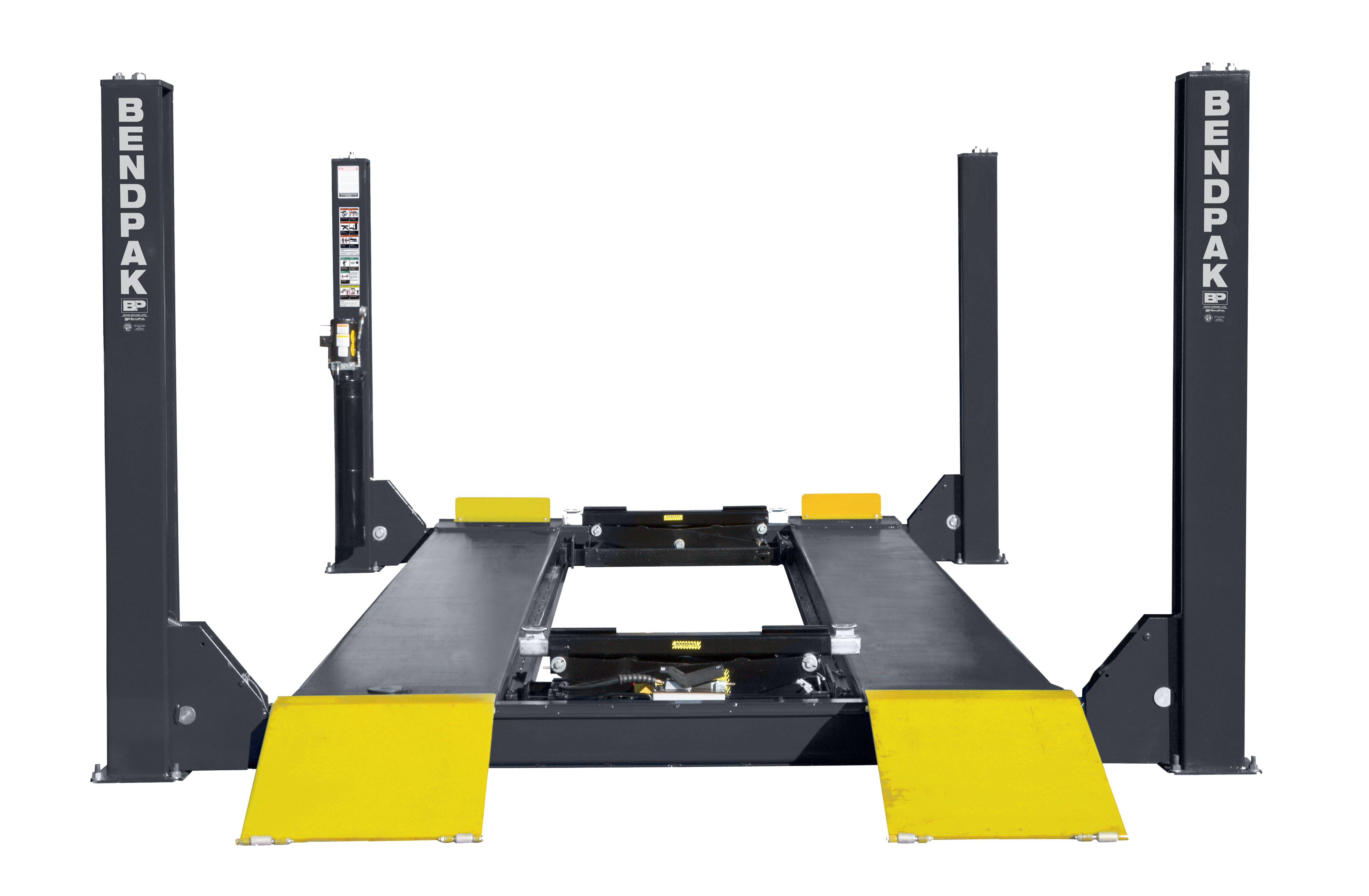

Wheel Service Expansion

Wheel Service Expansion

Optional rolling bridge jacks help turn the HDS40X into a more complete platform for wheel, brake, suspension, and axle work.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
40000 lb

Rise

A Min Runway Height
9.5 in
B Max Rise
60 in
C Max Lifting Height
67 in

Outside Dimensions

D Width
153.5 in
E Outside Length
317 in
F Overall Length
373.75 in
G Height
91.25 in

Inside Dimensions

H Inside Columns
133.5 in
I Drive-Thru Clearance
109 in

Runways

J Runway Width
28 in
K Runway Length
316 in
L Width Between Runways
40.75 in
M Runway Centerline
74 in
N Outside Edge of Runways
102 in

Minimum Wheelbase

Rated Wheelbase Capacity
230 in
25% Capacity
130 in
50% Capacity
165 in
75% Capacity
195 in

Locking

Locking Positions
13
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
34 x 324 x 36 in
Shipping Weight
6748 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
