Four-Post Lift / 40,000-lbs. Capacity / Forklift

BendPak HDS40FL Four-Post Lift - 40,000-lbs. Capacity
$31,095.00
Forklift Service Finally Gets the Four-Post Lift It Deserves

Forklift Service Finally Gets the Four-Post Lift It Deserves

The BendPak HDS40FL Four-Post Lift is purpose-built for forklift service, giving industrial facilities and fleet maintenance teams a safer, more efficient way to raise compact, heavy machines with concentrated axle and mast loads. With 40,000 lbs. of capacity, this forklift lift is designed around the way electric and internal combustion forklifts are actually maintained, not around passenger-car lift assumptions. Forklifts are low, compact, and heavy in all the wrong places for ordinary service equipment. The HDS40FL solves that with a wide, rigid runway platform, low 9.75-inch runway height, and drive-on workflow that helps technicians load, chock, lift, lock, and service forklifts with confidence.

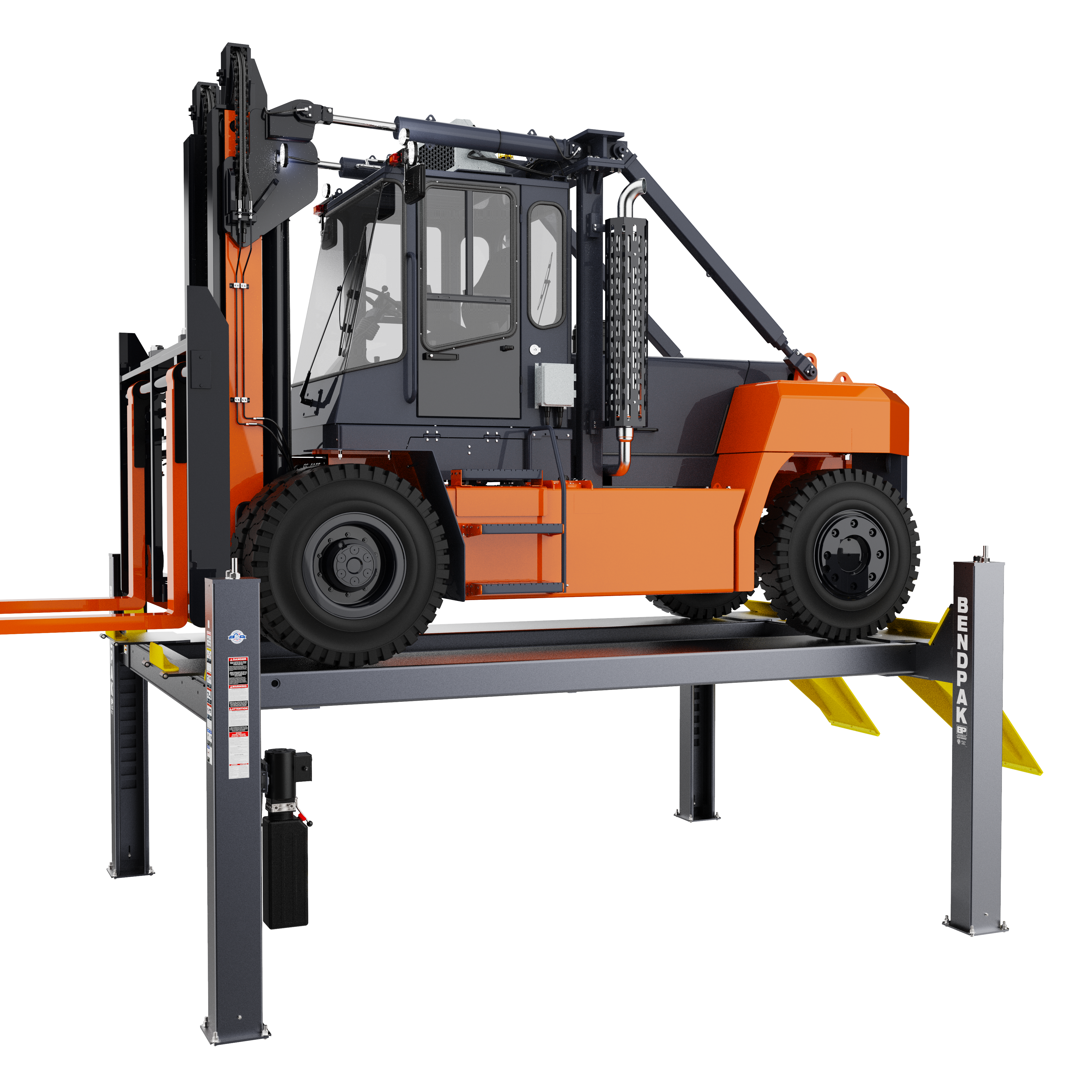

Drive-On Forklift Lift Layout for Industrial Bays

Drive-On Forklift Lift Layout for Industrial Bays

The HDS40FL uses a single-approach design that lets operators drive on, perform service, and back down the same ramp. Spotting is straightforward thanks to 133.75 inches between columns, 109 inches of drive-in clearance, and 197.5-inch runways sized for common electric and IC forklift wheelbases. This layout supports real industrial workflow where speed, safety, and repeatability matter. The low approach and runway height help reduce the drama of loading compact equipment, while the rigid platform supports the whole truck during maintenance.

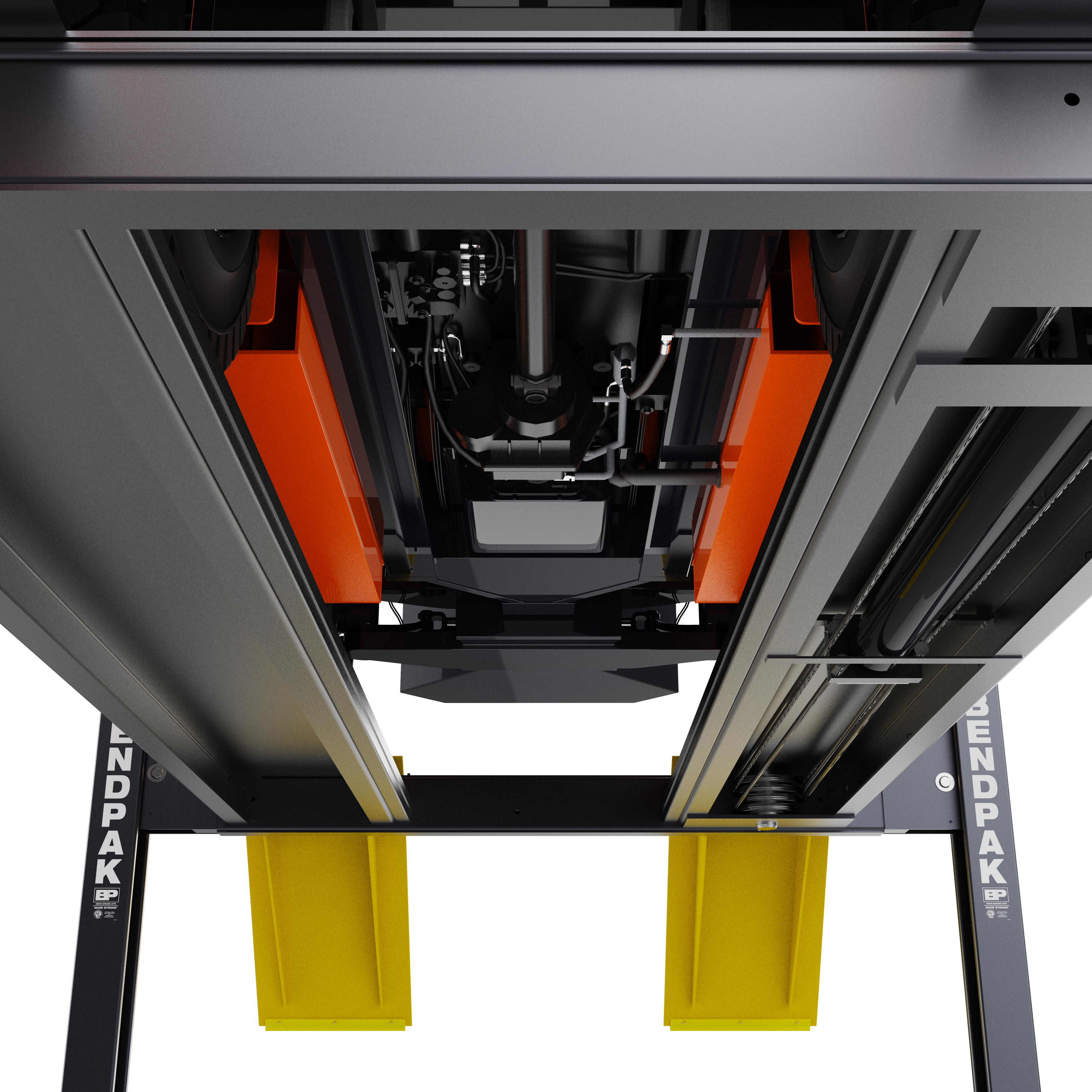

Access Where Forklift Technicians Need It

With the forklift resting on the runways, technicians get practical access to steer axles, drive axles, brakes, hubs, belly pans, cooling packs, hydraulic lines, and battery compartments. The lift is built to make routine inspections, repairs, and fleet maintenance easier without forcing technicians into awkward floor-level work. For wheel-off service, compatible rolling bridge jacks can be added to lift a single axle while the forklift remains supported on the lift. That makes the HDS40FL a more complete forklift service platform for shops handling tires, hubs, brakes, and axle-related work.
Access Where Forklift Technicians Need It

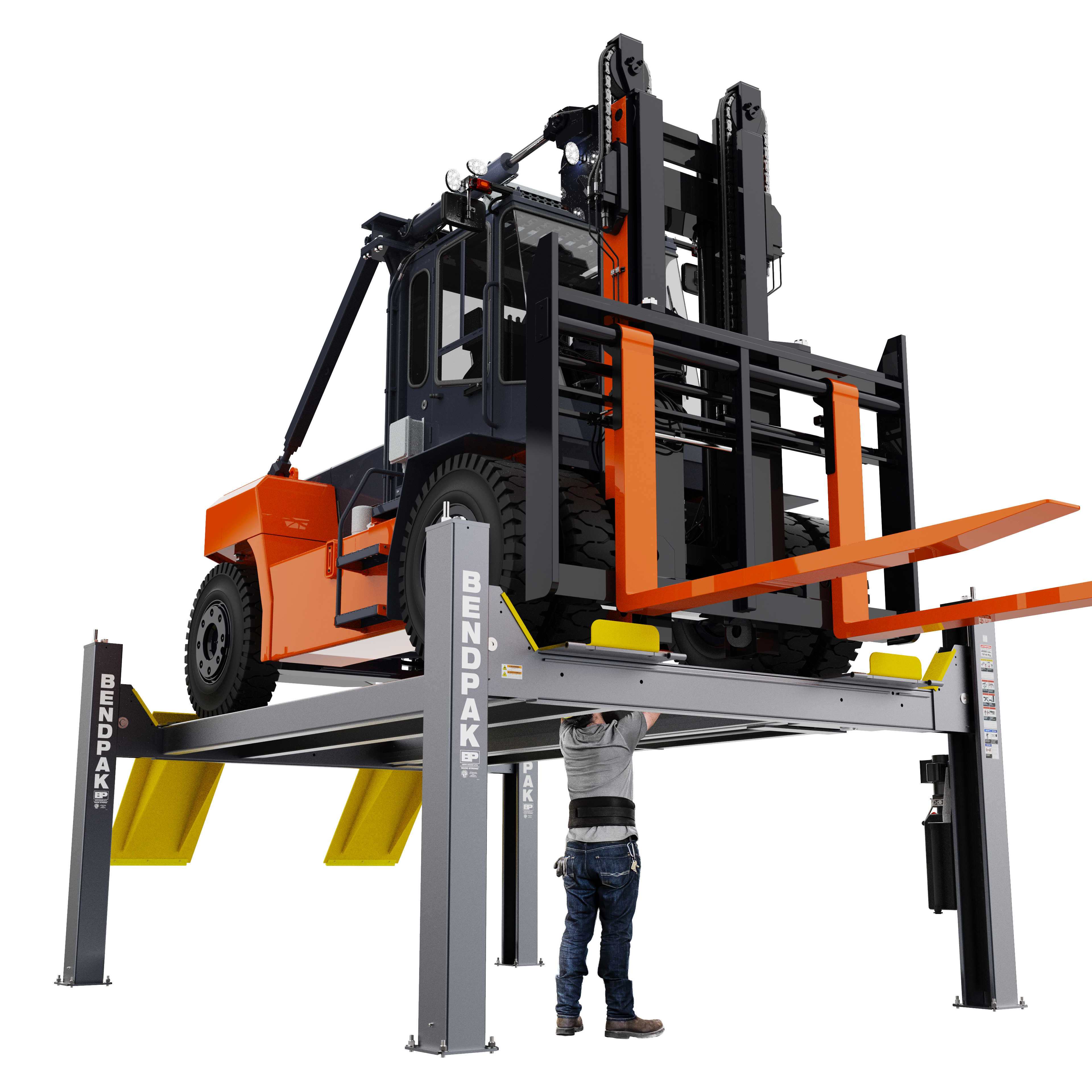

High-Cycle Support for Forklift Maintenance Programs

High-Cycle Support for Forklift Maintenance Programs

The HDS40FL is built for high-cycle industrial environments, with 13 mechanical lock positions in 4-inch increments and working heights from 20 inches to 67.25 inches. With 69.75 inches of total rise, it gives service teams flexible working height for inspection, maintenance, and repair. This lift is designed for facilities that need forklift service to be part of the regular workflow, not an improvisation with jacks and stands. For warehouses, distribution centers, equipment fleets, and industrial shops, the HDS40FL gives forklift maintenance a dedicated lift built for the job.

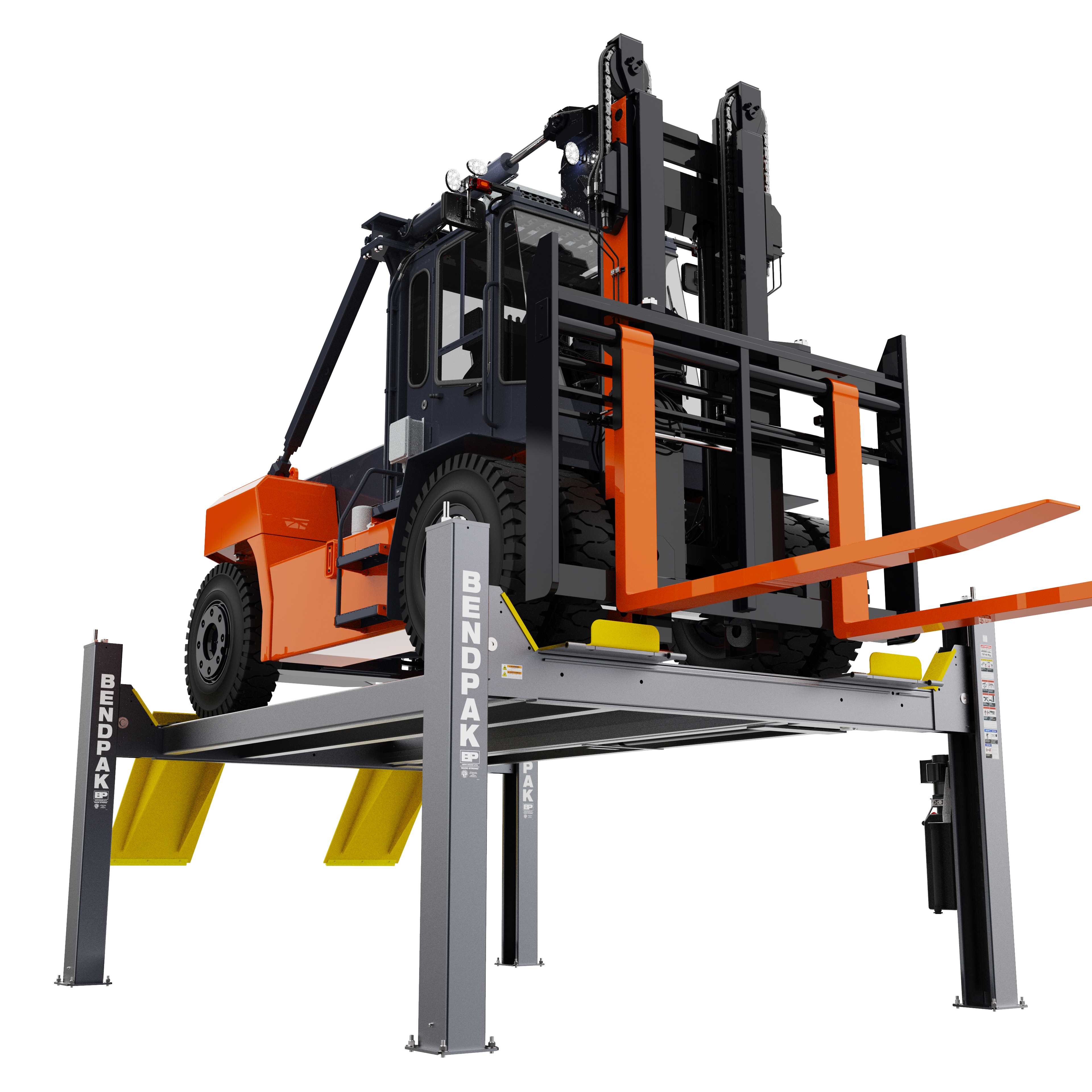

Purpose-Built for Forklifts

Purpose-Built for Forklifts

The HDS40FL is designed around compact, heavy forklift geometry instead of forcing industrial trucks onto passenger-vehicle service equipment.

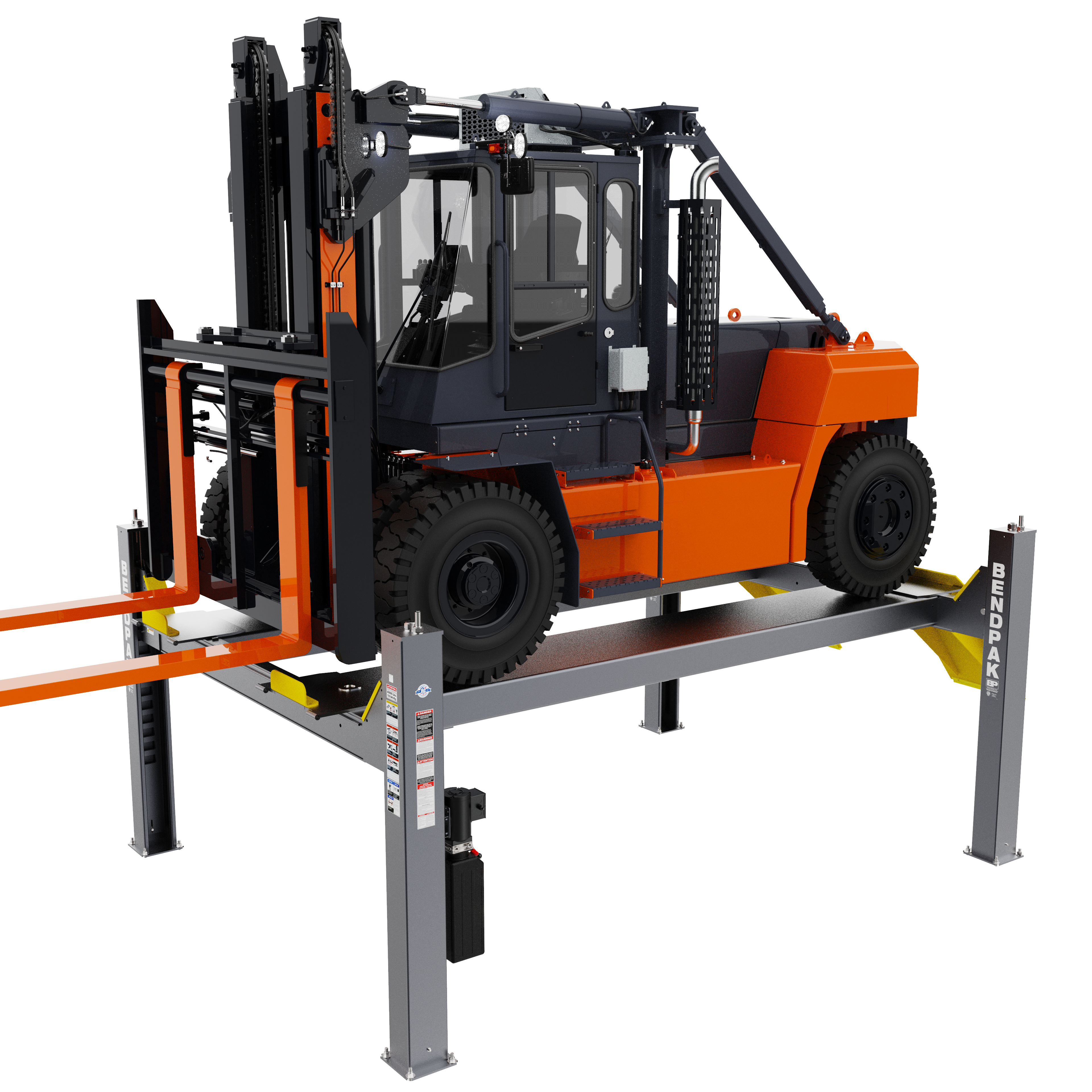

40,000-lb. Capacity

40,000-lb. Capacity

Sized for modern electric and internal combustion forklifts, this lift gives fleet teams the capacity needed for demanding industrial service.

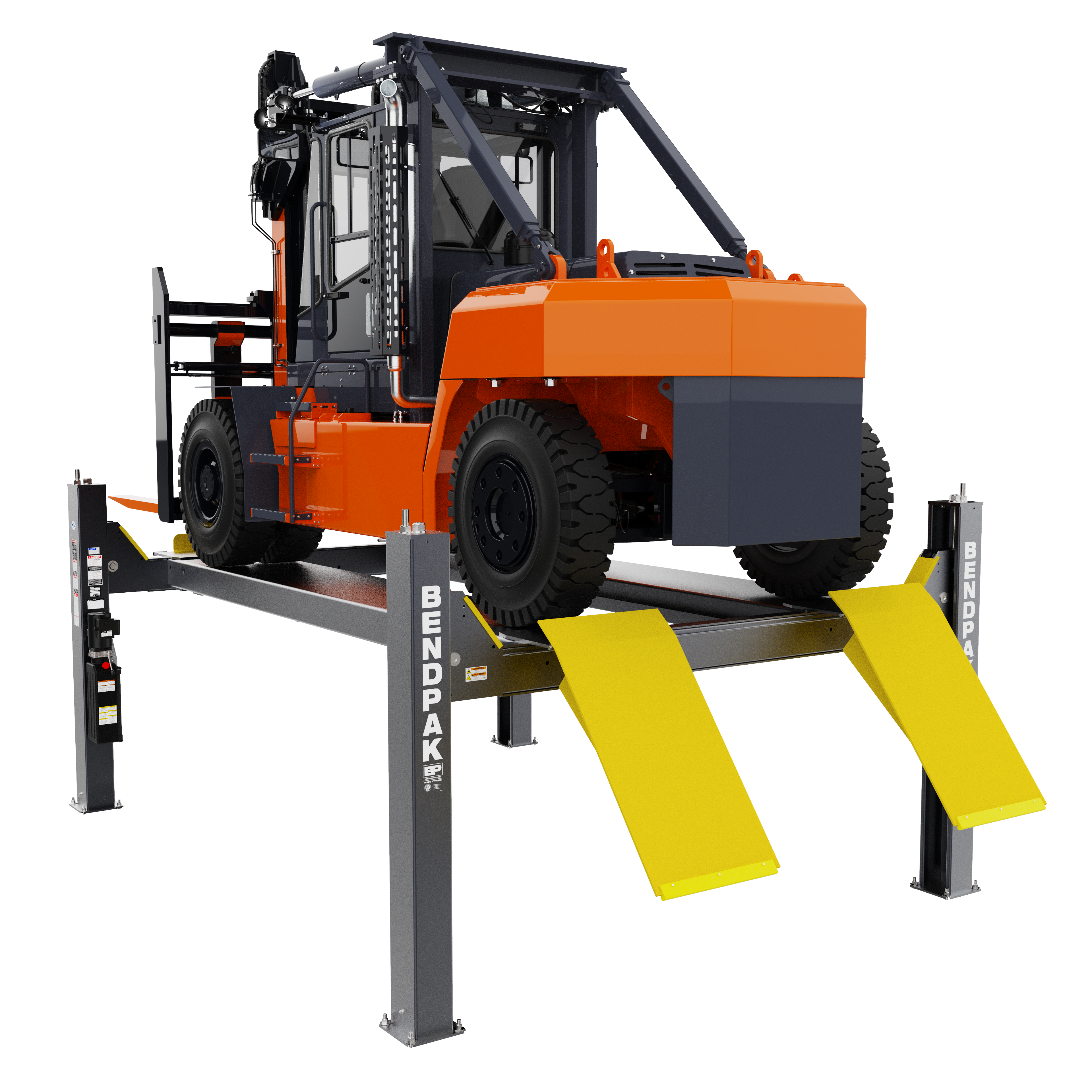

Low Runway Height

Low Runway Height

A 9.75-inch runway height helps make approach and spotting easier for low forklift chassis and compact industrial vehicles.
Industrial Access Points

Industrial Access Points

The runway platform gives technicians access to axles, brakes, hubs, belly pans, cooling systems, hydraulic lines, and battery compartments.
13 Lock Positions

13 Lock Positions

Mechanical lock positions in 4-inch increments let teams choose practical working heights for inspection, maintenance, and repair.

Bridge Jack Compatible

Rolling bridge jack compatibility supports wheel-off forklift service while the truck remains positioned on the runways.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
40000 lb

Rise

A Min Runway Height
9.5 in
B Max Rise
60 in
C Max Lifting Height
69.5 in

Outside Dimensions

D Width
153.5 in
E Outside Length
197 in
F Overall Length
253.75 in
G Height
91.25 in

Inside Dimensions

H Inside Columns
133.5 in
I Drive-Thru Clearance
109 in

Runways

J Runway Width
28 in
K Runway Length
197.5 in
L Width Between Runways
40.75 in
M Runway Centerline
74 in
N Outside Edge of Runways
102 in

Minimum Wheelbase

Rated Wheelbase Capacity
140 in
25% Capacity
80 in
50% Capacity
100 in
75% Capacity
120 in

Locking

Locking Positions
13
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
32 x 205 x 39 in
Shipping Weight
6748 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
