Four-Post Lift / 40,000-lbs. Capacity

BendPak HDS40 Four-Post Lift - 40,000-lbs. Capacity
$32,695.00

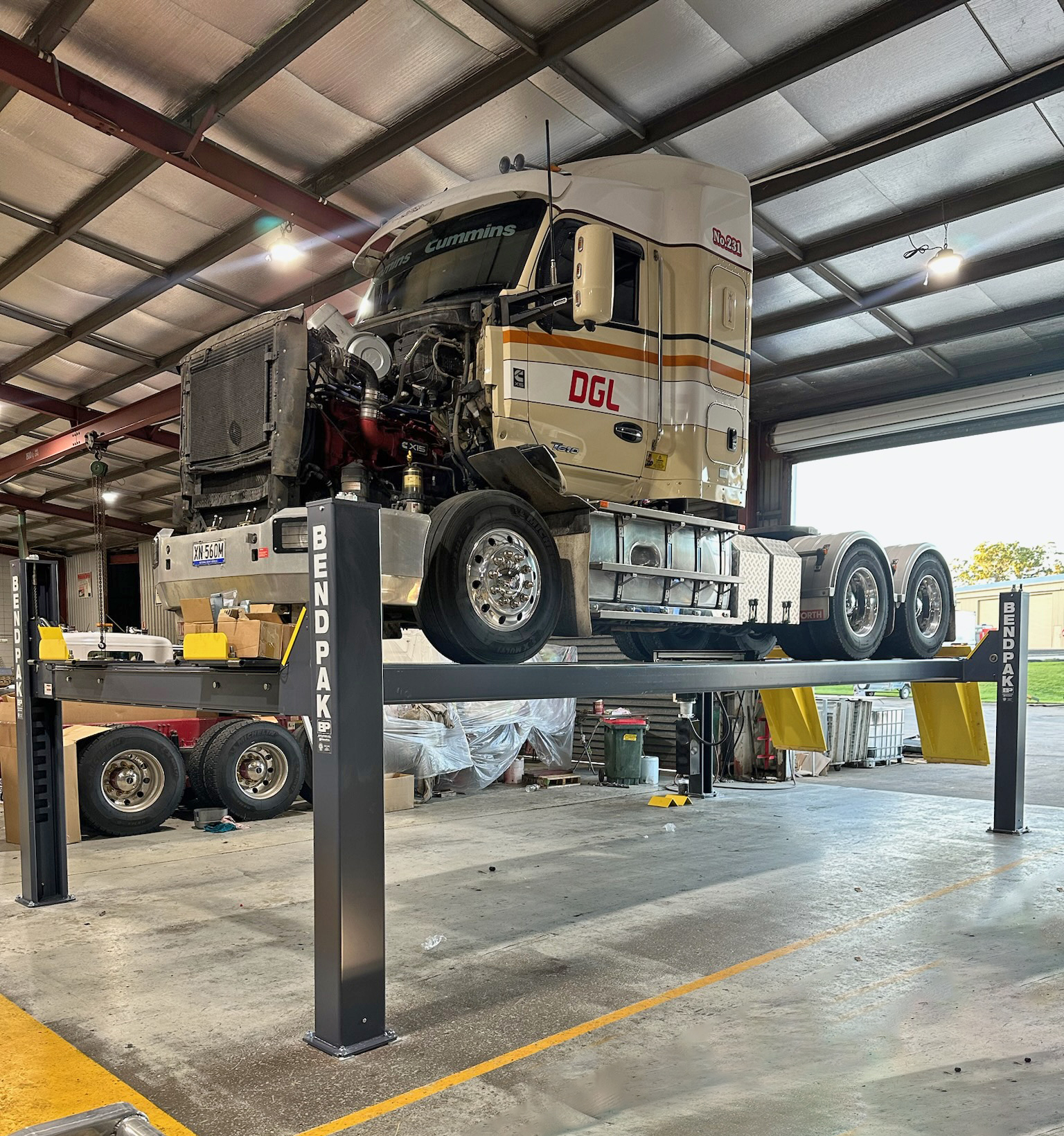

40,000-lb. Four-Post Power for Commercial Truck Service

40,000-lb. Four-Post Power for Commercial Truck Service

The BendPak HDS40 Four-Post Lift is built for shops that need maximum lifting capacity without the extended runway footprint of the HDS40X. With 40,000 lbs. of capacity, this standard-length heavy-duty four-post lift gives commercial maintenance facilities, fleet shops, and truck repair operations the brute strength needed to service massive vehicles with BendPak's proven runway-based lifting design. The HDS40 carries the same professional DNA found throughout the heavy-duty lineup: ergonomic controls, massive lift components, aircraft-quality galvanized cables, overbuilt sheaves, mechanical safety systems, and rugged powder-coated steel. It is the right choice when your vehicles are extremely heavy, but your bay layout points you toward the standard HDS40 platform instead of the extended-length HDS40X.

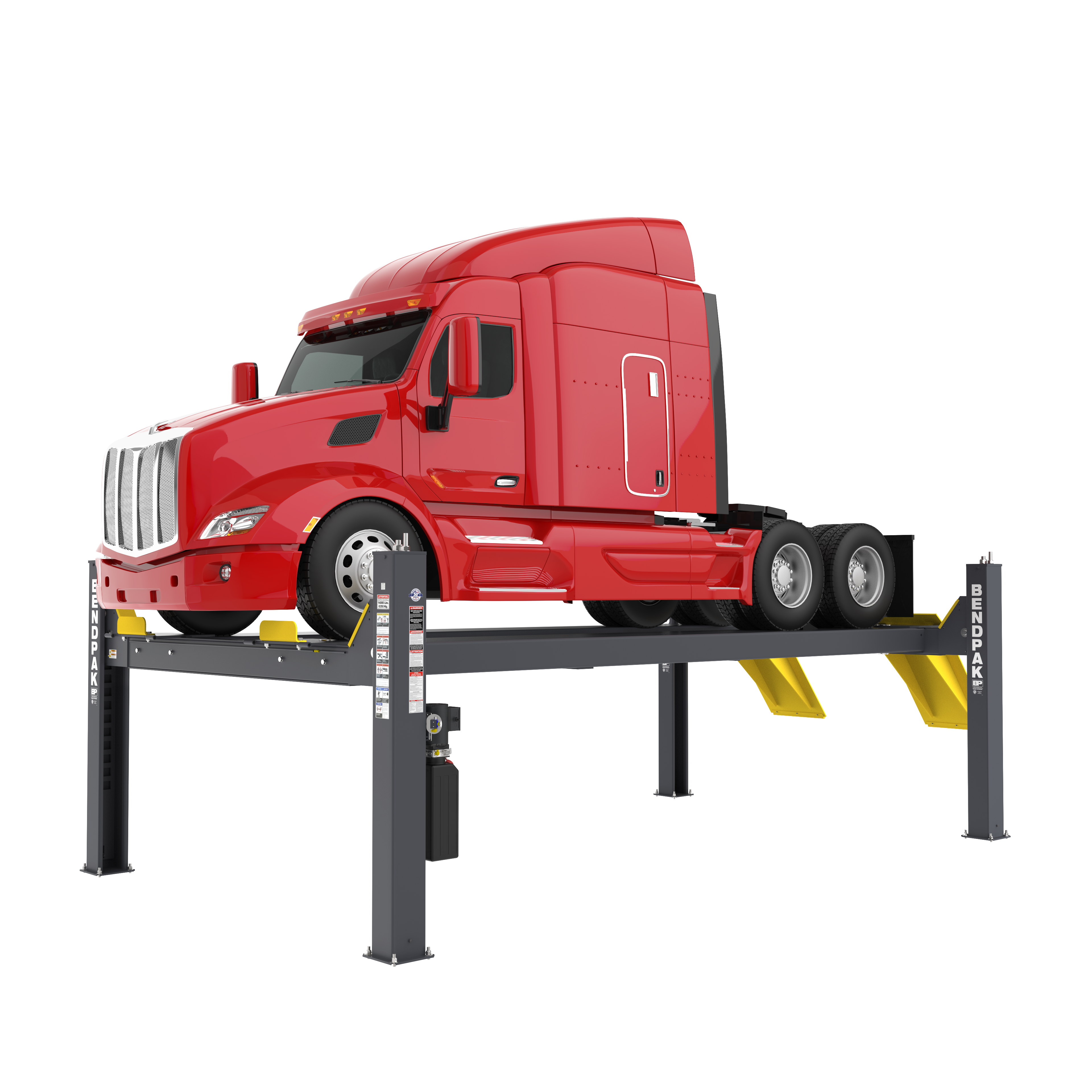

Heavy-Duty Runways for Massive Commercial Vehicles

Heavy-Duty Runways for Massive Commercial Vehicles

The HDS40 uses long, wide, rigid runways designed to help large commercial vehicles load safely and settle securely before lifting begins. Longer runway support helps reduce the chance of vehicle damage during loading and provides a stable surface for heavy trucks and work vehicles during service. The matte-finish runway surface adds durability and practical tire grip for demanding shop environments. For technicians working on heavy equipment, municipal vehicles, commercial trucks, and fleet units, the runway platform gives a confident foundation for maintenance, inspections, and repair.

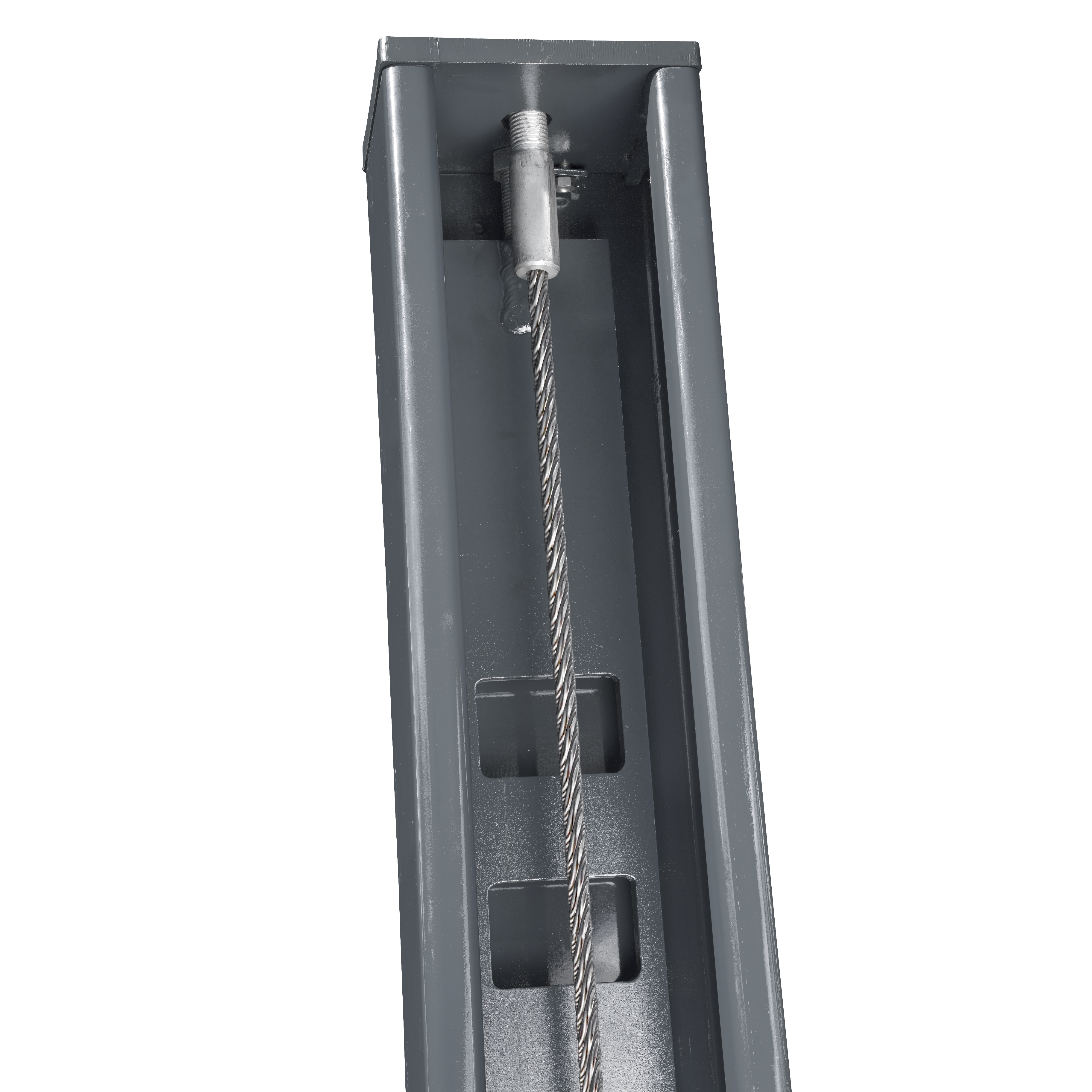

12-Inch Sheaves and Hydraulic Lifting Strength

BendPak builds the HDS40 with supersized 12-inch diameter cable sheaves, galvanized lifting cables, grease nipples, a single hydraulic under-runway cylinder, and an integrated flow restrictor. The sheaves and lifting cables are over-engineered for heavy loads, smooth synchronization, and long-term service in demanding commercial shops. Fully enclosed lifting cables help protect the lift system, while the maintenance-free electric hydraulic power system keeps day-to-day operation clean and efficient. The result is a lift that brings 40,000-lb. muscle without turning every service cycle into an event.
12-Inch Sheaves and Hydraulic Lifting Strength

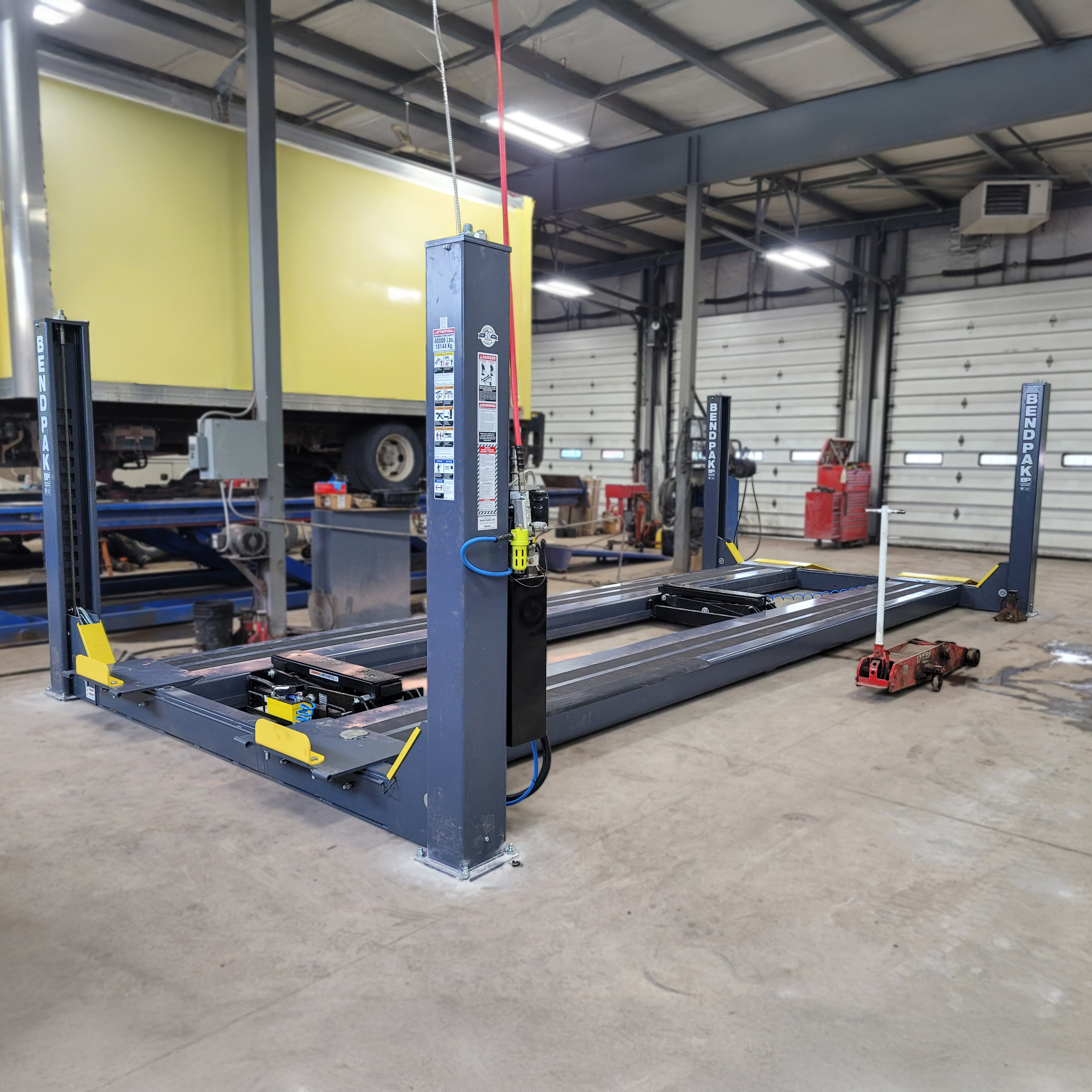

Safety Systems for Serious Heavy-Duty Service

Safety Systems for Serious Heavy-Duty Service

The HDS40 includes spring-loaded safety locks, a second lock system on constant guard, and multiple adjustable height locking positions. Those mechanical safeguards help hold raised vehicles securely during work and give technicians the locked platform they need when servicing heavy commercial equipment. Conveniently positioned operator controls, 12-inch by 12-inch base plates, durable powder coat, and optional rolling bridge jacks help make the HDS40 more than a brute-force lift. It is a high-capacity service platform for shops that need to handle serious weight every day.
40,000-lb. Truck Capacity

40,000-lb. Truck Capacity

The HDS40 delivers BendPak maximum-capacity lifting for heavy commercial vehicles, trucks, and fleet maintenance work.

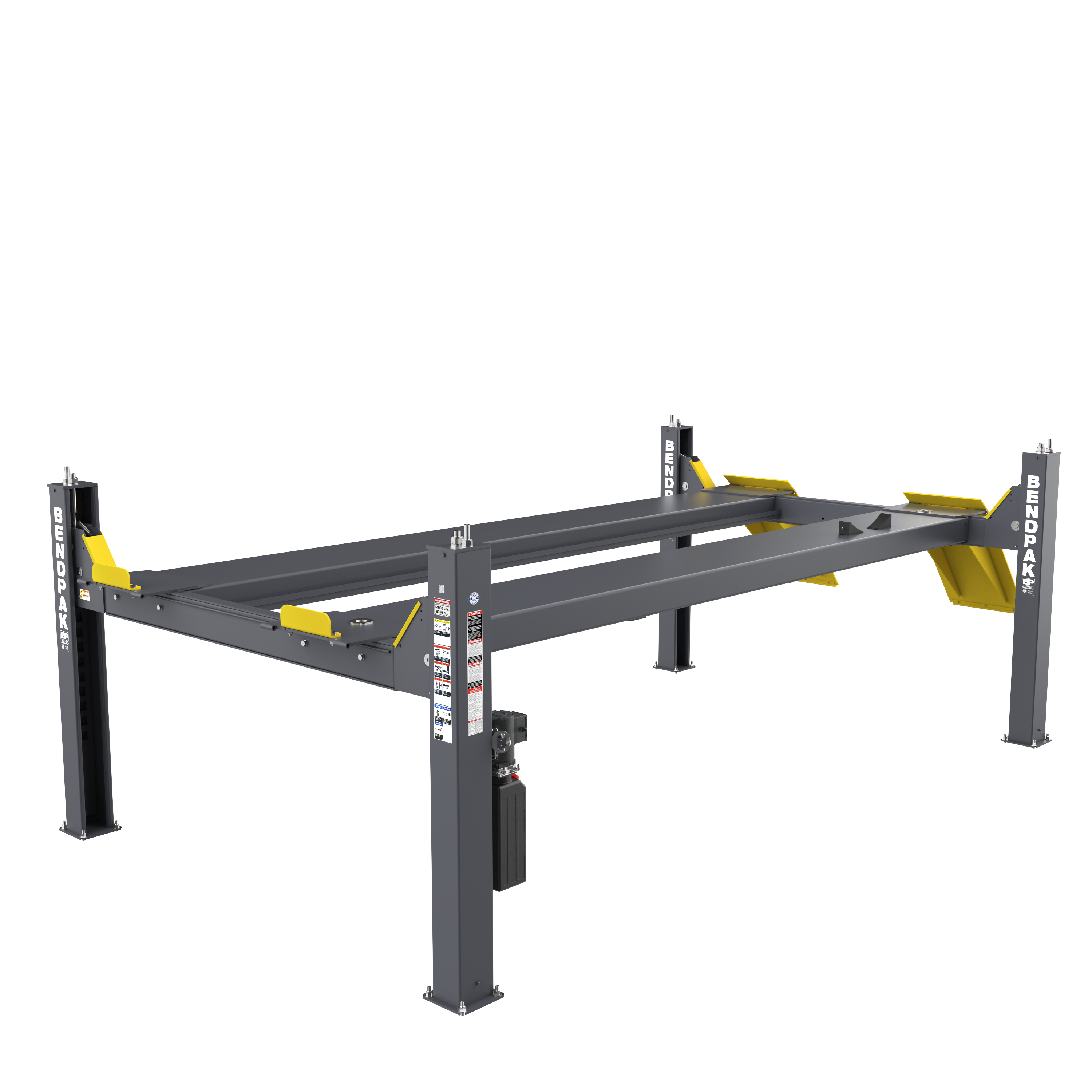

Standard-Length 40K Platform

Standard-Length 40K Platform

Choose the HDS40 when you need 40,000-lb. lifting power in the standard heavy-duty runway configuration.

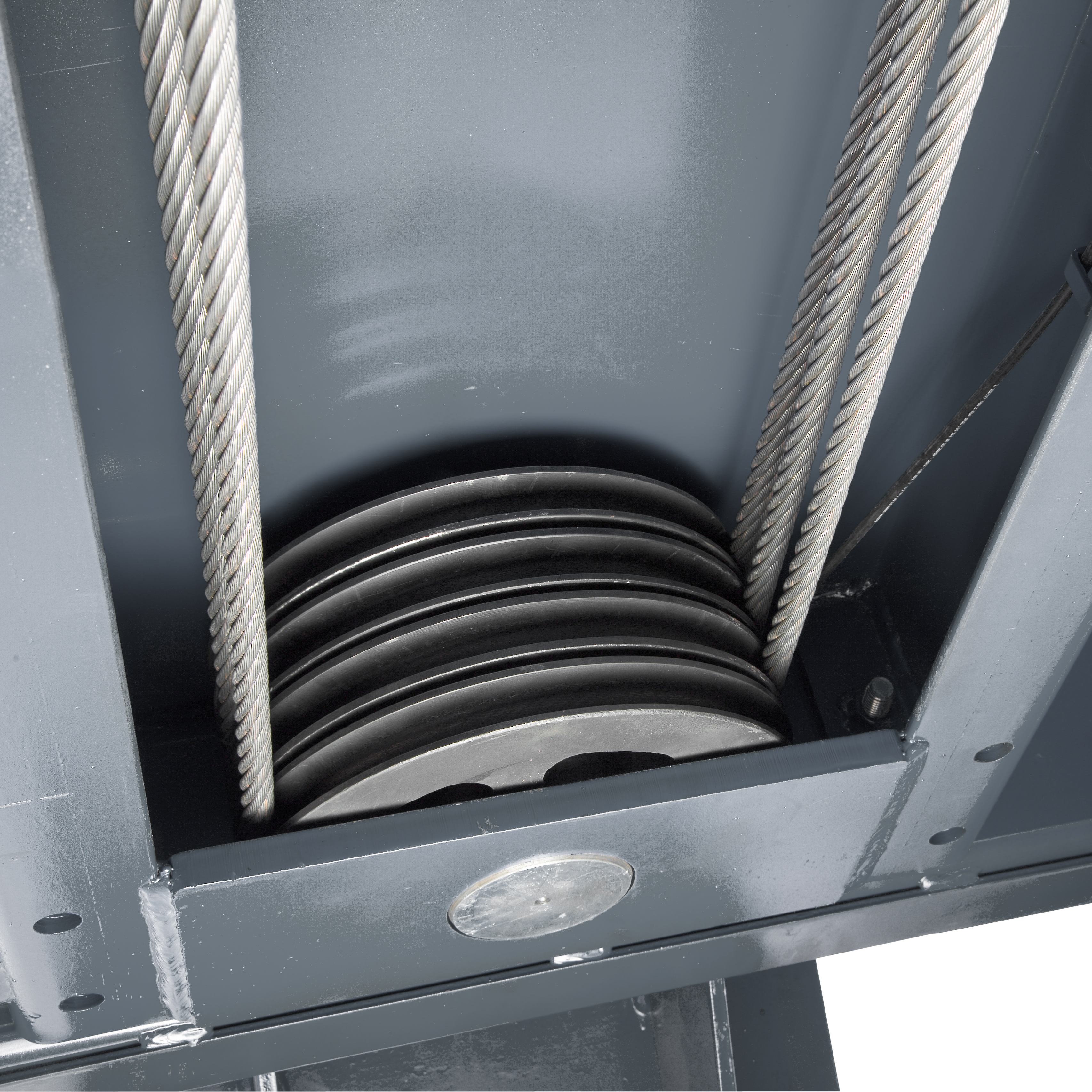

Oversized Cable Sheaves

Oversized Cable Sheaves

Massive 12-inch sheaves and galvanized cables help deliver smooth, synchronized lifting under serious commercial loads.

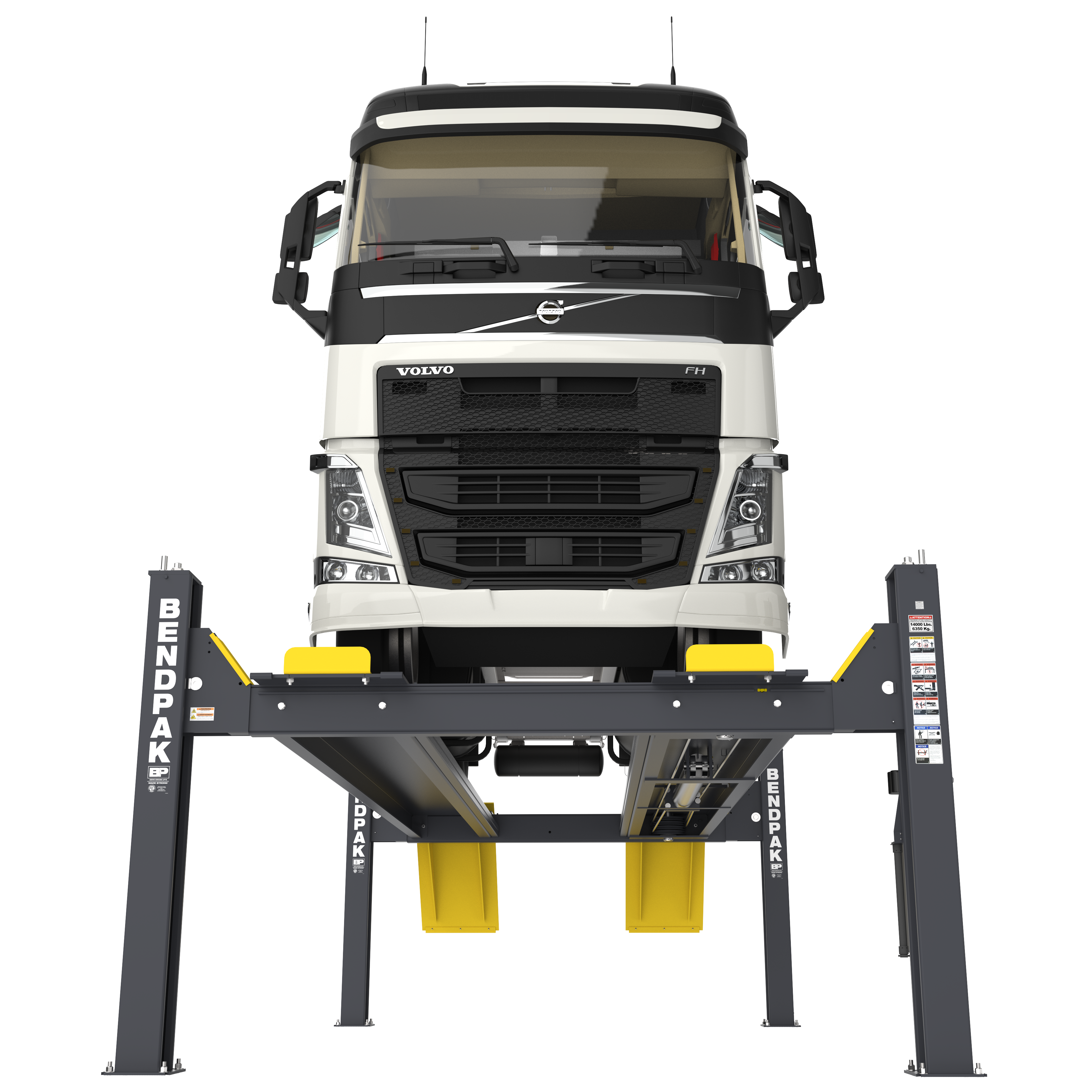

Protected Lift Components

Protected Lift Components

Fully enclosed lifting cables and serviceable grease points help support durability in demanding truck-service environments.

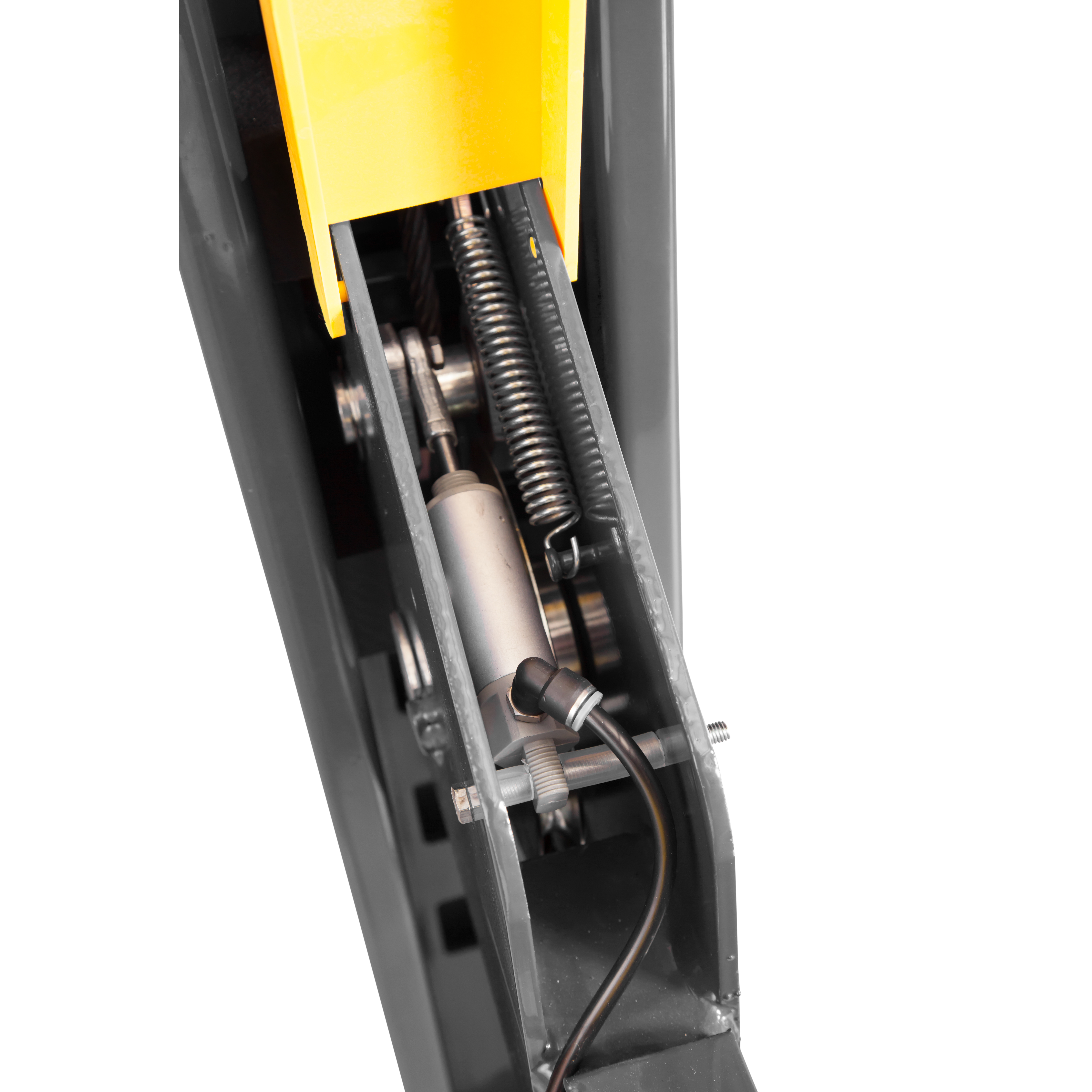

Mechanical Lock Security

Mechanical Lock Security

Spring-loaded safety locks and a constant-guard secondary lock system help keep the platform secure during service.

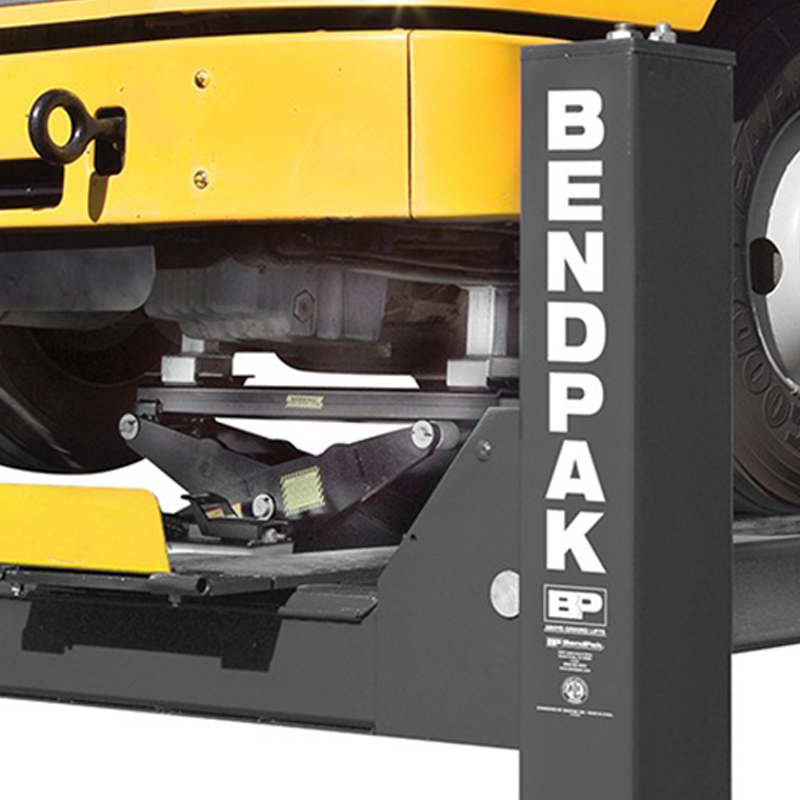

Ready for Rolling Jacks

Ready for Rolling Jacks

Optional rolling bridge jacks add wheel-off capability for brake, tire, axle, and suspension work on heavy vehicles.

Specifications

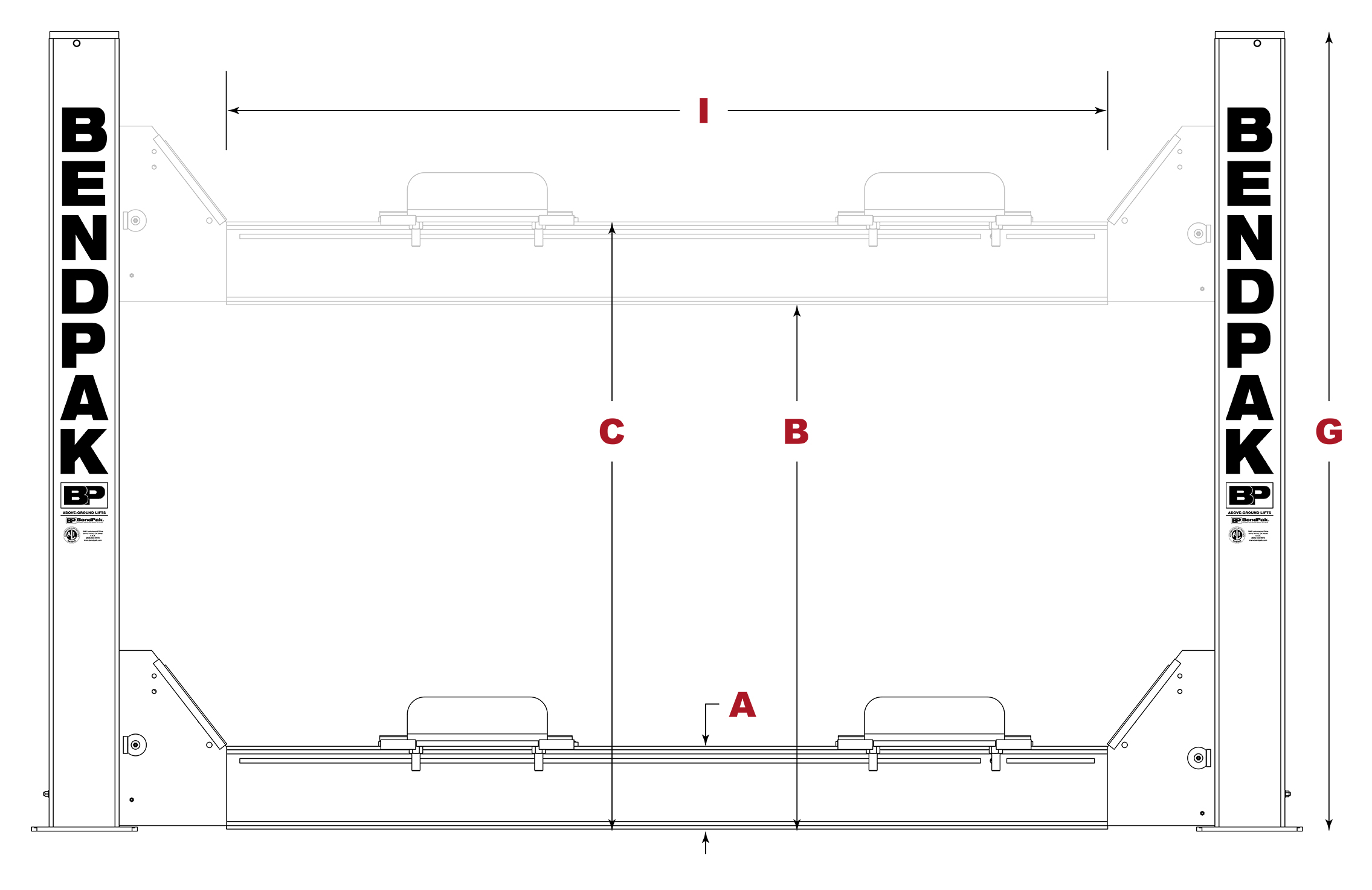

Specification Diagram 1

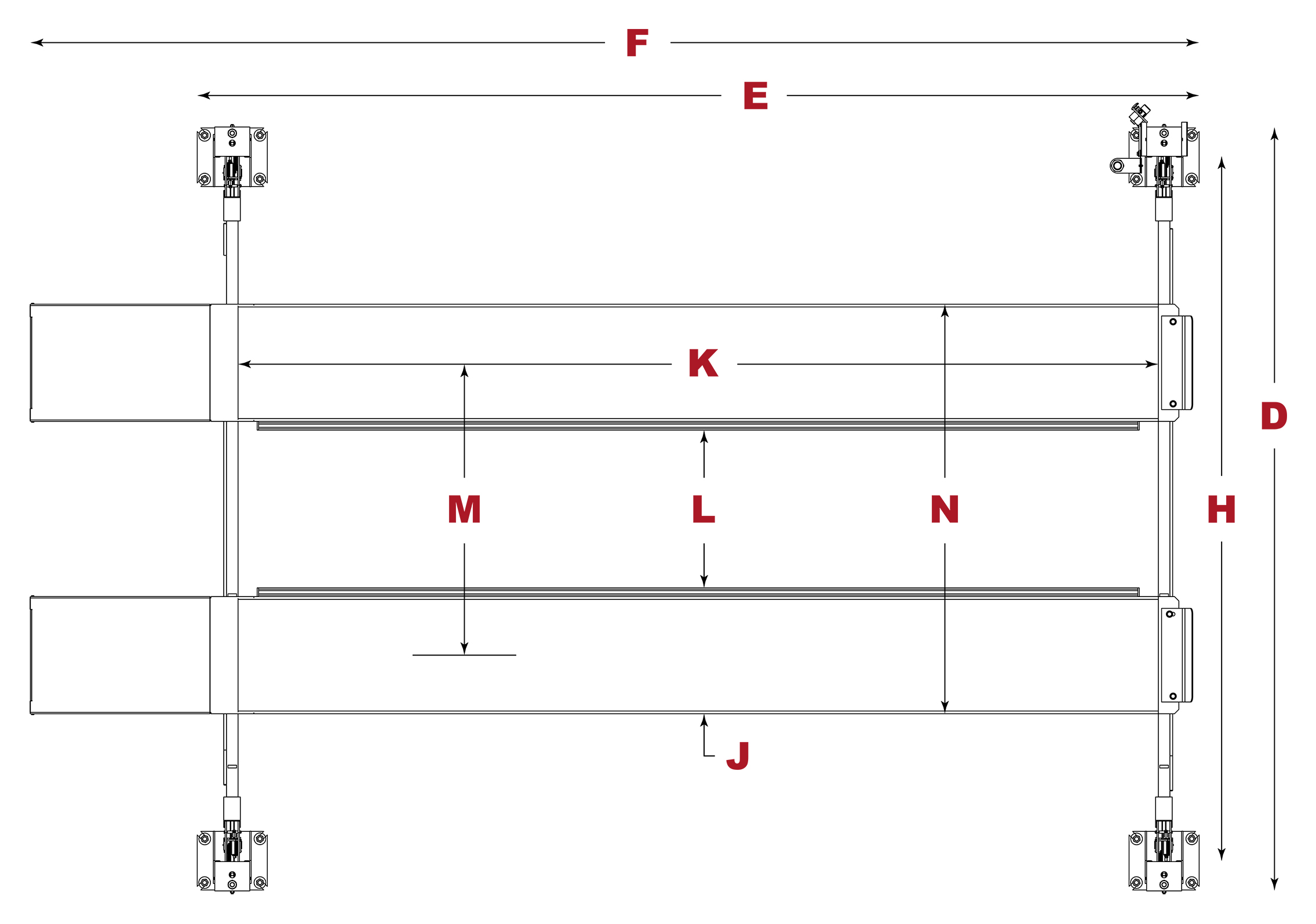

Specification Diagram 2

Capacity

Lifting Capacity
40000 lb

Rise

A Min Runway Height
9.5 in
B Max Rise
60 in
C Max Lifting Height
69.5 in

Outside Dimensions

D Width
153.5 in
E Outside Length
257 in
F Overall Length
313.75 in
G Height
91.25 in

Inside Dimensions

H Inside Columns
133.5 in
I Drive-Thru Clearance
109 in

Runways

J Runway Width
28 in
K Runway Length
255.5 in
L Width Between Runways
40.75 in
M Runway Centerline
74 in
N Outside Edge of Runways
102 in

Minimum Wheelbase

Rated Wheelbase Capacity
185 in
25% Capacity
110 in
50% Capacity
135 in
75% Capacity
160 in

Locking

Locking Positions
13
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
32 x 264 x 36 in
Shipping Weight
6748 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
