BendPak HDS27X Four-Post Lift - 27,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175164
$25,895.00
Financing as low as $544/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 27,000-lbs. Capacity / Extended Length

BendPak HDS27X Four-Post Lift - 27,000-lbs. Capacity
$25,895.00
Extended Four-Post Runway Space for Semi-Trucks and Fleets

Extended Four-Post Runway Space for Semi-Trucks and Fleets

The BendPak HDS27X Four-Post Lift is built for commercial facilities that need longer runways and 27,000 lbs. of lifting capacity for semi-trucks, buses, municipal vehicles, stretch limousines, and other large fleet equipment. With its super-long 317.5-inch runways, this extended four-post truck lift gives shops the length and strength needed for vehicles that standard service bays cannot handle comfortably. This is the kind of lift that opens the door to more profitable commercial work. Many general repair shops avoid fleet service because the equipment and space requirements are bigger. If your facility is ready for that category, the HDS27X gives you a purpose-built platform for serious heavy-duty maintenance.

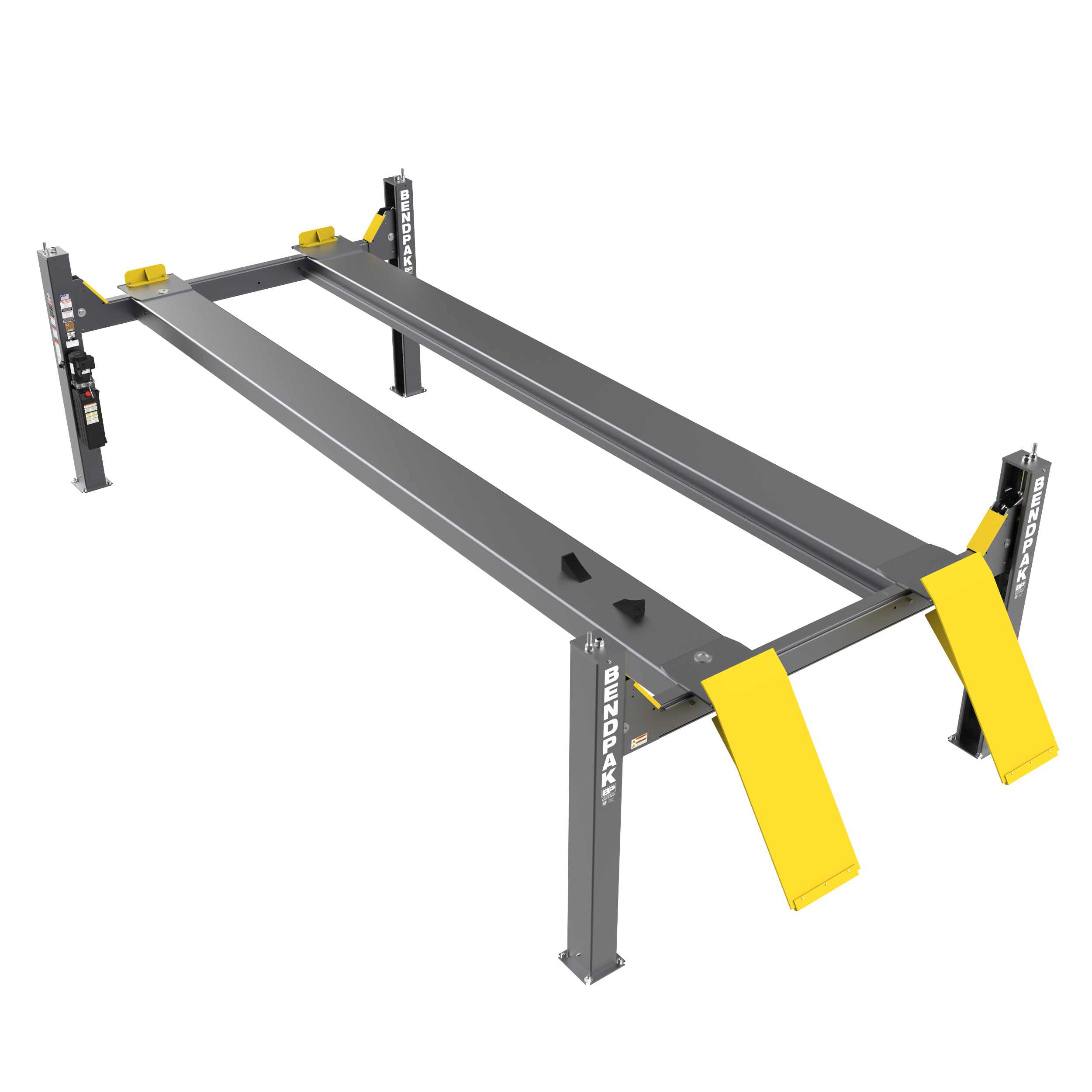

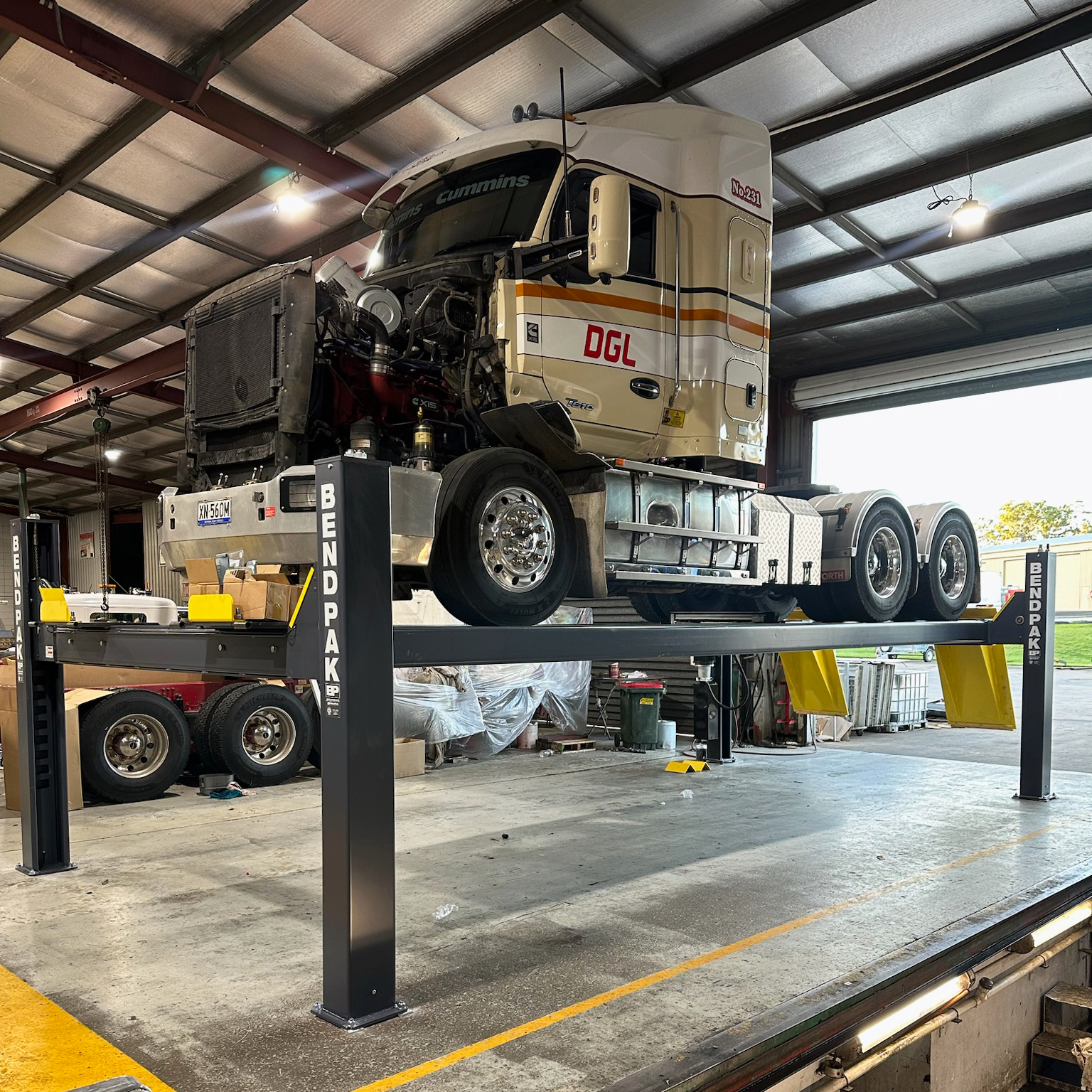

317.5-Inch Runways for Long Wheelbase Service

317.5-Inch Runways for Long Wheelbase Service

The HDS27X uses massive 317.5-inch runways, nearly 27 feet of platform length, to support long wheelbase vehicles during loading and service. The extended runway design helps technicians steer large vehicles into position with greater confidence and gives heavier commercial platforms the room they need to settle correctly before lifting. Wide, rigid, matte-finish runways help provide the grip and support needed for semi-trucks, buses, and municipal vehicles. For shops taking on larger fleet work, that runway length is the star of the show, and it earns its parking spot.

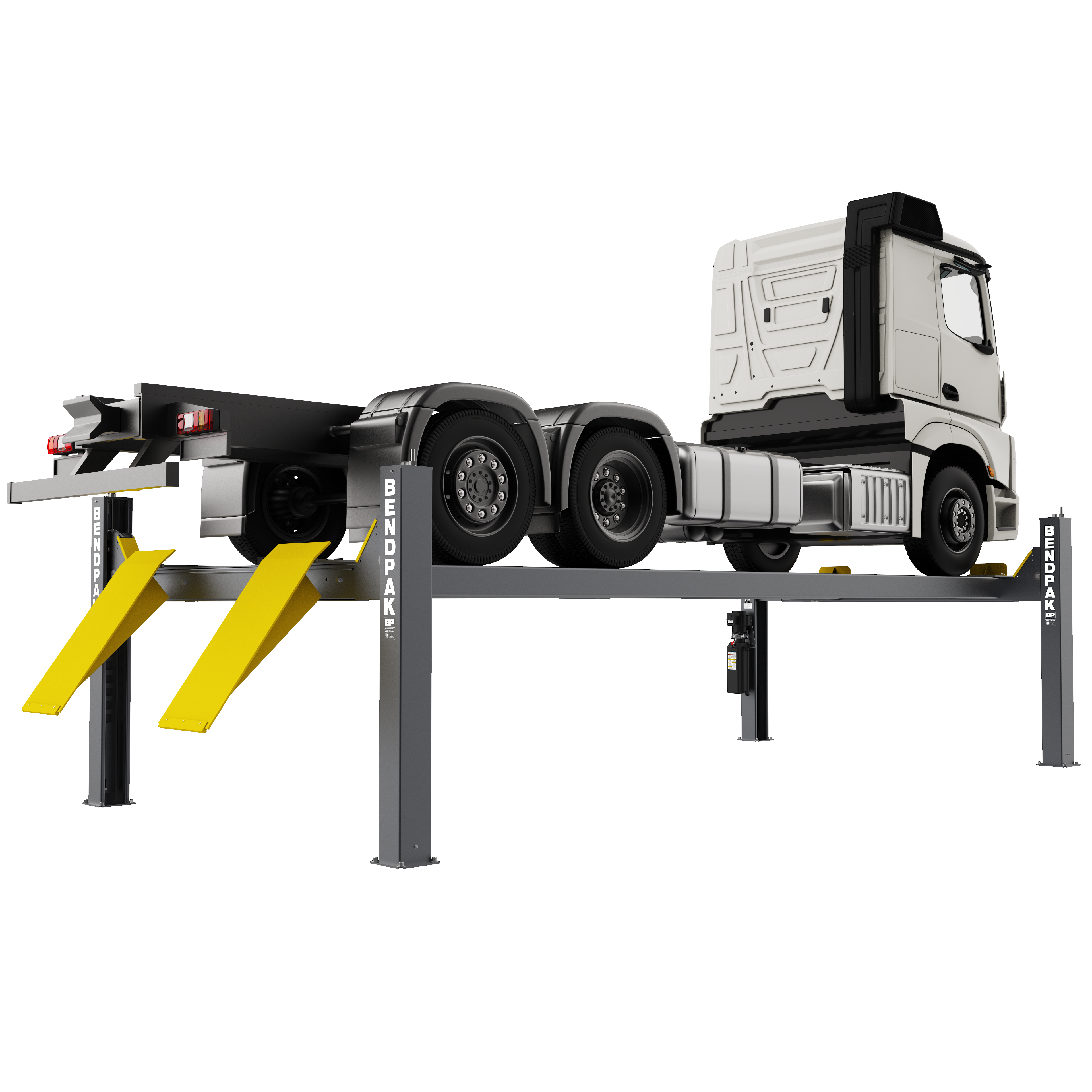

Heavy-Duty Lifting Components for 27K Workloads

BendPak equips the HDS27X with supersized 12-inch diameter cable sheaves, galvanized lifting cables, grease nipples, a single hydraulic under-runway cylinder, and an integrated flow restrictor. Those systems work together to deliver smooth lifting and dependable durability under heavy commercial loads. Fully enclosed lifting cables help protect the lift system, while the maintenance-free electric hydraulic power system keeps operation straightforward for busy commercial shops. The HDS27X is designed to give long, heavy vehicles the same controlled lifting experience BendPak is known for across its four-post lineup.
Heavy-Duty Lifting Components for 27K Workloads

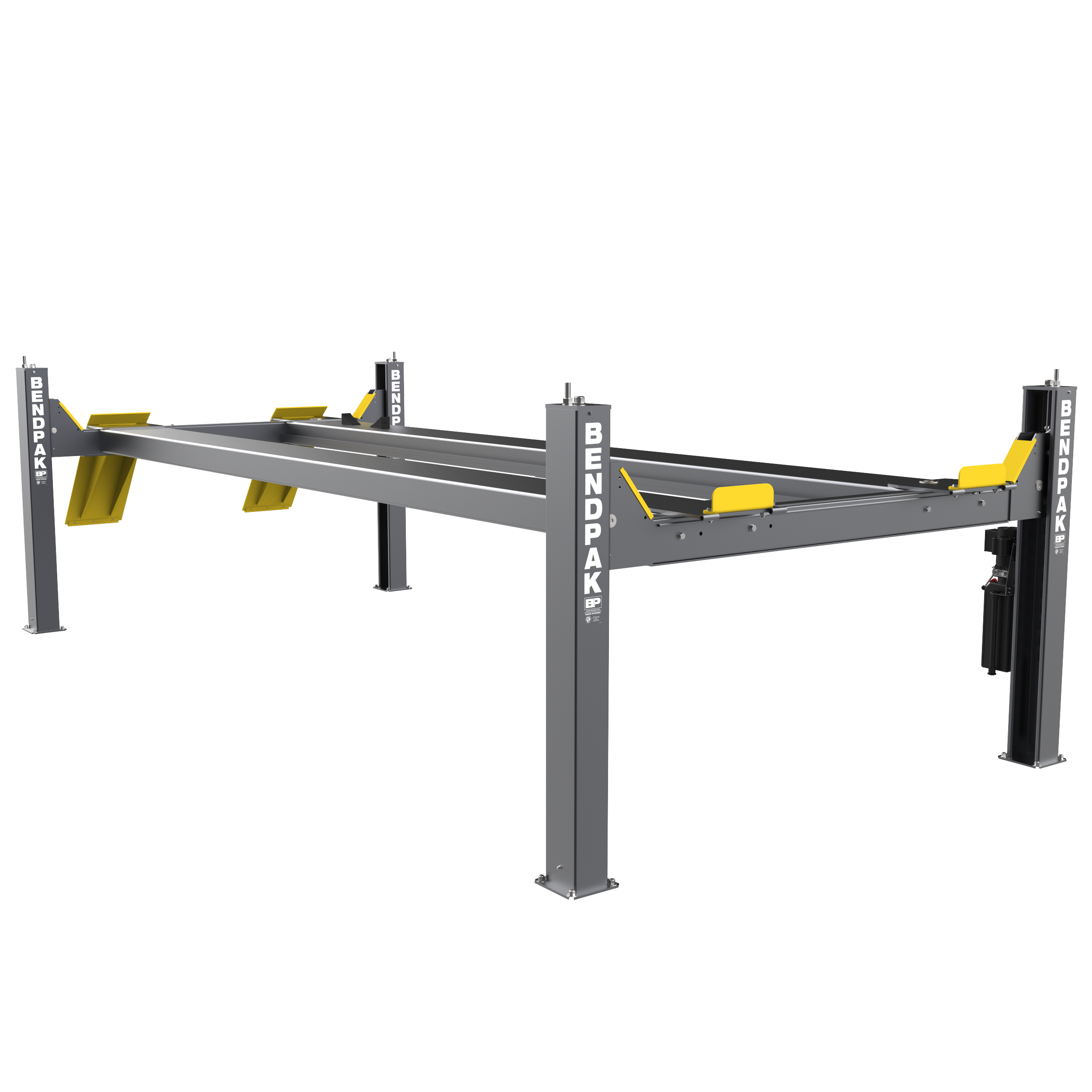

Commercial Safety and Wheel-Service Expandability

Commercial Safety and Wheel-Service Expandability

The HDS27X includes spring-loaded safety locks, multiple adjustable height locking positions, and a second lock system on constant guard. These mechanical systems help keep the lift secure at working height and give technicians a stable platform for demanding service work. CE approval, durable powder coat, 12-inch by 12-inch base plates, conveniently positioned operator controls, and optional rolling bridge jacks round out a lift built for fleet service. If your shop is ready for semi-trucks, buses, and large municipal vehicles, the HDS27X is built to help you say yes more often.

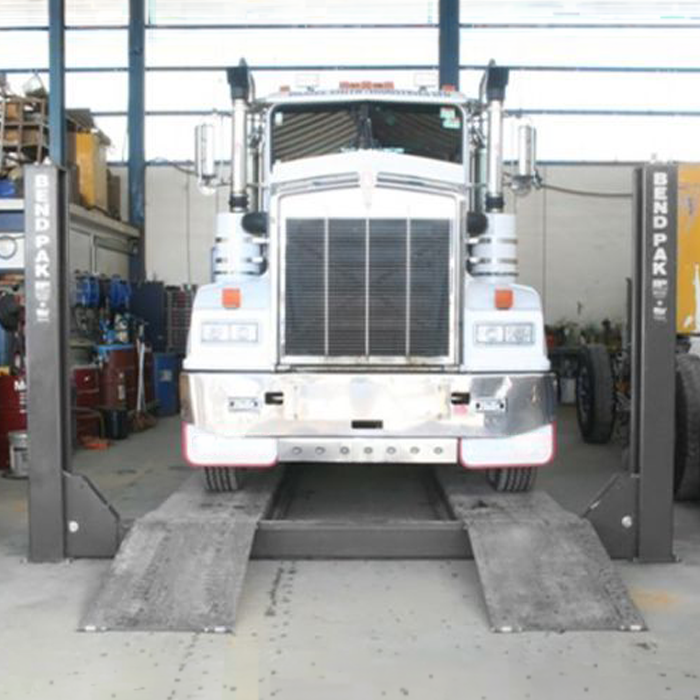

27,000-lb. Capacity

27,000-lb. Capacity

The HDS27X is built for commercial fleet vehicles, semi-trucks, buses, and municipal equipment that demand more than standard lift capacity.
317.5-Inch Runways

317.5-Inch Runways

Extended runways give long wheelbase vehicles the platform length needed for safer loading and better service positioning.

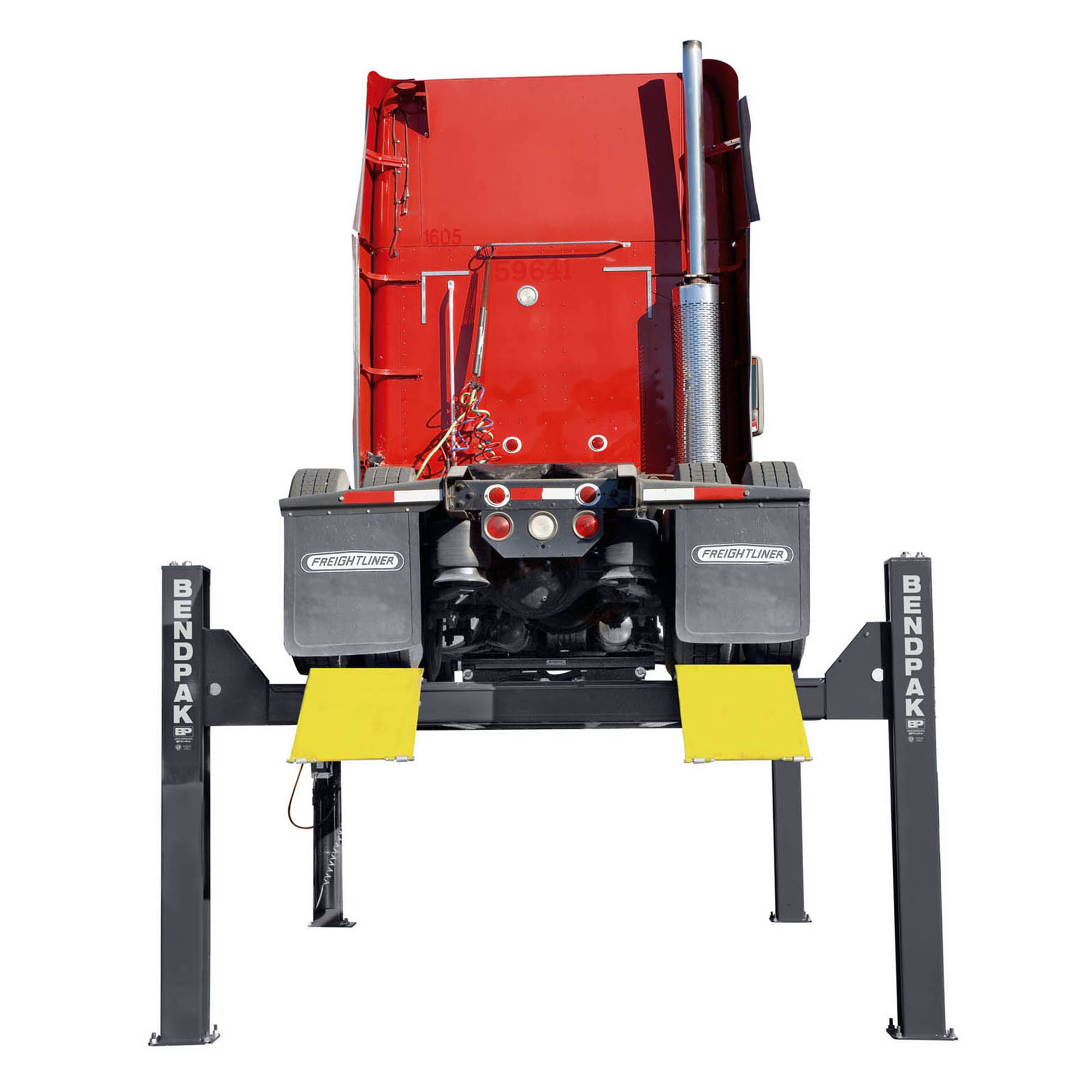

Fleet-Service Focus

Fleet-Service Focus

This lift helps shops move into heavier commercial work, including large municipal vehicles and trucks many general repair bays cannot support.

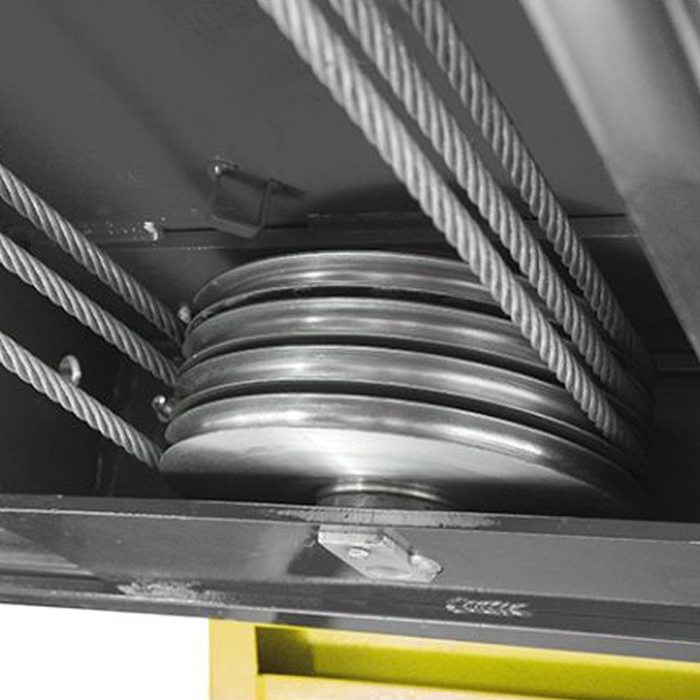

12-Inch Cable Sheaves

12-Inch Cable Sheaves

Supersized sheaves and galvanized cables help provide controlled lifting performance for heavier vehicles and longer platforms.

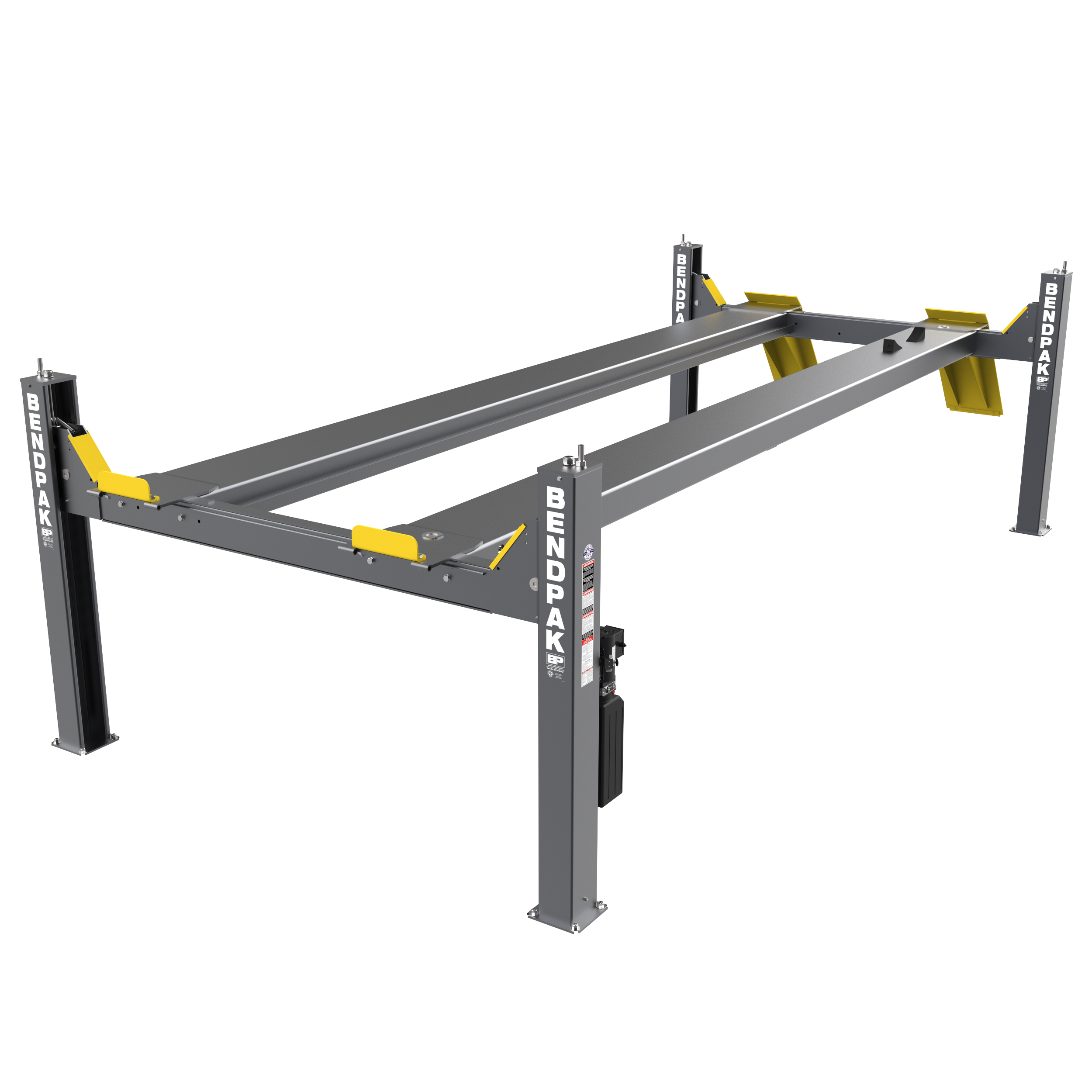

Constant-Guard Locking

Constant-Guard Locking

Spring-loaded safety locks and a second lock system help keep the lift secure during heavy-duty service operations.

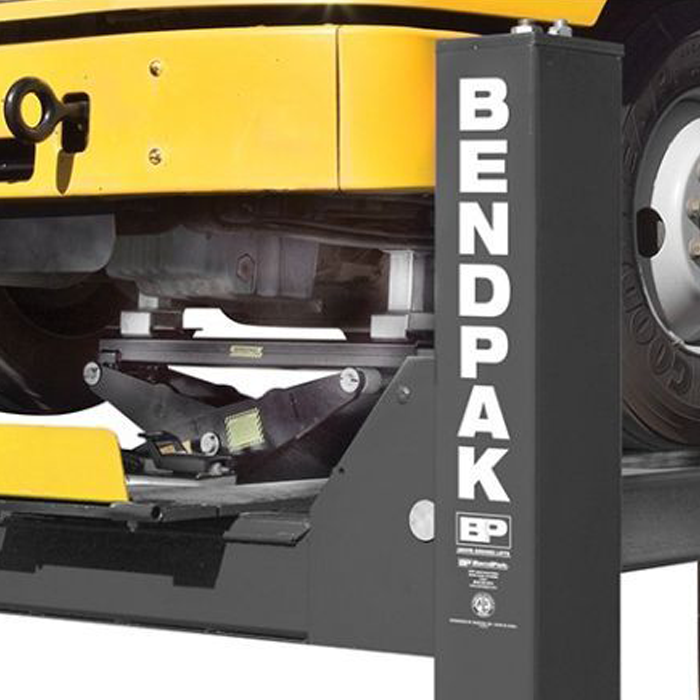

Rolling Jack Ready

Rolling Jack Ready

Optional rolling bridge jacks add wheel-off capability for brake, tire, suspension, and axle work on commercial vehicles.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
27000 lb

Rise

A Min Runway Height
9.5 in
B Max Rise
60 in
C Max Lifting Height
69.5 in

Outside Dimensions

D Width
153.5 in
E Outside Length
317 in
F Overall Length
372.75 in
G Height
91.25 in

Inside Dimensions

H Inside Columns
133.5 in
I Drive-Thru Clearance
109 in

Runways

J Runway Width
22 in
K Runway Length
315.5 in
L Width Between Runways
40 - 45.25 in
M Runway Centerline
67.25 - 72.5 in
N Outside Edge of Runways
89.25 - 94.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
230 in
25% Capacity
130 in
50% Capacity
165 in
75% Capacity
195 in

Locking

Locking Positions
13
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
26 x 324 x 37 in
Shipping Weight
6944 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
