BendPak HDS27 Four-Post Lift - 27,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175162
$23,495.00
Financing as low as $494/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
Product 8
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 27,000-lbs. Capacity

BendPak HDS27 Four-Post Lift - 27,000-lbs. Capacity
$23,495.00

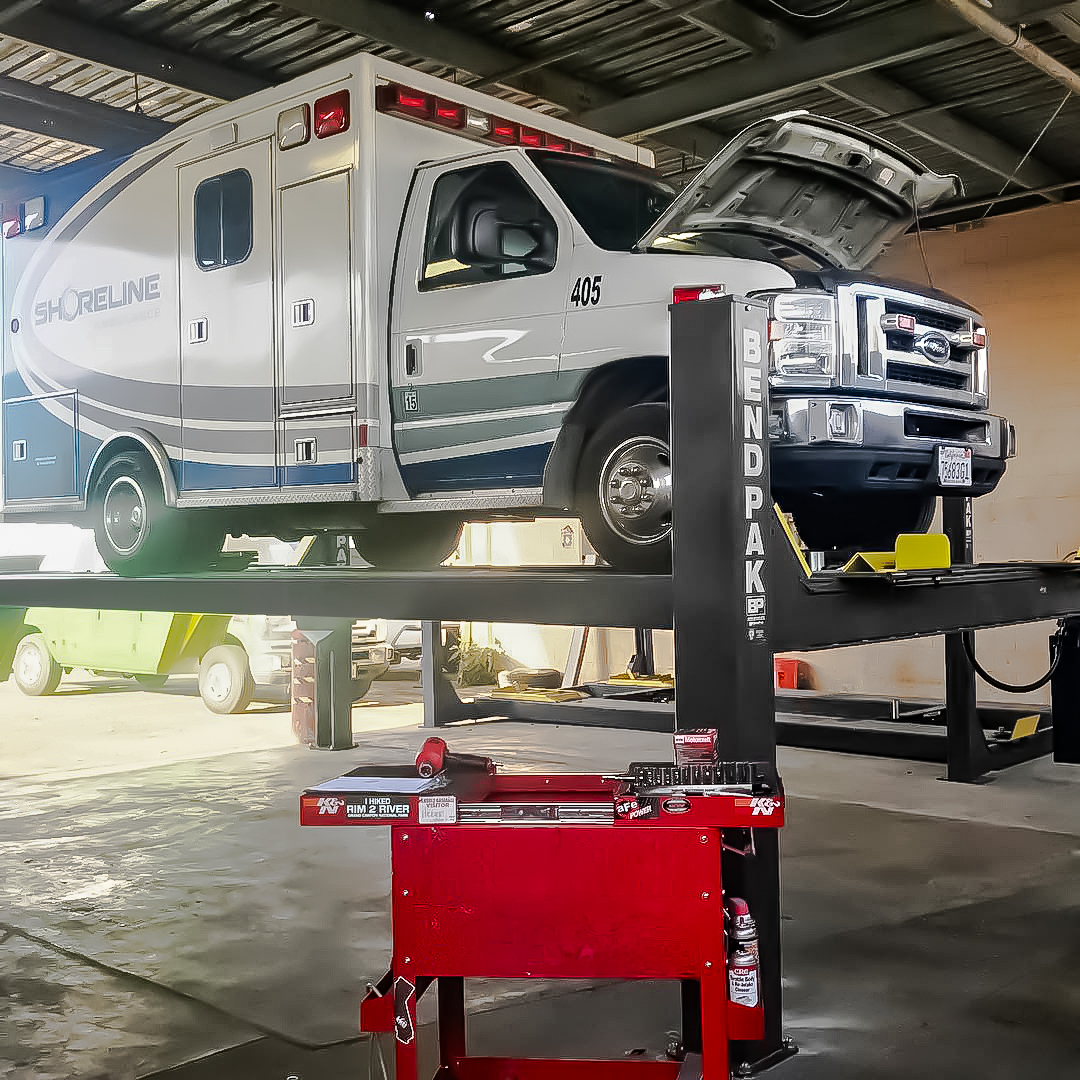

Commercial Four-Post Power for Municipal and Fleet Service

Commercial Four-Post Power for Municipal and Fleet Service

The BendPak HDS27 Four-Post Lift brings shops into the world of commercial trucks, construction equipment, municipal vehicles, buses, concrete mixers, flatbeds, and heavier fleet service. With 27,000 lbs. of lifting capacity, this heavy-duty truck lift gives professional facilities the strength and stability needed to service vehicles far beyond the reach of ordinary garage lifts. Where the HDS18E covers the entry point into medium-duty truck lifting, the HDS27 steps up for shops that want to handle larger commercial work with confidence. It is built for businesses that need dependable capacity, wide runway support, serious lifting hardware, and the ability to keep heavy vehicles up to code and ready for the next haul.

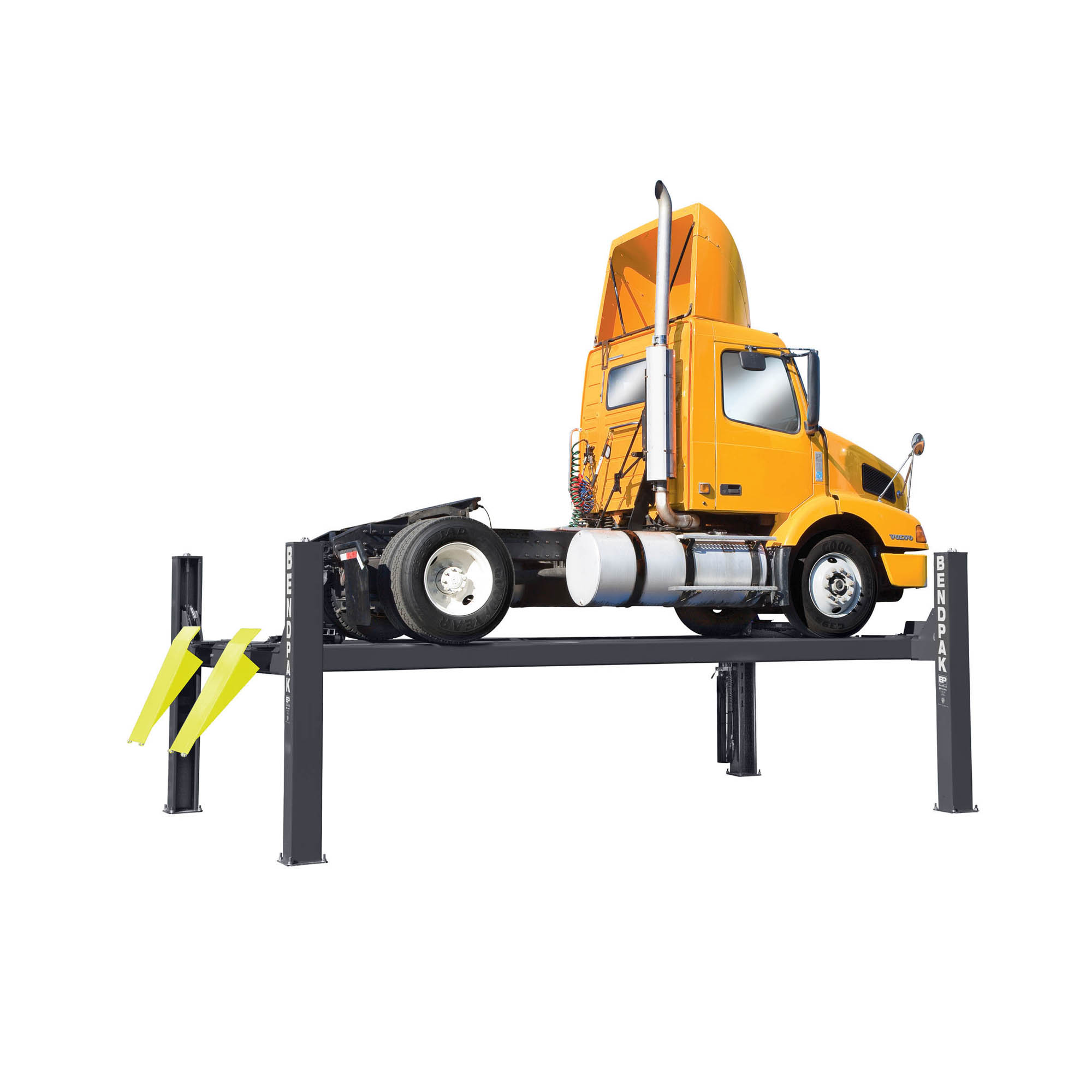

Long Runways for Large Vehicle Wheelbases

Long Runways for Large Vehicle Wheelbases

The HDS27 uses long runways designed to accommodate a wide variety of vehicle wheelbases, giving technicians more room to steer massive trucks and commercial vehicles onto the lift. The runway-based four-post design supports the tires and vehicle weight through a broad, stable platform, making it well suited for inspection, service, and maintenance. Runways feature a durable matte finish that helps support tire grip and long-term shop durability. For facilities maintaining construction fleets, municipal vehicles, and commercial trucks, the HDS27 gives large vehicles a stable place to land.

Overbuilt Components for Heavy Vehicle Lifting

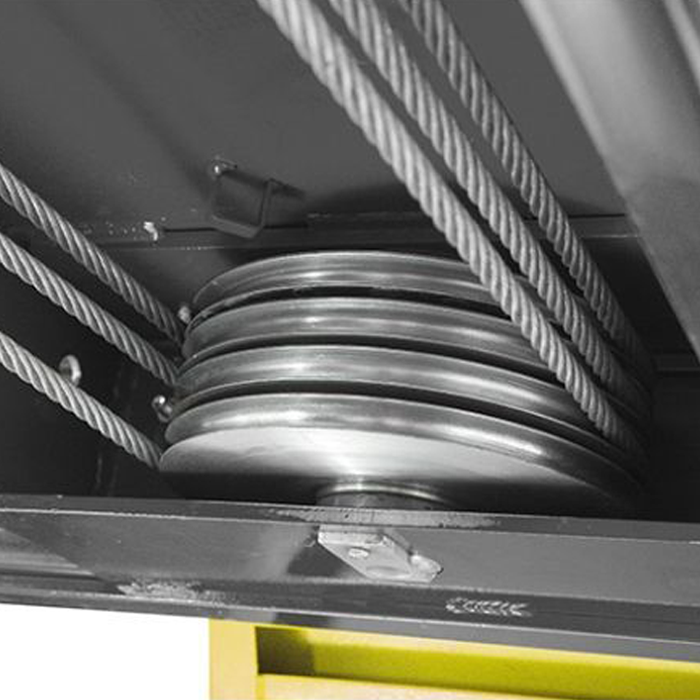

The HDS27 is built with supersized 12-inch diameter cable sheaves, galvanized lifting cables, grease nipples, a single hydraulic under-runway cylinder, and an integrated flow restrictor. These components help deliver smooth, controlled lifting performance while supporting the durability expected from a commercial BendPak four-post lift. The fully enclosed lifting cables help protect the lifting system, while the maintenance-free electric hydraulic power system keeps daily operation straightforward. It is engineered to handle 27,000-lb. workloads without making the equipment feel overmatched.
Overbuilt Components for Heavy Vehicle Lifting

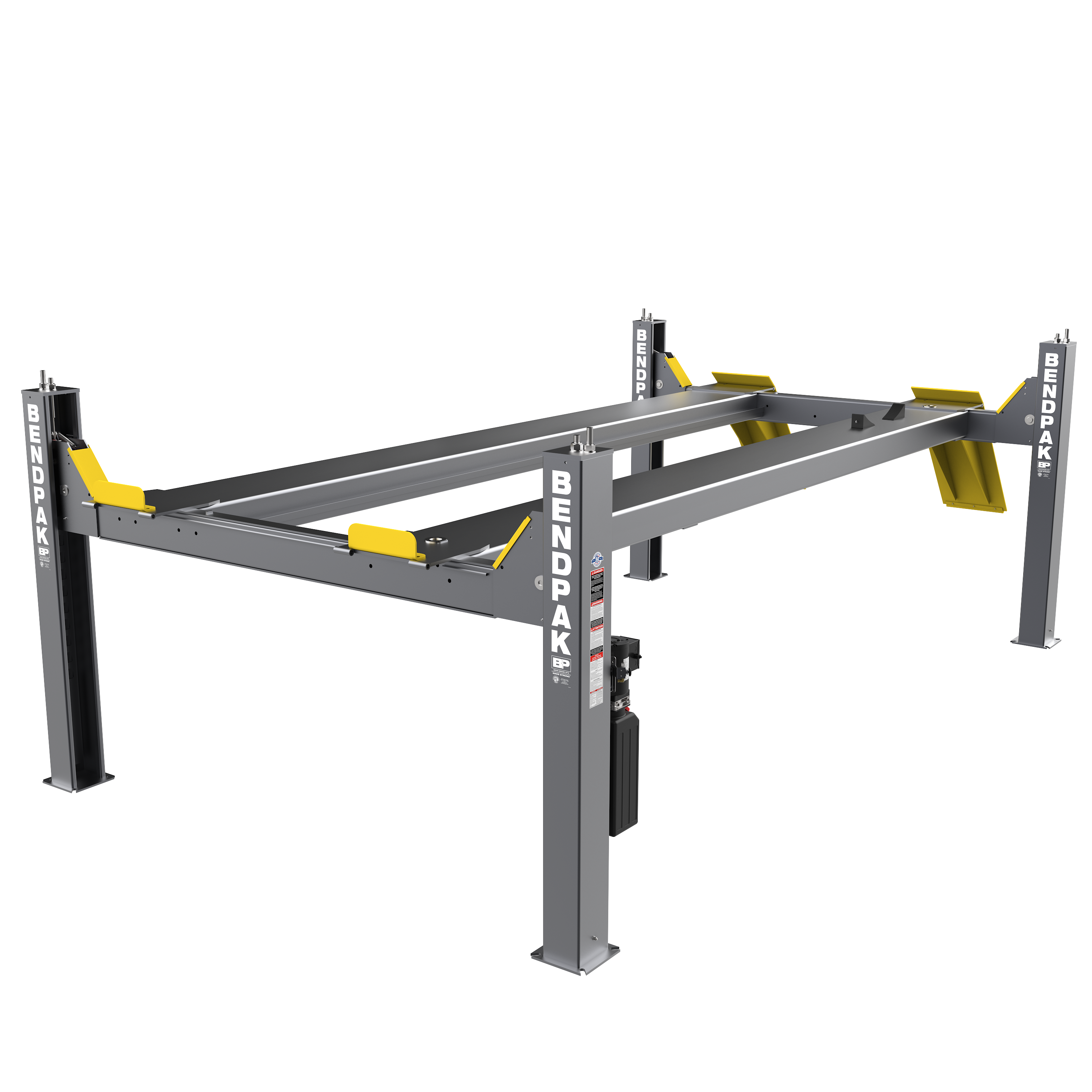

Safety Locks, CE Approval, and Optional Bridge Jacks

Safety Locks, CE Approval, and Optional Bridge Jacks

The HDS27 includes spring-loaded safety locks, a second lock system on constant guard, and multiple adjustable height locking positions to help keep raised vehicles secure during service. Conveniently positioned operator controls, 12-inch by 12-inch base plates, and durable powder coat add practical shop value to the lift's heavy-duty foundation. CE approval and certification to meet or exceed European Standard EN 1493 help reinforce the lift's professional service credentials. Optional rolling bridge jacks expand capability for wheel-off work, making the HDS27 a strong platform for fleet shops that want to service more than tires-on maintenance.
27,000-lb. Truck Lift

27,000-lb. Truck Lift

The HDS27 gives commercial shops the capacity to service construction vehicles, municipal fleets, buses, flatbeds, and other heavy equipment.
Commercial Runway Platform

Commercial Runway Platform

Long matte-finish runways help support large vehicle wheelbases and provide a stable drive-on surface for heavy-duty service.
Heavy-Duty Lift Hardware

Heavy-Duty Lift Hardware

Supersized sheaves, galvanized cables, grease nipples, and hydraulic power support controlled lifting under demanding workloads.

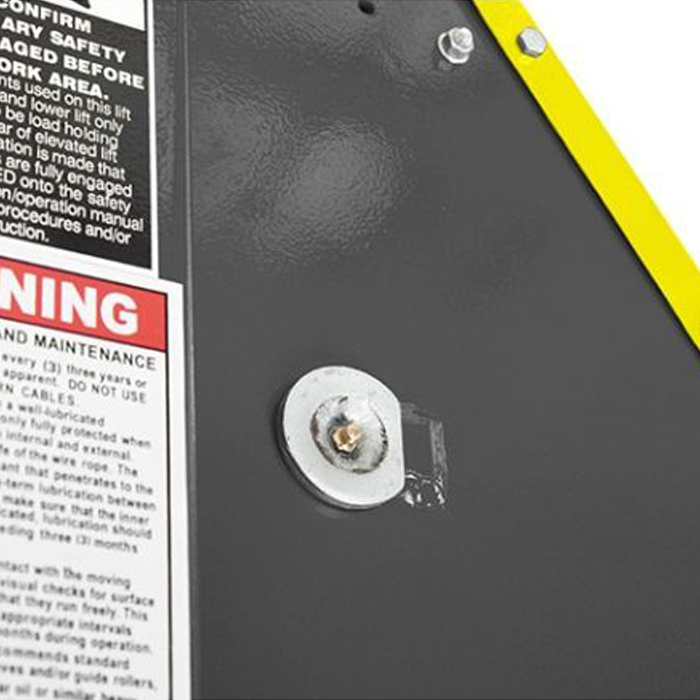

CE Approved Design

CE Approved Design

The HDS27 is CE Approved and Certified to meet or exceed European Standard EN 1493 for professional lift applications.
Built-In Safety Locks

Built-In Safety Locks

Spring-loaded locks, multiple locking positions, and a second lock system help secure the lift during service.
Bridge Jack Expandable

Bridge Jack Expandable

Optional rolling bridge jacks help transform the HDS27 into a stronger wheel-service platform for brakes, axles, tires, and suspension work.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
27000 lb

Rise

A Min Runway Height
9.5 in
B Max Rise
61.25 in
C Max Lifting Height
69.5 in

Outside Dimensions

D Width
153.5 in
E Outside Length
257 in
F Overall Length
312.75 in
G Height
91.25 in

Inside Dimensions

H Inside Columns
133.5 in
I Drive-Thru Clearance
109 in

Runways

J Runway Width
22 in
K Runway Length
255.5 in
L Width Between Runways
40 - 45.25 in
M Runway Centerline
67.5 - 72.5 in
N Outside Edge of Runways
89.25 - 94.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
185 in
25% Capacity
110 in
50% Capacity
135 in
75% Capacity
160 in

Locking

Locking Positions
13
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
27 x 264 x 37 in
Shipping Weight
6109 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
