BendPak HDS18EA Heavy-Duty Alignment Lift - 18,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175969
$23,805.00$25,195.00
SAVE $1,390
Financing as low as $500/moApply now

Flexible business financing available through Navitas.

BendPak HDS-18EA ALI Certified alignment lift with 18,000-lb. capacity.
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
BendPak HDS-18EA four-post alignment lift with turnplates and 18,000-lb. capacity.
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Alignment Lift / 18,000-lbs. Capacity / Includes Turnplates and Slip Plates

BendPak HDS18EA Heavy-Duty Alignment Lift - 18,000-lbs. Capacity
$23,805.00$25,195.00SAVE $1,390

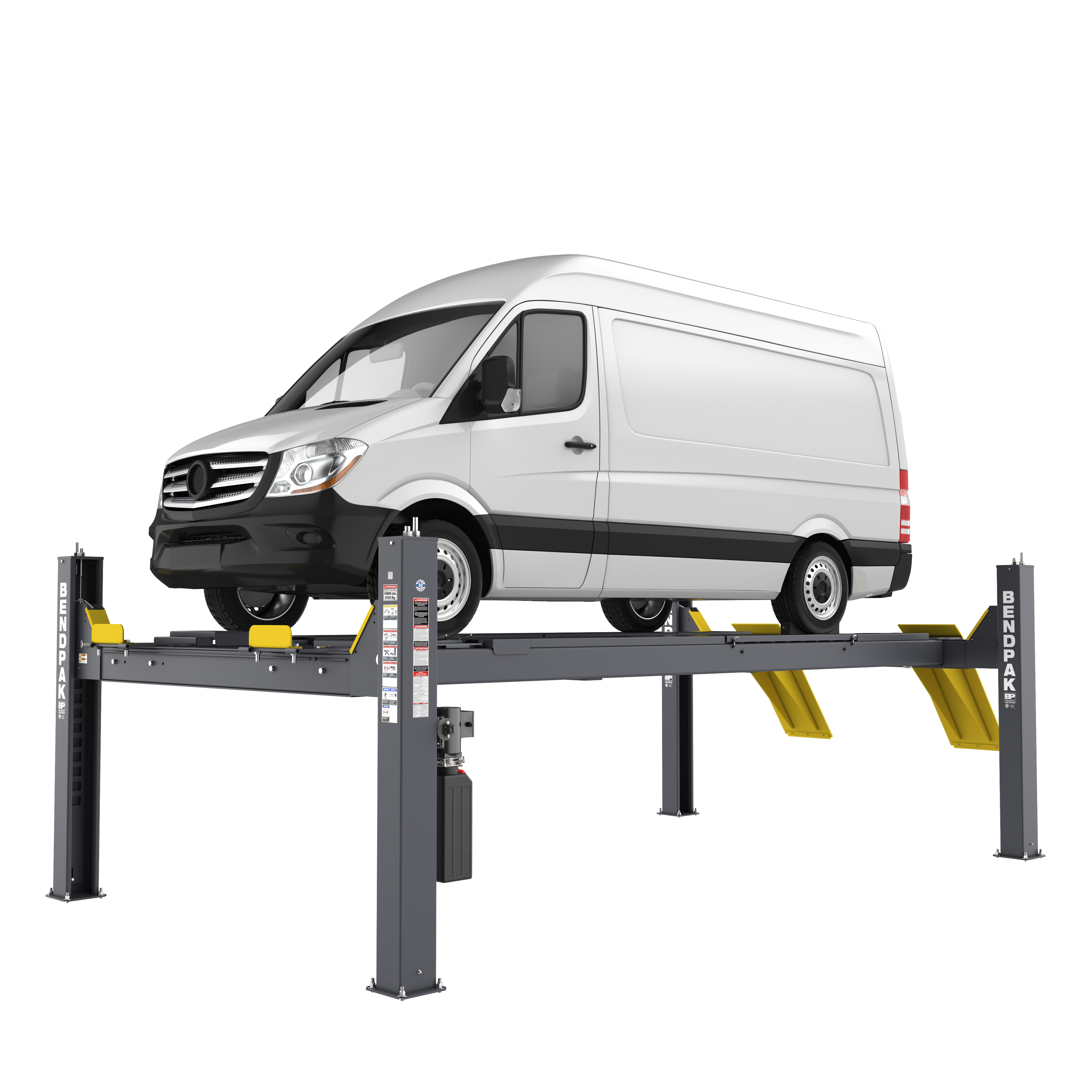

18,000-lb. Alignment Strength for Fleet-Size Workloads

18,000-lb. Alignment Strength for Fleet-Size Workloads

The BendPak HDS-18EA Heavy-Duty Alignment Lift is built for shops that need alignment capability at the top end of the vehicle weight range. With 18,000-lb. lifting capacity, this four-post truck alignment lift can handle heavy trucks, SUVs, commercial vehicles, and smaller performance cars when one bay needs to stay ready for almost anything. If floor space is too valuable for multiple specialty lifts, the HDS-18EA gives shops the extra capacity to take on larger alignment jobs without giving up BendPak safety, runway durability, or service flexibility. It is the alignment lift for facilities that need to say yes to more vehicles and keep the bay earning.

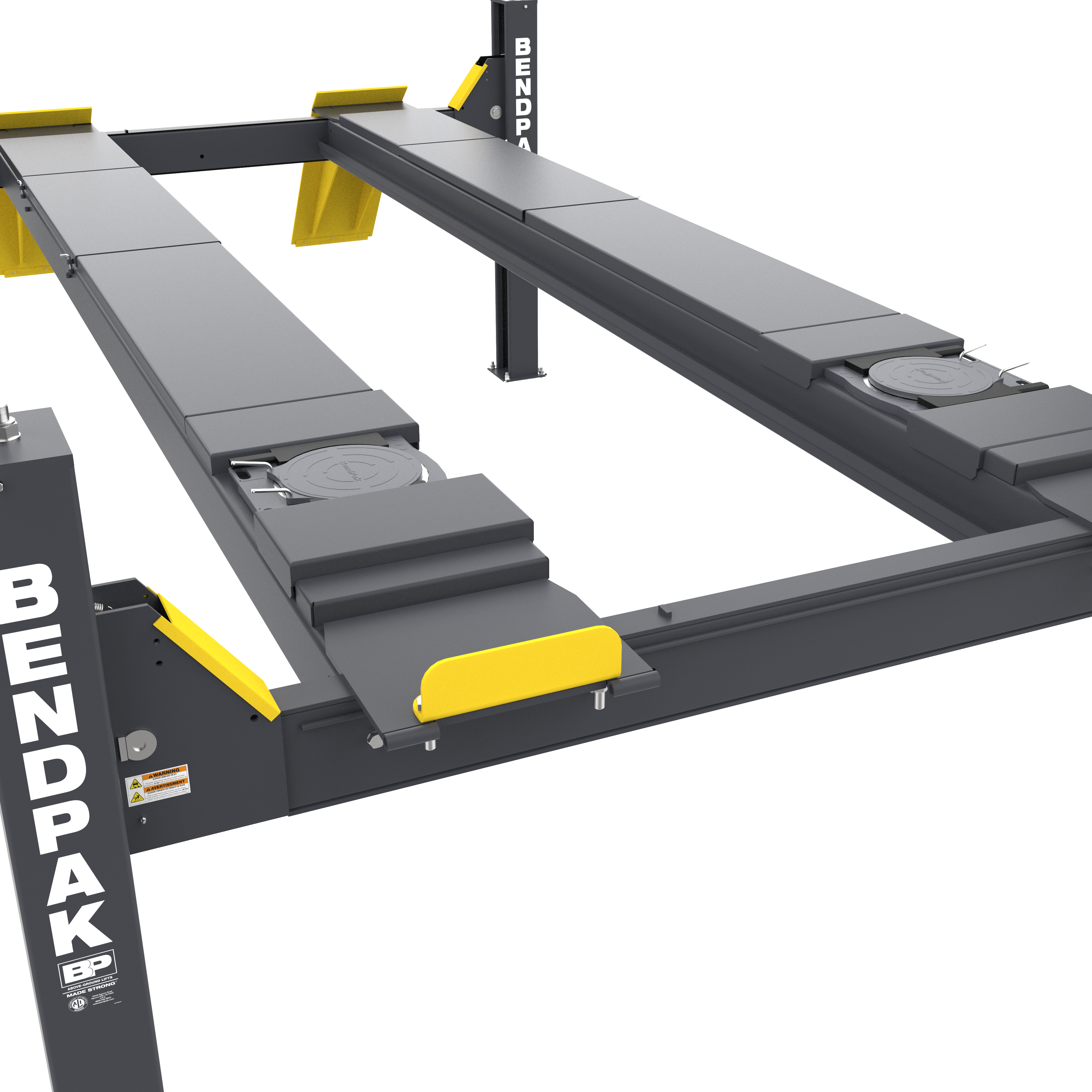

Turn Plates and Slip Plates for Heavy-Duty Alignment Work

Turn Plates and Slip Plates for Heavy-Duty Alignment Work

Rear-seated, free-floating slip plates help keep suspensions relaxed during wheel alignment work, reducing the need for old-school wheel jacking methods that can introduce flex and tire-wall pressure changes. This setup helps technicians perform more accurate alignments on heavier vehicles while keeping the process cleaner and more controlled. Galvanized, corrosion-resistant front turn plates use dual recessed pockets to support easier vehicle positioning and alignment equipment setup. Whether the job involves trucks, SUVs, sports cars, or race cars, the HDS-18EA gives technicians the built-in alignment hardware needed to work efficiently across a broad vehicle mix.

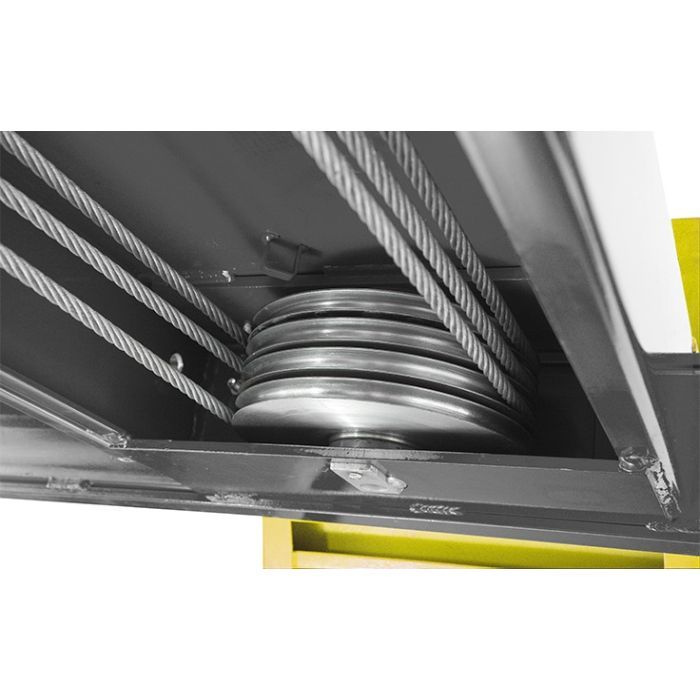

Supersized Sheaves and 5/8-Inch High-Tensile Lifting Cables

The HDS-18EA is engineered around BendPak’s heaviest alignment lift hardware. Supersized 12-inch diameter cable sheaves and massive 4-inch diameter sheave axles help support smooth operation and long service life under demanding loads. Four stainless steel 5/8-inch high-tensile lifting cables hoist the platform while remaining internally routed and protected inside the lift structure. Grease nipples on every sheave and axle help keep the lifting system operating smoothly with routine maintenance, while enclosed cables, airlines, and safety latches help protect critical systems from daily shop exposure.
Supersized Sheaves and 5/8-Inch High-Tensile Lifting Cables
18K Safety Systems and Heavy-Duty Shop Confidence

18K Safety Systems and Heavy-Duty Shop Confidence

The HDS-18EA includes spring-loaded automatic safety locks, multiple adjustable locking positions, and a push-button pneumatic lock release for efficient operation. A secondary lock system stays on guard for cable slack, while an integrated hydraulic flow restrictor helps support safe, controlled lowering in the unlikely event of hydraulic failure. A single hydraulic under-runway cylinder, maintenance-free power system, conveniently located controls, durable powder-coat finish, matte-finish runways, and 12-inch by 12-inch base plates round out a heavy-duty alignment lift built for commercial confidence. Optional rolling jacks can expand the system for wheel, brake, and suspension service.

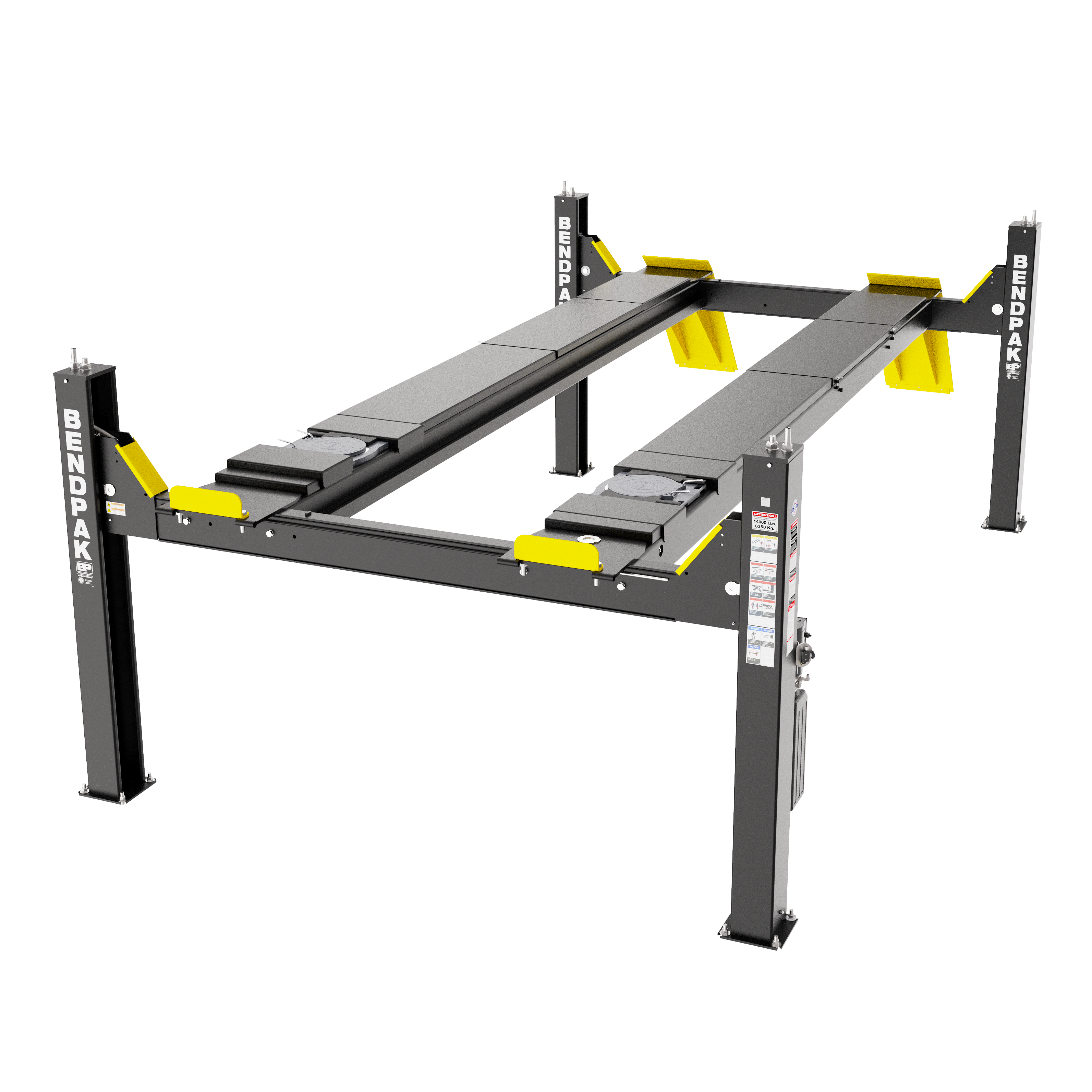

18,000-lb. Capacity

18,000-lb. Capacity

Built for heavy trucks, SUVs, commercial vehicles, and mixed alignment bays that need more lifting muscle.

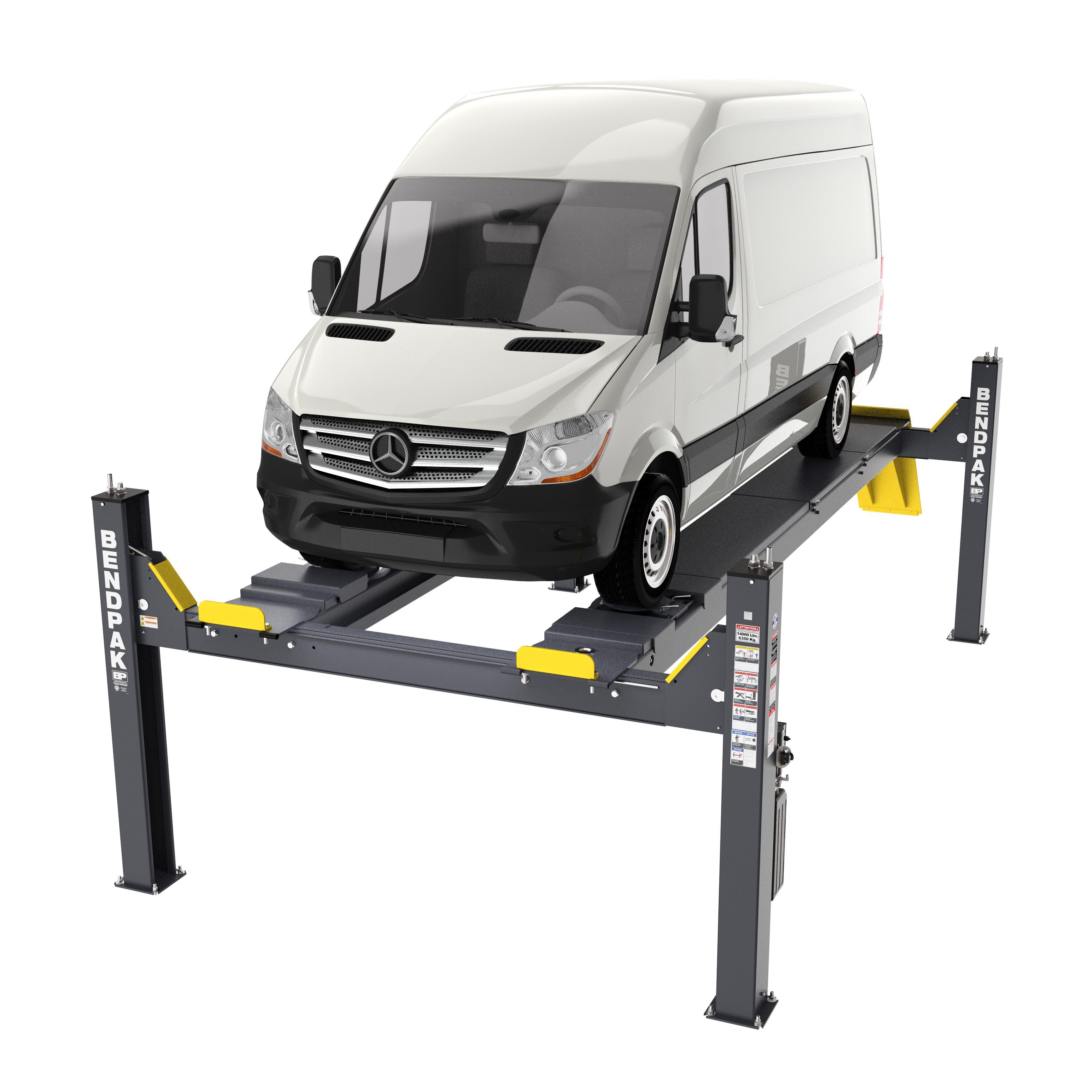

Truck Alignment Ready

Truck Alignment Ready

Rear slip plates and front turn plates help technicians perform alignments while keeping suspensions relaxed and controlled.
Supersized Sheaves

Supersized Sheaves

12-inch cable sheaves and 4-inch sheave axles help support heavy-duty alignment lift performance.
5/8-Inch Lift Cables

5/8-Inch Lift Cables

Four stainless steel high-tensile cables are built to handle demanding lifting cycles in commercial environments.
Push-Button Lock Release

Push-Button Lock Release

Pneumatic lock release helps simplify lowering while automatic locks engage during lifting.

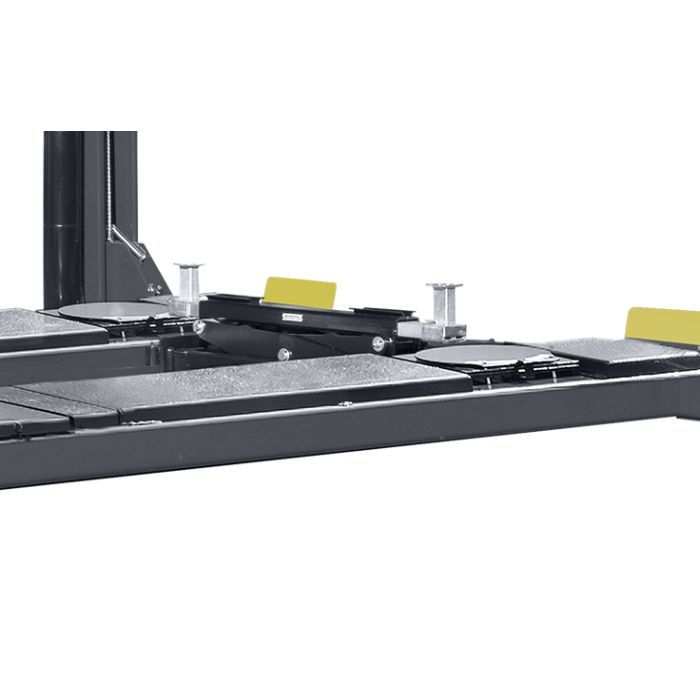

Rolling Jack Compatible

Rolling Jack Compatible

Optional rolling jacks expand the HDS-18EA into wheel, brake, and suspension service applications.

Recommended Add-ons

Accessories for the BendPak HDS18EA Heavy-Duty Alignment Lift - 18,000-lbs. Capacity

BendPak GoAir Mini Portable Air Compressor
BendPak GoAir Mini Portable Air Compressor
$236.00
LEARN MORE
BendPak airline kit for XR Series scissor lifts and shop air access
BendPak Airline Kit for Four-Post Bridge Jacks
$130.00
LEARN MORE
BendPak WSA-100 air electric work station for compatible lift models
BendPak WSA-100 Air-Electric Workstation
$416.00
LEARN MORE
BendPak RJ9W Easy-Roll four-post bridge jack with 9,000-lb. capacity
BendPak RJ9W 4-Post Bridge Jack - 9,000-lbs. Capacity
$4,055.00$4,295.00
Save 6%
LEARN MORE
LiteStix LS36SMDX rechargeable underhood work light with 1,200-lumen output
LITESTIX LS36SMDX Rechargeable Underhood Work Light
$126.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
18000 lb

Rise

A Min Runway Height
11.5 in
B Max Rise
59 in
C Max Lifting Height
71.75 in

Outside Dimensions

D Width
153.5 in
E Outside Length
257 in
F Length
312.75 in
G Height
91.25 in

Inside Dimensions

H Inside Columns
133.5 in
I Drive-Thru Clearance
109 in

Runways

J Runway Width
22 in
K Runway Length
257.5 in

Alignment

M Min 4-Wheel Alignment
83 in
N Max 4-Wheel Alignment
138 in
O Max 2-Wheel Alignment
211 in

Minimum Wheelbase

Rated Wheelbase Capacity
185 in
75% Capacity
160 in
50% Capacity
135 in
25% Capacity
110 in

Locking

Locking Positions
13
Locking Spacing
4 in

Power Unit and Voltage

Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
27 x 265 x 44 in
Shipping Weight
6790 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
