BendPak HDS14XT Four-Post Lift - 14,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175624
$8,780.00$9,295.00
SAVE $515
Financing as low as $191/moApply now

Flexible business financing available through Navitas.

BendPak HDS-14XT ALI Certified extended-runway four-post lift for long-wheelbase vehicles.
Product 3D model preview
Product 3
Product 4
BendPak HDS-14XT extended-length high-rise four-post lift with 14,000-lb. capacity.
Product 6
Product 7
Product 8
BendPak HDS-14XT extended-length four-post lift with 14,000-lb. capacity.
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 14,000-lbs. Capacity / Extended Length / High Rise

BendPak HDS14XT Four-Post Lift - 14,000-lbs. Capacity
$8,780.00$9,295.00SAVE $515

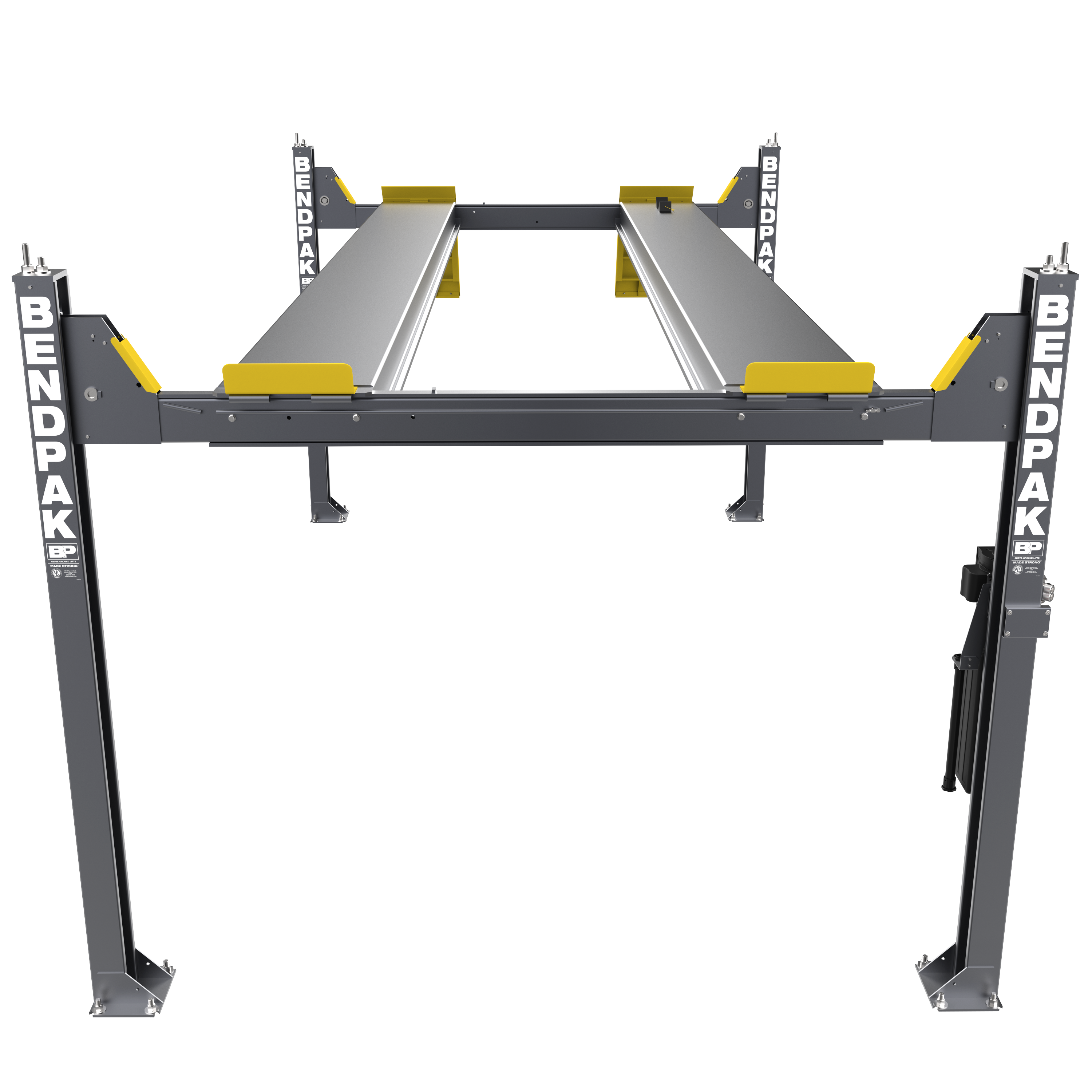

High-Rise Four-Post Clearance with 227.5-Inch Runway Reach

High-Rise Four-Post Clearance with 227.5-Inch Runway Reach

The BendPak HDS-14XT Four-Post Lift is built for shops that need more runway, more rise, and more room to work under larger vehicles. With a 14,000-lb. lifting capacity, extended 227.5-inch runways, and a higher lifting profile, this high-rise four-post lift is designed for limousines, extended trucks, large SUVs, and other vehicles that demand more space than a standard runway setup can provide. Its 83-inch maximum rise and 89.5-inch maximum lifting height give technicians the overhead clearance they need to stand more comfortably during undercar service. Less crouching and reaching means better workflow, reduced strain, and a more productive service bay for serious commercial shops.
Extended Four-Post Lift Design for Large Vehicle Service

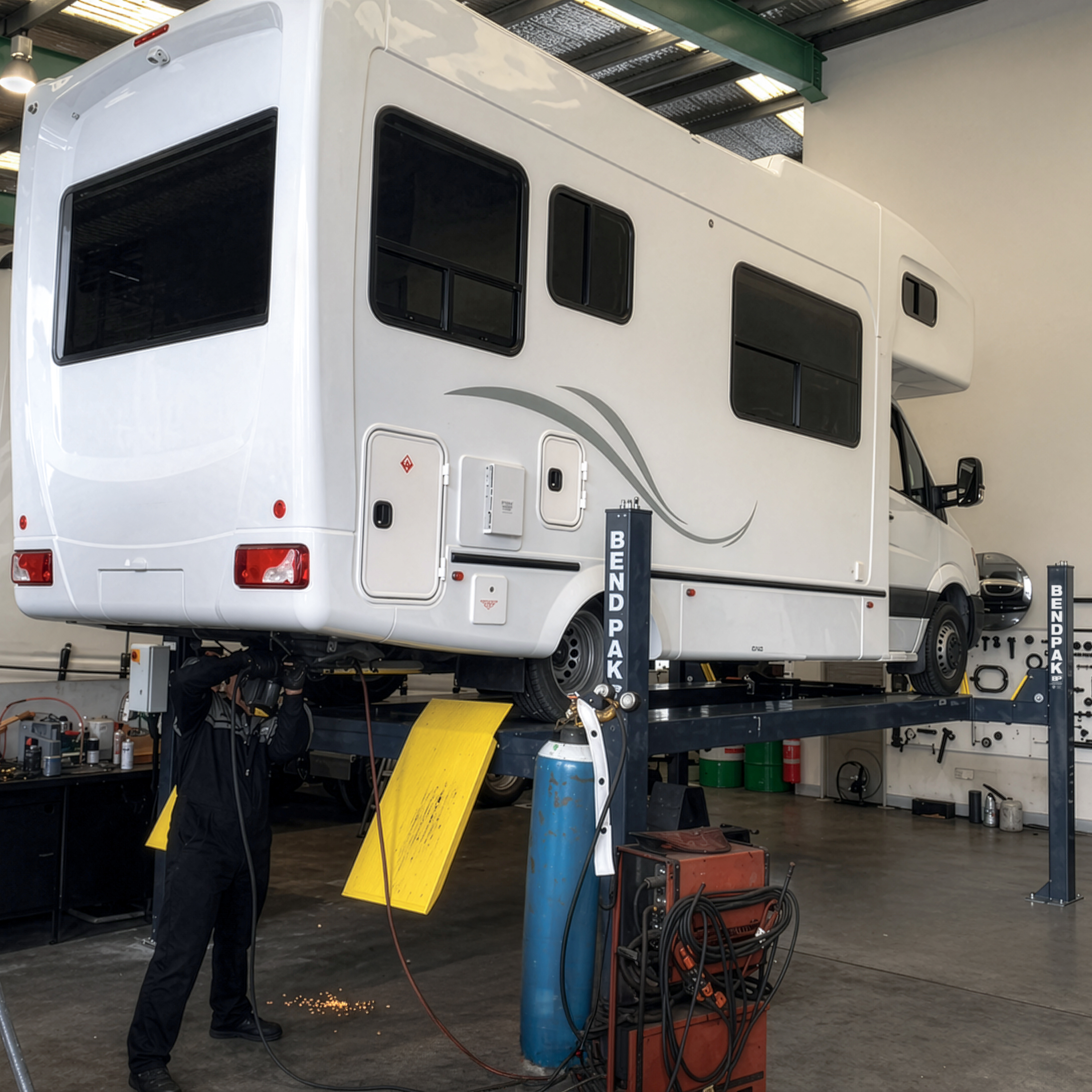

Extended Four-Post Lift Design for Large Vehicle Service

The HDS-14XT gives long-wheelbase vehicles the runway support they need while maintaining the stability BendPak four-post lifts are known for. Extended approach ramps help reduce the angle of ascent, making the lift friendlier to low-clearance vehicles and helping protect customer cars during drive-on loading. Runways include rail kits for optional accessories, allowing shops to configure the lift around their work. Whether the job calls for storage, inspections, undercar maintenance, or added wheel-service capability with optional rolling bridge jacks, the HDS-14XT gives larger vehicles a proper place to land.

Oversized Sheaves, Aircraft Cables, and Built-In Durability

The HDS-14XT is engineered for long-term durability with massive 10.5-inch dual-hub cable sheaves that help reduce cable wear over time. Four heavy-duty 1/2-inch stainless-steel aircraft-quality lifting cables provide the strength, abrasion resistance, and fatigue protection required for daily shop lifting. A single hydraulic cylinder beneath the runway powers the lift, while internal anti-sway slider blocks help support smooth, secure movement in each column. Heavy-duty base plates and customizable power unit location give installers and shop owners more flexibility when fitting the lift into a real working bay.
Oversized Sheaves, Aircraft Cables, and Built-In Durability

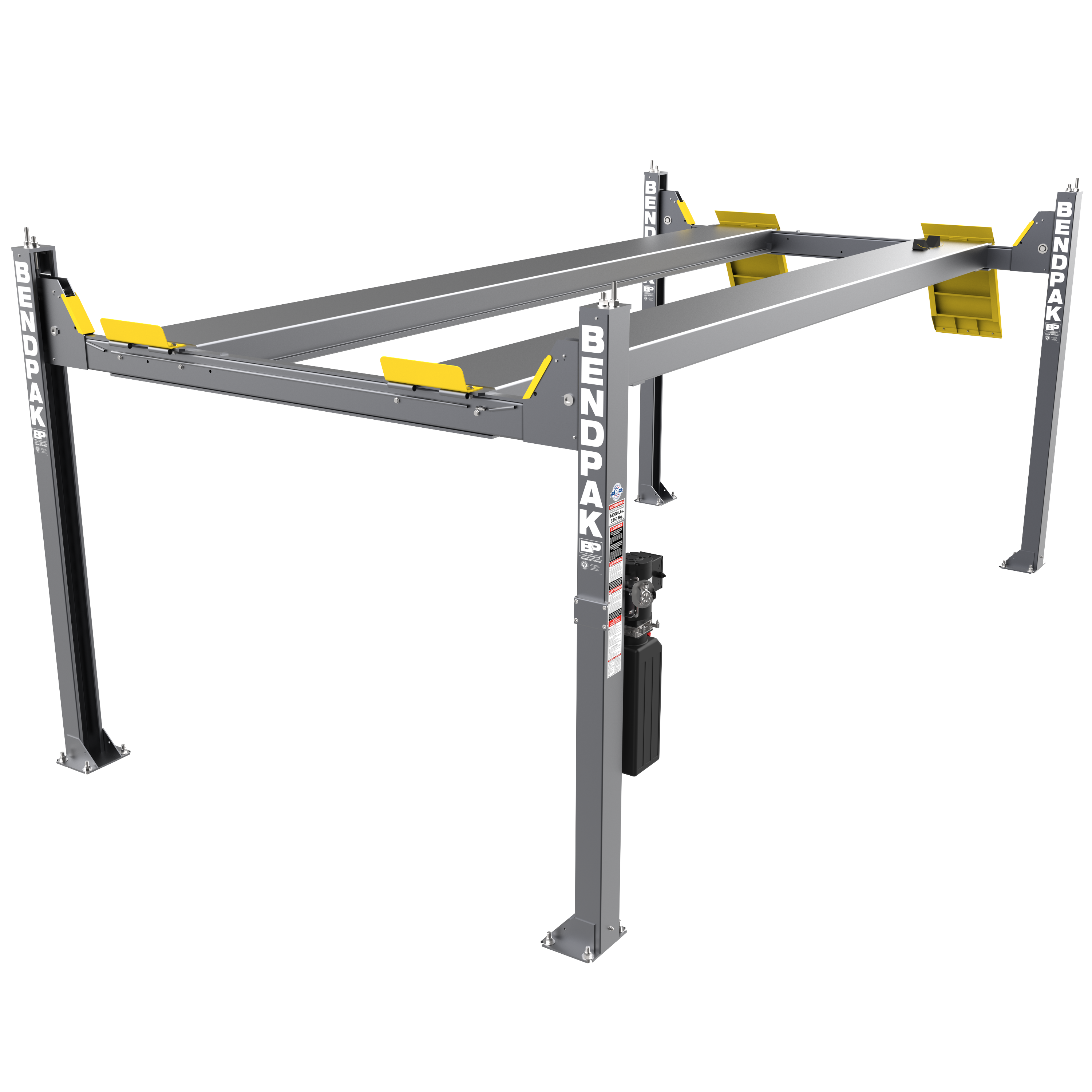

ALI Certified Safety for High-Rise Four-Post Lifting

ALI Certified Safety for High-Rise Four-Post Lifting

The HDS-14XT is ALI Certified, giving shops added confidence that the lift meets recognized safety and performance standards. Automatic spring-loaded safety locks engage continuously as the lift rises, while adjustable safety ladders help maintain precise runway leveling, even when floors are not perfectly even. Independent backup slack-cable safety latches add another layer of protection, and the pneumatic push-button safety release makes lowering operations simple and efficient. Fully enclosed cables, sheaves, and safety systems help reduce pinch points while keeping critical components protected during daily use.
High-Rise Clearance

High-Rise Clearance

An 83-inch maximum rise and 89.5-inch maximum lifting height give technicians more room to work upright under vehicles.

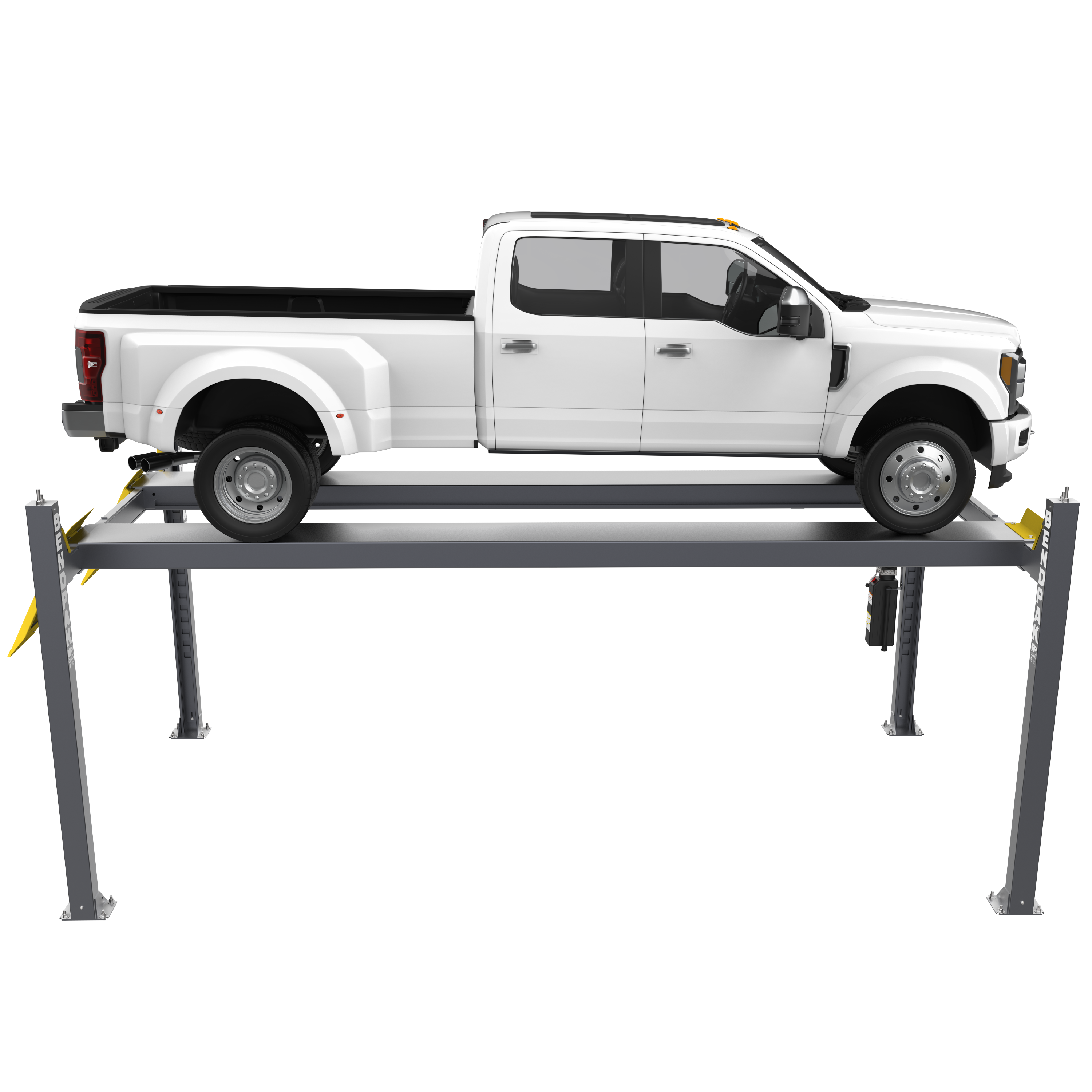

Extended Runways

Extended Runways

The 227.5-inch runways support longer wheelbases, extended trucks, large SUVs, and limousines.

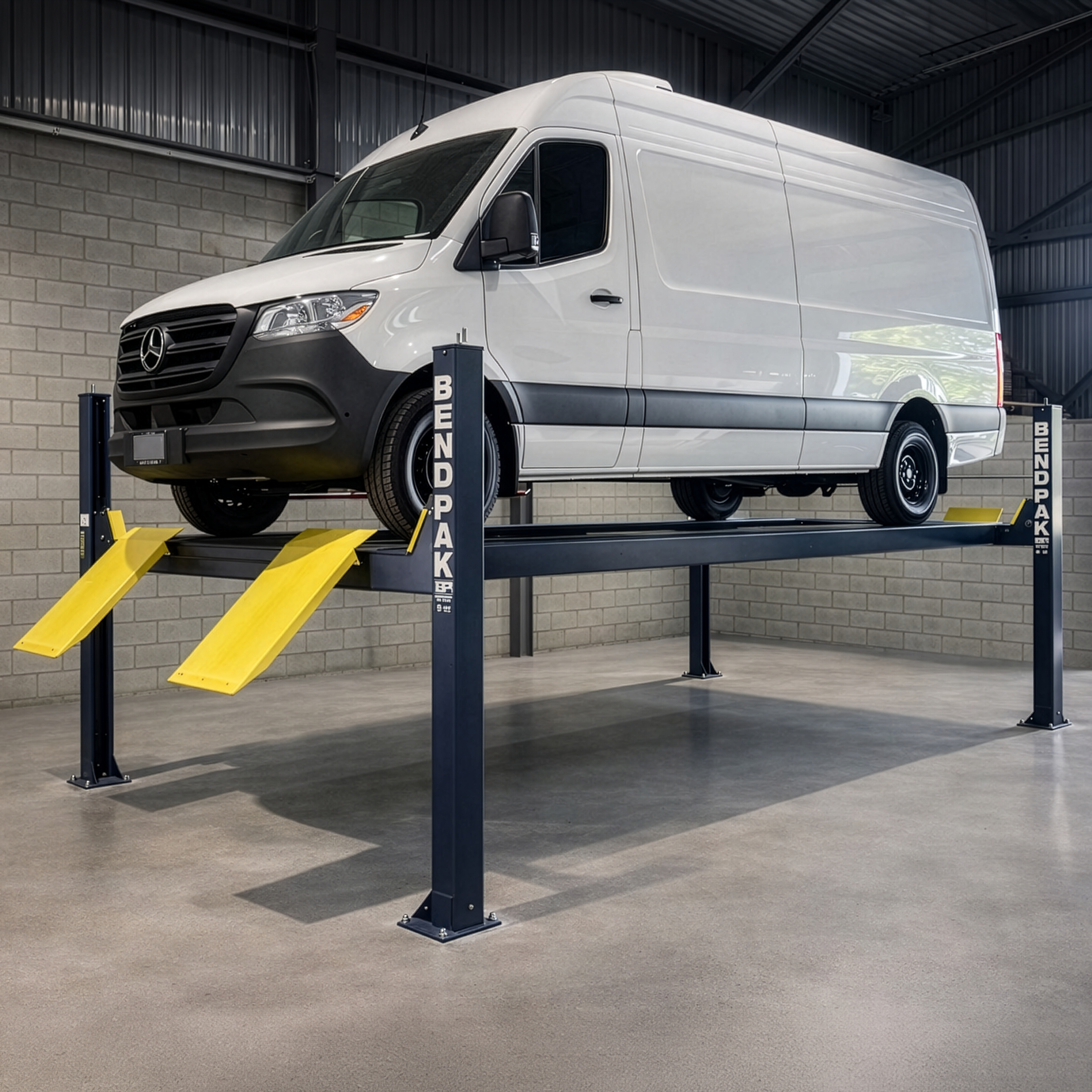

14,000-lb. Capacity

14,000-lb. Capacity

Heavy-duty lifting strength makes the HDS-14XT a strong fit for demanding commercial service environments.
ALI Certified

ALI Certified

Certified design helps shops operate with confidence around safety, performance, and professional lift standards.

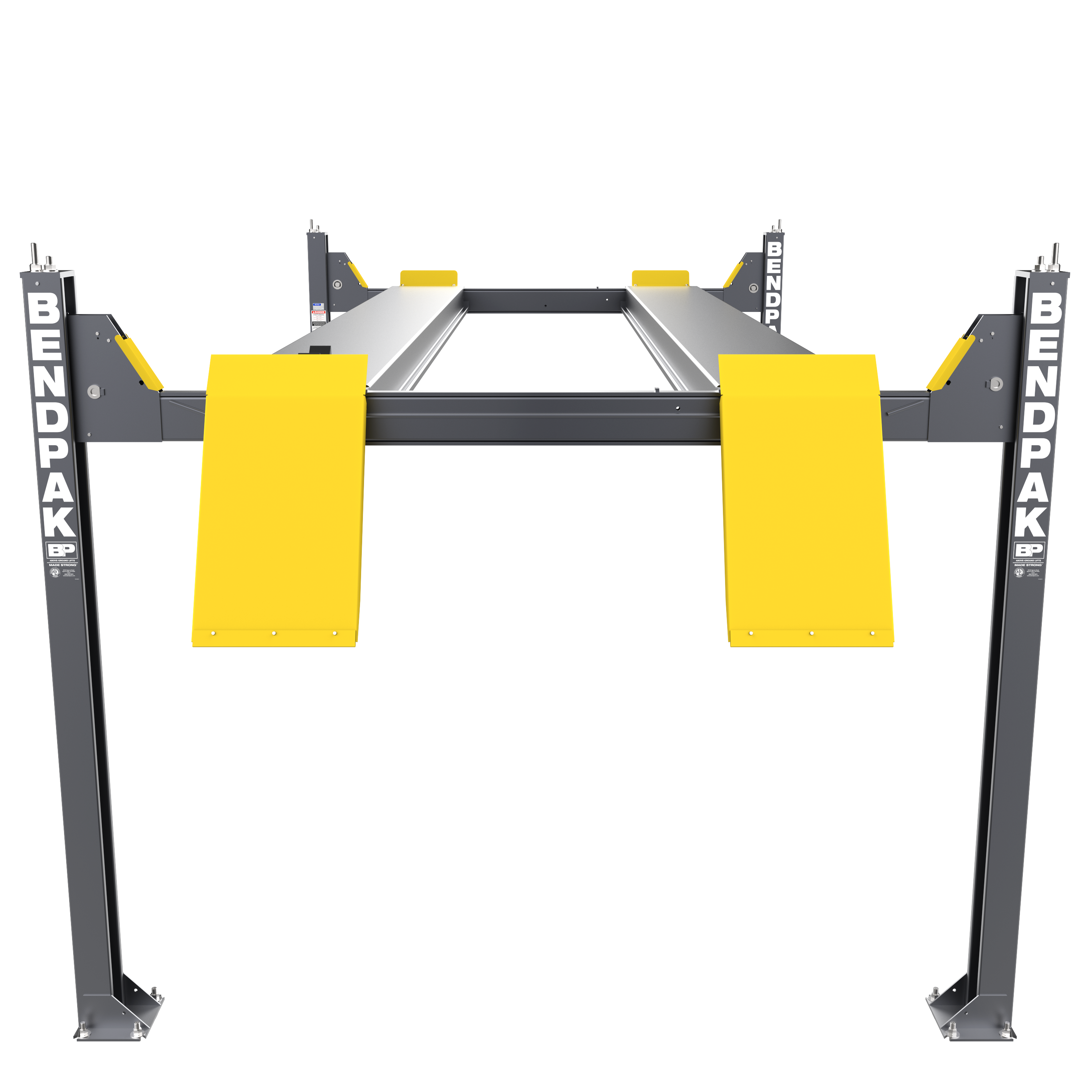

Low-Clearance Loading

Low-Clearance Loading

Extended approach ramps help reduce the loading angle for vehicles with lower ground clearance.

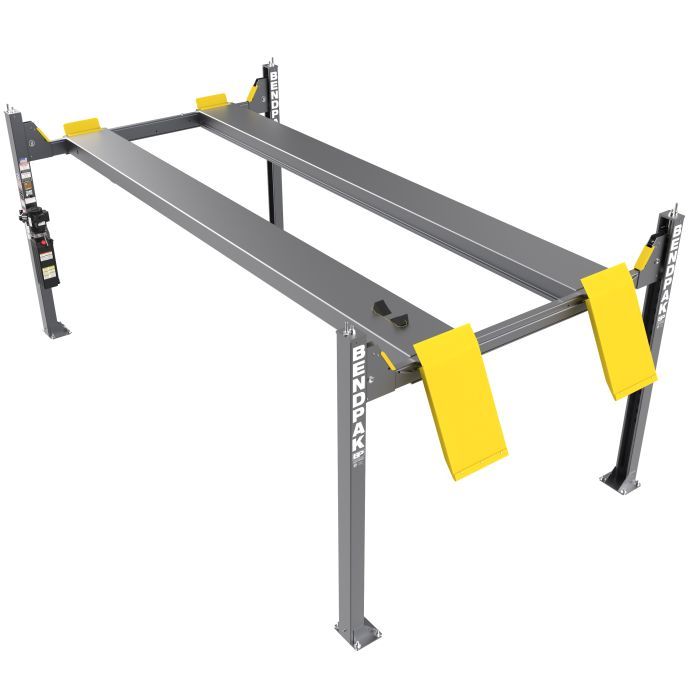

Accessory-Ready Runways

Accessory-Ready Runways

Runway rail kits support optional accessories for expanded service capability and shop customization.

Specifications

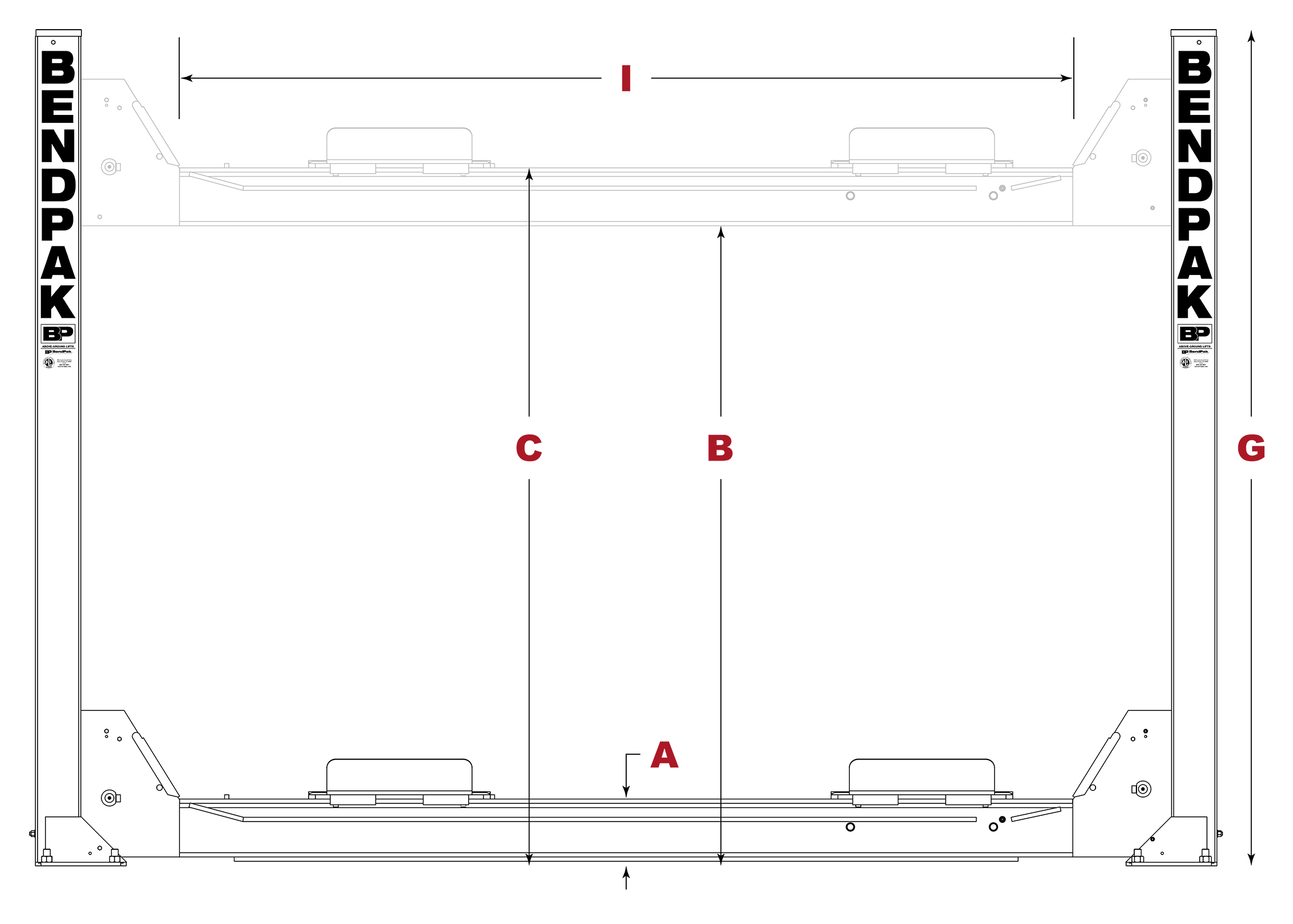

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
14000 lb

Rise

A Min Runway Height
7.5 in
B Max Rise
82.75 in
C Max Lifting Height
89.5 in

Outside Dimensions

D Width
130 in
E Outside Length
243 in
F Overall Length
272 in
G Height
104 in

Inside Dimensions

H Inside Columns
120 in
I Drive-Thru Clearance
80.75 in

Runways

J Runway Width
20 in
K Runway Length
227.5 in
L Width Between Runways
34.5 - 41.5 in
M Runway Centerline
57.5 - 64.5 in
N Outside Edge of Runways
77.5 - 84.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
160 in
25% Capacity
95 in
50% Capacity
115 in
75% Capacity
140 in

Locking

Locking Positions
18
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
23 x 239 x 43 in
Shipping Weight
2740 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
