BendPak HDS14LSXE Extended Alignment Lift - 14,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175172
$12,370.00$13,095.00
SAVE $725
Financing as low as $260/moApply now

Flexible business financing available through Navitas.

BendPak HDS-14LSXE extended alignment lift supporting a limousine with turnplate and slip plate access.
Product 3D model preview

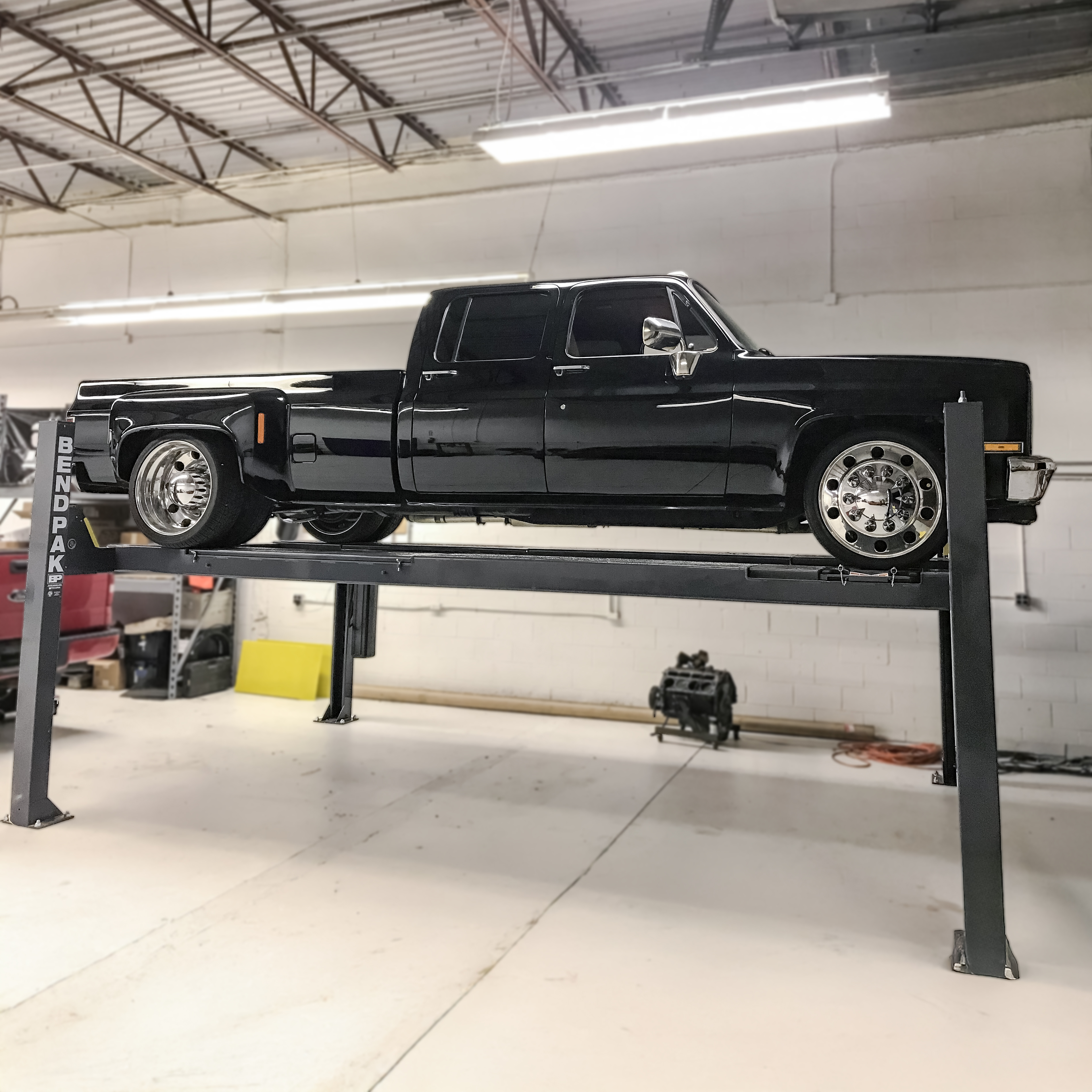

BendPak HDS-14LSXE extended alignment lift supporting a classic dually truck.
BendPak HDS-14LSXE slip plates for extended four-post alignment lift service.
Product 5
BendPak HDS-14LSXE extended four-post alignment lift with 14,000-lb. capacity.
Product 7
Product 8
BendPak HDS-14LSXE turnplate section for precision wheel alignment work.
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Alignment Lift / 14,000-lbs. Capacity / Limo Extended / Includes Turnplates and Slip Plates

BendPak HDS14LSXE Extended Alignment Lift - 14,000-lbs. Capacity
$12,370.00$13,095.00SAVE $725
Extended Alignment Lift Space for Longer, Heavier Vehicles

Extended Alignment Lift Space for Longer, Heavier Vehicles

The BendPak HDS-14LSXE Extended Alignment Lift is built for shops that never know what is rolling in next. With 14,000-lb. lifting capacity and an extended-length alignment platform, this four-post lift is designed to handle everything from sedans and pickups to longer residential vehicles, municipal vehicles, and specialty work that needs extra runway room. For shops that regularly service long-wheelbase vehicles, the HDS-14LSXE gives technicians the added length, alignment hardware, and runway stability needed to work confidently. It combines BendPak’s heavy-duty four-post construction with integrated alignment equipment so big jobs feel planned, not improvised.
Extended Runways with Built-In Alignment Hardware

Extended Runways with Built-In Alignment Hardware

Front turn plates and rear multi-caster slip plates are integrated into the HDS-14LSXE alignment system to support precise, free-floating alignment work. The front turn plates use aluminum-alloy construction and position within recessed turn plate pockets, giving technicians flexibility for different vehicle setups while maintaining a clean runway layout. The longer runway design gives extended vehicles the support they need, while longer approach ramps help reduce the loading angle for low ground-clearance vehicles. Runways adjust for different tread widths and include a rail kit for optional accessories, giving this extended alignment lift more utility than a standard drive-on platform.

Heavy-Duty Cable System and Protected Lift Structure

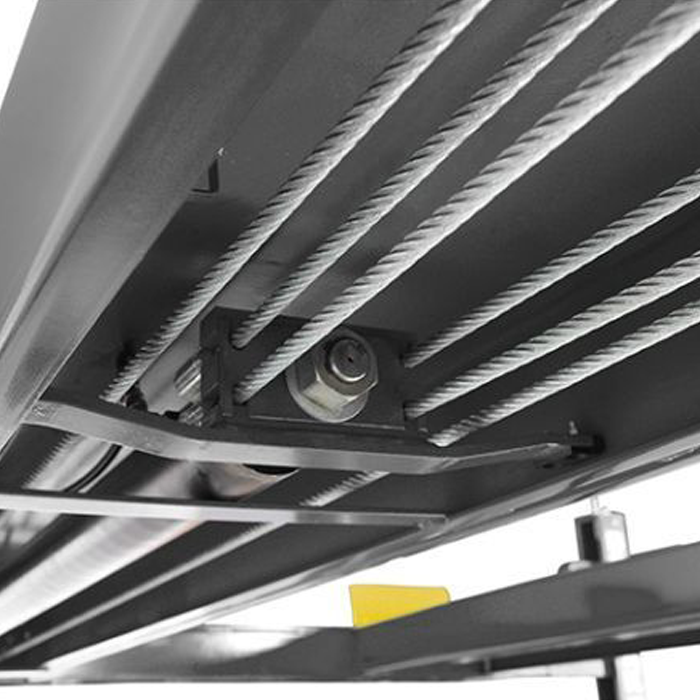

The HDS-14LSXE uses oversized cable sheaves and heavy-duty 1/2-inch aircraft-quality lifting cables to support demanding alignment work. Rugged roller axles and large sheave geometry help reduce cable stress, while internal routing helps protect critical lift components from damage and shop exposure. A single hydraulic cylinder mounted underneath the runway powers the lift, and internal Anti-Sway slider blocks in each column help support stable platform movement. Fully enclosed lifting cables, safety locks, sheaves, and related systems help keep the lift cleaner, safer, and better prepared for daily commercial use.
Heavy-Duty Cable System and Protected Lift Structure
Auto-Leveling Safety, Push-Button Release, and Bridge Jack Capability

Auto-Leveling Safety, Push-Button Release, and Bridge Jack Capability

The HDS-14LSXE includes an automatic leveling system and multiple auto-leveling locking positions to help maintain proper runway height during alignment service. Multi-position safety locks in each column engage as the lift rises, and push-button pneumatic safety release makes lowering fast and consistent. Optional bridge jacks expand the lift into full wheel-service territory, allowing shops to add brake, tire, suspension, and wheel work to alignment operations. For facilities that need to support longer vehicles without giving up alignment accuracy, the HDS-14LSXE is built to bring reach, capacity, and control together.
Extended Alignment Platform

Extended Alignment Platform

Longer runways help support long-wheelbase vehicles, municipal vehicles, pickups, and larger service applications.

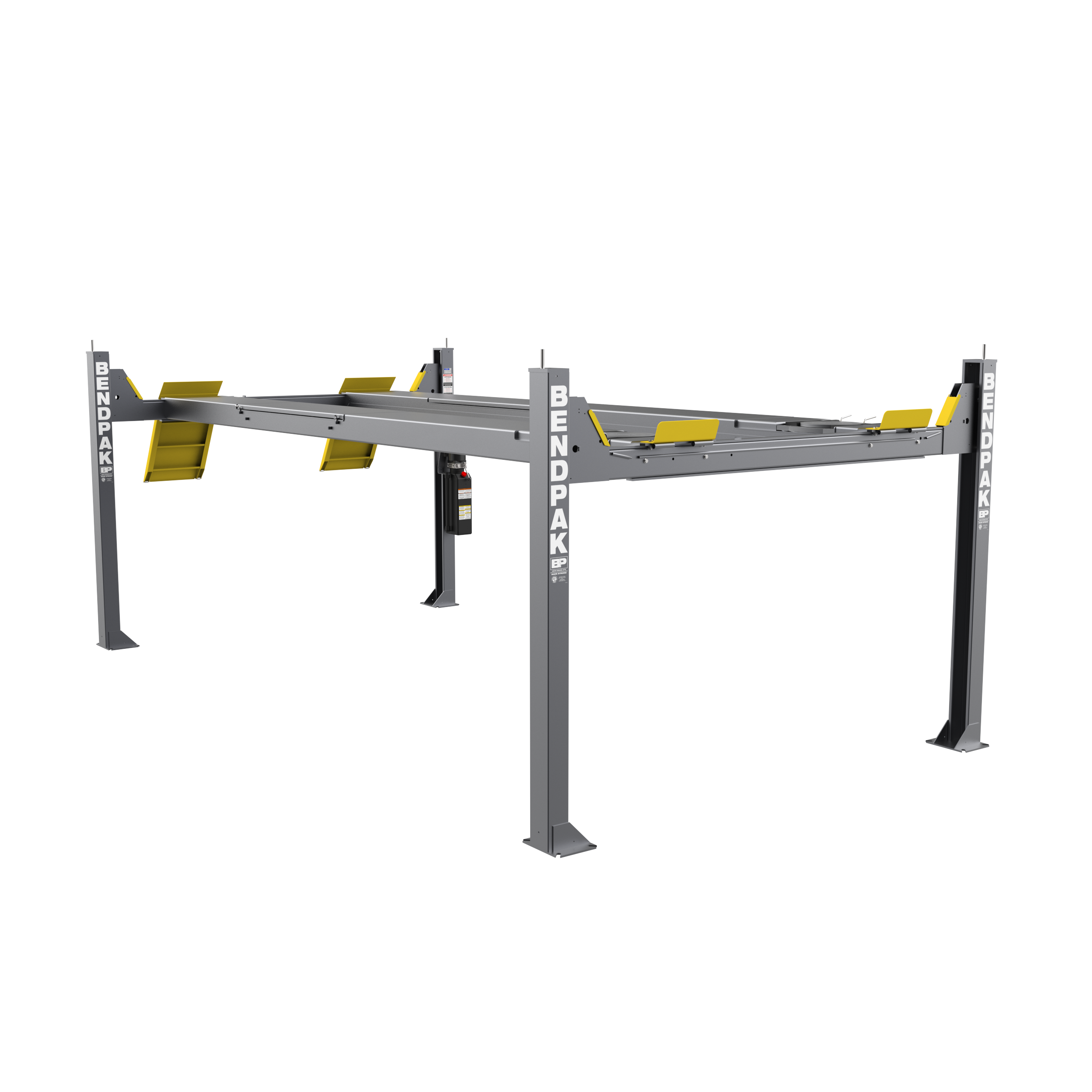

14,000-lb. Capacity

14,000-lb. Capacity

Commercial lifting strength gives shops the confidence to handle heavier vehicles and demanding alignment work.
Built-In Slip Plates

Built-In Slip Plates

Rear multi-caster slip plates support free-floating wheel movement during alignment adjustment.

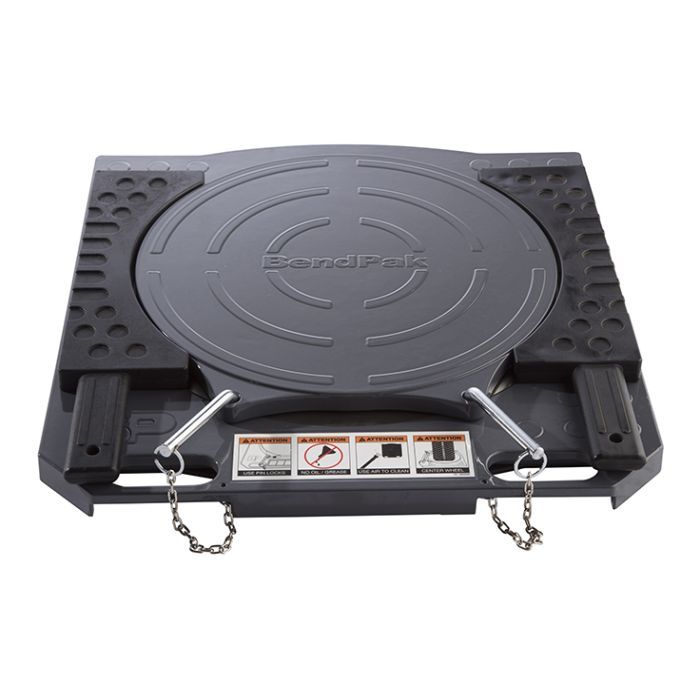

Deluxe Turn Plates

Deluxe Turn Plates

Aluminum-alloy turn plates fit into recessed pockets for flexible vehicle positioning and alignment setup.

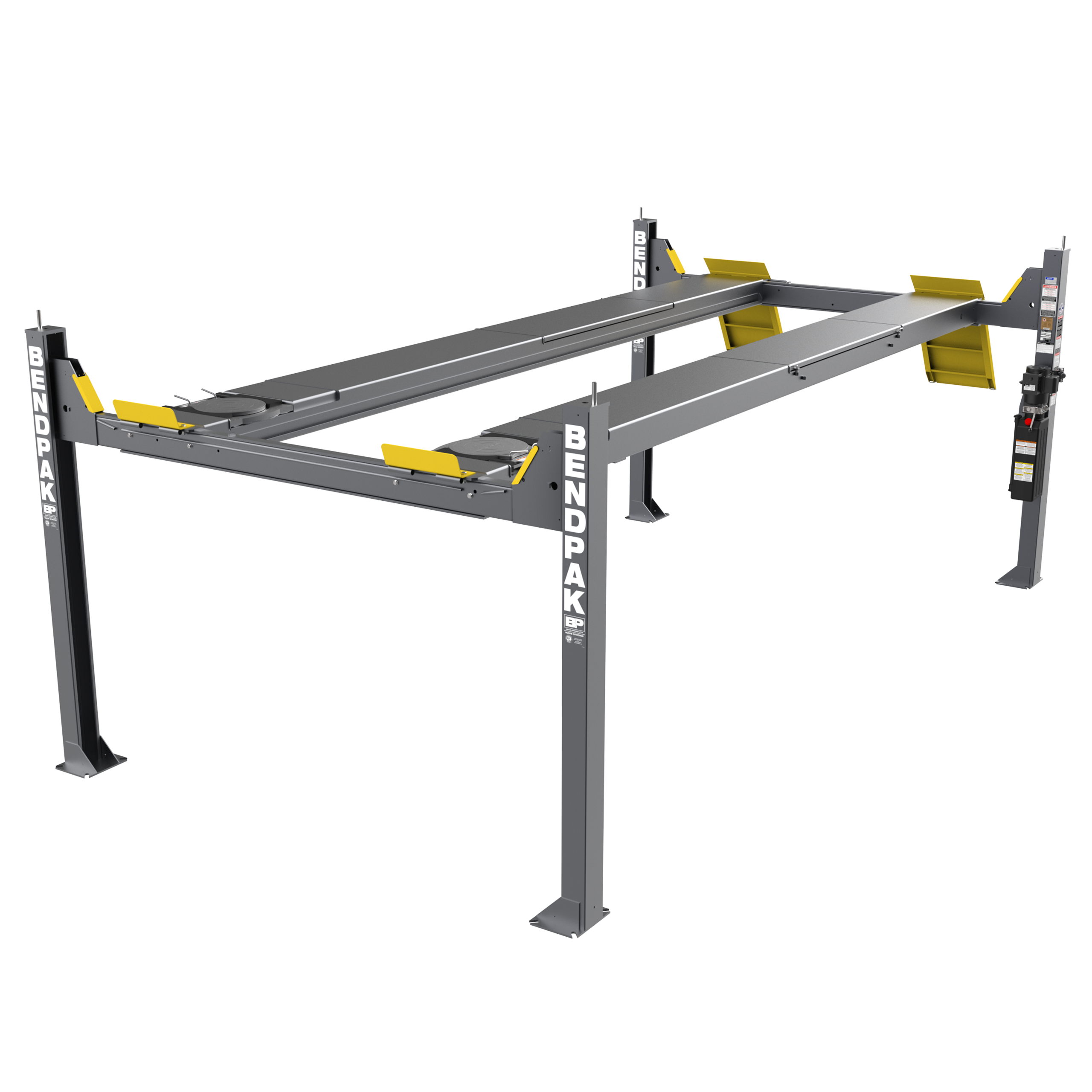

Protected Lift Systems

Protected Lift Systems

Internal routing and enclosed components help protect cables, sheaves, safety locks, and airlines from daily shop abuse.

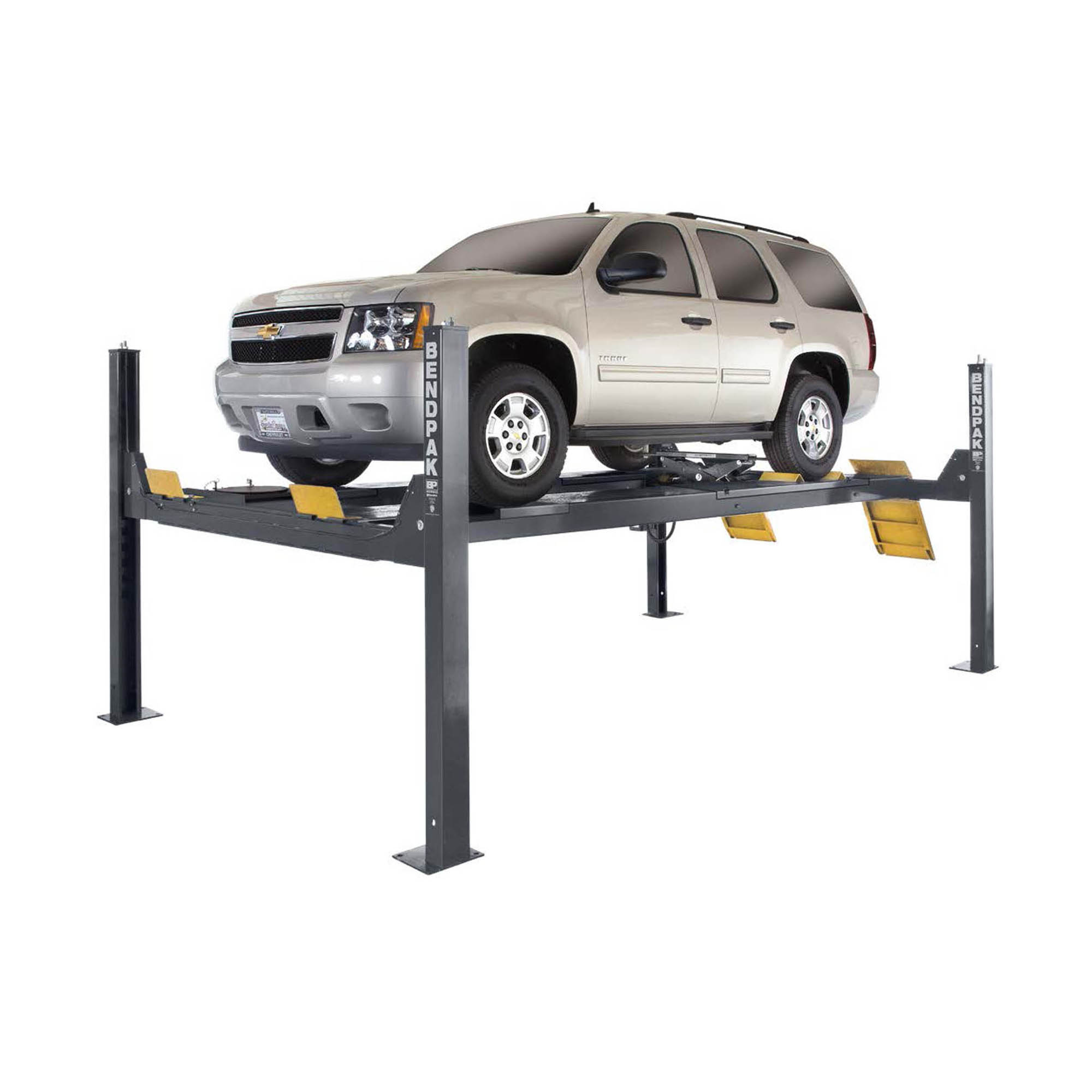

Wheel-Service Ready

Wheel-Service Ready

Optional bridge jacks help expand the lift beyond alignment into wheel, brake, and suspension service.

Specifications

Capacity

Lifting Capacity
14000 lb

Rise

A Min Runway Height
7.5 in
B Max Rise
70.75 in
C Max Lifting Height
77.5 in

Outside Dimensions

D Width
130 in
E Outside Length
243 in
F Length
272 in
G Height
92 in

Inside Dimensions

H Inside Columns
120 in
I Drive-Thru Clearance
98 in

Runways

J Runway Width
20 in
K Runway Length
227.5 in

Alignment

M Min 4-Wheel Alignment
89 in
N Max 4-Wheel Alignment
156 in
O Max 2-Wheel Alignment
212 in

Minimum Wheelbase

Rated Wheelbase Capacity
165 in
75% Capacity
140 in
50% Capacity
115 in
25% Capacity
95 in

Locking

Locking Positions
15
Locking Spacing
4 in

Power Unit and Voltage

Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
25 x 239 x 33 in
Shipping Weight
3368 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
