Alignment Lift / 14,000-lbs. Capacity / Extended / Includes Turnplates and Slip Plates

BendPak HDS14LSX Alignment Lift - 14,000-lbs. Capacity
$11,615.00$12,295.00SAVE $680

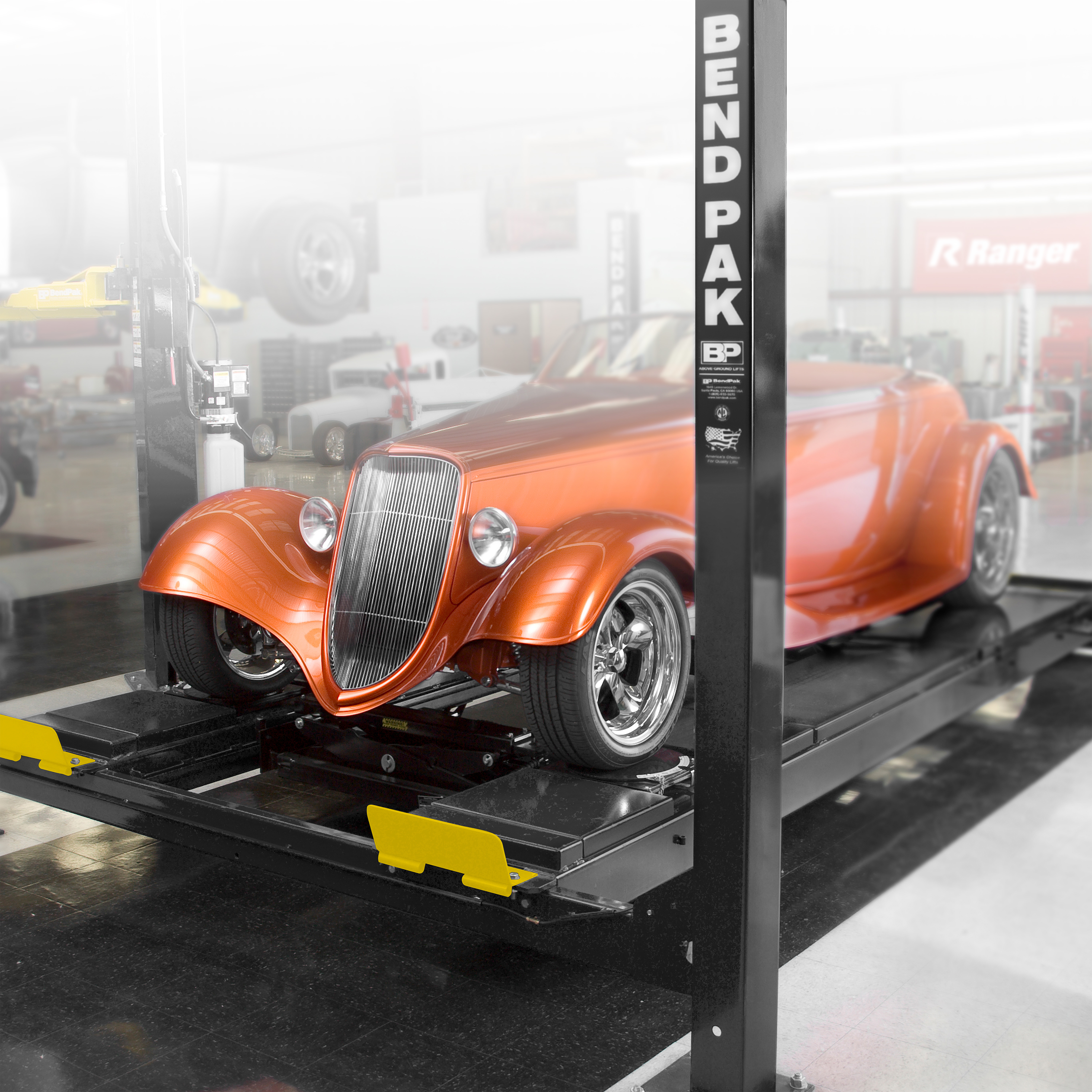

14,000-lb. Alignment Power for Shops That Stay Busy

14,000-lb. Alignment Power for Shops That Stay Busy

The BendPak HDS-14LSX Alignment Lift is built for professional shops that need heavy lifting capacity, alignment precision, and daily durability in one serious four-post platform. With 14,000-lb. lifting capacity, extended runways, built-in front turn plates, and integrated rear slip plates, this alignment lift is made to handle demanding vehicles and high-volume service environments. This is the alignment lift for shops that service larger vehicles, low ground-clearance vehicles, light trucks, SUVs, and mixed customer fleets. The free-floating alignment system lets the wheels respond cleanly to adjustment, helping technicians work faster and with less resistance during suspension and alignment service.

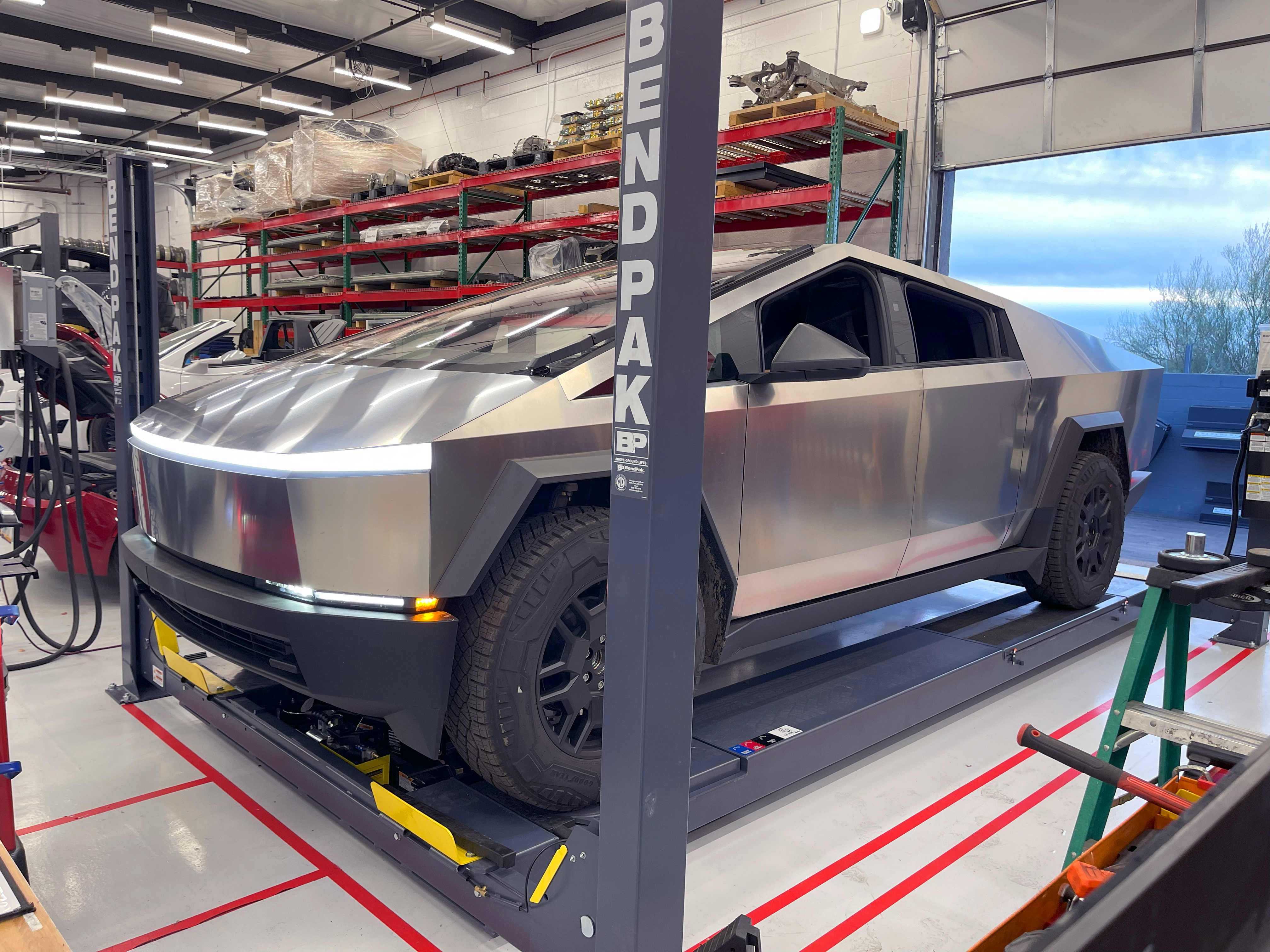

Integrated Turn Plates and Rear Slip Plates for Free-Floating Alignment

Integrated Turn Plates and Rear Slip Plates for Free-Floating Alignment

The HDS-14LSX includes heavy-duty front turn plates and integrated rear slip plates integrated with the runways, giving technicians the hardware needed for accurate four-wheel alignment work. Multi-caster slip plates in the rear help maintain free wheel movement, while recessed front turn plate pockets allow the galvanized turn plates to be positioned for individual vehicle setups. Multi-position turn plate pockets help the lift adapt to different wheelbases and service needs, while the runways adjust for different tread widths. Longer approach ramps make it easier to load low ground-clearance vehicles, helping protect customer cars and improve workflow in busy alignment bays.

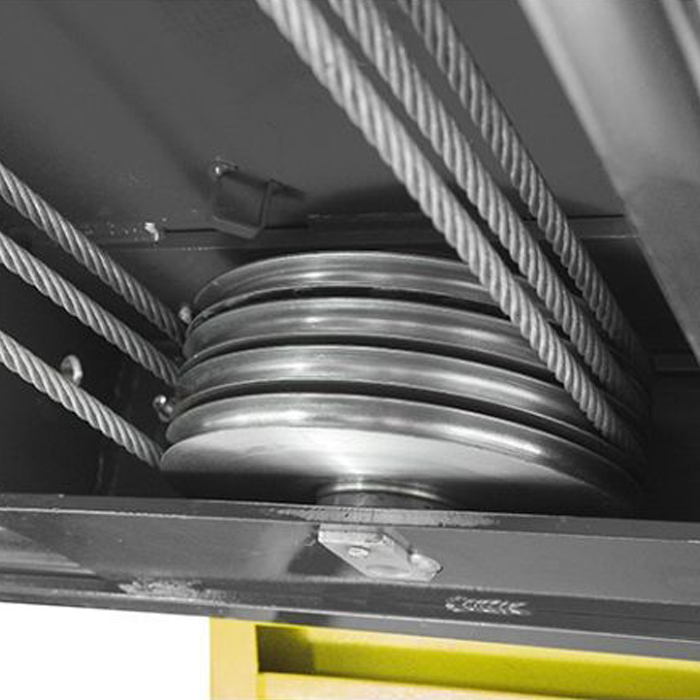

Aircraft-Quality Cables, Oversized Sheaves, and Anti-Sway Support

The HDS-14LSX is built around heavy-duty 1/2-inch aircraft-quality stainless-steel lifting cables routed internally through all four columns. These cables are designed for continuous use and resistance to rubbing, weather, chemicals, hydraulic oil, and other common sources of wear in active service environments. Oversized 10.5-inch cable sheaves, rugged 1-3/8-inch roller axles, and internal Anti-Sway slider blocks help support smooth lifting, reduced wear, and stable platform movement. The single hydraulic cylinder is mounted underneath the runway, while cables, sheaves, airlines, safety locks, and critical systems are integrated within the lift structure for cleaner operation and better protection.
Aircraft-Quality Cables, Oversized Sheaves, and Anti-Sway Support

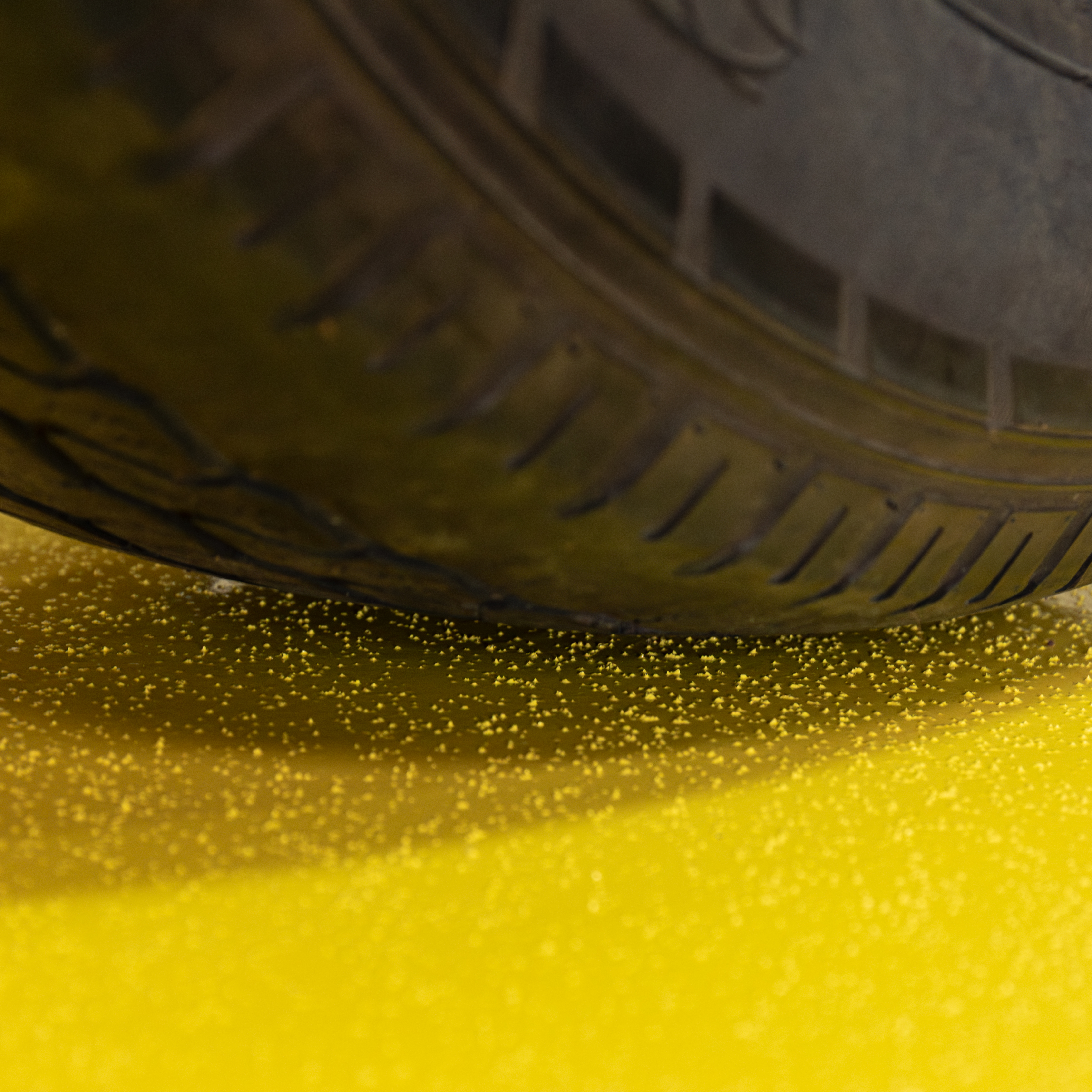

Automatic Leveling, Safety Locks, and Accessory-Ready Runways

Automatic Leveling, Safety Locks, and Accessory-Ready Runways

The HDS-14LSX features an automatic leveling system, multiple auto-leveling locking positions, and multi-position safety locks in each column. Spring-loaded safety locks engage as the lift rises, and a push-button pneumatic lock release makes lowering operations fast and efficient. A secondary slack-cable lock system adds backup protection if dangerous cable slack is ever detected. Runways include a rail kit for optional accessories, including 7,000-lb. capacity bridge jacks for wheel, brake, and suspension service. With an electric-hydraulic power system, easy operator access, durable matte-finish runways, and BendPak’s alignment-specific design, the HDS-14LSX is built to be the backbone of a serious alignment bay.

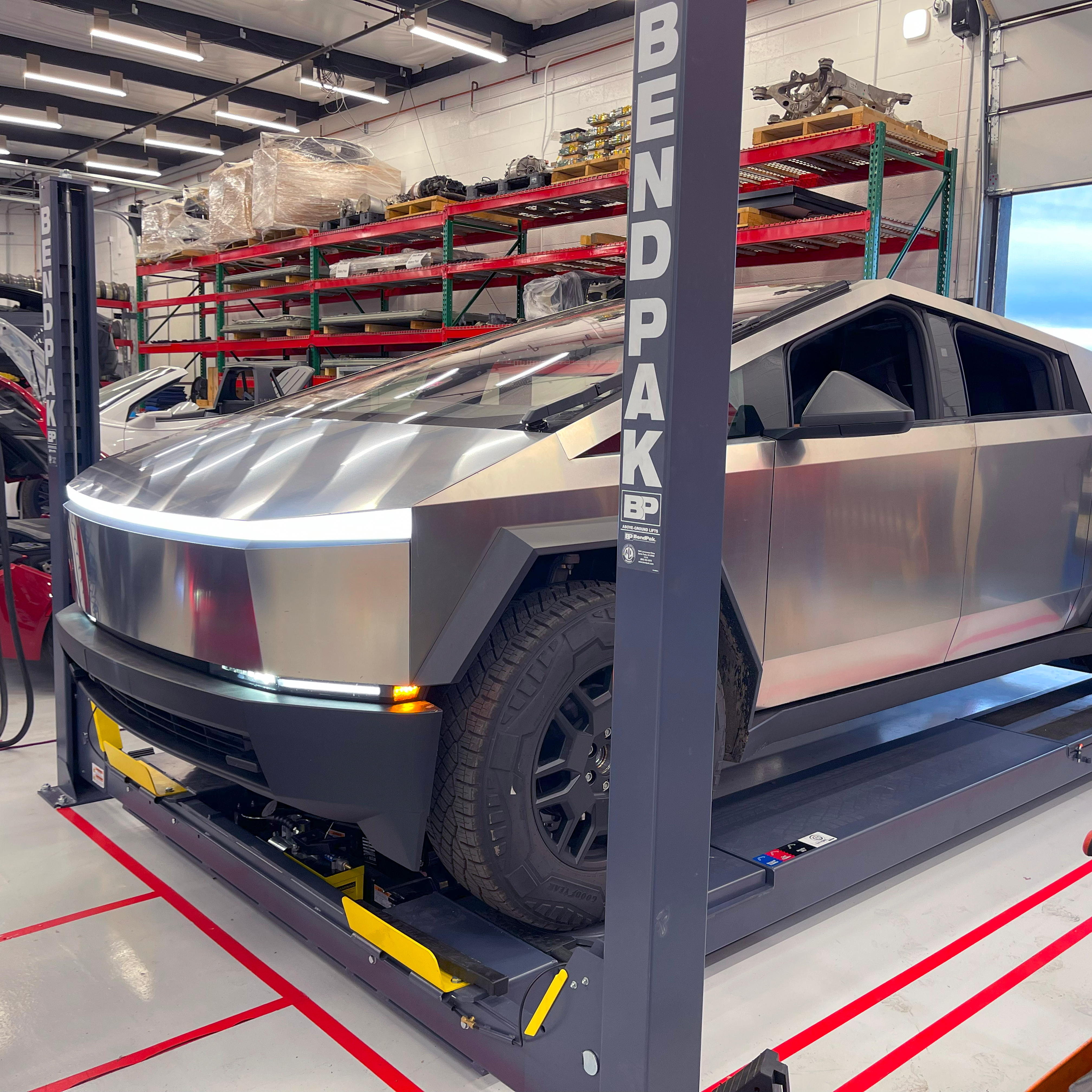

14,000-lb. Alignment Power

14,000-lb. Alignment Power

Heavy-duty lifting capacity makes the HDS-14LSX a strong fit for larger vehicles, SUVs, trucks, and high-volume alignment work.

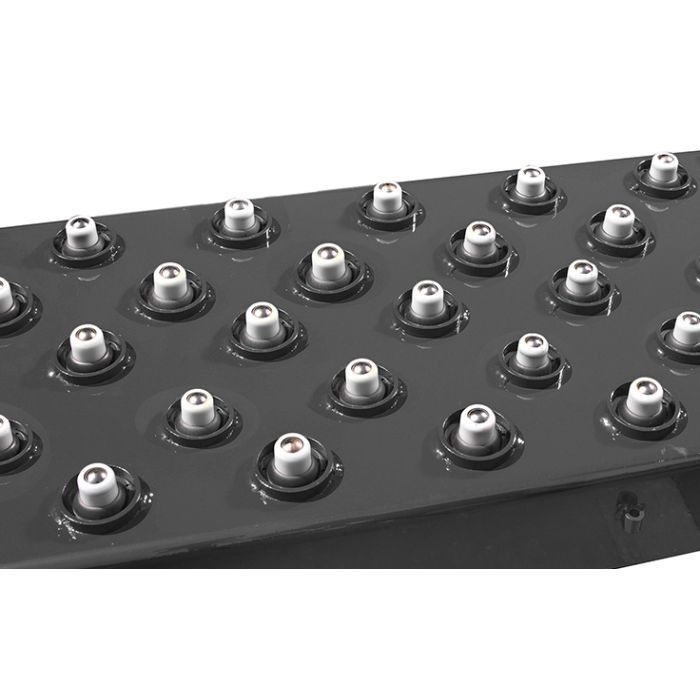

Free-Floating Runways

Free-Floating Runways

Front turn plates and rear slip plates help wheels respond smoothly during alignment adjustments with less resistance.

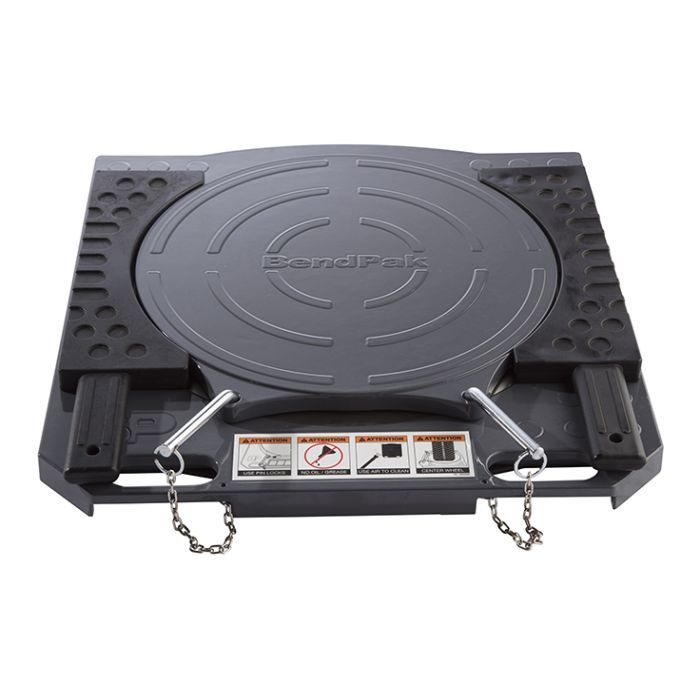

Multi-Position Turn Plates

Multi-Position Turn Plates

Recessed turn plate pockets allow more flexible front plate placement for different vehicle setups.

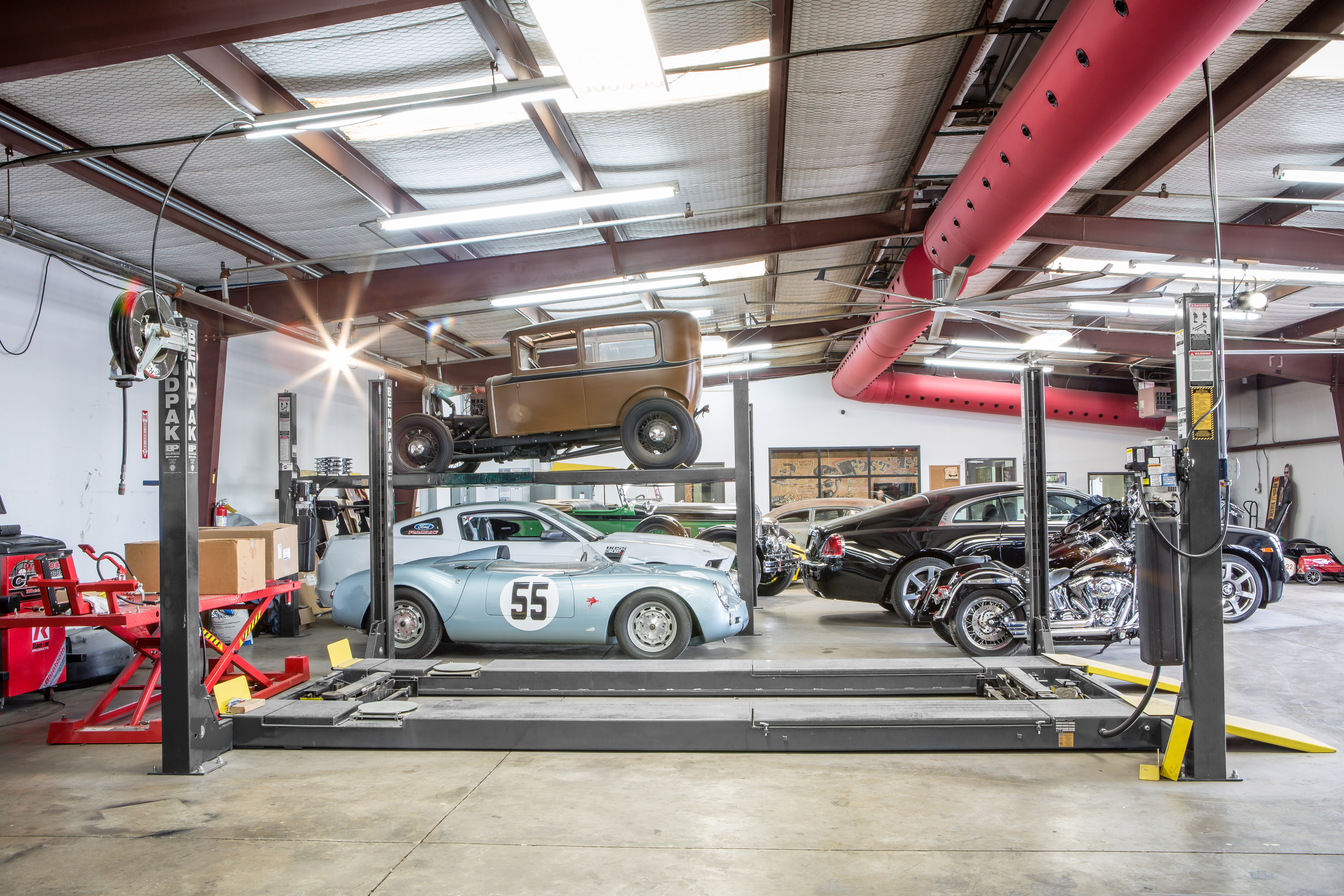

Automatic Leveling

Automatic Leveling

Auto-leveling locks help keep the runways positioned properly during lifting and alignment service.

Anti-Sway Column Support

Internal Anti-Sway slider blocks help support stable platform movement inside each column.

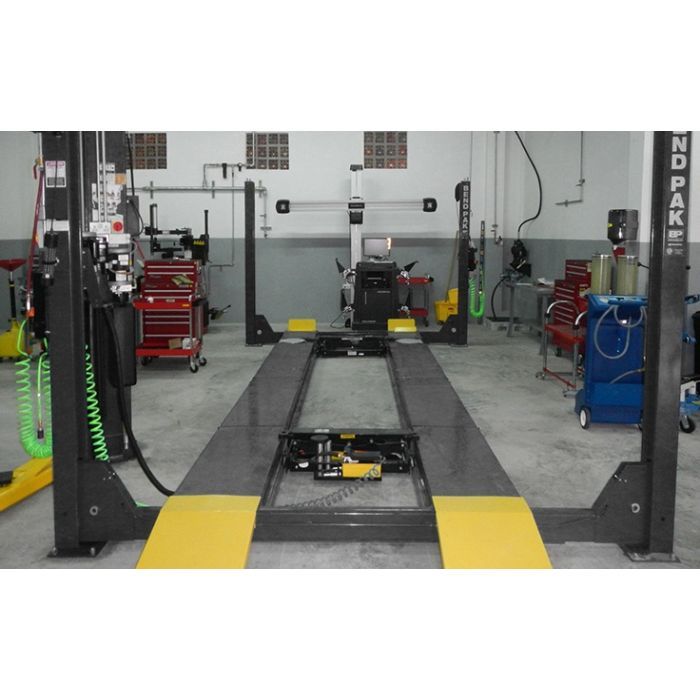

Bridge Jack Ready

Bridge Jack Ready

Accessory-ready runways support optional 7,000-lb. bridge jacks for wheel, brake, and suspension service.

Specifications

Capacity

Lifting Capacity
14000 lb

Rise

A Min Runway Height
7.5 in
B Max Rise
70.75 in
C Max Lifting Height
77.5 in

Outside Dimensions

D Width
130 in
E Outside Length
213 in
F Length
242 in
G Height
92 in

Inside Dimensions

H Inside Columns
120 in
I Drive-Thru Clearance
98 in

Runways

J Runway Width
20 in
K Runway Length
197.5 in

Alignment

M Min 4-Wheel Alignment
89 in
N Max 4-Wheel Alignment
156 in
O Max 2-Wheel Alignment
182 in

Minimum Wheelbase

Rated Wheelbase Capacity
140 in
75% Capacity
120 in
50% Capacity
100 in
25% Capacity
80 in

Locking

Locking Positions
15
Locking Spacing
4 in

Power Unit and Voltage

Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
25 x 209 x 33 in
Shipping Weight
3216 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
