BendPak HDS14 Four-Post Lift - 14,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175170
$8,120.00$8,595.00
SAVE $475
Financing as low as $177/moApply now

Flexible business financing available through Navitas.

BendPak HDS-14 ALI Certified 14,000-lb. four-post lift for heavy-duty vehicle service.
Product 3D model preview

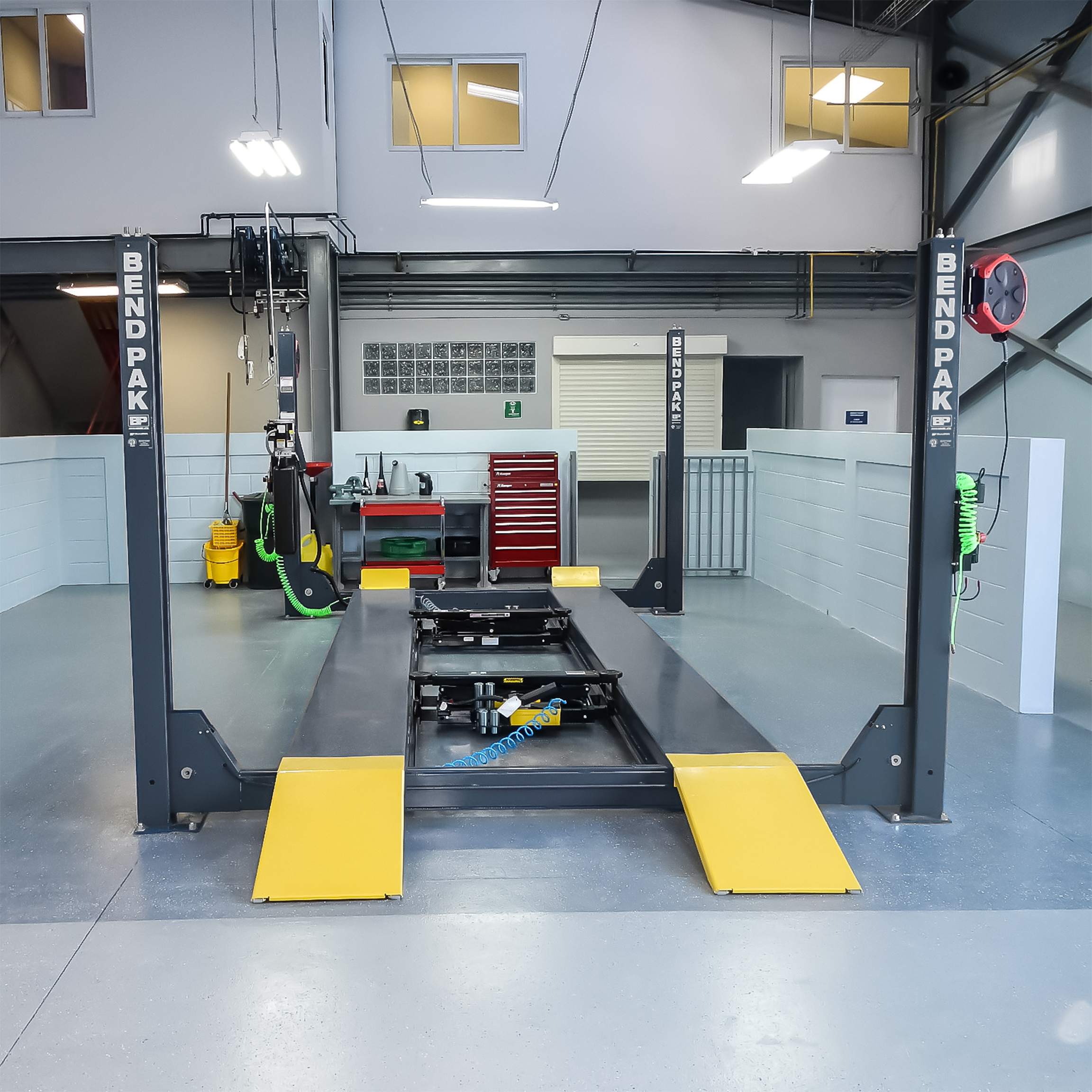

BendPak HDS-14 four-post lift in an industrial mechanic shop service bay.
BendPak HDS-14 four-post lift built for 14,000-lb. vehicle storage and service.
BendPak HDS-14 four-post lift supporting a white truck in a service bay.
Product 6
Product 7
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 14,000-lbs. Capacity

BendPak HDS14 Four-Post Lift - 14,000-lbs. Capacity
$8,120.00$8,595.00SAVE $475
14,000-lb. Four-Post Muscle Built for Real Shop Work

14,000-lb. Four-Post Muscle Built for Real Shop Work

The BendPak HDS-14 Four-Post Lift is engineered for professional shops that expect their equipment to work hard every day. With 14,000-lb. lifting capacity, extended runways, and commercial-grade construction, this four-post car lift is built for demanding service, storage, inspections, and maintenance on a wide range of vehicles. BendPak does not treat key components as add-ons or extras. The HDS-14 is packed with the durability, safety, and productivity features shops should expect from a serious commercial-grade four-post lift. It is designed to help technicians spend less time worrying about what they are working under and more time getting the job done.
Extended Runways and Low-Angle Approach for Bigger Vehicles

Extended Runways and Low-Angle Approach for Bigger Vehicles

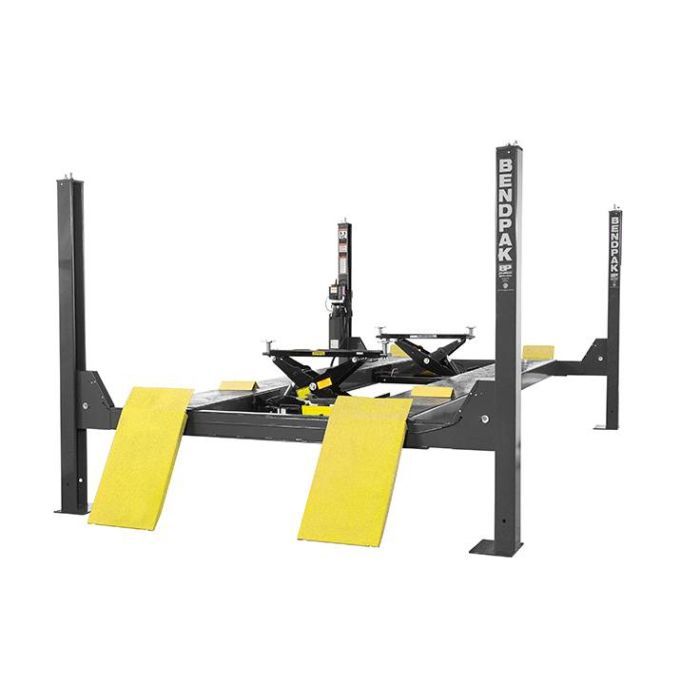

The HDS-14 gives heavier vehicles the runway length and support they need. Extended runways help accommodate larger wheelbases, while mid to long-style approach ramps make drive-on loading easier for vehicles with lower ground clearance. Built-in rear-wheel chocks add practical support during positioning. Runways include rail kits for optional accessories, making the HDS-14 more than a basic drive-on lift. Optional RJ7W rolling bridge jacks can be added for wheel and brake service, while optional drip trays and drive-thru ramps allow shops to tailor the lift to storage, service, and daily workflow needs.

Aircraft Cables, Oversized Sheaves, and Enclosed Components

The HDS-14 uses four 1/2-inch stainless-steel aircraft-quality lifting cables, each with a breaking strength of more than 14,000 lbs. These cables are designed specifically for lifting applications, balancing abrasion resistance and fatigue protection for long-term use in demanding environments. Oversized 10.5-inch dual-hub cable sheaves and rugged 1.75-inch roller axles help reduce cable fatigue and component wear. Lifting cables, airlines, safety latches, and sheaves are fully enclosed within the lift structure, helping protect critical systems while keeping the bay cleaner and safer.
Aircraft Cables, Oversized Sheaves, and Enclosed Components

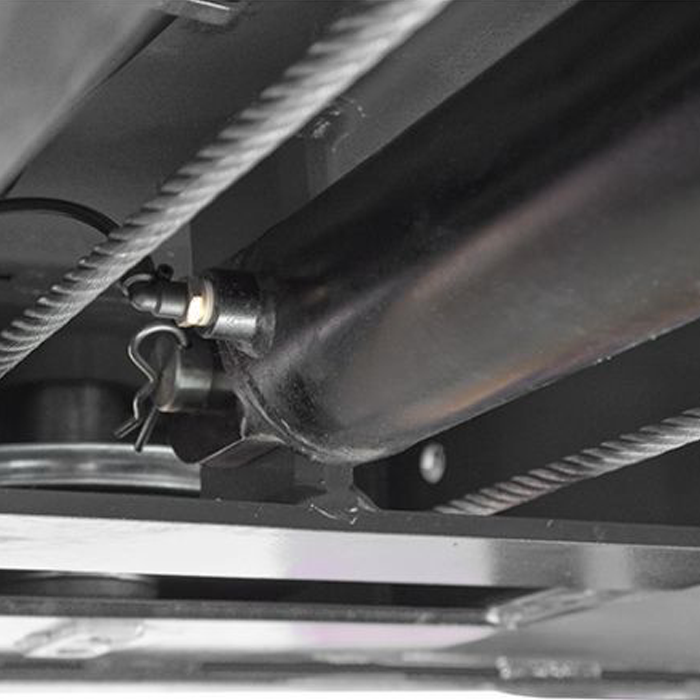

Safety Locks, Hydraulic Control, and Dependable Daily Operation

Safety Locks, Hydraulic Control, and Dependable Daily Operation

Spring-loaded safety locks automatically engage continuously as the HDS-14 rises, while adjustable safety ladders allow precise runway leveling, even on slightly sloped floors. A secondary slack-cable lock system provides backup protection in the unlikely event of cable failure. A push-button pneumatic lock release makes lowering operations fast and straightforward, while an integrated hydraulic flow restrictor helps control descent in the unlikely event of hose rupture. The maintenance-free electric-hydraulic power system, large base plates, customizable power unit location, and ETL approval all support a four-post lift designed for real shop dependability.

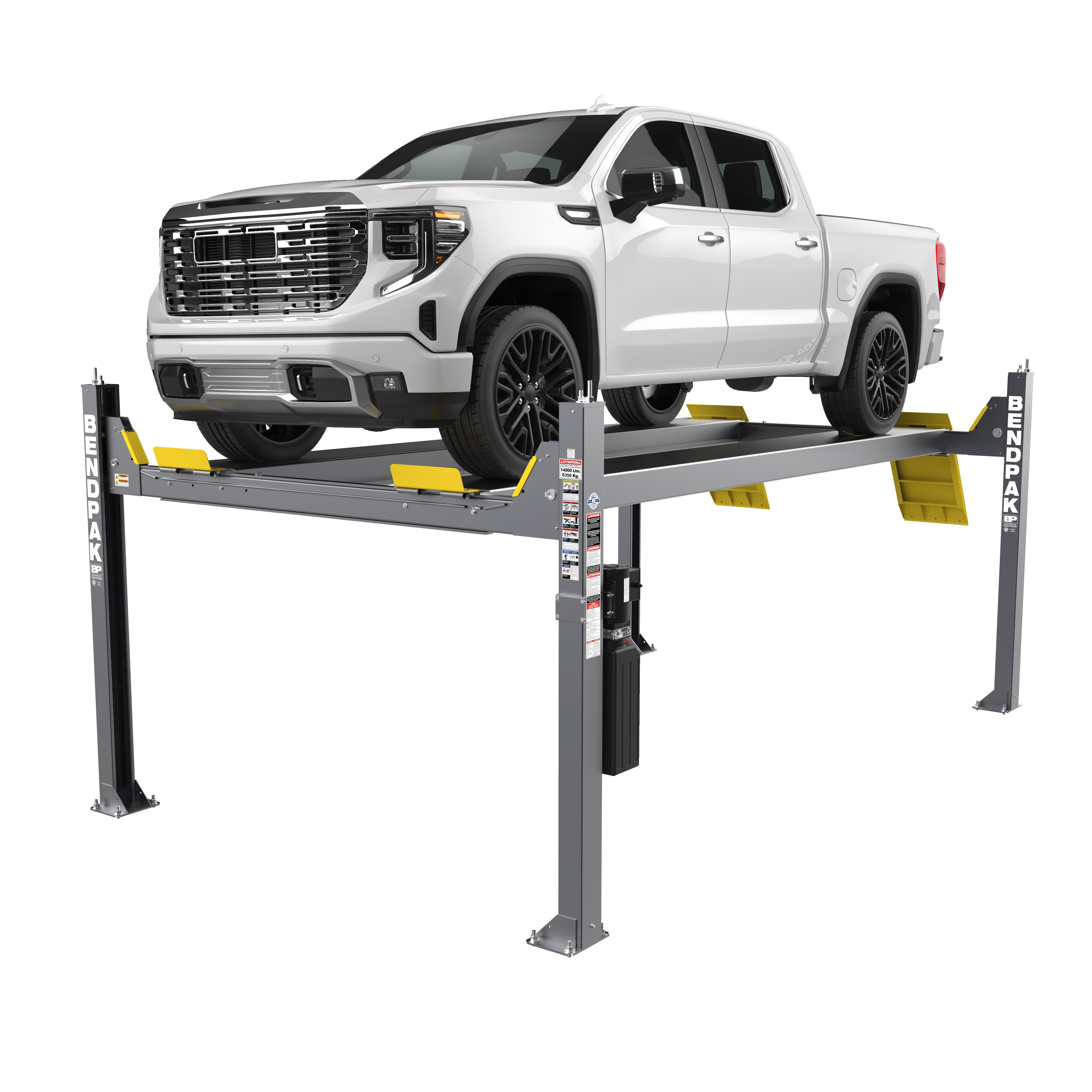

Overbuilt 14K Platform

Overbuilt 14K Platform

A 14,000-lb. capacity and extended runways give the HDS-14 the strength and support needed for tough professional lifting applications.

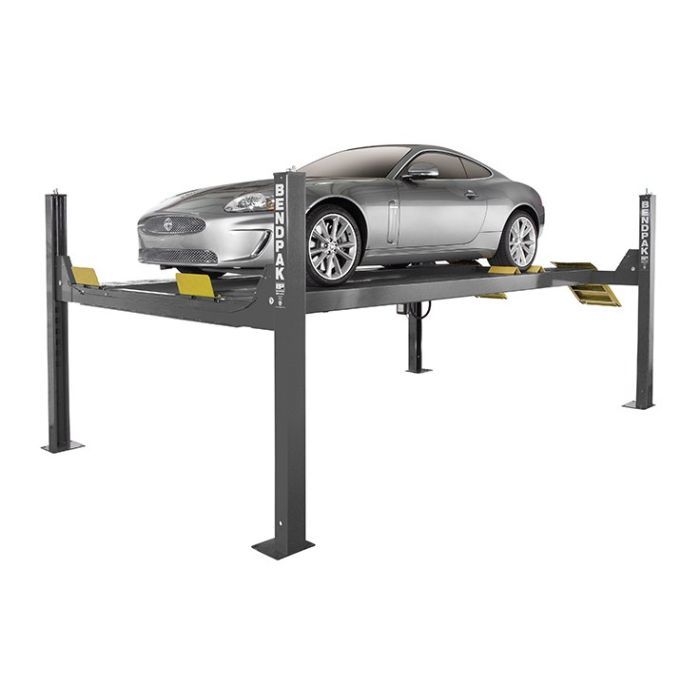

Extended Runway Support

Extended Runway Support

Longer runways help accommodate larger wheelbases while approach ramps improve loading for low ground-clearance vehicles.
Aircraft Cable Strength

Aircraft Cable Strength

Four 1/2-inch stainless-steel aircraft-quality cables support durable, fatigue-resistant lifting performance.
Oversized Sheaves

Oversized Sheaves

Large dual-hub cable sheaves and rugged roller axles help reduce cable wear and long-term maintenance demands.

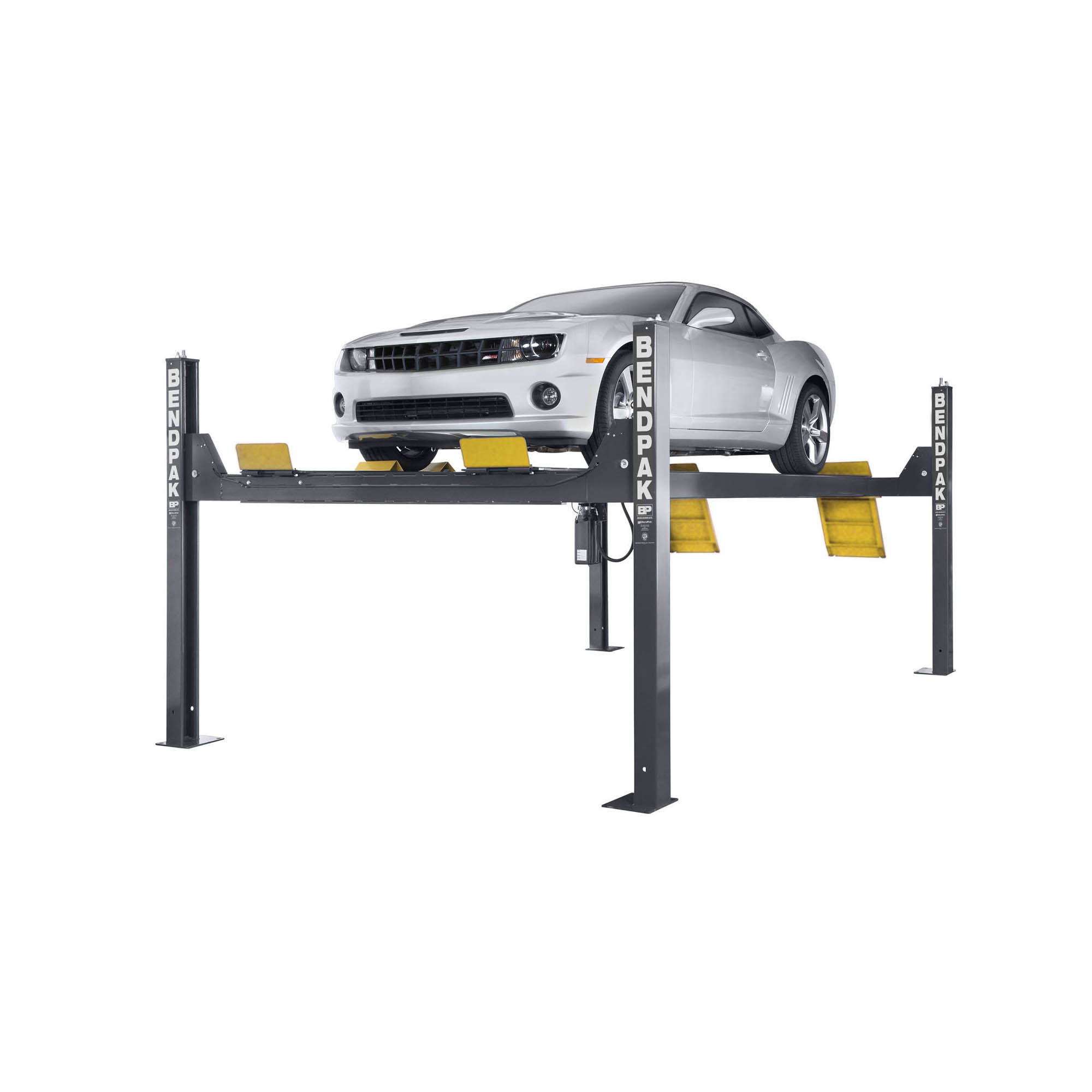

Push-Button Lock Release

Push-Button Lock Release

A pneumatic safety lock release makes lowering faster and easier while spring-loaded locks engage during lifting.

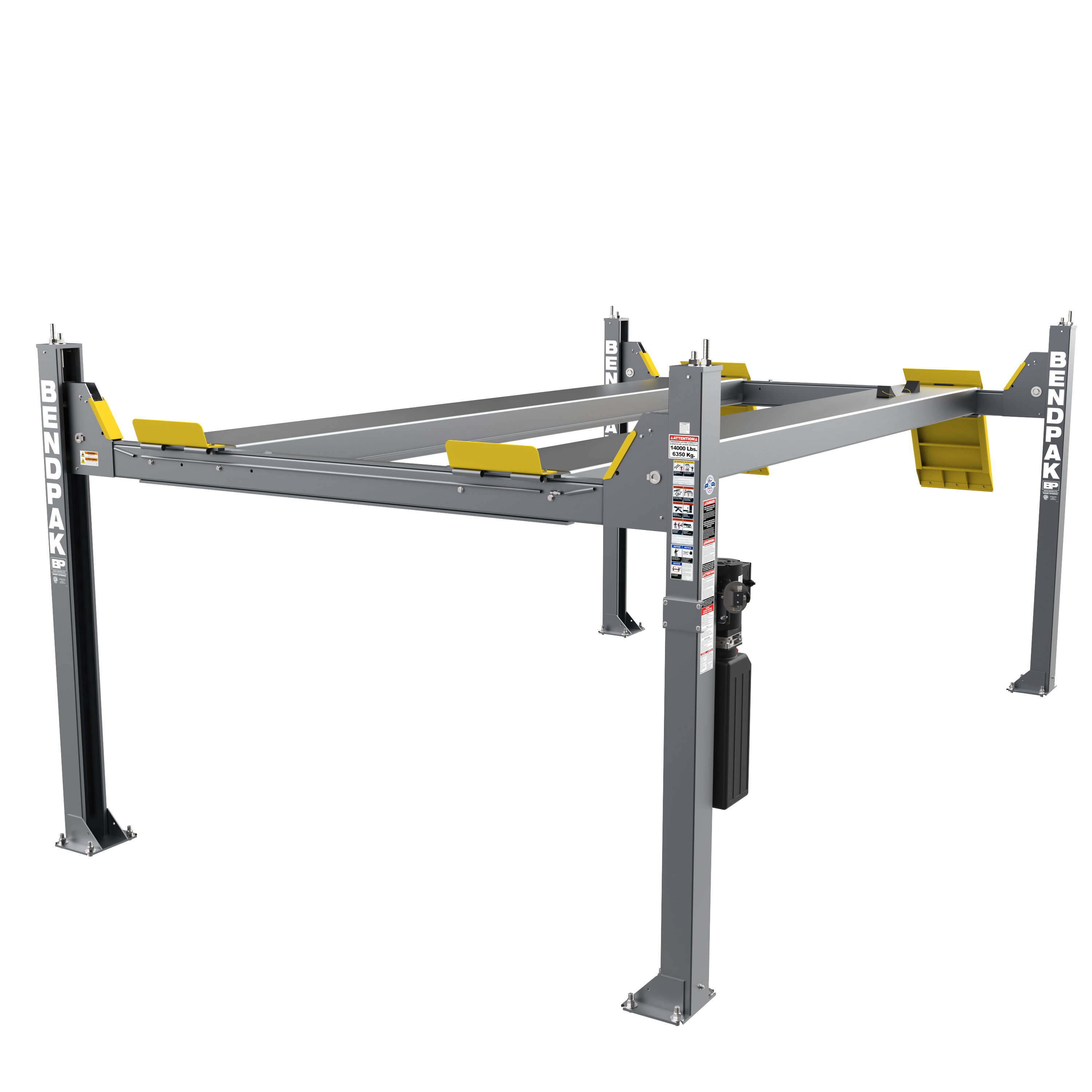

Service-Ready Runways

Service-Ready Runways

Rail-equipped runways support optional rolling bridge jacks, drip trays, and drive-thru ramp configurations.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
14000 lb

Rise

A Min Runway Height
7.5 in
B Max Rise
70 in
C Max Lifting Height
77.5 in

Outside Dimensions

D Width
130 in
E Outside Length
213 in
F Overall Length
242 in
G Height
92 in

Inside Dimensions

H Inside Columns
120 in
I Drive-Thru Clearance
98 in

Runways

J Runway Width
20 in
K Runway Length
197.5 in
L Width Between Runways
34.5 - 41.5 in
M Runway Centerline
57.5 - 64.5 in
N Outside Edge of Runways
77.5 - 84.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
140 in
25% Capacity
80 in
50% Capacity
100 in
75% Capacity
120 in

Locking

Locking Positions
15
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
23 x 209 x 46 in
Shipping Weight
2606 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
