Four-Post Lift / 9,000-lbs. Capacity / Narrow Width / High Lift

BendPak HD-9STX Four-Post Lift - 9,000-lbs. Capacity
$6,295.00

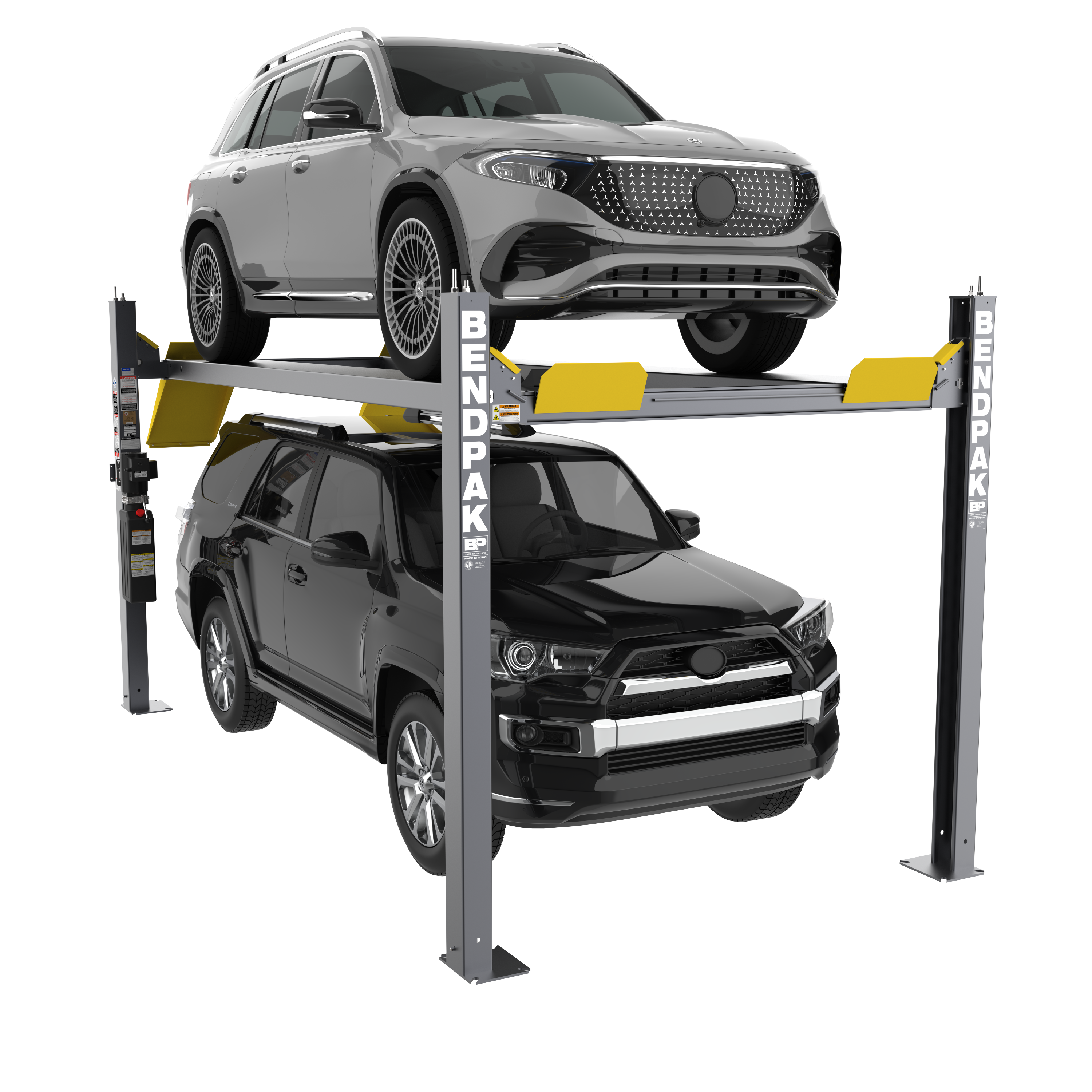

High-Rise Clearance in a Narrow Four-Post Footprint

High-Rise Clearance in a Narrow Four-Post Footprint

The BendPak HD-9STX Four-Post Lift takes the narrow-width advantage of the HD-9ST and adds high-rise capability for garages and shops that need more vertical clearance without giving up floor space. With a 9,000-lb. lifting capacity, narrow footprint, and taller lift profile, the HD-9STX is built for vehicle storage, maintenance, and parking setups where height matters as much as width. This is the model for users who want compact floor coverage but need room below the runways for trucks, SUVs, or more comfortable underbody service. It is ideal for high-ceiling home garages, compact service areas, and vehicle storage spaces where a standard-width lift would eat up too much bay space.

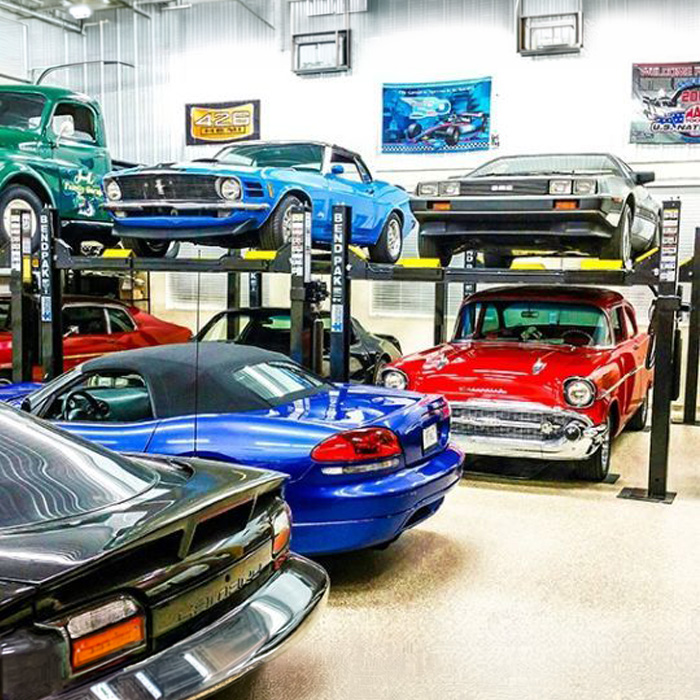

High-Rise Parking Lift That Keeps the Floor Plan Lean

High-Rise Parking Lift That Keeps the Floor Plan Lean

The HD-9STX is made for owners who need to stack smarter. Its high-rise design creates more clearance beneath the raised vehicle, making it easier to park taller vehicles underneath and reducing the compromises that come with lower-profile storage lifts. The narrow-width layout keeps the footprint manageable, while the extra height helps users avoid stooping, crouching, and awkward service positions. For oil changes, transmission work, exhaust service, and general inspection access, the HD-9STX makes compact lifting feel less cramped.

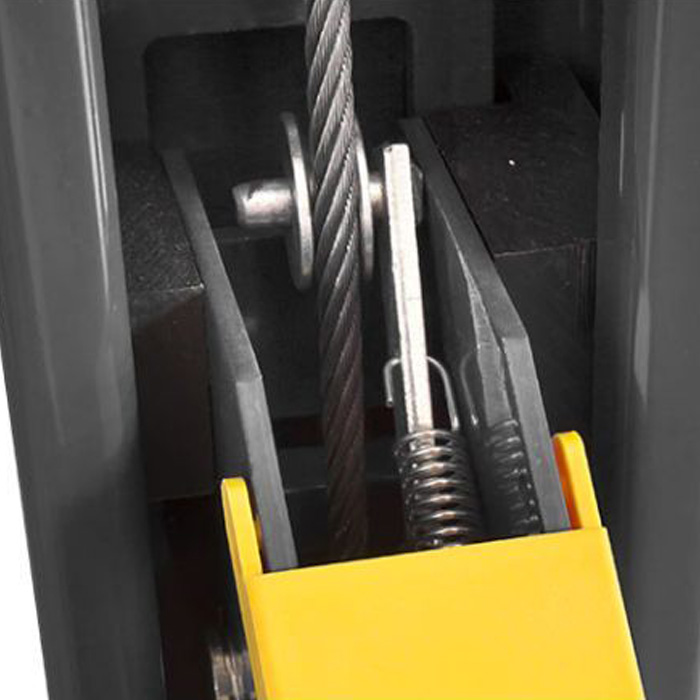

Built Around BendPak’s Proven HD-9 Safety Systems

Like the rest of the HD-9 family, the HD-9STX uses an electric / hydraulic power system, a single hydraulic cylinder mounted beneath the runway, fully enclosed lifting cables, internal anti-sway slider blocks, and oversized self-lubricating cable rollers. Multi-position safety locks, adjustable lock ladders, push-button pneumatic safety release, and independent backup slack-cable safety latches give the lift the safety structure needed for serious parking and service use.
Built Around BendPak’s Proven HD-9 Safety Systems

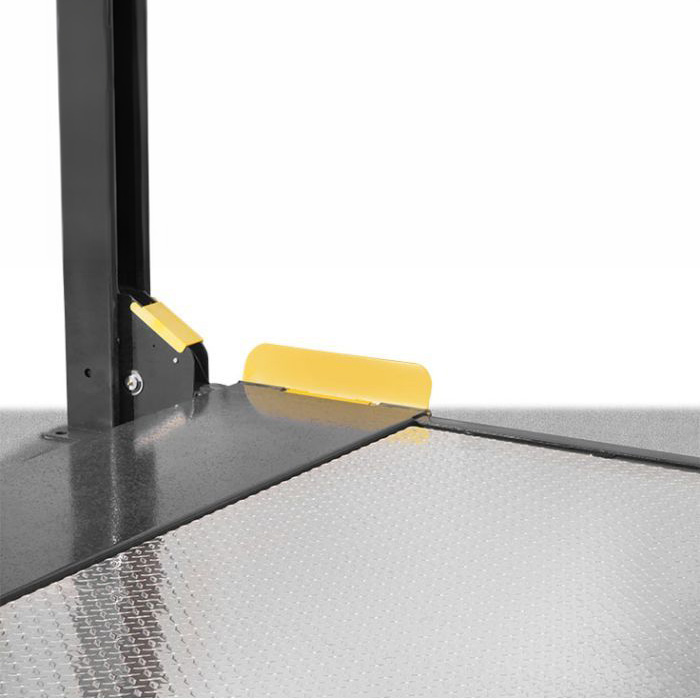

Accessory-Ready Four-Post Lift for Parking, Storage, and Service

Accessory-Ready Four-Post Lift for Parking, Storage, and Service

The HD-9STX supports optional accessories that let users tailor the lift to the way they work. Available options include casters, drip trays, jack platforms, solid decks, drive-thru ramps, and compatible rolling bridge jacks. That flexibility matters because the HD-9STX is not just a taller parking lift. It is a compact high-rise four-post lift that can adapt to vehicle storage, garage organization, and regular maintenance work without pretending one setup fits every user.

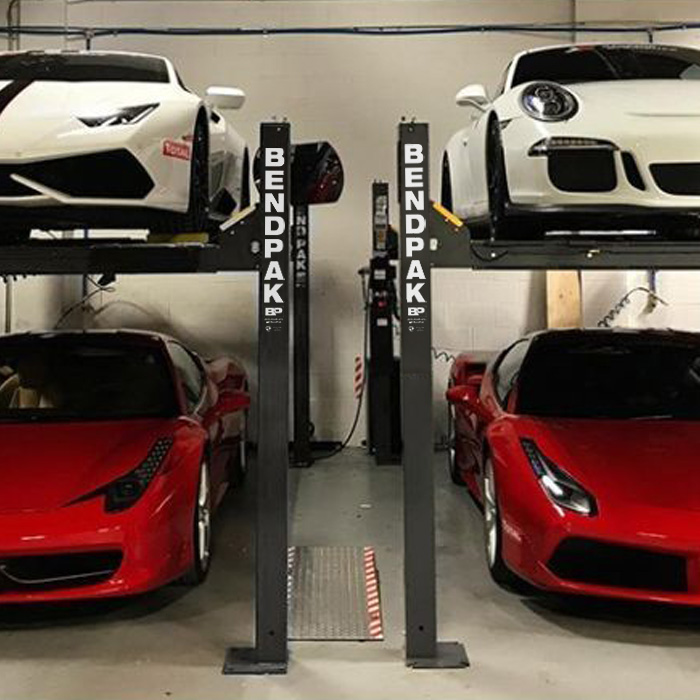

Narrow High-Rise Design

Narrow High-Rise Design

The HD-9STX combines a space-saving narrow footprint with extra lifting height for garages that have vertical room but limited floor width.

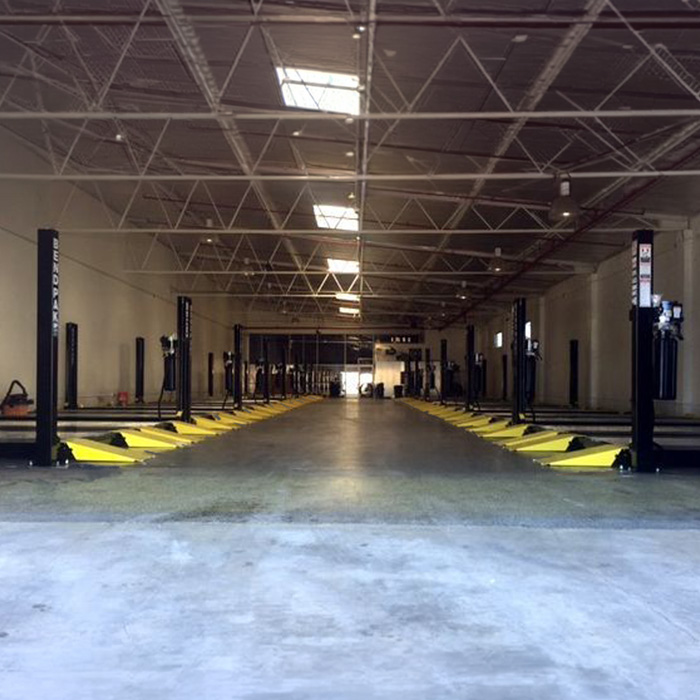

9,000-lb. Capacity

9,000-lb. Capacity

Built for vehicles up to 9,000 lbs., this high-rise four-post lift supports parking, storage, and maintenance tasks.
Better Lower-Level Clearance

Better Lower-Level Clearance

The high-rise layout helps fit trucks and SUVs beneath the raised runways for more flexible vehicle storage.

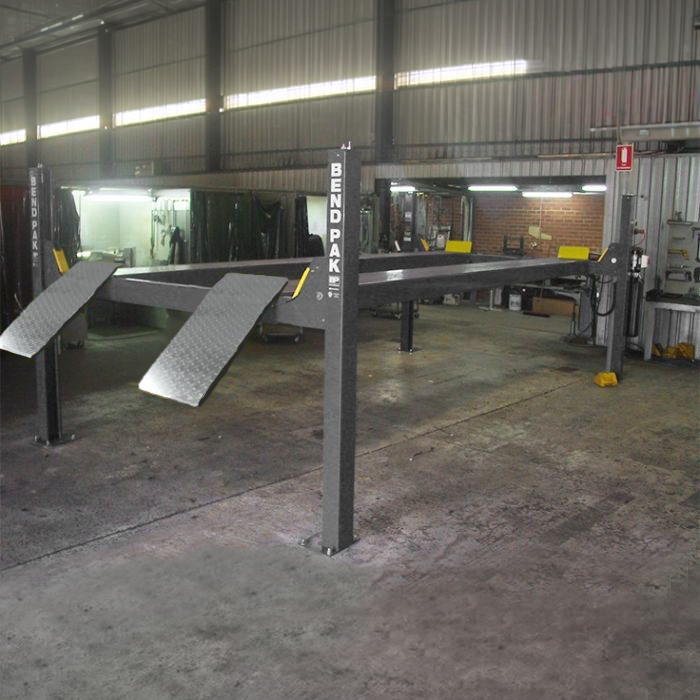

Comfortable Service Height

Comfortable Service Height

Extra rise reduces stooping and awkward underbody access during oil changes, exhaust service, and transmission work.
Protected Lift Components

Protected Lift Components

Cables, locks, sheaves, and safety systems are enclosed inside the lift structure for cleaner, safer operation.
Optional Accessories

Optional Accessories

Caster kits, drip trays, solid decks, drive-thru ramps, jack platforms, and rolling bridge jacks can expand how the lift is used.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
9000 lb

Rise

A Min Runway Height
5 in
B Max Rise
82 in
C Max Lifting Height
86.5 in

Outside Dimensions

D Width
100.25 in
E Outside Length
198 in
F Overall Length
224 in
G Height
100 in

Inside Dimensions

H Inside Columns
89.75 in
I Drive-Thru Clearance
76.5 in

Runways

J Runway Width
19 in
K Runway Length
188 in
L Width Between Runways
37.5 in
M Runway Centerline
56.5 in
N Outside Edge of Runways
75.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
115 in
25% Capacity
80 in
50% Capacity
95 in
75% Capacity
115 in

Locking

Locking Positions
15
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 192 x 34 in
Shipping Weight
1842 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
