BendPak HD-9ST Four-Post Lift - 9,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175860
$5,995.00
Financing as low as $131/moApply now

Flexible business financing available through Navitas.

BendPak HD-9ST narrow-width four-post lift built for space-saving vehicle storage.
Product 3D model preview
BendPak HD-9 four-post car lift built for home garage parking and service
BendPak HD-9ST narrow four-post lift designed for double parking and vehicle storage.
Product 5
Product 6
BendPak HD-9 9,000-lb. four-post lift for storing vehicles above garage floor space
BendPak HD-9 four-post vehicle lift for space-saving parking and underbody access
BendPak HD-9ST four-post garage lift with narrow platform for vehicle storage
Product 10
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 9,000-lbs. Capacity / Narrow Width

BendPak HD-9ST Four-Post Lift - 9,000-lbs. Capacity
$5,995.00

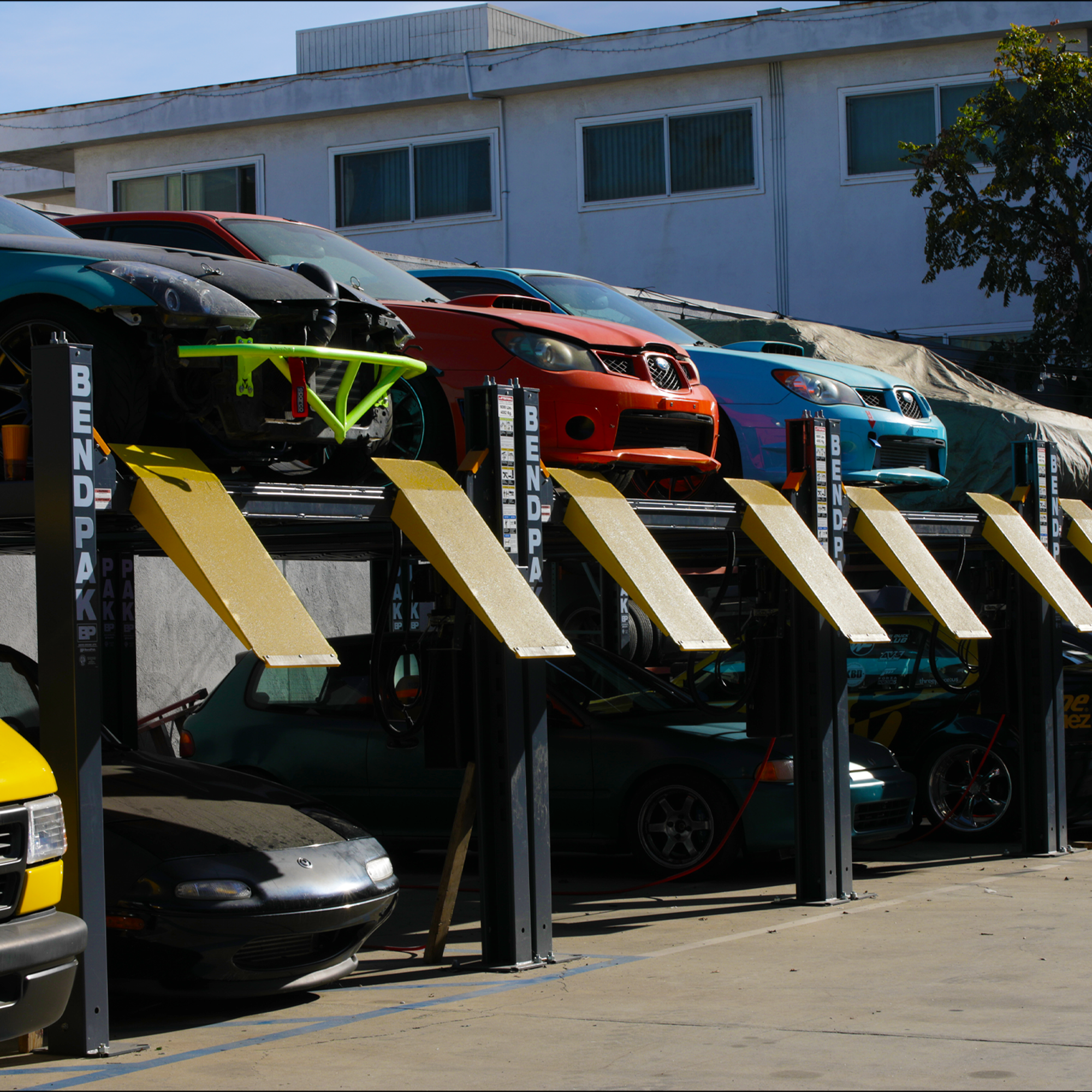

Narrow Four-Post Lifting That Fits Where Space Is Tight

Narrow Four-Post Lifting That Fits Where Space Is Tight

The BendPak HD-9ST Four-Post Lift gives tight garages and compact service bays a real 9,000-lb. lifting solution without forcing a standard-width footprint into a space that cannot handle it. Built as the narrow-width member of the HD-9 family, this four-post lift is made for owners who need parking, storage, and maintenance capability while keeping more room available for tools, equipment, and vehicle access. Its open-center layout lets the HD-9ST work as both a narrow parking lift and a maintenance lift, giving wrenchers more ways to use limited floor space. With 88-inch columns and runways that rise to 75 inches, the HD-9ST keeps a low-profile overall package while still creating enough working height for oil changes, exhaust work, transmission jack positioning, and underbody service.

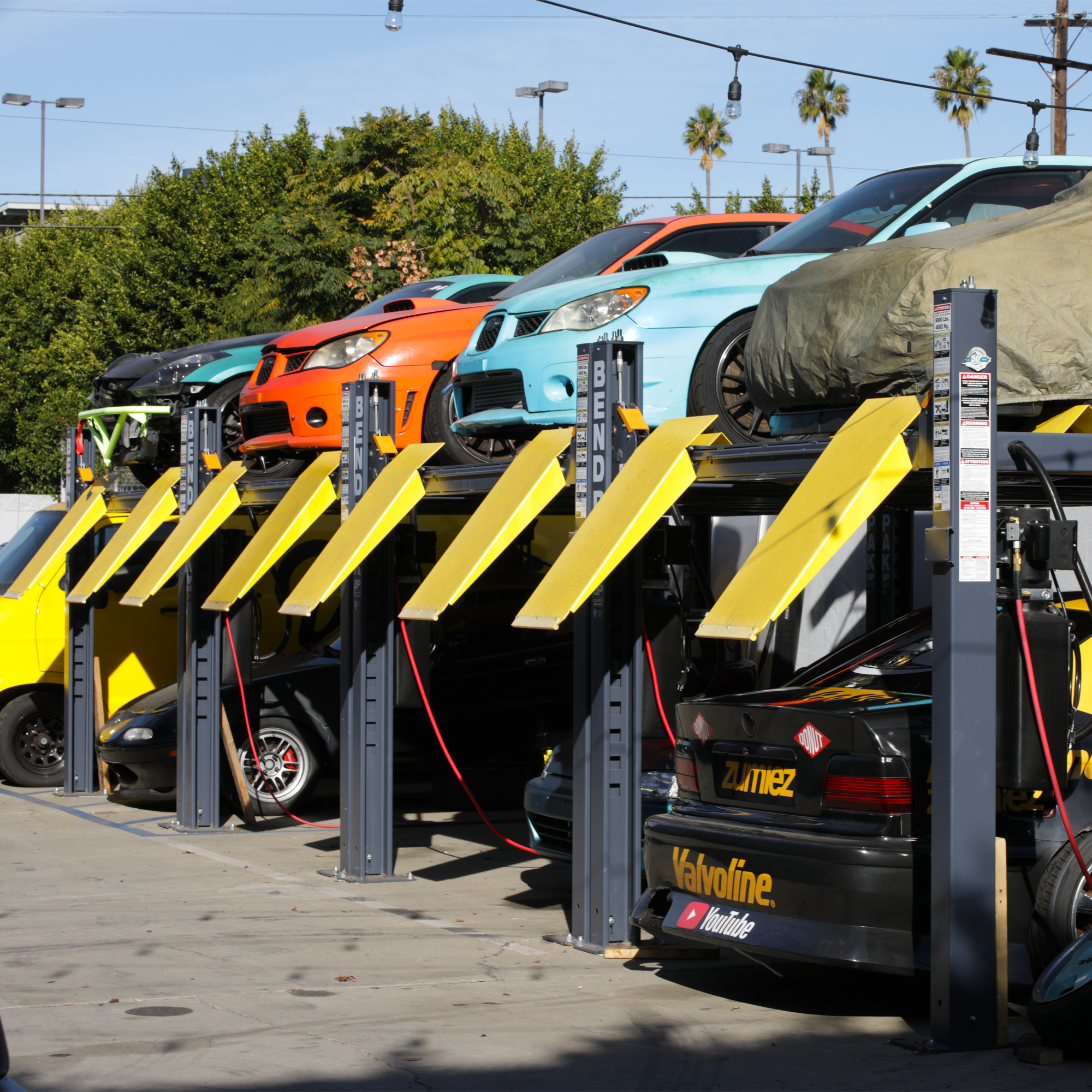

Narrow-Width Four-Post Lift Built for Space Efficiency

Narrow-Width Four-Post Lift Built for Space Efficiency

The HD-9ST is designed for garages that feel too tight for a standard-width four-post lift but still need serious BendPak capability. Its narrower stance is ideal for compact vehicles, smaller service bays, and crowded home garages where every inch of width matters. Even with its slimmer footprint, this is not a light-duty hobby lift. The HD-9ST is used in professional shops and serious home garages that need dependable lifting, parking, storage, and service access in a smaller package.

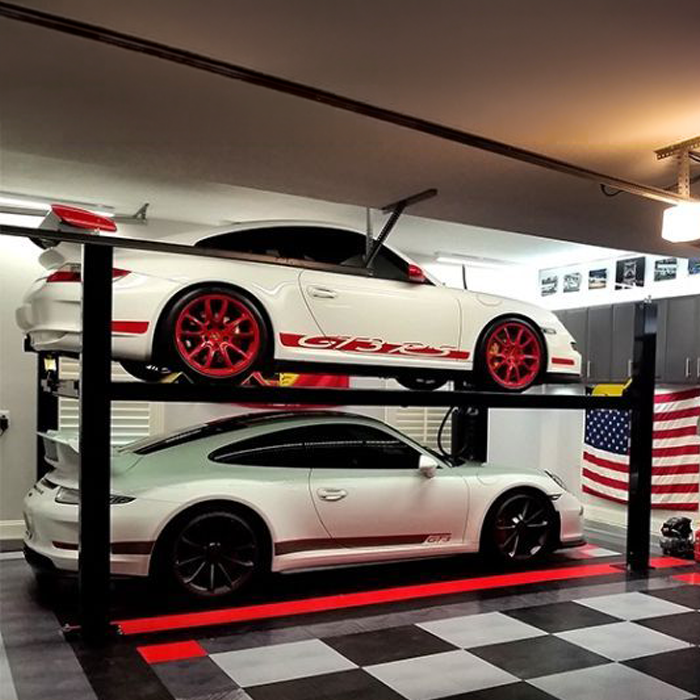

Parking, Storage, and Service in One Open-Center Lift

The open-center design gives users more access beneath the vehicle than a basic parking-only setup. Removable approach ramps add drive-under clearance, while the runways include rail-kit provisions for optional accessories that can expand how the lift is used. For owners who want to stack vehicles, store compact cars, or perform regular maintenance, the HD-9ST delivers a smart mix of parking convenience and practical service capability. Optional accessories such as drip trays, solid decks, drive-thru ramps, and rolling bridge jacks help tailor the lift to the garage or shop.
Parking, Storage, and Service in One Open-Center Lift

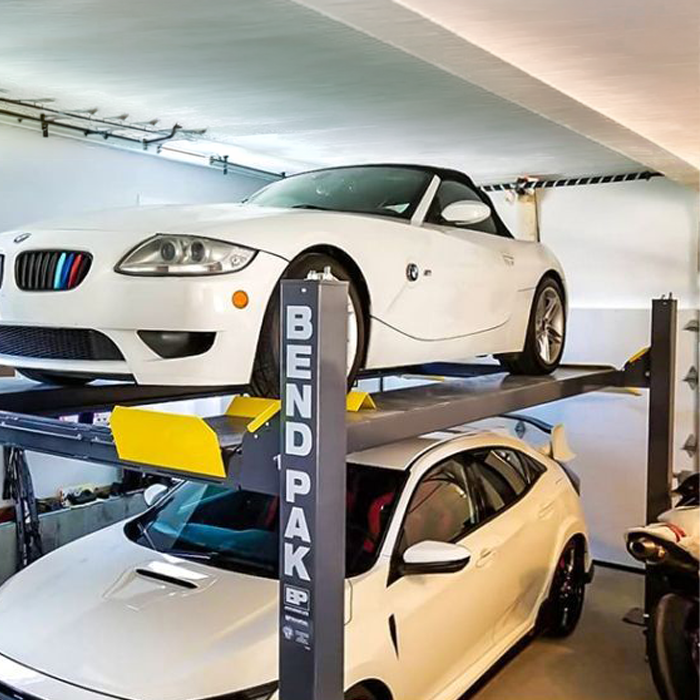

BendPak Safety Engineering in a Slim Four-Post Package

BendPak Safety Engineering in a Slim Four-Post Package

The HD-9ST uses an electric-hydraulic power system with a single hydraulic cylinder mounted beneath the runway, fully enclosed lifting cables, multi-position safety locks, and adjustable lock ladders. Heavy-duty 3/8-inch aircraft cable, oversized self-lubricating cable rollers, rugged roller axles, and internal anti-sway slider blocks help keep lifting smooth and stable. A push-button pneumatic safety release, independent backup slack-cable safety latches, and protected internal routing for cables, locks, and sheaves support safer everyday operation. It is a slim four-post lift, but the engineering underneath is all BendPak.
Narrow Garage Fit

Narrow Garage Fit

Designed for smaller garages and tight bays, the HD-9ST delivers 9,000-lb. four-post lifting capacity in a space-saving narrow-width package.

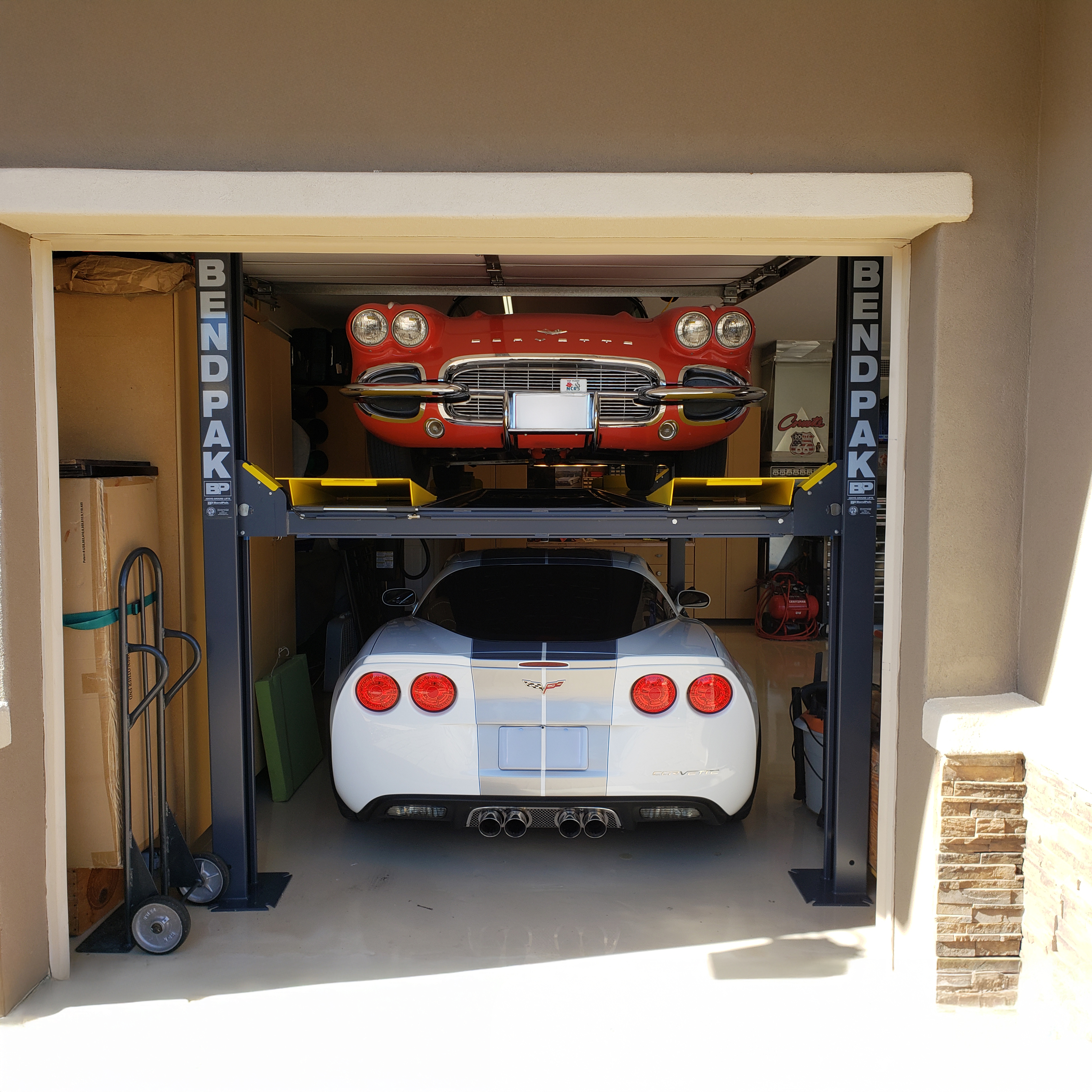

75-Inch Runway Rise

75-Inch Runway Rise

The runways raise to 75 inches, giving users real working height while keeping the lift friendly to lower-ceiling spaces.

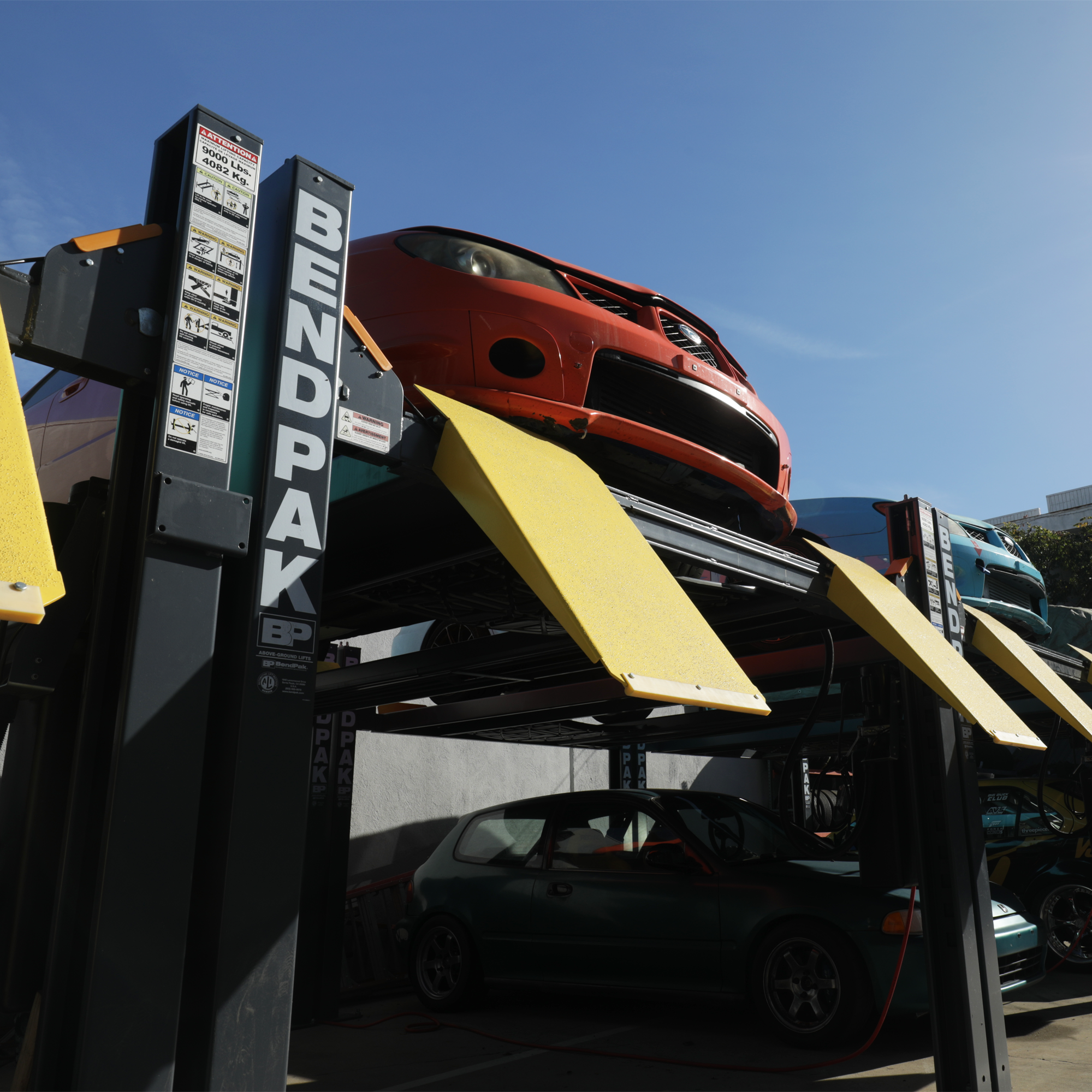

Open-Center Service Access

Open-Center Service Access

The open-center design supports maintenance work, parking, and vehicle storage without turning the lift into a parking-only platform.

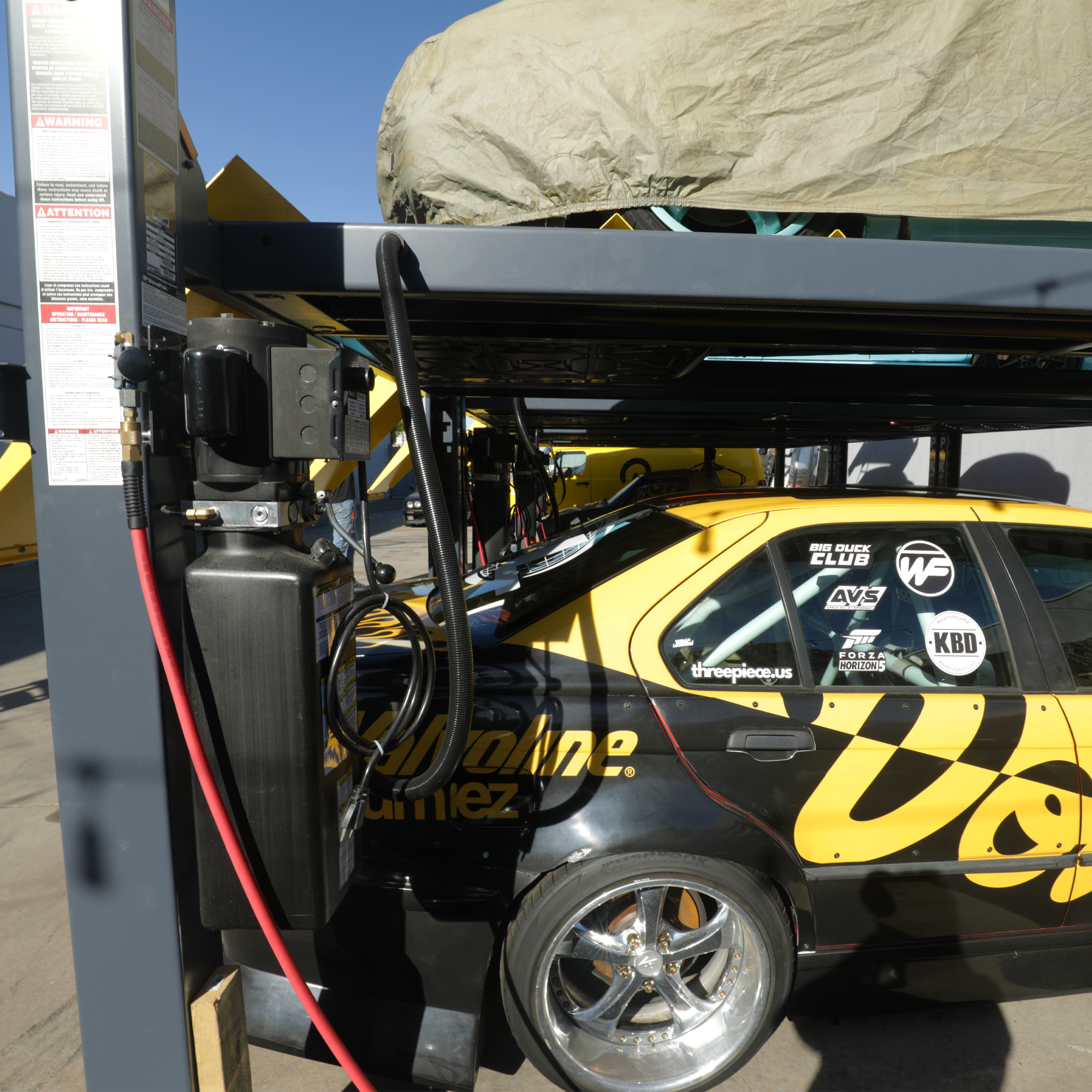

Pneumatic Safety Release

Pneumatic Safety Release

A push-button pneumatic release works with multi-position locks to make lowering faster and more controlled.

Accessory-Ready Runways

Built-in rail provisions allow compatibility with optional accessories such as rolling bridge jacks, drip trays, and solid decks.

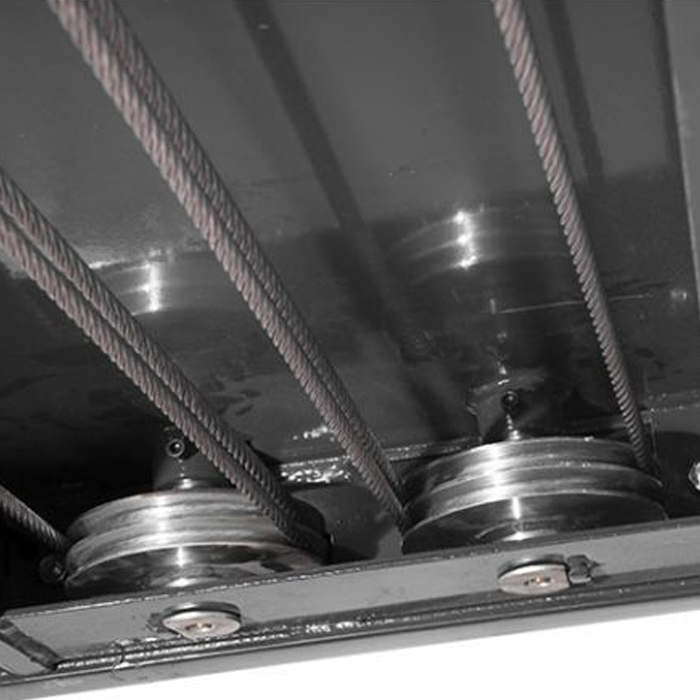

Protected Cable System

Protected Cable System

Lifting cables, locks, sheaves, and related components are routed inside the structure for safety, protection, and a cleaner appearance.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
9000 lb

Rise

A Min Runway Height
4.5 in
B Max Rise
70 in
C Max Lifting Height
74.5 in

Outside Dimensions

D Width
100.25 in
E Outside Length
174 in
F Overall Length
200 in
G Height
88 in

Inside Dimensions

H Inside Columns
89.75 in
I Drive-Thru Clearance
76.5 in

Runways

J Runway Width
19 in
K Runway Length
164 in
L Width Between Runways
37.5 in
M Runway Centerline
56.5 in
N Outside Edge of Runways
75.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
115 in
25% Capacity
70 in
50% Capacity
85 in
75% Capacity
100 in

Locking

Locking Positions
12
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 168 x 32 in
Shipping Weight
1592 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
