Four-Post Lift / 9,000-lbs. Capacity / Extra Wide / High Lift

BendPak HD-9EWT Four-Post Lift - 9,000-lbs. Capacity
$6,795.00

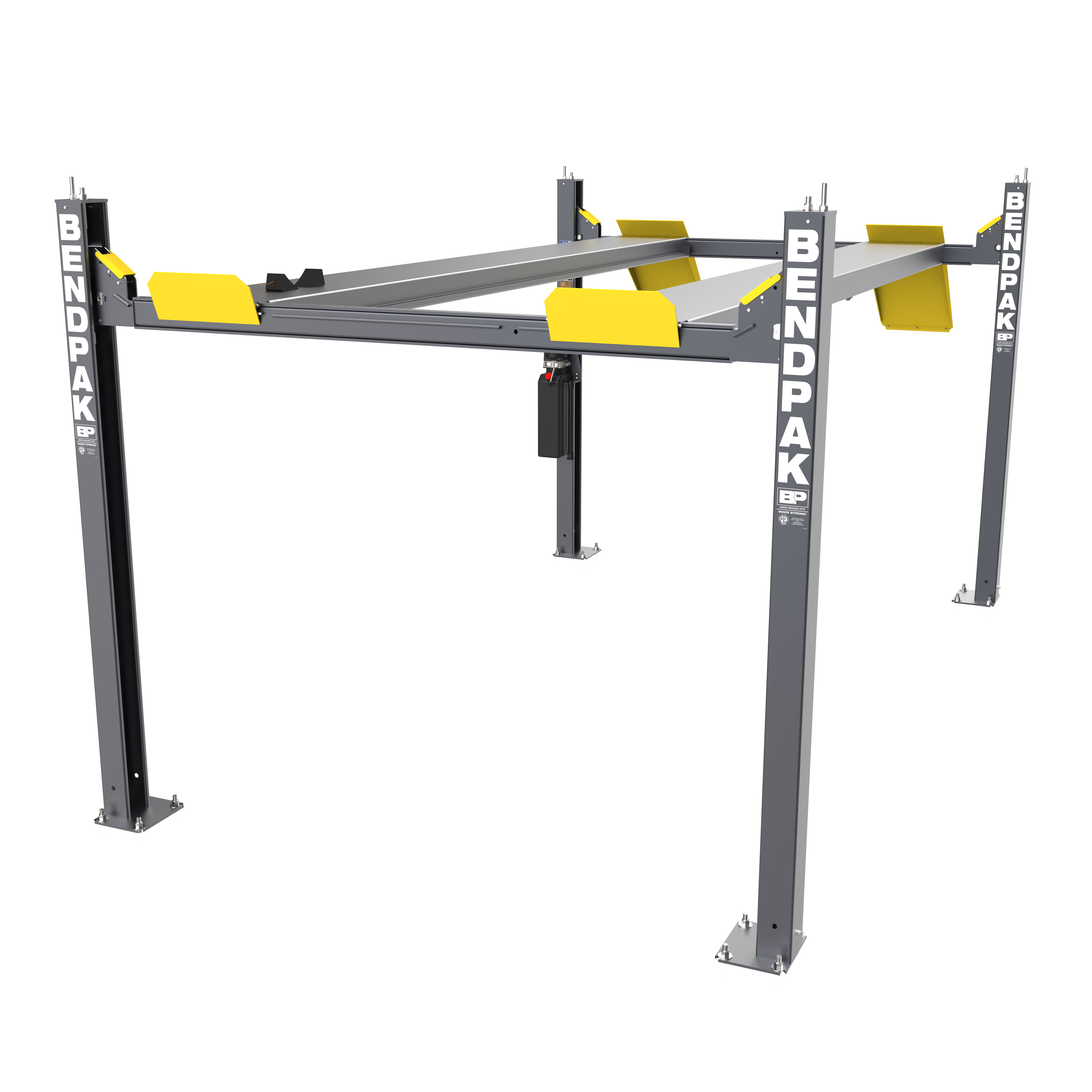

Extra-Wide High-Rise Lifting for Big Vehicles

Extra-Wide High-Rise Lifting for Big Vehicles

The BendPak HD-9EWT Four-Post Lift is built for garages and shops with the space to take advantage of a wider, taller 9,000-lb. parking and service platform. Designed for high ceilings, high-rise storage, and larger vehicle profiles, the HD-9EWT gives wide-body trucks, SUVs, off-road vehicles, and high-clearance vehicles more room to load, park, and service with confidence. This extra-wide high-rise lift is a strong choice when a narrow or standard-width model would feel too tight. With a substantial 82-inch rise from the runways, the HD-9EWT helps create more room for taller technicians below the vehicle and more clearance for larger vehicles parked underneath.

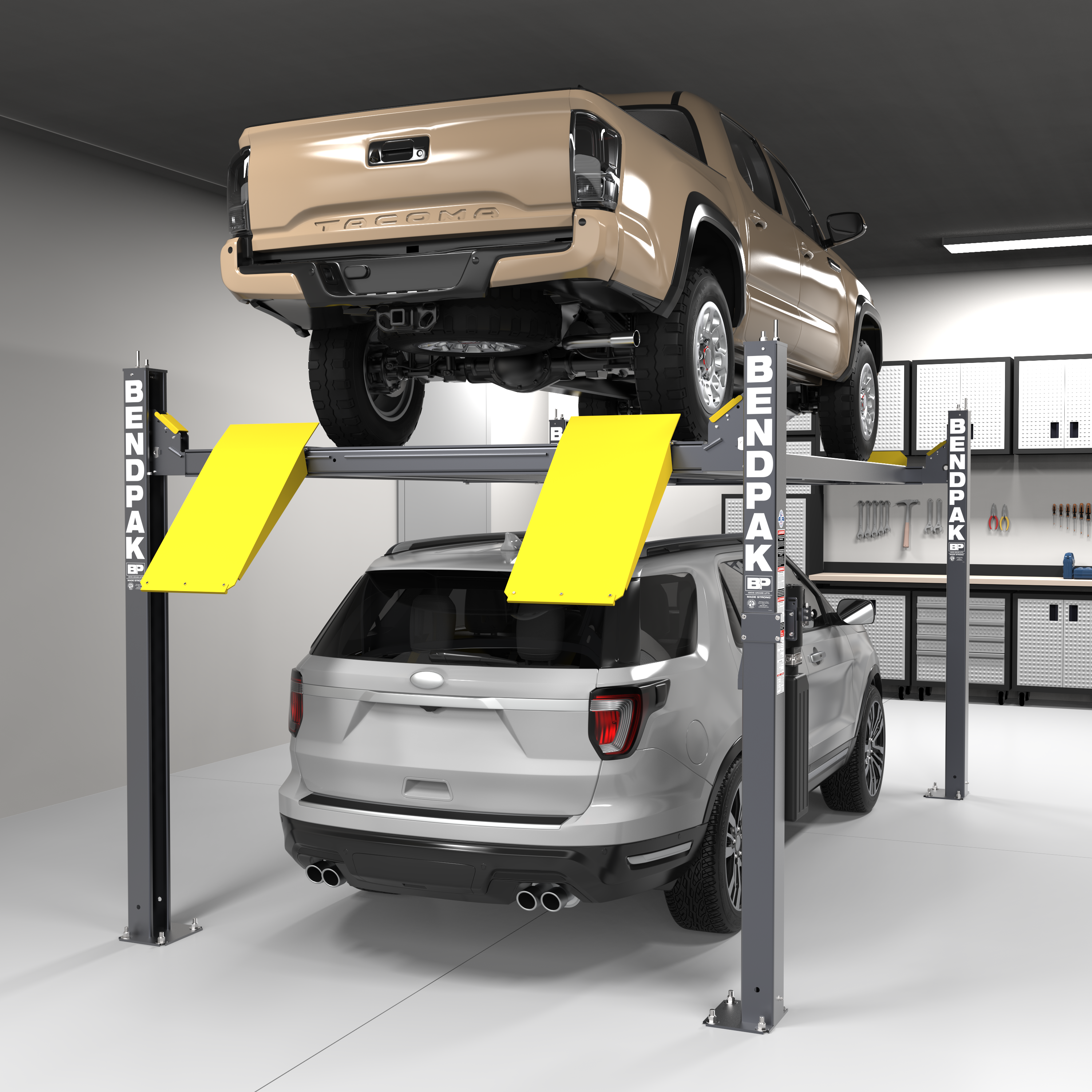

Extra Width for Trucks, SUVs, and Off-Road Builds

Extra Width for Trucks, SUVs, and Off-Road Builds

The HD-9EWT is better suited for wide cars, off-road vehicles, and larger trucks where mirror, door, and tire clearance matter. The extra-wide design helps reduce the tight squeeze that can happen on narrower lifts, especially when loading vehicles with wider stances or larger wheel and tire packages. For storage, the added width and high-rise clearance make the HD-9EWT a smart solution for garages that need to stack larger vehicles without making every drive-on feel like a precision parking exam. It is built for users who have the room and want to use it wisely.

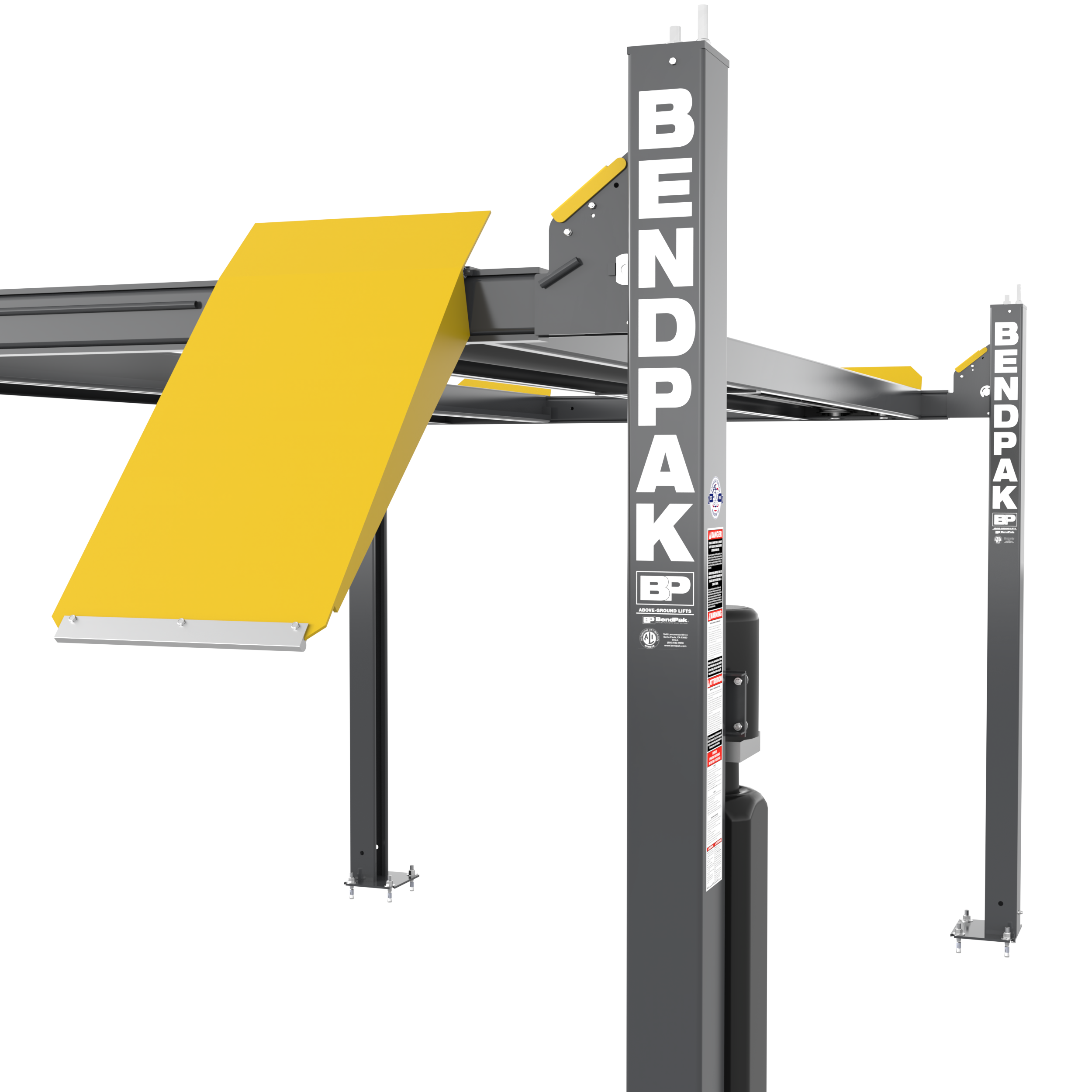

Integrated Lift Systems Built for Smooth Operation

The HD-9EWT uses an electric-hydraulic power system with controls positioned within reach, a single hydraulic cylinder mounted beneath the runway, heavy-duty lifting cables, and internal routing for cables, airlines, safety latches, and sheaves. Dual-hub cable sheaves help reduce premature wear, while oversized self-lubricating cable rollers, internal anti-sway slider blocks, and multi-position safety locks support stable operation through repeated parking and service cycles.
Integrated Lift Systems Built for Smooth Operation

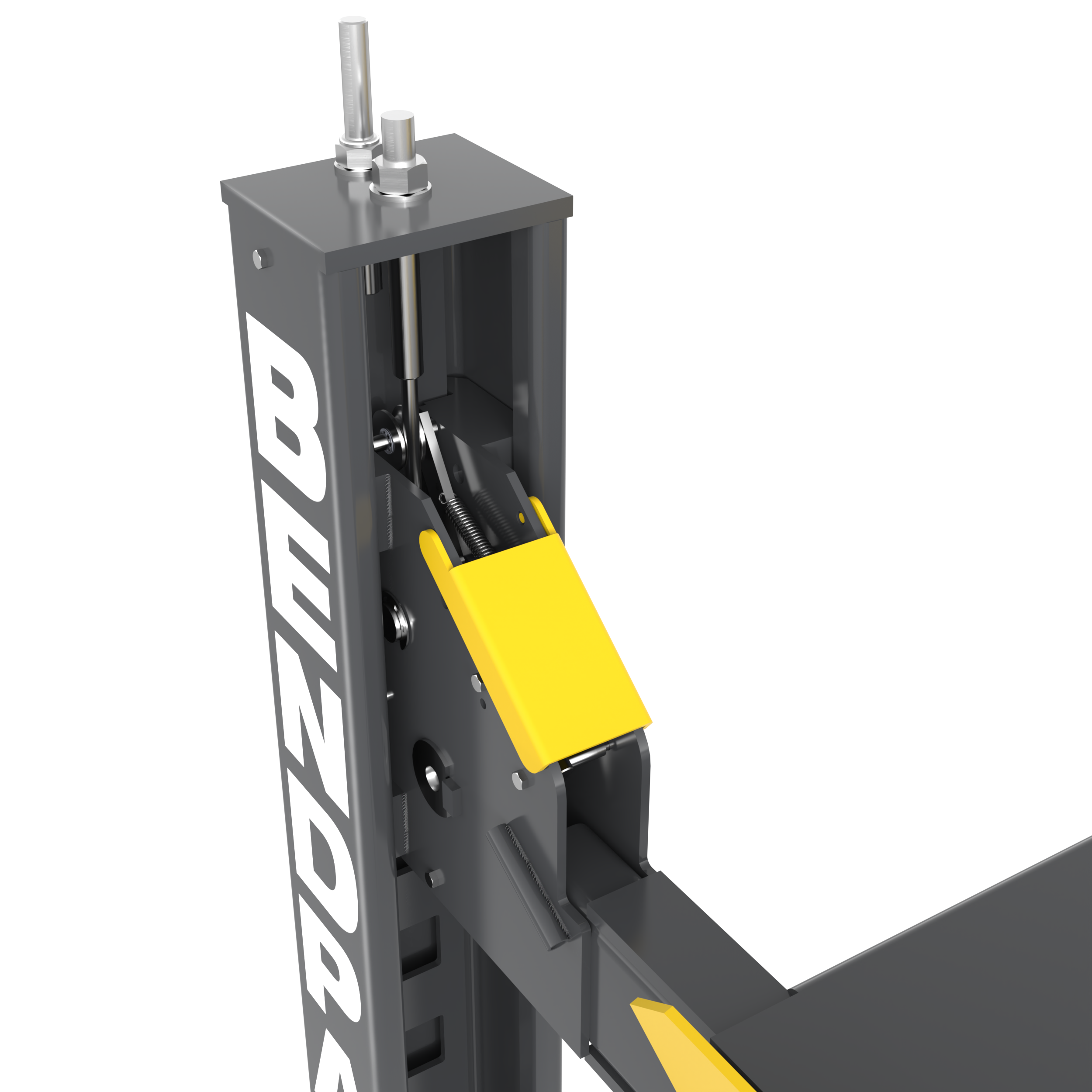

Safer Loading, Cleaner Storage, and Real Service Capability

Safer Loading, Cleaner Storage, and Real Service Capability

Longer approach ramps and low runways make it easier to load sports cars and other low-standing vehicles, while removable approach ramps provide added drive-under clearance when needed. Push-button pneumatic safety release and independent backup slack-cable safety latches support safer lift operation. With accessory-ready runways, optional rolling bridge jack compatibility, and enough space for larger vehicle profiles, the HD-9EWT gives DIY enthusiasts and professional shops a four-post lift that solves storage problems while keeping service capability close at hand.
Extra-Wide High-Rise Lift

Extra-Wide High-Rise Lift

The HD-9EWT combines extra width with high-rise clearance for larger vehicles, tall bays, and serious storage setups.

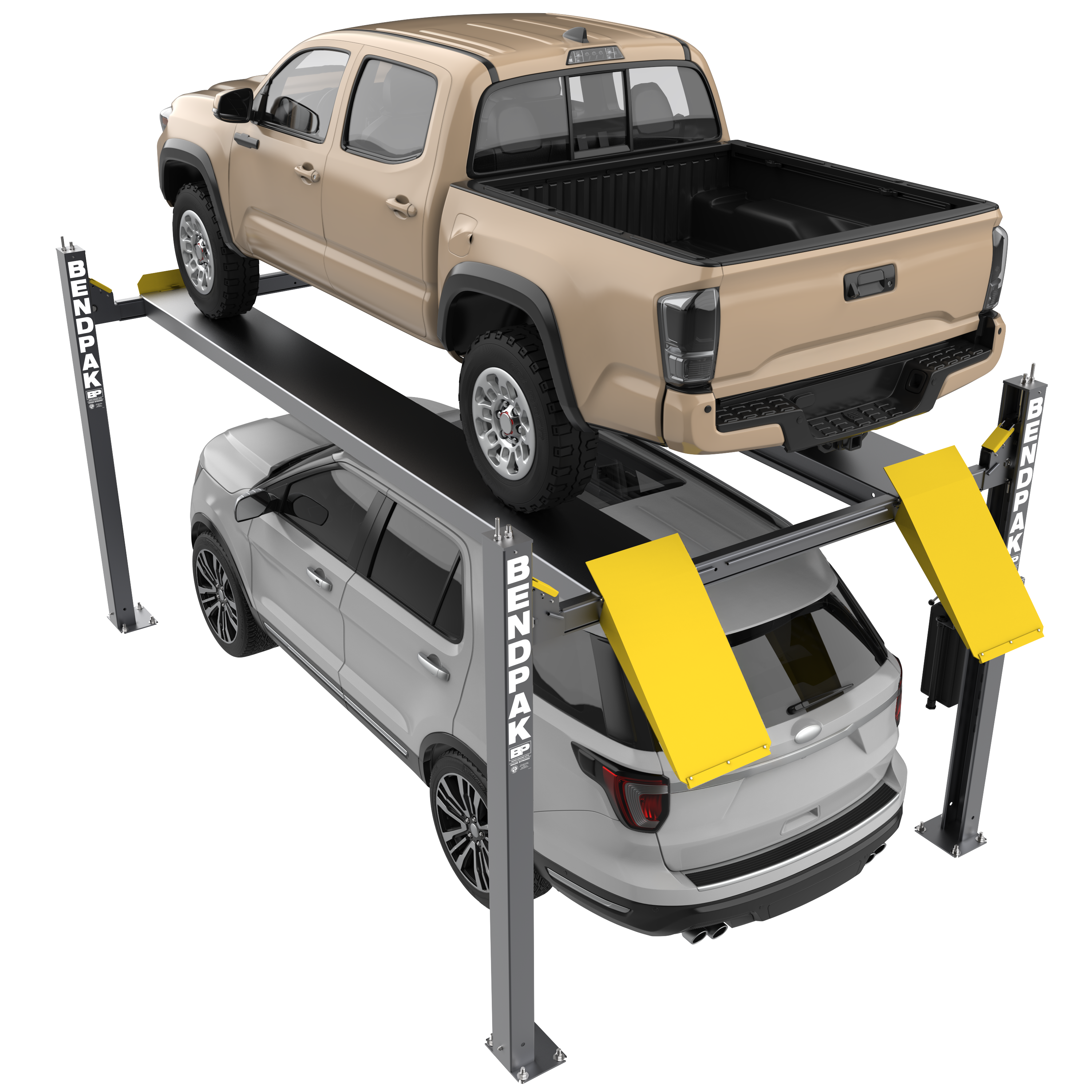

82-Inch Rise

82-Inch Rise

A substantial 82-inch rise from the runways creates more room for tall vehicles underneath and more working space below the raised platform.

Wide Vehicle Friendly

The extra-wide layout is better suited for wide cars, trucks, SUVs, and off-road vehicles with larger stances.

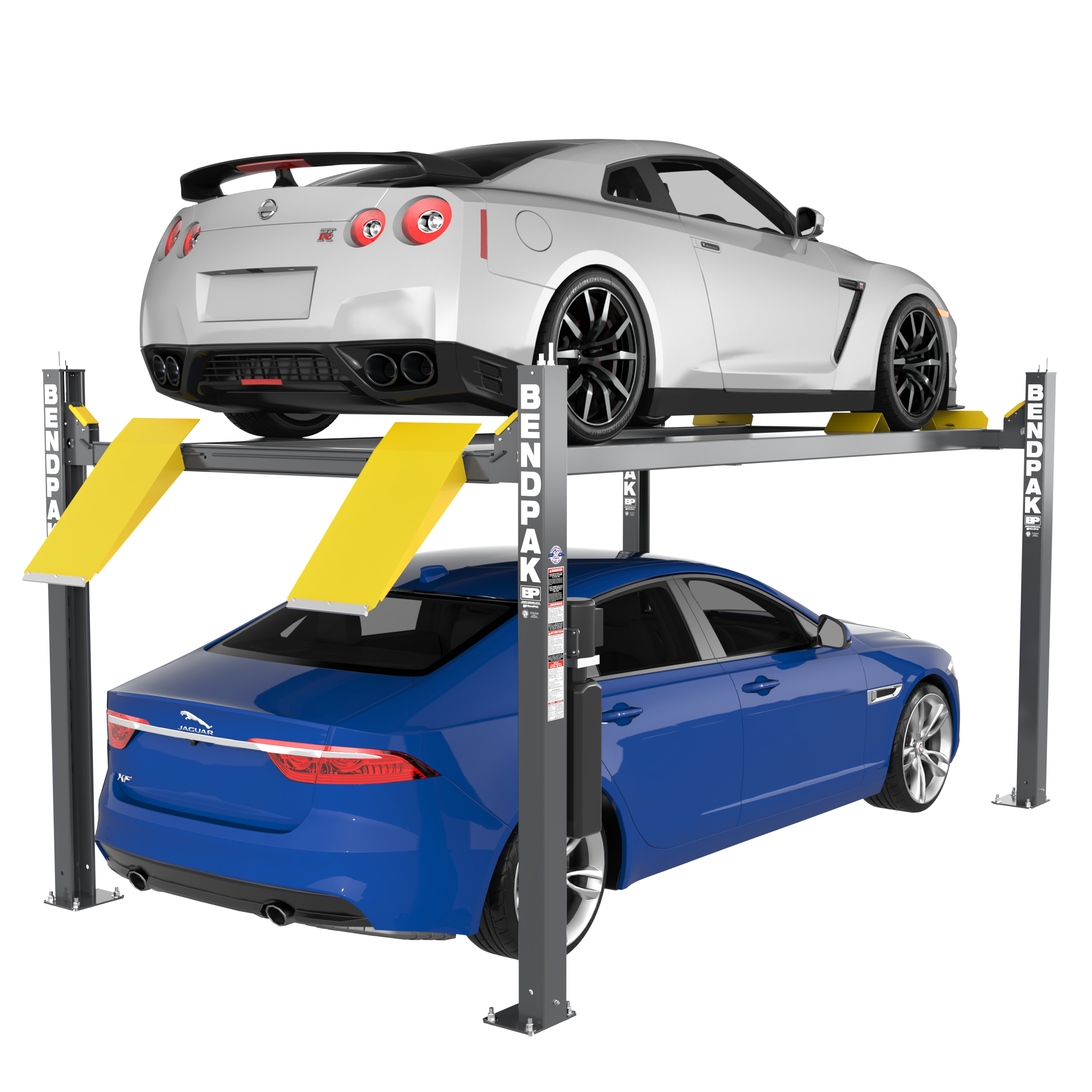

Low Runway Loading

Low Runway Loading

Low runways and longer approach ramps help make loading low-standing vehicles smoother and less stressful.
Integrated Safety Routing

Integrated Safety Routing

Cables, airlines, safety latches, and sheaves are routed internally for protection and a cleaner lift appearance.

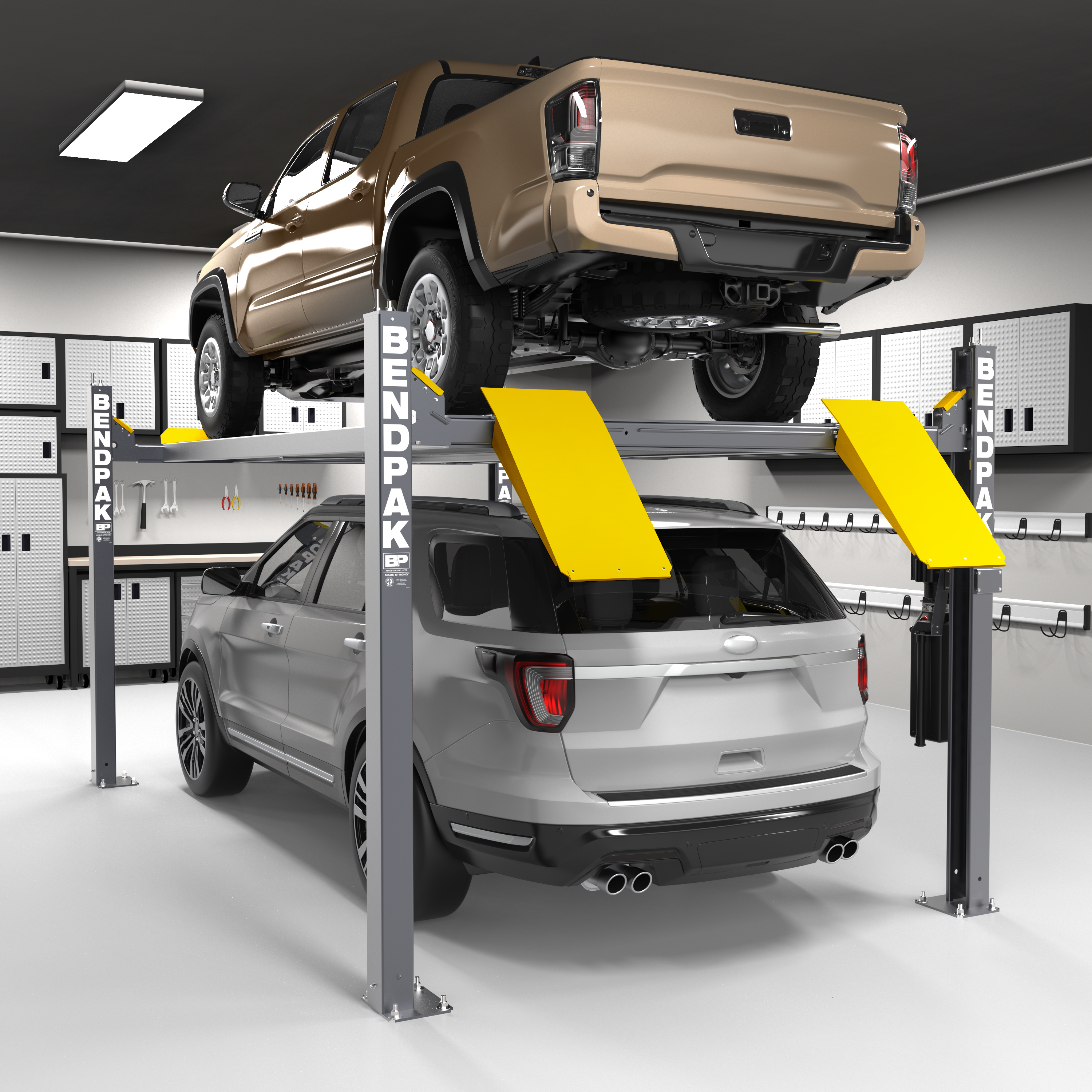

Storage Plus Service

Storage Plus Service

The HD-9EWT is built for parking, storage, and service, with accessory-ready runways and optional rolling bridge jack compatibility.

Specifications

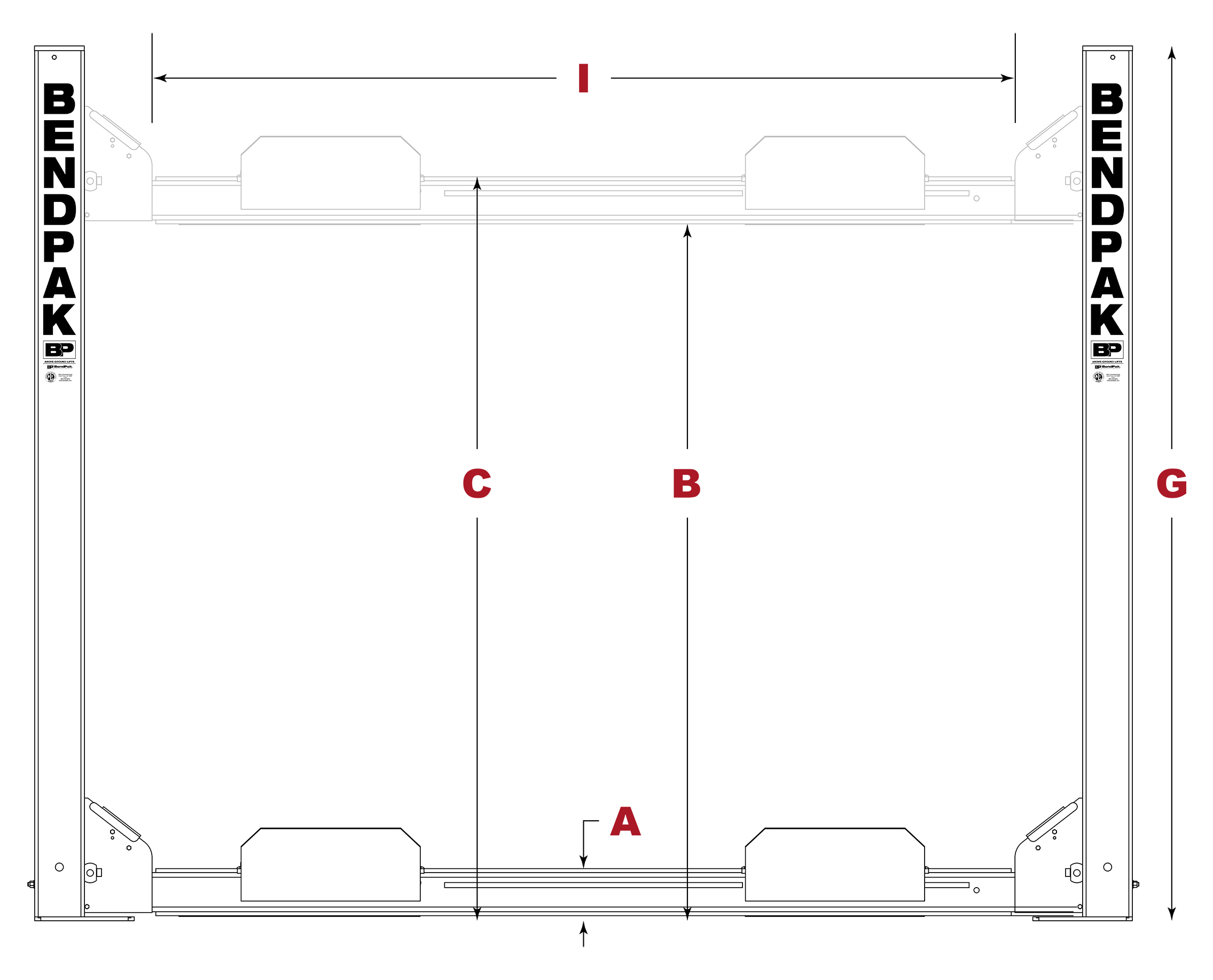

Specification Diagram 1

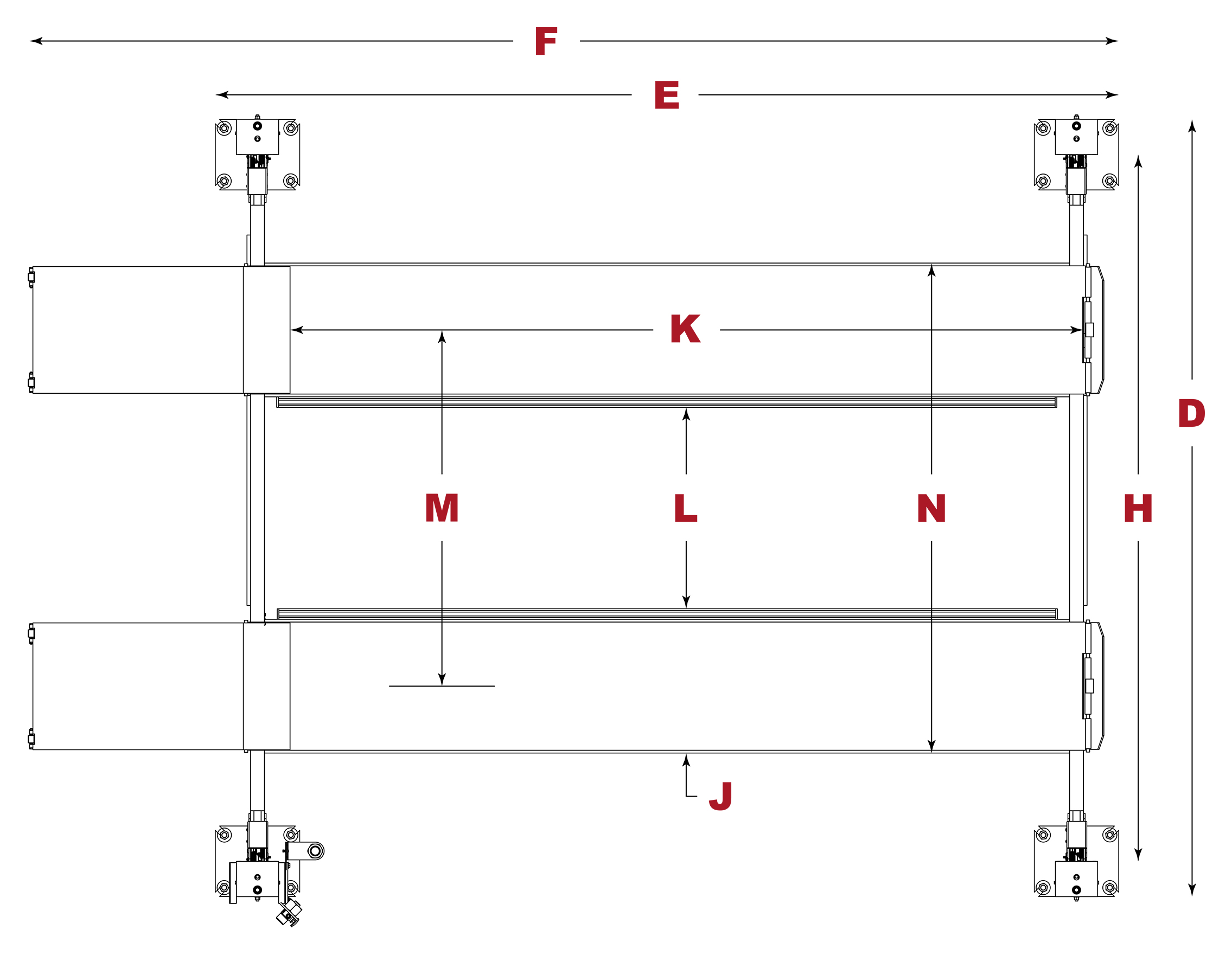

Specification Diagram 2

Capacity

Lifting Capacity
9000 lb

Rise

A Min Runway Height
4.75 in
B Max Rise
82.17 in
C Max Lifting Height
87 in

Outside Dimensions

D Width
117 in
E Outside Length
198 in
F Overall Length
224.5 in
G Height
100 in

Inside Dimensions

H Inside Columns
107 in
I Drive-Thru Clearance
93.25 in

Runways

J Runway Width
19 in
K Runway Length
182.25 in
L Width Between Runways
35.75 - 42 in
M Runway Centerline
57.75 - 64 in
N Outside Edge of Runways
76.75 - 83 in

Minimum Wheelbase

Rated Wheelbase Capacity
115 in
25% Capacity
80 in
75% Capacity
95 in

Locking

Locking Positions
17
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 192 x 29 in
Shipping Weight
1852 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
