Four-Post Lift / 7,000-lbs. Capacity / High Rise / Wide

BendPak HD-7W Four-Post Lift - 7,000-lbs. Capacity
$6,695.00

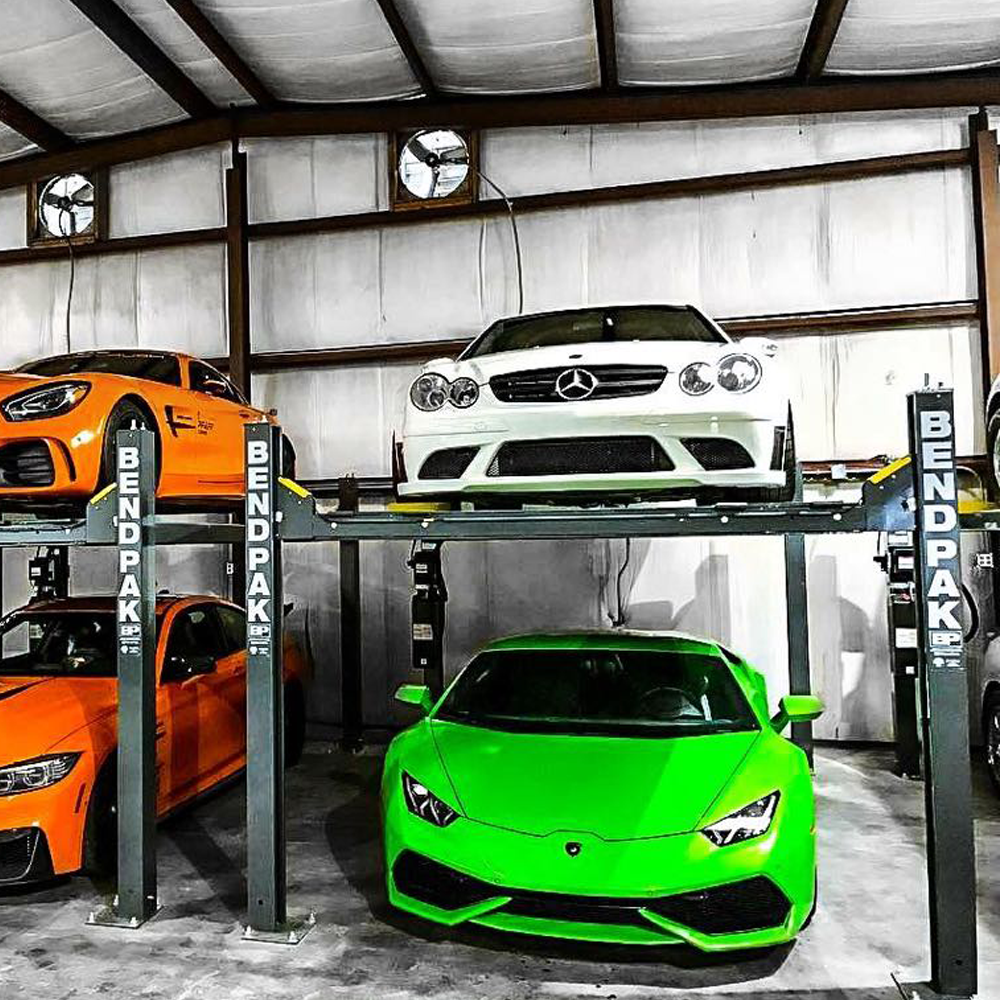

Wide Four-Post Parking with Room to Breathe

Wide Four-Post Parking with Room to Breathe

The BendPak HD-7W Four-Post Lift gives shops and home garages a wider, more flexible 7,000-lb. parking and maintenance solution without taking over the whole building. It is built for users who want room for sports cars, sedans, light-duty trucks, and SUVs in the same lift structure, with enough side clearance to make larger mirrors and wider vehicles less of a guessing game. Even with its wide drive-thru stance and tall lifting height, the HD-7W remains only slightly larger than a typical parking space. That makes it a smart choice for low-ceiling garages, professional service spaces, and serious home setups where every square foot matters but cramped vehicle loading is not acceptable.

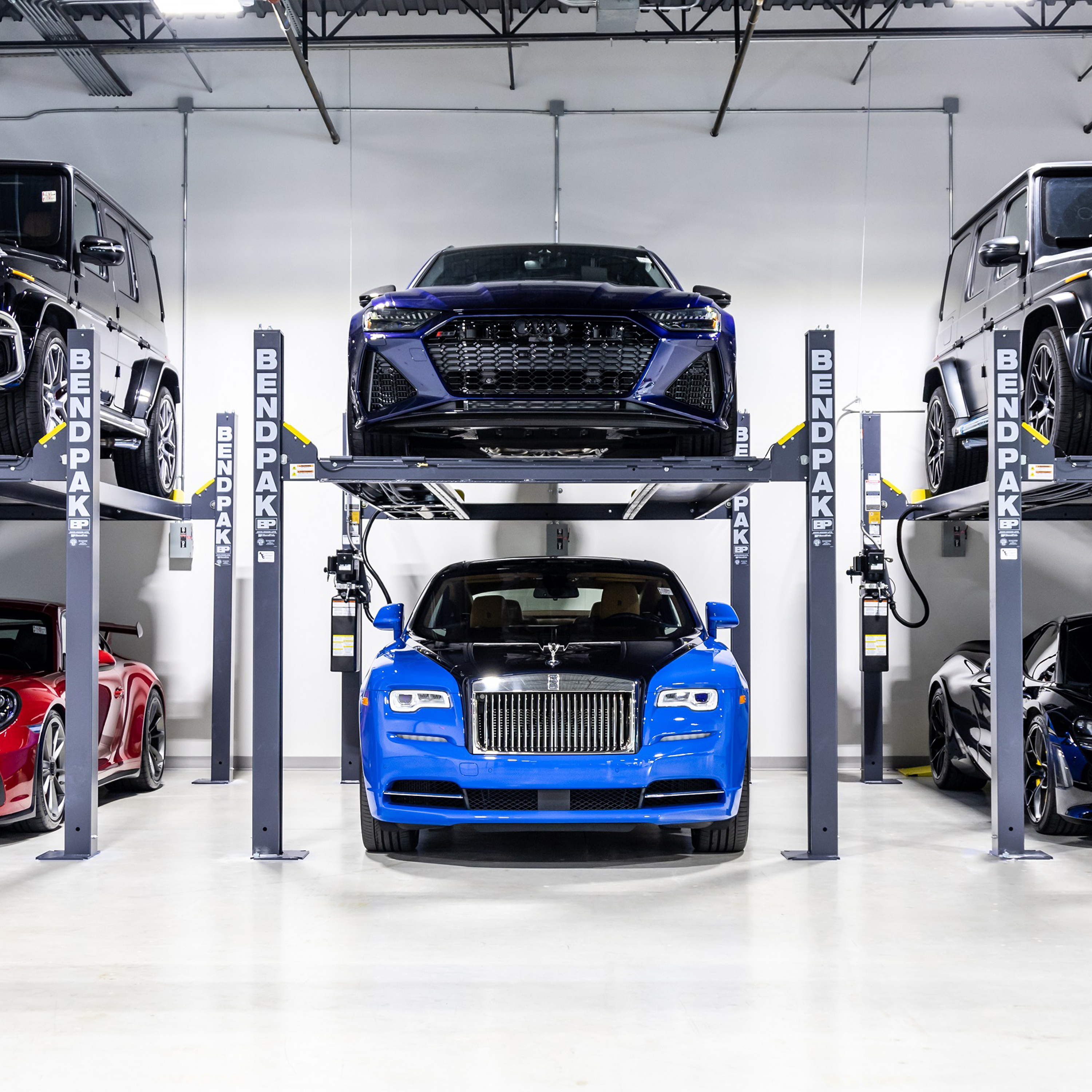

Wide Drive-Thru Access with Low-Deck Runways

Wide Drive-Thru Access with Low-Deck Runways

The HD-7W is designed around comfortable loading and practical vehicle access. Its wide layout helps accommodate a broader range of vehicle bodies, while low-profile 4.5-inch runways make it easier to drive onto the lift without fighting steep approach angles. Longer approach ramps further improve the loading experience for low-riding vehicles. That combination of wide clearance, low-deck runways, and gentler ramps helps reduce the risk of scraping front ends while making the lift easier for drivers of different experience levels to use.

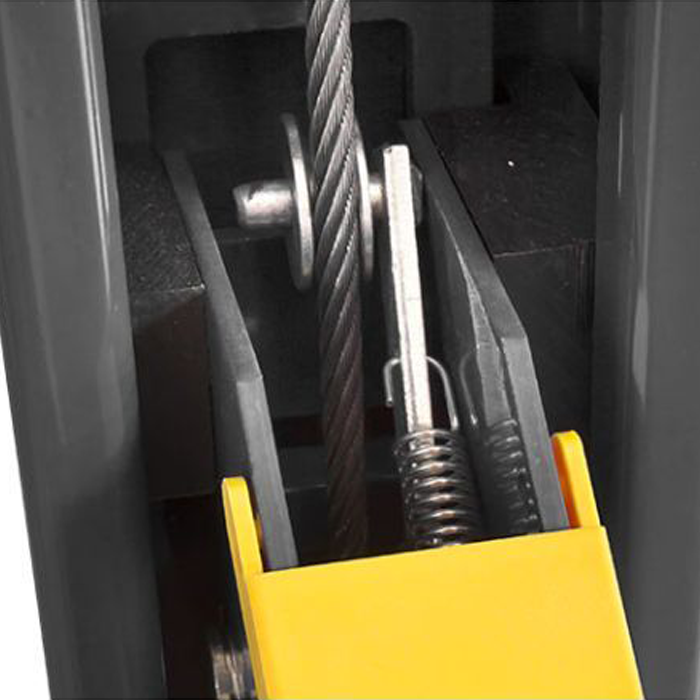

Aircraft Cable Strength and Multi-Level Safety Locks

Four heavy-duty stainless steel wire ropes are fully enclosed within the lift structure and rated far above the lift’s 7,000-lb. maximum capacity. Oversized dual-hub sheaves help reduce friction, wear, and long-term maintenance demands on the wire rope, axles, and sheaves. Multi-position safety locks automatically engage every few inches as the lift rises, allowing users to choose the right parking or service height. A push-button pneumatic safety release disengages all four locks together, while a secondary slack-cable lock system helps catch the runways if unsafe cable slack develops.
Aircraft Cable Strength and Multi-Level Safety Locks

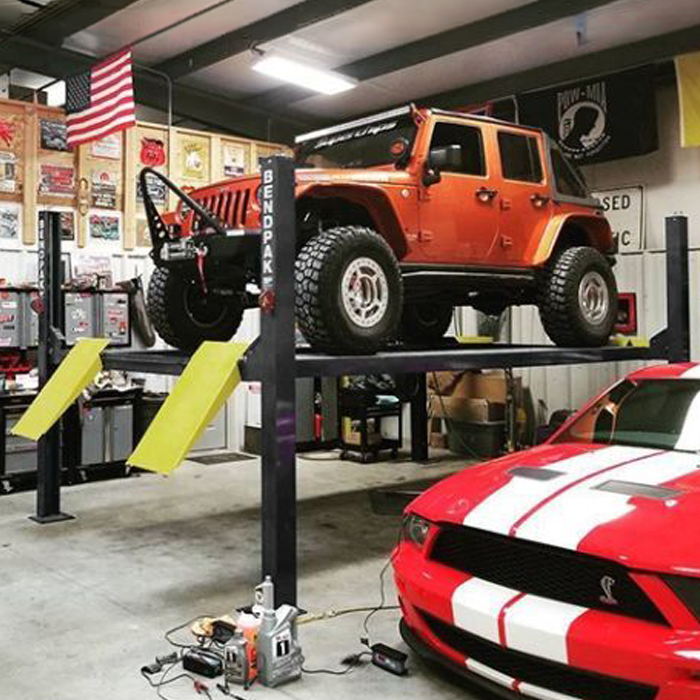

Mobile-Friendly Four-Post Lift with Clean Integrated Design

Mobile-Friendly Four-Post Lift with Clean Integrated Design

The HD-7W includes a rail kit for optional accessories and is compatible with an optional RJ-45 rolling jack for expanded wheel-service capability. A rugged 4-piece caster kit can also make the lift mobile, giving users the ability to reposition the lift for different garage layouts or service jobs. The electric-hydraulic power system uses a single hydraulic cylinder mounted beneath the runway, while critical lifting components such as airlines, safety latches, and sheaves are enclosed inside the lift columns. The result is a safer, cleaner-looking four-post lift with BendPak’s practical garage-first engineering.

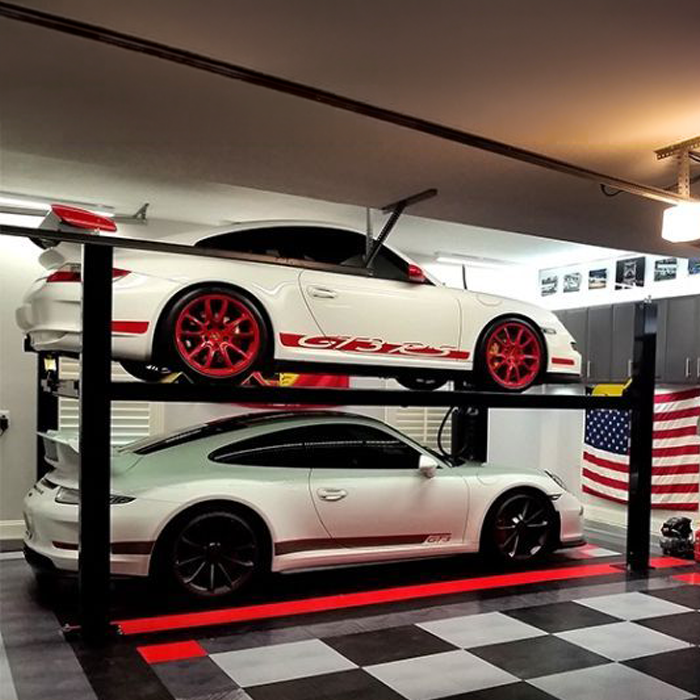

Wide Drive-Thru Layout

Wide Drive-Thru Layout

Extra side clearance helps the HD-7W accommodate sports cars, sedans, light-duty trucks, and SUVs with greater confidence.

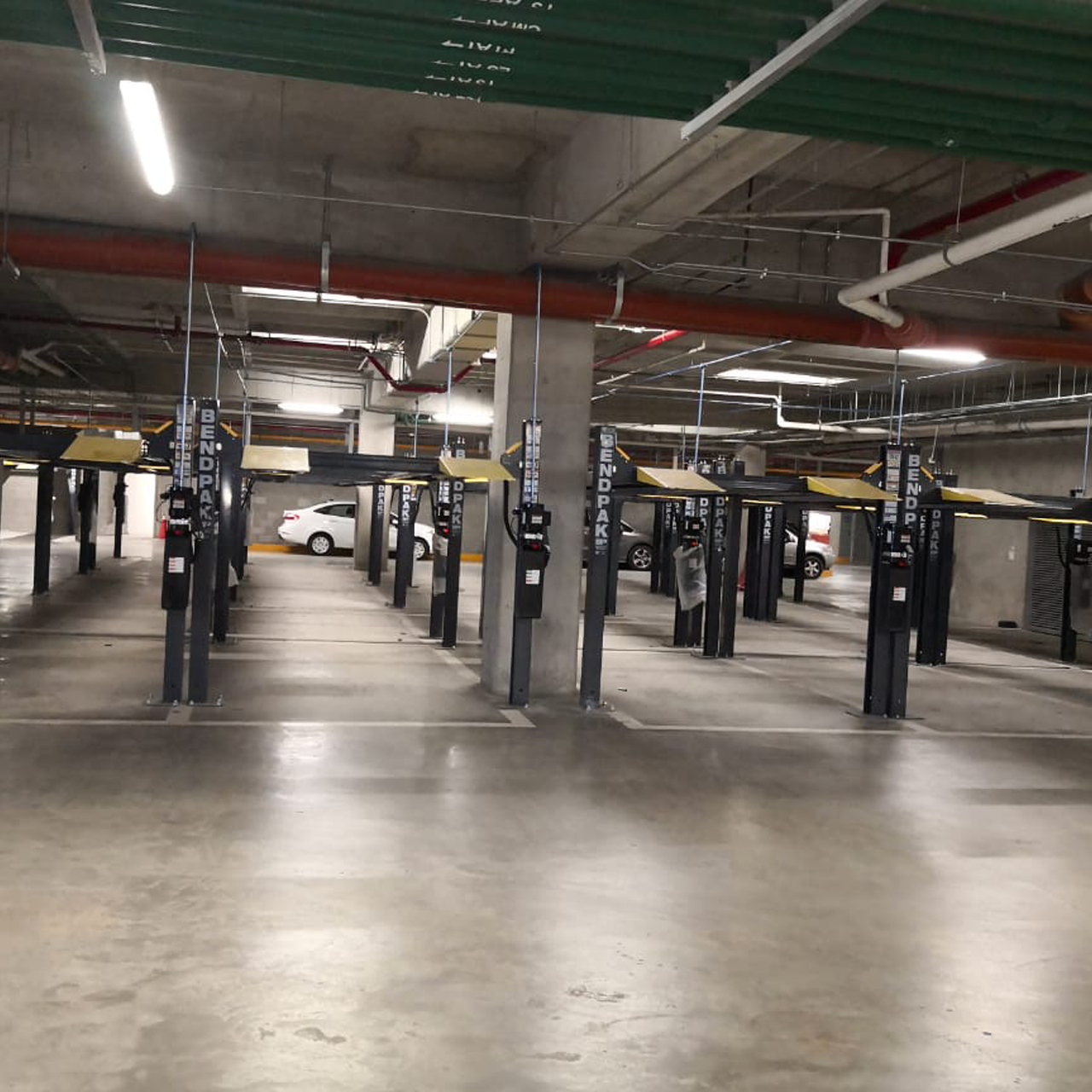

Low-Deck Runways

Low-Deck Runways

Low-profile 4.5-inch runways help make vehicle loading easier. The lower deck pairs with longer ramps for a smoother approach.

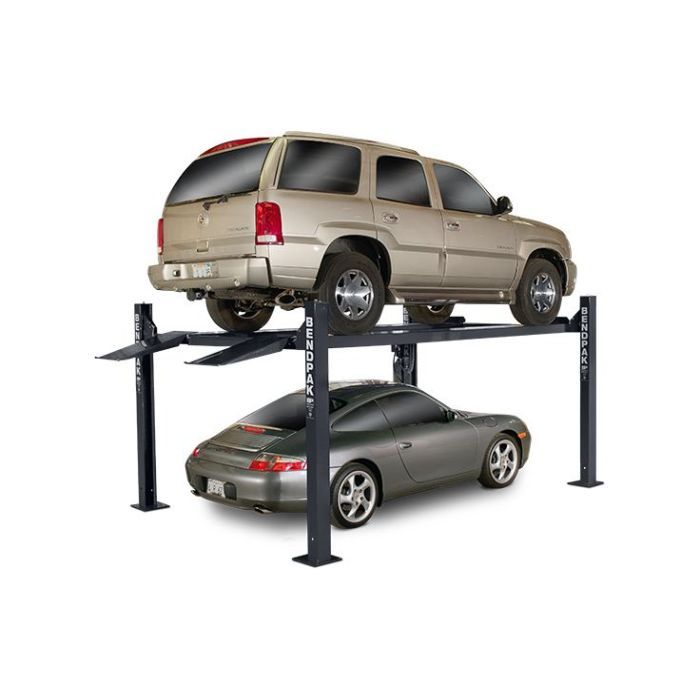

7,000-lb. Capacity

7,000-lb. Capacity

The HD-7W supports vehicles up to 7,000 lbs., making it a versatile four-post lift for parking and maintenance.
Pneumatic Lock Release

Pneumatic Lock Release

Push-button pneumatic release disengages all four safety locks together for easier, more controlled lowering.

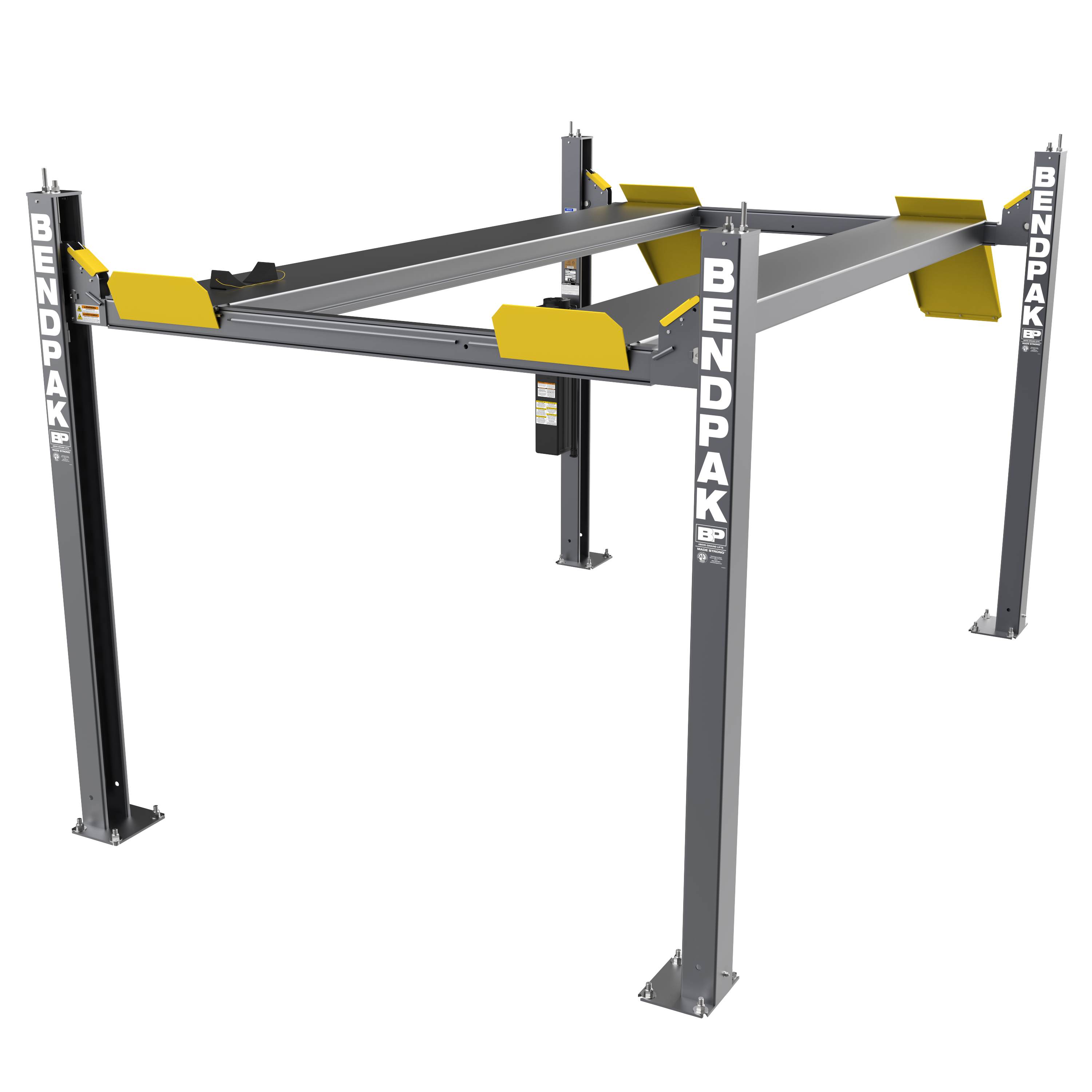

Accessory-Ready Runways

Accessory-Ready Runways

Runways include a rail kit for optional accessories, including compatible rolling jack upgrades for wheel service.

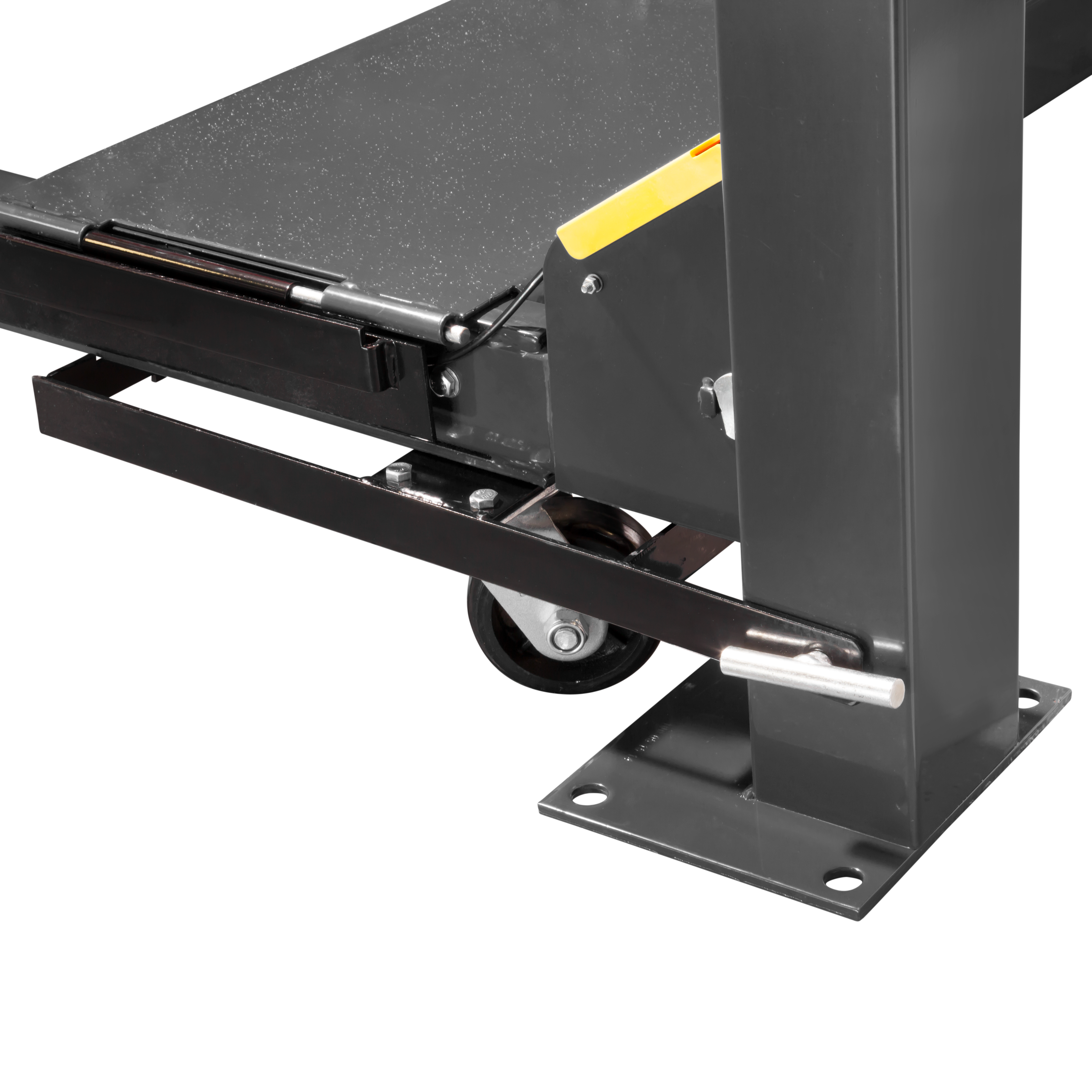

Optional Mobility Kit

Optional Mobility Kit

A 4-piece caster kit can make the lift mobile so the garage layout can change when the job or parking plan changes.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
7000 lb

Rise

A Min Runway Height
5 in
B Max Rise
82 in
C Max Lifting Height
86.5 in

Outside Dimensions

D Width
110.25 in
E Outside Length
174 in
F Overall Length
200.5 in
G Height
100 in

Inside Dimensions

H Inside Columns
100.25 in
I Drive-Thru Clearance
86.5 in

Runways

J Runway Width
19 in
K Runway Length
158.25 in
L Width Between Runways
35 - 41 in
M Runway Centerline
56.75 - 63 in
N Outside Edge of Runways
75.75 - 82 in

Minimum Wheelbase

Rated Wheelbase Capacity
115 in
25% Capacity
70 in
50% Capacity
85 in
75% Capacity
100 in

Locking

Locking Positions
17
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 168 x 32 in
Shipping Weight
1756 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
