BendPak HD-7PXW Four-Post Lift - 7,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175516
$9,695.00
Financing as low as $211/moApply now

Flexible business financing available through Navitas.

BendPak HD-7PXW ALI Certified super-tall four-post lift with extra-wide design.
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
BendPak HD-7PXW four-post parking lift designed for wider vehicles and garage storage.
BendPak HD-7PXW 7,000-lb. wide four-post lift for vehicle storage
Product 10
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 7,000-lbs. Capacity / Super-Tall Rise / Vehicle Display Platform

BendPak HD-7PXW Four-Post Lift - 7,000-lbs. Capacity
$9,695.00

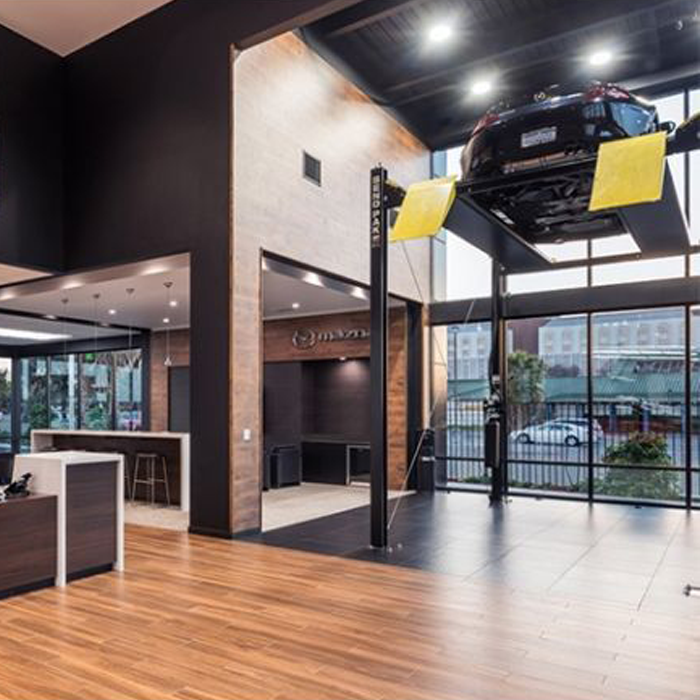

Sky-High Four-Post Parking for Storage and Display

Sky-High Four-Post Parking for Storage and Display

The BendPak HD-7PXW Four-Post Lift brings serious height to the HD-7 family, giving owners a 7,000-lb. capacity lift with 182-inch runways and a super-tall rise designed for vehicle storage, display, and service flexibility. If the goal is to stack higher, show better, and make better use of vertical space, the HD-7PXW is the four-post car lift built to make the garage look less crowded and a lot more capable. This model is especially useful for owners who want more clearance than a standard four-post parking lift can provide. Its long runways help accommodate a range of vehicle types and wheelbases, while the high-reaching design gives shops, collectors, and serious home garages a clean way to store or present vehicles without giving up BendPak’s proven 7,000-lb. lifting platform.

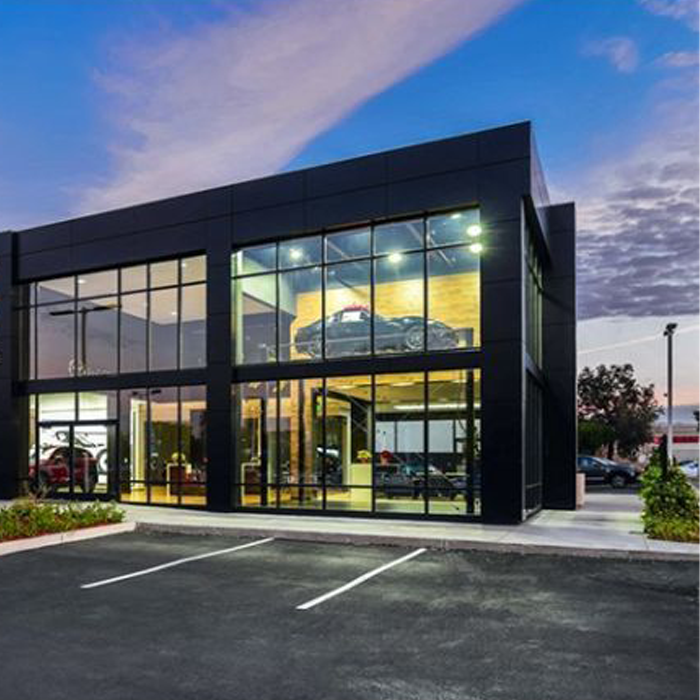

Same BendPak HD-7 Safety, Just Taken Higher

Same BendPak HD-7 Safety, Just Taken Higher

The HD-7PXW carries the same safety and convenience DNA found across BendPak four-post lifts. A one-touch pneumatic safety release disengages the locks simultaneously, helping make lowering smoother and more controlled during daily operation. A single hydraulic cylinder is tucked neatly beneath the power-side runway, keeping the lift structure clean and reducing exposed components. Internal anti-sway slider blocks, oversized self-lubricating cable rollers, rugged 1.25-inch roller axles, and heavy-duty aircraft cable all work together to support stable, dependable lifting.

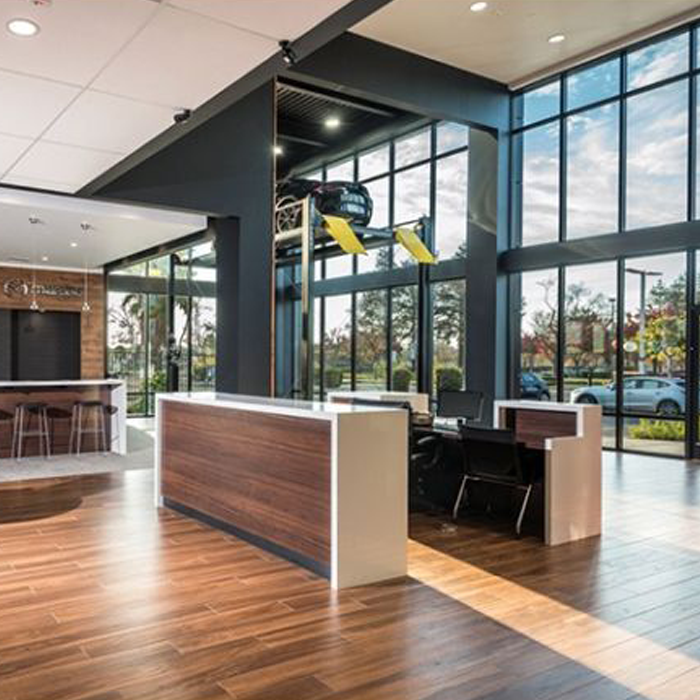

Built for Tall Storage, Display, and Daily Garage Use

With a super-tall rise that delivers 12 feet of lifting height, the HD-7PXW gives users a powerful solution for high-clearance parking, vehicle display, and stacked storage applications. Its 182-inch runways create a confident platform for a wide range of cars and wheelbases. Non-skid ramps help support traction during loading, while multi-position safety locks and adjustable lock ladders allow the lift to settle securely at the right working or storage height. It is a lift for users who want more room above, not more excuses below.
Built for Tall Storage, Display, and Daily Garage Use

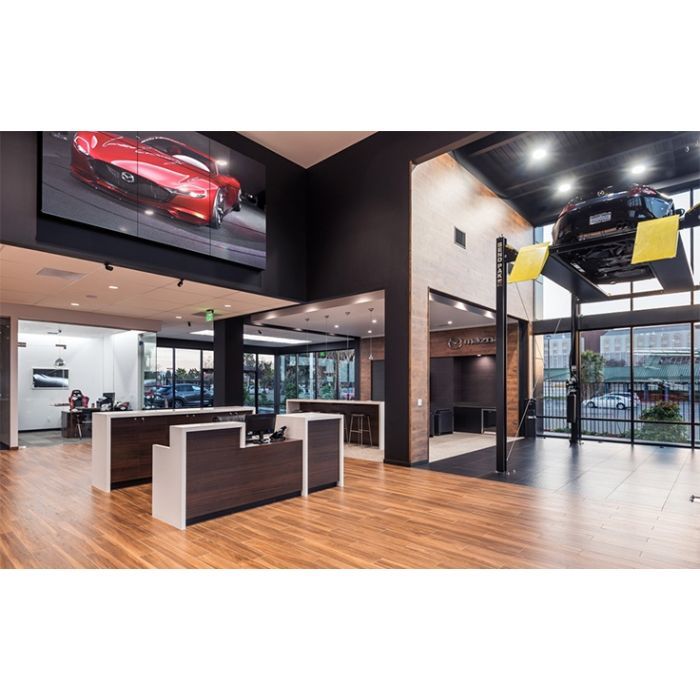

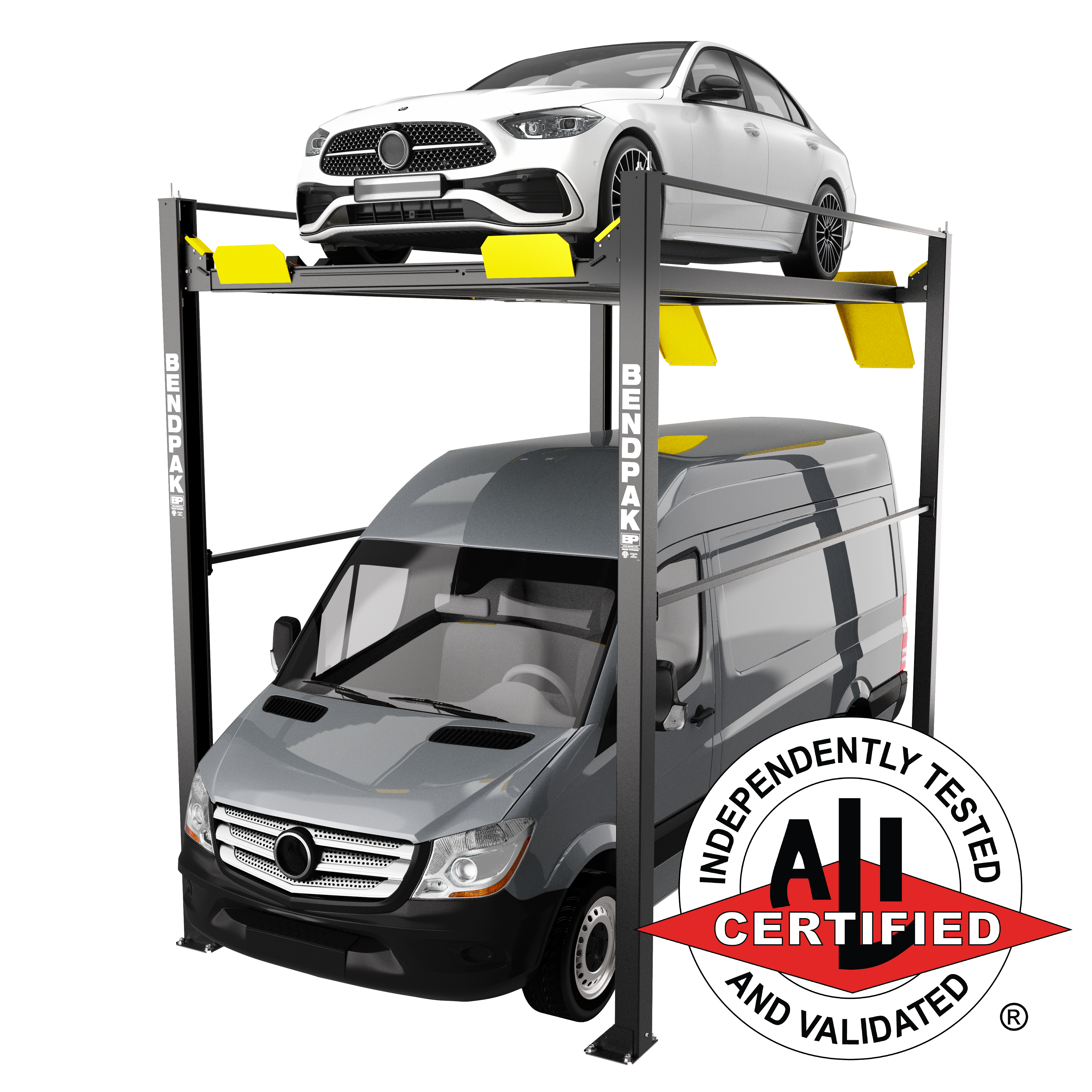

Electric-Hydraulic Power with Enclosed Lift Components

Electric-Hydraulic Power with Enclosed Lift Components

The HD-7PXW uses an electric-hydraulic power system with a single hydraulic cylinder mounted under the runway for efficient operation and clean integration. The lift’s critical components are designed to work inside the four-post structure instead of cluttering the bay. Heavy-duty 3/8-inch aircraft cable, multi-position safety locks, and a push-button pneumatic safety release give the HD-7PXW the confidence expected from a BendPak four-post lift. It is tall, strong, and built to keep vehicle storage and display looking sharp.

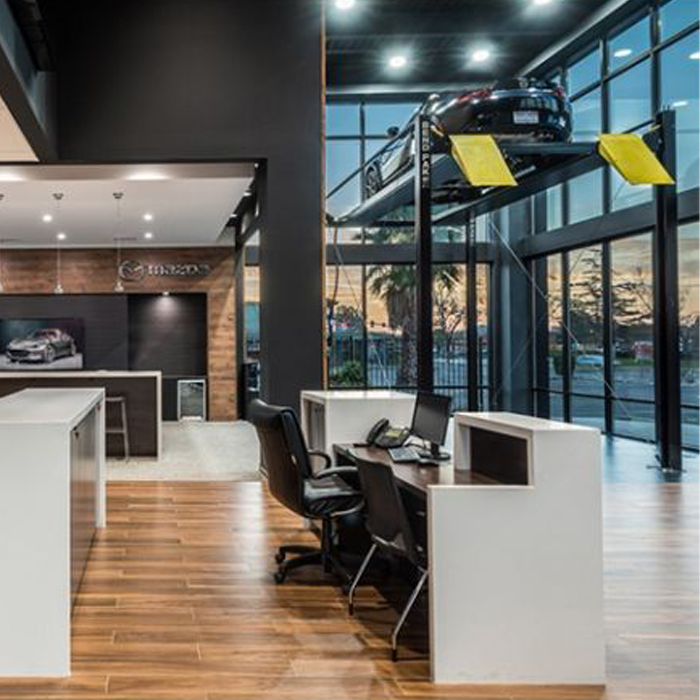

12-Foot Lift Height

12-Foot Lift Height

Super-tall rise gives the HD-7PXW serious vertical capability for storage and display. It is the high-reaching option in the HD-7 family.

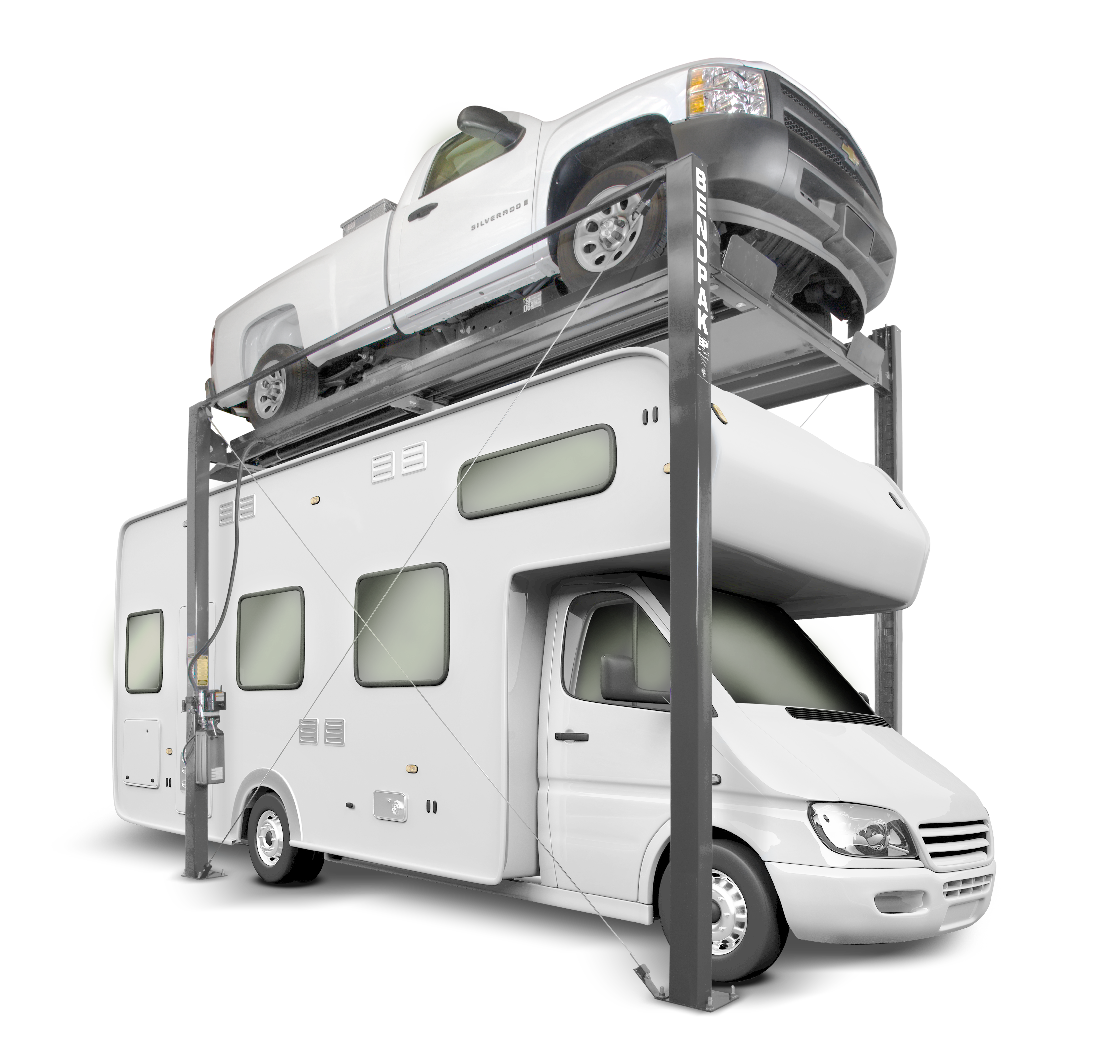

7,000-lb. Capacity

7,000-lb. Capacity

Built to support a wide range of vehicles up to 7,000 lbs. The lift combines parking utility with BendPak four-post stability.

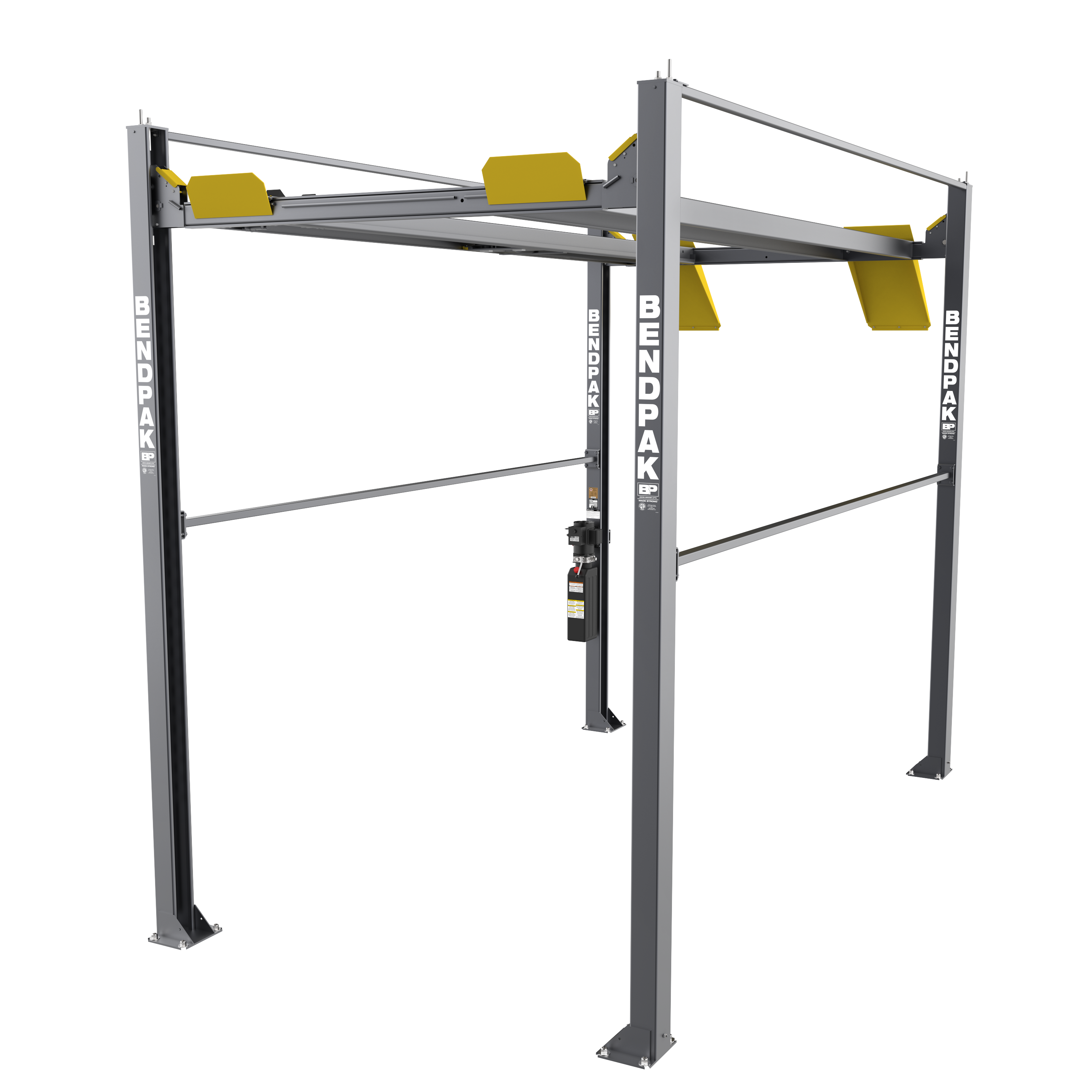

182-Inch Runways

182-Inch Runways

Long runways help accommodate different vehicle types and wheelbases. That extra platform length makes the lift more flexible for collectors and garages.

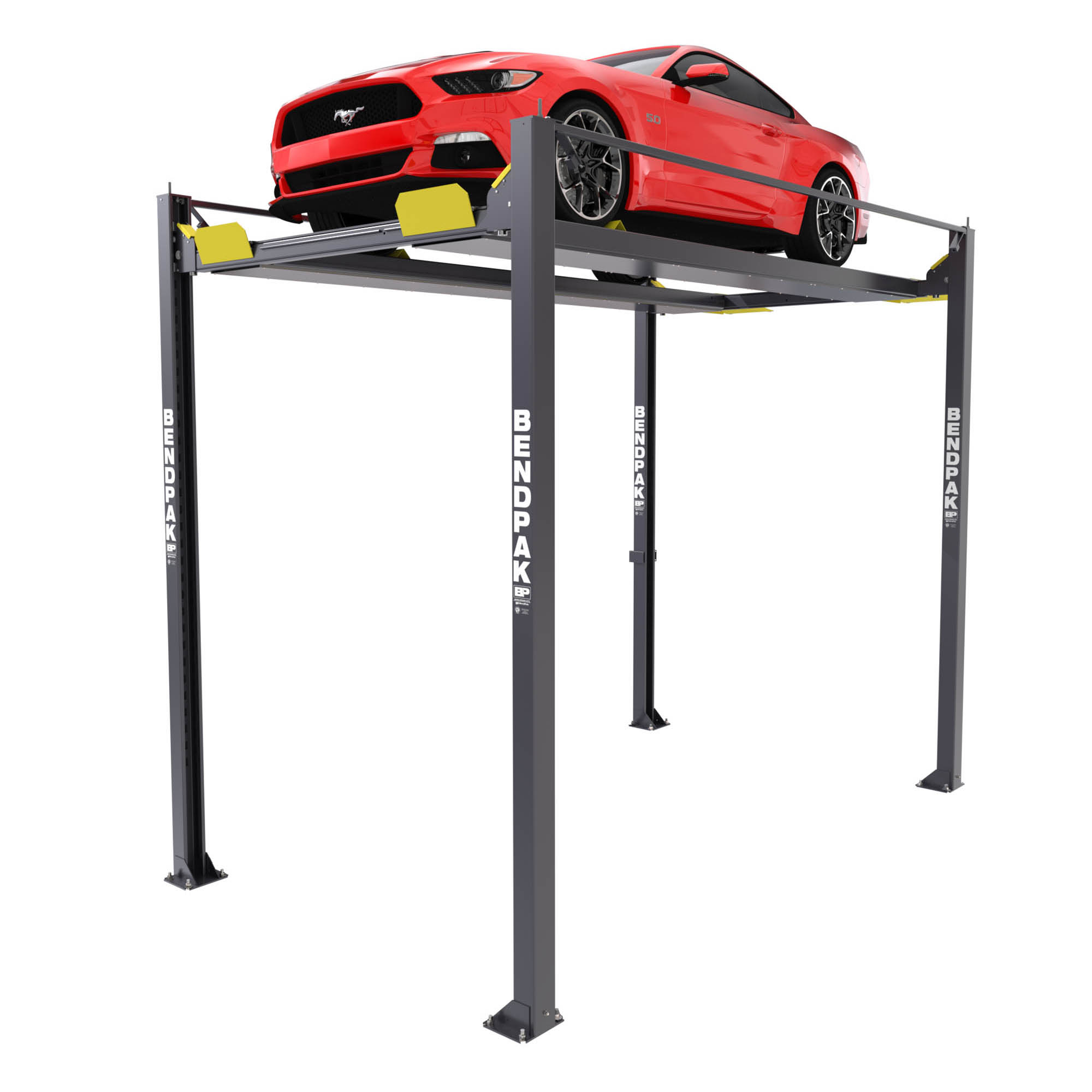

Pneumatic Safety Release

Pneumatic Safety Release

A push-button pneumatic release disengages the locks simultaneously. This makes lowering smoother, cleaner, and easier to manage.

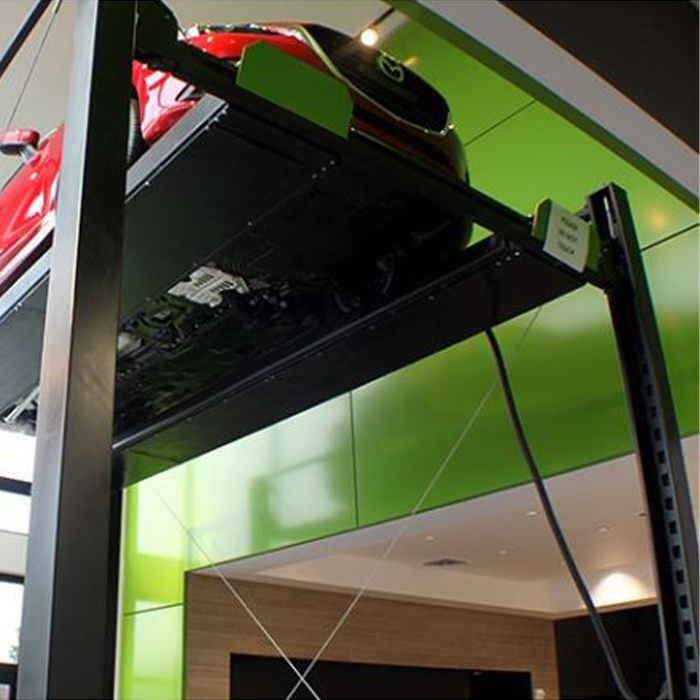

Enclosed Lift Components

Enclosed Lift Components

Critical lifting components are routed within the lift structure for cleaner operation and a better-looking installation.
Aircraft Cable System

Aircraft Cable System

Heavy-duty 3/8-inch aircraft cable, oversized rollers, and rugged roller axles support dependable lifting performance.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
7000 lb

Rise

A Min Runway Height
5 in
B Max Rise
140.25 in
C Max Lifting Height
145.25 in

Outside Dimensions

D Width
110.25 in
E Outside Length
198 in
F Overall Length
213 in
G Height
158 in

Inside Dimensions

H Inside Columns
100.25 in
I Drive-Thru Clearance
86.5 in

Runways

J Runway Width
19 in
K Runway Length
182.25 in
L Width Between Runways
35 - 41 in
M Runway Centerline
57 - 63 in
N Outside Edge of Runways
75.75 - 82 in

Minimum Wheelbase

Rated Wheelbase Capacity
135 in
25% Capacity
80 in
50% Capacity
95 in
75% Capacity
115 in

Locking

Locking Positions
31
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 192 x 44 in
Shipping Weight
2254 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
