BendPak HD-7P Four-Post Lift - 7,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175510
$6,595.00
Financing as low as $144/moApply now

Flexible business financing available through Navitas.

BendPak HD-7P ALI Certified narrow-width high-rise four-post lift.
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Four-Post Lift / 7,000-lbs. Capacity / High Rise / Narrow

BendPak HD-7P Four-Post Lift - 7,000-lbs. Capacity
$6,595.00

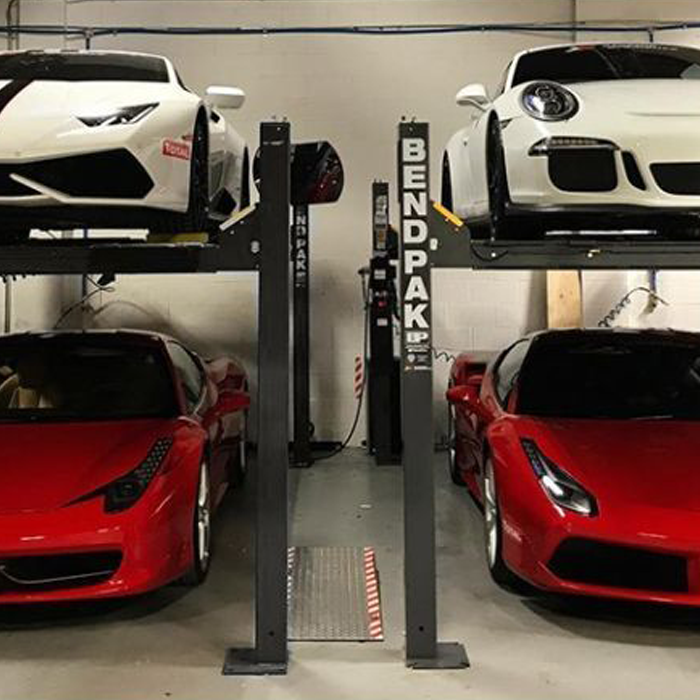

Narrow High-Rise Parking That Makes Tight Garages Work

Narrow High-Rise Parking That Makes Tight Garages Work

The BendPak HD-7P Four-Post Lift is the narrow high-rise parking lift for garages that need more vehicle storage without wasting floor space. With a 7,000-lb. lifting capacity, short runways, and a compact footprint, the HD-7P helps homeowners, collectors, and commercial parking environments make better use of vertical space while keeping the installation clean and organized. This is the HD-7 model for users who want BendPak four-post lift performance in a tighter layout. It is built to park, store, and service vehicles under 7,000 lbs., giving garages a polished parking solution that looks sharp and works hard without demanding a wide bay to prove it.

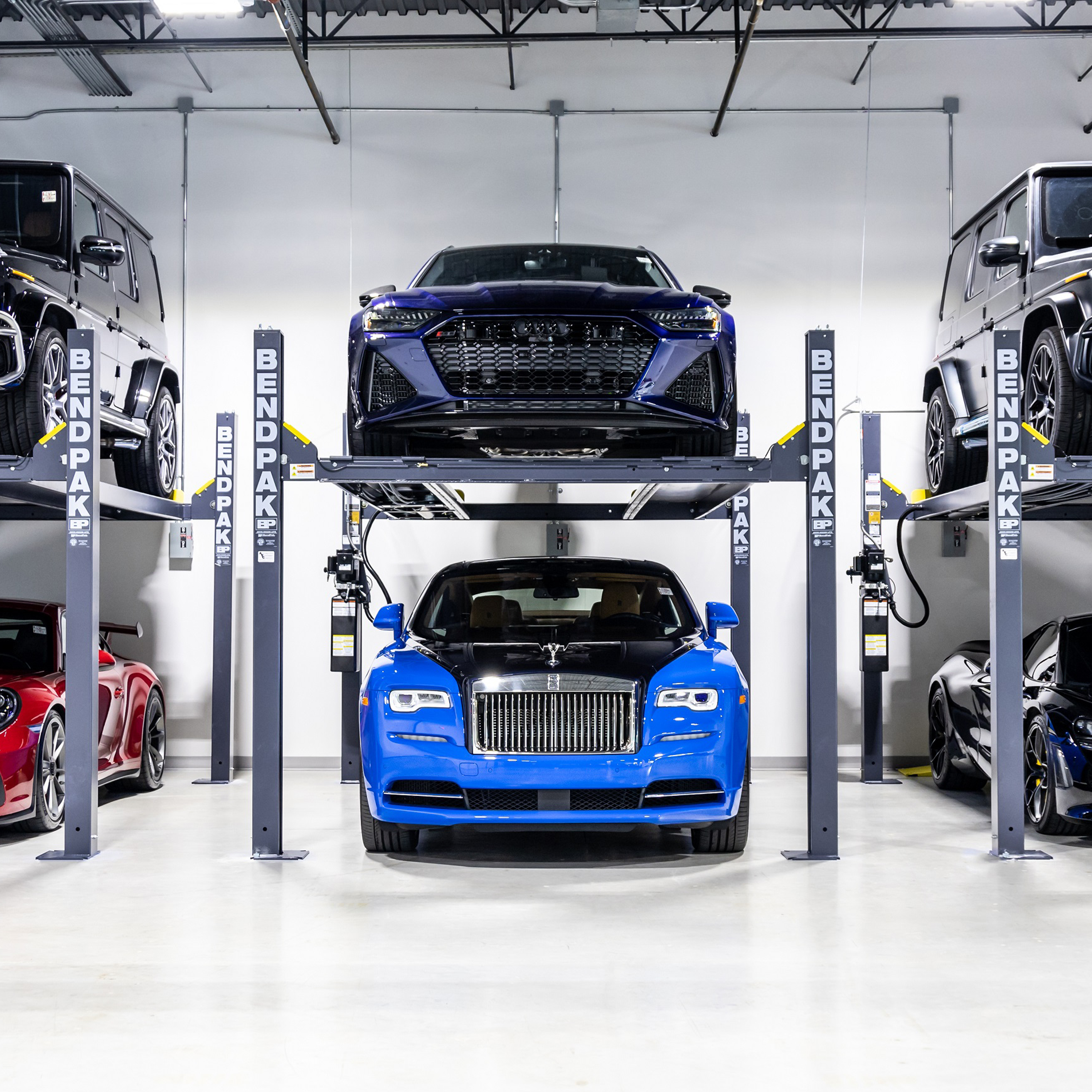

Compact Parking Power with High Lift and Short Runways

Compact Parking Power with High Lift and Short Runways

The HD-7P is built around a high-lift, short-runway design that makes it ideal for compact parking applications. The narrow layout is especially useful where side-to-side space is limited, but vertical storage potential is available. Low 4.5-inch runways and longer approach ramps help accommodate low-bodied sport and race cars while making drive-on loading more comfortable. Wide and narrow HD-7 options allow users to choose the layout that fits their garage space, and the HD-7P is the tighter-footprint choice when every inch counts.

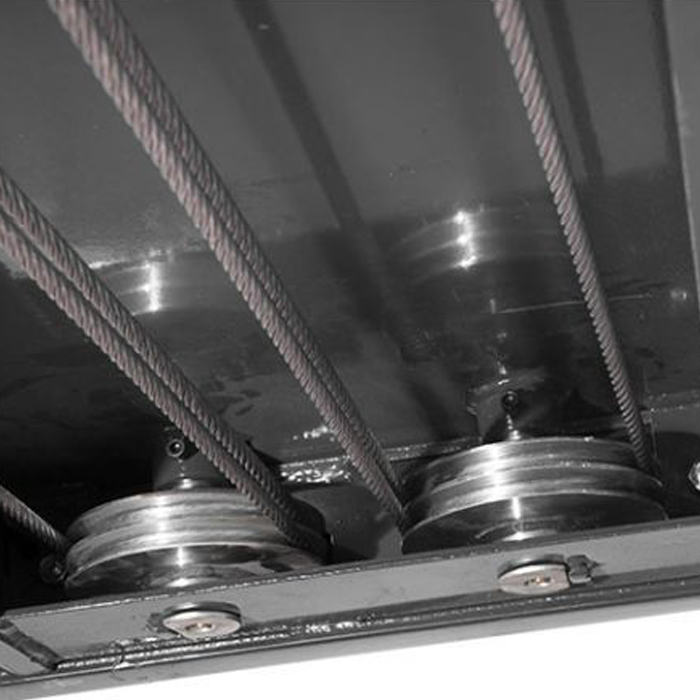

Overbuilt Cables, Sheaves, and Safety Locks

BendPak equips the HD-7P with aircraft-quality stainless steel cables that are fully enclosed within the lift columns and collectively rated far above the lift’s maximum capacity. Dual-hub cable sheaves help increase cable-run surface area, reducing friction and supporting longer service life. Automatic safety locks engage continuously as the lift rises, while a push-button pneumatic release allows all four locks to disengage together during descent. A secondary slack-cable lock system adds another layer of protection if cable slack is detected, helping keep the vehicle level and supported.
Overbuilt Cables, Sheaves, and Safety Locks

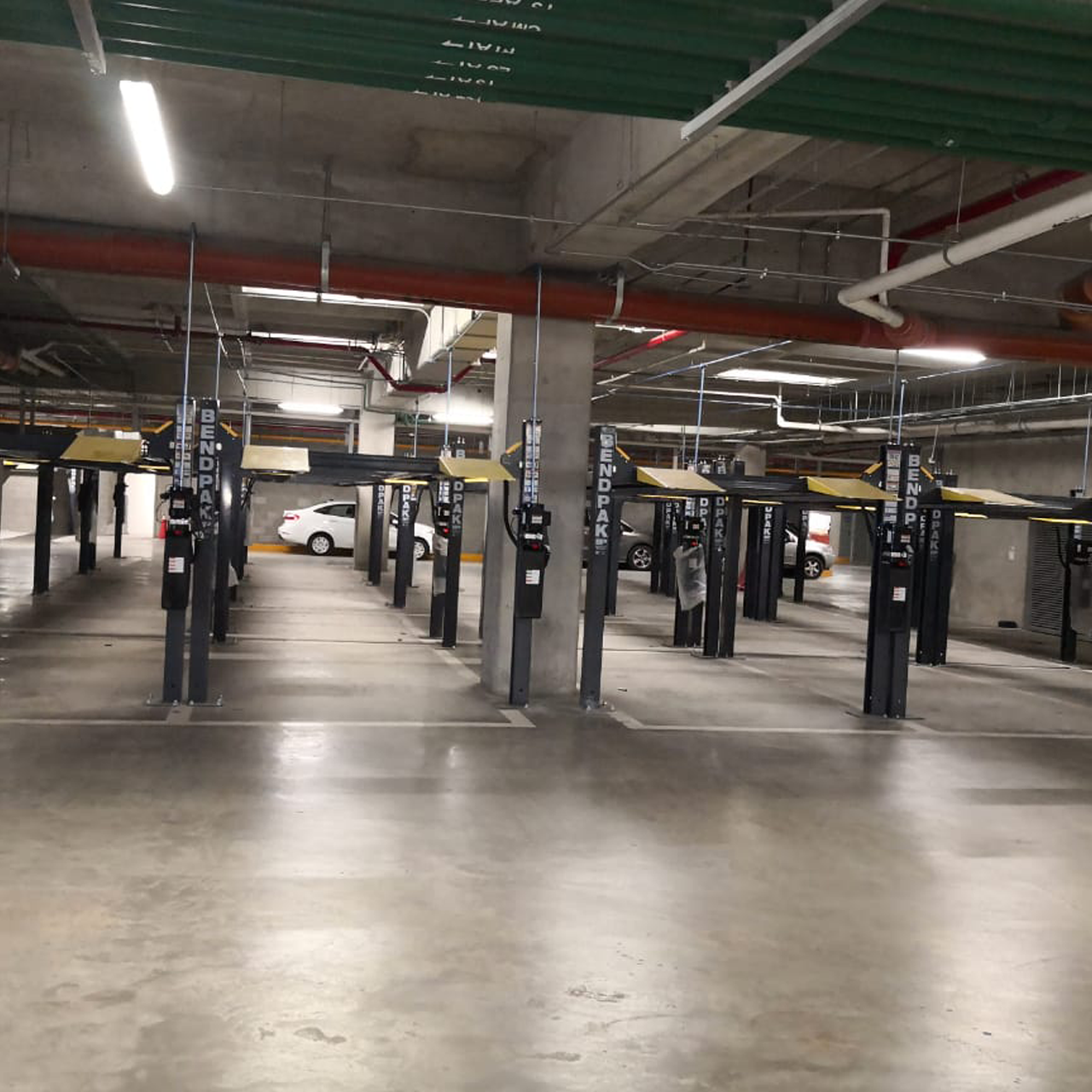

Clean Integrated Design for Home Garages and Parking Facilities

Clean Integrated Design for Home Garages and Parking Facilities

The HD-7P routes lifting cables, airlines, safety latches, and sheaves inside the columns, improving both safety and appearance. That enclosed design helps protect key components from weather, chemicals, and accidental contact, while also giving the lift a cleaner finished look. An electric-hydraulic power system, large 10-inch by 12-inch base plates, adjustable lock ladders, and optional caster kit compatibility make the HD-7P a practical long-term parking lift. For even more service capability, an optional RJ-45 rolling jack can be added when wheel service is part of the plan.

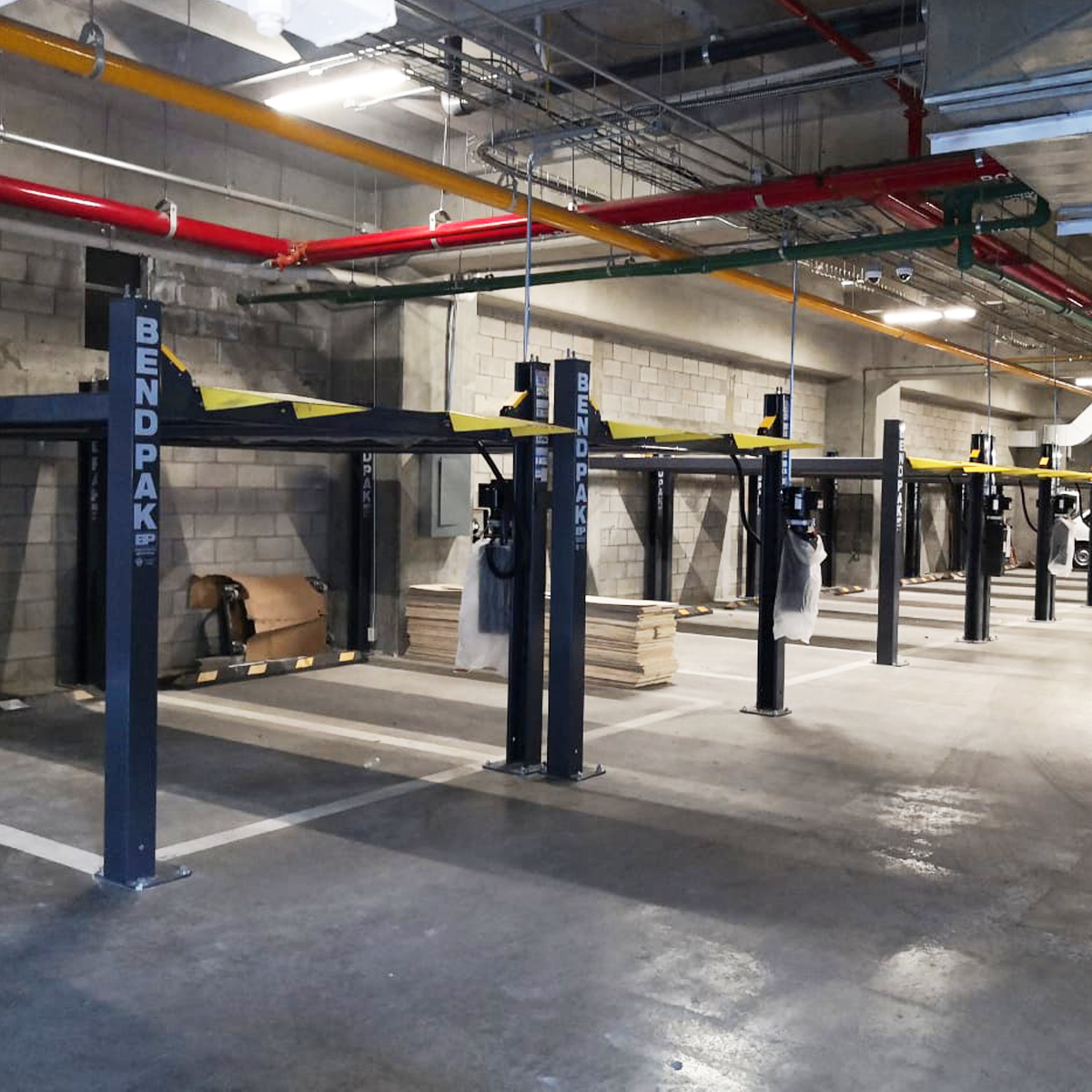

Narrow Parking Footprint

Narrow Parking Footprint

The HD-7P is the tighter-footprint HD-7 option for garages that need vertical storage without wide-bay sprawl.

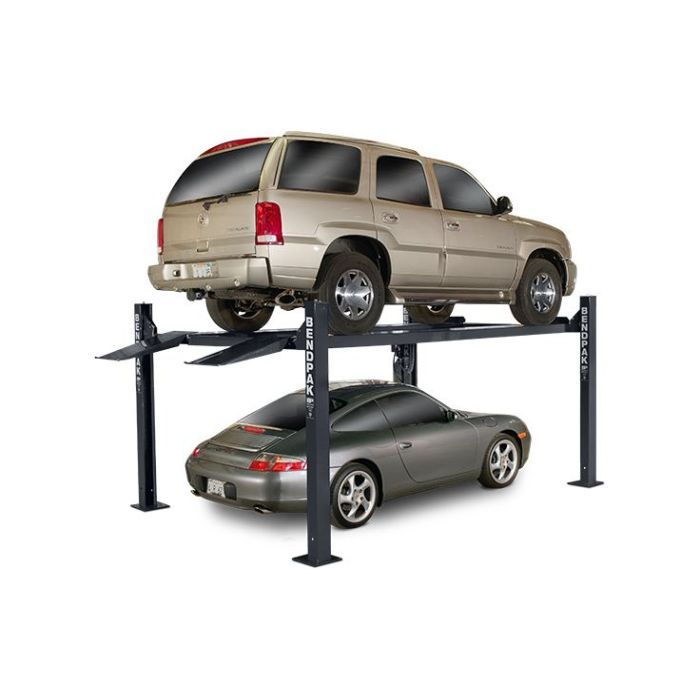

7,000-lb. Capacity

7,000-lb. Capacity

Designed to lift and store vehicles up to 7,000 lbs. The HD-7P brings BendPak four-post strength to compact parking layouts.

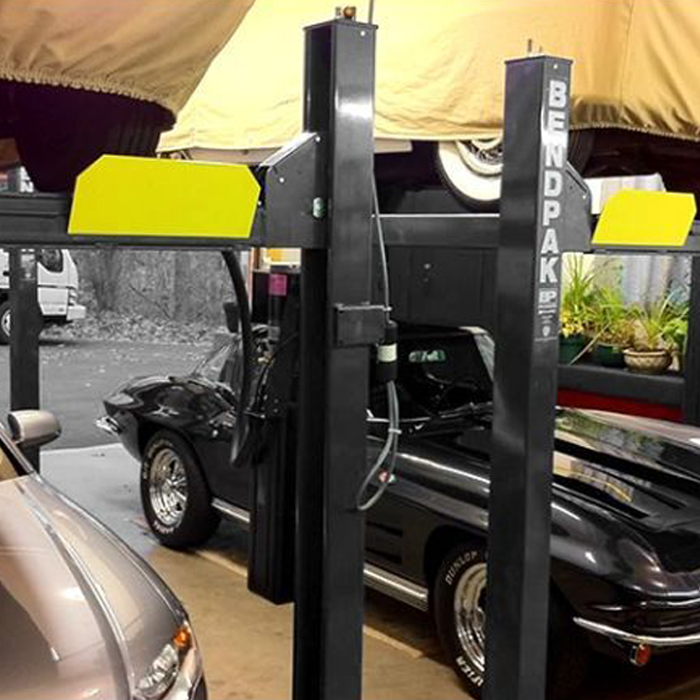

High-Rise Storage

High-Rise Storage

High lift and short runways help maximize storage capability in garages where vertical space matters more than extra floor width.

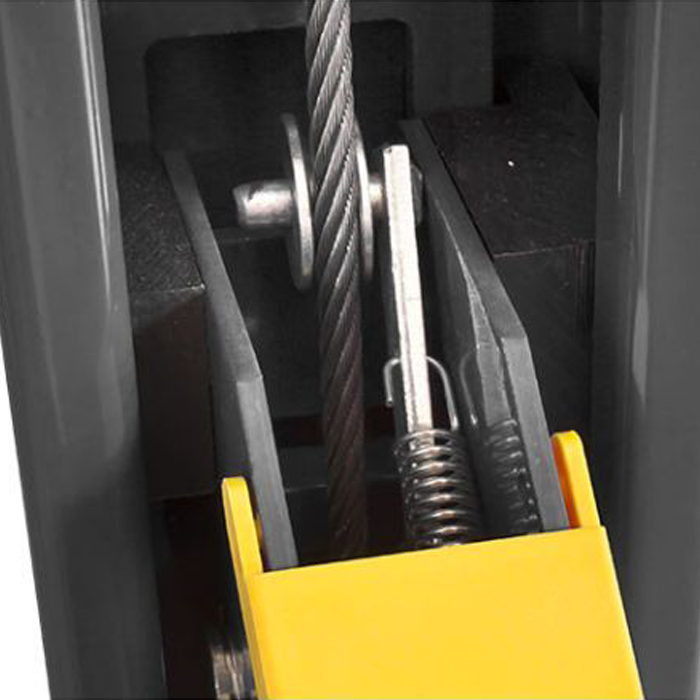

Pneumatic Safety Release

Pneumatic Safety Release

A push-button pneumatic release disengages all four locks together, while automatic locks engage as the lift rises.
Enclosed Components

Enclosed Components

Cables, airlines, latches, and sheaves are routed inside the columns for cleaner appearance and added component protection.

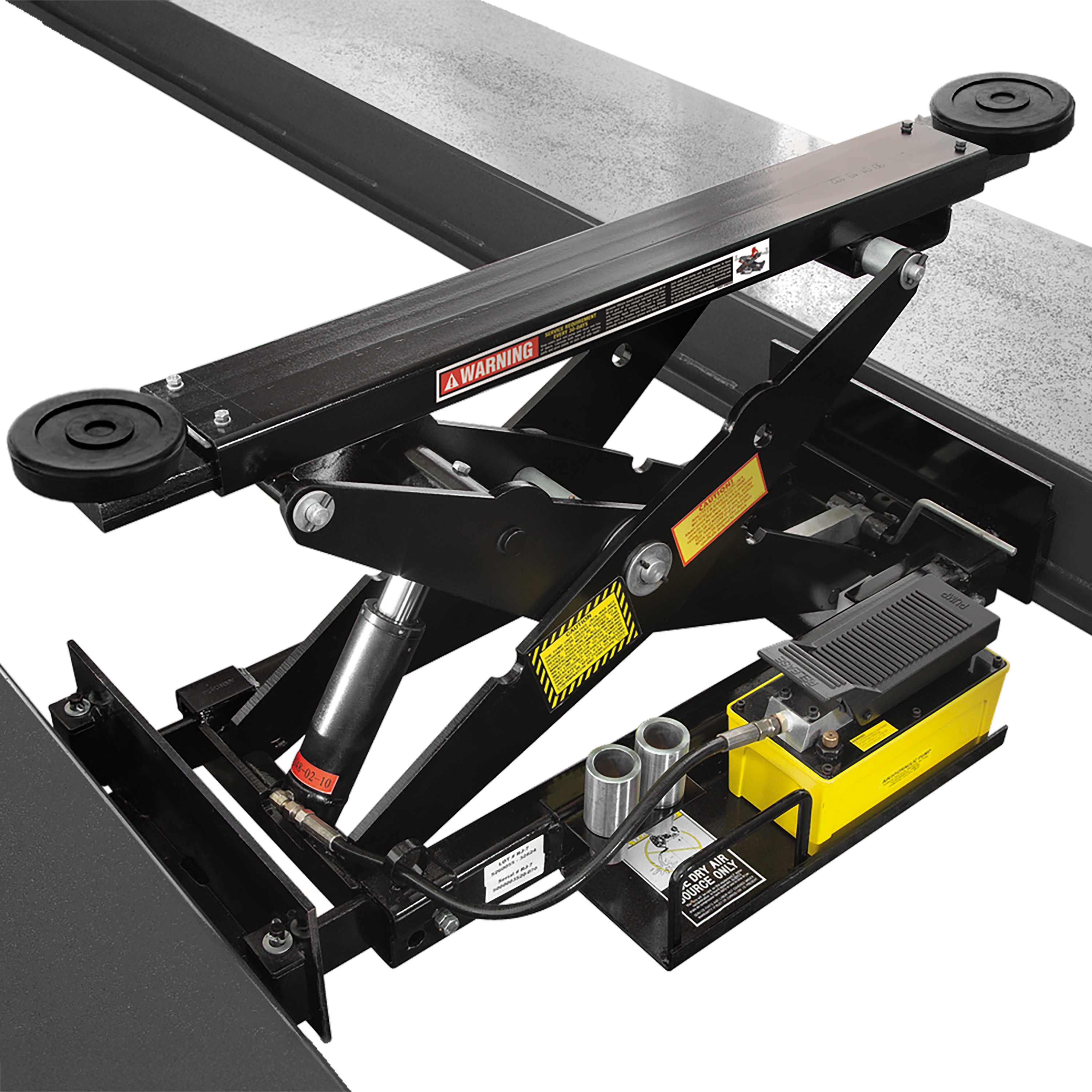

Optional Rolling Jack

Optional Rolling Jack

Compatible with an optional RJ-45 rolling jack for users who want to expand the lift’s wheel-service capability.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
7000 lb

Rise

A Min Runway Height
5 in
B Max Rise
82 in
C Max Lifting Height
85.75 in

Outside Dimensions

D Width
100.25 in
E Outside Length
174 in
F Overall Length
200.5 in
G Height
100 in

Inside Dimensions

H Inside Columns
90.25 in
I Drive-Thru Clearance
76.5 in

Runways

J Runway Width
19 in
K Runway Length
158.25 in
L Width Between Runways
34.5 in
M Runway Centerline
56.5 in
N Outside Edge of Runways
75.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
115 in
25% Capacity
70 in
50% Capacity
85 in
75% Capacity
100 in

Locking

Locking Positions
17
Locking Spacing
4 in

Power Unit and Voltage

Horsepower
2 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 169 x 32 in
Shipping Weight
1756 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
