BendPak EVS4500 EV Battery Pack and Powertrain Lift Table - 4,500-lbs. Capacity
$11,895.00

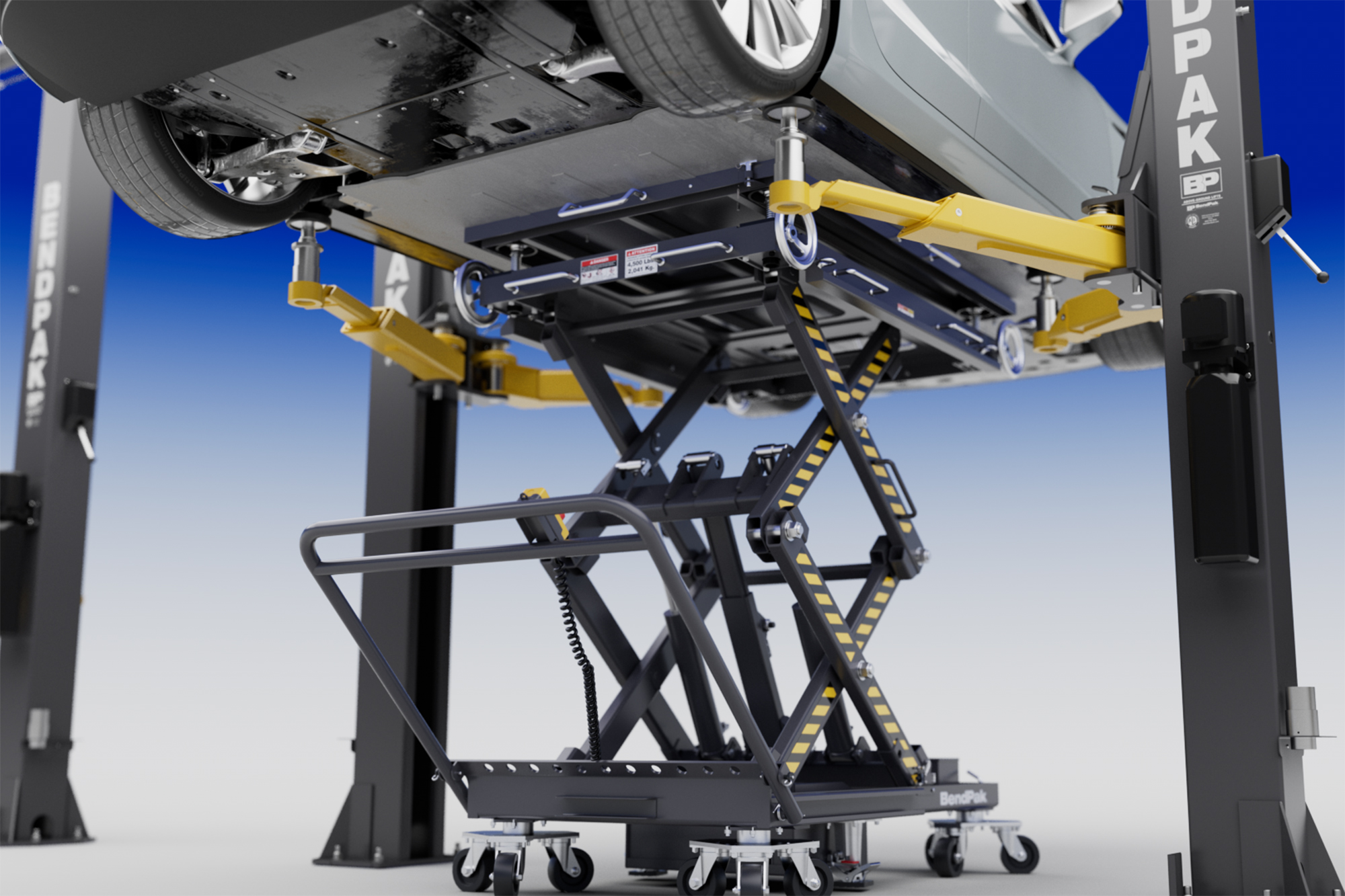

Heavy EV Battery Packs Just Got Easier to Handle

Heavy EV Battery Packs Just Got Easier to Handle

The BendPak EVS4500 EV Battery Pack and Powertrain Lift Table is built for the new reality of automotive service, where heavy battery packs, powertrain assemblies, fuel tanks, and drivetrain components need precise support instead of guesswork. With a 4,500-lb. capacity, this scissor-style EV lift table gives shops the muscle and control needed to handle demanding electric vehicle service work with confidence. Designed as part of BendPak’s Mobi-EVS family, the EVS4500 combines a large 42.75-inch x 63-inch lift platform, recessed anchoring locations, modular fixture compatibility, and smooth powered elevation into one adaptable service platform. It gives technicians a safer, more controlled way to raise, position, align, and support major assemblies in modern repair bays, collision facilities, EV service centers, and advanced dealership environments.

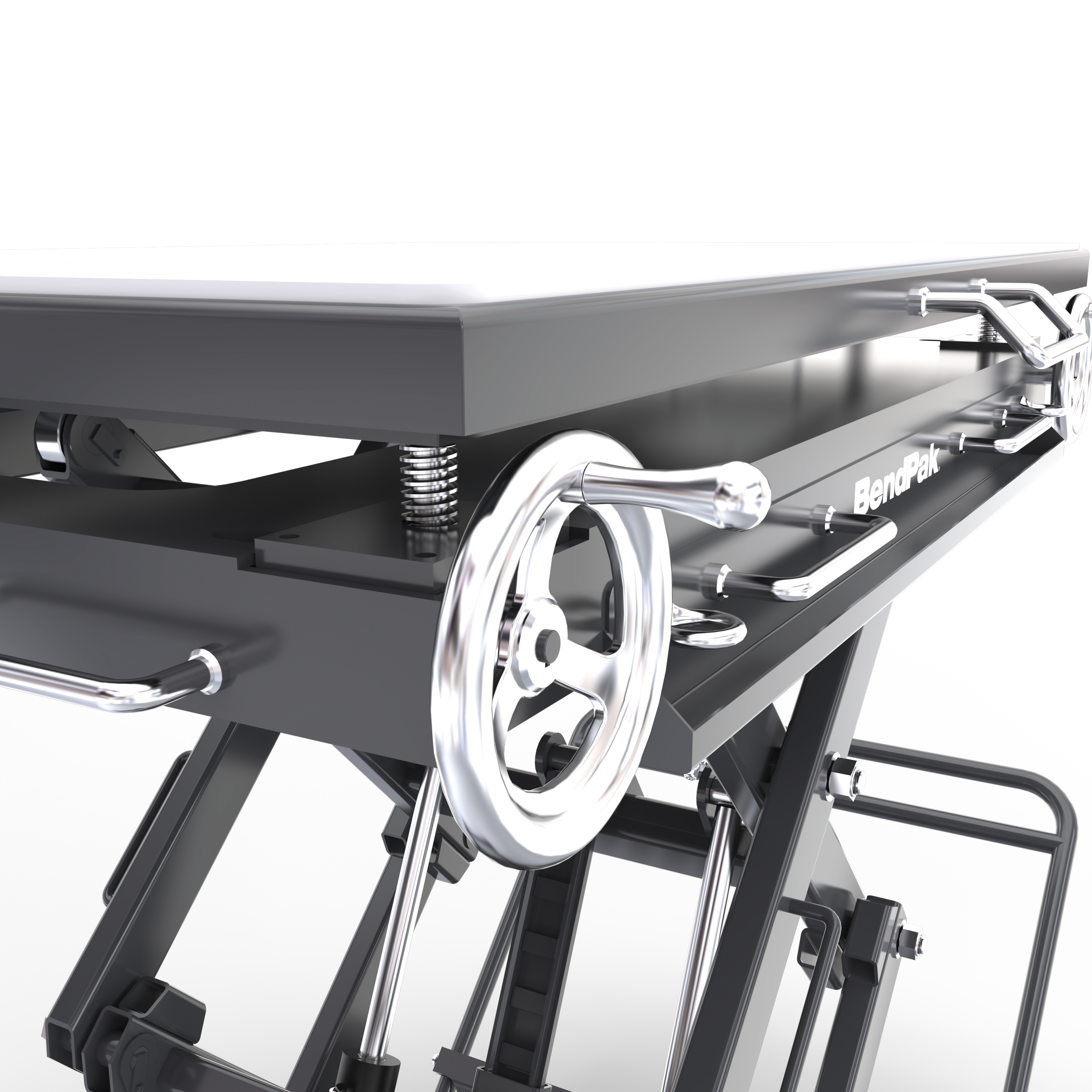

Precision EV Battery Positioning with Screw Jack Control

Precision EV Battery Positioning with Screw Jack Control

The EVS4500 is engineered for precise battery pack and powertrain alignment, not just basic lifting. Adjustable screw jacks allow technicians to make roll, pitch, and yaw adjustments for leveling and positioning EV batteries, engine assemblies, drivetrain components, and fuel tanks during removal, installation, and service. With the press of the pendant control, the lift platform elevates to more than six feet in less than 20 seconds, helping speed up complex service procedures without sacrificing control. The platform’s recessed anchoring locations accommodate modular fixtures, adapters, and accessories that can be repositioned or removed as the job demands, giving the EVS4500 the flexibility needed for today’s mixed service applications.

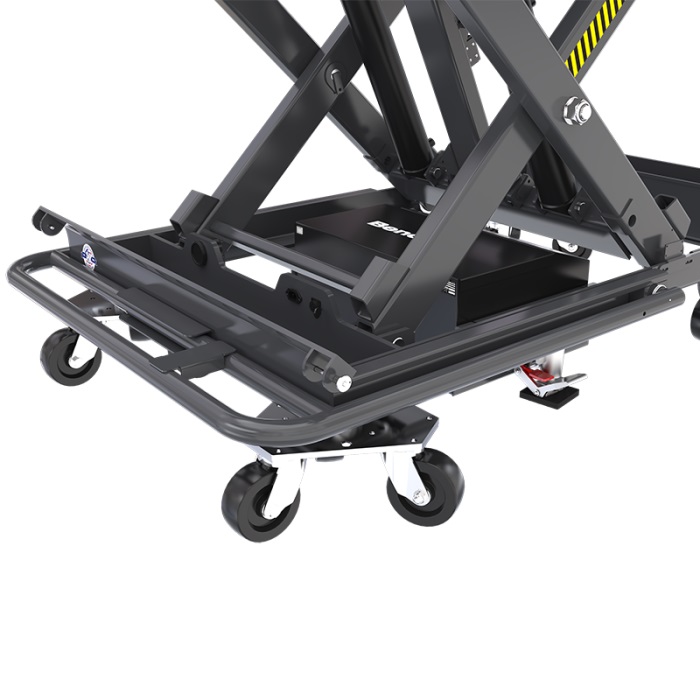

Zero-Throw Casters for Heavy EV Table Maneuverability

Moving a loaded EV lift table should not feel like fighting a shopping cart with a bad attitude. The EVS4500 uses zero-throw casters that allow the table to move and change direction with far less effort than ordinary swivel casters, making it easier to position around vehicles, lifts, and busy service bays. For longer moves across the shop, the front tri-casters include a removable locking pin that converts them into a fixed design for straighter, more efficient travel. A stowable tow bar and manual floor locks further improve control, giving technicians the mobility needed to move the table into position and the stability needed once the work begins.
Zero-Throw Casters for Heavy EV Table Maneuverability

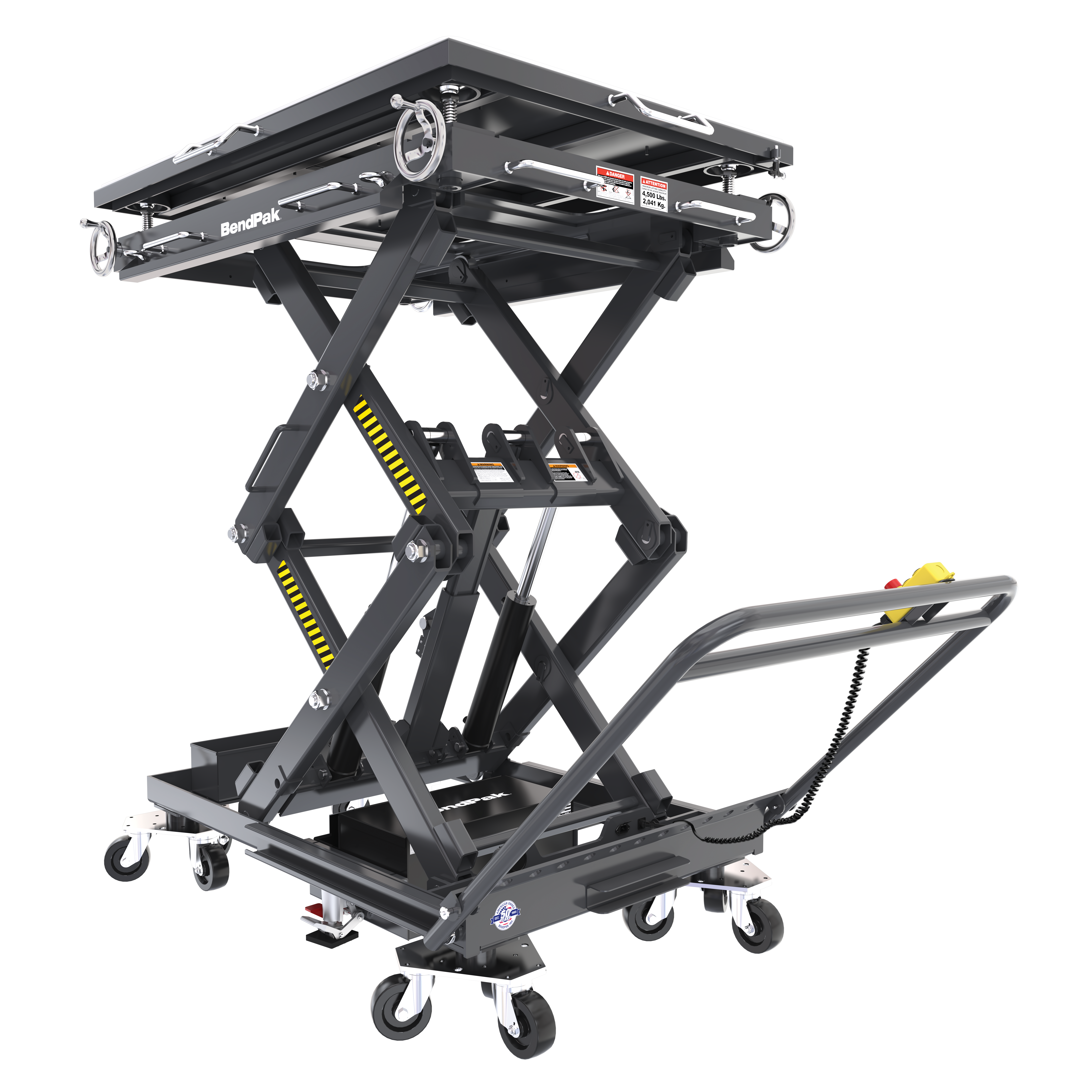

Reinforced Steel Construction with Built-In Safety Systems

Reinforced Steel Construction with Built-In Safety Systems

The EVS4500 is built with high-tensile steel to balance strength, safety, and efficient weight management. A robust upper deck plate is reinforced with structural cross-members to help reduce deflection from torsion or uneven loading, giving the platform the rigidity required for heavy EV battery pack and powertrain work. Twin hydraulic cylinders with welded construction, chrome-plated rods, high-polished bores, and a proprietary seal design support dependable operation and longer seal life. Multi-point safety locks, a hydraulic fail-safe circuit, full-length utility trays, DC electric power with onboard charging, and remote control operation round out a lift table designed for professional EV service from the platform up.

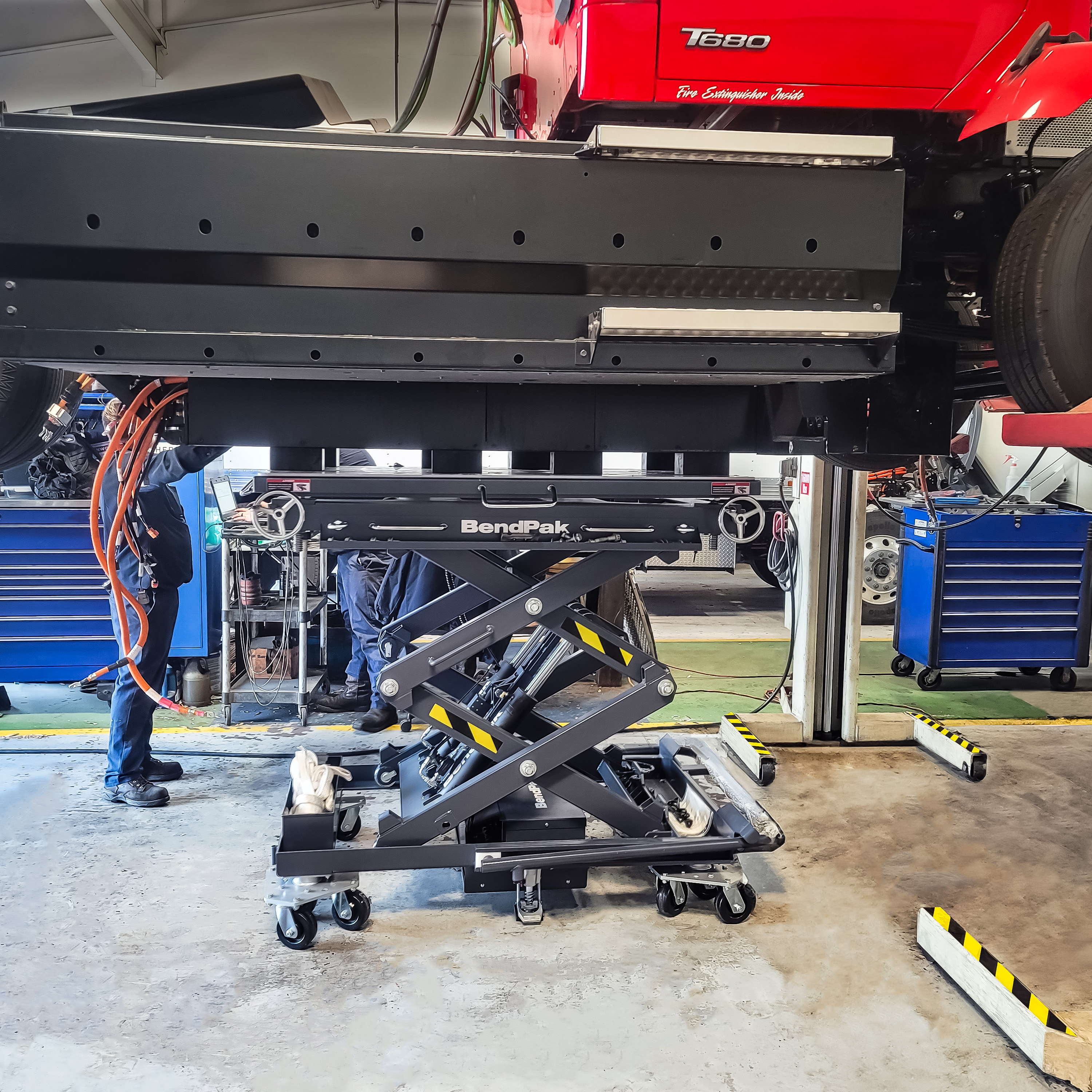

4,500-lb. EV Lift Capacity

4,500-lb. EV Lift Capacity

Built for heavier EV battery pack, powertrain, drivetrain, and fuel tank service. The EVS4500 gives technicians the support needed for demanding electric vehicle work.

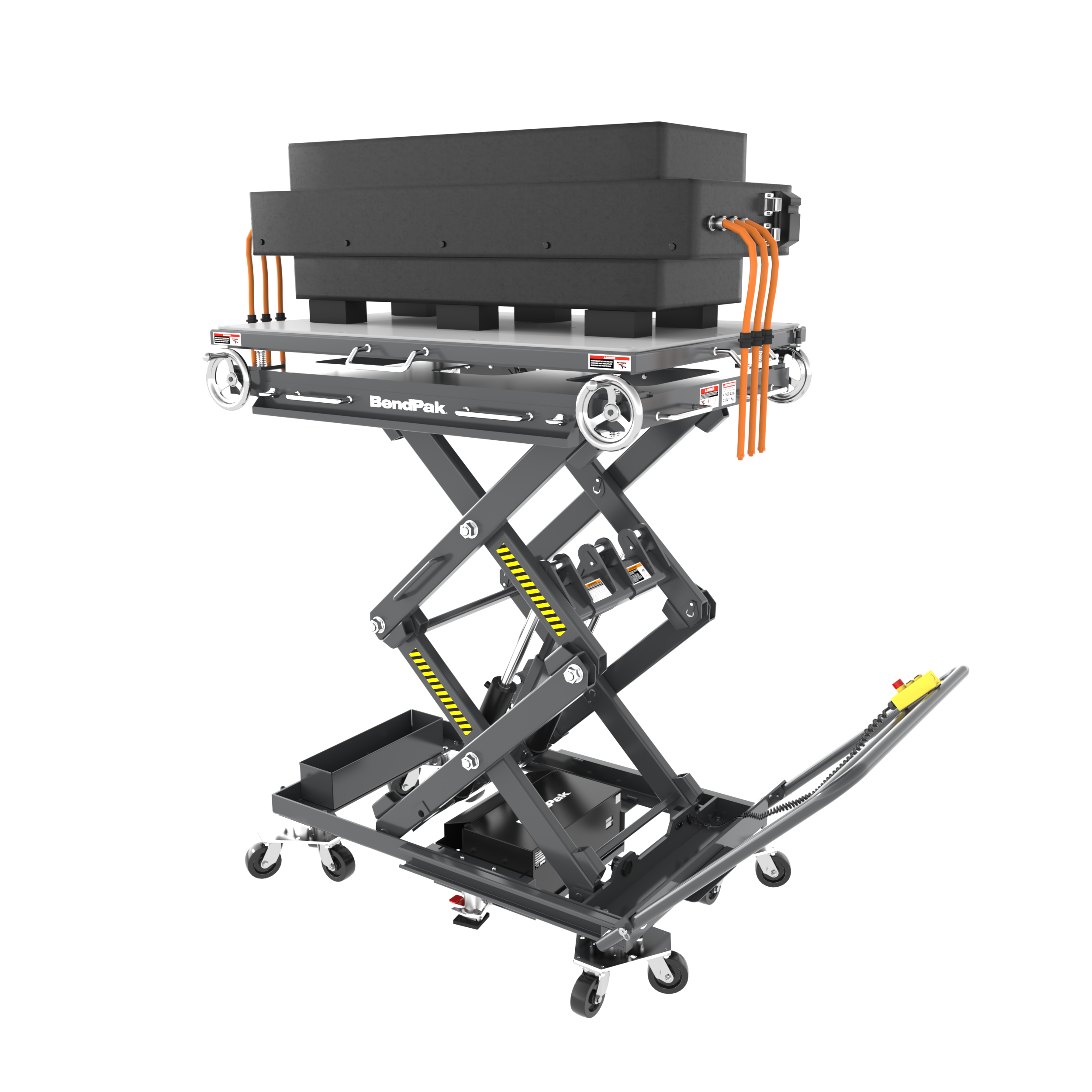

Precision Screw Jack Control

Precision Screw Jack Control

Adjustable screw jacks help fine-tune roll, pitch, and yaw. That makes battery pack alignment and powertrain positioning more controlled during removal and installation.
Zero-Throw Maneuverability

Zero-Throw Maneuverability

Zero-throw casters help the lift table change direction with less effort. Technicians can position the table more easily around vehicles, lifts, and crowded service bays.

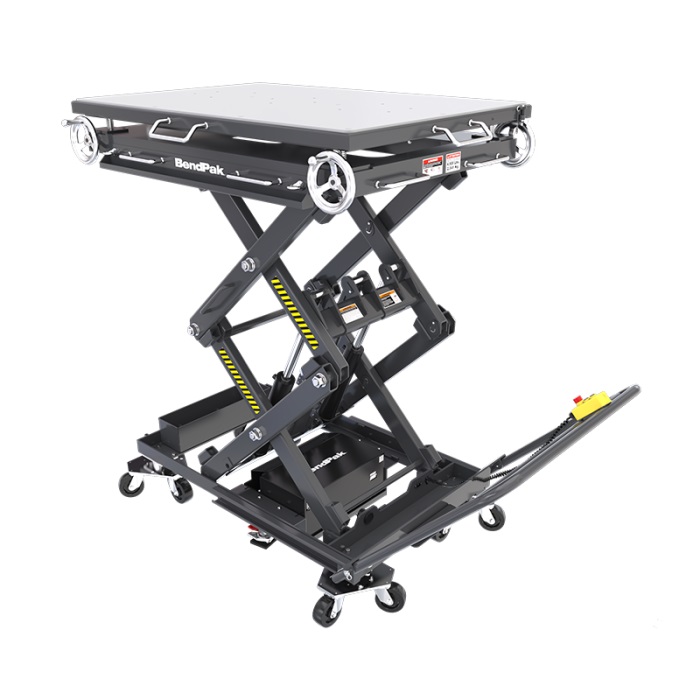

Large Modular Platform

Large Modular Platform

The 42.75-inch x 63-inch platform includes recessed anchoring locations for modular fixtures, adapters, and accessories. Components can be repositioned or removed as the job requires.

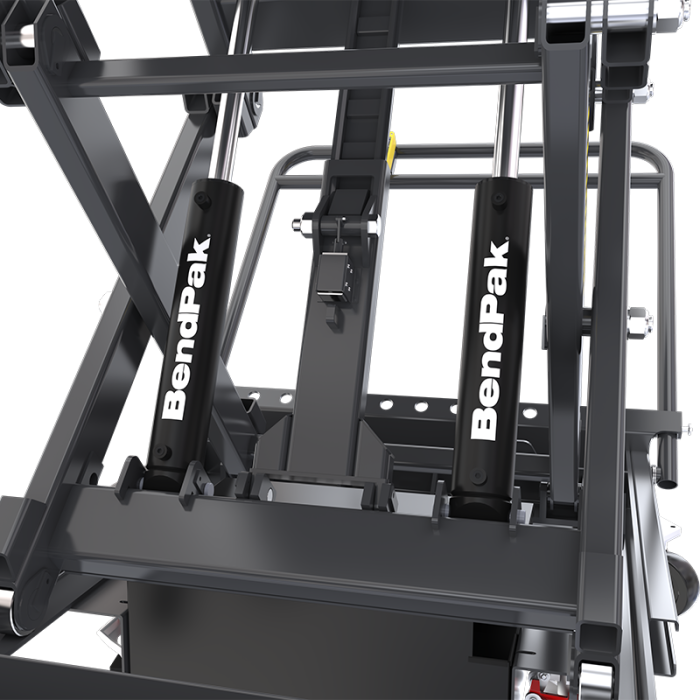

Twin Hydraulic Cylinders

Twin Hydraulic Cylinders

Welded hydraulic cylinders with chrome-plated rods and polished bores support dependable lifting performance. A proprietary seal design helps improve long-term operation.

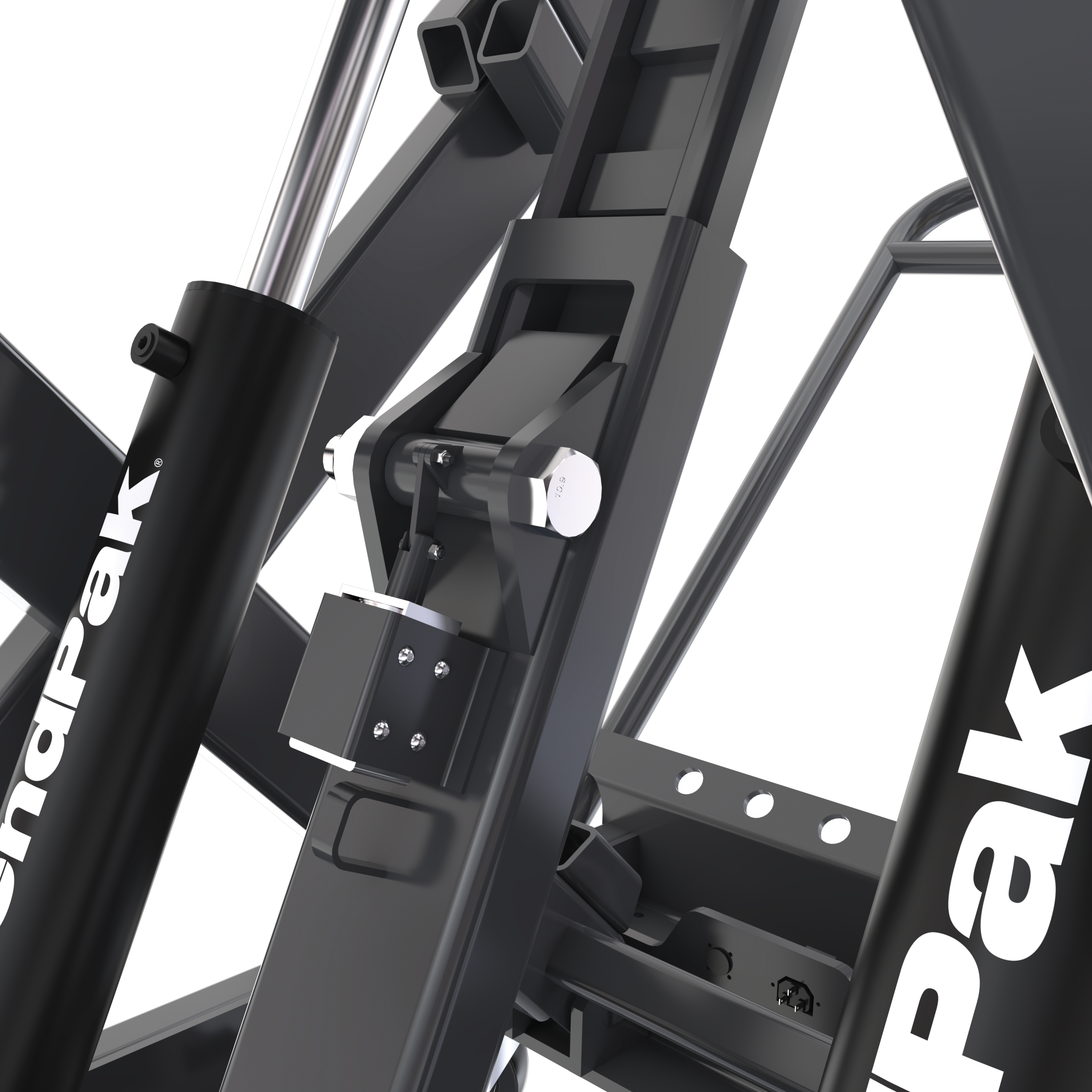

Built-In Safety Support

Built-In Safety Support

Multi-point safety locks, manual floor locks, and a hydraulic fail-safe circuit help keep the lift table controlled during professional EV service.

Recommended Add-ons

Accessories for the BendPak EVS4500 EV Battery Pack and Powertrain Lift Table - 4,500-lbs. Capacity

BendPak Mobi-EVS Telescoping Arm Kit
BendPak Mobi-EVS Telescoping Arm Kit
$875.00
LEARN MORE
BendPak Mobi-EVS Accu-Point Fixture Set
BendPak Mobi-EVS Accu-Point Fixture Set
$550.00
LEARN MORE
BendPak Mobi-EVS multi-point support kit mounted on EV battery service equipment
BendPak Mobi-EVS Multi-Point Support Kit
$575.00
LEARN MORE
BendPak Mobi-EVS Universal Adapter Plate Kit
BendPak Mobi-EVS Universal Adapter Plate Kit
$186.00
LEARN MORE
BendPak Mobi-EVS Transmission Support
BendPak Mobi-EVS Transmission Support
$410.00
LEARN MORE
BendPak Mobi-EVS Bellows Kit
BendPak Mobi-EVS Bellows Kit
$825.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
4500 lb

Rise

Max Rise
77.75 in
Minimum Deck Height
34.25 in
Lifting Time
18 seconds

Dimensions

Length
91.25 in
Top Deck Length with Handles
71.25 in
Top Deck Length
63 in
Overall Width with Handles
53 in
Top Deck Width
42.75 in
Height of Steering Handle
39.25 in

Adjustments

Screw Jack Max. Adjustment
1.5 in

Power and Battery

Battery Charger
Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A
Battery Charge Time
10-12 Hours to full charge from ≈20%

Shipping and Delivery

Shipping Dimensions
53 x 74 x 38 in
Shipping Weight
1956 lb
Offload Requirement
Liftgate
Shipping Method
LTL
