APEX AL9LC Floorplate Two-Post Lift - 9,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5176250
$3,895.00
Financing as low as $85/moApply now

Flexible business financing available through Navitas.

APEX AL9LC two-post floorplate lift for professional automotive service equipment setups.
Product 3D model preview
Product 3

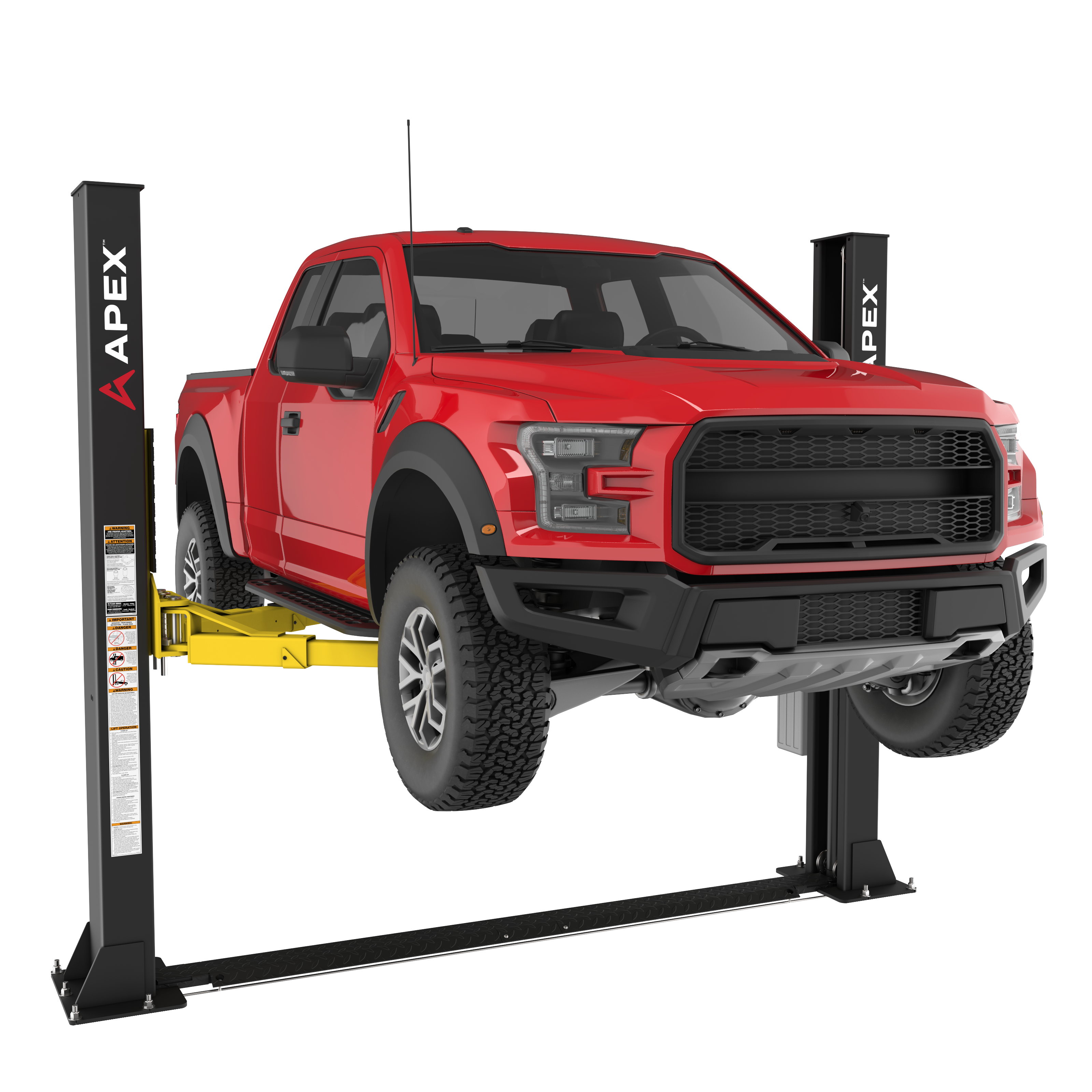

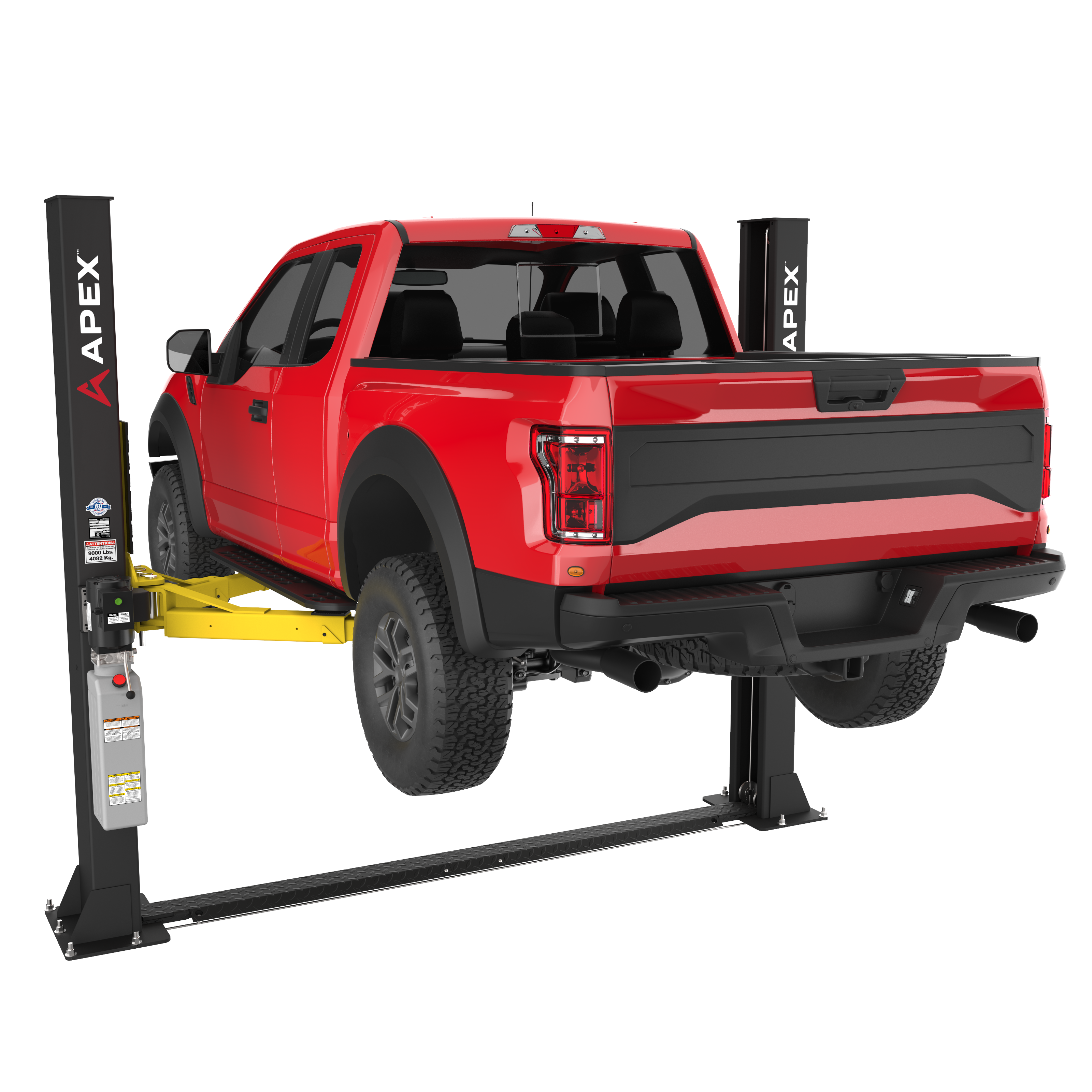

APEX AL9LC 9,000-lb. two-post floorplate lift for professional garages.
Product 5

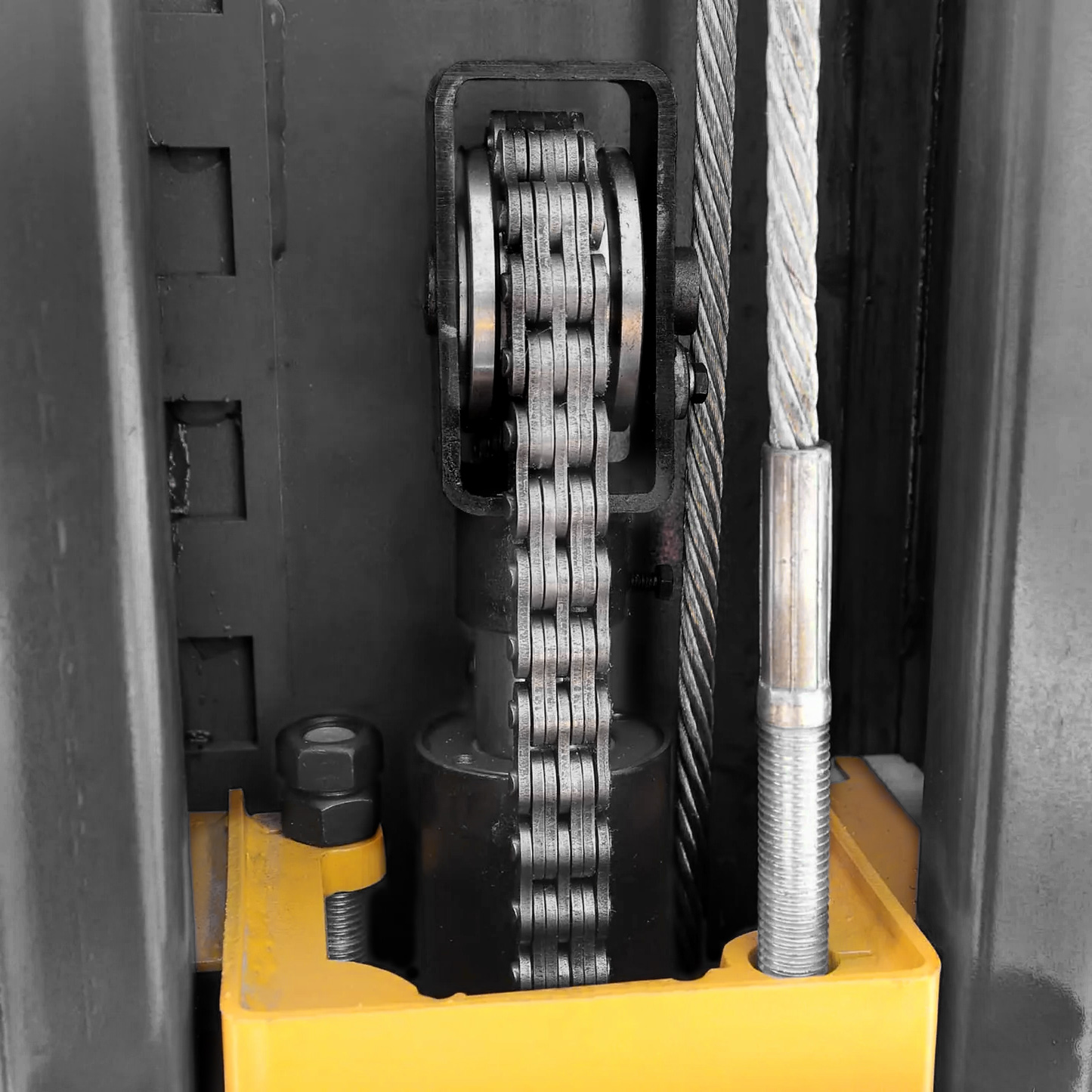

Lift chain, hydraulic cylinder and synchronization cables inside the carriage of an APEX AL9LC two-post car lift.
Half-moon arm restraint gear that secures the lifting arm of an APEX AL9LC two-post car lift.

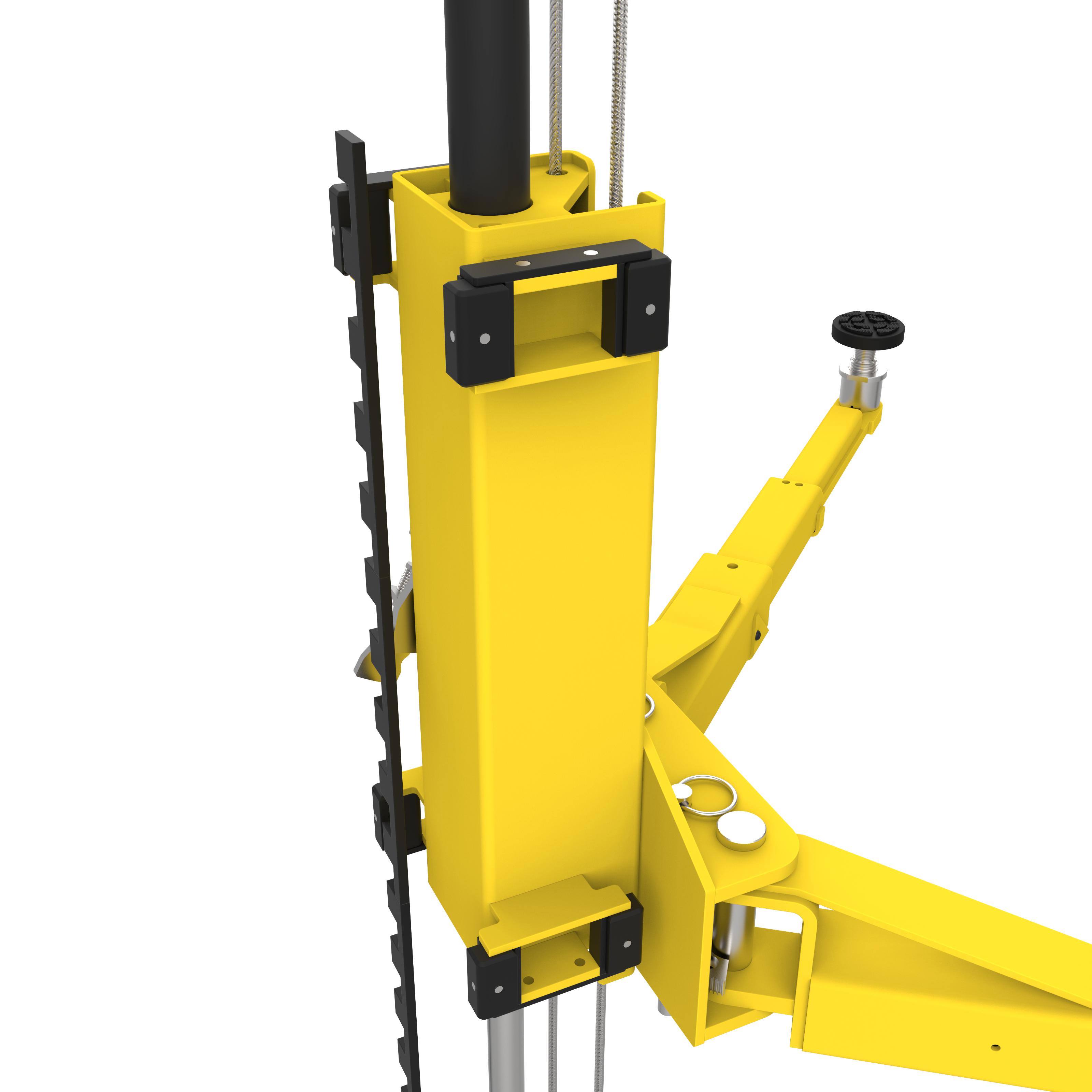

Internal steel components inside the carriage of an APEX AL9LC two-post car lift.
Extended triple-telescoping arms on an APEX AL9LC two-post lift for reaching vehicle lifting points.

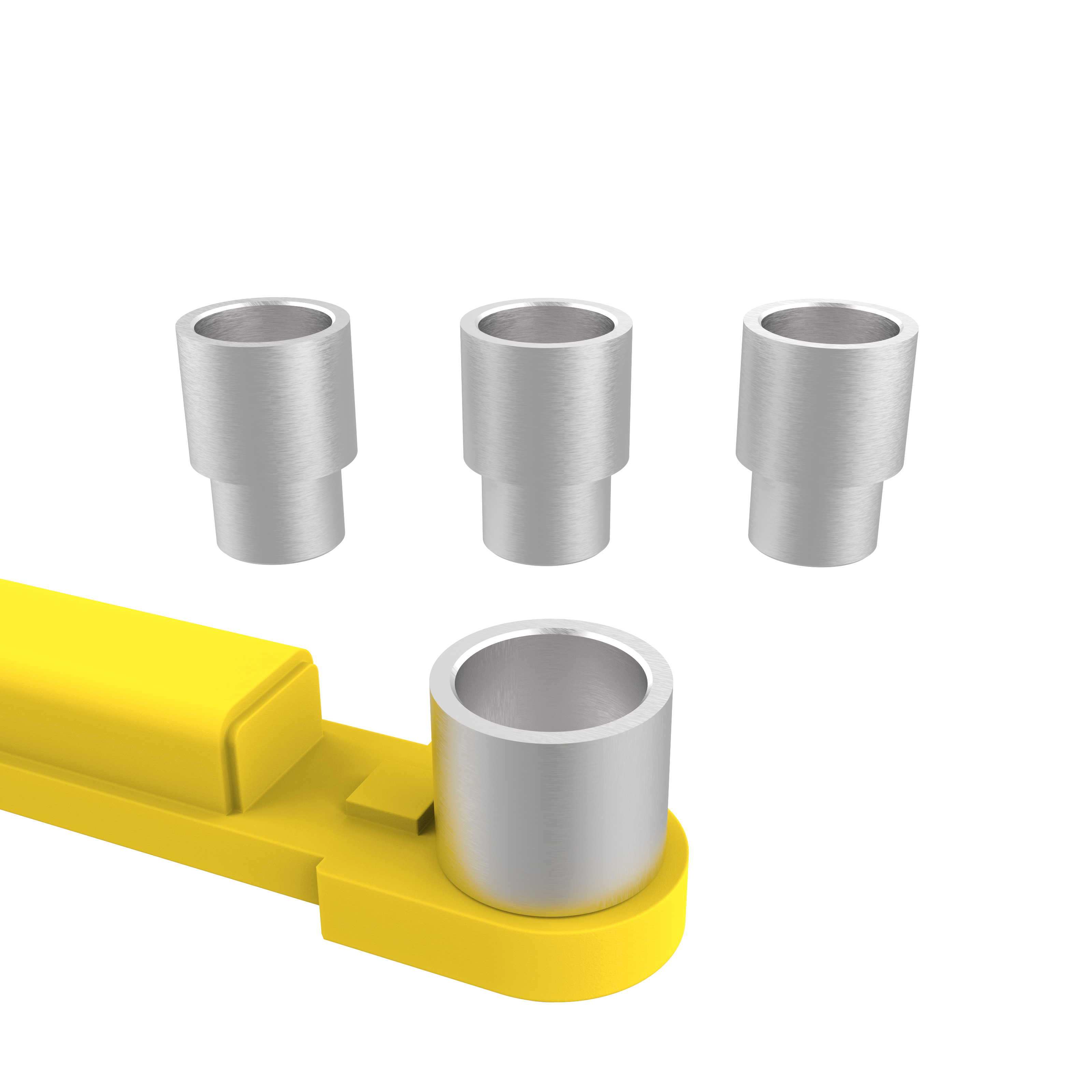

Set of four included 55 mm pin adapters for the APEX AL9LC two-post car lift.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Two-Post Lift / 9,000-lbs. Capacity / Floorplate

APEX AL9LC Floorplate Two-Post Lift - 9,000-lbs. Capacity
$3,895.00
Low-Ceiling Muscle with APEX Attitude

Low-Ceiling Muscle with APEX Attitude

The APEX AL9LC Floorplate Two-Post Lift gives shops and serious home garages a professional lifting solution when overhead clearance is limited. With a 9,000-lb. lifting capacity and an open-top floorplate design, the AL9LC eliminates the restrictive overhead crossbar found on many two-post lifts while still delivering the strength needed for passenger cars, performance vehicles, and light trucks. This floorplate two-post lift is especially useful for garages with lower ceilings, taller vehicles, or layouts where an overhead beam would get in the way. The AL9LC keeps the workspace open above the vehicle while providing dependable frame-engaging lifting capability, making it a smart fit for small shops, performance garages, and home mechanics who want real two-post lift performance without giving up usable vertical space.
Flexible Arm Reach for Faster Vehicle Positioning

Flexible Arm Reach for Faster Vehicle Positioning

Proper vehicle setup matters on any two-post car lift, and the AL9LC is built to make positioning faster and more predictable. Symmetric and asymmetric arm configurations allow technicians to adapt the lift arm layout to the vehicle, helping create balanced contact with approved lifting points across a wide range of cars and light trucks. Triple-telescoping front arms and dual-stage extended rear arms provide extra reach for different wheelbases and frame designs. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, plus the included 4-piece 63 mm stackable adapter set, help create secure contact for vehicles that need additional lift-point height or frame clearance.

Chain-Over Lifting System with Heavy-Duty Construction

The AL9LC uses a proven chain-over lifting system built around an industrial-grade, high-strength leaf chain manufactured to ANSI standards. This design is engineered for repeated lifting cycles, dependable load movement, and low-maintenance operation in busy shop and garage environments. Heavy-duty 6-inch by 6-inch tubular steel carriages provide serious load-bearing strength, while oversized 20.5-inch by 15.5-inch base plates help distribute vehicle weight for improved stability. Oversized heavy-duty rollers with Zerk grease fittings and self-lubricating UHMW polyethylene guide blocks reduce friction and help keep the lift operating smoothly over time.
Chain-Over Lifting System with Heavy-Duty Construction
Automatic Safety Locks and BendPak-Backed Support

Automatic Safety Locks and BendPak-Backed Support

The AL9LC is designed with safety features throughout. Automatic safety locks engage every 3 inches throughout the lifting range, helping hold the load securely at working height. Automatic arm restraints help prevent unwanted arm movement once the vehicle is raised, giving technicians more confidence during service. The AL9LC was previously sold under the GrandPrix name and now fits into the APEX lineup as part of BendPak’s broader value-focused product family. The lift retains the same floorplate architecture, chain-over lifting system, structural components, and safety features, while being backed by BendPak support and a 36-month limited warranty.
Low-Ceiling Floorplate Design

Low-Ceiling Floorplate Design

The AL9LC uses a floorplate layout with no overhead crossbar, making it a strong choice for garages where ceiling height is limited. It keeps overhead space open while delivering true two-post lifting capability.
9,000-lb. Capacity

9,000-lb. Capacity

Built to lift passenger cars, performance vehicles, and many light trucks, the AL9LC provides dependable 9,000-lb. lifting strength for shop and garage service.
Flexible Arm Geometry

Flexible Arm Geometry

Symmetric and asymmetric arm configurations help technicians position vehicles faster and more confidently. The arm design supports a wide range of lift points and wheelbases.
Chain-Over Lifting System

Chain-Over Lifting System

An industrial-grade leaf chain supports reliable lifting performance through repeated service cycles. The design is built for strength, smooth movement, and low-maintenance operation.
Automatic Safety Locks

Automatic Safety Locks

Safety locks engage every 3 inches throughout the lifting range to help hold the vehicle securely at working height. Automatic arm restraints help keep the lift arms locked during service.
Included Adapter Set

Included Adapter Set

A 4-piece 63 mm stackable adapter set helps accommodate frame designs that need extra contact height. Double-telescoping screw pads add more lift-point flexibility.

Specifications

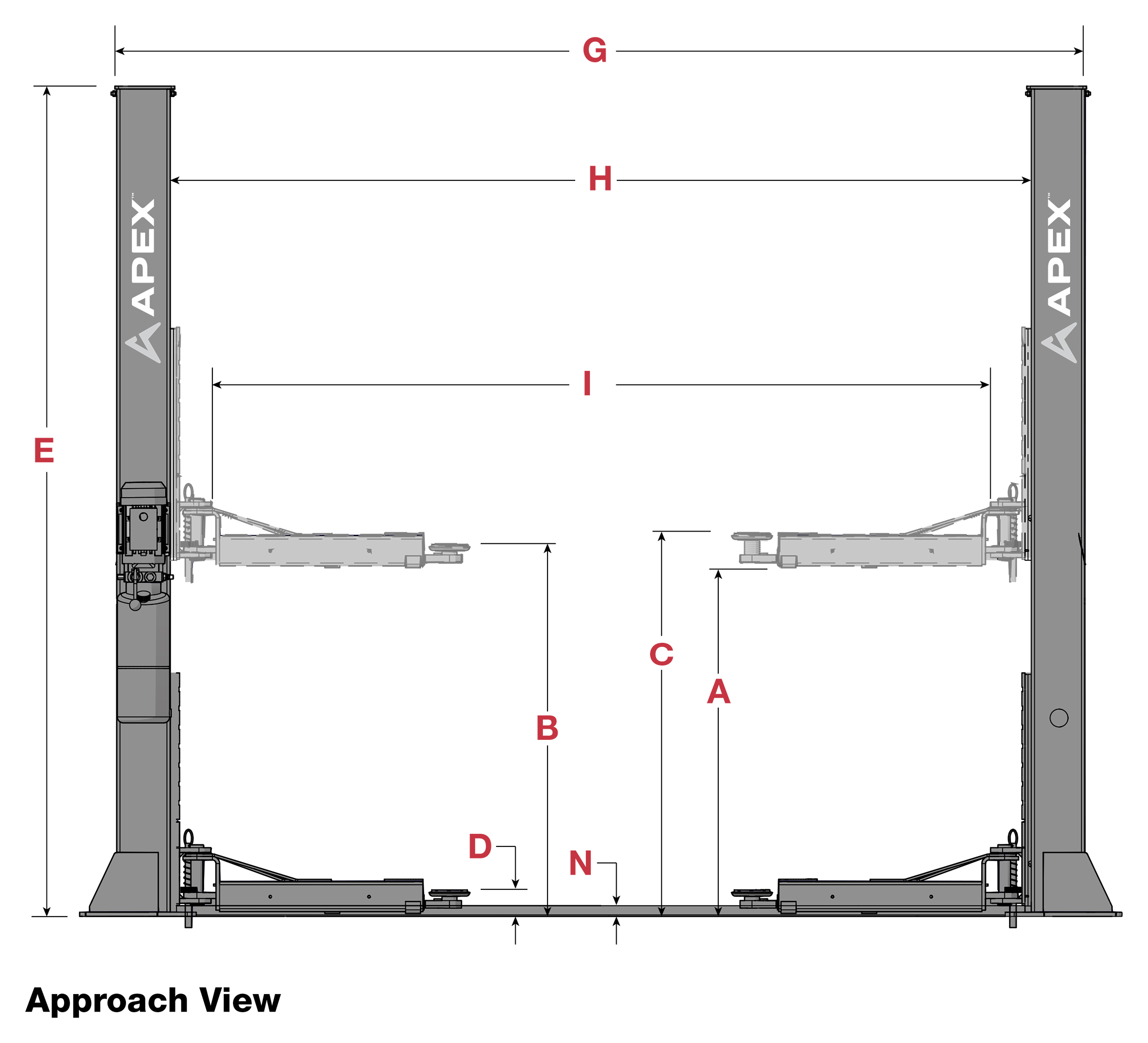

Specification Diagram 1

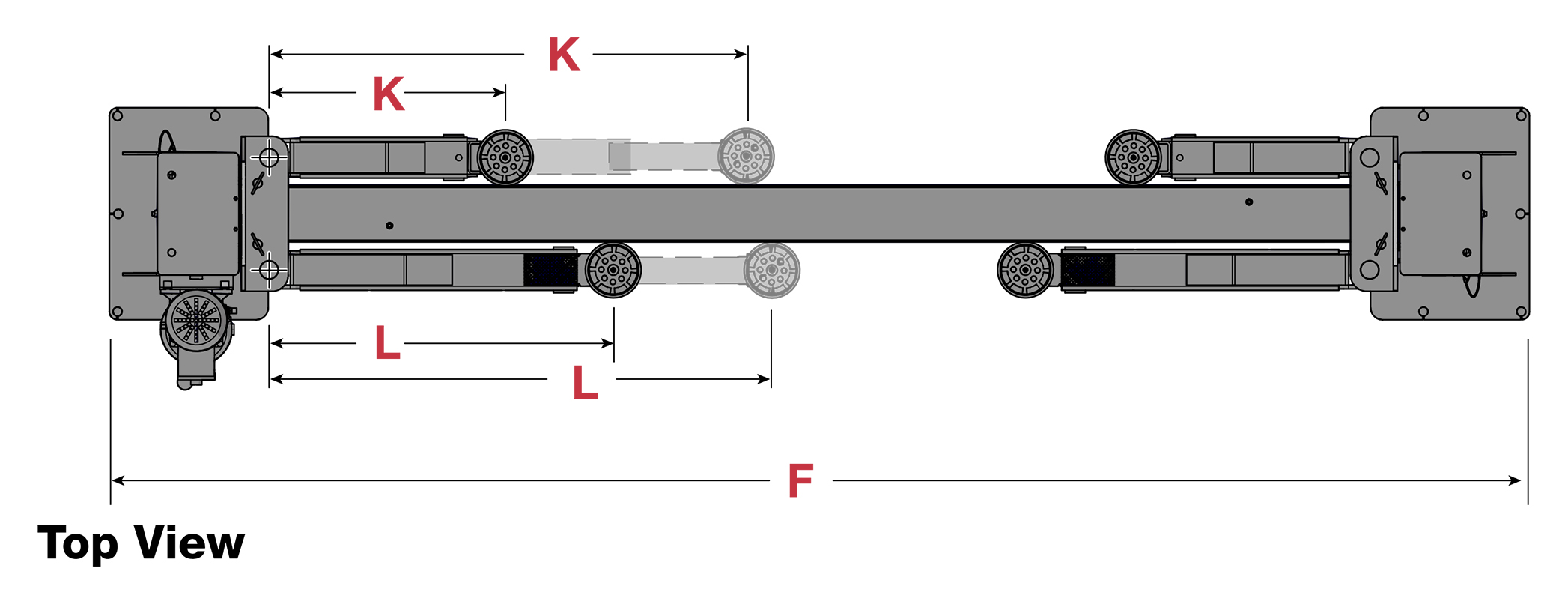

Specification Diagram 2

Capacity

Lifting Capacity
9000 lb
Max Capacity Per Arm
2250 lb

Rise

A Rise
70 in
C Max Lifting Height with Pad
76.5 in
D Min Lifting Height with Pad
3.9 in
Lifting Time
65 seconds

Outside Dimensions

E Height
109.5 in
F Width
137.25 in
G Outside Columns
127.5 in

Inside Dimensions

H Inside Columns
113.5 in
I Drive-Thru Clearance
103 in
N Floorplate Height
1.25 in

Arms and Pads

K Front Arm Reach Min
22.5 in
K Front Arm Reach Max
43.25 in
L Rear Arm Reach Min
33.5 in
L Rear Arm Reach Max
53.25 in
Screw Pad Adjustment
2 in

Power Unit and Voltage

Horsepower
5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
< 70 dB

Shipping and Delivery

Shipping Dimensions
27 x 114 x 27 in
Shipping Weight
1458 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
