APEX AL10C Clearfloor Two-Post Lift - 10,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5176251
$4,195.00
Financing as low as $92/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Half-moon arm restraint gear that secures the lifting arm of an APEX AL10C two-post car lift.
Rugged steel carriage and internal lifting components of an APEX AL10C two-post car lift.
Rubber carriage guard mounted to the post of an APEX AL10C two-post car lift.
Extended triple-telescoping arms on an APEX AL10C two-post lift for reaching vehicle lifting points.
Set of four included 55 mm pin adapters for the APEX AL10C two-post car lift.
1
Ask An Expert

Expected to Ship: Aug 21, 2026

SALES FLYERMANUALWARRANTY

Two-Post Lift / 10,000-lbs. Capacity / Clearfloor

APEX AL10C Clearfloor Two-Post Lift - 10,000-lbs. Capacity
$4,195.00

Clearfloor Power for Serious Shops

The APEX AL10C Clearfloor Two-Post Lift is built for professional shops and serious garages that want open floor access beneath the vehicle. With a 10,000-lb. lifting capacity and clearfloor design, the AL10C eliminates the floor beam found on traditional floorplate lifts so transmission jacks, oil drains, tool carts, and other shop equipment can move freely under the raised vehicle. This clearfloor two-post lift is designed for better workflow, cleaner bay movement, and easier service access across passenger cars, performance vehicles, light trucks, and lifted vehicles. For users comparing APEX two-post lifts, the AL10C is the higher-capacity clearfloor choice for shops that want unobstructed floor space and a direct-drive hydraulic lifting system.
Clearfloor Power for Serious Shops

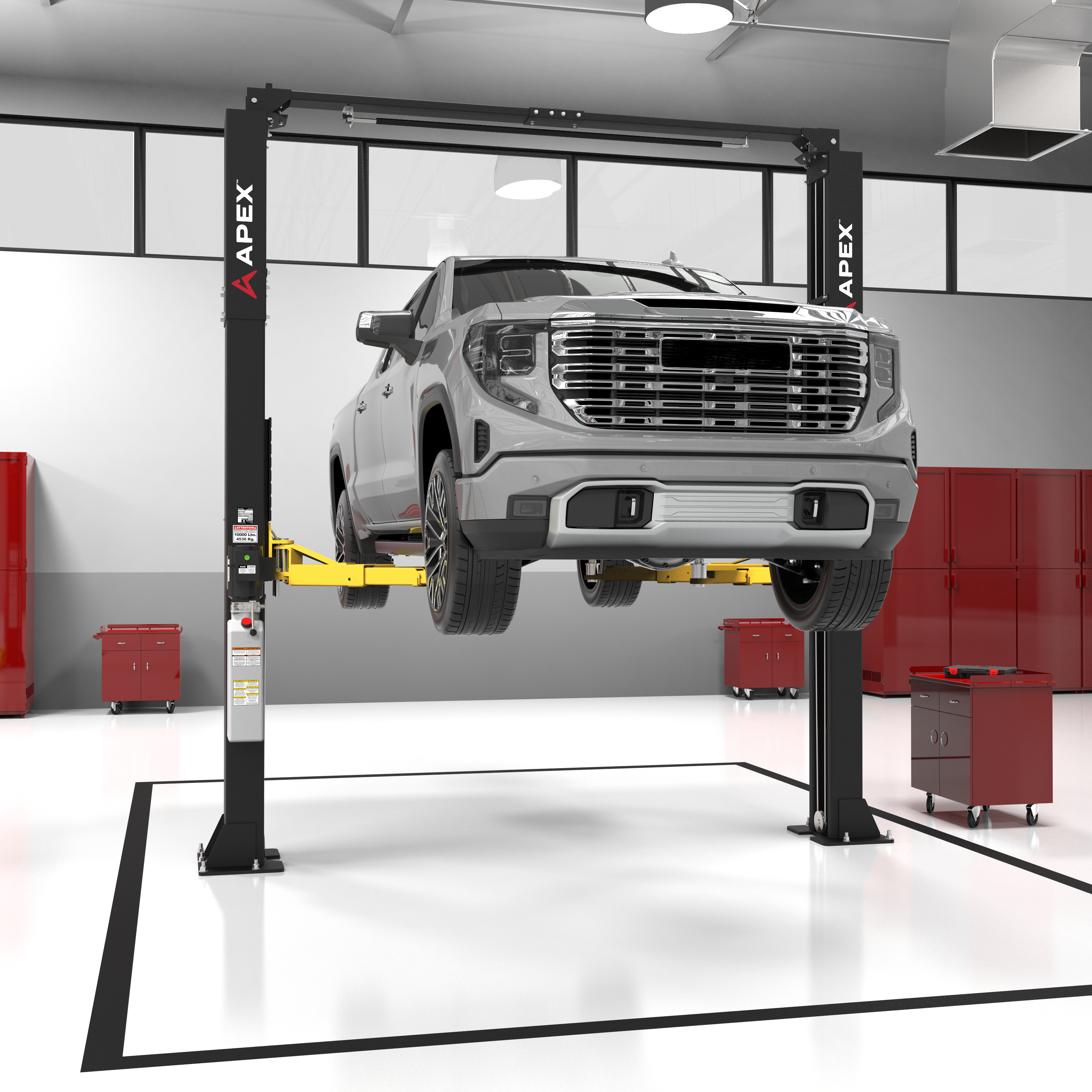

Clearfloor Access with Flexible Vehicle Positioning

Clearfloor Access with Flexible Vehicle Positioning

The AL10C is designed to make vehicle setup faster while keeping the service bay easier to work around. Symmetric and asymmetric arm configurations allow technicians to adapt the lift setup to different vehicle sizes, frame designs, and weight distribution needs.

Triple-telescoping front arms and dual-stage extended rear arms provide broad reach for a wide range of wheelbases. Double-telescoping screw pads with tear-resistant polyurethane non-slip pads, along with the included 4-piece 63 mm stackable adapter set, help create secure lifting contact across different vehicles and service applications.

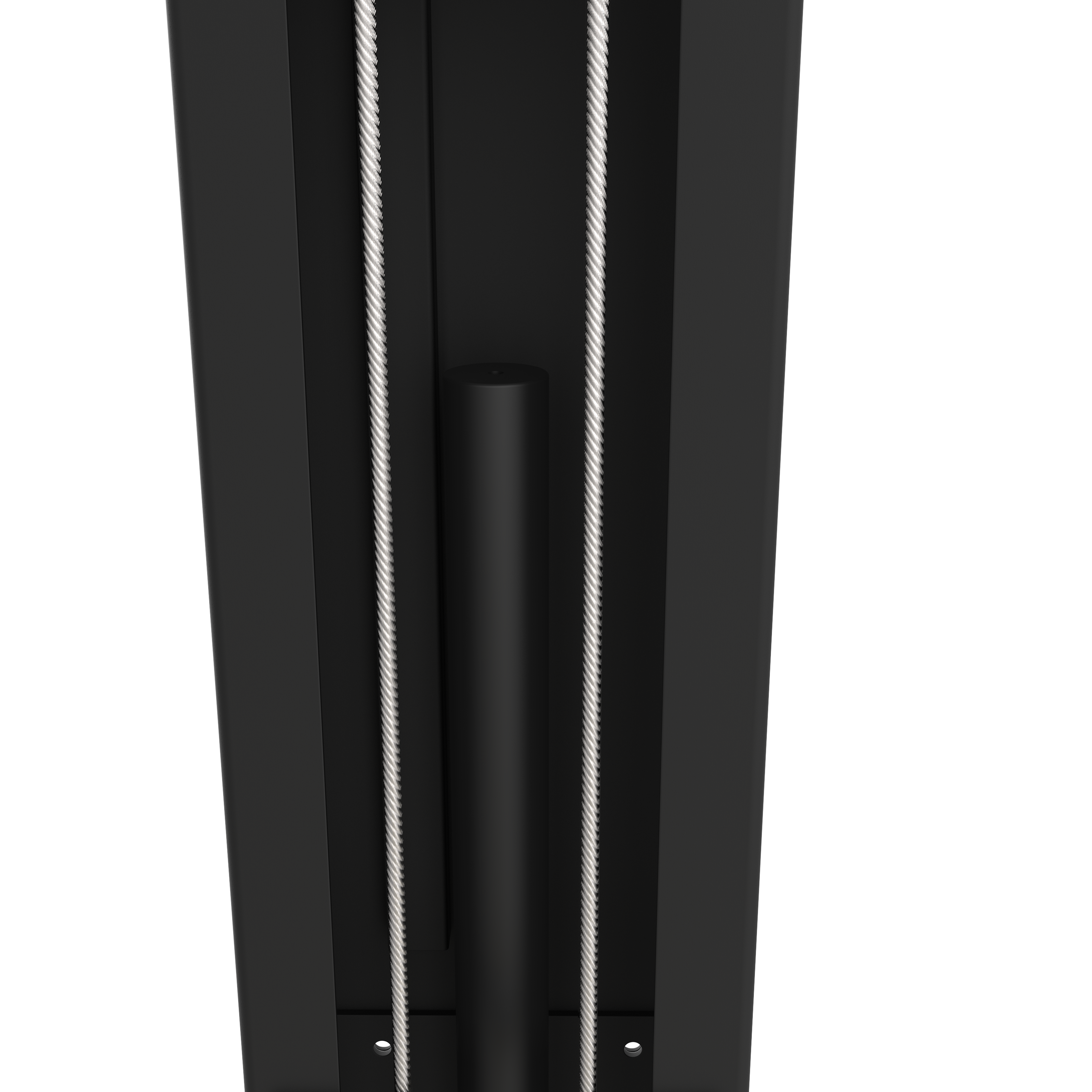

Direct-Drive Hydraulics with Overhead Structural Support

The AL10C features a direct-drive hydraulic design with dual full-stroke hydraulic cylinders. By reducing the number of moving parts compared with more complex lifting systems, the direct-drive setup helps minimize wear while delivering smooth, consistent lift operation for daily shop use. A rugged overhead box-beam structure reinforces the lift frame, reduces column stress, and supports overall stability. Heavy-duty 6-inch by 6-inch tubular steel carriages, oversized base plates, self-lubricating UHMW polyethylene guide blocks, oversized cable sheaves, and aircraft-quality equalizer cables all contribute to long-term durability.

Direct-Drive Hydraulics with Overhead Structural Support

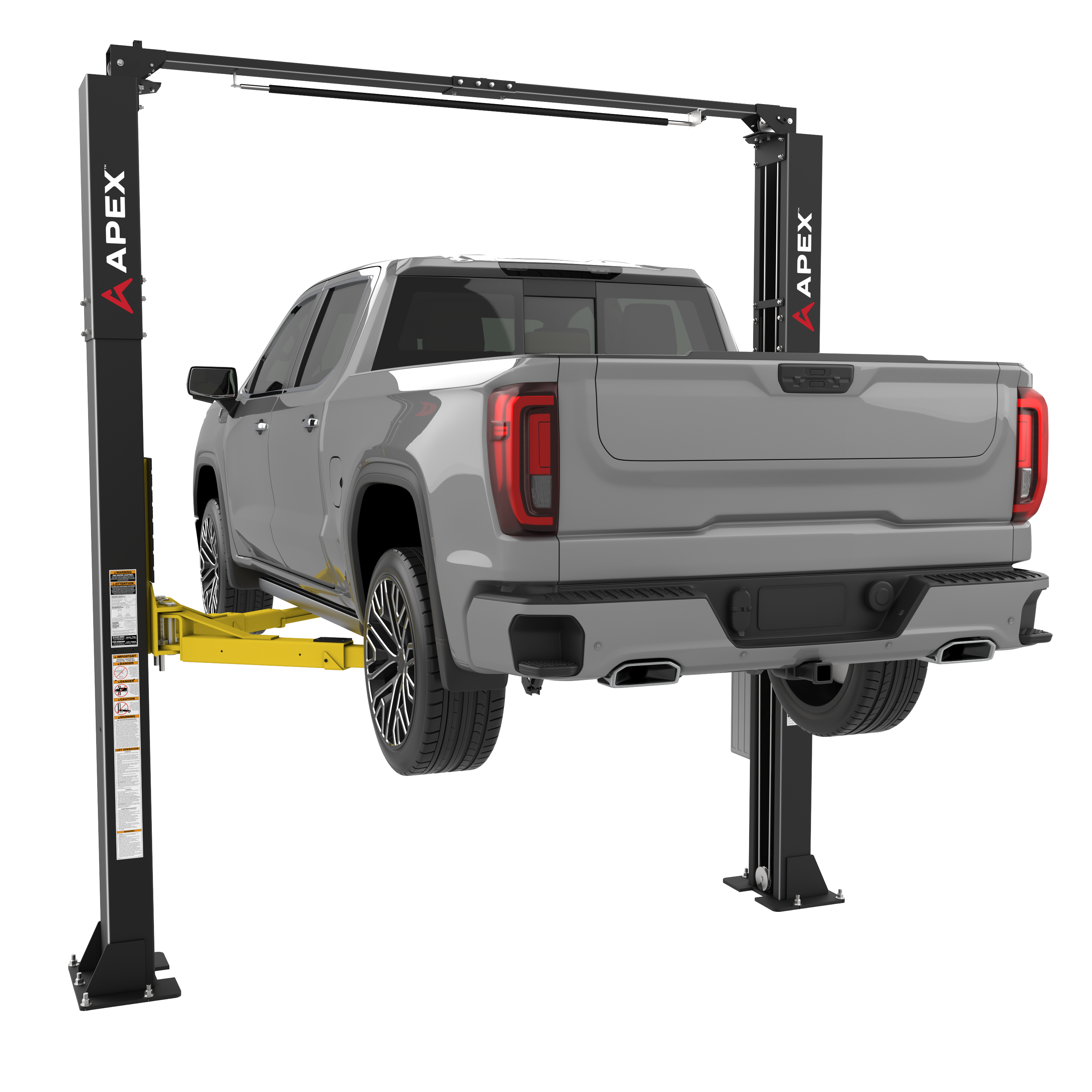

Safety Locks, Overhead Shutoff, and Long-Term Support

Safety Locks, Overhead Shutoff, and Long-Term Support

The AL10C includes automatic safety locks that engage every 3 inches throughout the lifting range, helping hold vehicles securely at working height. Single-pull lanyards on each carriage make lock release straightforward, while automatic arm restraints help prevent unintended arm movement after the vehicle is raised. A padded overhead safety shutoff bar with an industrial-grade limit switch automatically stops lift travel if a vehicle is raised too high. Previously sold under the GrandPrix name, the AL10C now joins the APEX lineup with the same clearfloor architecture, direct-drive lifting system, structural components, and BendPak-backed 36-month limited warranty.

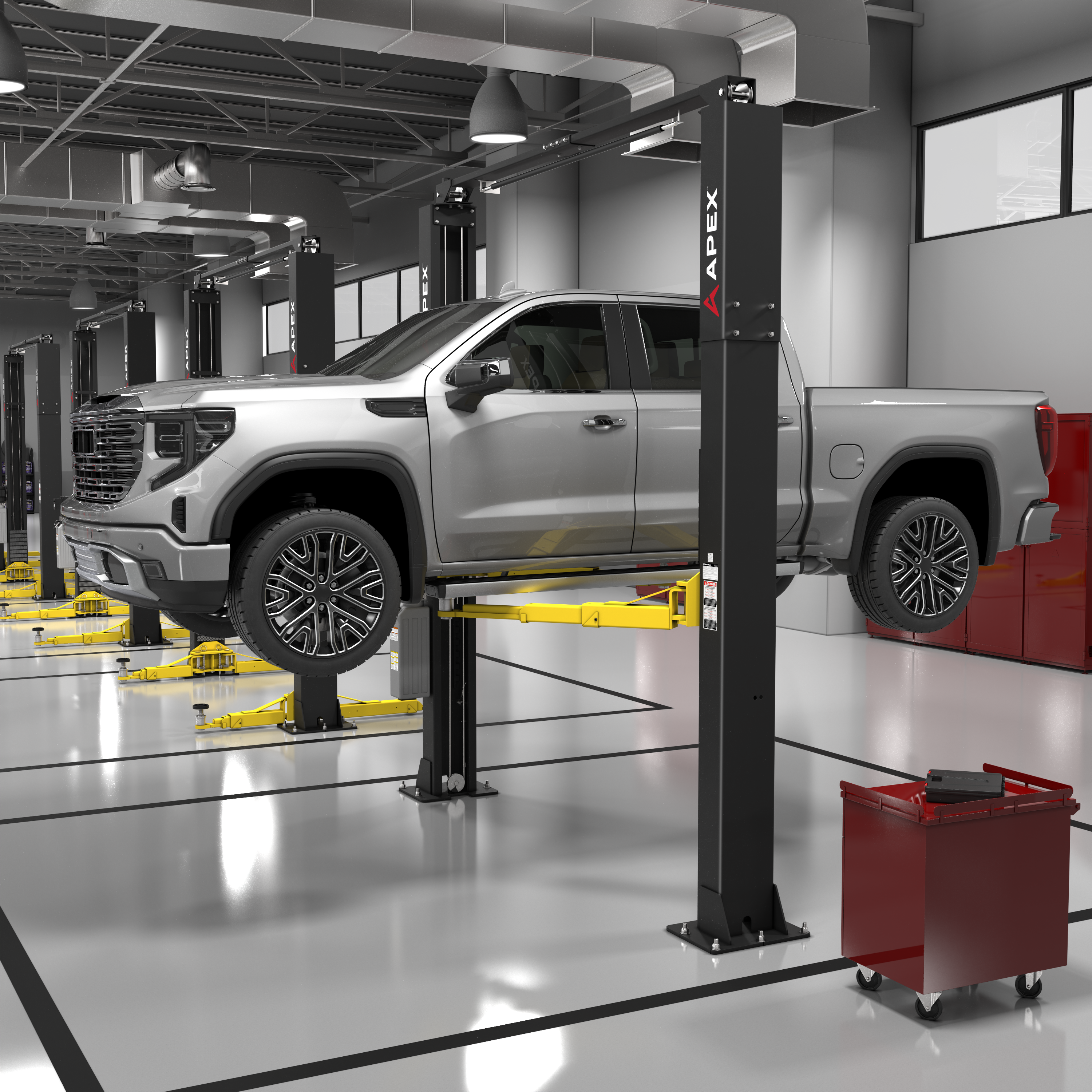

Clearfloor Bay Access

Clearfloor Bay Access

The AL10C removes the floor beam found on floorplate lifts, creating open access beneath the vehicle. That makes it easier to move oil drains, jacks, carts, and other equipment through the bay.
10,000-lb. Capacity

10,000-lb. Capacity

With 10,000 lbs. of lifting capacity, the AL10C is built for passenger cars, performance vehicles, light trucks, and mixed shop service needs.
Direct-Drive Hydraulics

Direct-Drive Hydraulics

Dual full-stroke hydraulic cylinders provide smooth, consistent lift operation with fewer moving parts. The design helps reduce wear and maintenance demands over time.

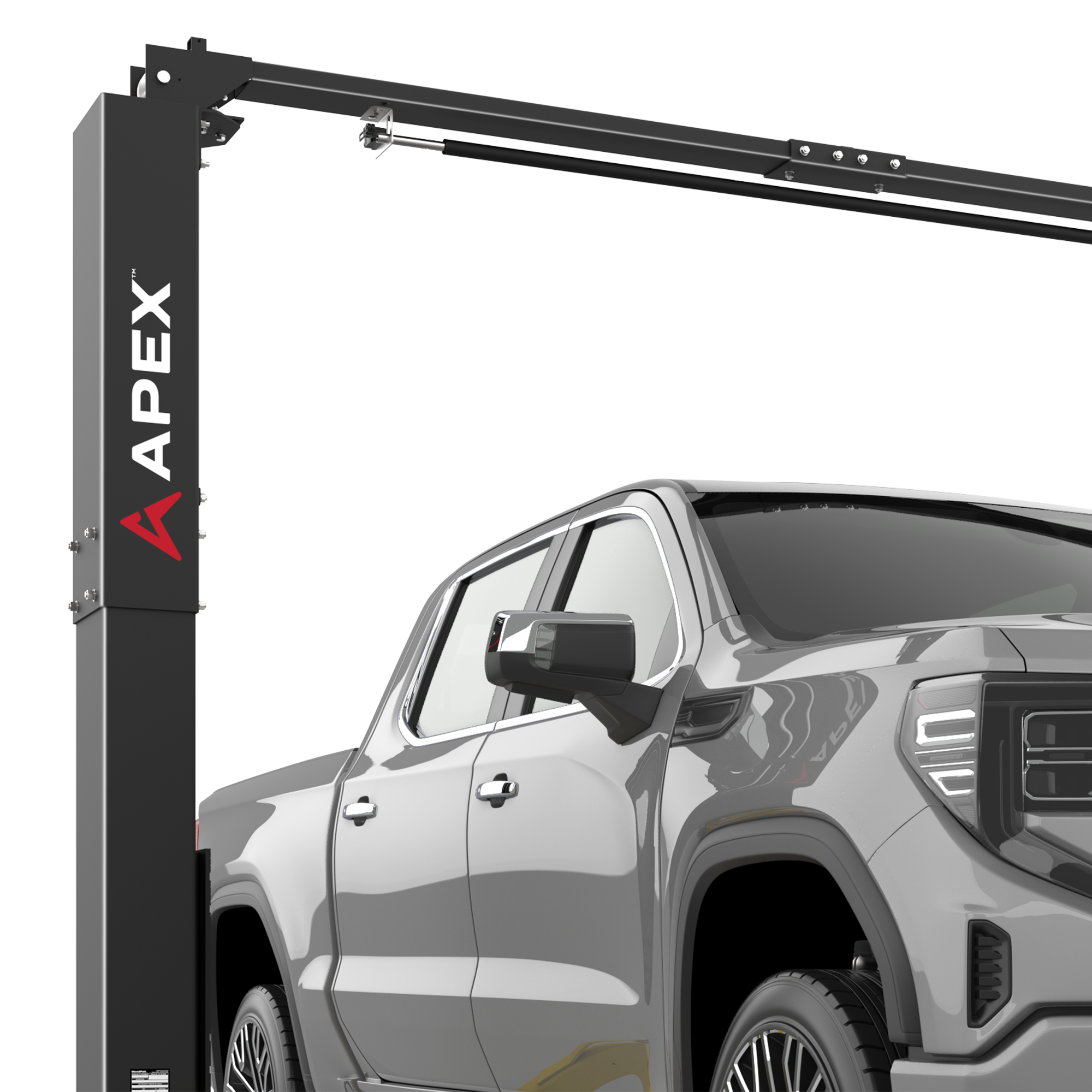

Overhead Safety Shutoff

Overhead Safety Shutoff

A padded overhead shutoff bar with an industrial-grade limit switch stops lift travel if a vehicle is raised too high. It adds important protection during daily operation.

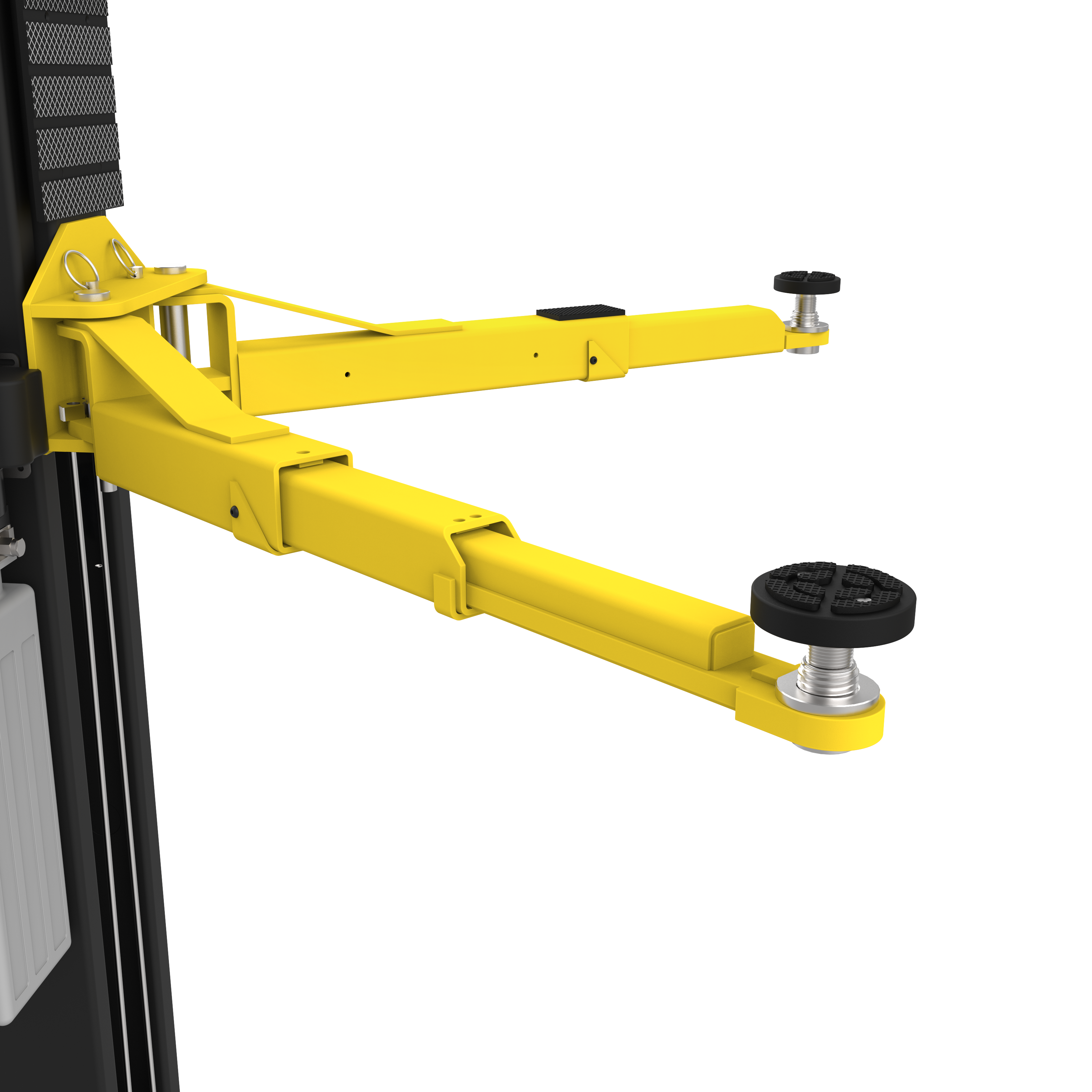

Flexible Arm Setup

Flexible Arm Setup

Symmetric and asymmetric arm configurations help technicians adapt to different vehicles and lifting points. Triple-telescoping front arms and extended rear arms improve reach.

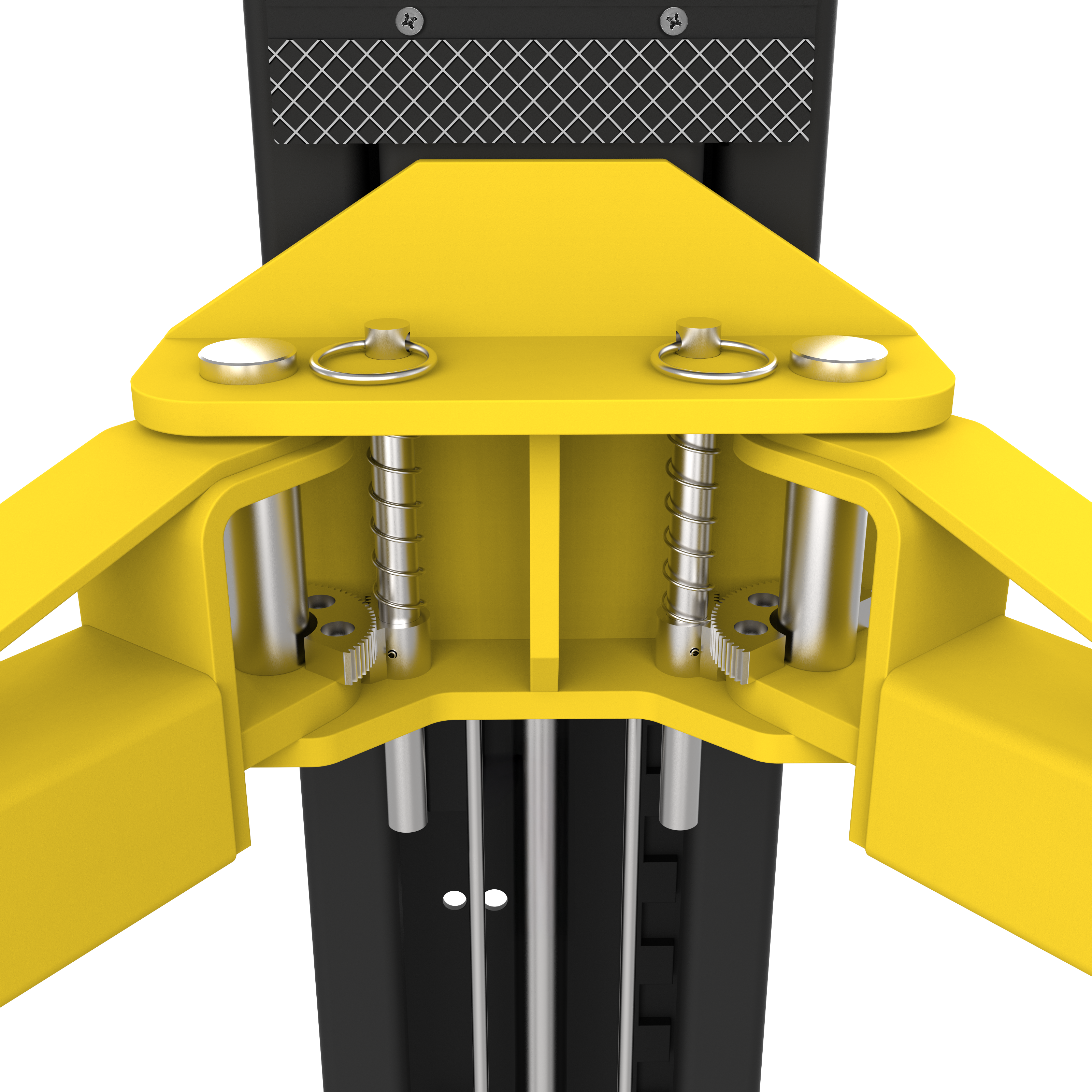

Automatic Arm Restraints

Automatic Arm Restraints

Automatic arm restraints help keep the lift arms secured once the vehicle is raised. Paired with safety locks every 3 inches, they support safer service work.

Specifications

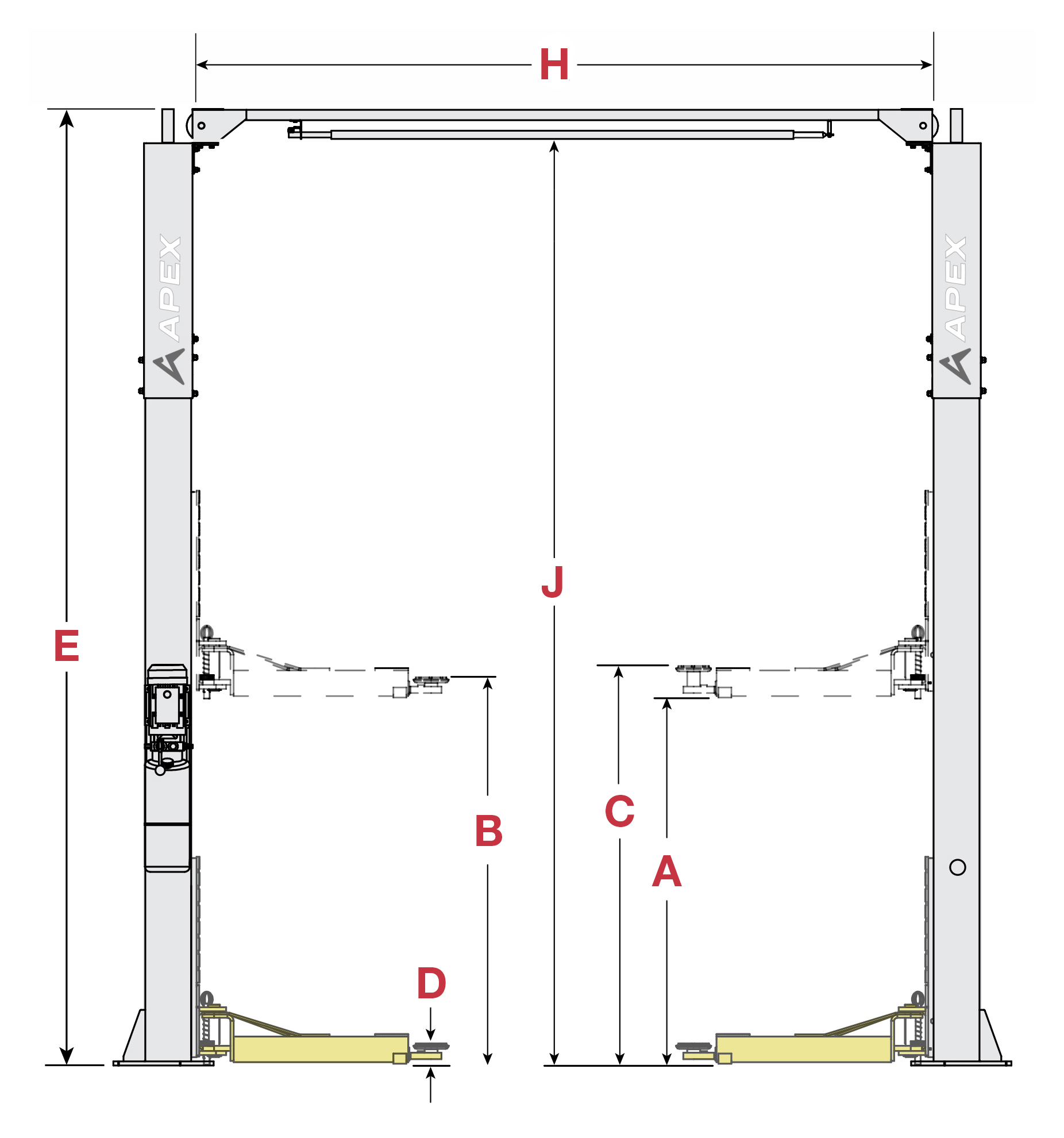

Specification Diagram 1

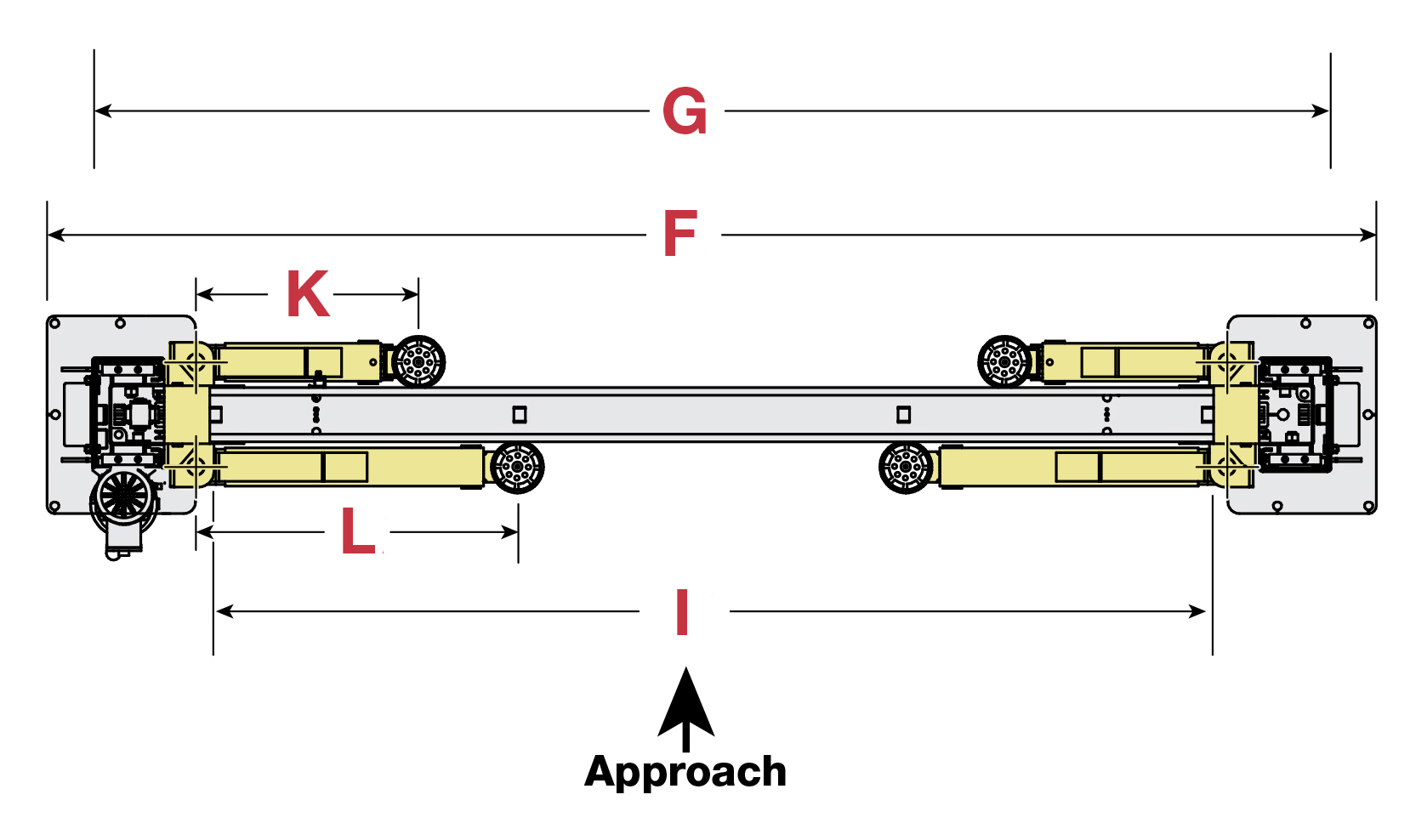

Specification Diagram 2

Capacity

Lifting Capacity
10000 lb
Max Capacity Per Arm
2500 lb

Rise

A Rise
70 in
C Max Lifting Height with Pad
76.5 in
D Min Lifting Height with Pad
3.9 in
Lifting Time
65 seconds

Outside Dimensions

E Height
148 in
F Width
137.5 in
G Outside Columns
128.5 in

Inside Dimensions

H Inside Columns
114.5 in
I Drive-Thru Clearance
103 in
J Floor to Overhead Switch
142.5 in

Arms and Pads

K Front Arm Reach Min
22.5 in
K Front Arm Reach Max
43.25 in
L Rear Arm Reach Min
33.5 in
L Rear Arm Reach Max
53.25 in
Screw Pad Adjustment
2 in

Power Unit and Voltage

Horsepower
5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
< 70 dB

Shipping and Delivery

Shipping Dimensions
27 x 114 x 29 in
Shipping Weight
1536 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
