QuickJack 8000TL Portable Car Lift - 8,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175654
$2,100.00
QuickJack 8000TL portable car lift primary product image for heavy-duty lifting.
Product 3D model preview
QuickJack 8000TL portable car lift primary product image for heavy-duty lifting.
QuickJack 8000TL portable car lift with 8,000-lb. capacity for trucks, SUVs, and cars.
QuickJack 8000TL portable car lift package primary image for 8,000-lb. capacity lifting.

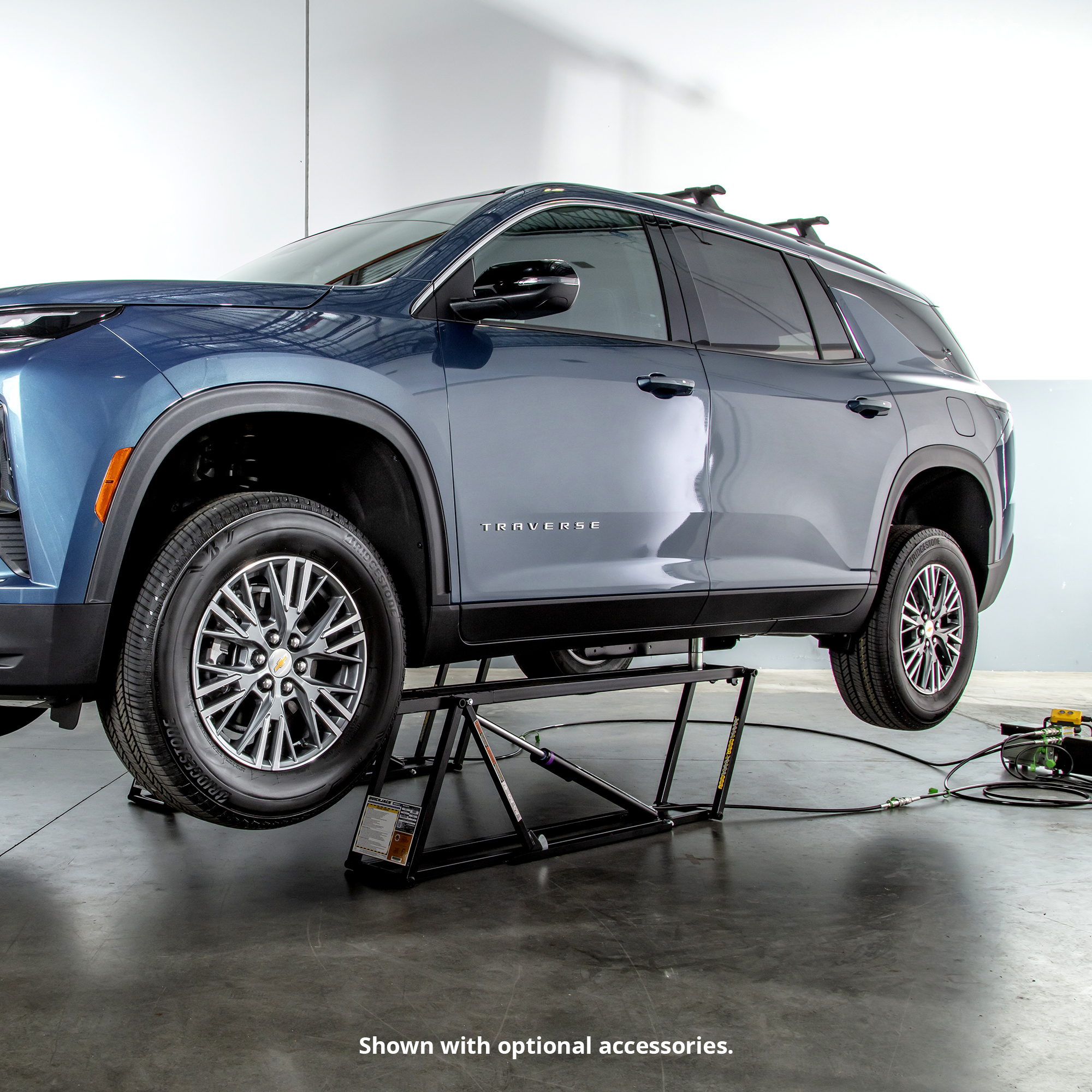

QuickJack 8000TL portable lift package in use for heavier vehicle maintenance.
1
Ask An Expert

Expected to Ship: Aug 21, 2026

SALES FLYERMANUALWARRANTY

QuickJack 8000TL Portable Car Lift - 8,000-lbs. Capacity
$2,100.00

Truck and SUV Lifting Power Without a Permanent Lift

The QuickJack 8000TL Portable Car Lift is the most powerful standard-length lift in the QuickJack lineup, built to raise larger SUVs, light-duty trucks, and heavier passenger vehicles without requiring a fixed two-post or four-post installation. With an 8,000-lb. capacity and 24.25-inch lift height, it brings serious muscle to garages, driveways, shops, and tight service spaces. For users who want truck-capable lifting but do not need extended-length frames, the 8000TL is the right kind of overbuilt. It keeps a compact 3.5-inch collapsed profile while adding reinforced frame construction, upgraded hydraulics, and the strength needed for heavier vehicles that smaller portable lifts should not be asked to handle.

Heavy-Duty Standard-Length QuickJack Capability

The 8000TL is designed around a 70.75-inch frame length and a minimum lift point spread of 37 inches, giving users a strong standard-length portable lift for heavier vehicles. It delivers a 1,000-lb. capacity increase over the previous 7,000-lb. TL platform while preserving the low-profile design needed for compact spaces. Add the optional Truck and SUV Adapter Kit to reach up to 27 inches of lift height for higher ground-clearance vehicles. That makes the 8000TL a strong choice for light-duty trucks, larger SUVs, and heavier daily drivers that need more undercar access.
Heavy-Duty Standard-Length QuickJack Capability
Hydraulic Control Built for Bigger Loads

Hydraulic Control Built for Bigger Loads

A redesigned electric/hydraulic power unit uses a pressure-compensated flow divider and independent shut-off solenoids to help both frames rise and lower together. This synchronized movement helps maintain control during lifting, even when working with heavier vehicles. The 8000TL also arrives with factory preassembled hydraulics to make setup faster and cleaner. Combined with one-handed pendant control, the system is built to give users serious lifting capability without turning every service job into a setup project.

Reinforced Structure for Confident Portable Lifting

Thicker cross members, improved welds, and reinforced pivot points help increase frame rigidity and long-term durability under repeated use. These upgrades are especially important for a portable lift designed to handle heavier SUVs and light-duty trucks. Automatic dual-position safety locks engage at mid-rise and full-rise heights, helping secure the frames during service. For users who need the strongest standard-length QuickJack available, the 8000TL delivers truck-ready power in a portable package that still stores like a QuickJack.
Reinforced Structure for Confident Portable Lifting
8,000-lb. Capacity

8,000-lb. Capacity

Built for heavier passenger vehicles, SUVs, and light-duty trucks that need more lifting strength.
Standard-Length Power

Standard-Length Power

The 70.75-inch frame gives users serious capacity without stepping into an extended-length platform.
24.25-Inch Lift Height

24.25-Inch Lift Height

Provides practical clearance for truck and SUV maintenance, inspections, tire service, and brake work.
Upgraded Hydraulics

Upgraded Hydraulics

A pressure-compensated flow divider and shut-off solenoids help both frames move in sync.
Reinforced Frame Design

Reinforced Frame Design

Thicker cross members, improved welds, and reinforced pivot points help control flex under heavier loads.
Adapter Kit Compatible

Adapter Kit Compatible

Add the optional Truck and SUV Adapter Kit to reach up to 27 inches of lift height on higher-clearance vehicles.

Specifications

Capacity

Lifting Capacity
8000 lb

Rise

A Lowered Height with 2 Inch Block
3.5 in
B Lifting Height with 2 Inch Block
21 in
C Lifting Height with 3 Inch Block
22 in
D Max Lifting Height
22 in
E Lift Height with Adapters
24 in
Lifting Time
30 seconds

Lift Point Spread

G Min Lift Point Spread
37 in
H Max Lift Point Spread
60 in

Frame Dimensions

I Frame Width Each
11 in
J Frame Length Each
70 in
Frame Weight Each
100 lb

Power Unit and Voltage

Horsepower
2 HP
Sound Level
70 dBA

Shipping and Delivery

Shipping Method
Parcel
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
