BendPak 16AP-192 Super-Duty Two-Post Car Lift - 16,000-lbs. Capacity - 192-in. Extended Height

SEE REVIEWS
IN STOCKSKU 5175609
$23,795.00
Financing as low as $500/moApply now

Flexible business financing available through Navitas.

BendPak 16AP-192 extended-height 16,000-lb. ALI Certified two-post lift.
Product 3D model preview
BendPak 16AP-192 extra-tall clearfloor two-post lift for commercial vehicle service.
BendPak 16AP-192 heavy-duty two-post lift with 16,000-lb. lifting capacity.
BendPak 16AP-192 extra-tall two-post lift installed in a professional mechanic shop.
Product 6
BendPak 20AP-192 column extension detail for super-duty two-post lift height.
BendPak 20AP-192 automatic arm restraint detail for super-duty two-post lift safety.
BendPak 16AP-192 clearfloor two-post lift designed for high-clearance vehicle maintenance
BendPak 16AP-192 extended-height two-post lift supporting trucks, SUVs, and fleet vehicles
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Two-Post Car Lift / 16,000-lbs. Capacity / Clearfloor / High-Rise / 192-in. O.A. Height / Post Extension

BendPak 16AP-192 Super-Duty Two-Post Car Lift - 16,000-lbs. Capacity - 192-in. Extended Height
$23,795.00
Extended-Height Strength for Tall Vehicle Work

Extended-Height Strength for Tall Vehicle Work

The BendPak 16AP-192 Super-Duty Two-Post Car Lift combines 16,000 lbs. of lifting capacity with a 192-inch extended-height configuration for shops that service taller, heavier vehicles. It is built for commercial repair facilities, fleet service operations, and truck-focused bays that need both serious capacity and additional overhead clearance. This is the model to choose when the standard 16AP capacity is right, but the shop needs more vertical room for tall vans, service bodies, work trucks, and high-roof vehicles. The clearfloor design keeps the bay open, while direct-drive hydraulics, automatic arm restraints, and heavy-duty construction support demanding daily service.

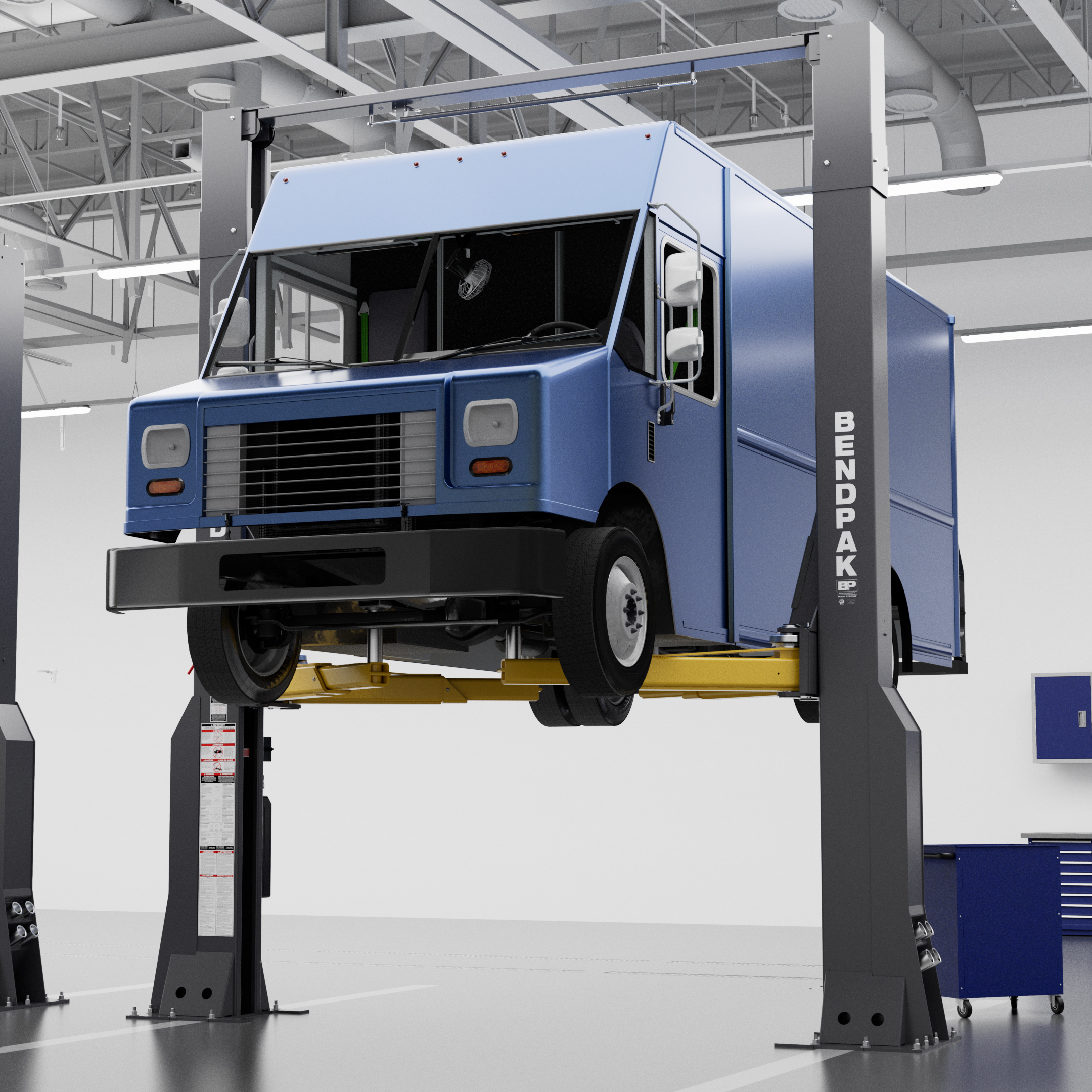

192-Inch Height for Tall Trucks, Vans, and Fleet Vehicles

The extended-height design gives technicians more overhead clearance than the standard 16AP, making the lift better suited for tall vehicles that can crowd lower overhead structures. For shops working on commercial vans, utility trucks, fleet vehicles, and service bodies, that extra clearance can make setup and service access more comfortable. The 16AP-192 preserves the same 16,000-lb. super-duty capacity while expanding where and how the lift can be used. It is a smart fit for facilities that want a heavy-duty two-post lift that can grow with larger vehicle demands.
192-Inch Height for Tall Trucks, Vans, and Fleet Vehicles

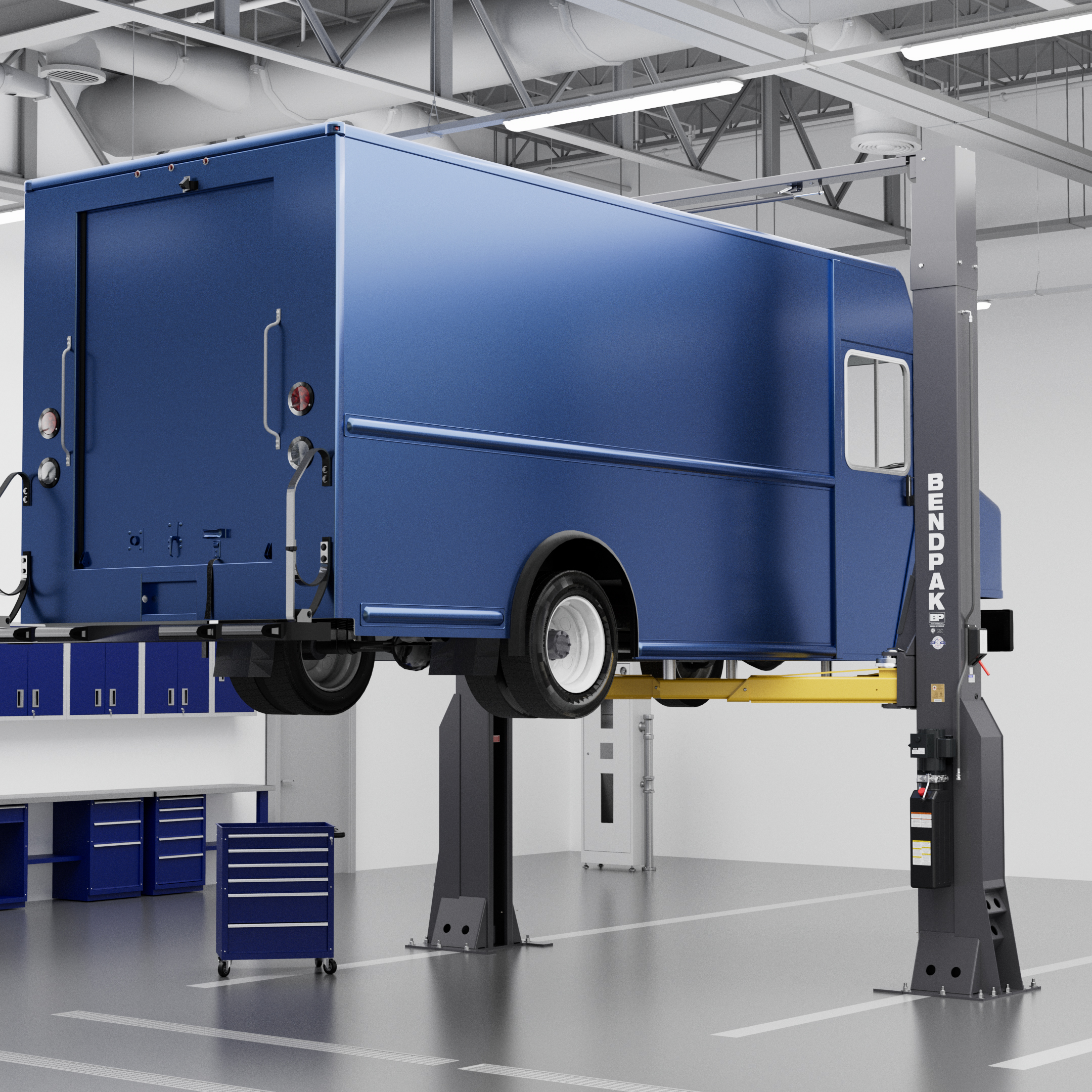

Clearfloor Service Access with Heavy-Duty Arm Control

Clearfloor Service Access with Heavy-Duty Arm Control

The clearfloor layout gives technicians more room to move equipment under and around the vehicle, which is especially useful when servicing larger trucks and fleet platforms. Transmission jacks, oil drains, tool carts, and support stands can move through the bay without a floorplate creating interference. Automatic swing arm restraints help hold arm position during lifting and service, while safety locks in each column and a single-point release support efficient operation. The lift is engineered to keep heavier vehicles stable and accessible while technicians work.

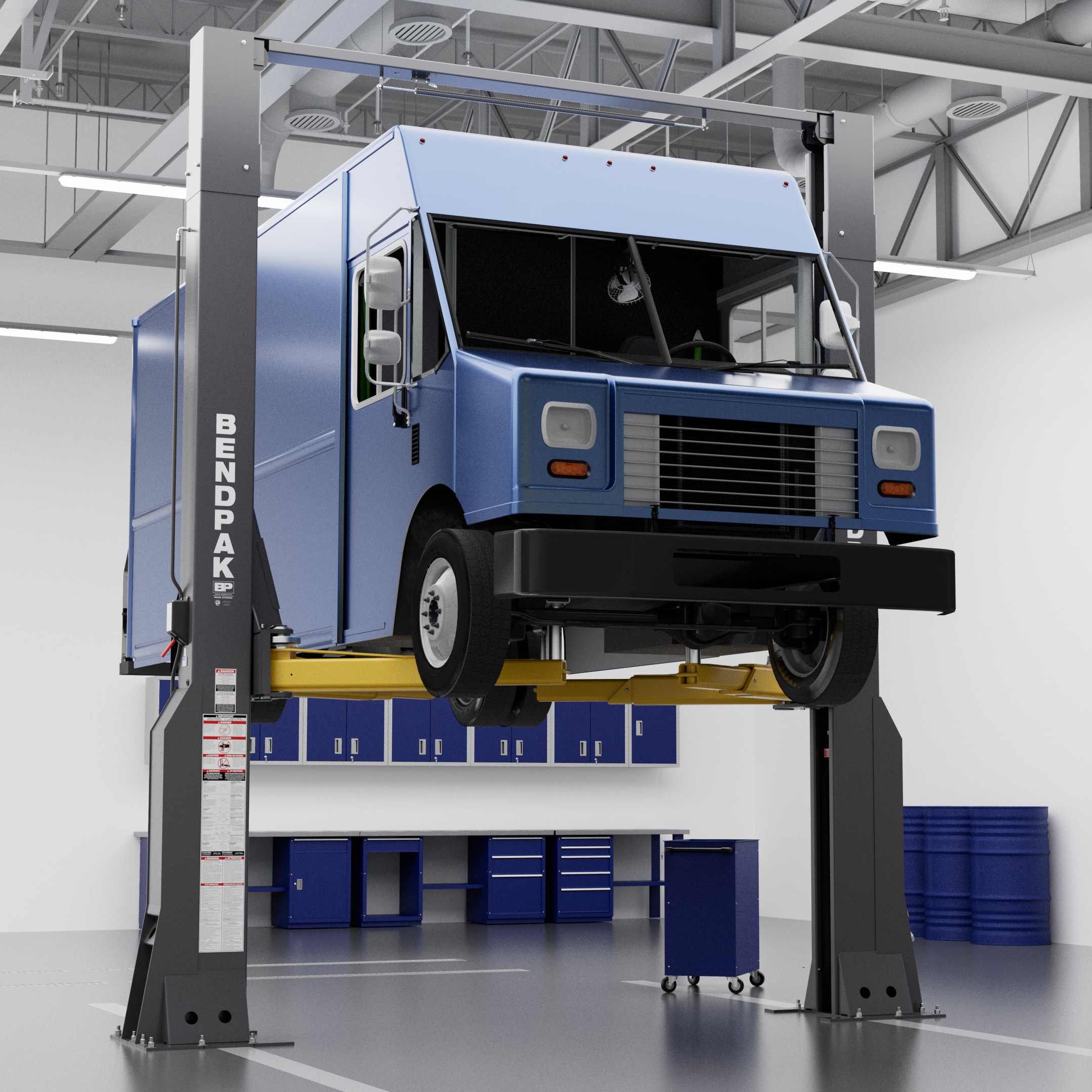

Direct-Drive Lifting Built for Demanding Commercial Workloads

Dual hydraulic direct-drive cylinders provide strong, smooth lifting performance for heavy vehicles without relying on chain-over-roller lifting. A padded overhead safety shutoff bar, durable powder coat finish, self-lubricating load bearings, and heavy-duty structural components help support long-term shop use. For commercial repair facilities that need capacity, height, and open-bay access, the 16AP-192 delivers a powerful extended-height two-post lift solution. It is built for shops that regularly work beyond standard passenger-car service and need equipment that does the same.
Direct-Drive Lifting Built for Demanding Commercial Workloads
192-Inch Extended Height

192-Inch Extended Height

The taller configuration adds overhead clearance for high-roof vehicles, service bodies, and fleet applications. It is the key step-up from the standard 16AP.
16,000-lb. Super-Duty Capacity

16,000-lb. Super-Duty Capacity

Built for larger trucks, vans, utility vehicles, and commercial workloads. The 16AP-192 gives shops both capacity and added height.
Truck-Service Focus

Truck-Service Focus

The lift is a strong fit for facilities handling tall trucks and fleet vehicles. It helps reduce clearance issues in heavy-duty service bays.

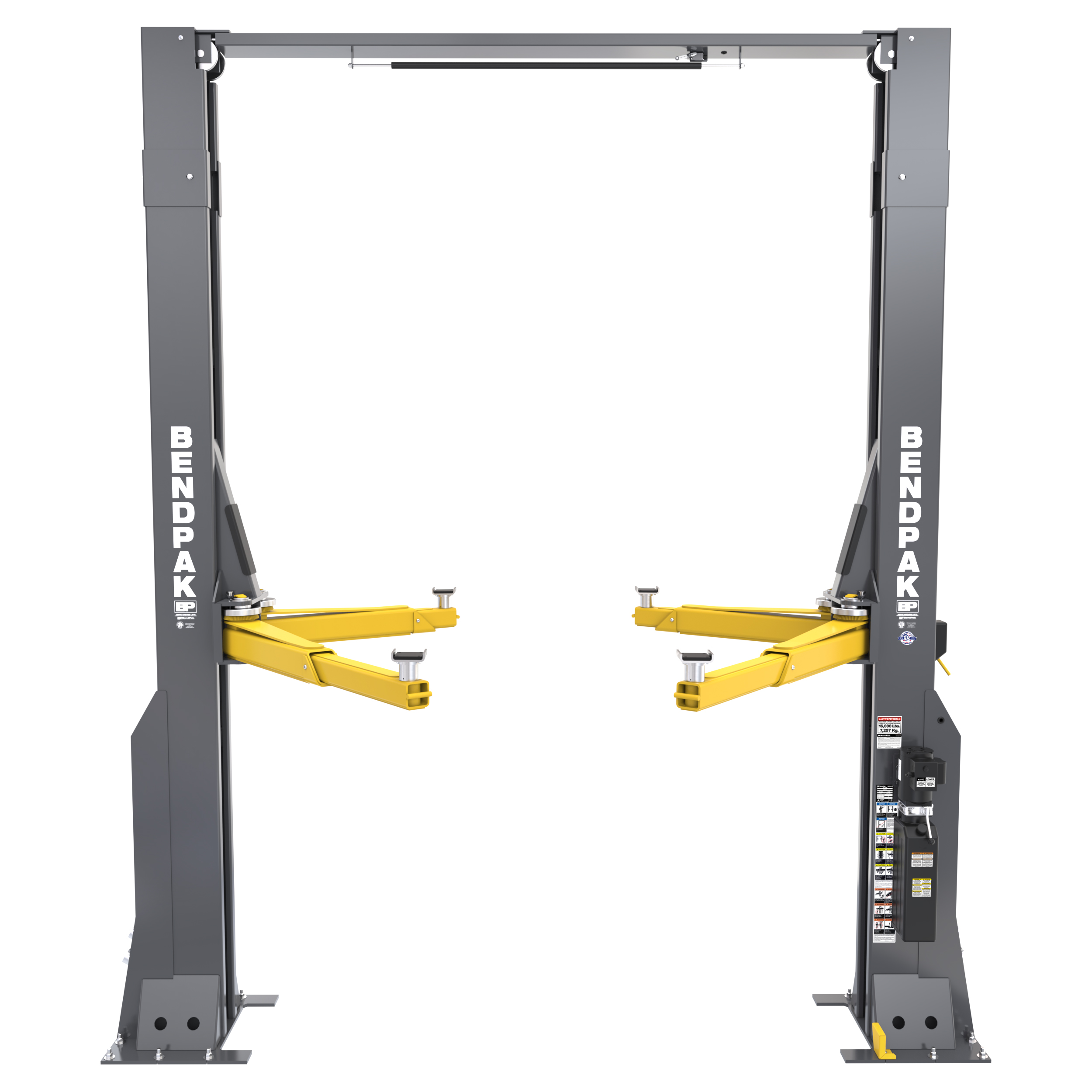

Open Clearfloor Bay

Open Clearfloor Bay

The overhead layout keeps the floor open for tools, support stands, and service equipment. That matters when working around larger vehicles.
Direct-Drive Lifting

Direct-Drive Lifting

Dual hydraulic direct-drive cylinders deliver smooth lifting performance. The design is built for daily use under heavy loads.

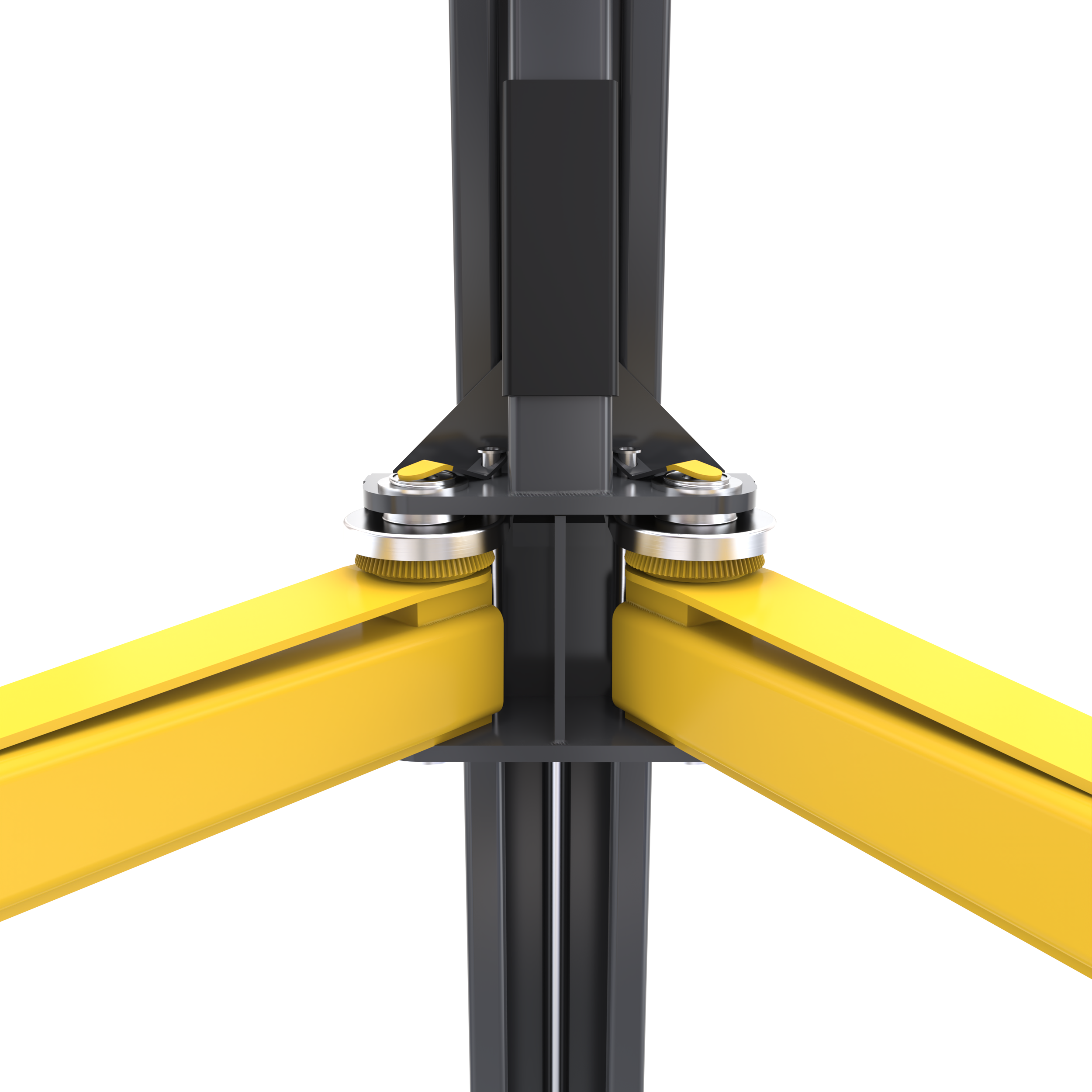

Arm and Lock Safety

Arm and Lock Safety

Automatic arm restraints, column safety locks, and single-point release support controlled operation during heavy vehicle service.

Recommended Add-ons

Accessories for the BendPak 16AP-192 Super-Duty Two-Post Car Lift - 16,000-lbs. Capacity - 192-in. Extended Height

LiteStix LS36SMDX rechargeable underhood work light with 1,200-lumen output
LITESTIX LS36SMDX Rechargeable Underhood Work Light
$126.00
LEARN MORE
Ergochair ERGO-RS Ergonomic Height-Adjustable Creeper Seat
Ergochair ERGO-RS Ergonomic Height-Adjustable Creeper Seat
$700.00
LEARN MORE
Ranger RD-9G Upright Portable Oil Drain - 9-Gallon
Ranger RD-9G Upright Portable Oil Drain - 9-Gallon
$120.00
LEARN MORE
BendPak 60mm pin adapter holder kit for two-post lift accessories
BendPak Adapter Holder Kit for 60mm Pin Adapters - Pair
$80.00
LEARN MORE
BendPak super-wide frame cradle pad with 60 mm pin for secure lift contact.
BendPak Super Wide Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 2
$256.00
LEARN MORE
BendPak 60 mm pin frame cradle pad set for two-post lift vehicle contact points.
BendPak Wide Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 2
$196.00
LEARN MORE
BendPak 60mm frame cradle pads for secure frame engagement on compatible two-post lifts
BendPak Standard Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 4
$270.00
LEARN MORE
BendPak 60 mm pin extra-tall adapters with 240 mm height for vehicle lifting
BendPak Extra Tall Truck and Van Adapters for Two-Post Lifts - 240mm - 60mm Pin - Set of 2
$250.00
LEARN MORE
BendPak 60 mm pin super-tall 190 mm height adapter for vehicle lift contact
BendPak Super Tall Truck and Van Adapters for Two-Post Lifts - 190mm - 60mm Pin - Set of 2
$196.00
LEARN MORE
BendPak 60 mm pin tall adapters with 125 mm height for two-post lifts
BendPak Tall Truck and Van Adapters for Two-Post Lifts - 125mm - 60mm Pin - Set of 4
$206.00
LEARN MORE
BendPak medium 60 mm two-post lift adapters in a set of four.
BendPak Medium Truck and Van Adapters for Two-Post Lifts - 63mm - 60mm Pin - Set of 4
$196.00
LEARN MORE
BendPak 60 mm pin low adapter set of four with 56 mm height
BendPak Low Truck and Van Adapters for Two-Post Lifts - 56mm - 60mm Pin - Set of 4
$176.00
LEARN MORE
BendPak 60 mm pin telescoping screw pad assembly with Tuf-Pad contact surface
BendPak Telescoping Screw Pads for Two-Post Lifts - 60mm Pin - Set of 4
$376.00
LEARN MORE
BendPak 60 mm pin drop-in lift pad assembly with Tuf-Pad contact surface
BendPak Lift Pad Assemblies for Two-Post Lifts - 60mm Pin - Set of 4
$286.00
LEARN MORE
BendPak 60 mm pin drop-in steel lift pad set of four for heavy-duty lifts
BendPak Steel Lift Pads for Two-Post Lifts - 60mm Pin - Set of 4
$250.00
LEARN MORE
BendPak round polyurethane Tuf-Pad set of four for vehicle lift contact protection
BendPak Round Polyurethane Tuf-Pads for Two-Post Lifts - Set of 4
$80.00
LEARN MORE
BendPak slip-over square rubber pads set of four for lift arm contact protection
BendPak Square Polyurethane Lift Pads for Two-Post Lifts - Set of 4
$126.00
LEARN MORE
BendPak slip-over round pinch weld pucks set of four for vehicle lift points
BendPak Round Pinch Weld Pucks for Two-Post Lifts - Set of 4
$180.00
LEARN MORE
BendPak slip-over round pinch weld pads set of four for car lift adapters
BendPak Round Pinch Weld Pads for Two-Post Lifts - Set of 4
$166.00
LEARN MORE
BendPak wheel spotting dish kit for accurate vehicle positioning
BendPak Wheel Spotting Dish Kit
$96.00
LEARN MORE
BendPak MLS-18 Mobile Jack Stand - 18,000-lbs. Capacity
BendPak MLS-18 Mobile Jack Stand - 18,000-lbs. Capacity
$1,325.00
LEARN MORE
BendPak WSA-100 air electric work station for compatible lift models
BendPak WSA-100 Air-Electric Workstation
$416.00
LEARN MORE
Ranger RWS-200WL portable electric wheel lift with 200-lb. capacity for tire service.
Ranger RWS-200WL Off-Center High-Speed Tire and Wheel Lift
$1,500.00
LEARN MORE

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
16000 lb
Max Capacity Per Arm
4000 lb

Rise

A Rise
75.75 in
B Rise + Pad
78.5 in
C Max Lifting Height with Pad
82.5 in
D Min Lifting Height with Pad
7.75 in
Lifting Time
45 seconds

Outside Dimensions

E Height
193 in
F Width
156 in
G Outside Columns
143 in

Inside Dimensions

H Inside Columns
120 in
I Drive-Thru Clearance
103 in
J Floor to Overhead Switch
186.5 in

Arms and Pads

K Front Arm Reach Min
36 in
K Front Arm Reach Max
65 in
L Rear Arm Reach Min
36 in
L Rear Arm Reach Max
65 in

Power Unit and Voltage

Horsepower
5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
< 70 dB

Shipping and Delivery

Shipping Dimensions
31 x 187 x 38 in
Shipping Weight
3588 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
