BendPak 12APX Two-Post Car Lift - 12,000-lbs. Capacity - High-Rise

SEE REVIEWS
IN STOCKSKU 5175556
$9,915.00$10,495.00
SAVE $580
Financing as low as $216/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

Two-Post Car Lift / 12,000-lbs. Capacity / Clearfloor / Screw Pads / High-Rise

BendPak 12APX Two-Post Car Lift - 12,000-lbs. Capacity - High-Rise
$9,915.00$10,495.00SAVE $580
High-Rise Access for Modern Shop Workflows

High-Rise Access for Modern Shop Workflows

The BendPak 12APX High-Rise Two-Post Car Lift gives professional repair facilities a 12,000-lb. lifting platform with the height, reach, and arm control needed for today’s vehicle mix. Built for shops that service trucks, SUVs, EVs, commercial vehicles, and passenger cars, the 12APX combines high-rise working access with BendPak’s AP Series engineering for safer, more confident daily lifting. Choose the 12APX when you need more capacity than a 10,000-lb. lift and more technician room under the vehicle. Its clearfloor layout keeps the bay open for tools and equipment, while Bi-Metric™ lifting, Low-Pro™ triple-telescoping arms, double-telescoping screw pads, and BendPak’s Automatic Swing Arm Restraint System help technicians reach more lift points with less compromise.

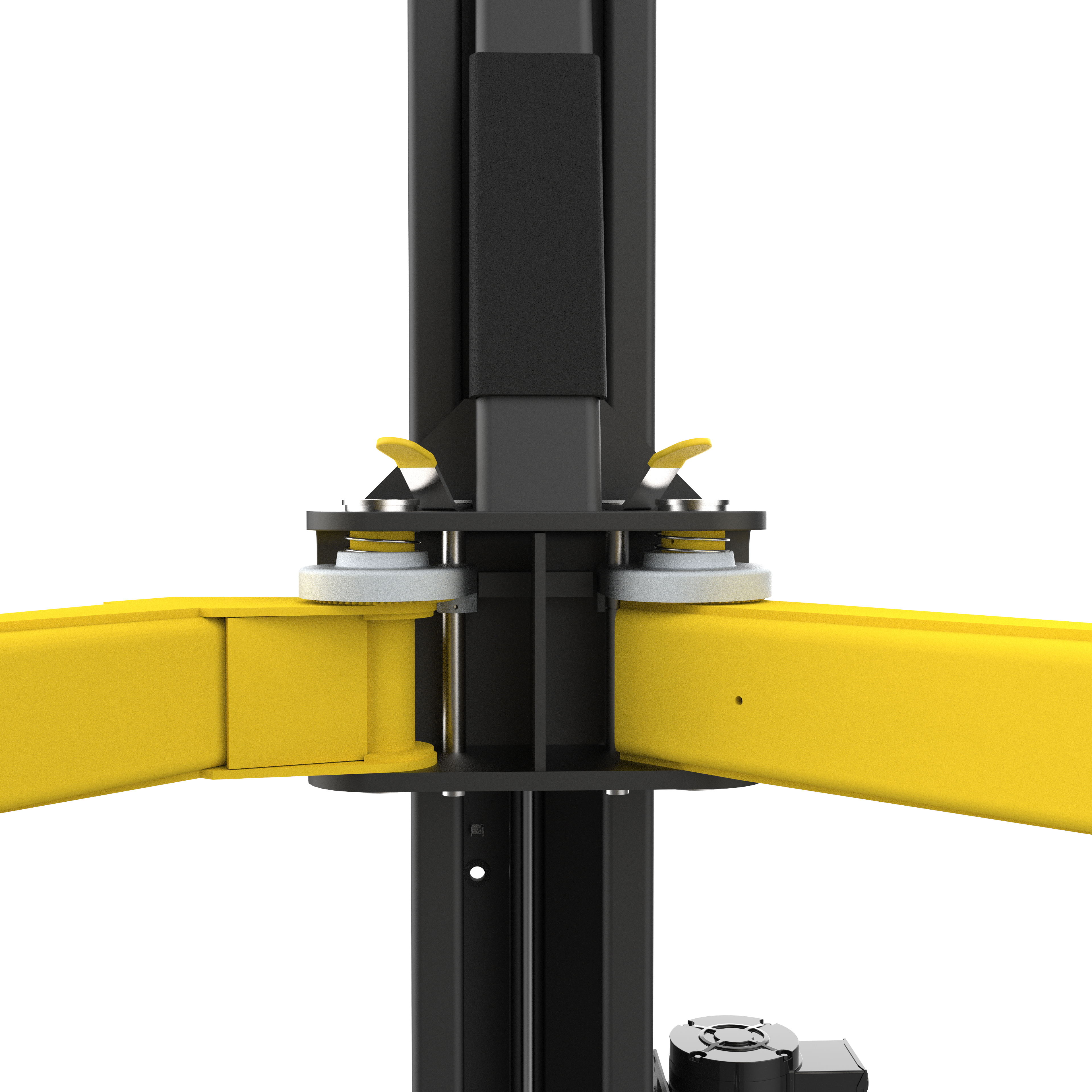

ASARS Arm Restraints with 360-Degree Holding Control

The 12APX uses BendPak’s Automatic Swing Arm Restraint System, or ASARS, to help keep the lift arms locked in position during vehicle service. This patented forged-steel restraint system provides 360-degree grip and is engineered to withstand more than 2,000 lbs. of side force, helping protect against unplanned arm movement when vehicle balance shifts. That matters on a 12,000-lb. two-post lift, especially when trucks, SUVs, driveline components, battery packs, or heavy assemblies are being serviced. ASARS adds confidence without making the operator fight the equipment, and a quick-release lever allows fast arm adjustment when the vehicle is ready to come down.
ASARS Arm Restraints with 360-Degree Holding Control

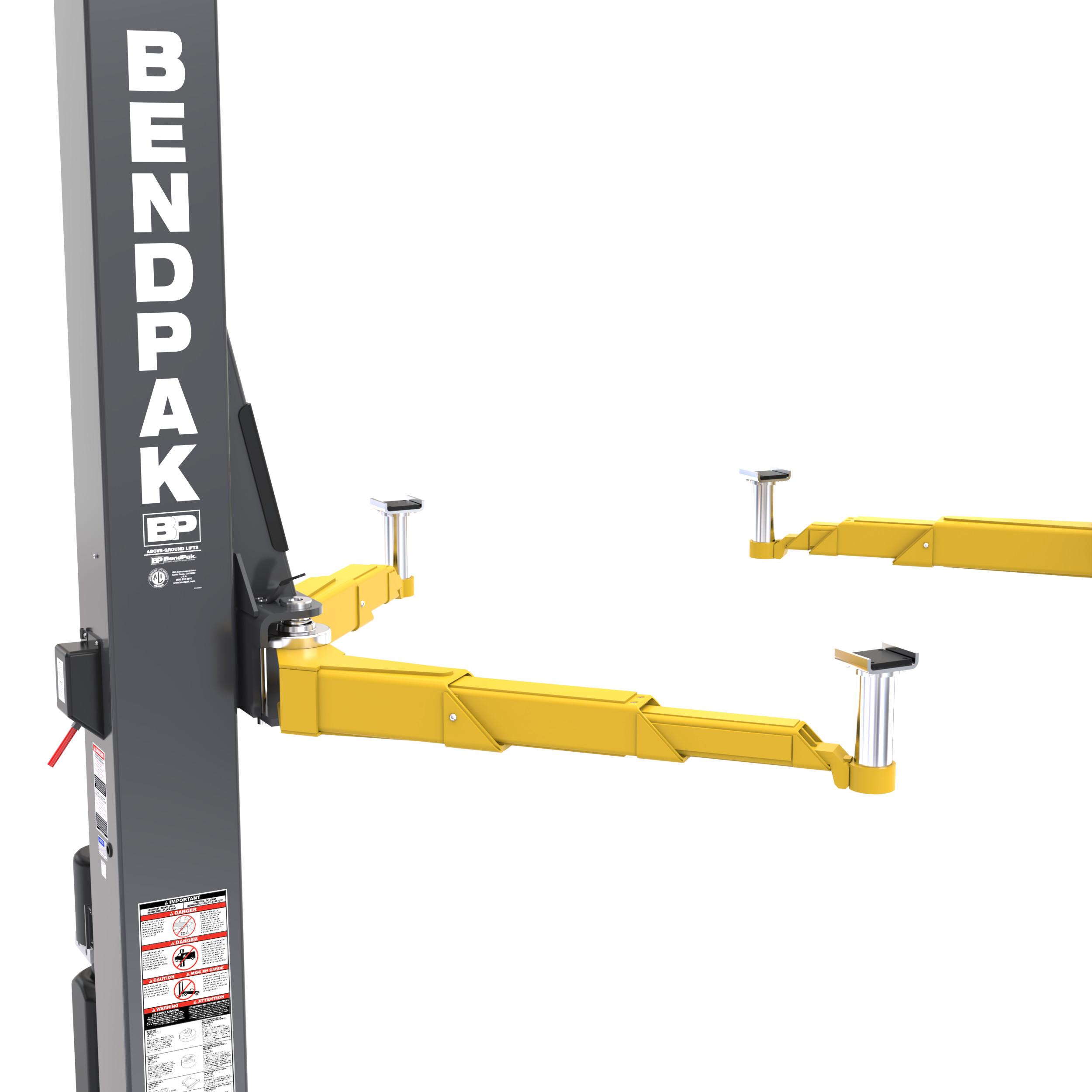

Low-Pro™ Triple-Telescoping Arms and Bi-Metric™ Lifting

Low-Pro™ Triple-Telescoping Arms and Bi-Metric™ Lifting

The 12APX is built around four triple-telescoping swing arms that extend farther and retract shorter than conventional arm designs. That added range helps technicians reach factory lifting points across a wide variety of wheelbases, frame layouts, and lower chassis-height vehicles without constantly repositioning the vehicle in the bay. Bi-Metric™ arm geometry allows the lift to support both symmetric and asymmetric loading, giving shops more flexibility when working with mixed vehicle types. Low-Pro™ arm ends and adjustable screw pads help engage low-profile lift points, while included adapter capability supports trucks, SUVs, and frame-style vehicles that need additional pad height.

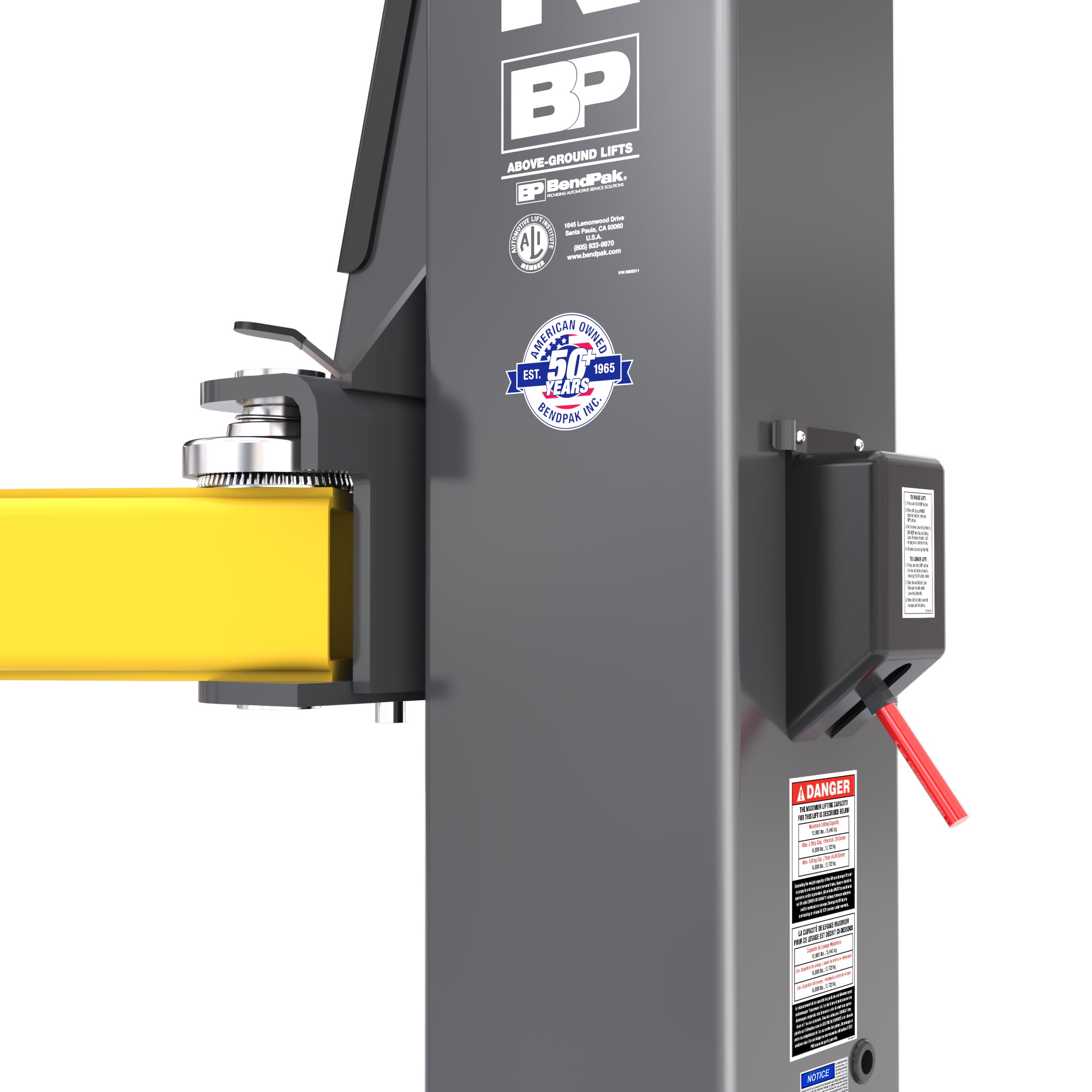

Direct-Drive Hydraulics, Safety Locks, and Heavy-Duty Construction

Dual hydraulic direct-drive cylinders provide smooth lifting power without relying on chain-over-roller lifting. Safety locks in each column, a single-point safety release, padded overhead safety shutoff bar, galvanized equalizing cables, and self-lubricating Dura-Glide UHMW bearings support dependable daily use in demanding service environments. The 12APX is built with oversized columns, heavy-duty carriages, durable powder coat finish, and ALI certification for professional shop confidence. For facilities that need a high-rise 12,000-lb. two-post lift with modern arm technology and clearfloor access, the 12APX is the practical step up from lighter-capacity lifts.
Direct-Drive Hydraulics, Safety Locks, and Heavy-Duty Construction

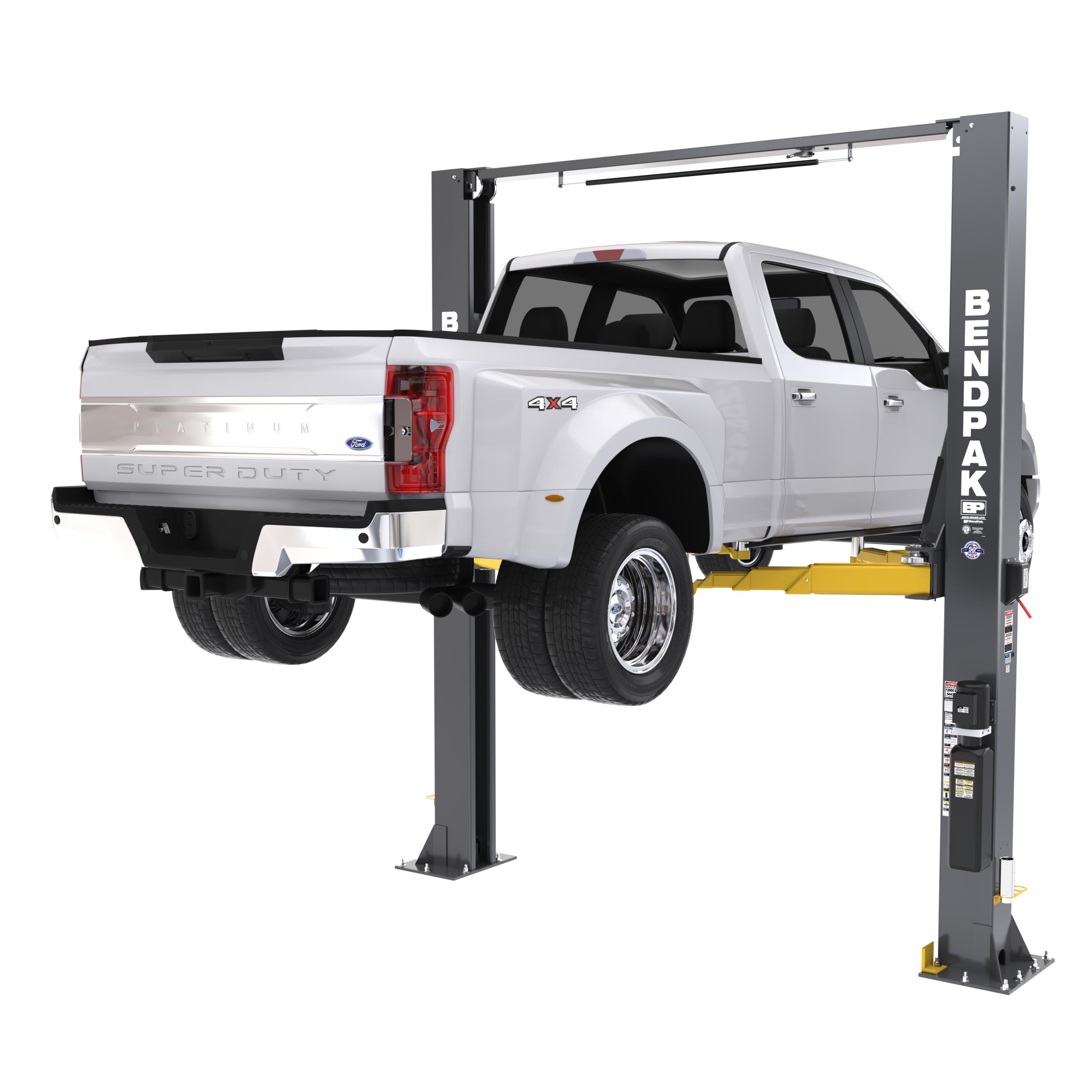

12,000-lb. Capacity

12,000-lb. Capacity

Built for heavier trucks, SUVs, EVs, and commercial service work. The 12APX gives shops a stronger AP Series platform than standard 10,000-lb. lift models.
ASARS Arm Security

ASARS Arm Security

The Automatic Swing Arm Restraint System provides 360-degree grip and more than 2,000 lbs. of side-force resistance. It helps keep arms positioned during demanding service.

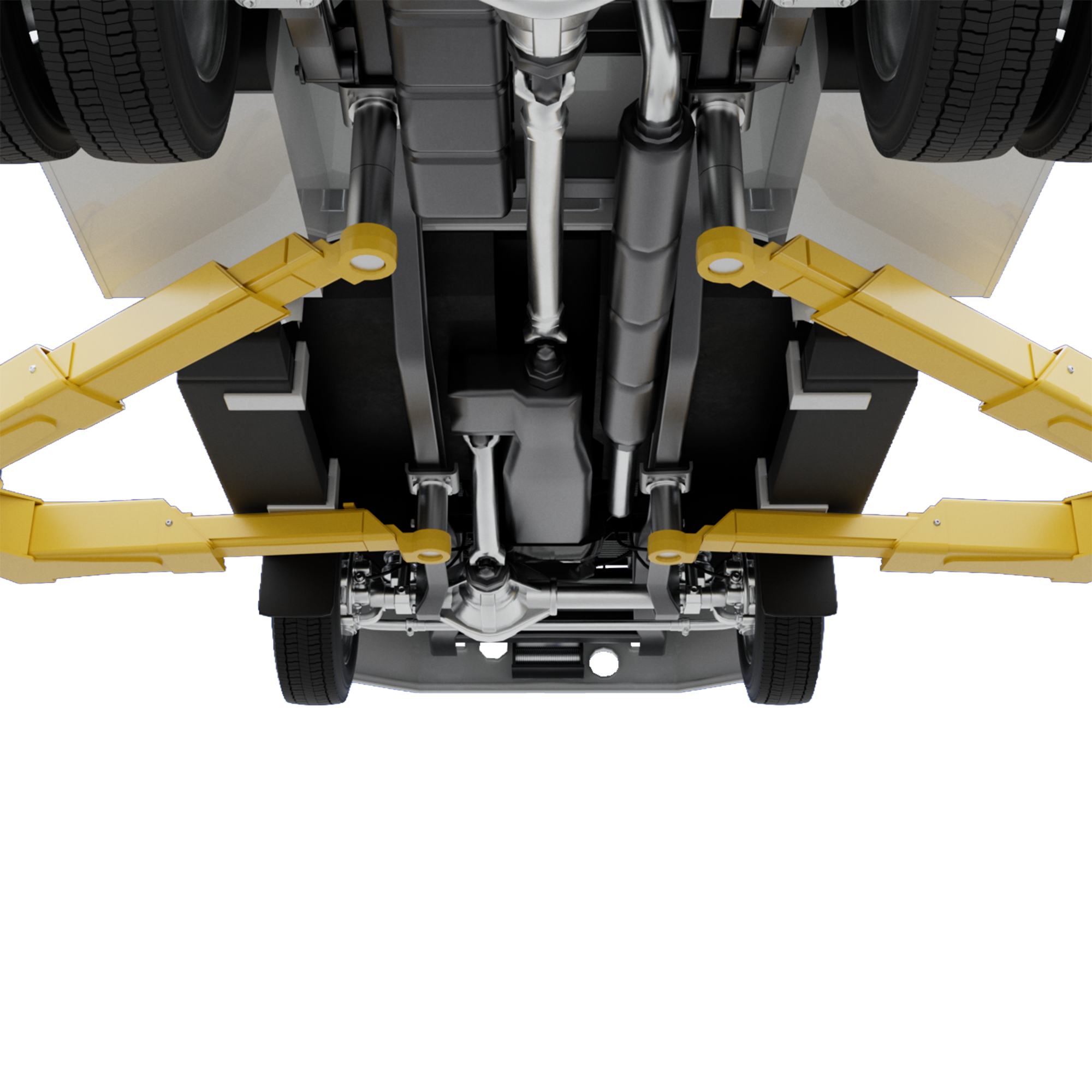

High-Rise Access

High-Rise Access

The high-rise design gives technicians more room to work beneath raised vehicles. It is a smart fit for shops that need stronger lifting and better under-car access.

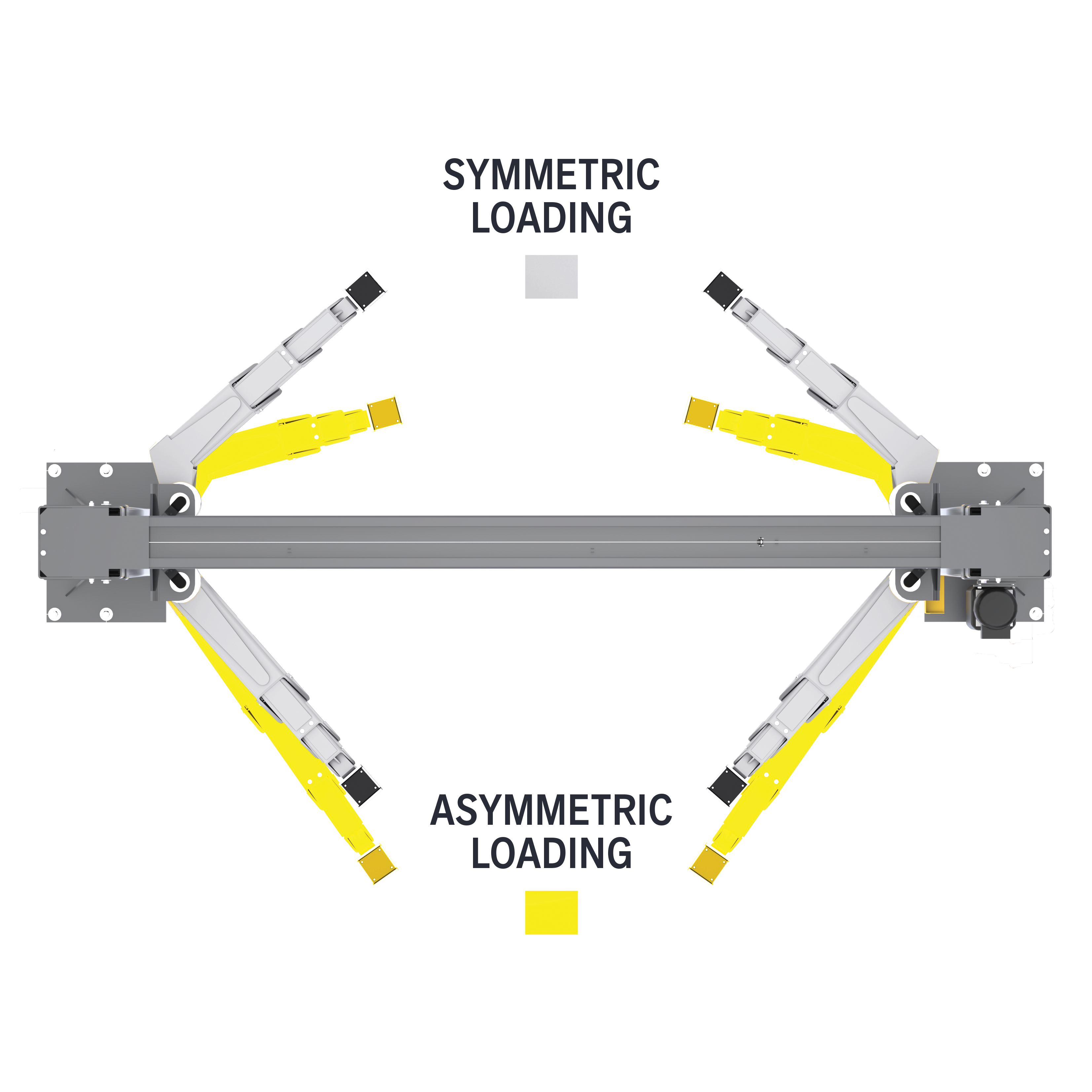

Bi-Metric™ Flexibility

Bi-Metric™ Flexibility

Symmetric and asymmetric loading options help shops adapt to different vehicle layouts. Technicians can position vehicles based on service access and balance needs.
Low-Pro™ Reach

Low-Pro™ Reach

Triple-telescoping Low-Pro™ arms extend farther and retract shorter for more lift-point options. They help reach low chassis-height vehicles and modern frame layouts.

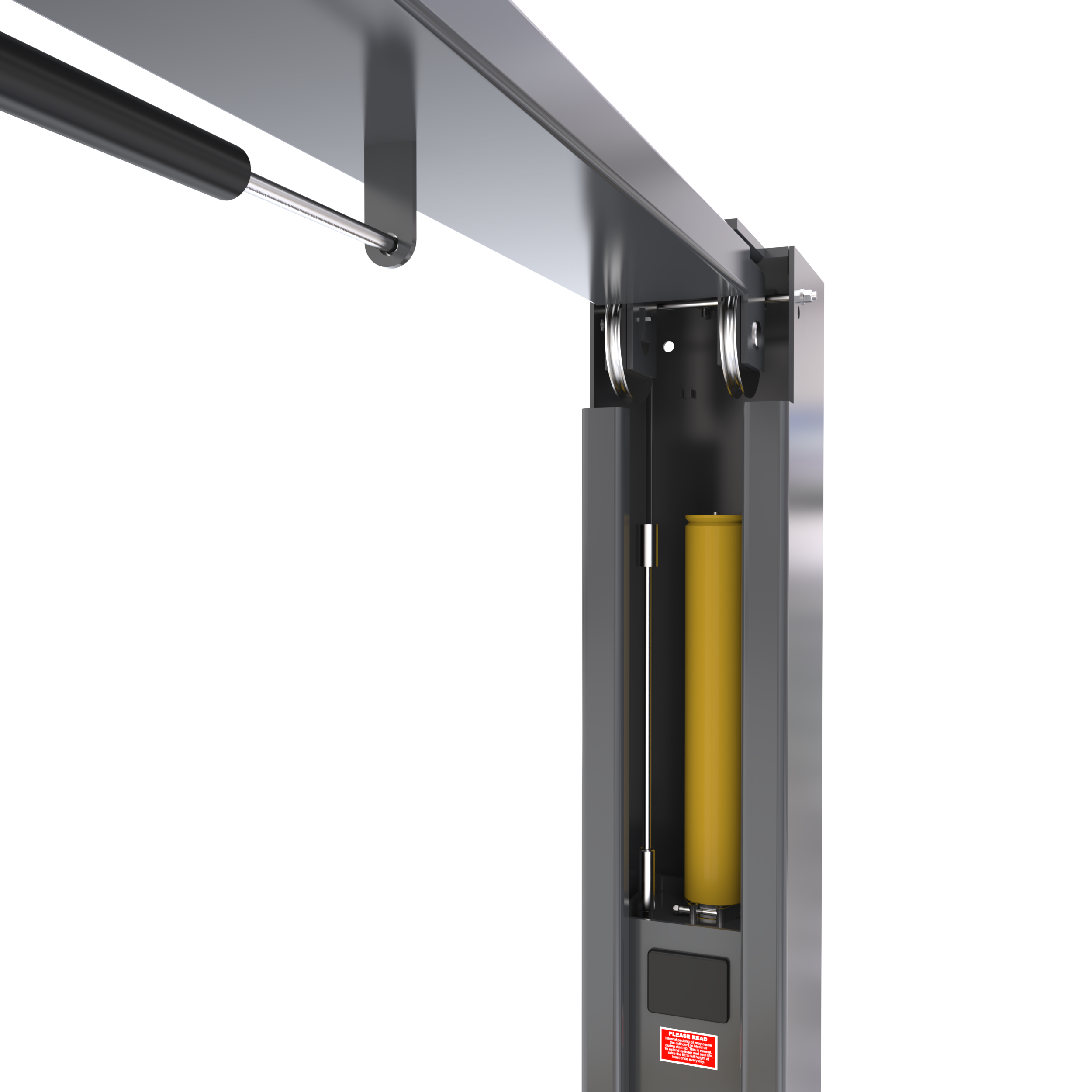

Direct-Drive Power

Direct-Drive Power

Dual hydraulic direct-drive cylinders deliver smooth lifting performance with fewer wear points than chain-over-roller systems. It is built for serious daily shop use.

Recommended Add-ons

Accessories for the BendPak 12APX Two-Post Car Lift - 12,000-lbs. Capacity - High-Rise

LiteStix LS36SMDX rechargeable underhood work light with 1,200-lumen output
LITESTIX LS36SMDX Rechargeable Underhood Work Light
$126.00
LEARN MORE
Ergochair ERGO-RS Ergonomic Height-Adjustable Creeper Seat
Ergochair ERGO-RS Ergonomic Height-Adjustable Creeper Seat
$700.00
LEARN MORE
Ranger RD-9G Upright Portable Oil Drain - 9-Gallon
Ranger RD-9G Upright Portable Oil Drain - 9-Gallon
$120.00
LEARN MORE
BendPak 60mm pin adapter holder kit for two-post lift accessories
BendPak Adapter Holder Kit for 60mm Pin Adapters - Pair
$80.00
LEARN MORE
BendPak super-wide frame cradle pad with 60 mm pin for secure lift contact.
BendPak Super Wide Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 2
$256.00
LEARN MORE
BendPak 60 mm pin frame cradle pad set for two-post lift vehicle contact points.
BendPak Wide Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 2
$196.00
LEARN MORE
BendPak 60mm frame cradle pads for secure frame engagement on compatible two-post lifts
BendPak Standard Frame Cradle Pads for Two-Post Lifts - 60mm Pin - Set of 4
$270.00
LEARN MORE
BendPak 60 mm pin extra-tall adapters with 240 mm height for vehicle lifting
BendPak Extra Tall Truck and Van Adapters for Two-Post Lifts - 240mm - 60mm Pin - Set of 2
$250.00
LEARN MORE
BendPak 60 mm pin super-tall 190 mm height adapter for vehicle lift contact
BendPak Super Tall Truck and Van Adapters for Two-Post Lifts - 190mm - 60mm Pin - Set of 2
$196.00
LEARN MORE
BendPak 60 mm pin tall adapters with 125 mm height for two-post lifts
BendPak Tall Truck and Van Adapters for Two-Post Lifts - 125mm - 60mm Pin - Set of 4
$206.00
LEARN MORE
BendPak medium 60 mm two-post lift adapters in a set of four.
BendPak Medium Truck and Van Adapters for Two-Post Lifts - 63mm - 60mm Pin - Set of 4
$196.00
LEARN MORE
BendPak 60 mm pin low adapter set of four with 56 mm height
BendPak Low Truck and Van Adapters for Two-Post Lifts - 56mm - 60mm Pin - Set of 4
$176.00
LEARN MORE
BendPak 60 mm pin telescoping screw pad assembly with Tuf-Pad contact surface
BendPak Telescoping Screw Pads for Two-Post Lifts - 60mm Pin - Set of 4
$376.00
LEARN MORE
BendPak 60 mm pin drop-in lift pad assembly with Tuf-Pad contact surface
BendPak Lift Pad Assemblies for Two-Post Lifts - 60mm Pin - Set of 4
$286.00
LEARN MORE
BendPak 60 mm pin drop-in steel lift pad set of four for heavy-duty lifts
BendPak Steel Lift Pads for Two-Post Lifts - 60mm Pin - Set of 4
$250.00
LEARN MORE
BendPak round polyurethane Tuf-Pad set of four for vehicle lift contact protection
BendPak Round Polyurethane Tuf-Pads for Two-Post Lifts - Set of 4
$80.00
LEARN MORE
BendPak slip-over square rubber pads set of four for lift arm contact protection
BendPak Square Polyurethane Lift Pads for Two-Post Lifts - Set of 4
$126.00
LEARN MORE
BendPak slip-over round pinch weld pucks set of four for vehicle lift points
BendPak Round Pinch Weld Pucks for Two-Post Lifts - Set of 4
$180.00
LEARN MORE
BendPak slip-over round pinch weld pads set of four for car lift adapters
BendPak Round Pinch Weld Pads for Two-Post Lifts - Set of 4
$166.00
LEARN MORE
BendPak wheel spotting dish kit for accurate vehicle positioning
BendPak Wheel Spotting Dish Kit
$96.00
LEARN MORE
BendPak MLS-18 Mobile Jack Stand - 18,000-lbs. Capacity
BendPak MLS-18 Mobile Jack Stand - 18,000-lbs. Capacity
$1,325.00
LEARN MORE
BendPak WSA-100 air electric work station for compatible lift models
BendPak WSA-100 Air-Electric Workstation
$416.00
LEARN MORE
Ranger RWS-200WL portable electric wheel lift with 200-lb. capacity for tire service.
Ranger RWS-200WL Off-Center High-Speed Tire and Wheel Lift
$1,500.00
LEARN MORE

Specifications

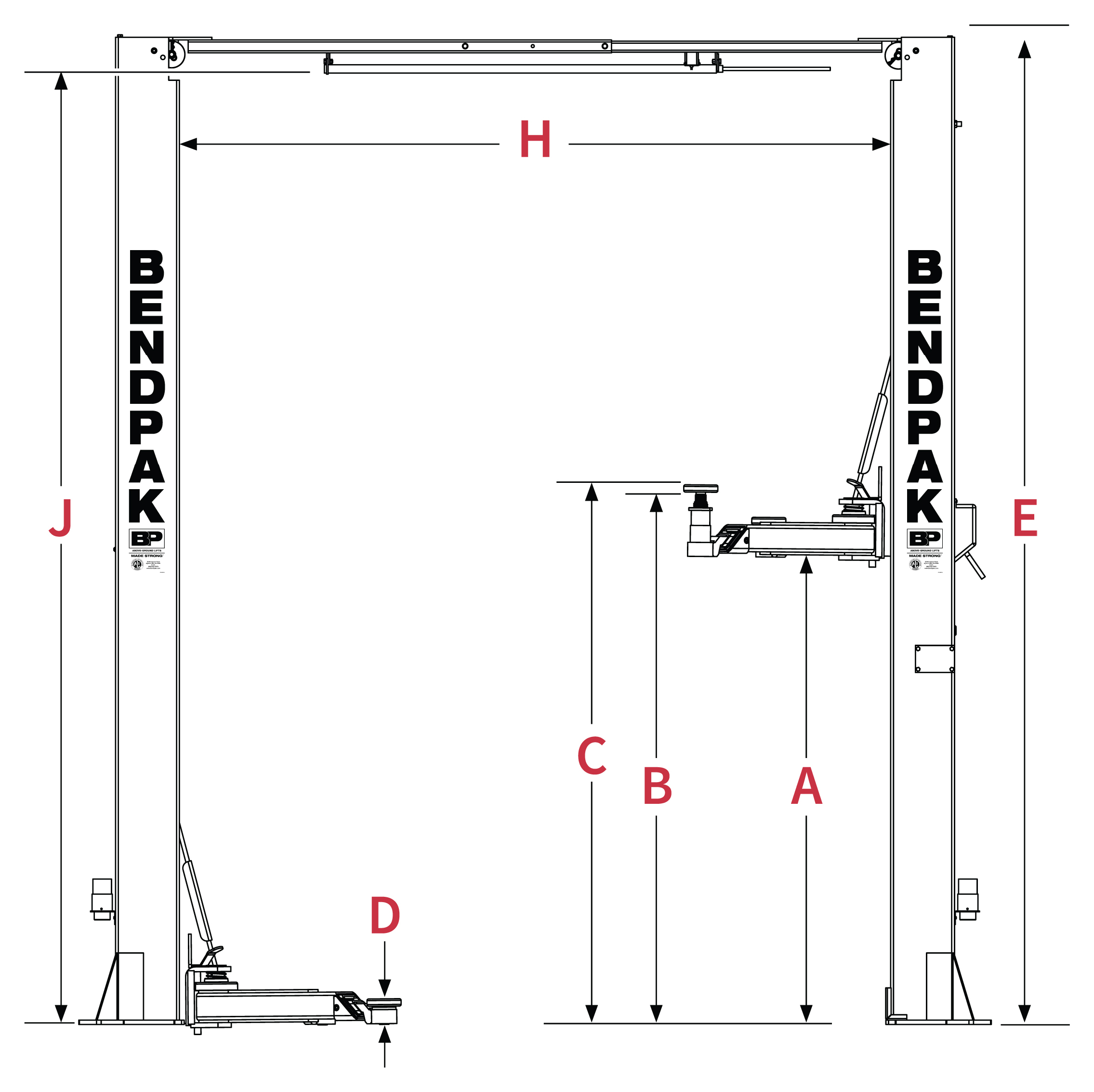

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
12000 lb
Max Capacity Per Arm
3000 lb

Rise

A Rise
76 in
C Max Lifting Height with Pad
79.25 in
D Min Lifting Height with Pad
4.25 in
Lifting Time
68 seconds

Outside Dimensions

E Height
169 in
F Width
156 in
G Outside Columns
143 in

Inside Dimensions

H Inside Columns
120 in
I Drive-Thru Clearance
103 in
J Floor to Overhead Switch
163.5 in

Arms and Pads

K Front Arm Reach Min
26 in
K Front Arm Reach Max
55.25 in
L Rear Arm Reach Min
29.25 in
L Rear Arm Reach Max
60 in

Power Unit and Voltage

Horsepower
5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
81 dB

Shipping and Delivery

Shipping Dimensions
29 x 175 x 34 in
Shipping Weight
2760 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
