BendPak 10AP-168 Two-Post Car Lift - 10,000-lbs. Capacity - 168-in. Extended Height
IN STOCKSKU 5175305
$6,595.00
Flexible business financing available through Navitas.
Extended-Height Flex for Taller Service Bays
The BendPak 10AP-168 Two-Post Car Lift gives professional shops the core AP Series lifting platform in a taller 168-inch overall height configuration. With 10,000 lbs. of lifting capacity, adaptable clearfloor installation, adjustable width, Low-Pro™ arms, Bi-Metric™ arm positioning, and advanced BendPak safety systems, the 10AP-168 is built for technicians who need more overhead clearance without stepping out of the 10AP family.
This model is a strong choice for repair shops that service a wide mix of passenger vehicles, trucks, SUVs, EVs, and taller work. The expanded height gives mechanics more room to work comfortably while preserving the flexibility that makes the 10AP Series valuable: wide or narrow drive-thru setup, symmetric or asymmetric loading, triple-telescoping arms, and professional-grade frame engagement.

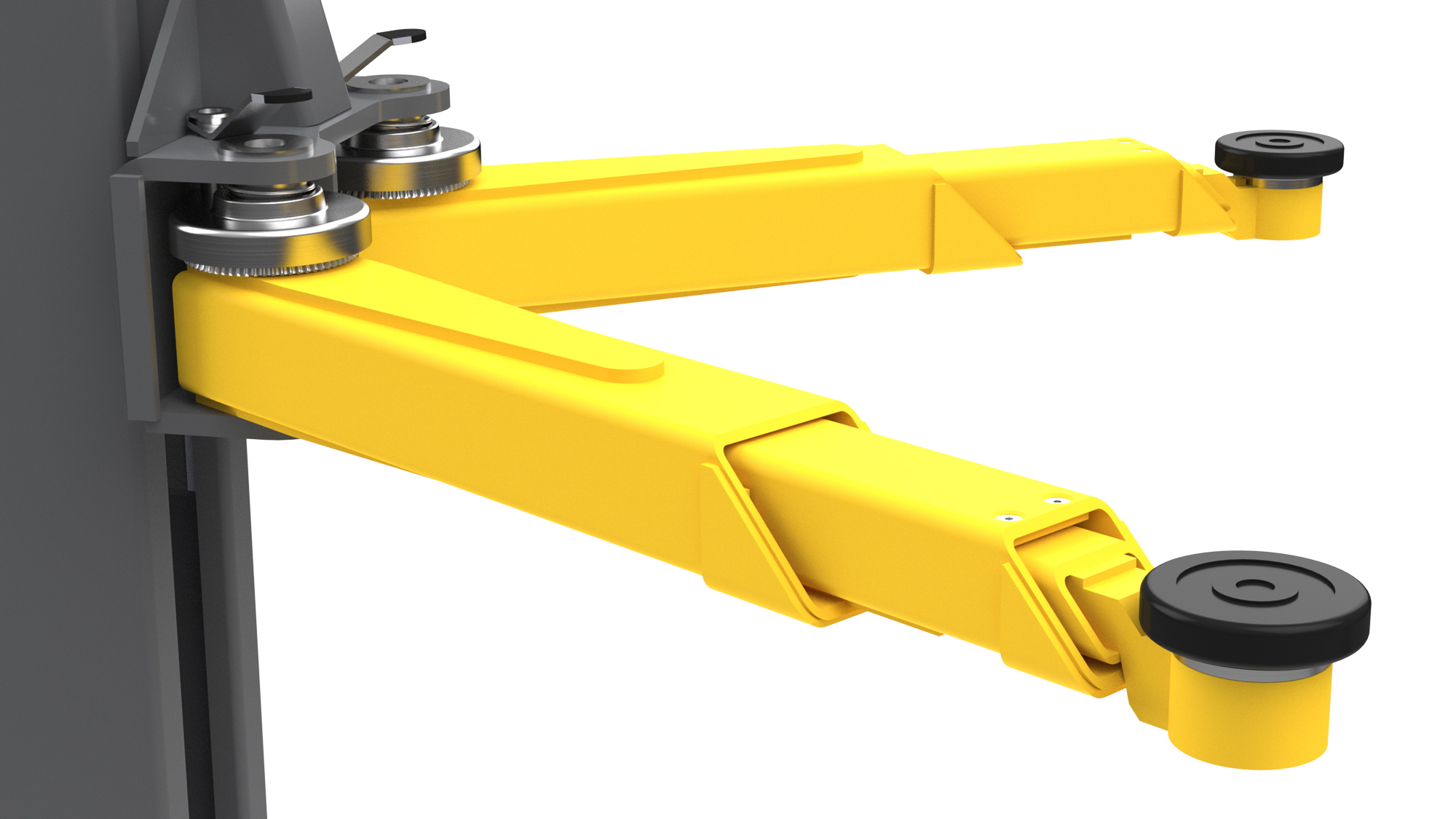

Automatic Swing Arm Restraints for Heavy Vehicle Service
The 10AP-168 uses BendPak’s Automatic Swing Arm Restraint System, or ASARS, to help prevent unplanned arm movement during lifting and service. This patented forged-steel system provides a full 360 degrees of load-holding grip and is engineered to withstand more than 2,000 lbs. of side force when vehicles shift or load balance changes during repair.
That matters on modern vehicles, especially when technicians remove drivetrain components or service heavier EVs, trucks, vans, and SUVs. The system requires minimal operator involvement and includes a quick-release lever for fast arm adjustment, giving shops stronger arm control without slowing down the workflow.

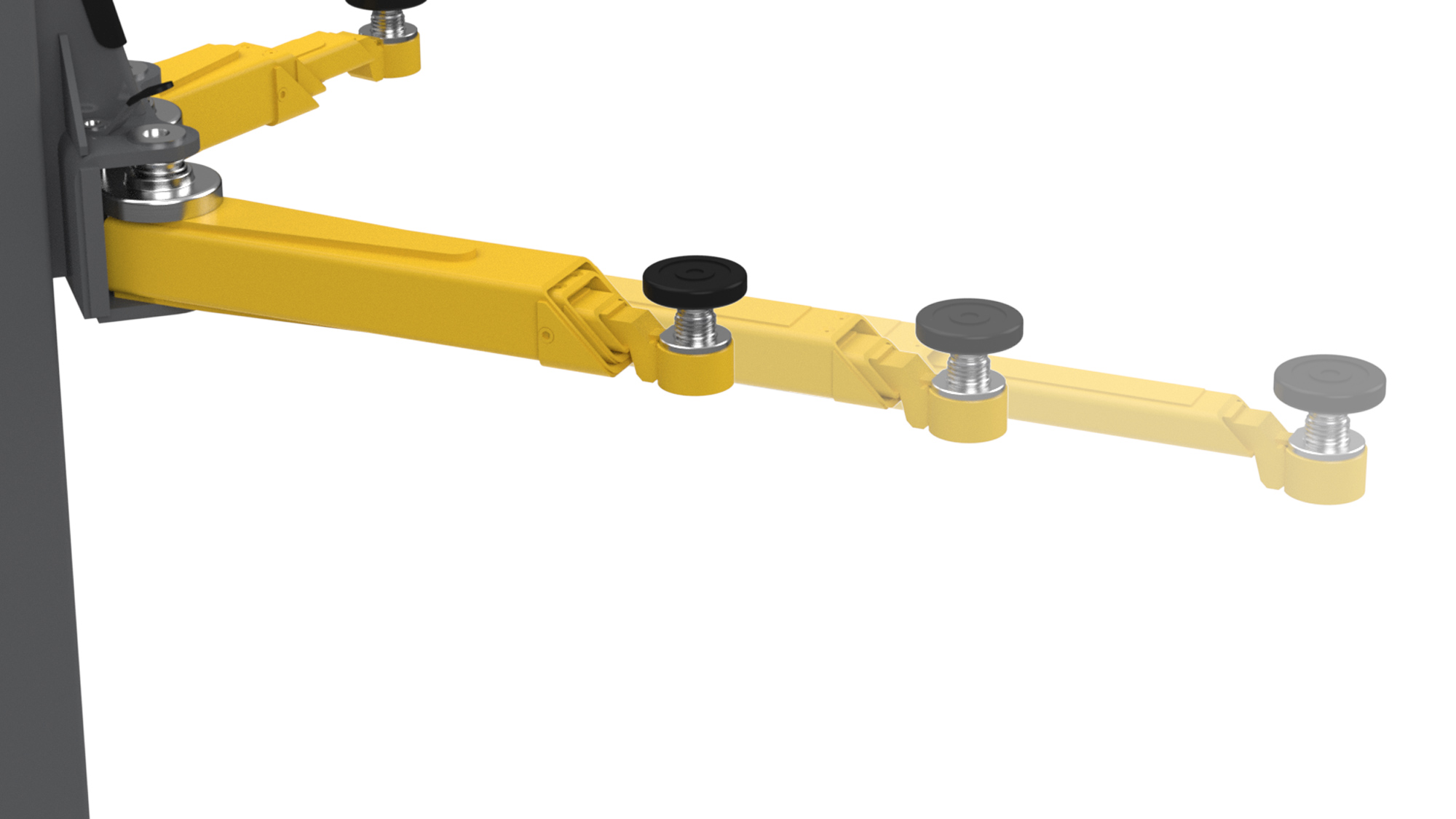

Triple-Telescoping Low-Pro Arms for Better Lift-Point Access
Patented triple-telescoping nested swing arms give the 10AP-168 a wider reach range than traditional two-post lift arms. The arms retract shorter and extend farther, helping technicians reach factory lifting points on compact cars, larger vehicles, low-clearance platforms, and modern EV layouts with more precision.
BendPak Low-Pro™ arm construction adds dropped-end pad receivers and shorter-profile telescoping channels for better access under lowered chassis-height vehicles. Combined with Bi-Metric™ arm geometry, the lift can support both symmetric and asymmetric loading, making one lift more useful across a broader vehicle mix.
Professional Lift Operation with Durable AP Series Engineering
The 10AP-168 is engineered for daily shop use with dual hydraulic direct-drive cylinders, an electric hydraulic HVLP power system, oversized tall carriages, self-lubricating Dura-Glide UHMW polyethylene bearings, and high-strength galvanized equalizing cables. Safety locks in each column are spaced every 3 inches, and the single-point safety release keeps descent control simple from the operator side.
Double-telescoping screw pads with polyurethane contact surfaces help technicians level vehicles securely, while optional stackable adapters support additional pad height when needed. The durable powder coat finish, padded overhead shutoff bar, expandable top beam, and ALI certification round out a two-post lift built for serious professional service.

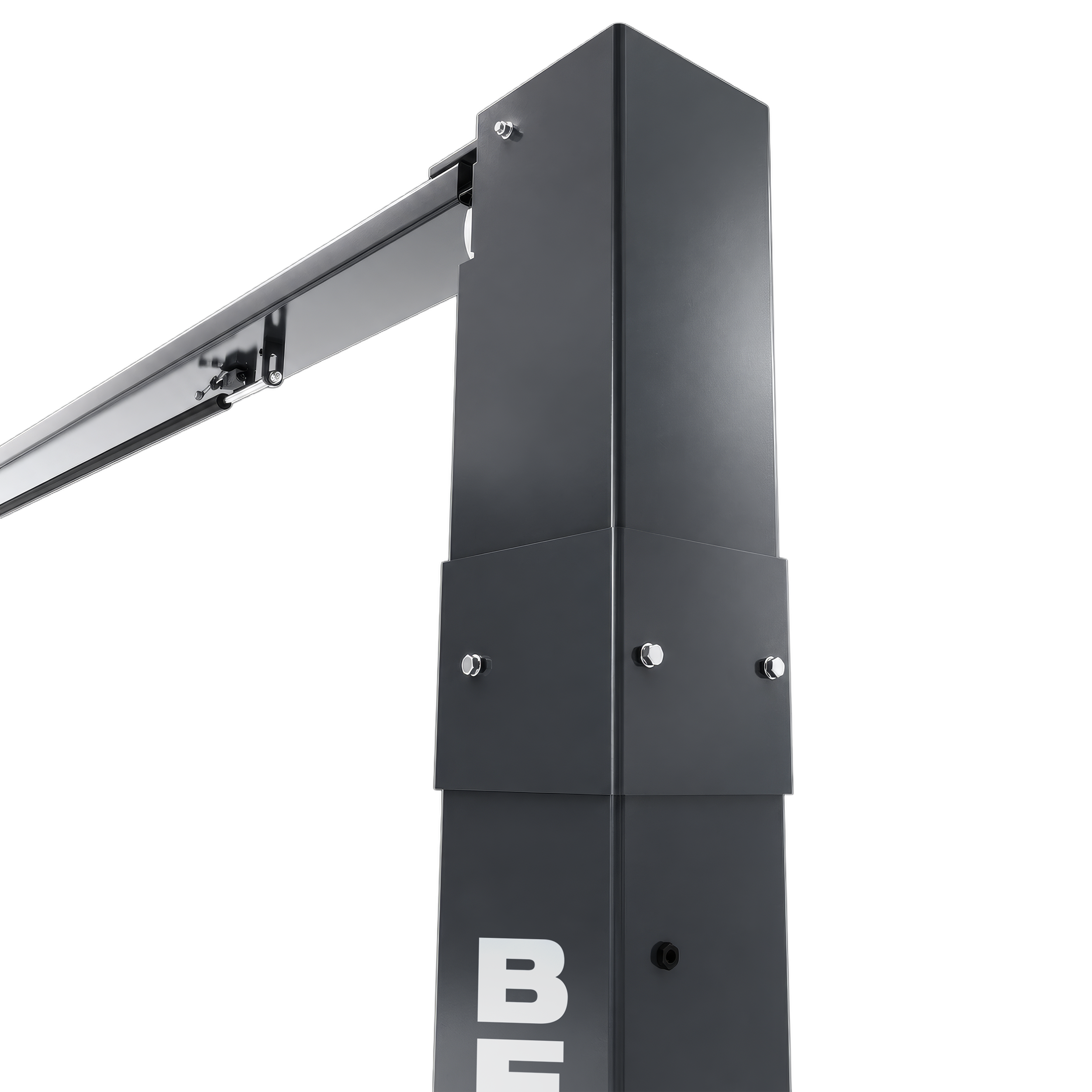

168-Inch Overall Height
Extended overhead height gives technicians more room to work comfortably while keeping the 10AP platform, arm design, and safety systems intact.

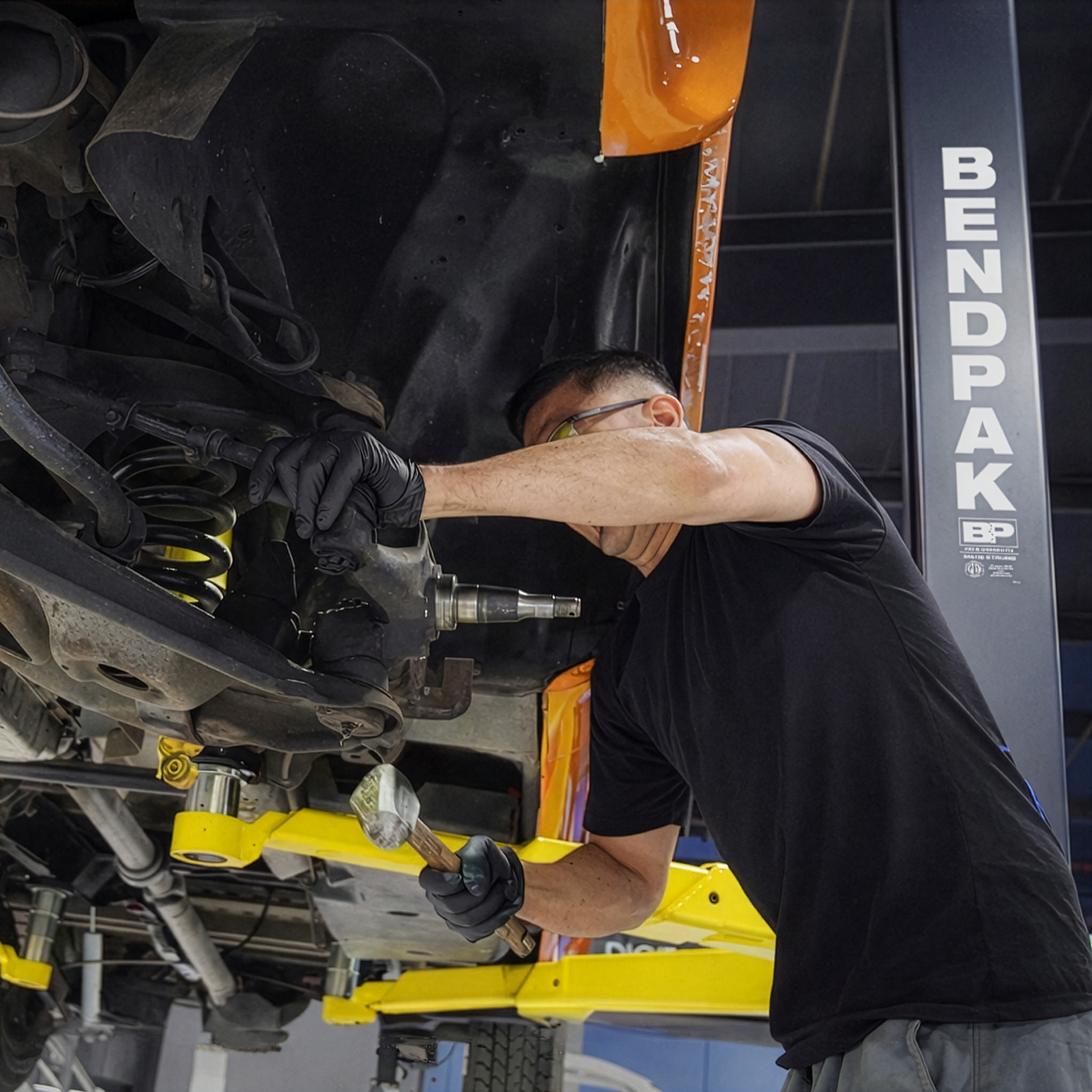

10,000-lb. Capacity
Built for professional shops that service cars, trucks, SUVs, vans, and modern EVs within the rated lifting capacity.
ASARS Arm Restraints
The patented Automatic Swing Arm Restraint System provides 360-degree grip and more than 2,000 lbs. of side-force resistance.

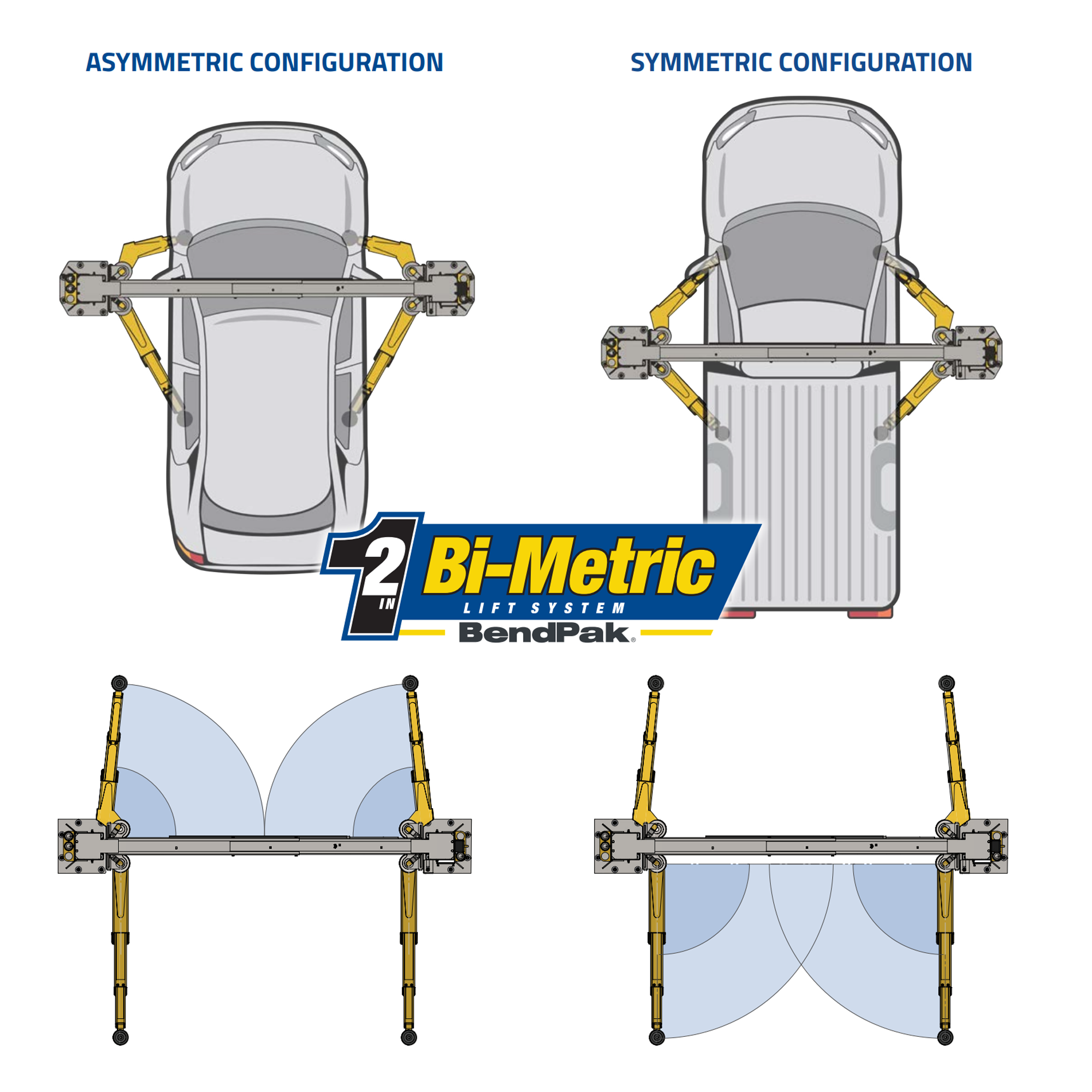

Bi-Metric™ Arms
Symmetric and asymmetric loading capability helps shops adapt to different vehicle layouts without changing lift arms.
Low-Pro™ Arm Access
Dropped-end pad receivers and low-profile telescoping channels help reach lift points on lower chassis-height vehicles.

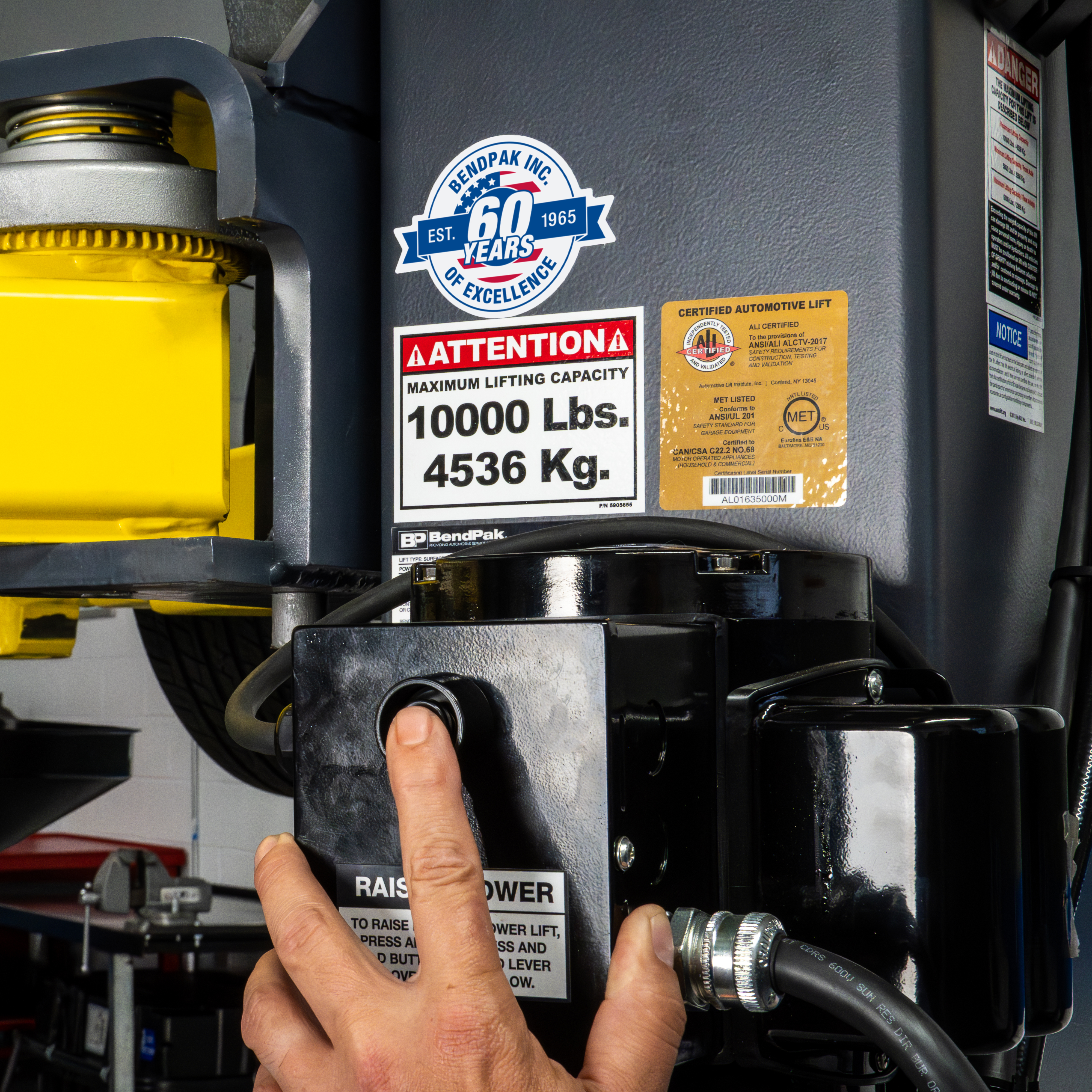

ALI Certified
Certified lift design supports professional shop confidence, safety expectations, and daily service reliability.
