Ranger RS-500DS Stainless Steel Dual-Heater Parts Washer
IN STOCKSKU 5155051
$14,895.00
Flexible business financing available through Navitas.
Stainless Steel Spray Wash Power for Heated Parts Cleaning
The Ranger RS-500DS Stainless Steel Spray Wash Cabinet gives shops the heated aqueous cleaning performance of the RS-500D platform with the added durability and appearance of stainless steel construction. Built for professional parts cleaning, automotive service, fleet maintenance and repair operations, this dual-heater parts washer is designed to remove grease, oil, dirt and grime from components without relying on harsh solvents.
The RS-500DS is built around a 50-gallon tank and a cabinet designed for convenient loading, strong spray coverage and long service life. Its stainless steel construction helps resist rust and wear in demanding shop environments, while the full-opening octagonal door, stainless steel nozzles, oil skimmer and contamination-control features make it a premium choice for shops that want cleaner operation and easier maintenance.

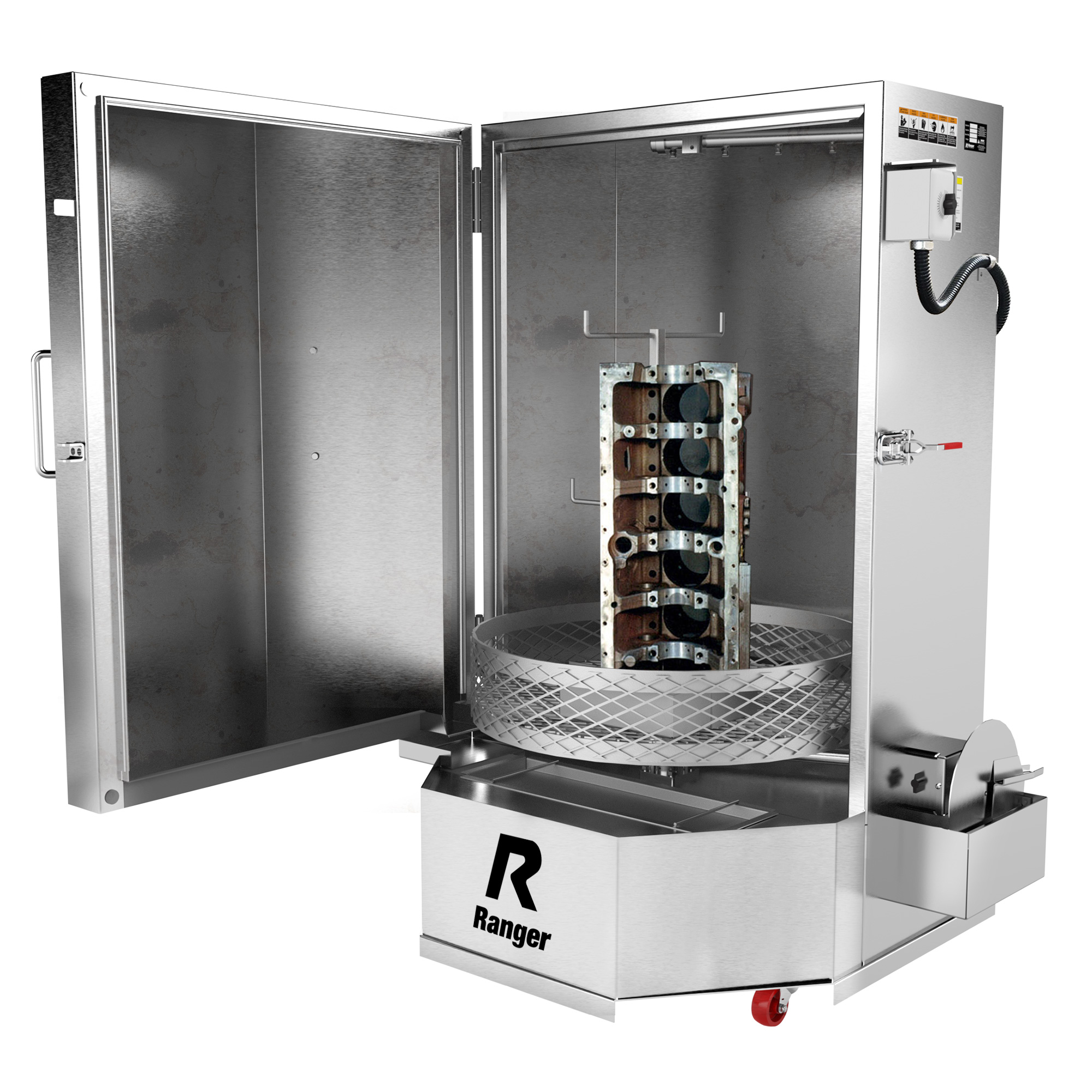

Stainless Steel Construction with 500-lb. Parts Support
The RS-500DS uses heavy-duty stainless steel construction to help resist rust while standing up to frequent shop use. The old source describes this model as supporting a 500-lb. load, giving technicians the confidence to clean heavier components while still using a cabinet sized for standard professional service bays.
A quick-release door latch, stainless steel handles and full-opening door help simplify loading and unloading. The neoprene door seal creates an edge-to-edge seal that helps keep steam and water inside the cabinet, improving water retention and reducing the mess that can come from repeated wash cycles.
Dual Heaters and Multi-Directional Stainless Steel Spray Nozzles
Dual water heaters help the RS-500DS heat cleaning solution quickly and maintain better washing efficiency during service. The secondary heater keeps detergent solution primed, while the larger primary heater activates during wash cycles to raise the solution temperature for more effective cleaning.
Multi-directional stainless steel spray nozzles attack dirt and grime from multiple angles. The nozzles are designed to resist corrosion, clogging and deterioration while delivering a strong spray pattern that helps clean parts more consistently than simple drilled-hole spray systems.

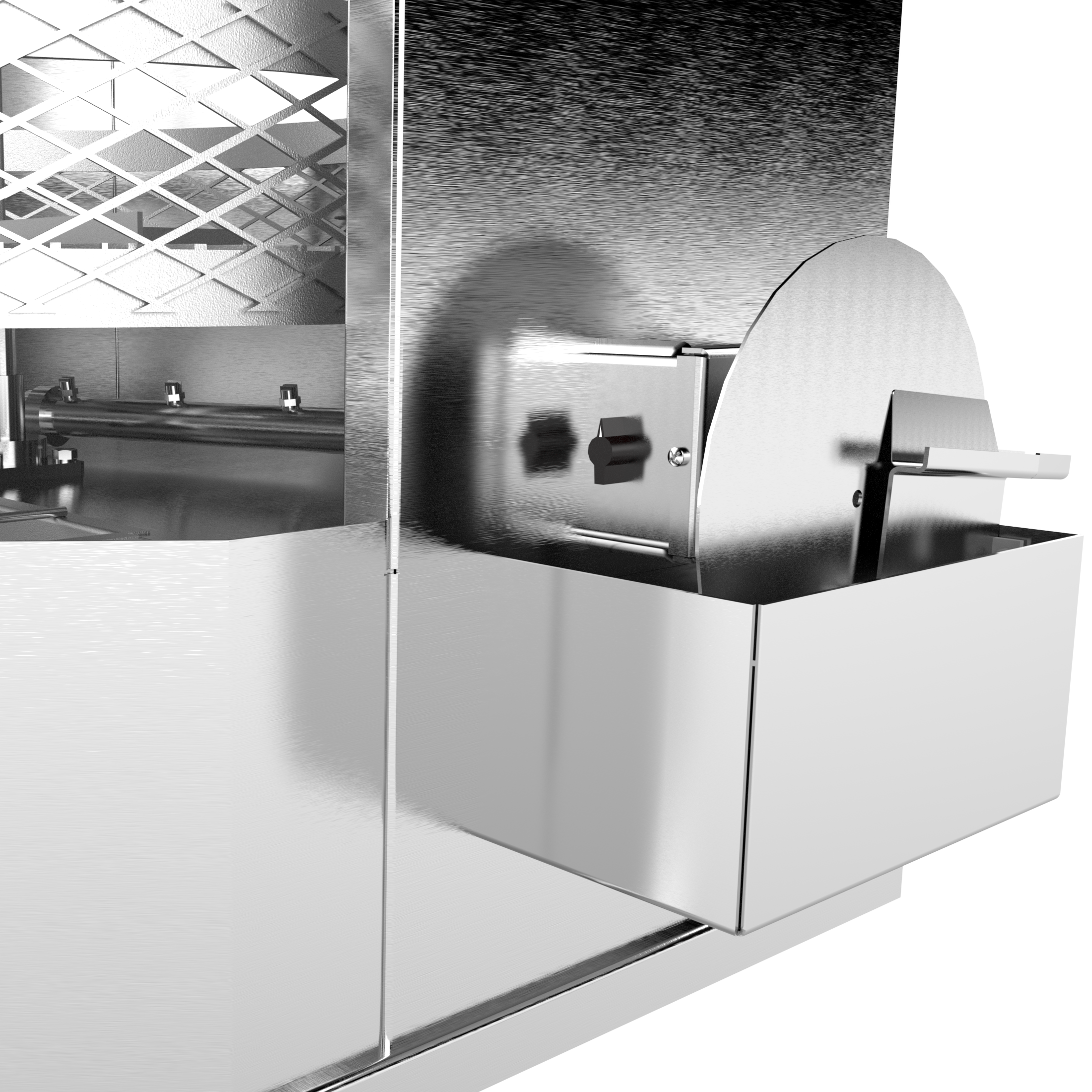

Oil Skimmer, Low-Water Shutoff and Easier Maintenance
A stainless steel oil skimmer separates oil and grime from the cleaning solution, directing contaminants outside the cabinet into a holding container. A removable filter basket traps particles larger than 1/8 inch and gives technicians easier access to the tank for routine maintenance.
Automatic low-water shutoff helps protect the heaters and pump when water levels drop too low. A sealed NEMA-rated electrical panel, contamination-proof welds, gasket-free door design and friction-drive turntable system all support cleaner operation, longer equipment life and more dependable parts washing performance.
Stainless Steel Cabinet
Rust-resistant stainless steel construction helps the RS-500DS stand up to demanding shop conditions. It is a premium upgrade for teams that want durability and a cleaner cabinet appearance.
50-Gallon Tank
The 50-gallon tank provides the cleaning solution capacity needed for regular heated parts washing. It gives shops useful capacity without stepping up to the larger RS-750 cabinet size.
500-lb. Parts Support
RS-500DS supports up to 500 lbs. of parts. That added strength helps technicians clean heavier components with confidence.
Dual Heater System
Dual heaters help bring the solution up to temperature quickly and keep it ready for effective cleaning. Hotter solution helps break down grease, oil and grime more efficiently.
Oil Skimmer System
The stainless steel oil skimmer separates oil from the detergent solution and routes contaminants to an outside container. This helps extend detergent life and simplify maintenance.
Automatic Low-Water Shutoff
A low-water shutoff switch cuts power when levels become unsafe. This helps prevent pump-seal damage and heater burnout.
Recommended Add-ons
Accessories for the Ranger RS-500DS Stainless Steel Dual-Heater Parts Washer
Specifications
Capacity
Dimensions
Performance
Construction
Power and Electrical
Shipping and Delivery
