BendPak RJ6W 4-Post Bridge Jack - 6,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175248
$2,425.00
BendPak RJ6W rolling bridge jack control detail for precise service positioning
Product 3D model preview

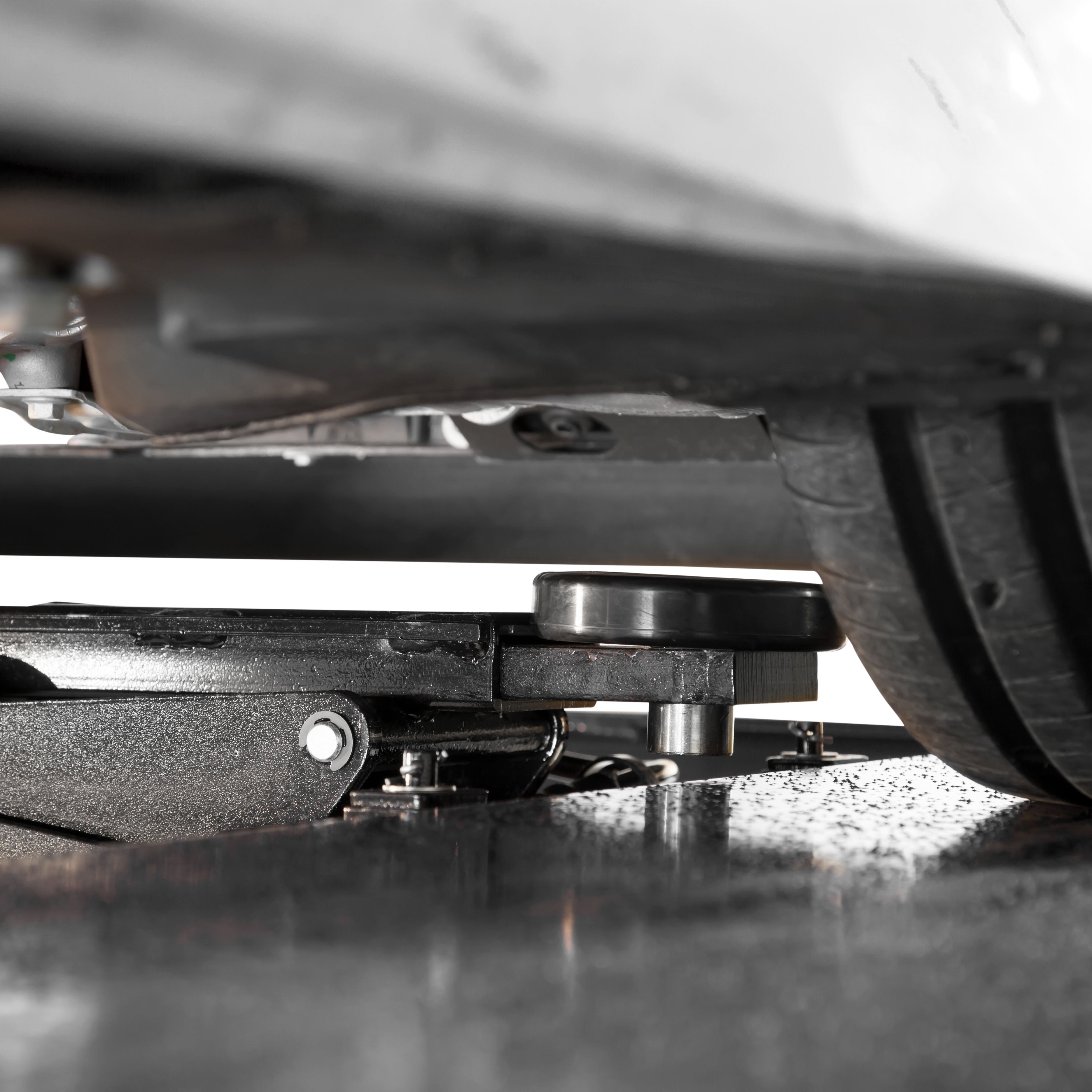

BendPak RJ6W rolling bridge jack under a sports car for wheel and undercarriage service.
BendPak RJ6W rolling bridge jack lifting a sports car for four-post lift service.

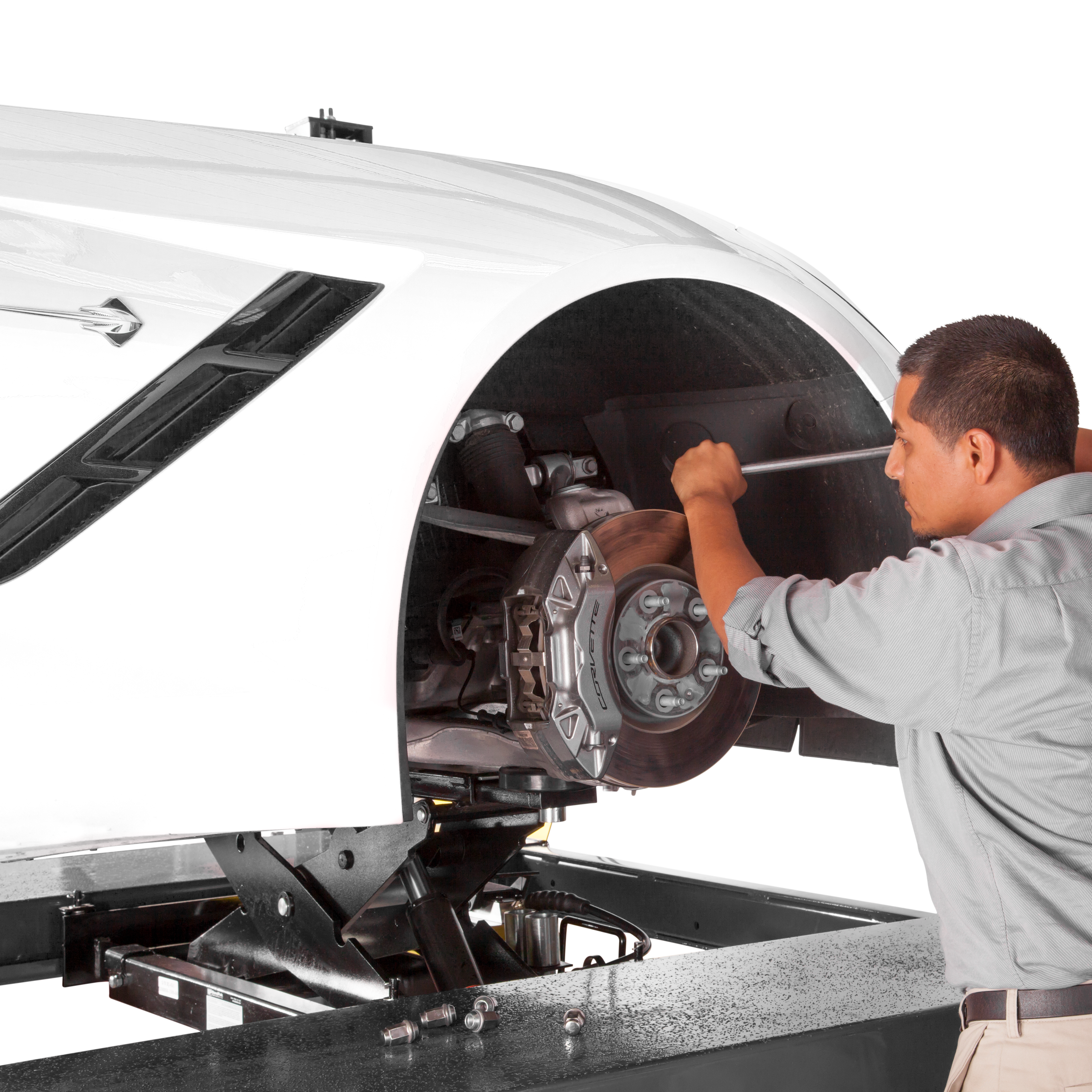

BendPak RJ6W rolling bridge jack supporting a sports car during brake pad service.

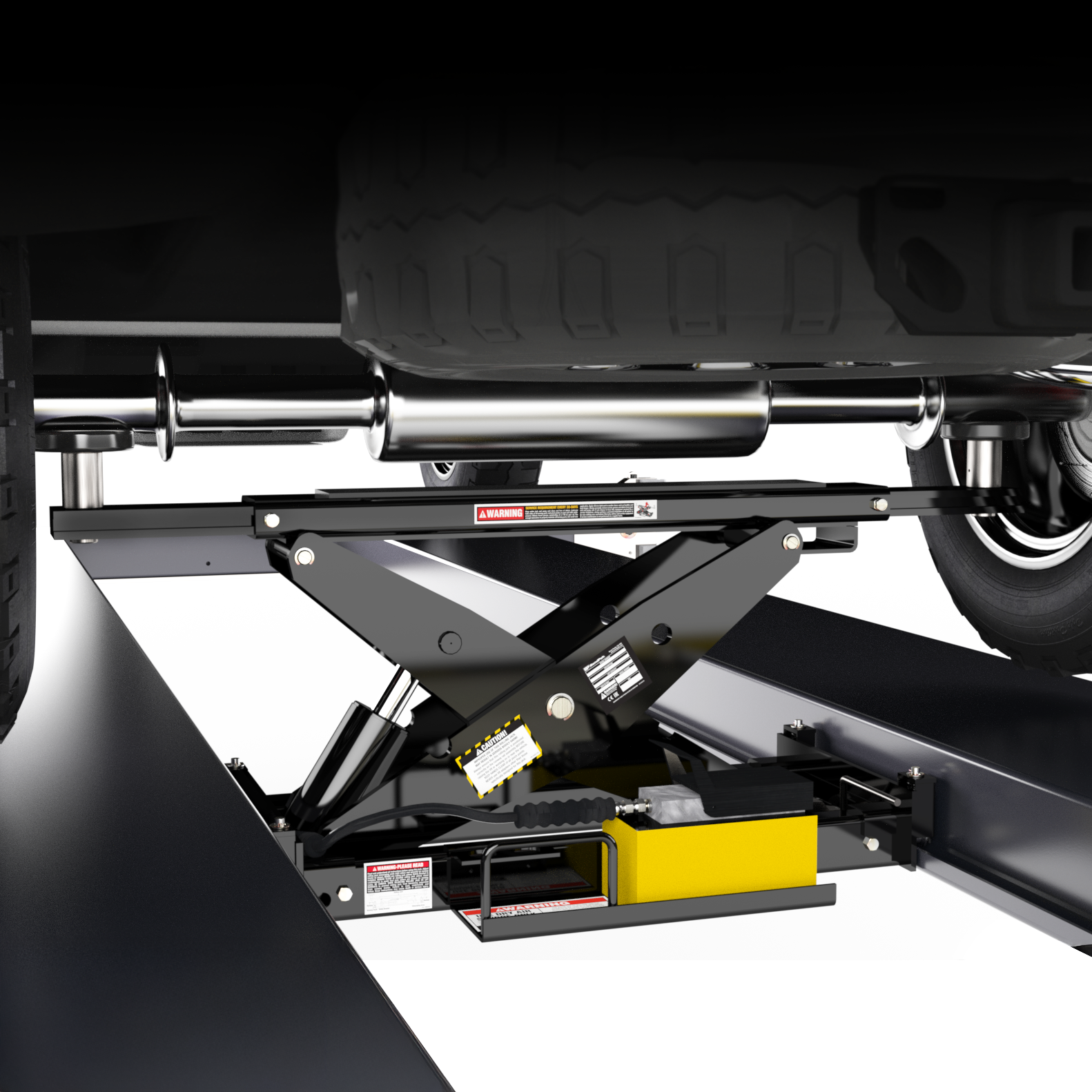

BendPak RJ6W easy-roll rolling bridge jack with 6,000-lb. capacity for four-post lifts.

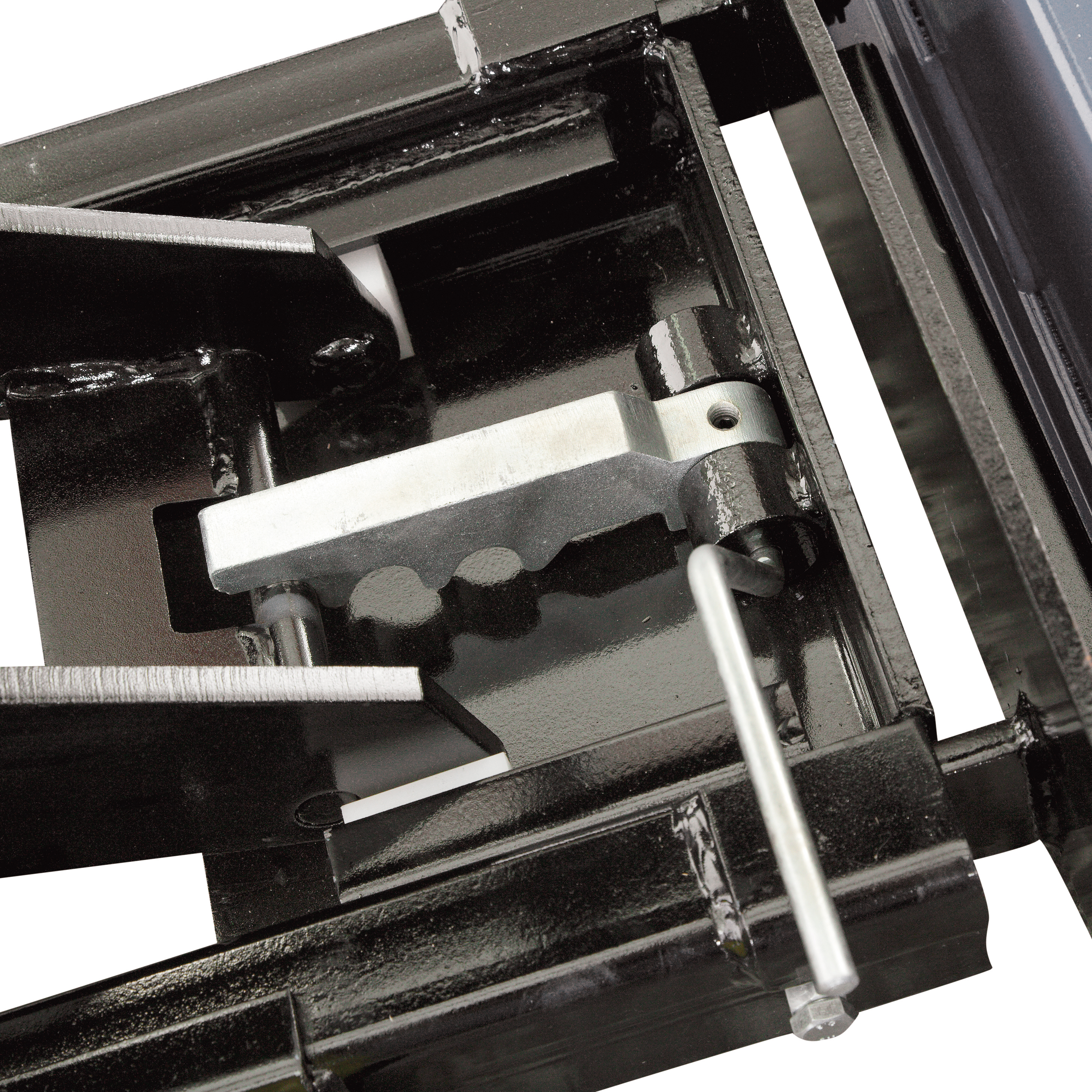

Mechanical safety locks on the BendPak RJ6W rolling bridge jack for controlled lifting support.

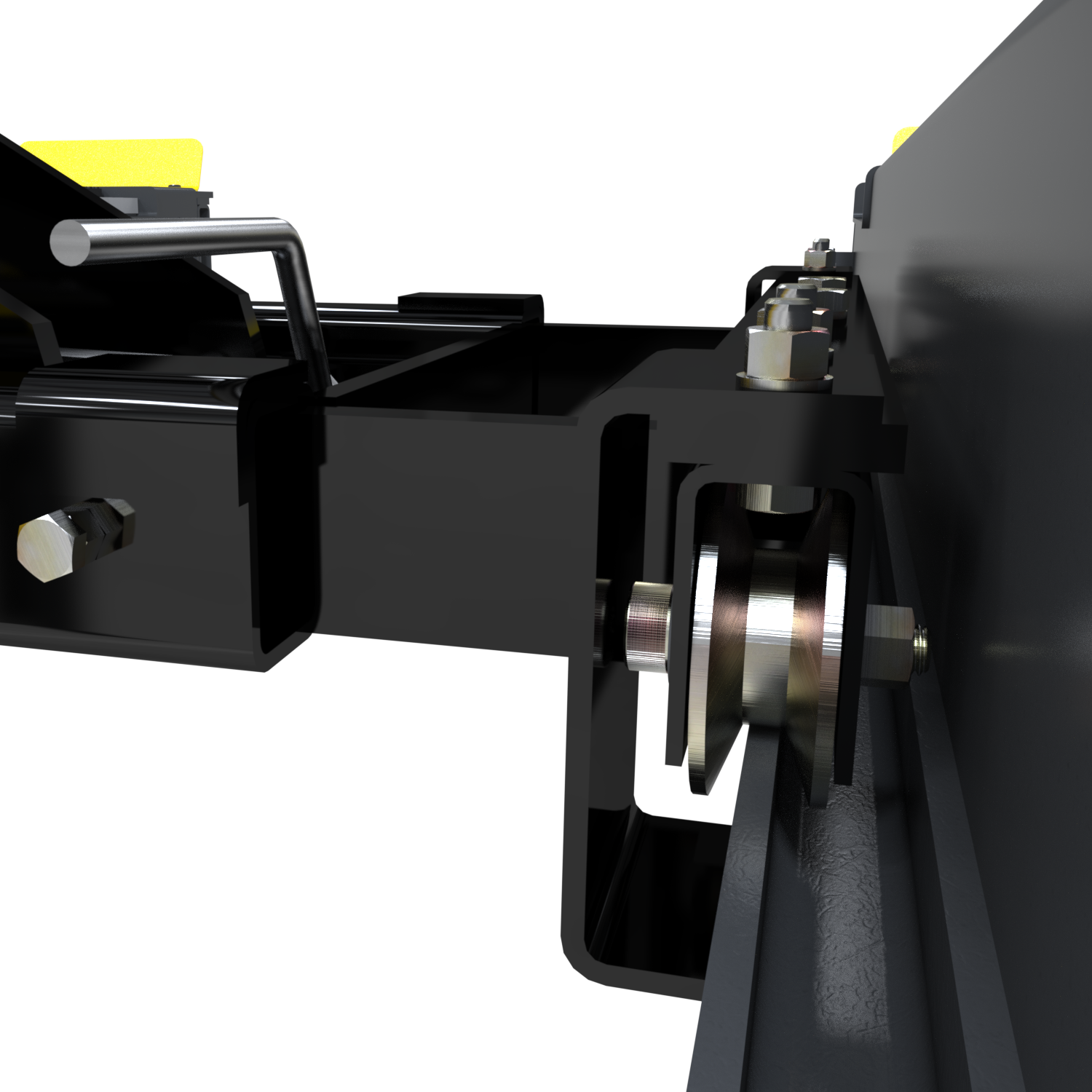

Easy-roll wheel detail on the BendPak RJ6W rolling bridge jack for four-post lift operation.
BendPak RJ6W rolling bridge jack air-hydraulic pump for four-post lift service work.

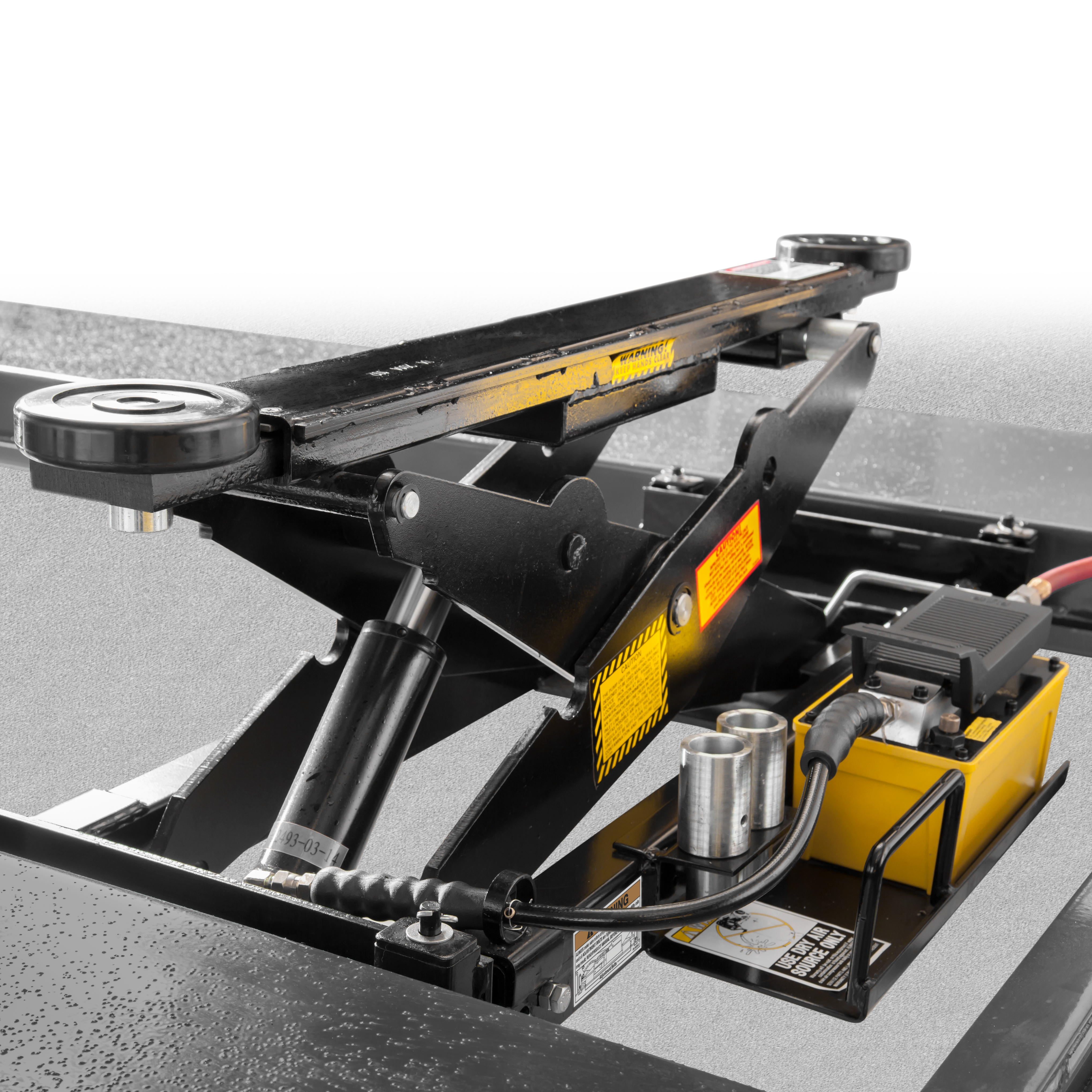

BendPak RJ6W easy-roll rolling bridge jack with 6,000-lb. capacity on four-post lift runways.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Rolling Bridge Jack / 6,000-lbs. Capacity / Easy-Roll Wheels

BendPak RJ6W 4-Post Bridge Jack - 6,000-lbs. Capacity
$2,425.00
6,000-lb. Rolling Bridge Jack Power for Four-Post Wheel Work

6,000-lb. Rolling Bridge Jack Power for Four-Post Wheel Work

The BendPak RJ6W Rolling Bridge Jack brings 6,000 lbs. of frame-engaging lift capacity to compatible four-post lifts, giving shops and garages the ability to perform wheel service without moving the vehicle to a different bay. It is built for users who want to lift the vehicle from the frame while the four-post lift handles overall vehicle positioning and runway support. An individual RJ6W is engineered to handle its rated load with confidence, but BendPak still makes the operating rule clear: never overload a single jack beyond its listed capacity. Used correctly, the RJ6W gives compatible lift owners a safer, more controlled way to get wheels off the runways for tires, brakes, suspension access, and undercarriage service.
Built for Compatible 12,000-lb. and Higher Four-Post Lifts

Built for Compatible 12,000-lb. and Higher Four-Post Lifts

The RJ6W is designed to roll along the runway channels on standard BendPak four-post lift models rated at 12,000 lbs. lifting capacity or greater. That makes it a natural choice for users stepping beyond the lighter-duty RJ45W range but not yet needing the 7,000-lb. or 9,000-lb. bridge jack models. This capacity position matters. The RJ6W is useful for shops with heavier passenger vehicles, light trucks, and mixed-service workloads where a lower-capacity bridge jack may not be the right answer, but a larger commercial truck bridge jack would be more than the job requires.

Easy-Roll Wheels, Rubber Pads, and Adapter Versatility

Easy-Roll wheels come standard and help the RJ6W glide through compatible runway channels for quick positioning under the vehicle. BendPak bridge jack rollers are made from hardened stainless steel and zinc plated for long-term durability in shop environments where equipment sees frequent movement. Durable rubber contact pads are included to engage the manufacturer-recommended frame lift points, and stackable adapters help increase reach for vehicles with higher undercarriages. Frame cradle pads are sold separately and are often necessary for wide-bodied frames, including many trucks and SUVs.
Easy-Roll Wheels, Rubber Pads, and Adapter Versatility
Air-Hydraulic Power with Automatic Lock Engagement

Air-Hydraulic Power with Automatic Lock Engagement

The RJ6W uses a high-pressure commercial-grade air-hydraulic pump mounted to the side of the bridge jack. The system requires 125 psi and 10 to 20 CFM, and a convenient foot pedal activates the jack so the vehicle can be raised to the desired height in seconds. Three lock levels help users match the jack height to the job. The locks engage automatically as the scissor arms rise and release together as the arms are lowered, giving technicians a practical balance of speed, control, and mechanical support during wheel-service work.
6,000-lb. Lift Capacity

6,000-lb. Lift Capacity

The RJ6W gives compatible four-post lifts a stronger frame-engaging option for wheel service, tire removal, brake work, and suspension access.
For 12,000-lb. Lifts and Up

For 12,000-lb. Lifts and Up

Designed for standard four-post lift models rated at 12,000 lbs. or greater, the RJ6W fits the middle of BendPak’s rolling bridge jack lineup.
Easy-Roll Runway Travel

Easy-Roll Runway Travel

Built-in rollers move through the lift runway channels, helping users position the bridge jack without wrestling it into place.
Rubber Lift Pads

Rubber Lift Pads

Included rubber pads engage the vehicle frame at recommended lift points while helping protect contact surfaces during operation.

Stackable Adapter Set

Adapters help reach taller undercarriages and make the RJ6W more useful across a broader range of vehicle profiles.
Automatic Lock Levels

Automatic Lock Levels

Three lock positions engage as the jack rises, giving users multiple working heights for common wheel-service tasks.

Specifications

Capacity

Lifting Capacity
6000 lb

Height

Pad Only
1.25 - 12 in
Pad + 2.75 Inch Adapter
4 - 14.75 in
Pad + 5.5 Inch Adapter
6.75 - 17.5 in

Reach

Support Base Width
36.25 - 47.25 in
Arm Reach
42 - 56 in

Performance

Lifting Time
55 seconds
Pump
Air/Hydraulic
Air Pressure
125 PSI
Max Operating Hydraulic Pressure
3,370 PSI

Shipping and Delivery

Shipping Dimensions
24 x 42 x 14 in
Shipping Weight
436 lb
Shipping Method
LTL
Offload Requirement
Liftgate
