BendPak RJ45W 4-Post Bridge Jack - 4,500-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175247
$2,350.00
BendPak RJ45W Easy-Roll bridge jack with 4,500-lb. capacity for four-post lifts.
Product 3D model preview
BendPak RJ45W rolling bridge jack positioned under a sports car for undercarriage access.
BendPak RJ45W rolling bridge jack lifting a sports car for wheel-free service access.

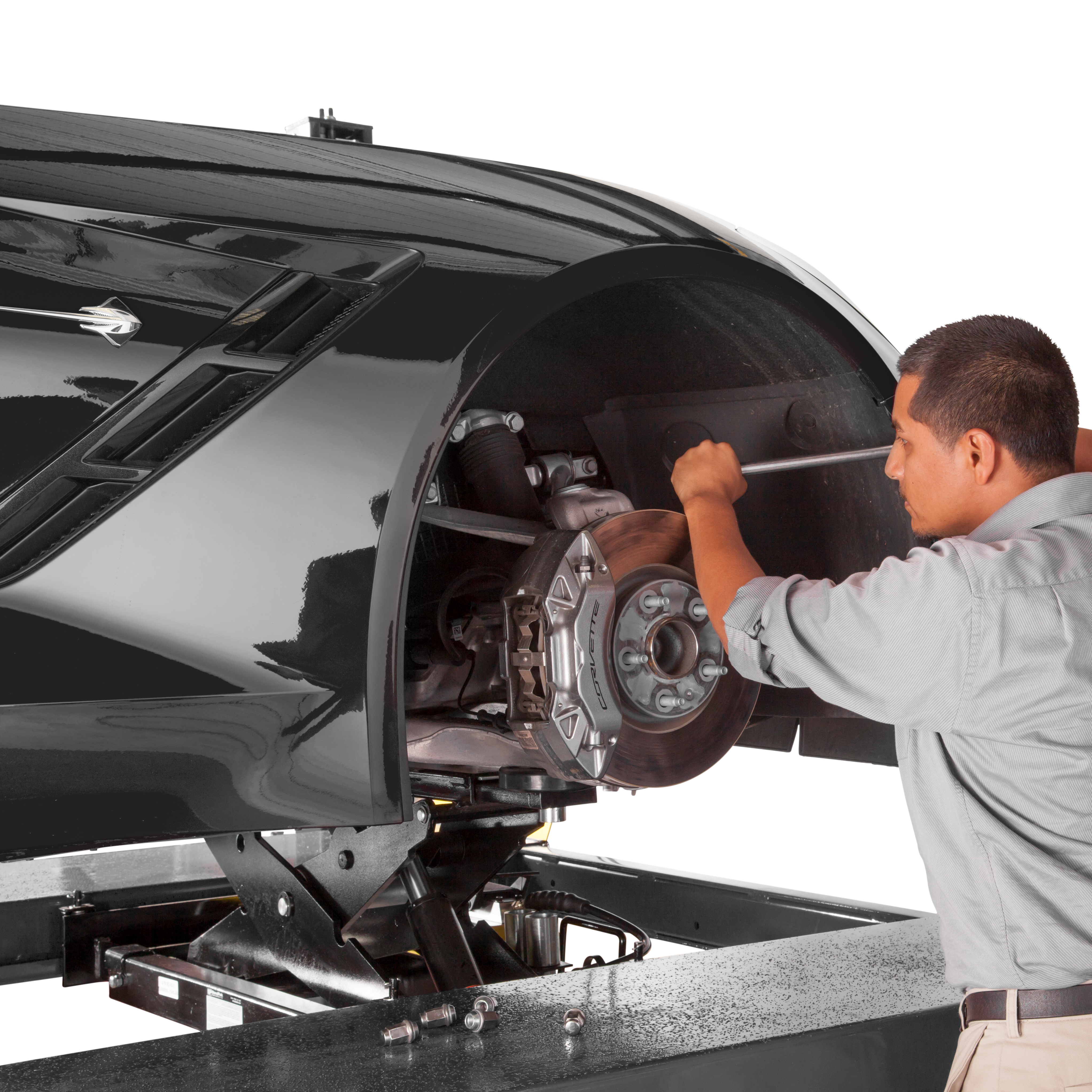

BendPak RJ45W rolling bridge jack lifting a sports car for brake pad service on a four-post lift.
BendPak RJ45W 4,500-lb. rolling bridge jack mounted on a four-post lift.
Mechanical lock system on the BendPak RJ45W rolling bridge jack for stable elevated support.
Easy-roll wheel detail on the BendPak RJ45W rolling bridge jack for smooth four-post lift positioning.
BendPak RJ45W rolling bridge jack air-hydraulic pump for four-post lift wheel service.
BendPak RJ45W easy-roll bridge jack mounted on a four-post lift with 4,500-lb. capacity.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Rolling Bridge Jack / 4,500-lbs. Capacity / Easy-Roll Wheels

BendPak RJ45W 4-Post Bridge Jack - 4,500-lbs. Capacity
$2,350.00
Wheel Service Gets Easier on HD-9 Four-Post Lifts

Wheel Service Gets Easier on HD-9 Four-Post Lifts

The BendPak RJ45W Rolling Bridge Jack adds 4,500 lbs. of frame-engaging lifting capability to compatible four-post lift setups, making it a strong match for HD-9 owners who want more than drive-on vehicle storage and maintenance. Used with a four-post lift, the RJ45W helps raise the vehicle by the frame so the wheels hang free for brake service, tire swaps, suspension work, inspections, and detailing access. This is the bridge jack for users who love the stability and convenience of a four-post lift but still need wheel-service access. A pair of RJ45W rolling bridge jacks can transform an HD-9 style lift from a drive-on platform into a more complete service solution for compact cars, sports cars, garage projects, and daily shop work.

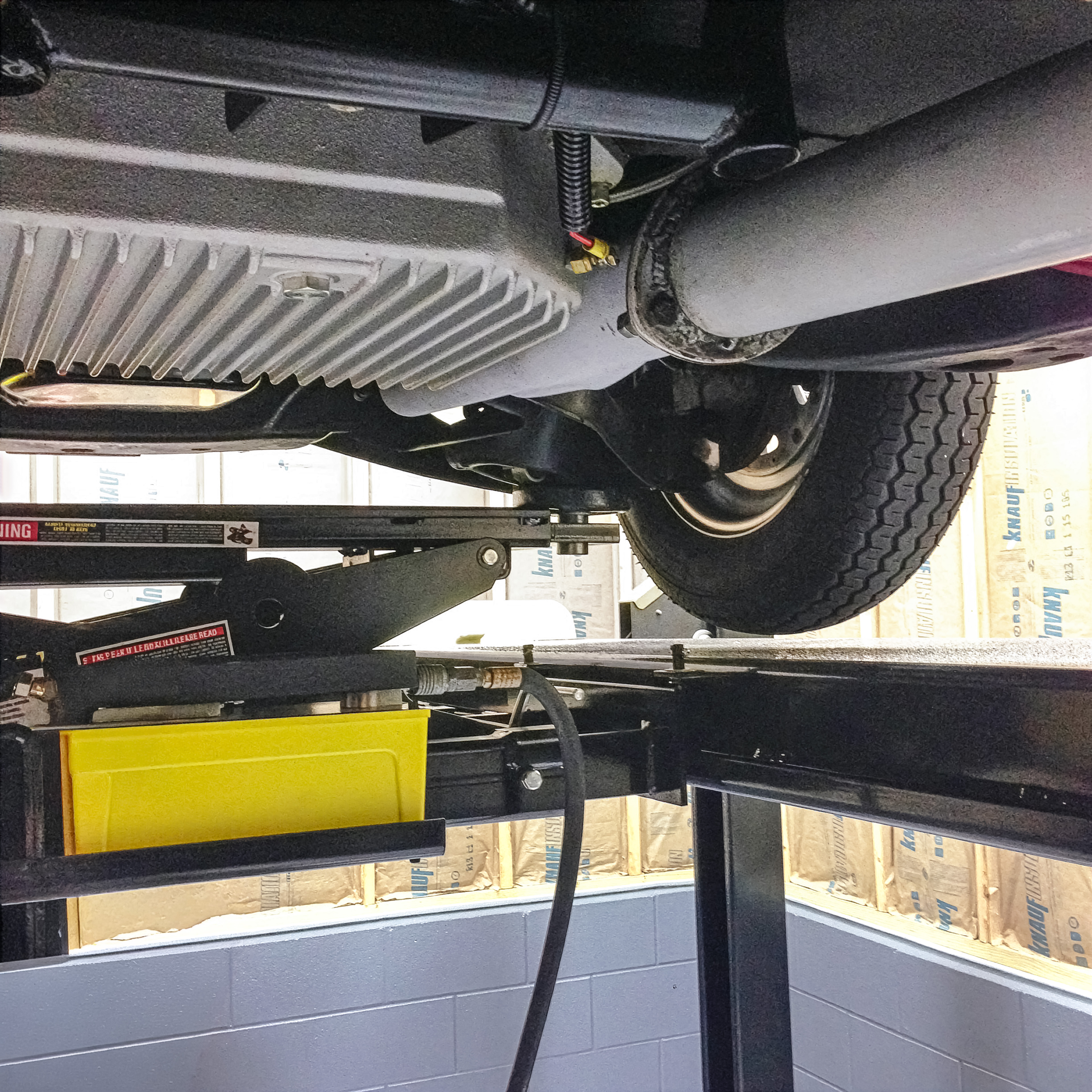

The Standard 4,500-lb. Choice with Practical Clearance

The Standard 4,500-lb. Choice with Practical Clearance

The RJ45W uses a 4.5-inch minimum drive-over height and a 57-inch maximum arm reach, giving it the standard profile and reach for many HD-9 lift applications. For customers who do not need the lower 4.25-inch profile or wider 61-inch reach of the RJ45LP, the RJ45W provides a straightforward 4,500-lb. bridge jack setup with proven four-post lift compatibility. That makes it a smart choice for garages and shops that want dependable wheel-service capability without stepping into a larger-capacity bridge jack than the lift or vehicle requires. It delivers the access most HD-9 users are after: wheels off the runways, frame supported, and service space opened up.

Easy-Roll Positioning with Vehicle-Friendly Contact Pads

The RJ45W comes standard with Easy-Roll wheels designed to fit the runway channels on compatible four-post lifts rated at 7,000 lbs. capacity or greater. The hardened stainless-steel, zinc-plated rollers are built for durability and smooth movement, helping users position the jack quickly beneath the vehicle lift points. Rubber contact pads help protect vehicle surfaces during frame engagement, while stackable adapters increase reach when working with higher-clearance vehicles. BendPak recommends optional frame cradle pads for many trucks and SUVs, giving users another way to match the jack to the vehicle sitting above it.
Easy-Roll Positioning with Vehicle-Friendly Contact Pads

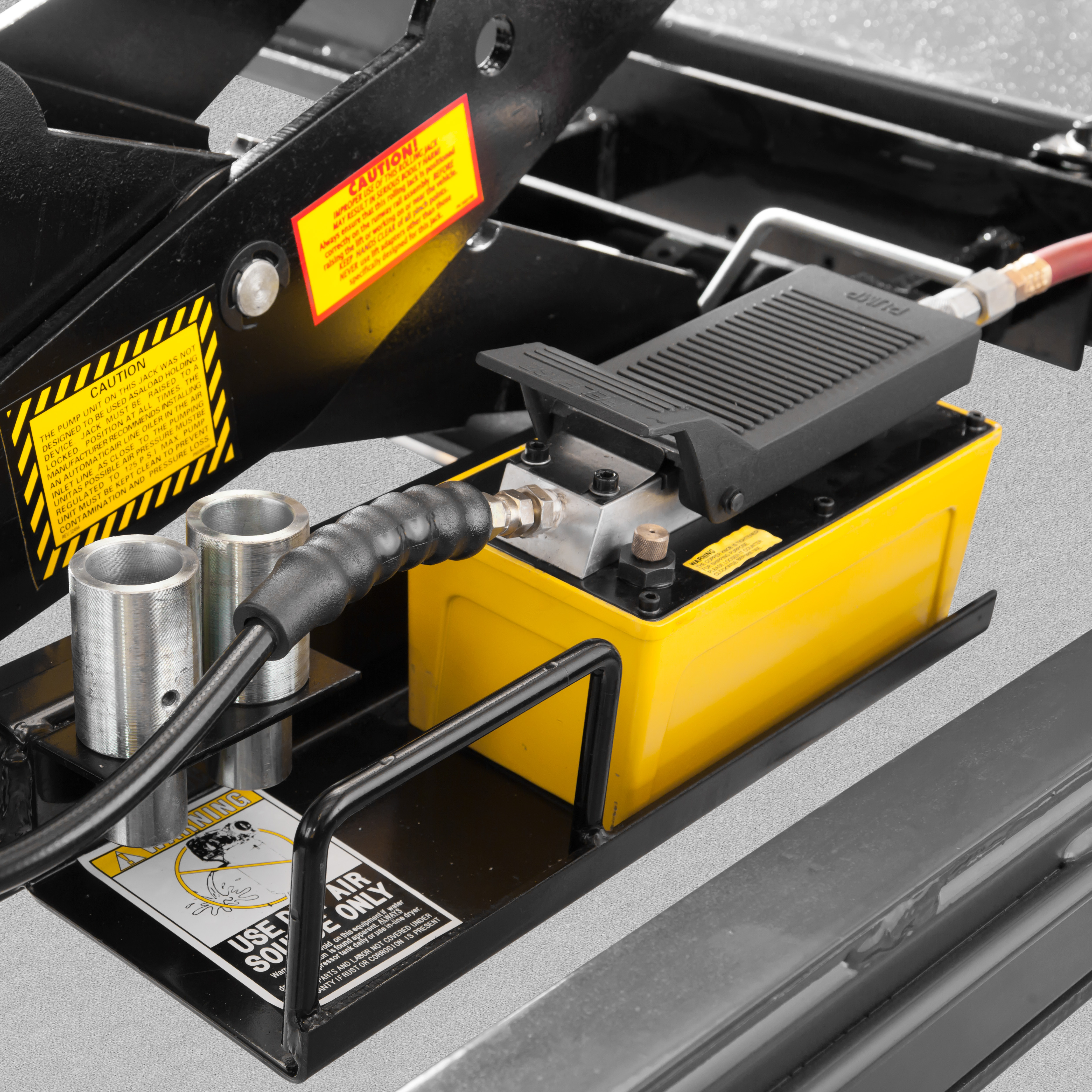

Independent Air-Hydraulic Power and Three Service Heights

Independent Air-Hydraulic Power and Three Service Heights

The RJ45W includes a high-pressure hydraulic power unit attached to the jack, with an air requirement of 125 psi and 10 to 20 CFM. A foot pedal mounted directly to the unit gives the operator simple control during lifting, keeping bridge jack operation separate from the four-post lift power system. Three lock positions let users fine-tune service height for the work at hand. Whether the job calls for quick tire removal, brake access, or extra undercarriage clearance, the RJ45W gives HD-9 owners a practical way to get more service capability out of the lift they already use every day.
4,500-lb. Bridge Jack Capacity

4,500-lb. Bridge Jack Capacity

The RJ45W delivers frame-engaging lifting capability for compatible four-post lift setups, especially HD-9 style garage and shop installations.
Standard RJ45W Profile

Standard RJ45W Profile

A 4.5-inch minimum drive-over height and 57-inch maximum arm reach make this the standard 4,500-lb. option in the RJ45 bridge jack family.

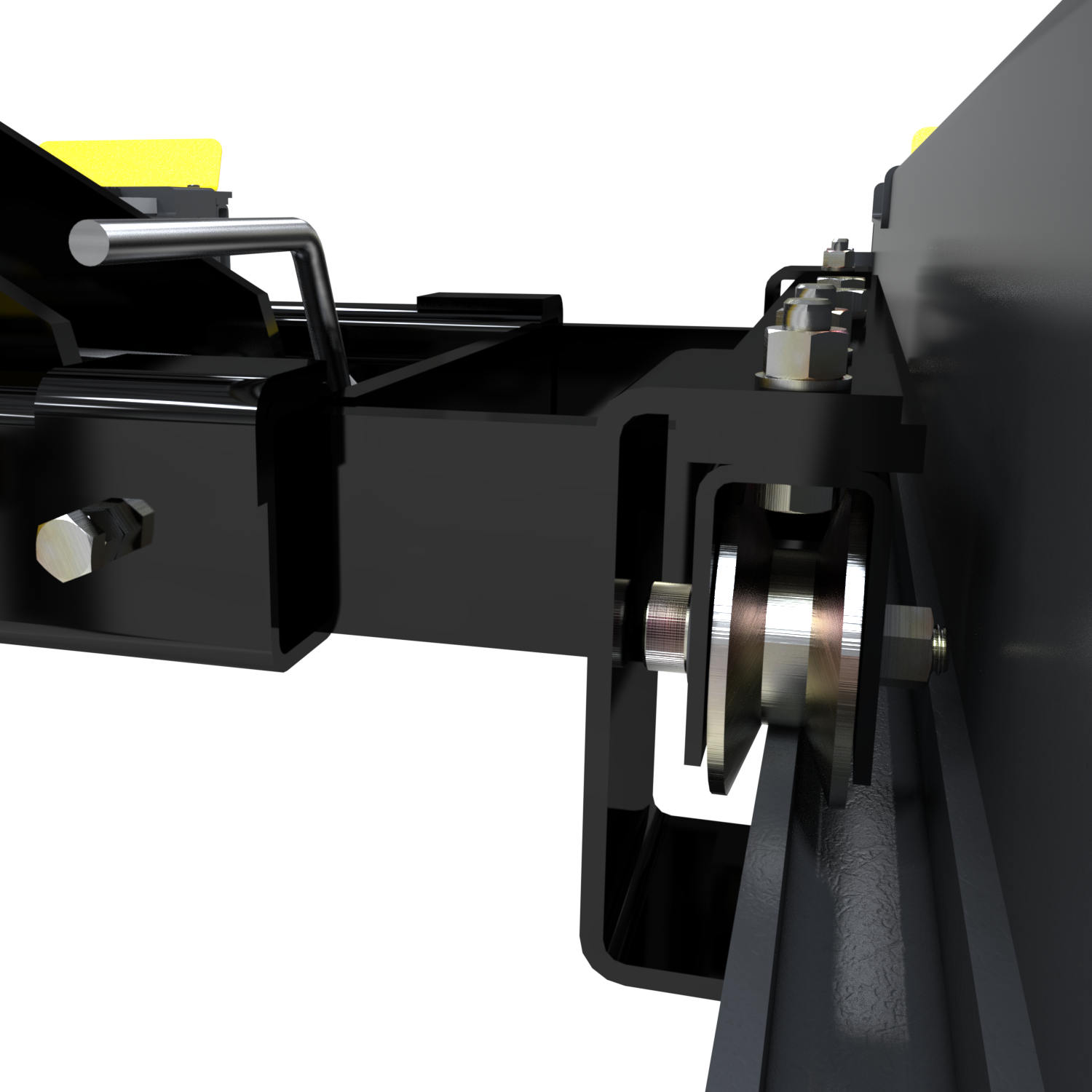

Runway-Channel Rollers

Runway-Channel Rollers

Easy-Roll wheels fit compatible lift runway channels for smoother positioning before the vehicle is raised by the frame.

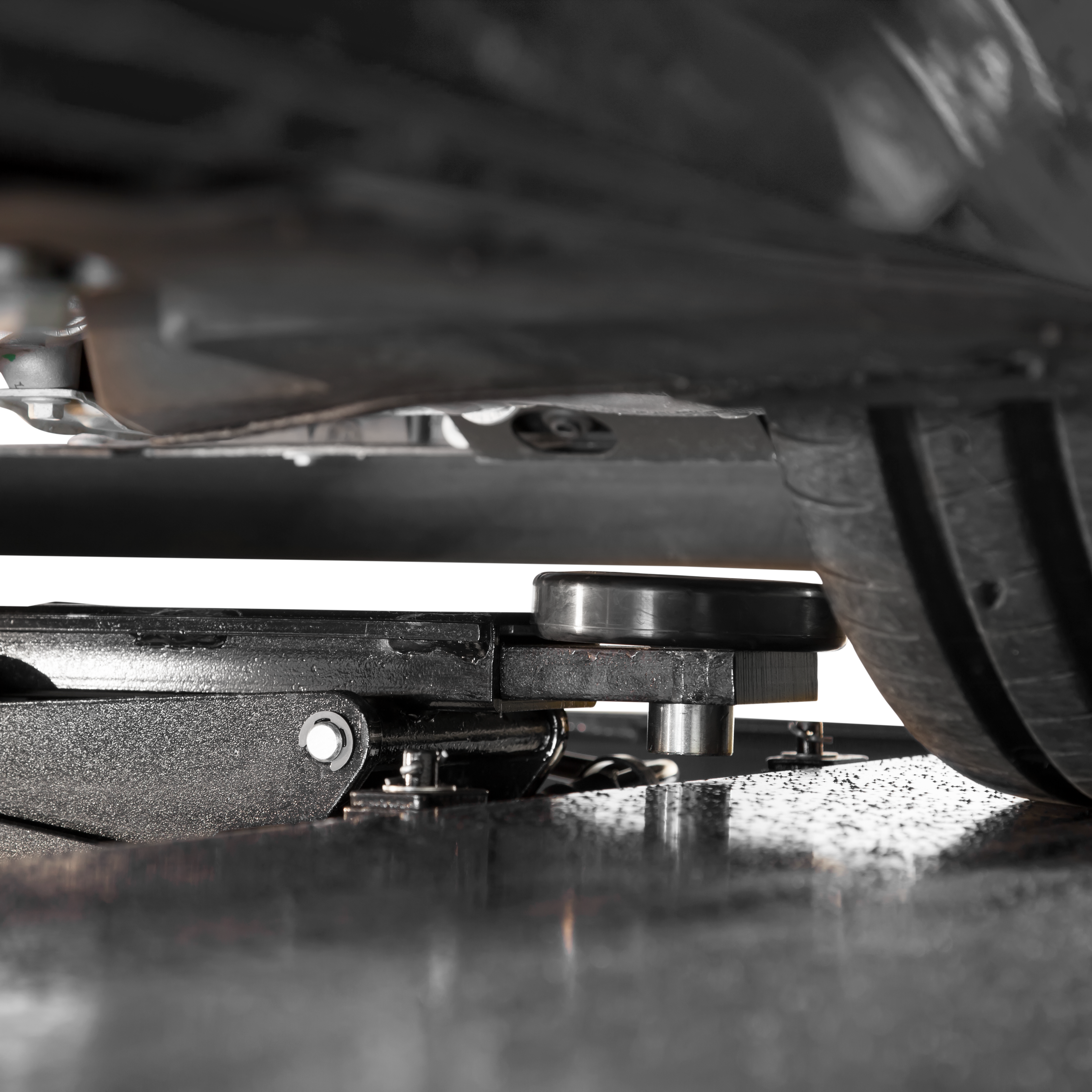

Non-Marring Lift Pads

Non-Marring Lift Pads

Rubber contact pads help engage manufacturer-recommended lift points while reducing the risk of marring vehicle surfaces.

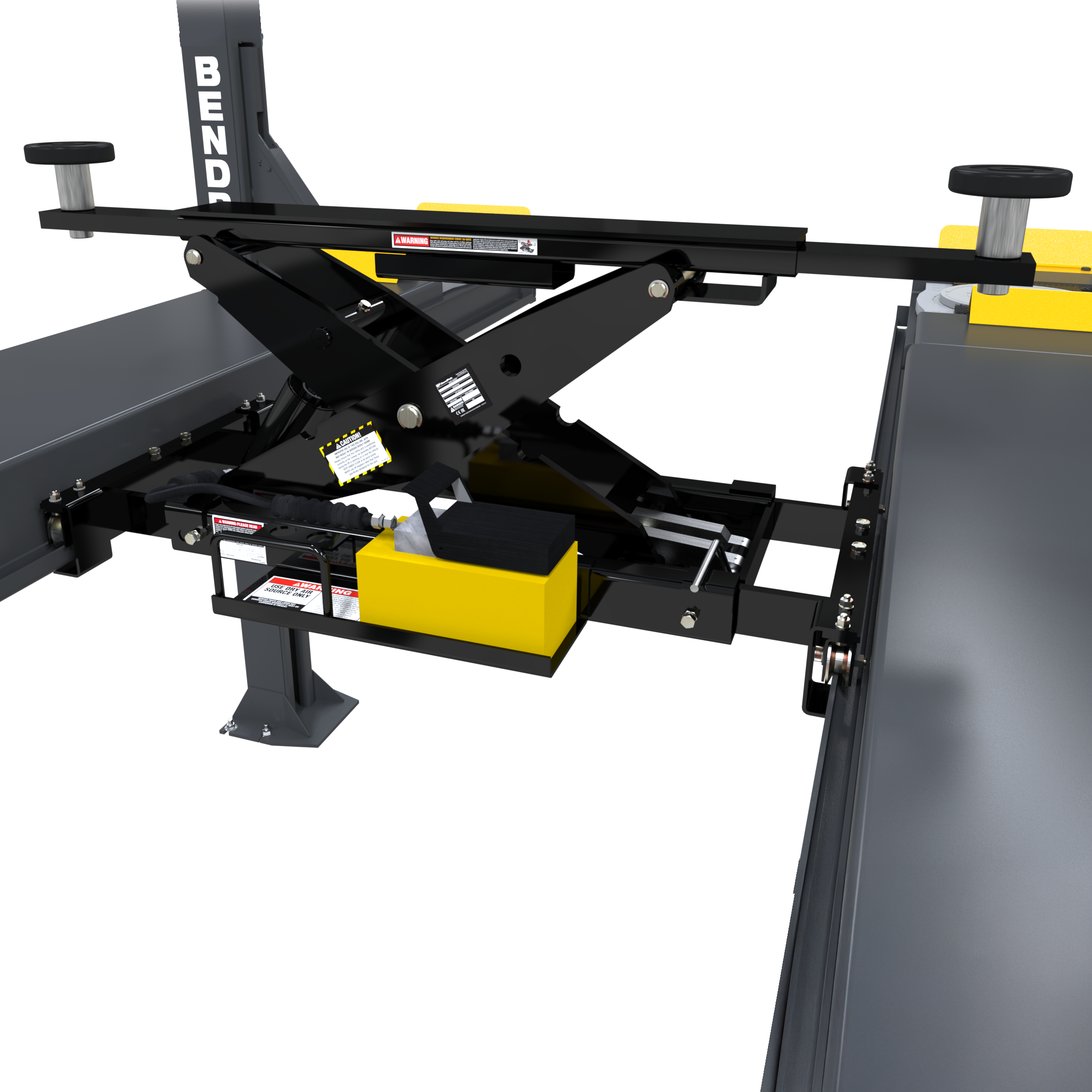

Adapter Reach Included

Adapter Reach Included

Stackable adapters help bridge the gap on higher-clearance vehicles, giving users more flexibility across mixed garage projects.
Foot-Pedal Control

Foot-Pedal Control

A dedicated pneumatic-hydraulic power unit and foot pedal keep bridge jack lifting simple, controlled, and independent from the lift system.

Recommended Add-ons

Accessories for the BendPak RJ45W 4-Post Bridge Jack - 4,500-lbs. Capacity

BendPak RJ-45 Specialty Adapter Kit
BendPak RJ-45 Specialty Adapter Kit
$306.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
4500 lb

Height

Pad Only
4.5 - 15.5 in
Pad + 2.75 Inch Adapter
7.25 - 18.25 in
Pad + 5.5 Inch Adapter
10 - 21 in

Reach

Support Base Width
35.5 - 46.5 in
Arm Reach
42 - 57 in

Performance

Lifting Time
55 seconds
Pump
Air/Hydraulic
Air Pressure
125 PSI
Max Operating Hydraulic Pressure
2,490 PSI

Shipping and Delivery

Shipping Dimensions
24 x 42 x 12 in
Shipping Weight
378 lb
Shipping Method
LTL
Offload Requirement
Liftgate
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
