BendPak RBJ18000 4-Post Bridge Jack - 18,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175032
$6,395.00
Financing as low as $140/moApply now

Flexible business financing available through Navitas.

BendPak RBJ18000 rolling bridge jack with heavy-duty lifting arms for wheel service
Product 3D model preview
BendPak RBJ18000 rolling bridge jack with 18,000-lb. capacity for heavy-duty service
BendPak RBJ18000 bridge jack built for raising wheels on heavy four-post lifts.
BendPak RBJ18000 rolling bridge jack adapter weldment chassis component for heavy-duty bridge jack support.
BendPak RBJ18000 rolling bridge jack mounted on a four-post lift for heavy-duty vehicle service.
BendPak RBJ18000 rolling bridge jack lifting a semi for heavy-duty fleet maintenance.
BendPak RBJ18000 18,000-lb. rolling bridge jack for commercial lift service
BendPak RBJ18000 rolling bridge jacks mounted as a set for heavy-duty vehicle service.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

Rolling Bridge Jack / 18,000-lbs. Capacity

BendPak RBJ18000 4-Post Bridge Jack - 18,000-lbs. Capacity
$6,395.00

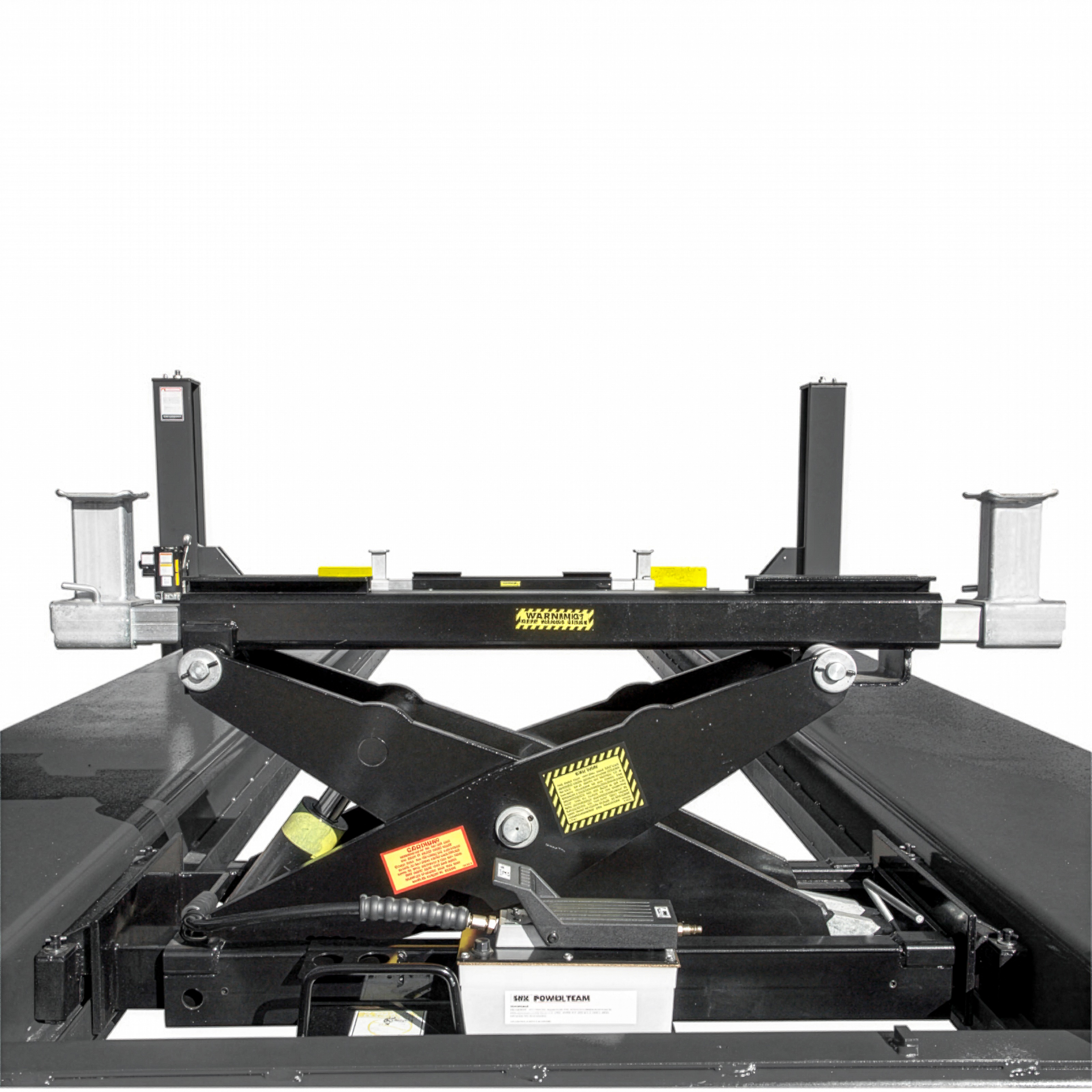

Heavy Truck and Bus Wheel Service with 18,000-lb. Support

Heavy Truck and Bus Wheel Service with 18,000-lb. Support

The BendPak RBJ18000 Rolling Bridge Jack gives heavy-duty shops 18,000 lbs. of bridge jack capacity for demanding four-post lift service. It is built for larger trucks, buses, commercial vehicles, and equipment where axle weight and center of gravity matter as much as the vehicle’s total weight rating. This is the model to consider when a 15,000-lb. bridge jack may not provide enough margin for the way the vehicle actually loads the lift. The RBJ18000 helps compensate for shifted centers of gravity on heavy-duty vehicles raised on HDS-35 or HDS-40 series four-post lifts, giving commercial shops a more capable wheel-service setup.

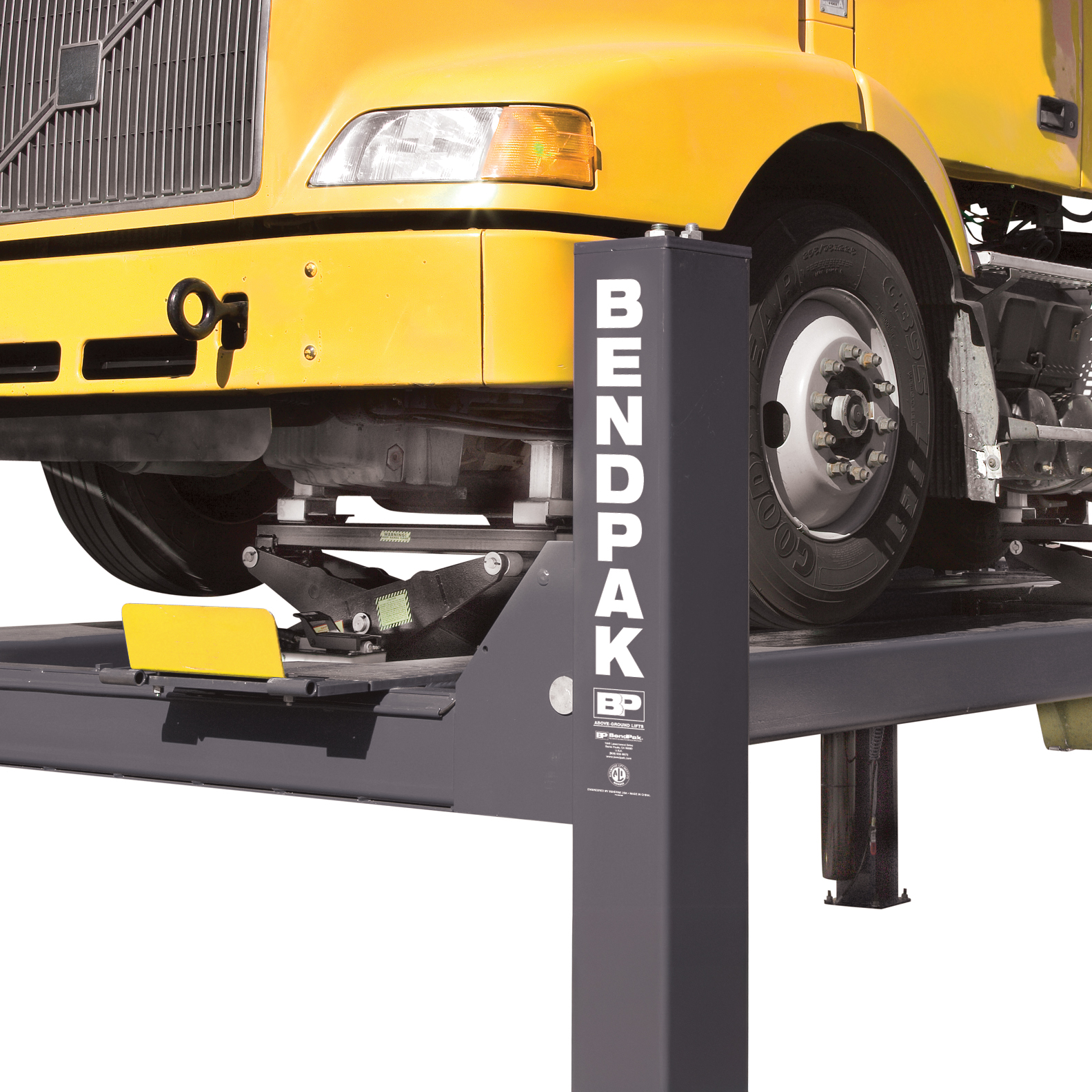

Extra Capacity for Real-World Heavy-Duty Weight Distribution

Extra Capacity for Real-World Heavy-Duty Weight Distribution

Heavy trucks and buses do not always distribute weight evenly across their axles. A vehicle can be within the rated capacity of a lift and still create bridge jack demands that require careful capacity selection. The RBJ18000 is designed to give users more capacity when servicing larger vehicles with significant front, rear, or equipment-heavy load bias. That extra lifting strength helps shops work more confidently on heavy-duty vehicles where wheel removal, tire service, brake work, and axle access are part of the job. It is a practical step up for facilities that need more bridge jack muscle without jumping all the way to the 25,000-lb. RBJ25000.

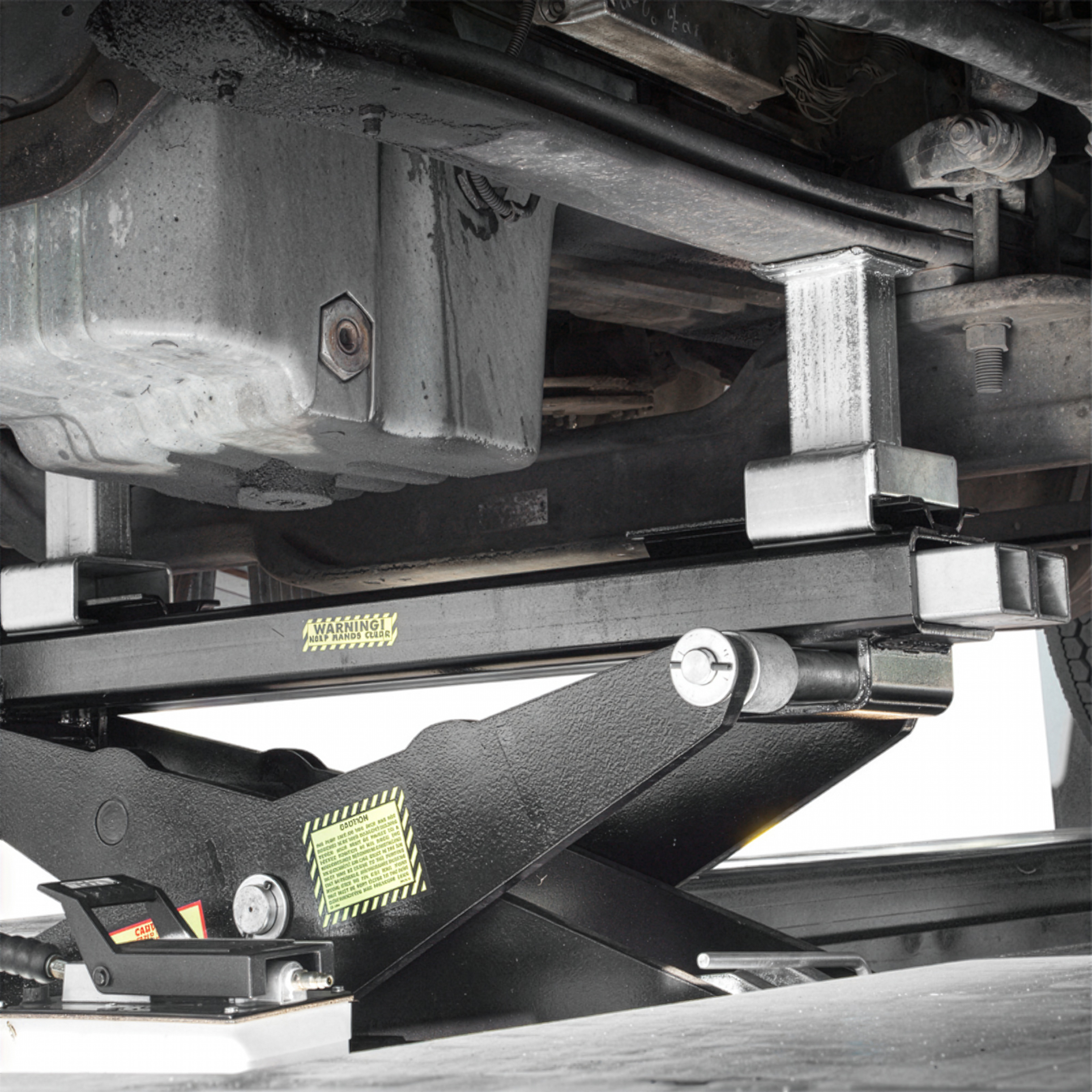

Steel Contact Pads for Demanding Commercial Service

BendPak bridge jacks use steel contact pads built for heavy use, and the RBJ18000 includes four steel pads designed to support both axle and lifting-point engagement. These pads give the jack a durable contact surface for the larger vehicles and harder-working shop environments this model is meant to serve. The jack is also designed with a practical low-profile approach so the pads can get under the vehicle before lifting begins. For shops handling city buses, farm equipment, commercial trucks, and other large vehicles, that combination of contact strength and service access matters.
Steel Contact Pads for Demanding Commercial Service

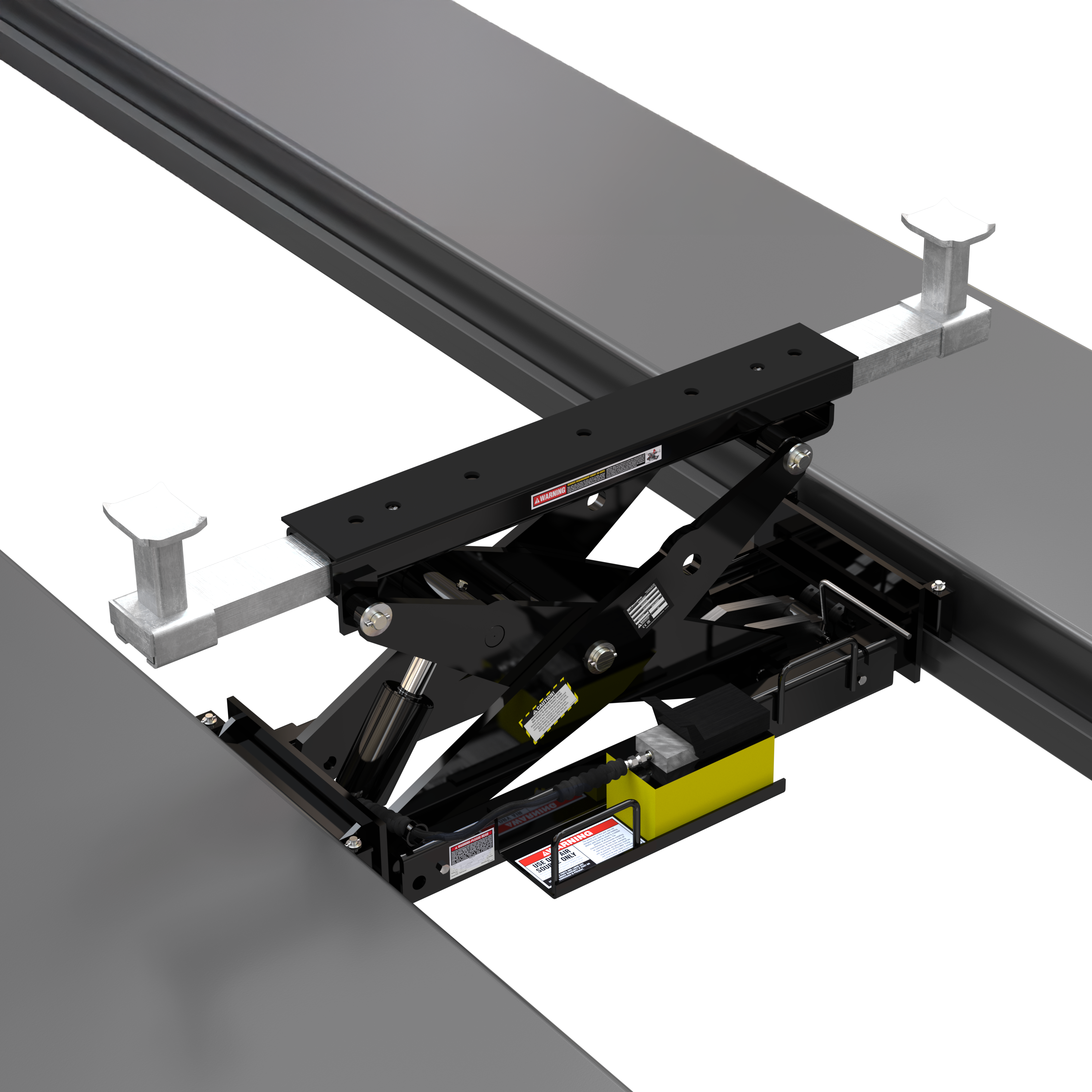

Powerful Pneumatic-Hydraulic Lifting with Adjustable Lock Positions

Powerful Pneumatic-Hydraulic Lifting with Adjustable Lock Positions

The RBJ18000 uses a strong pneumatic-hydraulic power unit controlled by a simple foot pedal. The power system is built to raise massive heavy-duty vehicles on compatible four-post lifts, giving the operator straightforward control while keeping the bridge jack operation separate from the lift itself. Three lock positions make the working height adaptable to the job, the vehicle, and the technician. When vehicle clearance, ceiling height, operator preference, or service type changes from job to job, the RBJ18000 gives shops a more flexible way to bring heavy wheels into service range.

18,000-lb. Capacity

The RBJ18000 is built for heavy-duty bridge jack work on larger trucks, buses, and commercial vehicles.

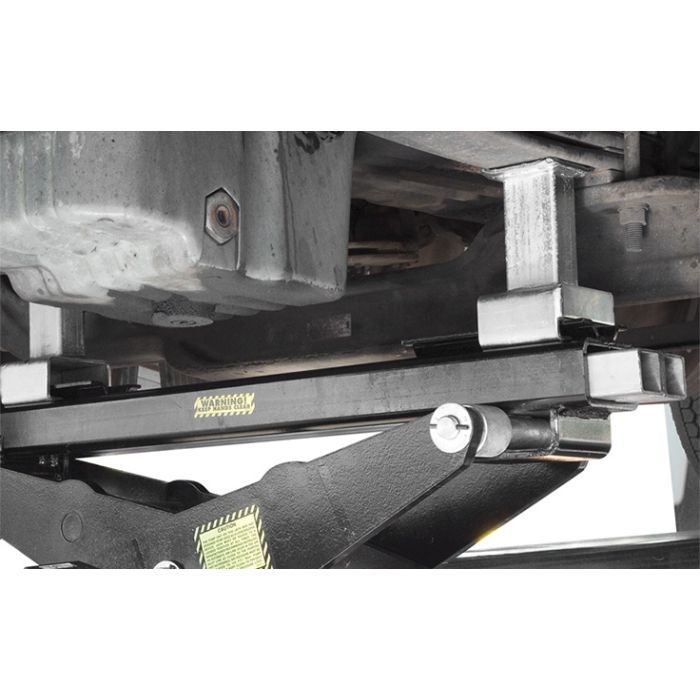

Offset Load Support

Offset Load Support

Extra capacity helps compensate for shifted centers of gravity on heavy-duty vehicles raised on compatible four-post lifts.
HDS-35 and HDS-40 Fit

HDS-35 and HDS-40 Fit

Designed for heavy-duty HDS-series lift environments where commercial wheel-service capability is required.

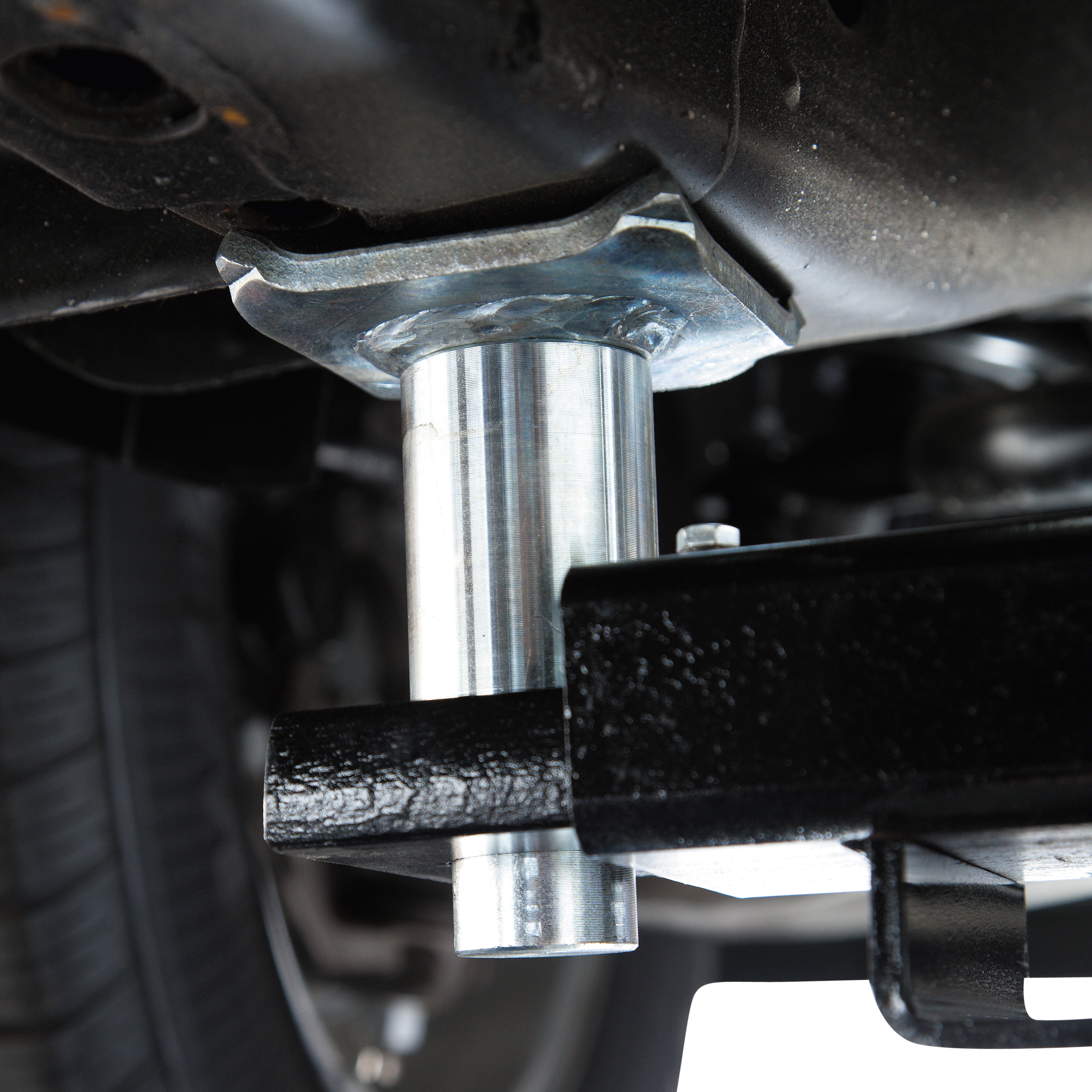

Steel Contact Pads

Steel Contact Pads

Four steel pads support axle and lifting-point engagement for demanding truck, bus, and equipment service.

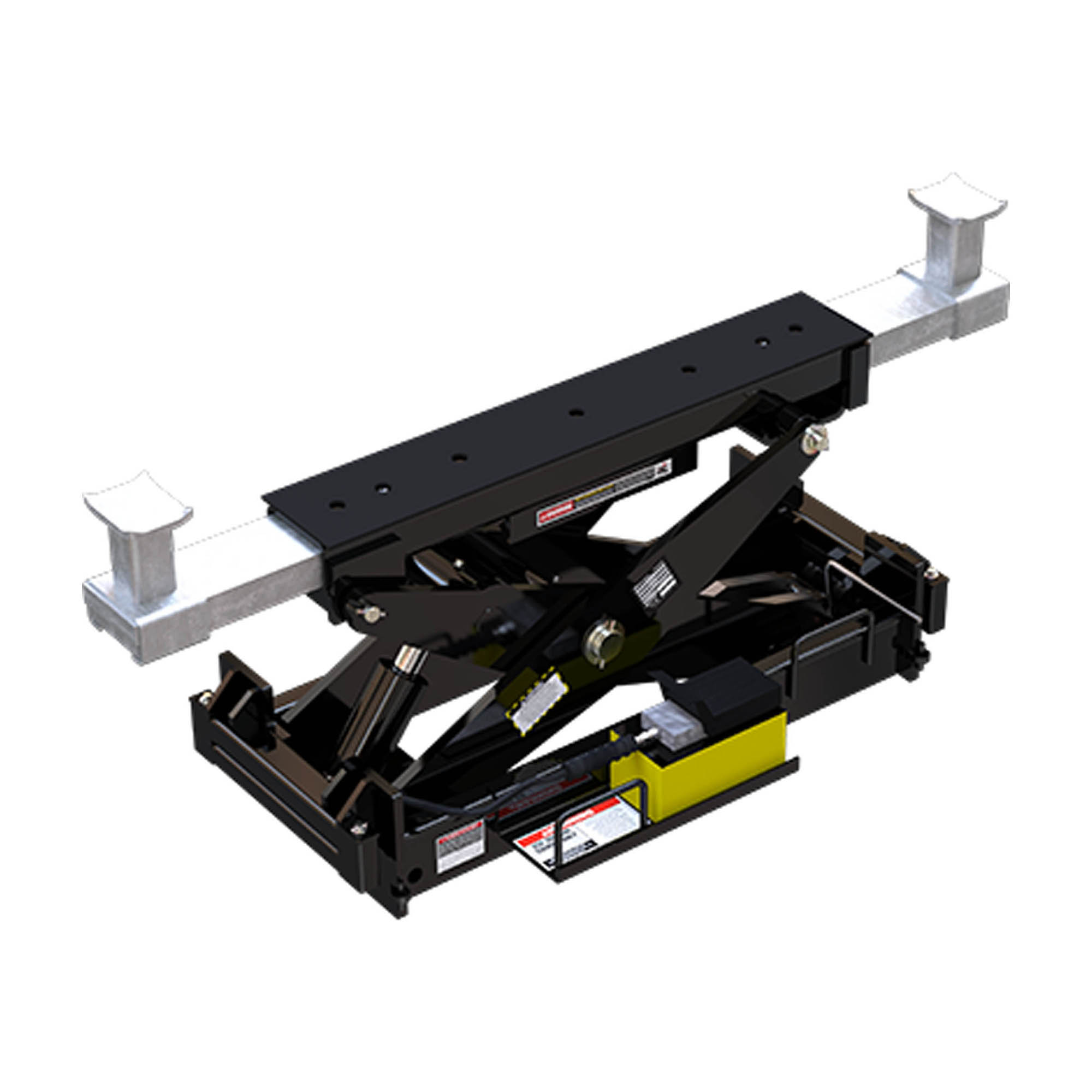

Foot-Pedal Operation

Foot-Pedal Operation

A pneumatic-hydraulic power unit gives technicians simple control when raising heavy vehicles to service height.
Adjustable Lock Heights

Adjustable Lock Heights

Three lock positions help match working height to vehicle clearance, operator preference, and the job in the bay.

Specifications

Capacity

Lifting Capacity
18000 lb

Height

Pad Only
9 - 19 in
Pad + 2.75 Inch Adapter
9.75 - 19.75 in
Pad + 5.5 Inch Adapter
10.5 - 20.5 in

Reach

Support Base Width
45 - 45 in
Arm Reach
48.5 - 63.75 in

Performance

Lifting Time
55 seconds
Pump
Air/Hydraulic
Air Pressure
125 PSI
Max Operating Hydraulic Pressure
7,200 PSI

Shipping and Delivery

Shipping Dimensions
29 x 47 x 17 in
Shipping Weight
792 lb
Shipping Method
LTL
Offload Requirement
Liftgate
