Ranger R745 Swing-Arm Tire Changer
IN STOCKSKU 5140148
$2,895.00

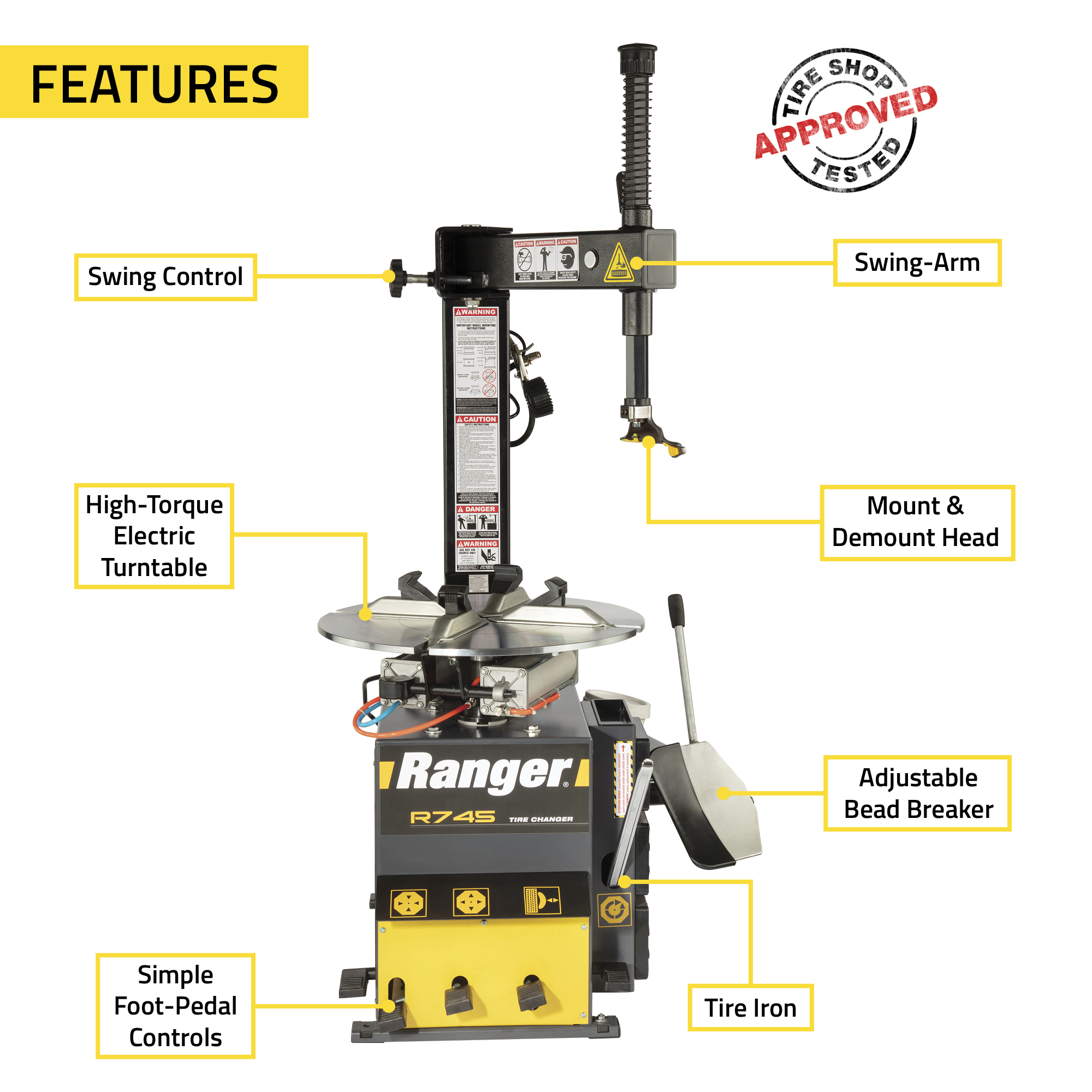

Everyday Tire Changing Made Simple and Reliable
The Ranger R745 Swing-Arm Tire Changer is built for shops that want a straightforward, dependable tire machine without paying for assist systems they do not need. With a 20-inch capacity and rigid swing-arm layout, the R745 is a strong fit for gas stations, roadside tire shops, smaller repair operations, personal garages, and high-volume shops that need a simple backup machine for common passenger car, commuter, spare, and trailer tire work.
This is the practical entry point in the Ranger tire changer lineup. It is designed for users who value speed, simplicity, and durability over specialty features for aggressive run-flat or low-profile work. If your shop mainly services everyday wheels and tires, the R745 gives you a rugged, easy-to-use machine that keeps jobs moving without turning basic tire service into a complicated production.
Rigid Tower Design with Hardened Steel Support
The R745 uses a sturdy rigid tower, a 45mm hexagonal vertical shaft, and a hardened-steel horizontal outrigger support arm to help reduce flex during tire service. That added rigidity helps keep the mount-demount head stable while operators work around the wheel, supporting cleaner service and helping reduce the chance of wheel damage.
The swing-arm layout makes loading and positioning fast for common tire changes, while the included non-marring service accessories help support a wide range of standard wheel applications. For shops that need basic capability without giving up Ranger construction, the R745 keeps the design focused and tough.
High-Torque Turntable and Enhanced Bead Breaker
A high-torque electric turntable gives the R745 faster operating speed with reverse-direction control, helping technicians remove and install tires more efficiently. Controlled turntable movement gives stubborn beads more time to relax during service, which is especially helpful when working with lower-profile tires that require more care than basic sidewalls.
The R745 also includes an enhanced bead breaker blade built for durability and long service life. A rubber bump stop smooths arm return, reduces shock loading, and helps protect the pneumatic cylinder and other moving parts during repeated shop use.
Forged Pedals, Sealed Components, and Shop-Friendly Accessories
Ranger builds the R745 with forged steel foot pedal levers instead of cast-iron pedals, giving the operator controls that are lightweight, durable, and resistant to chemicals, liquids, and common shop exposure. As one of the most-used areas on any tire changer, the pedal system is built for years of work in real service environments.
The R745 comes with practical tire service essentials such as an inflation gauge with integrated air dump valve, water filter, oiler/lubricator, air regulator, breaker bar, soap bucket, brush, tool tray, and optional motorcycle turntable clamp compatibility. It is the machine for users who want reliable daily tire changing without extra complexity.
Simple Swing-Arm Service
The R745 is made for common passenger car, commuter, spare, and trailer tire work. It is a practical choice when your shop does not need a full assist-tower setup.

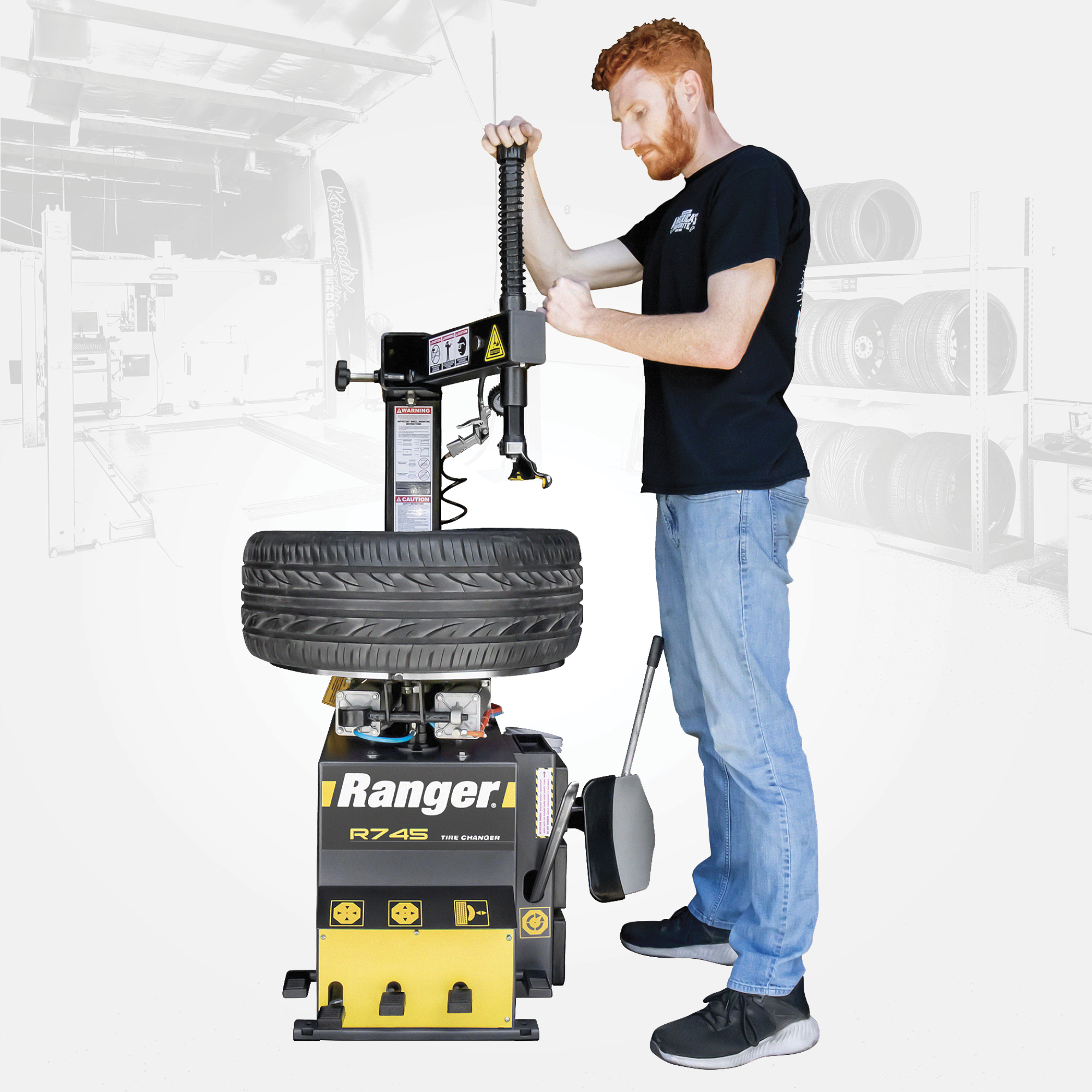

20-Inch Capacity
A 20-inch capacity makes the R745 a focused solution for everyday wheel service. It keeps the machine compact, approachable, and easy to work around.

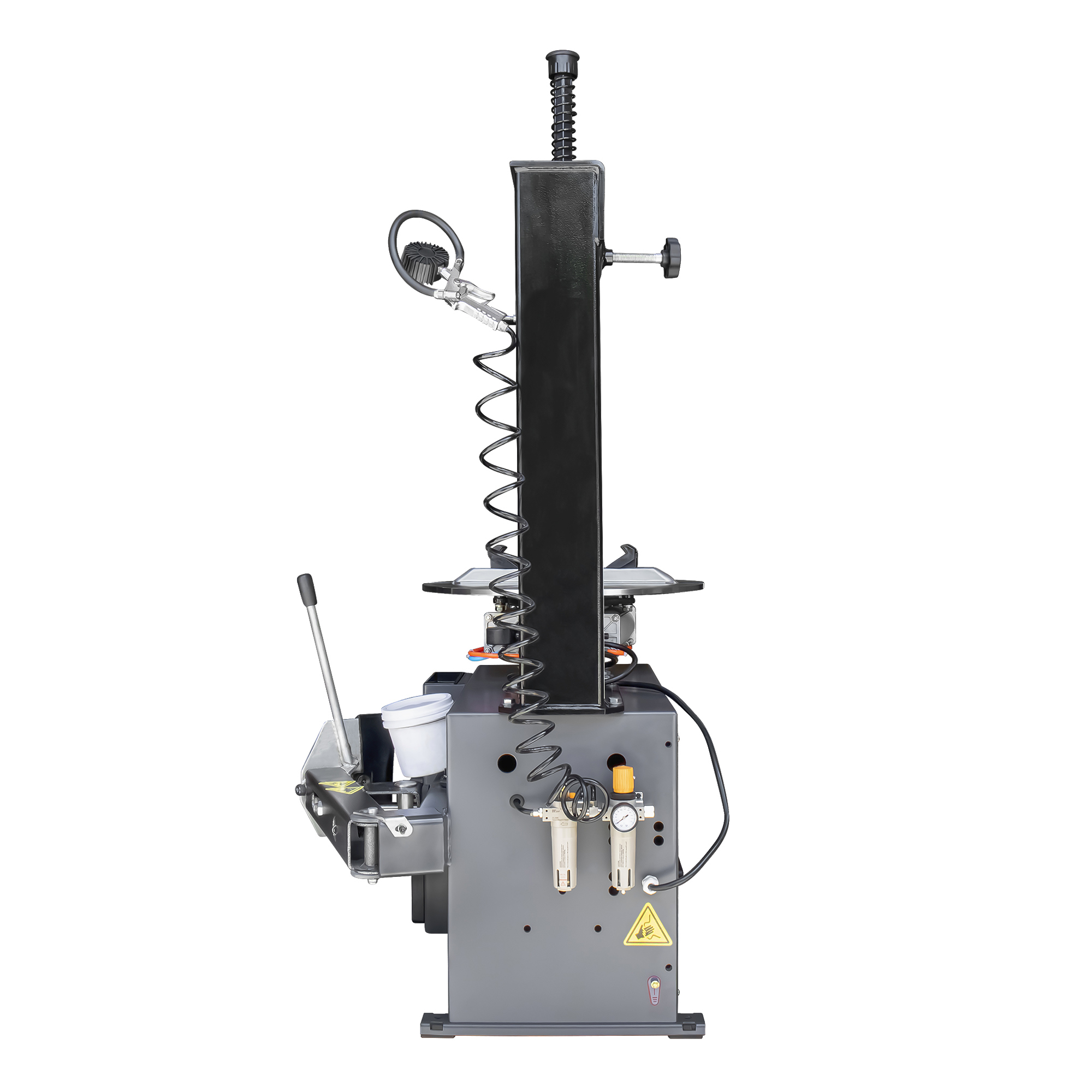

Rigid Tower Build
The rigid tower, 45mm hex shaft, and hardened outrigger arm help reduce flex during service. That stability matters when the mount-demount head is working close to the wheel.

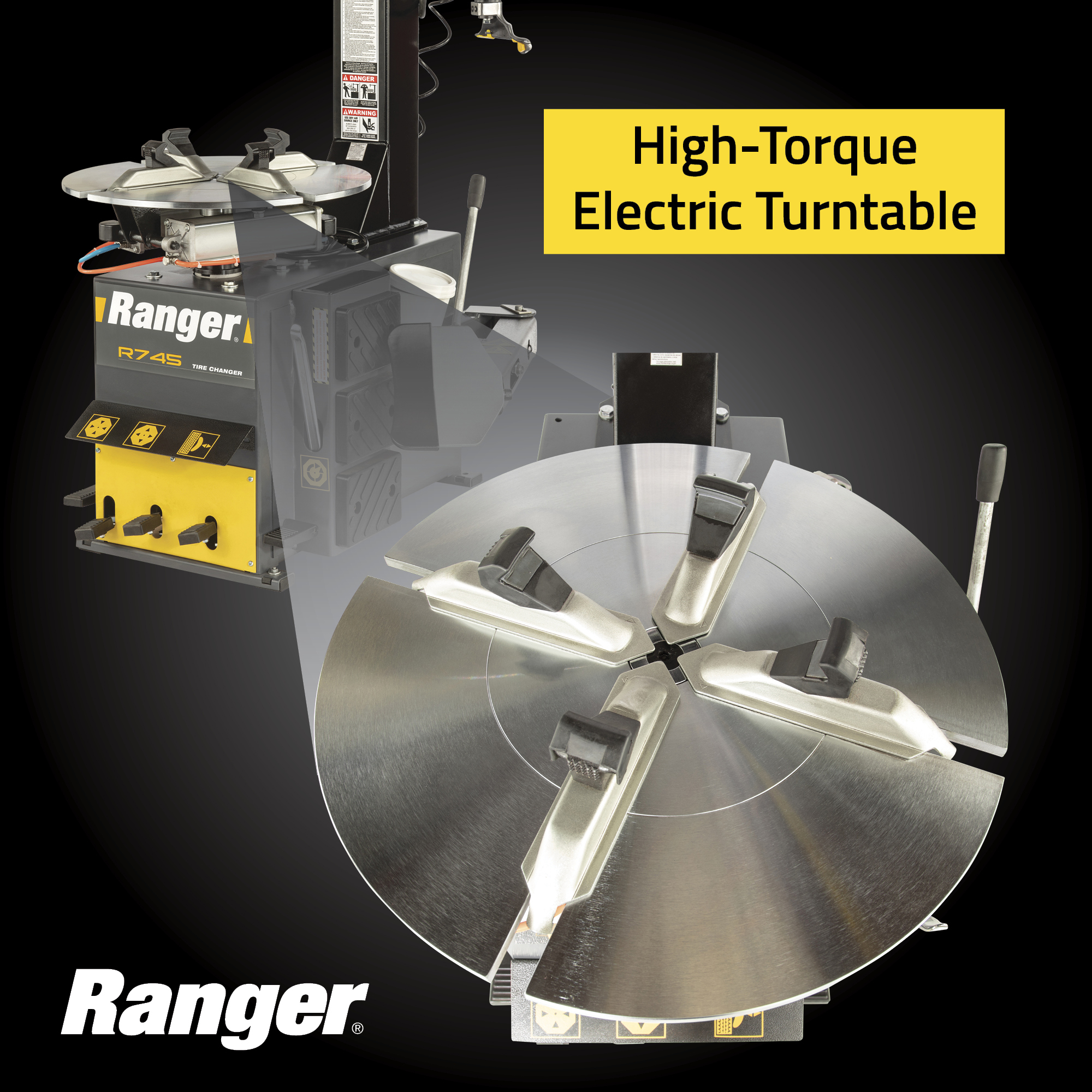

High-Torque Turntable
The electric turntable provides faster operation and reversible direction control. Operators get a smoother workflow for basic tire removal and installation.

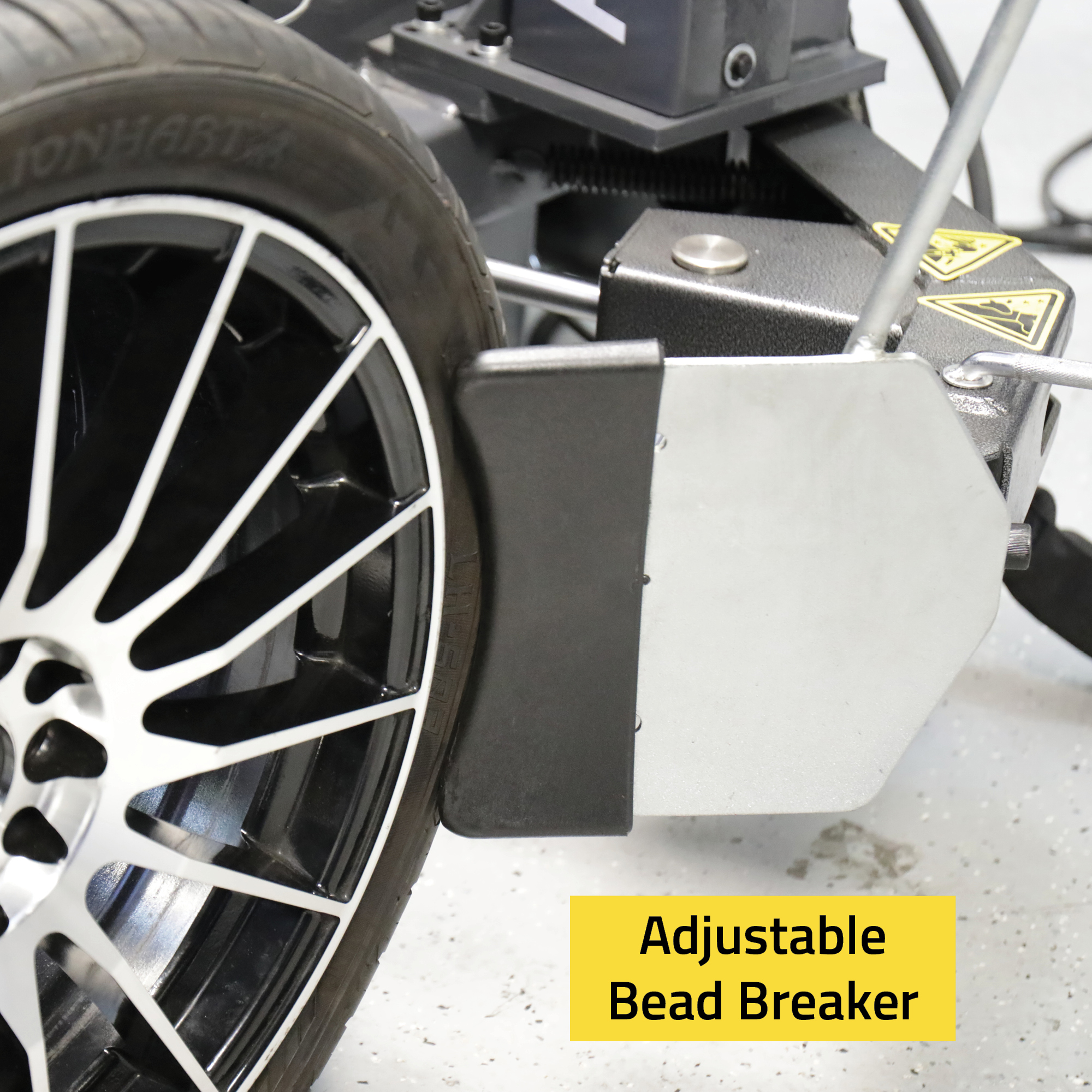

Enhanced Bead Breaker
A durable bead breaker blade and rubber bump stop help handle repeated bead-breaking work. The design helps reduce shock loading and protect moving parts.

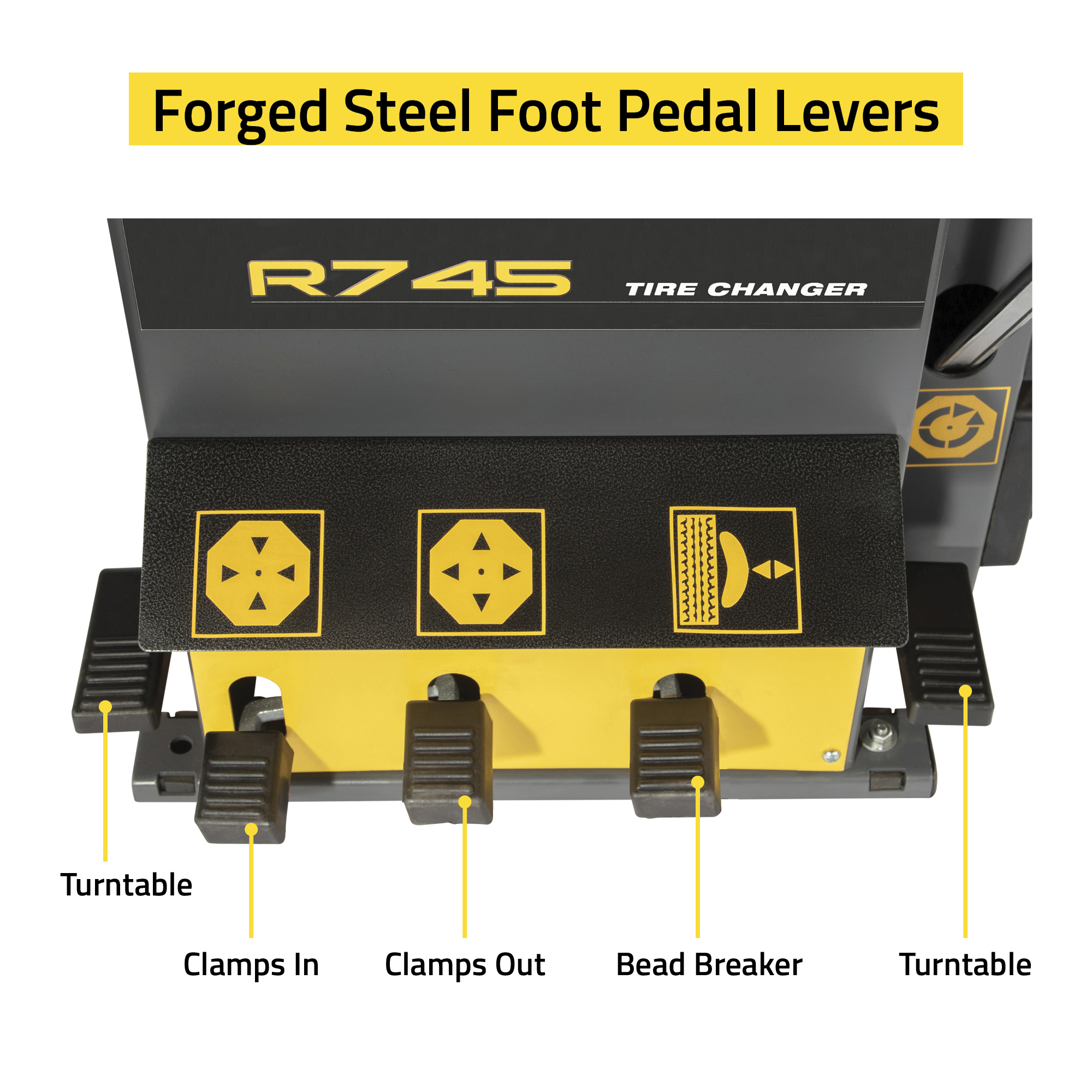

Forged Steel Pedals
Forged steel foot pedals are lightweight, tough, and built for chemical exposure. That is exactly where durability matters because the pedals get used all day.
Recommended Add-ons
Accessories for the Ranger R745 Swing-Arm Tire Changer
Specifications
Wheel and Tire Capacity
Clamping and Bead Service
Tower and Assist Features
Power and Drive
Air Requirements
Shipping and Delivery
