Ranger R26FLT Heavy-Duty Truck Tire Changer
IN STOCKSKU 5140137
$12,795.00
Flexible business financing available through Navitas.

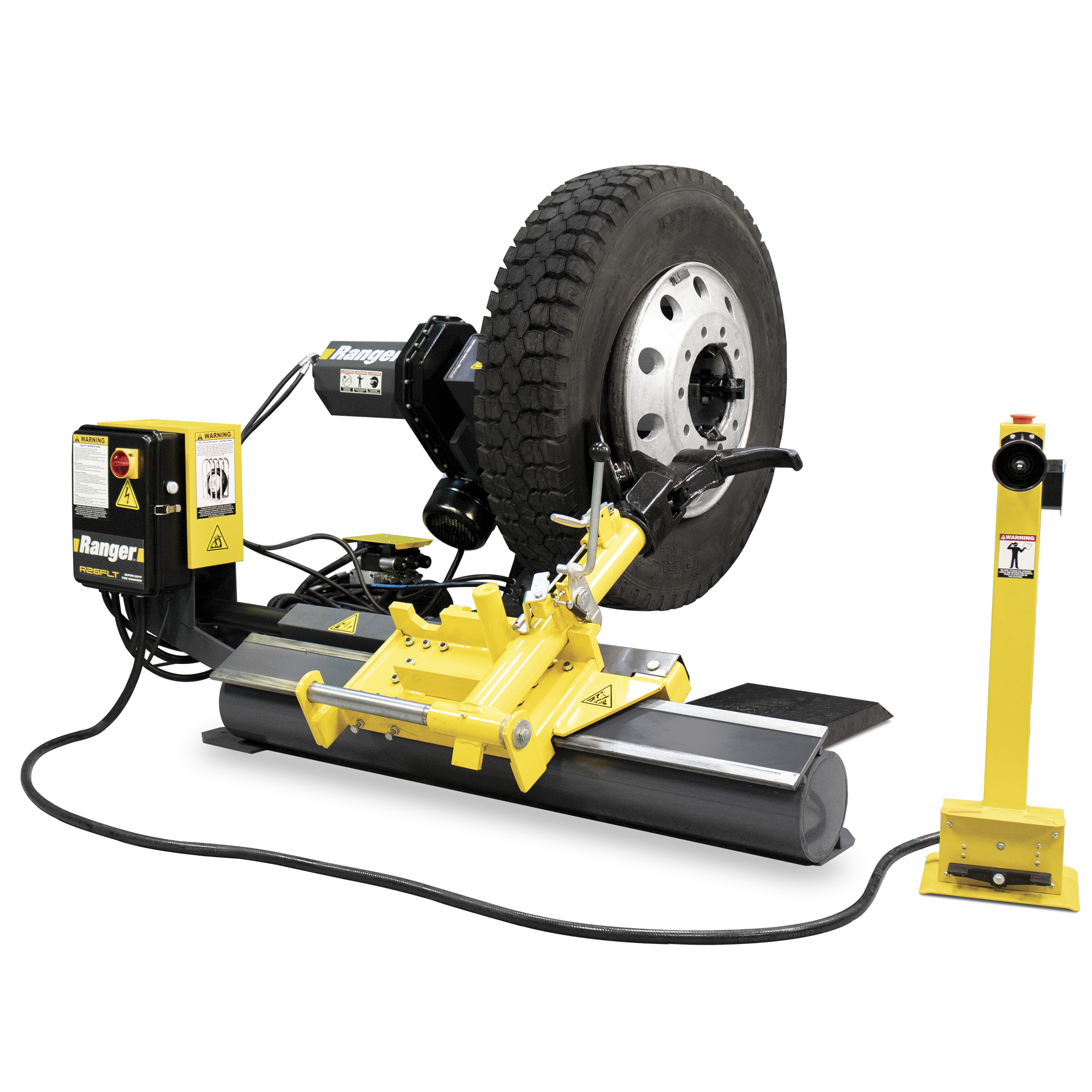

Heavy-Duty Truck Tire Changing Built for Big Rubber
The Ranger R26FLT Heavy-Duty Truck Tire Changer is built for shops that service large tubeless truck, agricultural, and off-road tires from 14 inches to 26 inches. Designed for speed, capability, and control, this joystick-style truck tire changer helps high-volume tire shops reduce floor-to-floor service time while handling tire assemblies that are far beyond the reach of passenger-car machines.
Choose the R26FLT when the job mix includes commercial truck tires, agricultural wheels, off-road assemblies, aluminum wheels, and heavy tire work that demands hydraulic control. It is the large tire changer in this group, built around a hydraulic drive system, self-centering clamping chuck, and portable remote control for operators who need power and visibility at the same time.

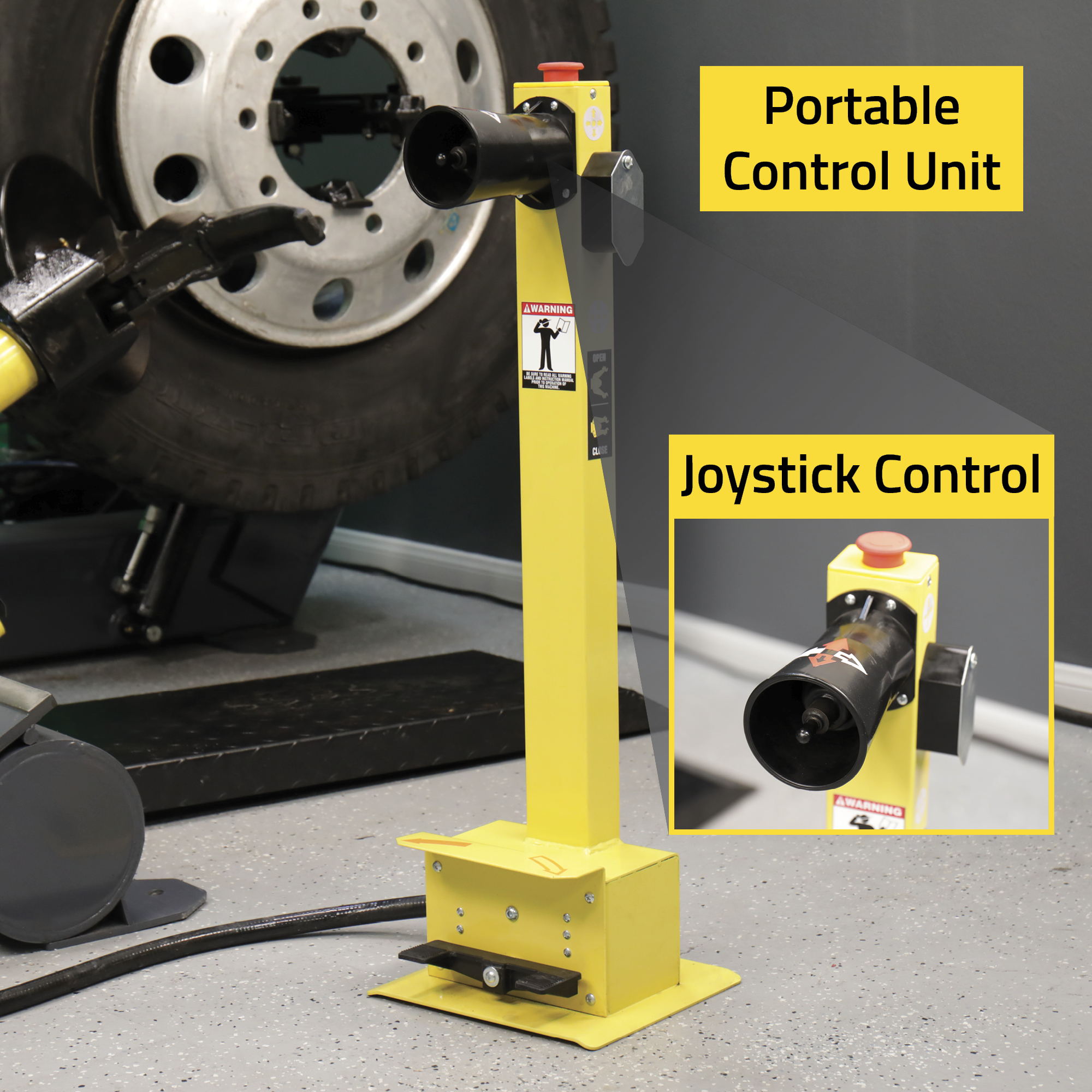

Portable Control and Hydraulic Clamping for Better Operator Positioning
The portable remote control lets the operator monitor the tire changer from a more advantageous angle while staying in command of the machine. That added freedom is valuable when working around large tires where visibility, positioning, and control can make the difference between smooth service and a slow, awkward job.

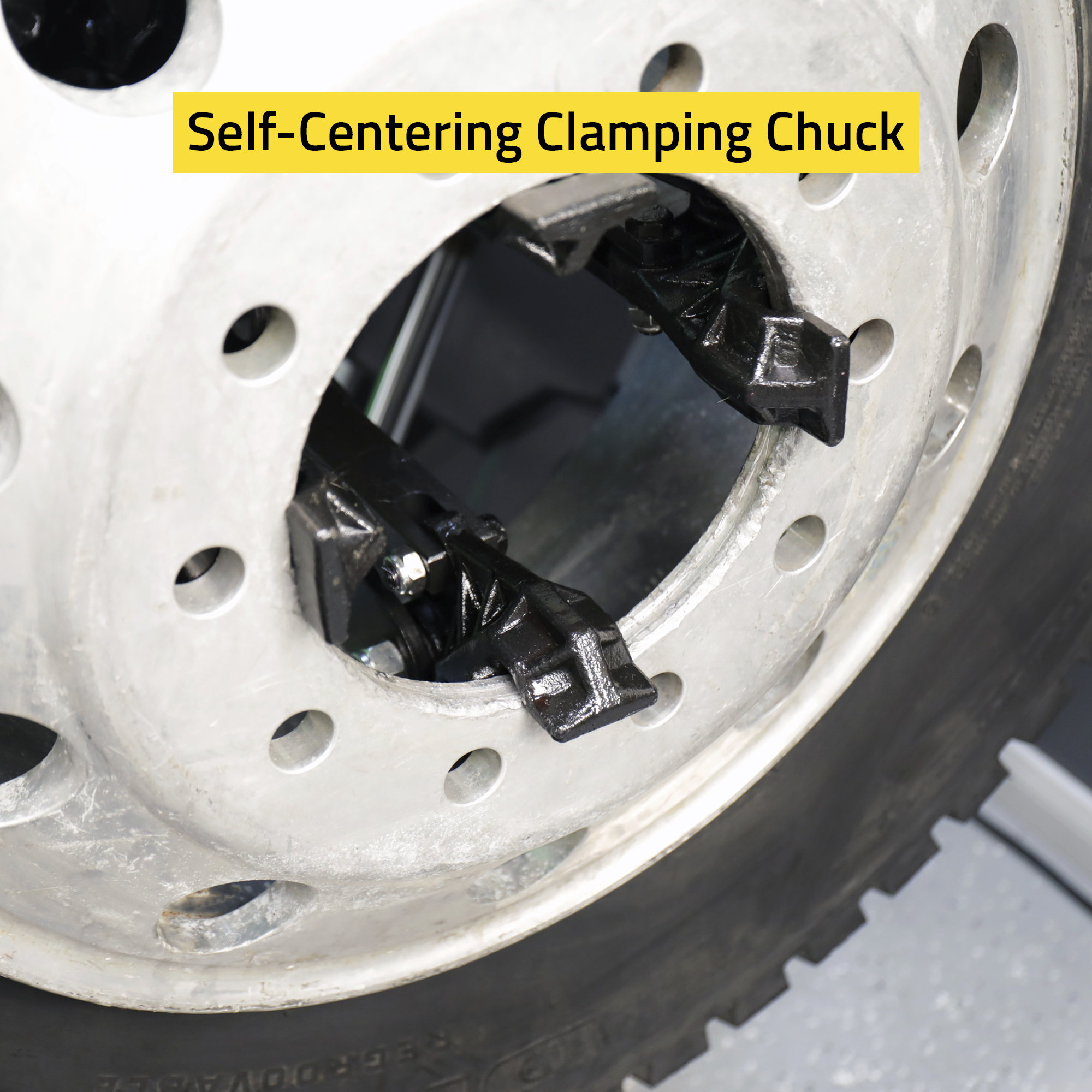

A self-centering hydraulic clamping chuck can clamp from the center bore of the wheel or from the inside of the wheel, giving the operator flexibility across a wide range of commercial and off-road wheel applications. Hydraulically operated spreader jaws help secure rims and off-road style wheels during service.

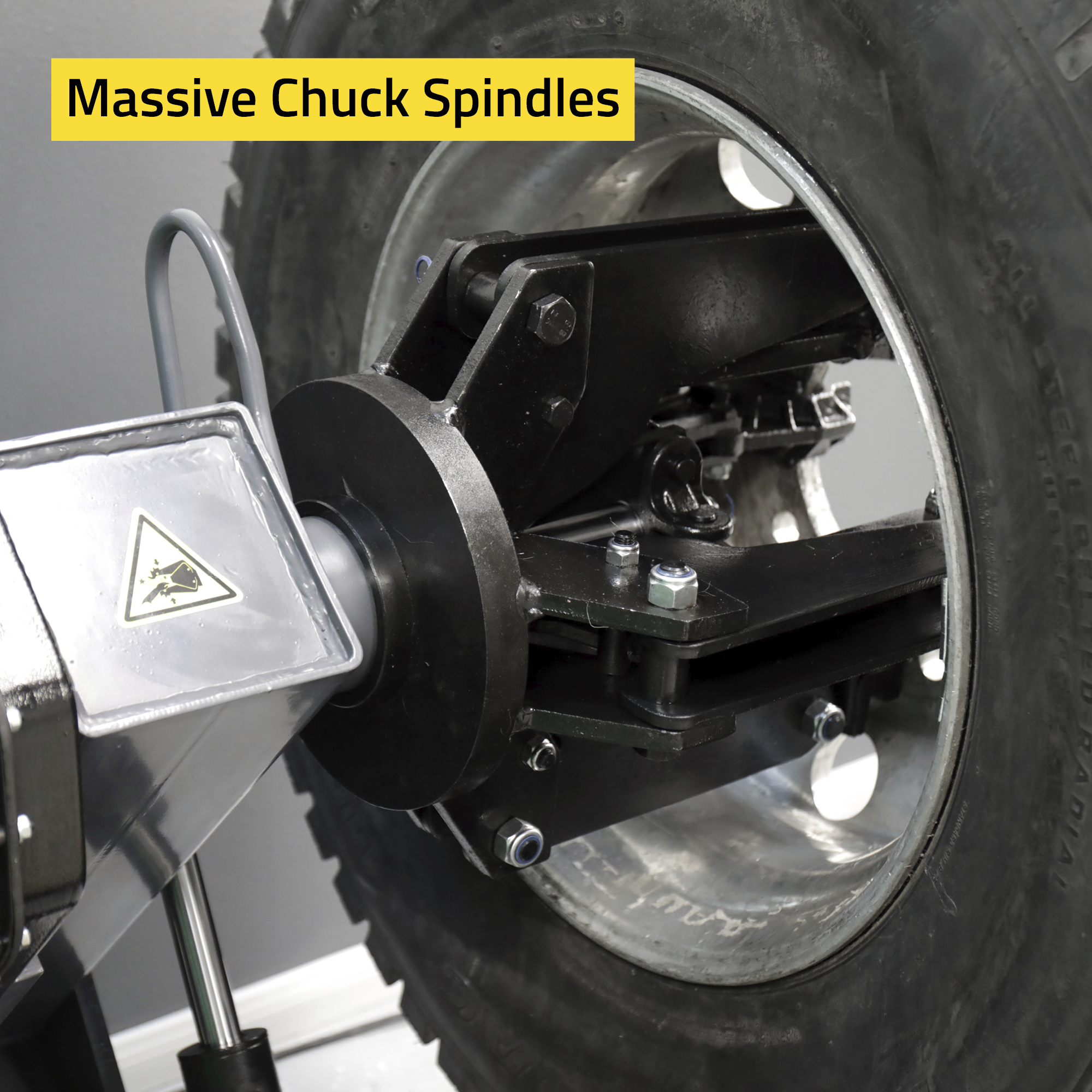

Super-Duty Hydraulic Drive with Massive Chuck and Spindle Assembly
The R26FLT uses a super-duty electric motor and hydraulic drive to deliver smooth torque and strong wheel holding power. Heavy tapered roller bearings, a bi-directional hydraulic motor, and a massive chuck spindle help the machine handle the heaviest loads with controlled movement.
The spindle, chuck, and mount-demount head rotate, raise, and lower through simple operator controls. This gives technicians hydraulic assistance for bead loosening, positioning, mounting, and demounting procedures on tires that would be impractical to service with lighter equipment.

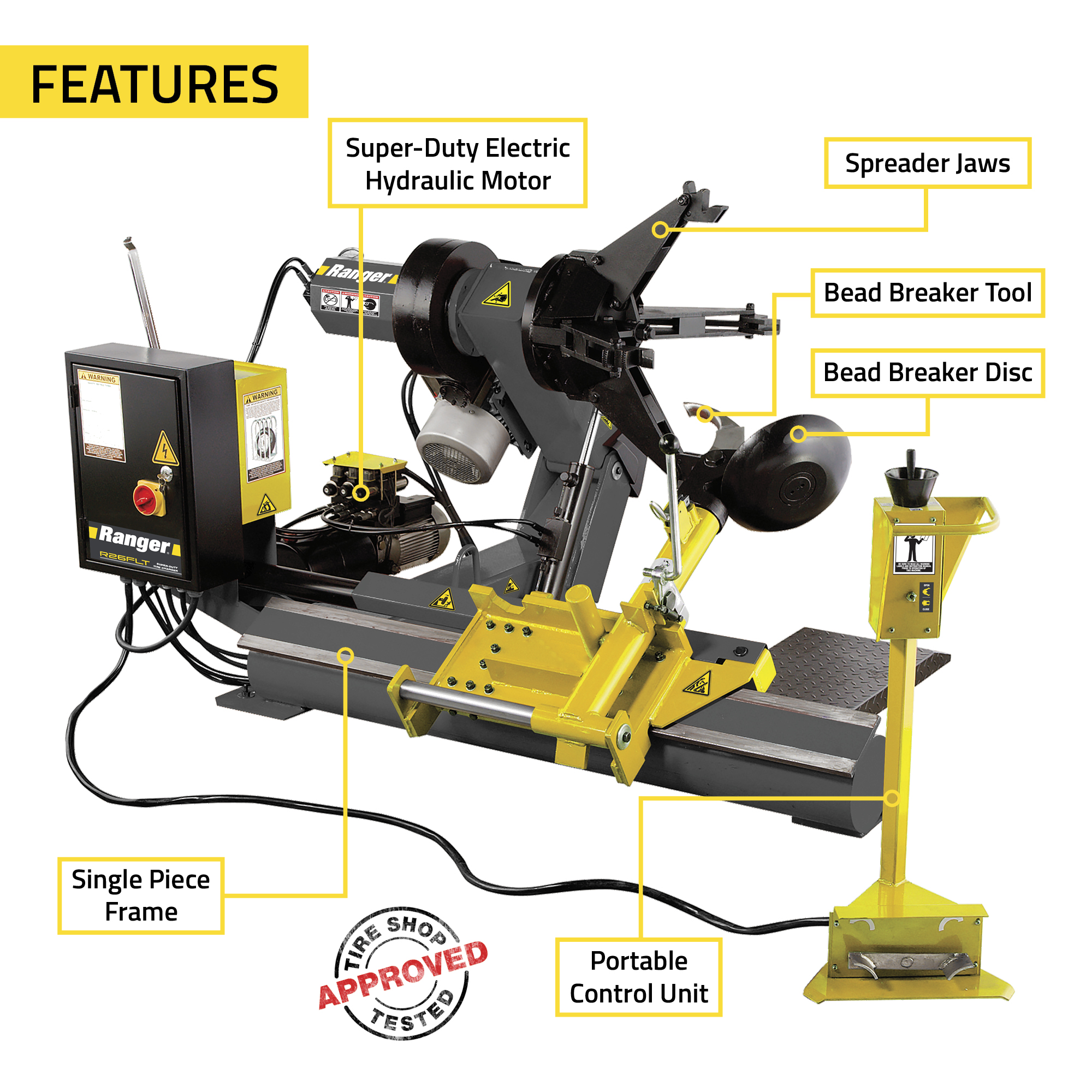

Single-Piece Frame and Included Truck Tire Service Tools
Ranger builds the R26FLT with a single-piece frame for superior rigidity and forged, hardened, ground components designed to resist scoring, grooving, and wear. The welded steel body and carefully positioned service components are intended for years of low-maintenance use in demanding truck tire environments.
The machine includes tire lubrication, funnel, large and small bead tools, rotary valve O-rings, fuses, wheel clamp, and lever grease gun. For users comparing this batch, the R26FLT is not a step up from a passenger tire changer. It is a different class of machine for truck, agricultural, and off-road tire service.
Built for Big Tires
The R26FLT services tubeless truck, agricultural, and off-road tires from 14 inches to 26 inches. It is the heavy-duty tire changer for large wheel service.
Portable Remote Control
A portable control unit lets the operator work from a better viewing angle. That matters when large tire assemblies make visibility and positioning harder.
Hydraulic Clamping Chuck
The self-centering hydraulic chuck can clamp from the center bore or inside of the wheel. This gives the machine flexibility across truck and off-road applications.

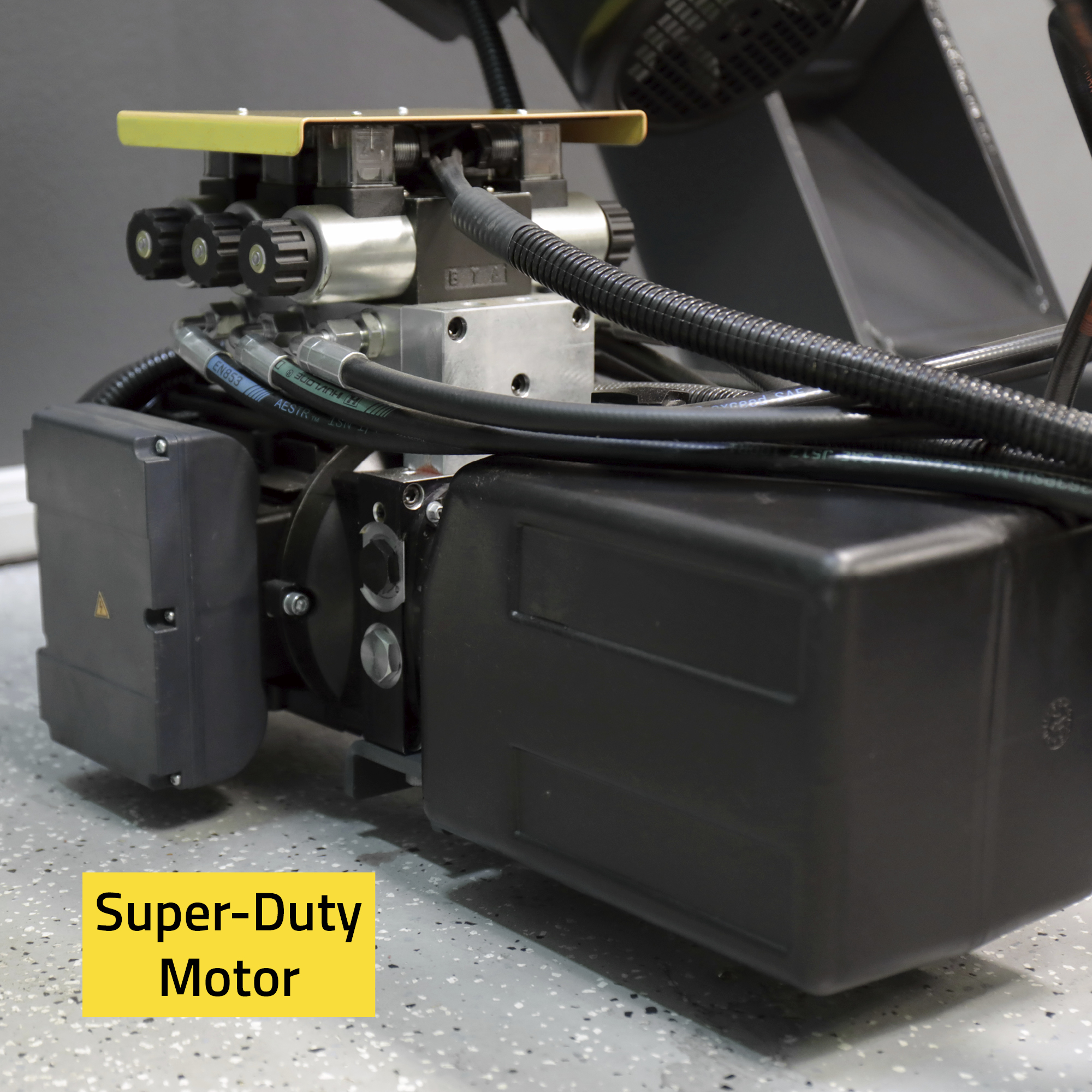

Super-Duty Hydraulic Drive
The electric motor and hydraulic drive deliver smooth torque and strong wheel holding power. Heavy tapered bearings and a bi-directional hydraulic motor support demanding work.
Hydraulic Sled Carriage
The sled carriage assists with positioning, bead loosening, mounting, and demounting procedures. It brings hydraulic help to the toughest parts of the job.
Truck Service Tools Included
The R26FLT includes lubrication items, bead tools, wheel clamp, fuses, O-rings, funnel, and grease gun. Shops get the core accessories needed for large tire work.
Recommended Add-ons
Accessories for the Ranger R26FLT Heavy-Duty Truck Tire Changer
Specifications
Wheel and Tire Capacity
Clamping and Bead Service
Power and Drive
Shipping and Delivery
