BendPak PL-6KT Triple Platform Parking Lift - 18,000-lbs. Capacity - Independent Platforms
$47,695.00

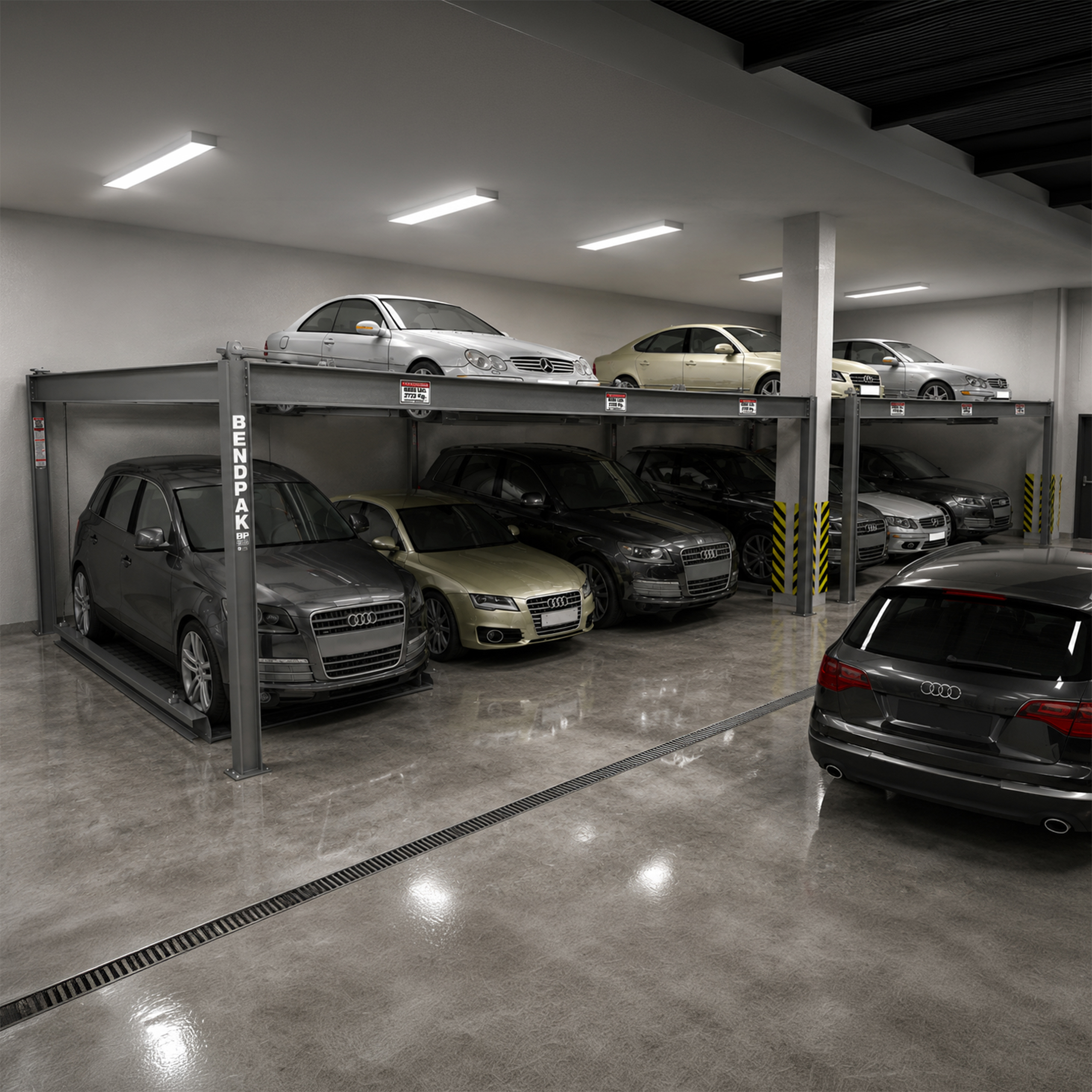

Six Vehicles, One Massive Parking Lift

Six Vehicles, One Massive Parking Lift

The BendPak PL-6KT triple platform parking lift is built for serious vehicle storage when three stalls need to become six without turning the facility into a puzzle box. With three independent platforms, a streamlined four-column structure, and 6,000 lbs. of capacity per deck, this 18,000-lb. total-capacity parking lift gives commercial garages, municipal lots, custom shops, and large residential garages a smarter way to multiply parking density. Instead of buying multiple individual parking lifts and hoping the layout works, the PL-6KT creates a purpose-built triple-wide storage system in one organized footprint. It keeps vehicles easier to access, protects the lower row with full-width platforms, and gives high-volume storage environments the kind of capacity that actually changes the math.

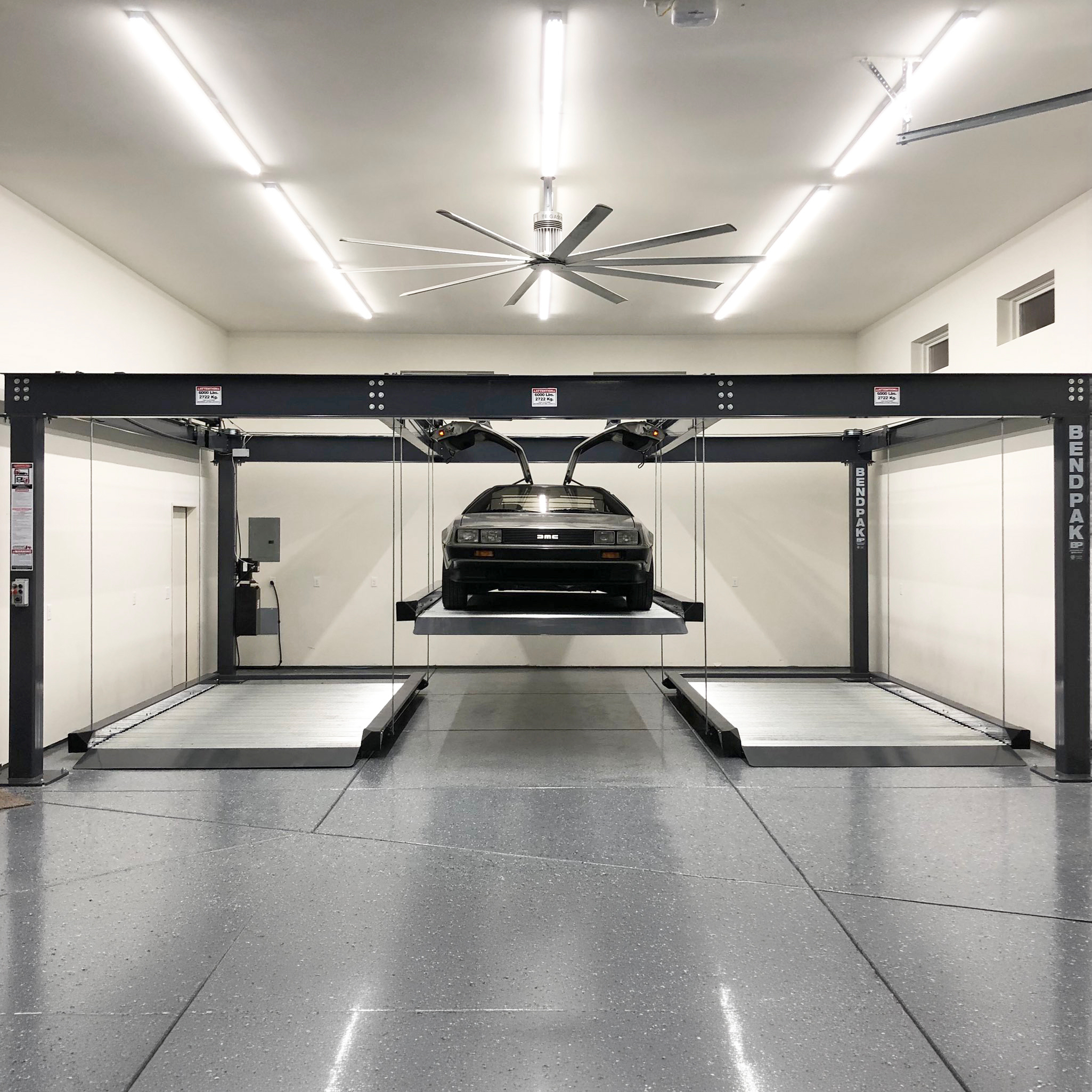

Three Independent Platforms Keep the Whole System Moving

Three Independent Platforms Keep the Whole System Moving

Each of the PL-6KT’s three galvanized steel platforms operates independently, so one vehicle can be raised or lowered without disturbing the other two upper-deck vehicles. That independent platform design is the real advantage for owners who need more parking without constantly moving cars around just to access a single vehicle. The layout is ideal for long-term storage, short-term parking, collector vehicles, motorcycles, ATVs, light trucks, and mixed-use parking operations. With independent lift control across all three decks, the PL-6KT helps keep the storage process organized, efficient, and a lot less annoying than playing automotive musical chairs.

Full-Width Galvanized Platforms Built for Real Storage Duty

The PL-6KT uses full-width galvanized steel platforms designed to cover the length and width of each parking deck. These rugged platforms help shield vehicles stored below while resisting oil, weather, abuse, and the daily realities of vehicle storage environments. Built-in wheel stops, front and rear wheel chocks, wide base plates, and a durable powder-coat superstructure help support stable, long-term use. From custom shops to parking facilities, this triple platform lift is engineered to feel like permanent infrastructure, not a temporary storage workaround.
Full-Width Galvanized Platforms Built for Real Storage Duty

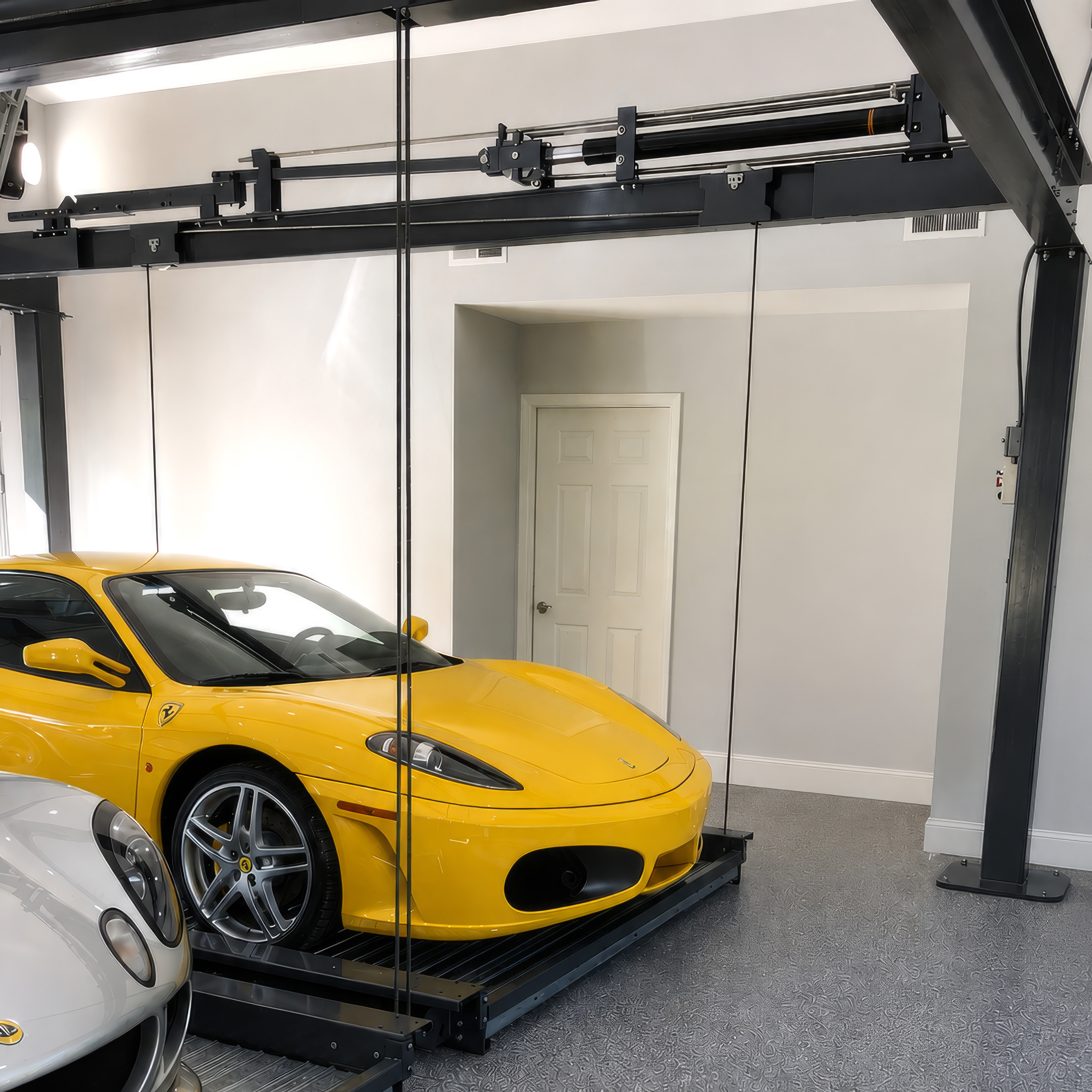

Heavy-Duty Lifting Hardware with Safety Built Into Every Column

Heavy-Duty Lifting Hardware with Safety Built Into Every Column

BendPak routes the PL-6KT’s hydraulic cylinders and lifting cables internally through the lift structure to keep the system cleaner, safer, and more organized. Dual hydraulic cylinders, heavy-duty steel lifting cable, oversized sheave diameters, rugged roller axles, and a reliable electric-hydraulic power system work together to deliver fast, controlled lifting across the massive platform structure. Multi-position safety locks in each column, push-button pneumatic safety release, independent backup slack-cable safety latches, and customizable power-unit placement help make the PL-6KT a professional parking lift solution for facilities that need dependable capacity without sacrificing control or confidence.

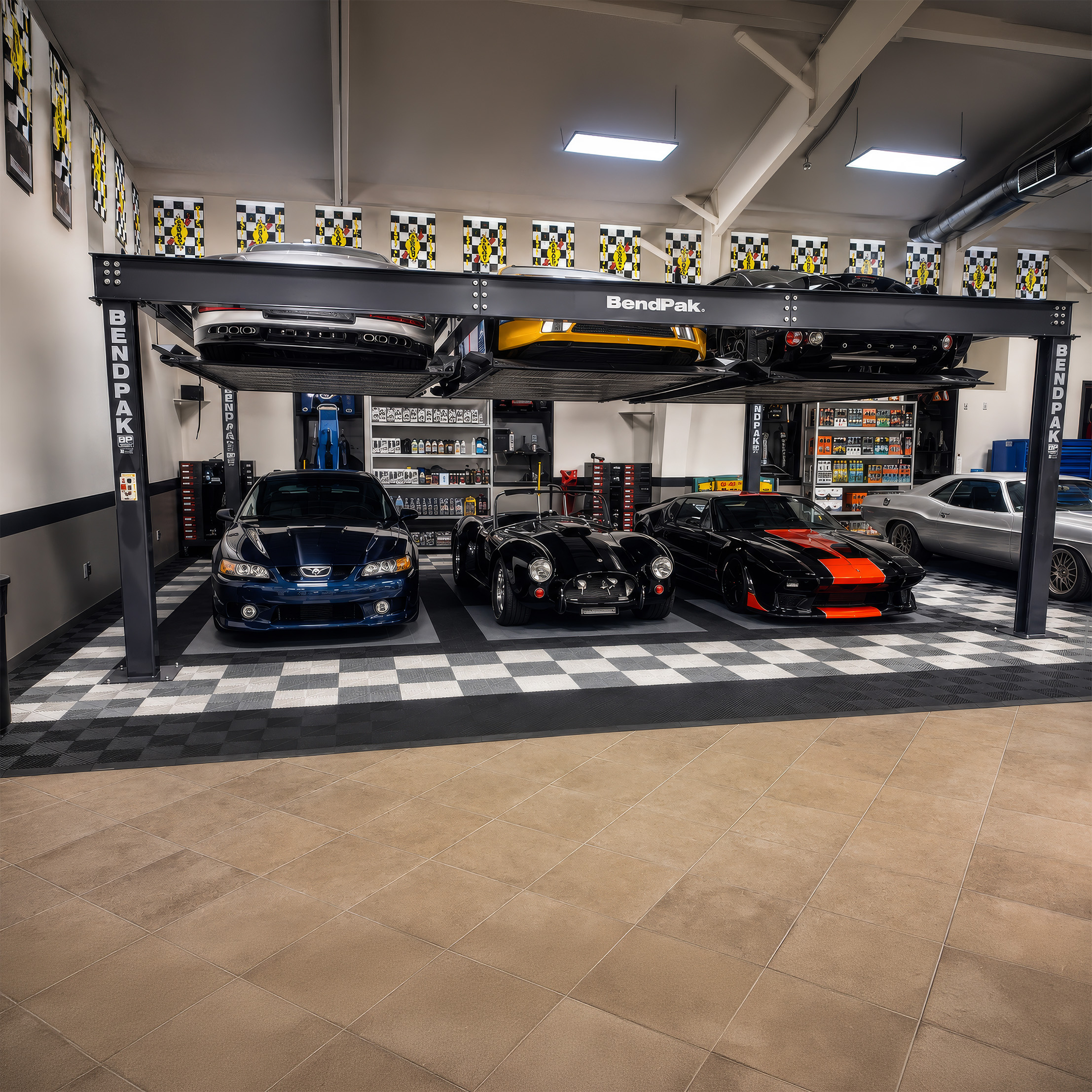

Triple-Wide Parking Power

Triple-Wide Parking Power

Designed to turn three parking spaces into six, the PL-6KT gives high-capacity storage operations a smarter way to use available floor space.

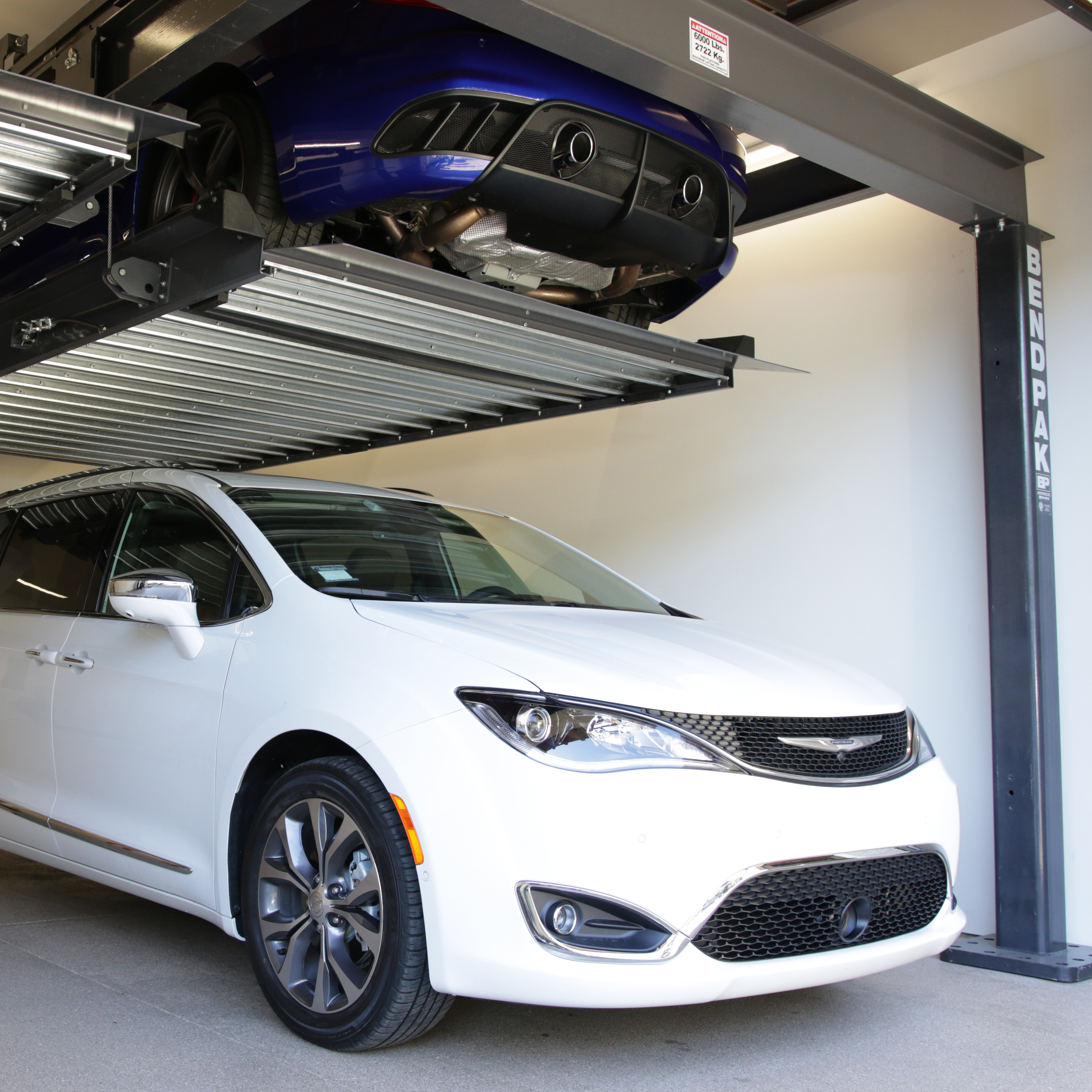

18,000-lb. Total Capacity

18,000-lb. Total Capacity

Each independent platform supports up to 6,000 lbs., giving the lift a combined 18,000-lb. total loading capacity.
Independent Platform Control

Independent Platform Control

All three platforms move independently, helping reduce vehicle shuffling when only one raised vehicle needs to be accessed.

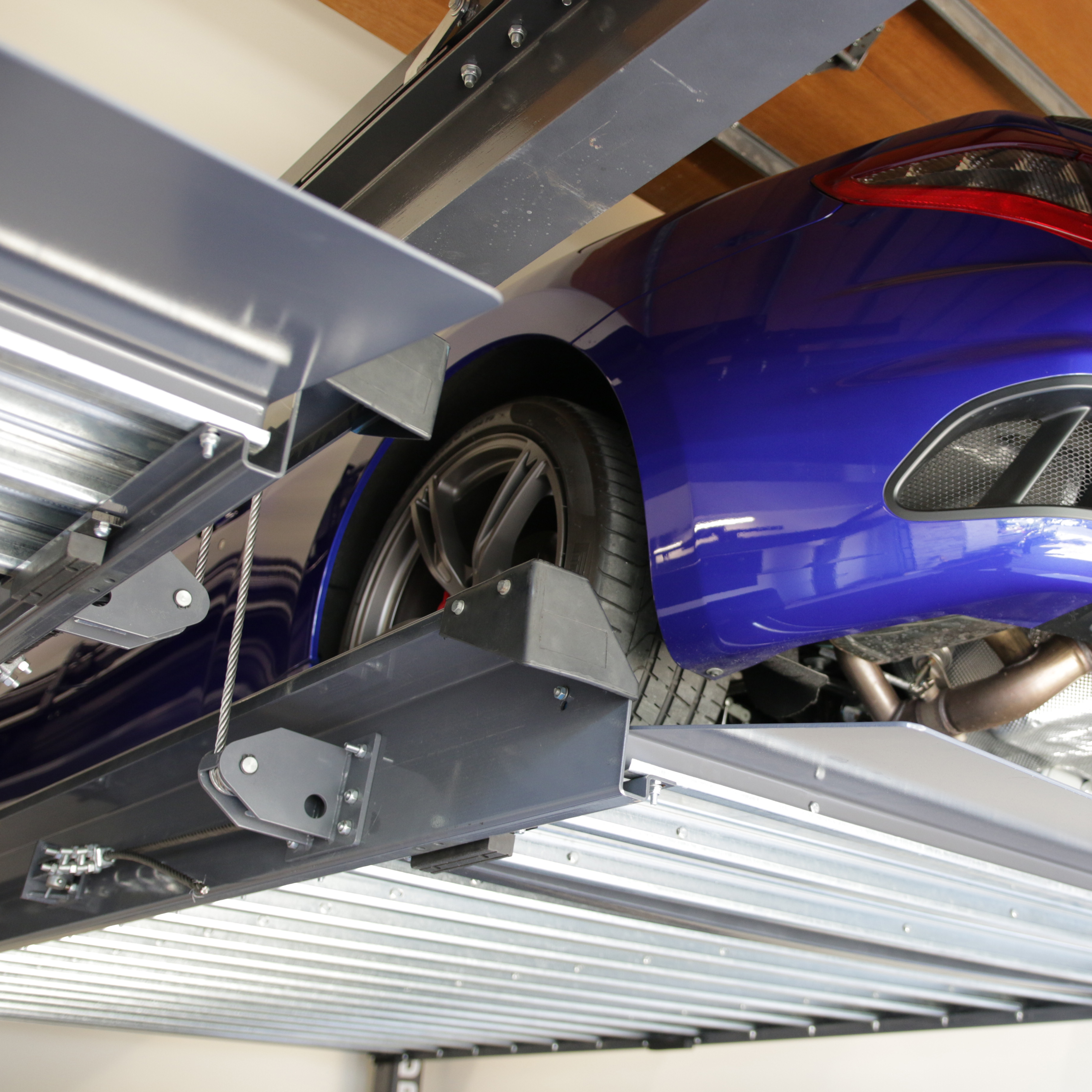

Galvanized Full-Width Decks

Galvanized Full-Width Decks

Full-width galvanized platforms help protect lower vehicles while resisting oil, weather, and daily storage wear.

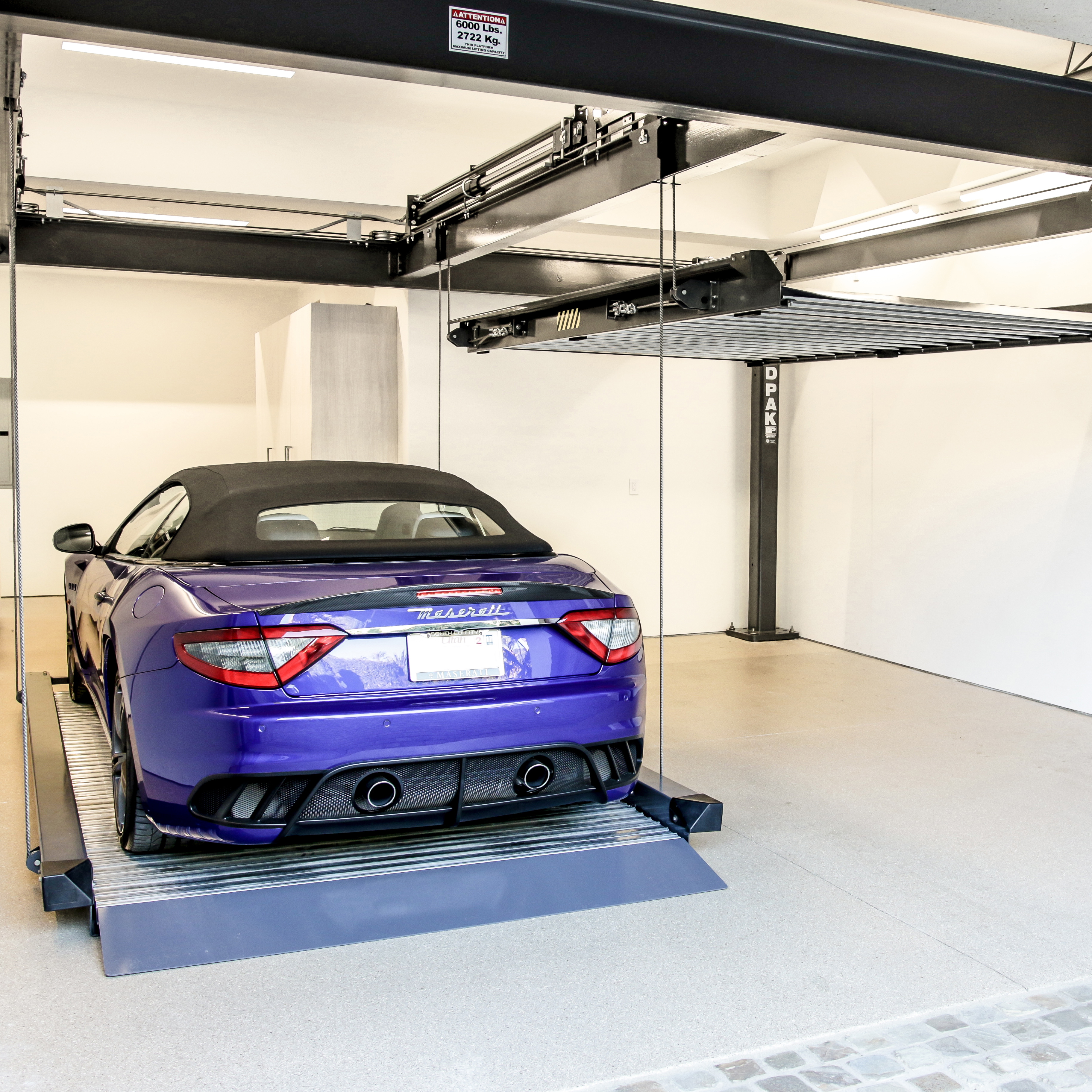

Internal Cable Routing

Internal Cable Routing

Hydraulic lines and lifting cables are routed internally through the structure for cleaner operation and controlled platform movement.

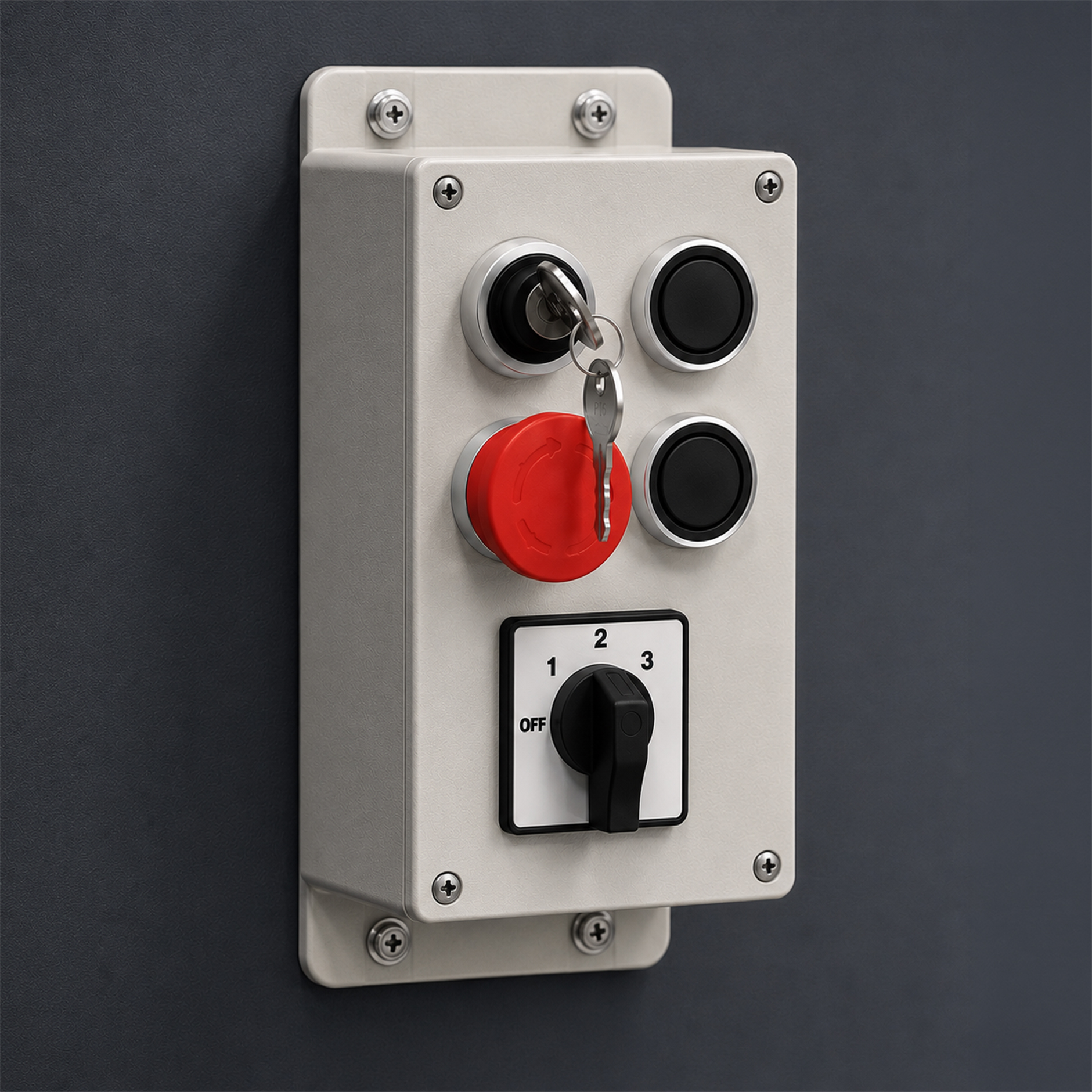

Pneumatic Safety Release

Pneumatic Safety Release

Push-button pneumatic safety release and multi-position locks help keep operation controlled across all three parking platforms.

Specifications

Style

Style
Multi-Platform Parking Lift
Number of Platforms
3

Capacity

Load Capacity per Platform
6000 lb

Rise and Locking

Max Rise
92 in
Max Lifting Height
103.25 in
Locking Positions
7
Locking Spacing
10 in
Lock Release
Air Powered Release
Lifting Time
60 seconds

Overall Dimensions

Width
308.5 in
Length
236.5 in
Height
122.75 in

Inside Clearance

Drive-Thru Clearance
91 in
Inside Columns
283.25 in

Platform and Runways

Platform Width
82 in
Platform Length
152 in

Power and Controls

Voltage
208-240V / 50/60 Hz / 1-Phase
Amperage
22 Amps
Sound Level
52 dB

Shipping and Delivery

Shipping Dimensions
25 x 314 x 52 in
Shipping Weight
8889 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
