BendPak PL-12000DPS Wide Standard Tandem Parking Lift - 12,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175552
$24,095.00
Financing as low as $507/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
1
Ask An Expert

Expected to Ship: Sep 1, 2026

MANUALWARRANTY

Parking Lift / 12,000-lbs. Capacity / Wide Tandem Platform / Standard Rise / Short Platforms

BendPak PL-12000DPS Wide Standard Tandem Parking Lift - 12,000-lbs. Capacity
$24,095.00

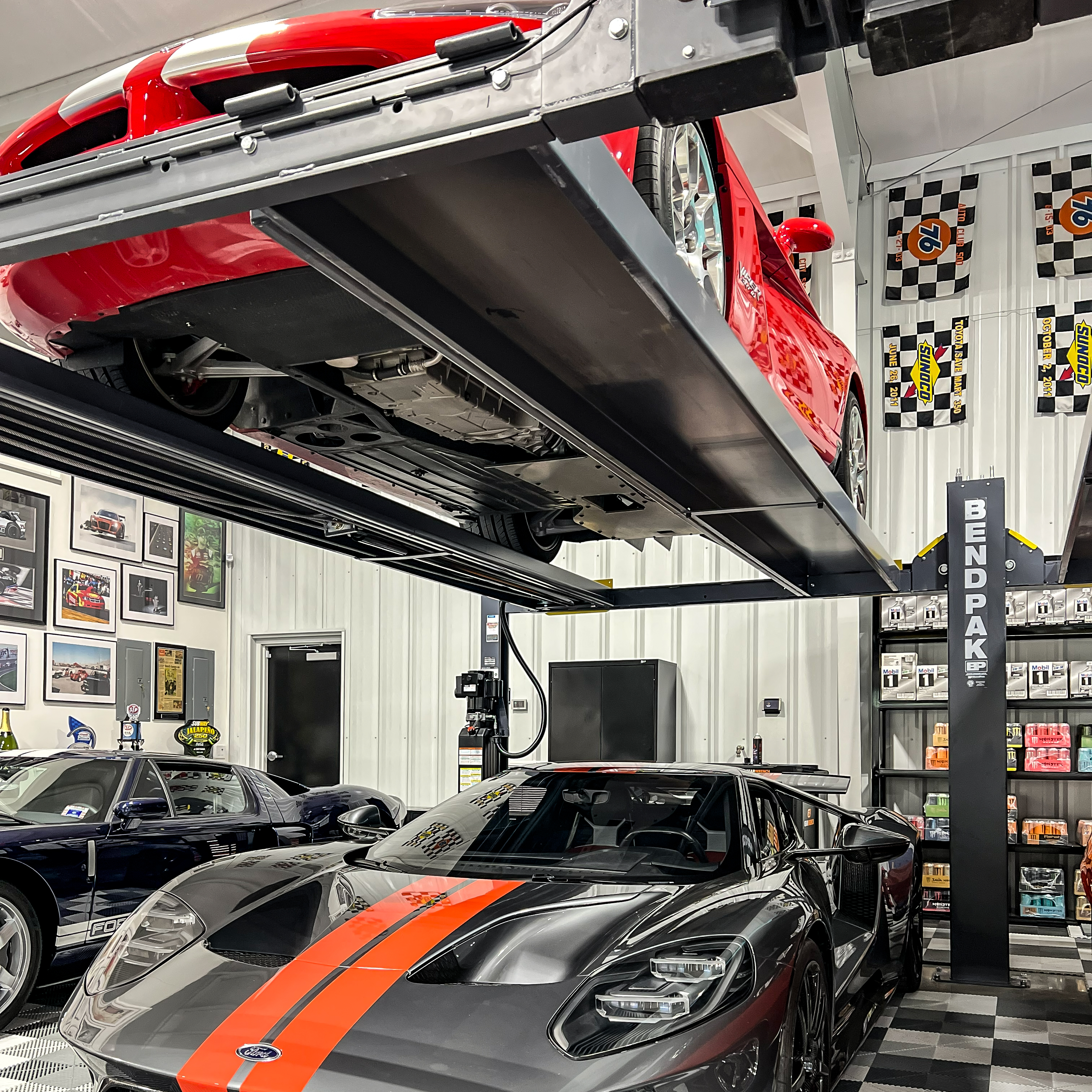

Two Parking Spaces Start Pulling Double Duty

Two Parking Spaces Start Pulling Double Duty

The BendPak PL-12000DPS wide standard tandem parking lift is made for users who need to store more vehicles without adding more building space. With two independent platforms and 12,000 lbs. of total lifting capacity, this parking lift helps commercial garages, residential collections, dealerships, and storage facilities create additional vehicle capacity inside the footprint they already have. The wide standard configuration gives drivers more room while still delivering the space-saving logic of a tandem parking system. For facilities challenged by too many cars and not enough stalls, the PL-12000DPS turns everyday parking space into a smarter, more valuable storage asset.

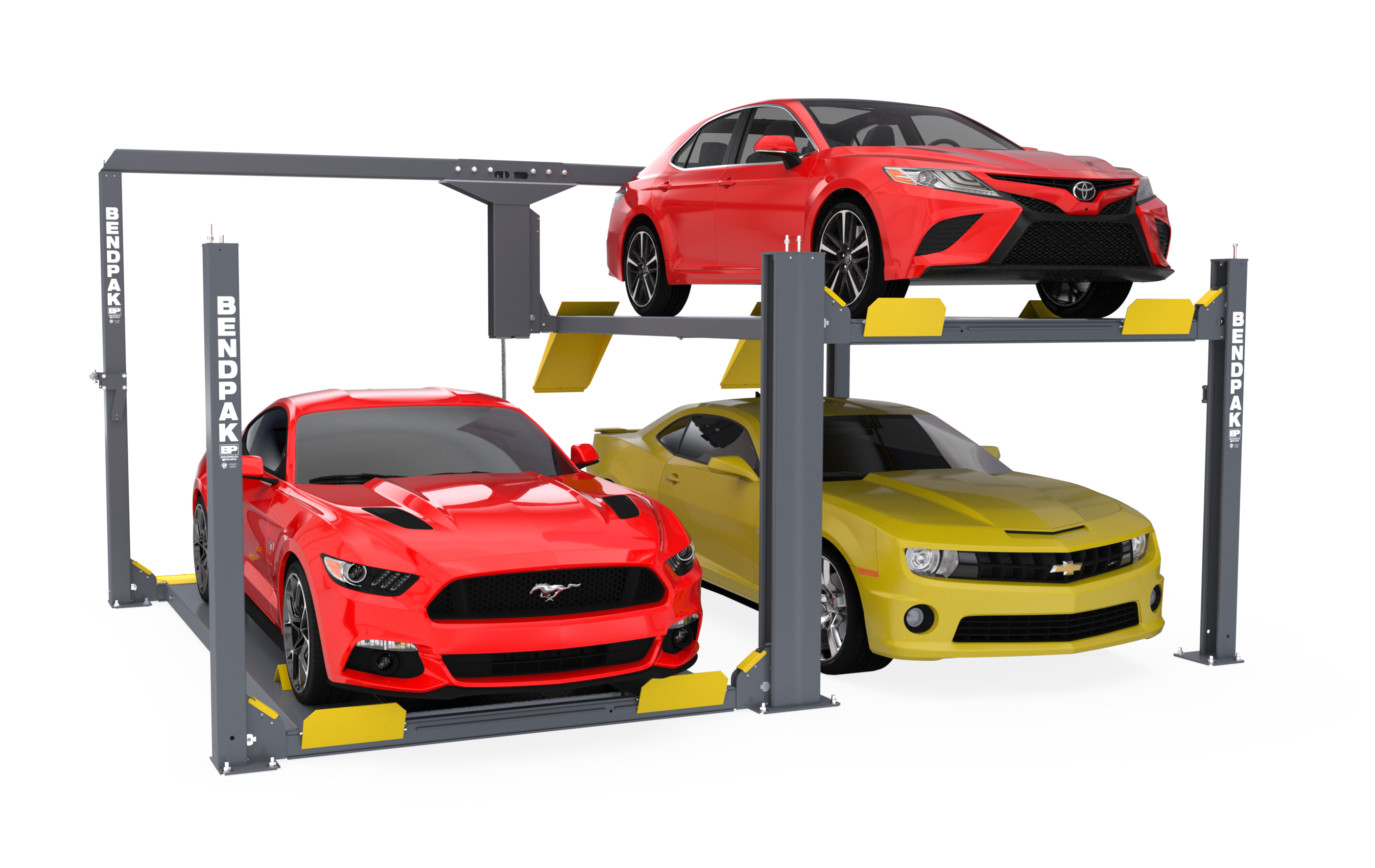

Independent Platforms Keep Access Simple

Independent Platforms Keep Access Simple

Each platform on the PL-12000DPS operates independently, so one vehicle can be lowered while the other side remains parked. This eliminates the need to shuffle vehicles from the opposite side of the lift just to access a single stored vehicle. That independent operation makes a major difference in busy parking environments where different vehicles may be accessed at different times. It gives owners and operators more control, less disruption, and a cleaner workflow for cars, light trucks, motorcycles, and ATVs.

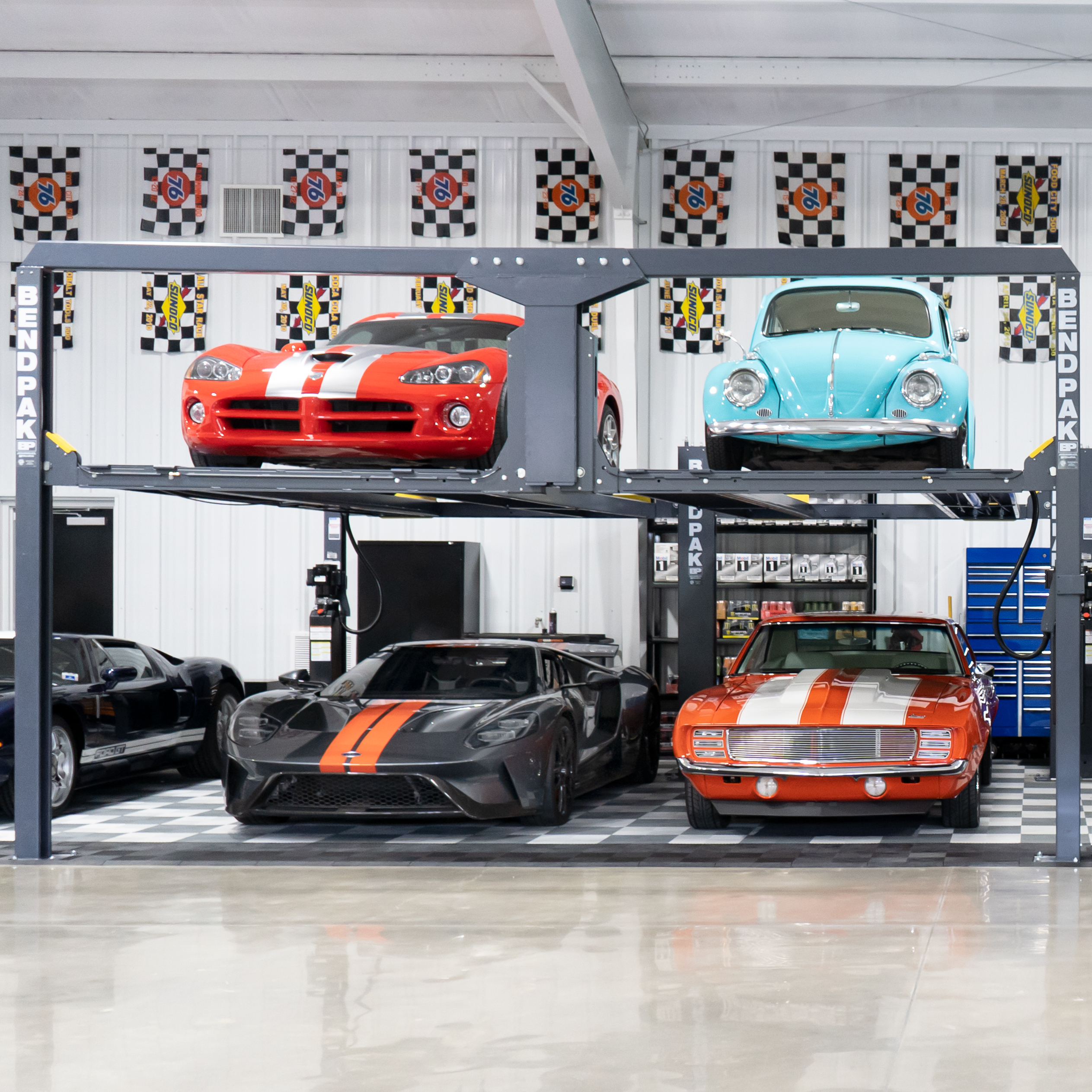

Wide Standard Storage with BendPak Parking-Lift Engineering

The PL-12000DPS is designed to increase parking density while keeping the system practical for everyday use. Full-width platforms help protect vehicles stored underneath, while the wide platform layout gives users a confident drive-on experience for standard parking applications. Heavy-duty steel construction, multiple lock positions, wide baseplates, built-in wheel stops, front and rear wheel chocks, and a durable powder-coat superstructure help make the PL-12000DPS a serious long-term storage solution. It is built for facilities that need more parking capacity without turning every vehicle move into a full production.
Wide Standard Storage with BendPak Parking-Lift Engineering
Dual Power Units and Hydraulic Muscle for Daily Parking Use

Dual Power Units and Hydraulic Muscle for Daily Parking Use

The PL-12000DPS uses dual hydraulic cylinders with heavy-duty galvanized lifting cables and dual electric-hydraulic power units to support dependable lifting performance. High-speed lifting helps keep operation efficient, while multiple locks allow multi-height parked settings for greater flexibility. Lightweight extended aluminum approach ramps can be stowed when not in use, helping reduce clutter around the lift. For users looking for a wide standard tandem parking lift with independent platforms and proven BendPak parking-system engineering, the PL-12000DPS is built to add serious value to limited space.
Wide Standard Layout

Wide Standard Layout

A wide standard platform design gives users a confident tandem parking setup for everyday vehicle storage.
Independent Platforms

Independent Platforms

One platform can lower while the other stays parked, reducing unnecessary vehicle movement.
12,000-lb. Total Capacity

12,000-lb. Total Capacity

Each side supports up to 6,000 lbs. for practical storage of cars, light trucks, motorcycles, and ATVs.

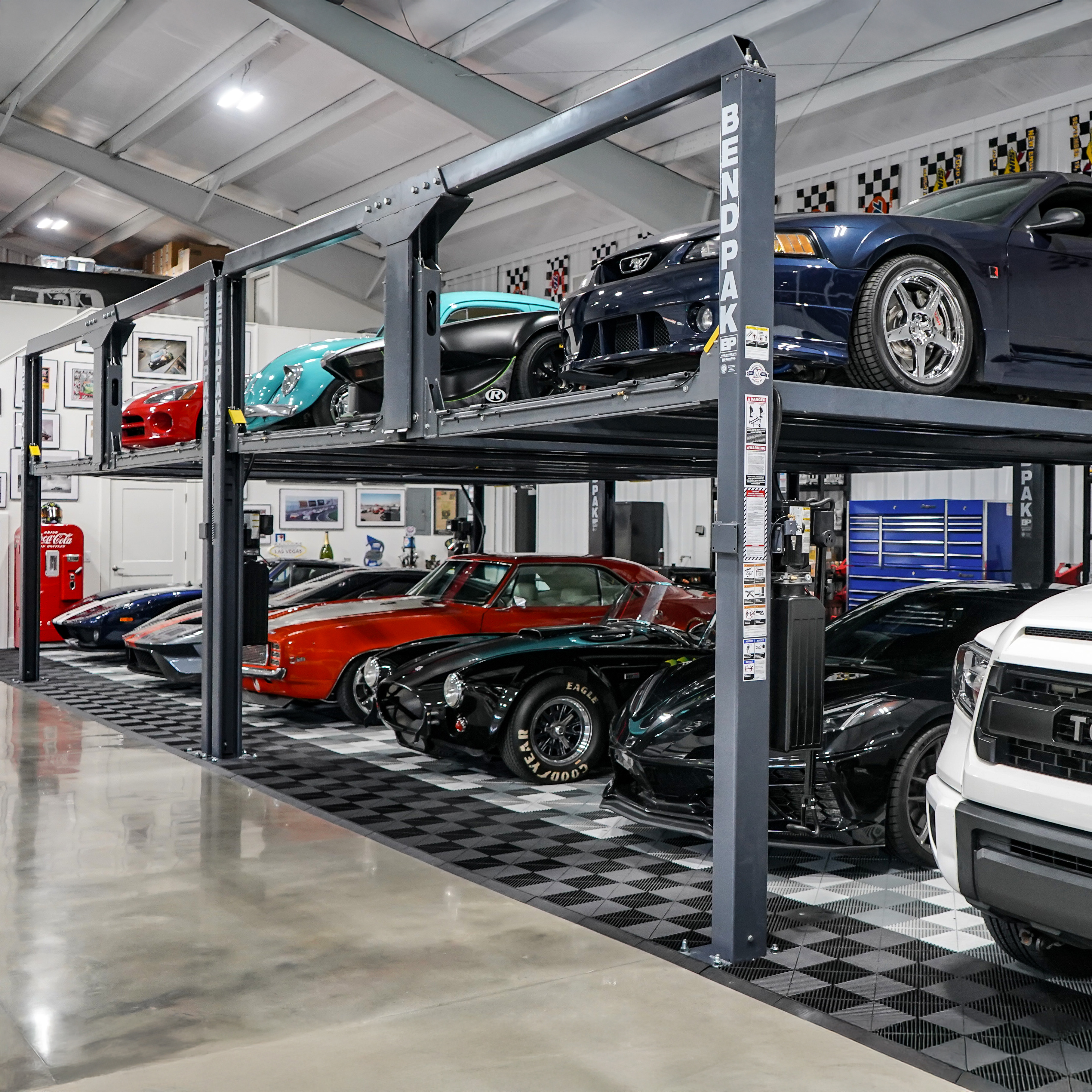

Full-Width Protection

Full-Width Protection

Full-width platforms help shield the vehicles parked below and create a more complete parking surface.

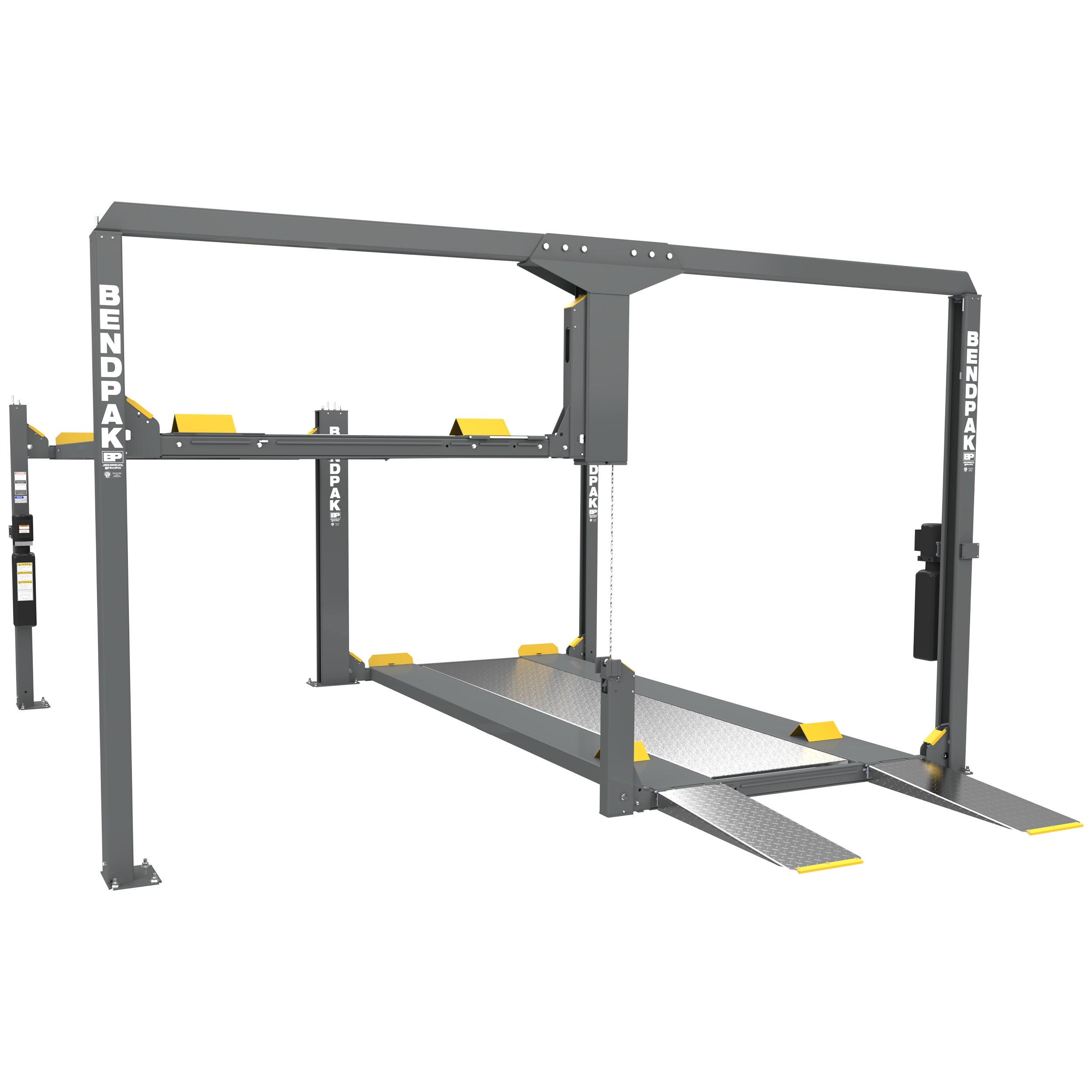

Dual Hydraulic Power

Dual Hydraulic Power

Dual cylinders, galvanized cables, and dual electric-hydraulic power units support dependable lifting.

Specifications

Style

Style
Multi-Platform Parking Lift
Number of Platforms
2

Capacity

Load Capacity per Platform
6000 lb

Rise and Locking

Max Rise
70 in
Max Lifting Height
74.75 in
Locking Positions
6
Locking Spacing
4.25 in
Lock Release
Air Powered Release
Lifting Time
60 seconds

Overall Dimensions

Width
221.5 in
Length
218.75 in
Height
118.5 in
Outside Length
174 in

Inside Clearance

Drive-Thru Width
85 in
Drive-Thru Height
68.5 in
Inside Columns
100.25 in

Platform and Runways

Runway Width
19 in
Runway Length
159 in
Runway Height
4.75 in
Width Between Runways
35 - 41 in
Outside Edge of Runways
76 - 82 in

Power and Controls

Voltage
208-240V / 50/60 Hz / 1-Phase
Amperage
22 Amps
Sound Level
52 dB

Shipping and Delivery

Shipping Dimensions
47 x 166 x 29 in
Shipping Weight
4396 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
