BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift - 9,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175155
$6,895.00
Financing as low as $150/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
BendPak P-9000LTF flush-mount scissor lift with dual lifting platforms, control console, rubber blocks and tire spotting dish and 9,000-lb. capacity.
Product 5
Hydraulic cylinders and mechanical safety locks beneath the platforms of a BendPak P-9000LTF flush-mount scissor lift.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift - 9,000-lbs. Capacity
$6,895.00

Zero-Footprint Low-Rise Lift Power for Busy Service Bays

The BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift brings 9,000 lbs. of lifting capacity into a recessed, drive-over layout that virtually disappears when lowered. Built for fast-lube facilities, repair shops, and high-volume service bays, this flush-mount low-rise lift gives technicians frame-engaging support without leaving bulky equipment in the way. Its open-center design keeps undercarriage access clear, while the flush-mount configuration preserves shop movement in tight or busy areas. For shops that want low-rise lifting power, clean floor flow, and a more permanent recessed installation, the P9000LTF is the tidy, high-capacity answer.

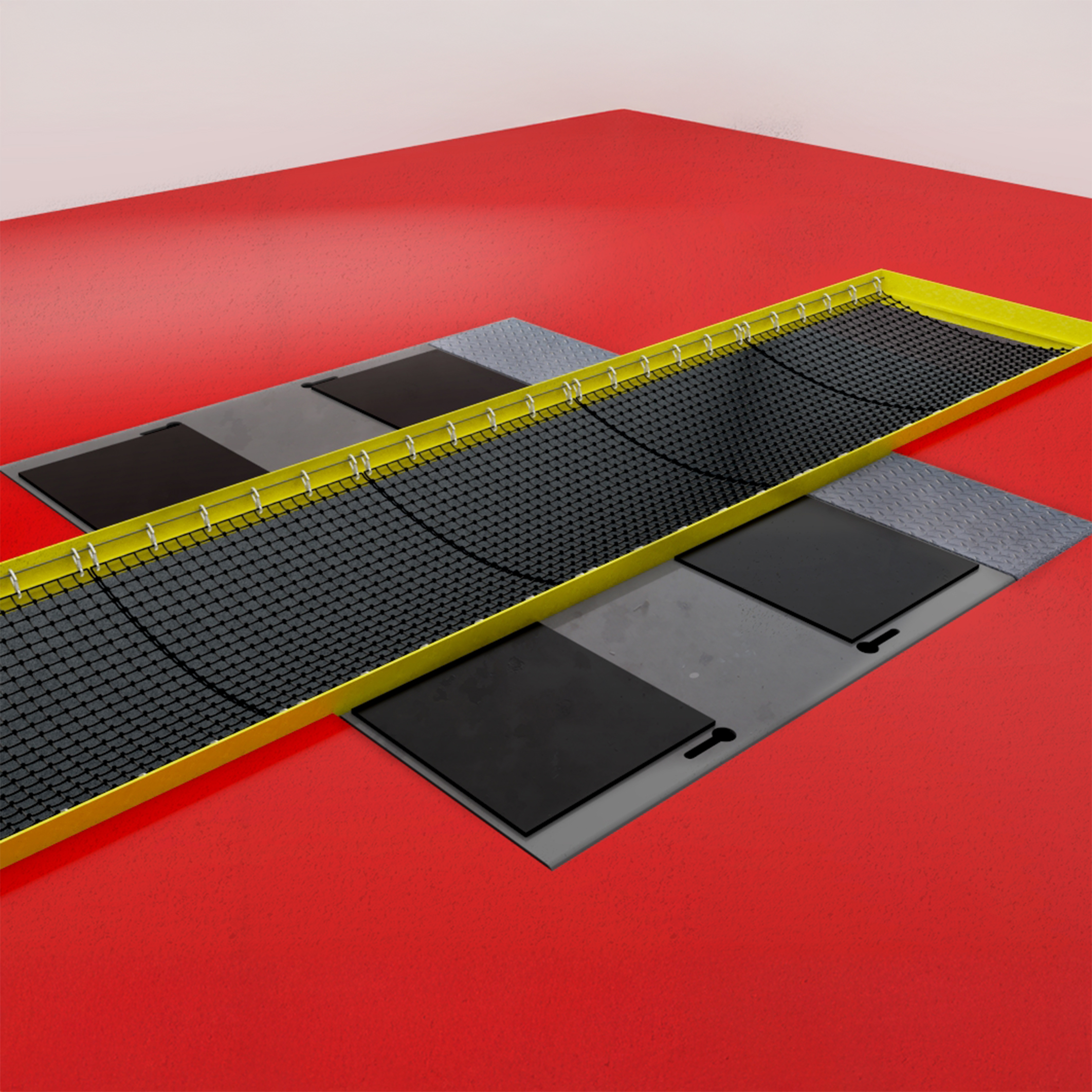

Flush-Mount Design That Keeps the Bay Open

Flush-Mount Design That Keeps the Bay Open

When installed flush with the concrete, the P9000LTF creates a low-profile drive-over service area that stays out of the way until it is needed. This zero-footprint style helps reduce clutter in busy shops and makes vehicle movement easier around tight service lanes. The lift is especially useful for pit-style operations and facilities that want a recessed drive-over option. It maintains the benefits of low-rise lifting while helping the work area remain clean, open, and easy to navigate.

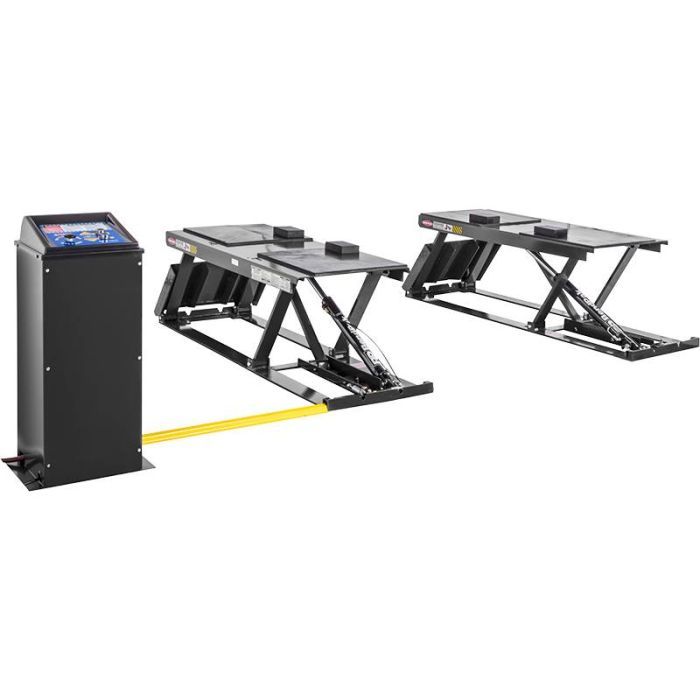

9,000-lb. Low-Rise Muscle with Pneumatic Safety Locks

The P9000LTF uses a heavy-duty 1.5 HP electric-hydraulic power unit, dual hydraulic cylinders, and a dual-pump power unit with a built-in proportioning valve to support smooth low-rise lifting. Reinforced parallel lifting arms and reinforced upper lift platforms help support inboard loading for a wider range of service work. Automatic multi-position safety locks with air release provide remote lock control during operation. The pneumatic release system avoids older spring-style mechanisms and helps maintain safe, efficient lowering in flush-mounted service environments.
9,000-lb. Low-Rise Muscle with Pneumatic Safety Locks
Rubber Contact, Optional Arms, and BendPak Durability

Rubber Contact, Optional Arms, and BendPak Durability

Durable rubber-topped pad surfaces and included rubber lift blocks help protect undercarriages and chassis during setup. For high-stance trucks, SUVs, and longer-wheelbase vehicles, an optional arm kit can provide additional reach, offset lifting, and extra height where needed. The rugged steel channel frame and powder-coat finish are built for years of shop use. With detailed instructions, safety decals, labels, and service support available, the P9000LTF gives facilities a recessed low-rise lift that works hard without taking over the floor.
Flush-Mount Bay Flow

Flush-Mount Bay Flow

The P9000LTF installs recessed into the floor to preserve a cleaner drive-over workspace. It is made for shops that want lifting power without permanent bay obstruction.

9,000-lb. Capacity

This low-rise lift supports up to 9,000 lbs. for a wide range of passenger cars, light trucks, and SUVs. It gives fast-service bays more capability than basic pit equipment.

Open-Center Service Access

The open-center layout keeps the middle work area available for undercarriage service. Technicians can reach the vehicle while the frame-engaging platforms support the load.

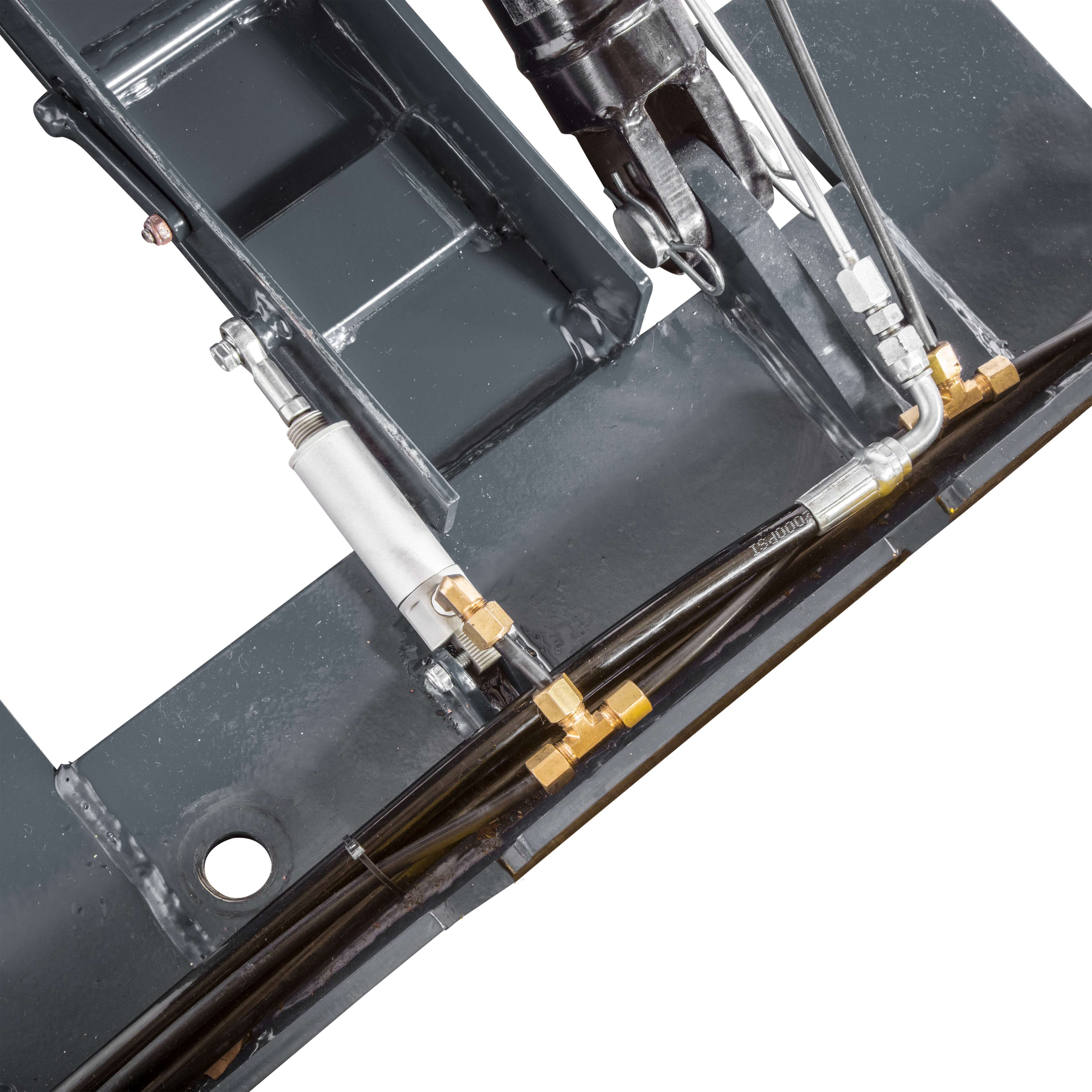

Air-Release Safety Locks

Air-Release Safety Locks

Automatic multi-position safety locks use pneumatic release for controlled operation. The system is well suited for flush-mounted environments where easy lock access matters.

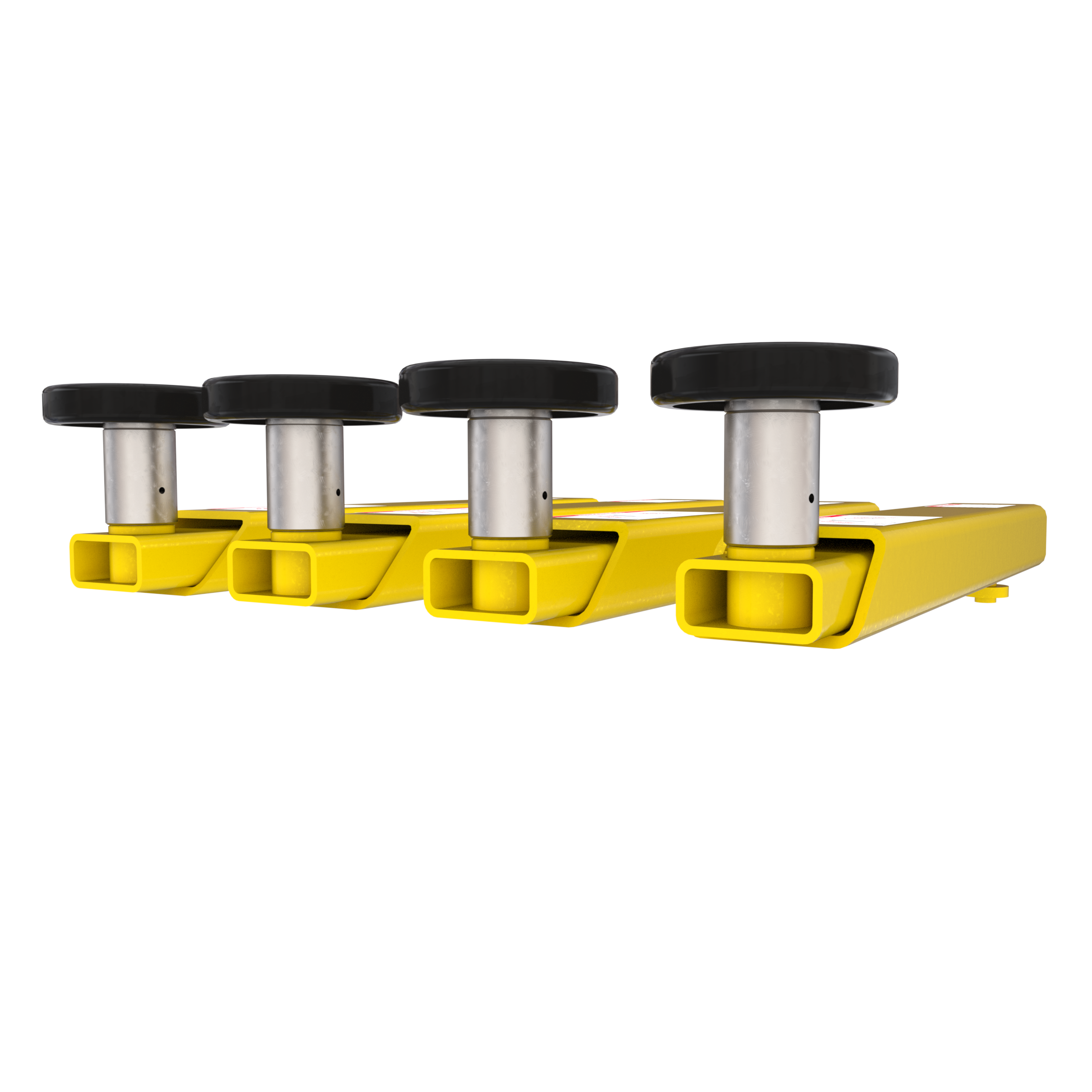

Optional Arm Capability

Optional Arm Capability

Optional lifting arms can help with trucks, SUVs, and longer-wheelbase vehicles that need more contact flexibility. That gives the lift room to adapt as shop work changes.

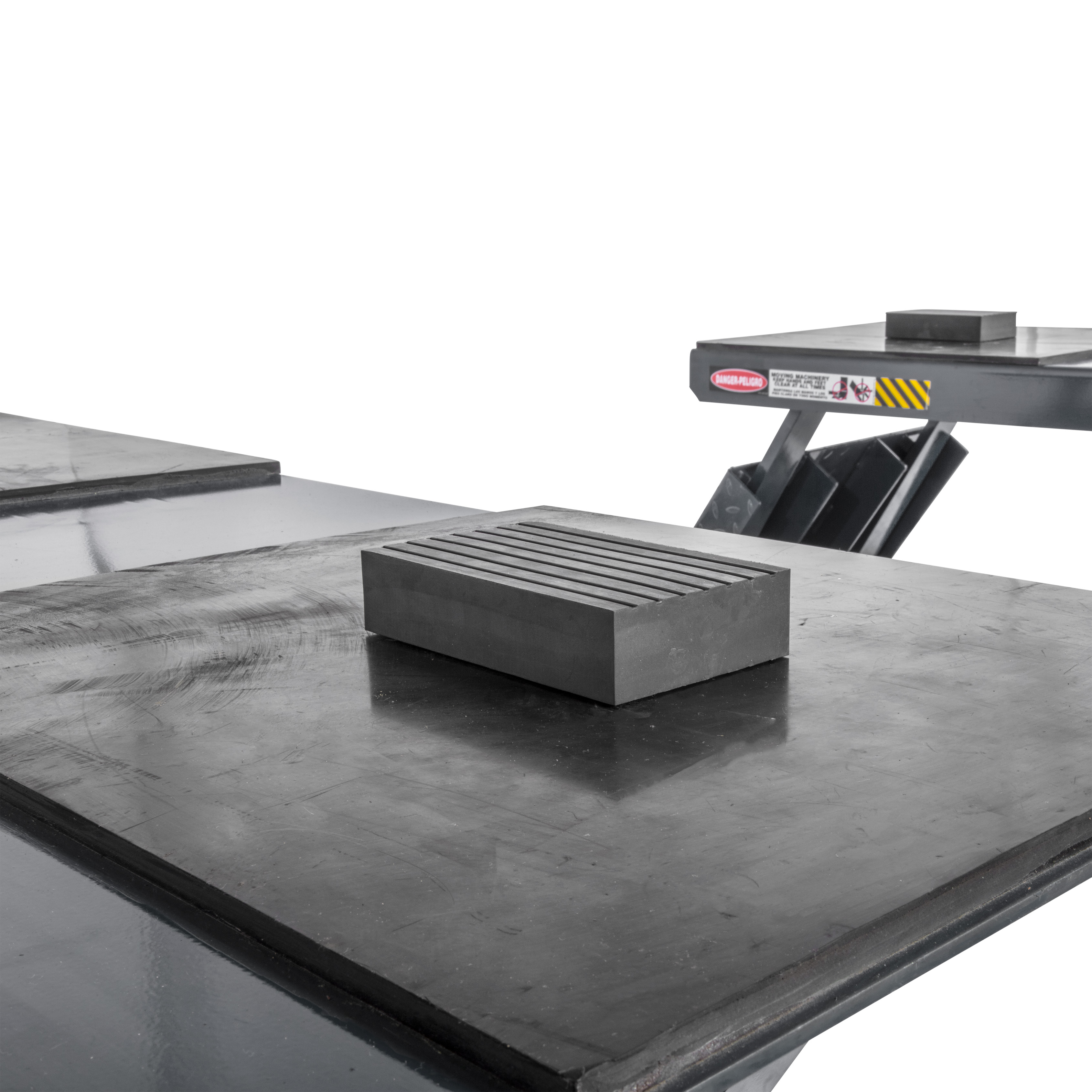

Rubber Pad Protection

Rubber Pad Protection

Rubber-topped pads and included rubber lift blocks help protect vehicle contact points. The setup supports faster, cleaner positioning during high-volume service.

Recommended Add-ons

Accessories for the BendPak P9000LTF Flush-Mount Open-Center Pit-Style Low-Rise Lift - 9,000-lbs. Capacity

BendPak P9000 Telescoping Arm Kit - Set of 4
BendPak P9000 Telescoping Arm Kit - Set of 4
$975.00
LEARN MORE
Set of two BendPak ramp filler-plate extensions designed for P-9000 Series low-rise lifts.
BendPak P9000 Ramp Filler Plate Kit
$625.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
9000 lb

Rise

Max Lifting Height
24 in
Max Lifting Height with Blocks
27 in
Lowered Height
4 in
Lifting Time
45 seconds

Locking Heights

1st Locking Position
15 in
2nd Locking Position
19 in
3rd Locking Position
21.5 in
4th Locking Position
24.5 in

Dimensions

Pad Length
58.5 in
Pad Width
24 in
Length
74.4 in
Width Between Platforms
23 - 42 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
40 x 77 x 24 in
Shipping Weight
1134 lb
Shipping Method
LTL
Offload Requirement
Liftgate
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
