BendPak MDS-6LP Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175226
$7,795.00
Financing as low as $170/moApply now

Flexible business financing available through Navitas.

Sports car raised on a BendPak MDS-6LP frame-engaging mid-rise scissor lift with drive-on ramps, lifting blocks and control console.
Product 3D model preview
Vehicle undercarriage accessible through the open-center design of a BendPak MDS-6LP mid-rise scissor lift in a garage.
Vehicle raised on the extended platforms of a BendPak MDS-6LP mid-rise scissor lift to reach additional OEM lifting points.
Product 5
Product 6
Product 7
BendPak MDS-6LP power unit housing with lift controls, safety lock release button and operating instructions.
BendPak small and medium rubber lift blocks for vehicle lifting support.
BendPak MDS-6LP open-center mid-rise scissor lift with drive-on ramps, control console, lifting blocks, 6,000-lb. capacity and long frame for more OEM lifting points.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

BendPak MDS-6LP Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity
$7,795.00

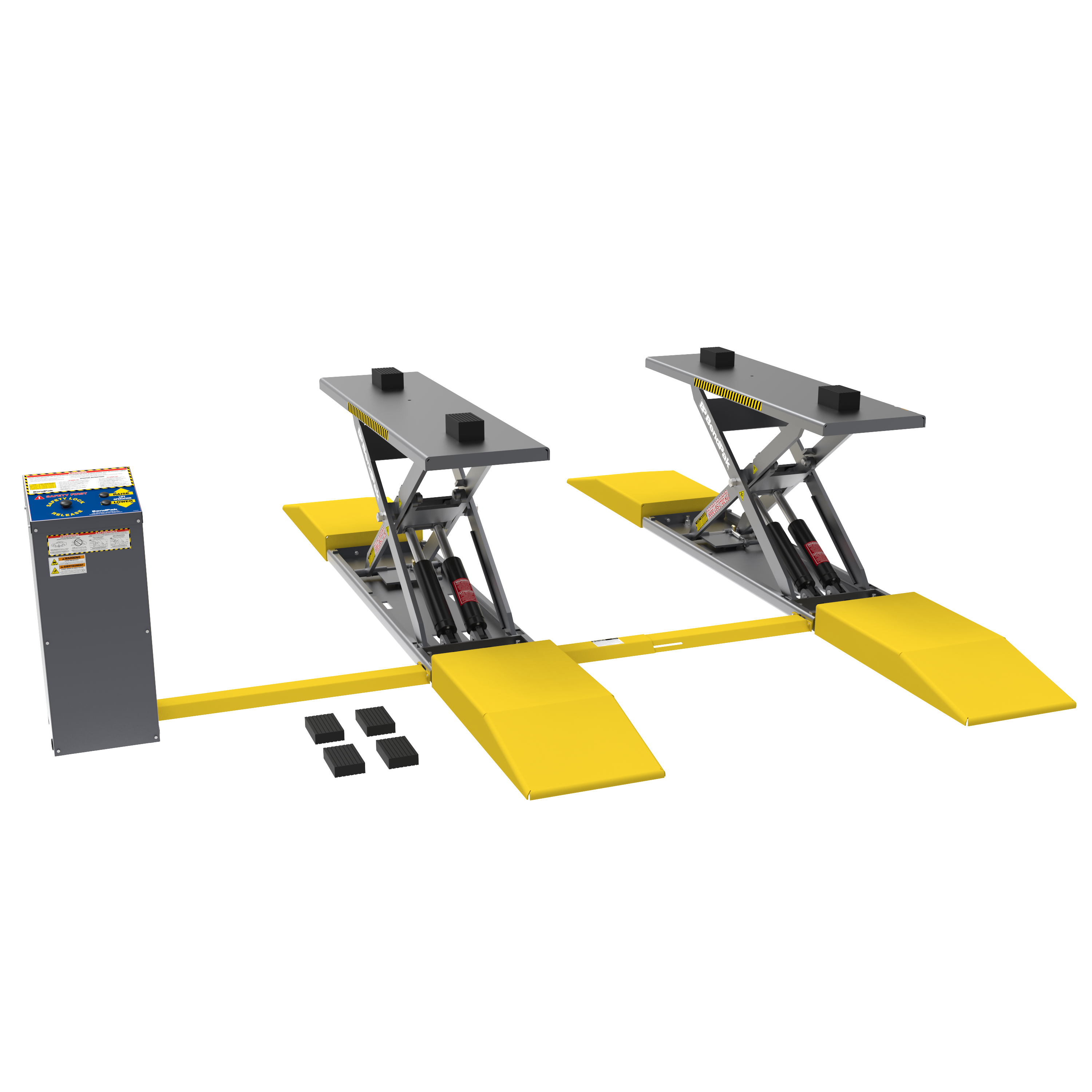

MDS-6LP Mid-Rise Scissor Lift Built Around Open-Center Access

MDS-6LP Mid-Rise Scissor Lift Built Around Open-Center Access

The BendPak MDS-6LP Open-Center Mid-Rise Scissor Lift gives shops a 6,000-lb. lifting solution that reaches more OEM lift points while preserving access through the middle of the vehicle. Its longer platforms and extended lift point spread are designed to help service more vehicle types, including longer wheelbase applications that can be difficult to position on smaller mid-rise lifts. This open-center design is especially useful for wheel, brake, suspension, detailing, and underbody service where technicians need real access without dedicating an entire bay to a full-rise lift. The MDS-6LP is built for shops that want mid-rise convenience with stronger structure, safer positioning, and more working versatility than a basic low-rise platform.

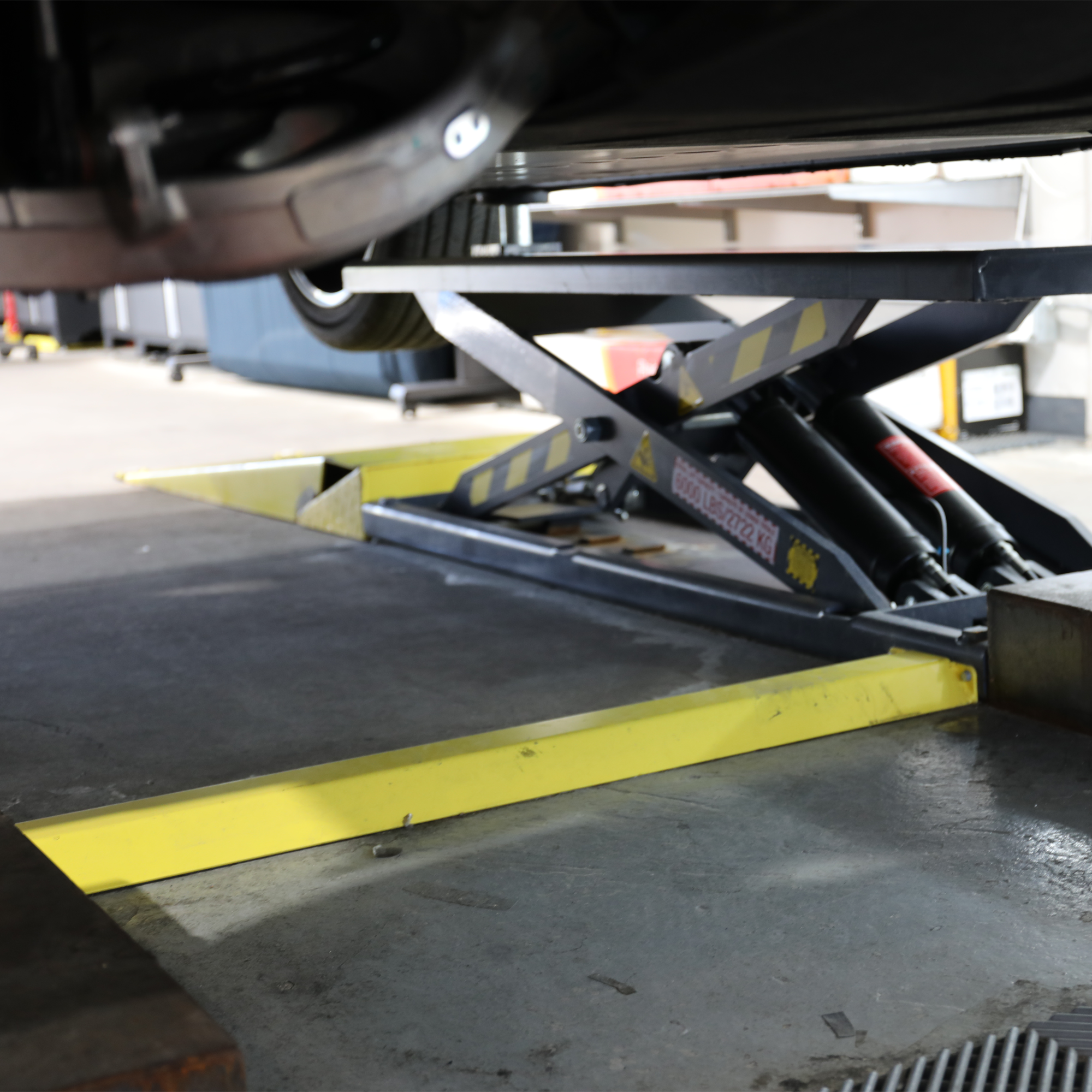

Removable Ramps and Kicker Assist for Easier Setup

Removable Ramps and Kicker Assist for Easier Setup

The MDS-6LP uses removable approach ramps that attach directly to the lift platforms, making it easier to drive on, elevate the vehicle, and then clear the ramps for better wheel-well access. The slotted receivers allow the ramps to drop into place and remove quickly when the job calls for more room. A pivoting kicker mechanism helps the lift rise from its collapsed position, providing extra assistance through the first inches of movement where scissor lifts face the greatest mechanical disadvantage. That added boost helps the MDS-6LP raise low-clearance vehicles more confidently from a low starting height.

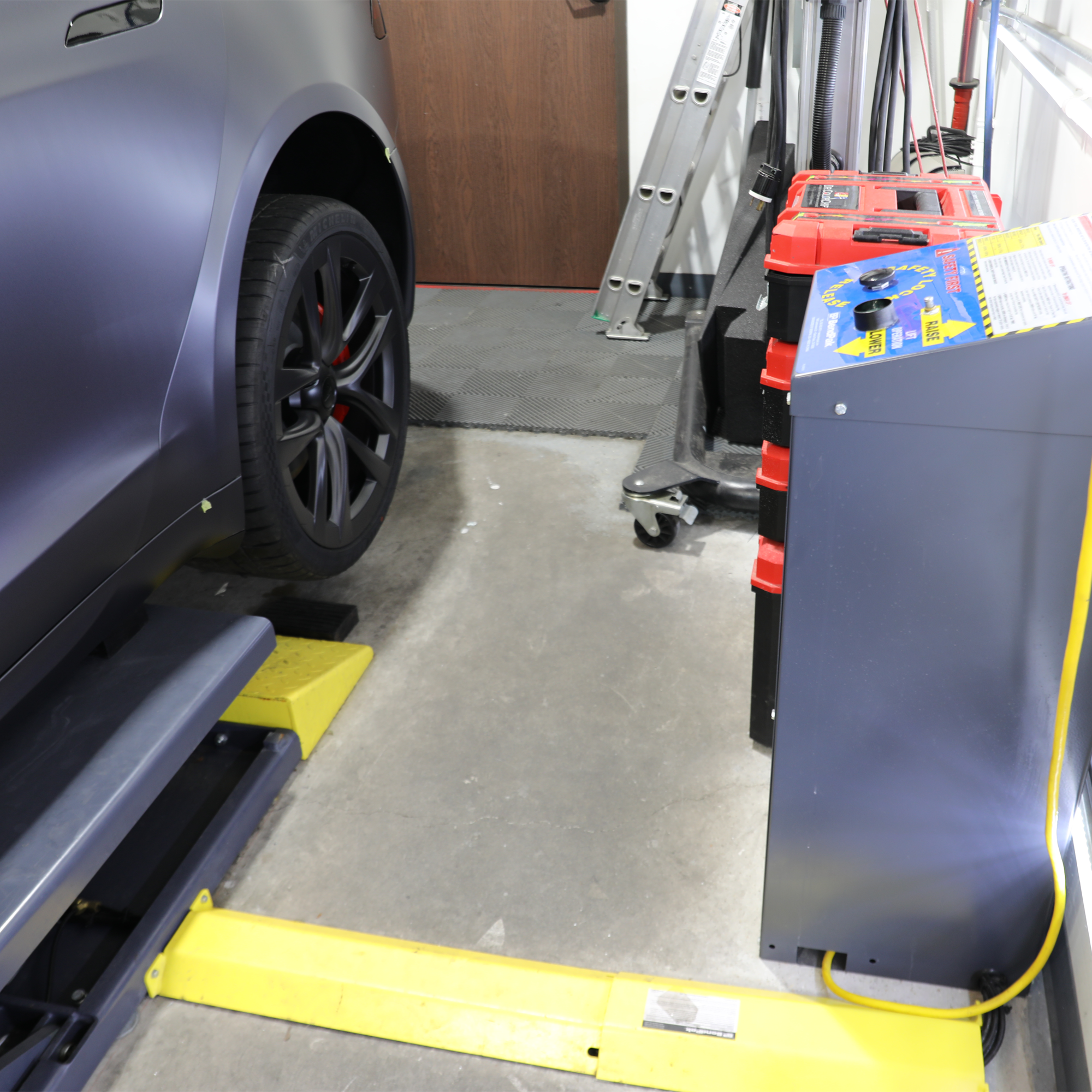

Four-Cylinder Hydraulic Power with Level Platform Control

The MDS-6LP is powered by four hydraulic cylinders that work together to raise the platforms evenly and efficiently. A proprietary flow divider helps keep hydraulic pressure balanced between the platforms, supporting a level lift from the first movement through full rise. Each platform includes four solid steel scissor-frame support bars, giving the lift a rugged foundation for demanding shop use. Hinge points with Zerk grease fittings help maintain critical wear areas, supporting smoother operation and longer service life with routine lubrication.
Four-Cylinder Hydraulic Power with Level Platform Control

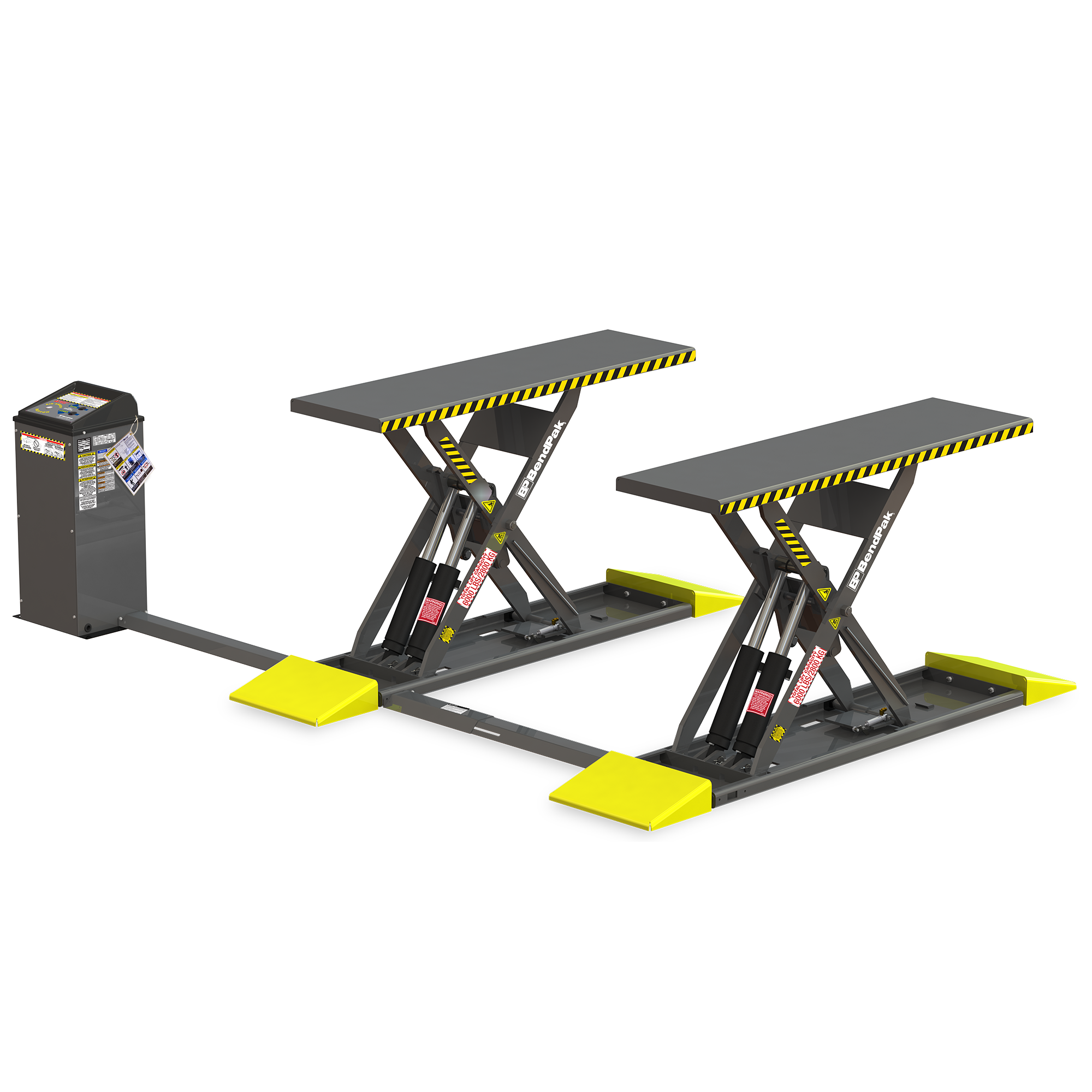

Automatic Safety Locks and Push-Button Release

Automatic Safety Locks and Push-Button Release

Solid-steel safety lock bars engage automatically as the lift rises, allowing technicians to work from multiple locking positions while taking pressure off the hydraulic system during service. Three lock positions help operators choose the working height that best fits the job and reduces fatigue. Stainless-steel pneumatic cylinders release the safety locks during descent with a push-button system operated away from the lift. The system requires a minimum 50 psi, 10 CFM air source at installation and eliminates the need to fight cumbersome release bars or handles.

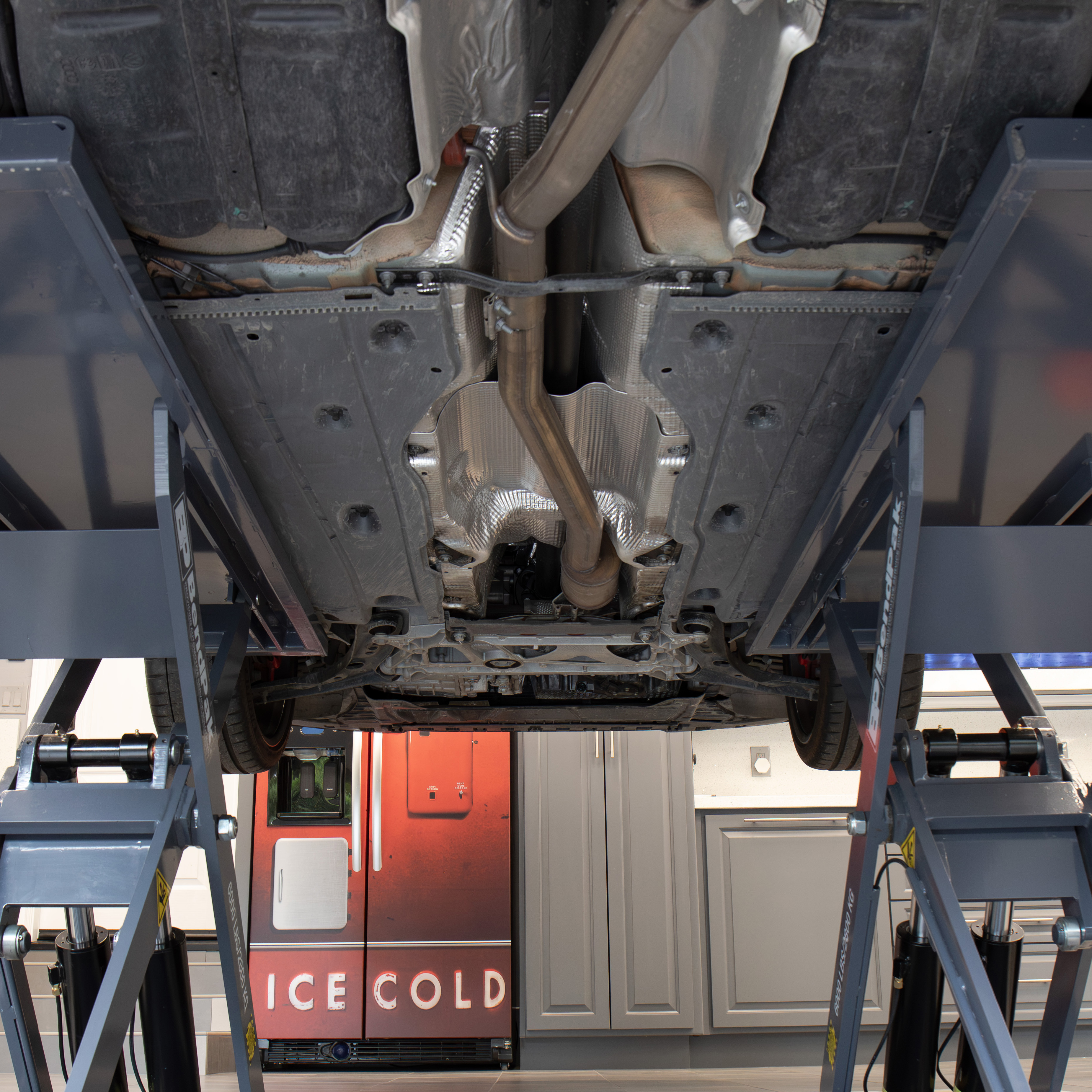

6,000-lb. Capacity

6,000-lb. Capacity

Designed for mid-rise service on a wide range of cars and light-duty vehicles. The MDS-6LP gives shops strong lifting capability in a compact footprint.
Open-Center Access

Open-Center Access

The open-center layout improves access beneath the vehicle. It is ideal for wheel, brake, suspension, detailing, and inspection work.

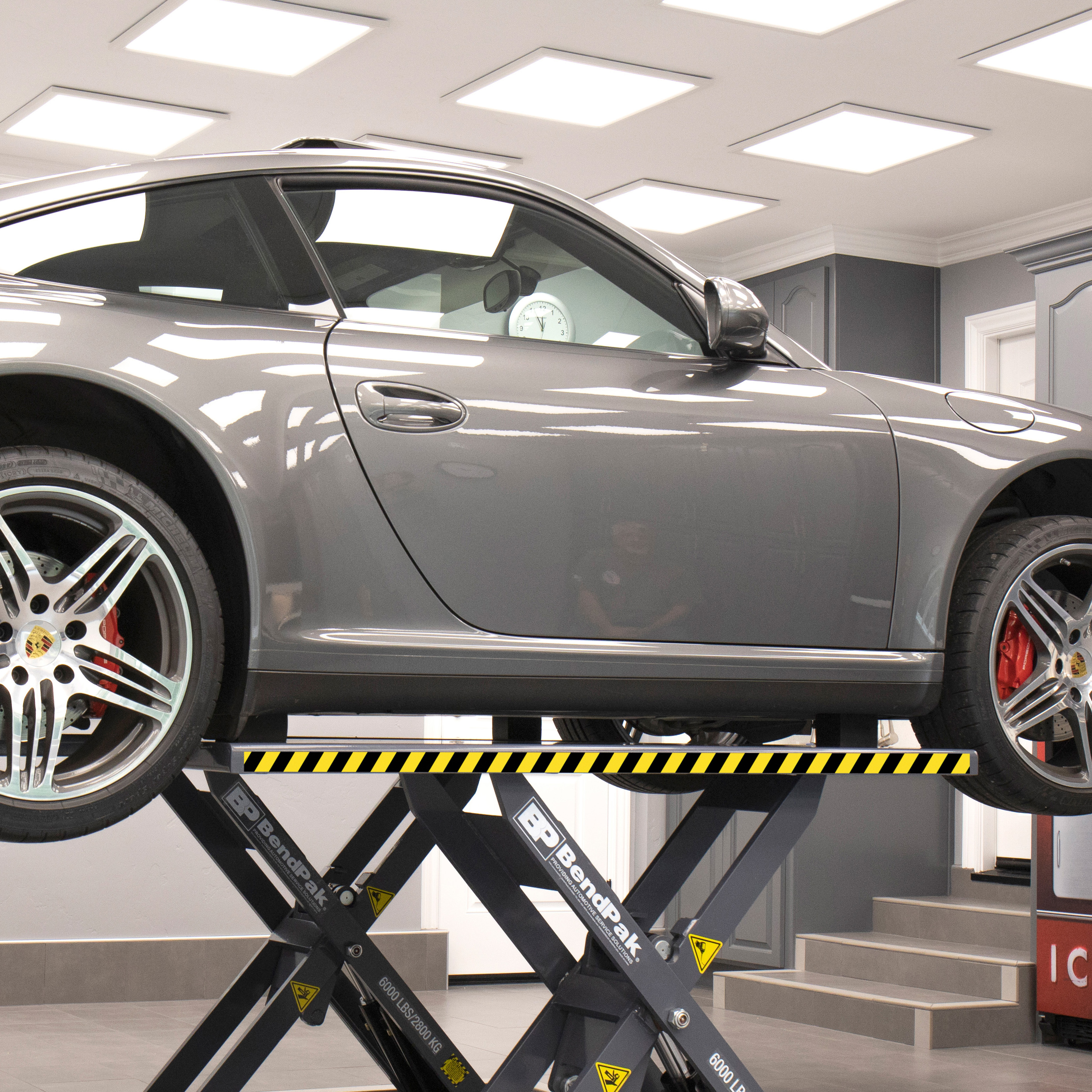

Longer Lift Platforms

Longer Lift Platforms

Extended platforms help reach more OEM lift points. That added spread supports safer setup on longer wheelbase vehicles.
Four Hydraulic Cylinders

Four Hydraulic Cylinders

Four cylinders and a flow divider help the platforms rise evenly. The system is built for balanced lifting and controlled descent.

Automatic Safety Locks

Solid-steel safety lock bars engage automatically during ascent. Three locking positions give technicians more working-height options.
Push-Button Lock Release

Push-Button Lock Release

Stainless pneumatic cylinders release the locks during descent. Operators can deactivate the locks without pulling release bars by hand.

Recommended Add-ons

Accessories for the BendPak MDS-6LP Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity

BendPak MDS-6 extended approach ramp accessory set for easier vehicle loading
BendPak MDS Extended Ramps - Set of 4
$2,075.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
6000 lb

Rise

Max Lifting Height
44 in
Max Lifting Height with Blocks
46 in
Lowered Height
5 in
Lifting Time
35 seconds

Locking Heights

1st Locking Position
24 in
2nd Locking Position
30 in
3rd Locking Position
35 in
4th Locking Position
39 in

Dimensions

Pad Length
67 in
Pad Width
19 in
Length
92.6 in
Width Between Platforms
40 - 46 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
67 x 70 x 23 in
Shipping Weight
1620 lb
Shipping Method
LTL
Offload Requirement
Liftgate
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
