BendPak MDS-6EXT Extended Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175192
$8,295.00
Financing as low as $181/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview
Product 3
Product 4
Product 5
Product 6
Product 7
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

BendPak MDS-6EXT Extended Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity
$8,295.00

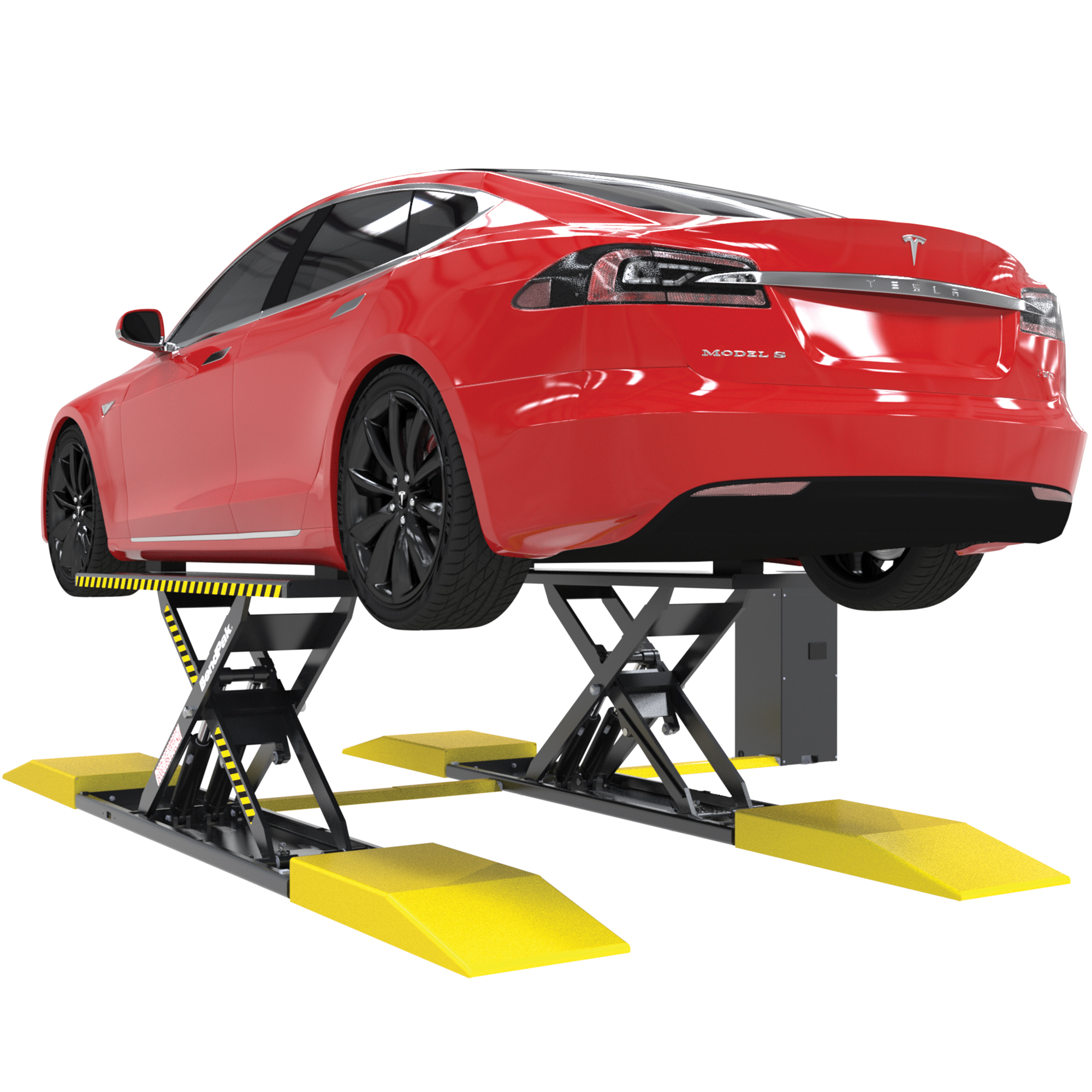

Long-Wheelbase Vehicles Finally Get a Mid-Rise Lift

Long-Wheelbase Vehicles Finally Get a Mid-Rise Lift

The BendPak MDS-6EXT Extended Open-Center Mid-Rise Scissor Lift is built for vehicles with longer wheelbases and wider lift point spreads, including many modern electric vehicles. With extended lifting points and a 6,000-lb. capacity, the MDS-6EXT helps technicians reach farther toward the edges of the vehicle underbody while keeping the open-center service access that makes the MDS-6 family so useful. This extended-platform mid-rise lift is designed for shops that need more reach than a standard mid-rise platform can provide. It gives technicians a safer, more confident way to position longer vehicles for brake work, wheel service, inspections, detailing, and underbody maintenance without jumping all the way to a full-rise lift.

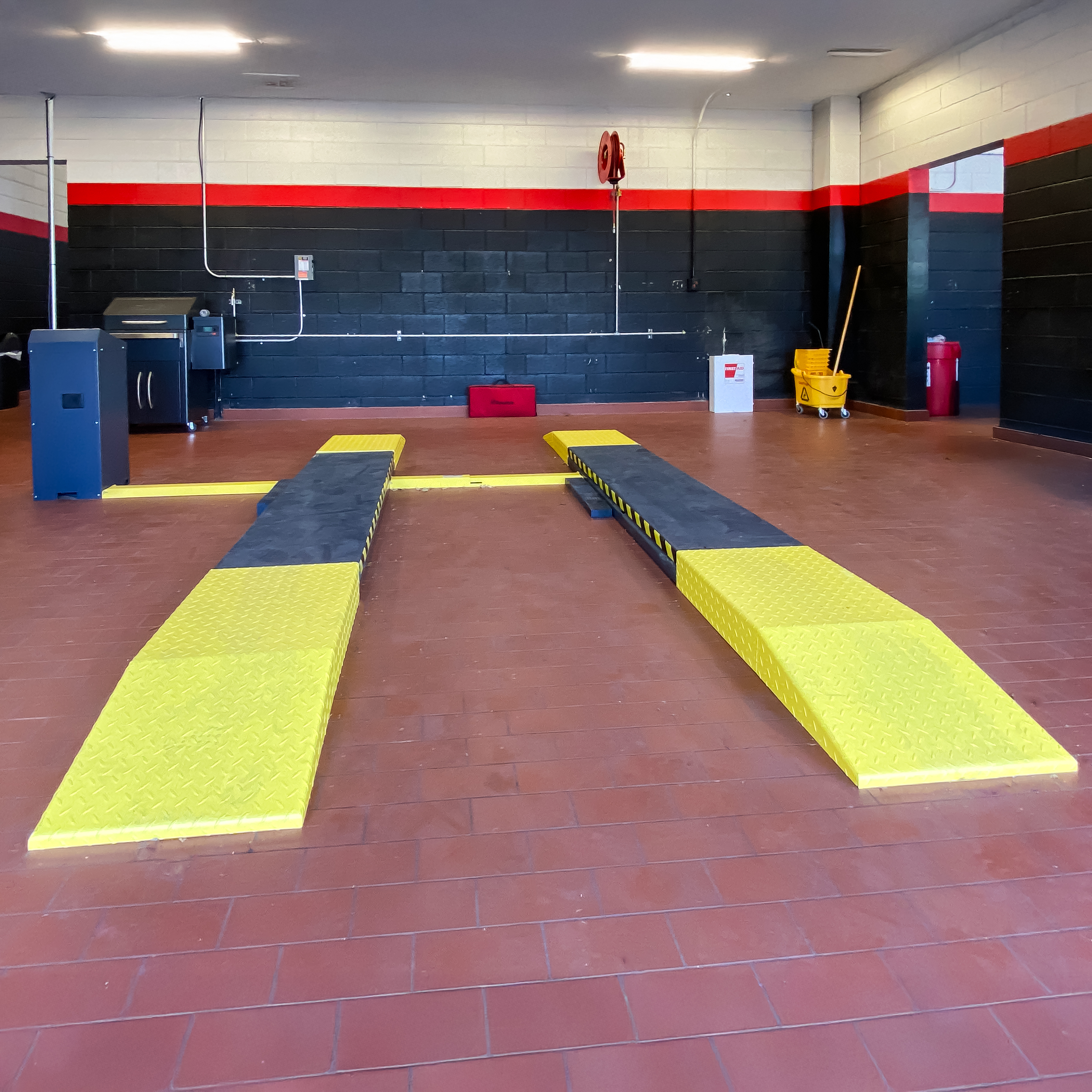

Extended Ramps for Lower Vehicles and Larger Tires

Extended Ramps for Lower Vehicles and Larger Tires

The MDS-6EXT uses extended approach ramps that help low-stance vehicles and vehicles with larger tires roll onto the platforms more easily. The longer ramp profile creates a smoother entry path, helping reduce the awkward loading feel that shorter, steeper approaches can create. The ramps can be clipped on when needed and removed when better service access is required. That flexibility lets shops set up the lift around the work, whether the priority is easy loading, better wheel-well access, or a cleaner service area around the vehicle.

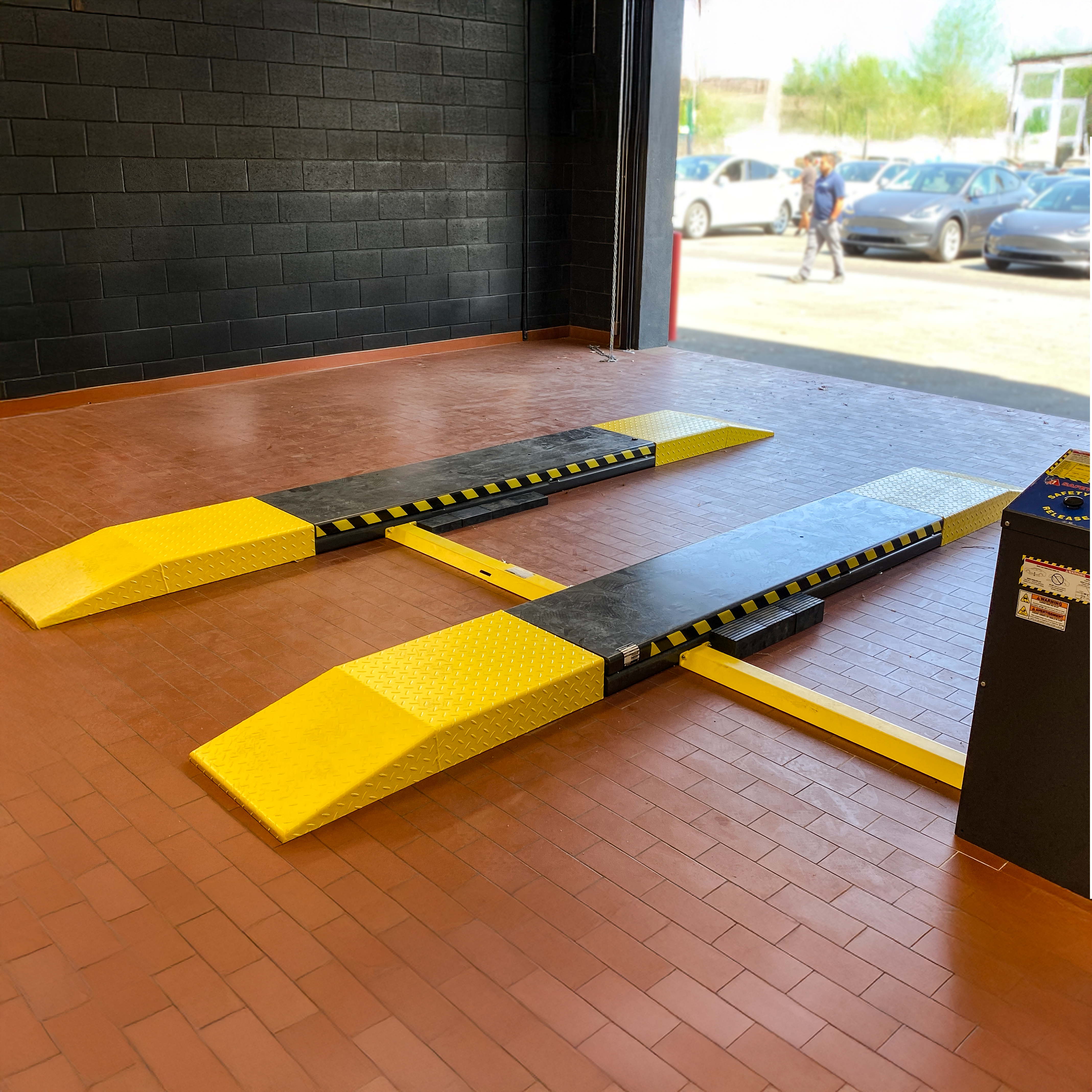

Pneumatic Kicker and Four-Cylinder Hydraulic Lift

A pneumatic kicker assists the MDS-6EXT through the first 6 inches of lift, helping overcome the mechanical disadvantage that scissor lifts face at low collapsed heights. Once the platforms are moving, four hydraulic cylinders take over to raise the vehicle to about 45 inches quickly and efficiently. A built-in flow divider helps ensure equal pressure to each hydraulic hose, supporting an even rise and descent. The combination of pneumatic assistance, hydraulic power, and extended platforms makes the MDS-6EXT especially useful for longer vehicles that demand careful setup.
Pneumatic Kicker and Four-Cylinder Hydraulic Lift

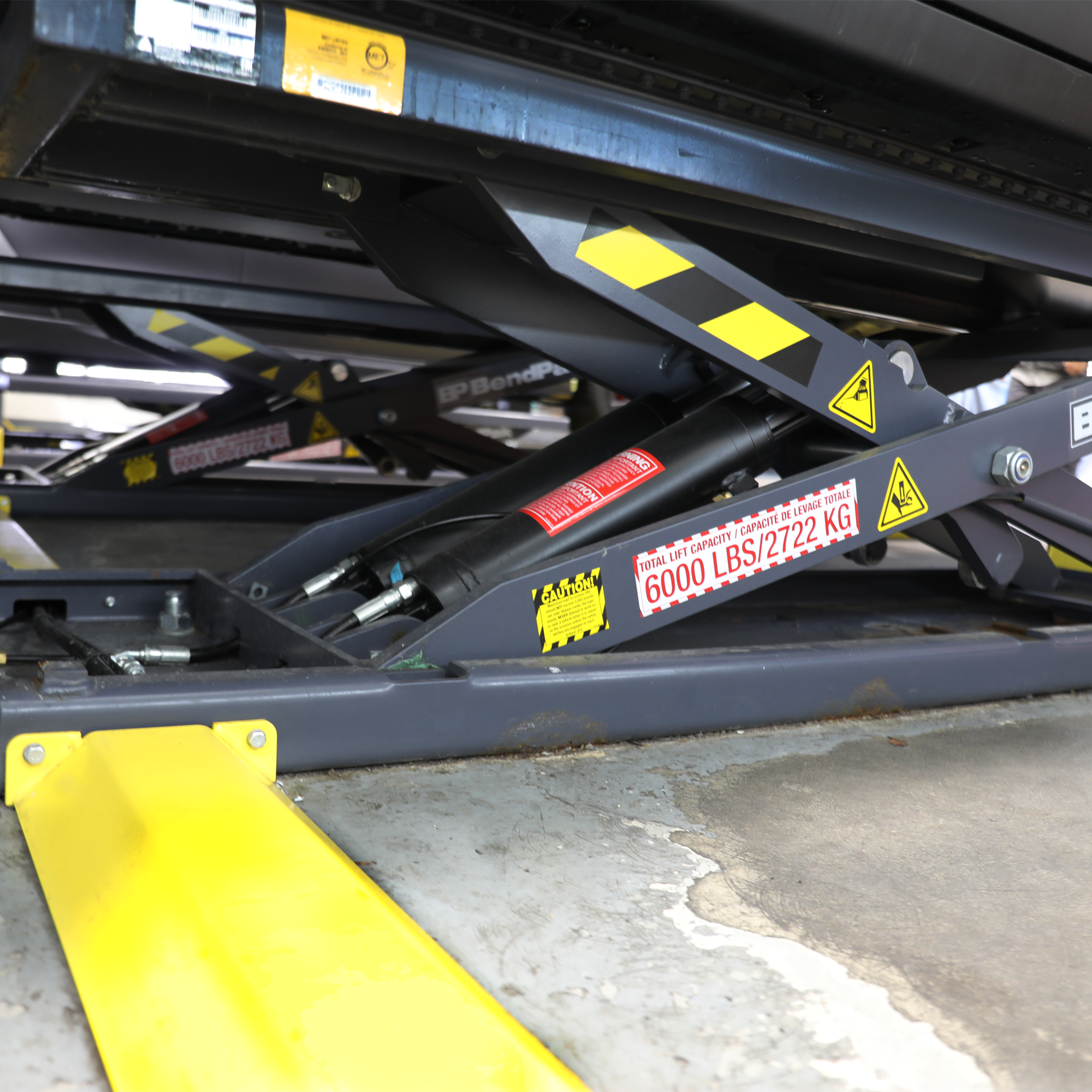

Automatic Locks and Serviceable Wear Points

Automatic Locks and Serviceable Wear Points

Solid-steel safety lock bars engage automatically and continuously during ascent, transferring working load onto mechanical locks when secured. This helps reduce reliance on hydraulic pressure while technicians work beneath or around the raised vehicle. Stainless-steel pneumatic cylinders release the locks during descent with the push of a button, while Zerk grease fittings at hinge points help protect critical wear areas. Four durable cushioned-rubber contact blocks are included for fast vehicle setup at the proper lifting points.
Extended Platform Reach

Extended Platform Reach

Longer platforms help reach lift points on longer wheelbase vehicles. The design is especially useful for many modern EVs and larger underbody layouts.
6,000-lb. Capacity

6,000-lb. Capacity

Built to lift cars and light-duty vehicles with mid-rise convenience. The MDS-6EXT combines capacity with added platform length.

Open-Center Service Access

The open-center design keeps more of the vehicle underside accessible. It is well suited for brake, wheel, suspension, and inspection work.
Extended Approach Ramps

Extended Approach Ramps

Longer ramps help low-stance vehicles and larger tires load more smoothly. Remove the ramps when the job calls for better access.

Pneumatic Kicker Assist

Air-powered assistance helps the platforms through the first 6 inches of travel. This gives the lift a stronger start from its low collapsed height.

Four-Cylinder Hydraulics

Four hydraulic cylinders and a flow divider support even platform movement. The system is designed for stable, controlled lifting.

Recommended Add-ons

Accessories for the BendPak MDS-6EXT Extended Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity

BendPak MDS-6 extended approach ramp accessory set for easier vehicle loading
BendPak MDS Extended Ramps - Set of 4
$2,075.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
6000 lb

Rise

Max Lifting Height
36.75 in
Max Lifting Height with Blocks
38.25 in
Lowered Height
5.25 in
Lifting Time
35 seconds

Locking Heights

1st Locking Position
24 in
2nd Locking Position
35 in

Dimensions

Pad Length
78.7 in
Pad Width
19 in
Length
104.3 in
Width Between Platforms
40 - 46 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
67 x 80 x 20 in
Shipping Weight
1748 lb
Shipping Method
LTL
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
