BendPak MDS-6EXF Extended Flush-Mount Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175151
$8,195.00
Financing as low as $179/moApply now

Flexible business financing available through Navitas.

Product 1
Product 3D model preview

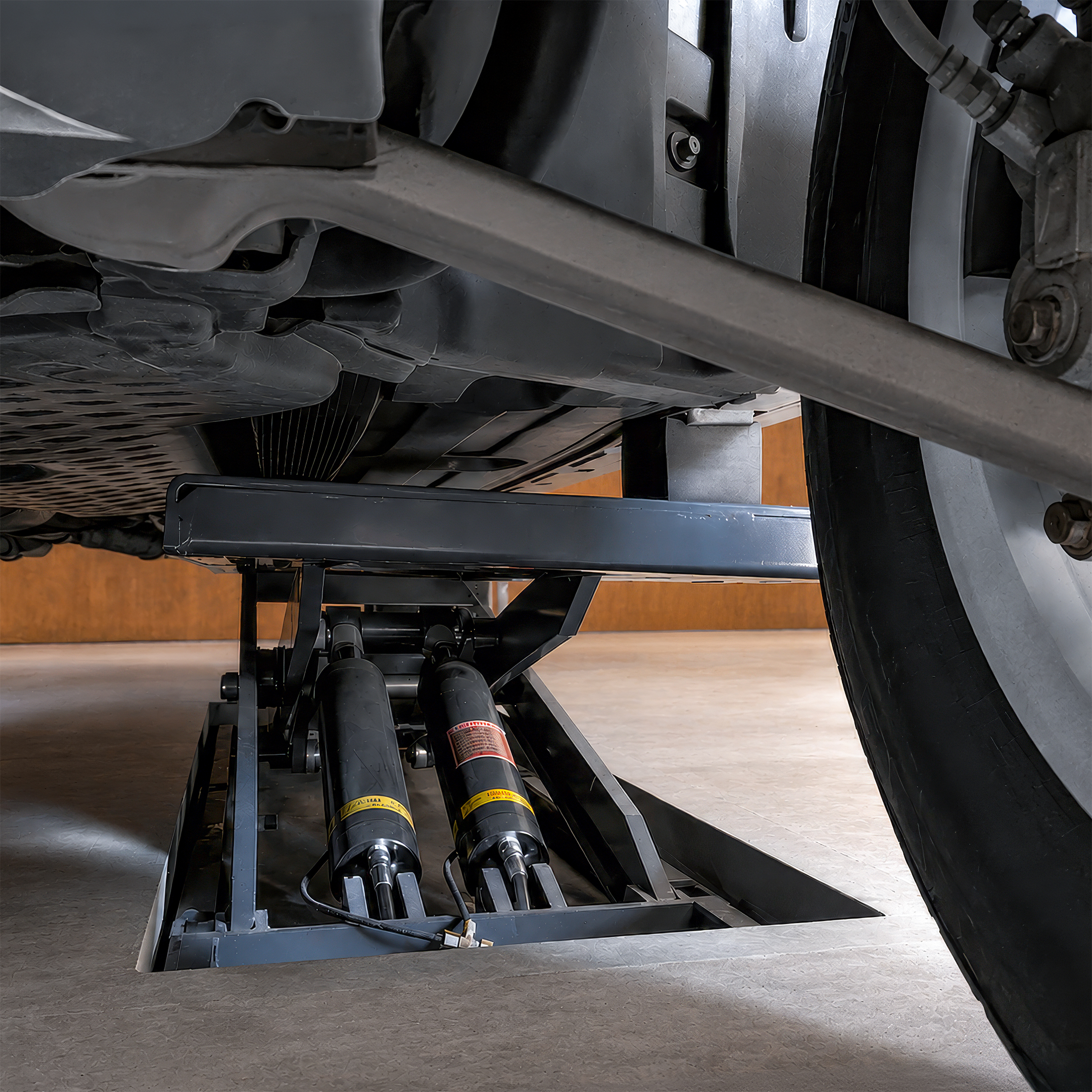

Hydraulic cylinders beneath the platforms of a BendPak MDS-6EXF flush-mount frame-engaging scissor lift.
Product 4
Product 5

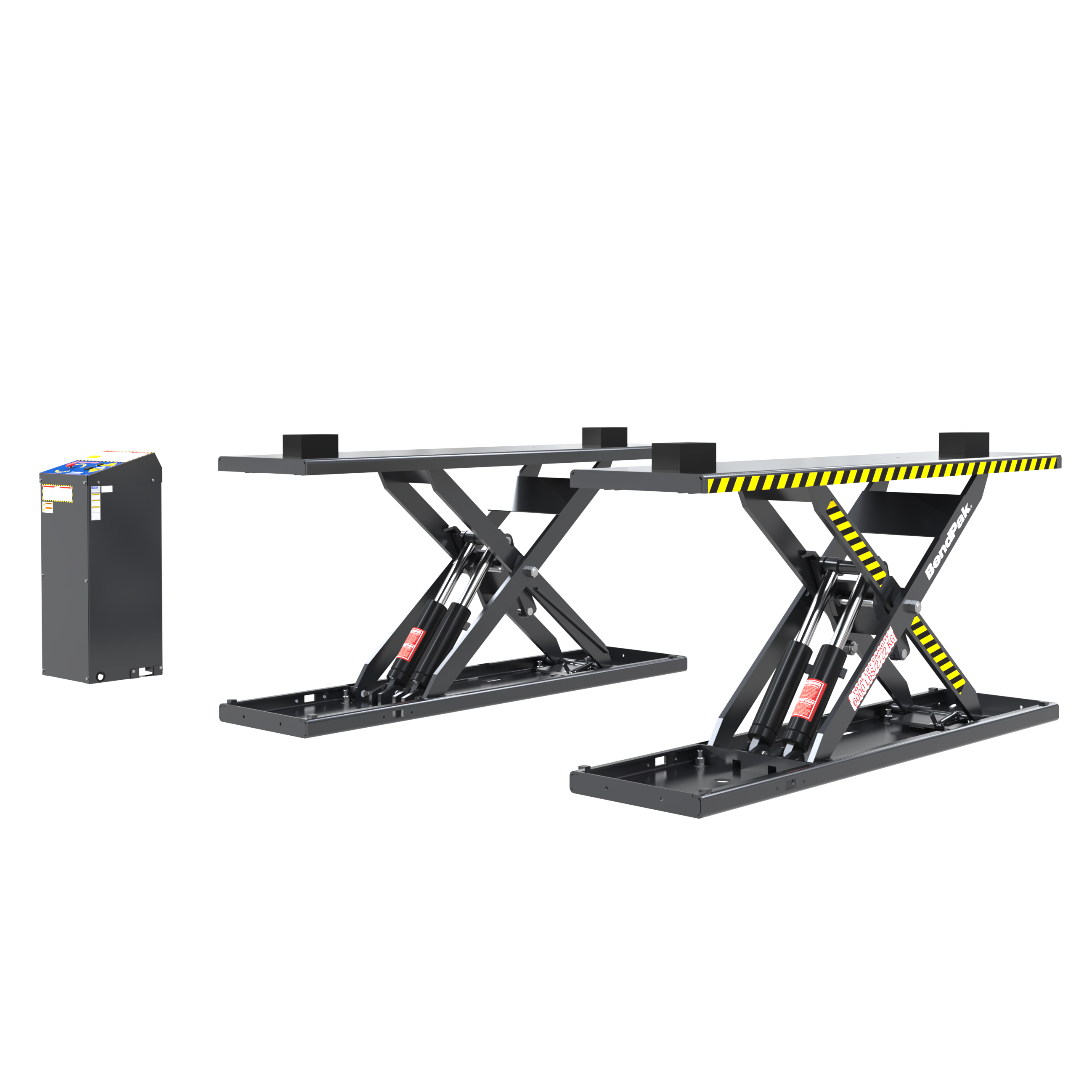

BendPak MDS-6EXF 6,000-lb. flush-mount extended scissor lift with open-center access
Product 7
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

BendPak MDS-6EXF Extended Flush-Mount Open-Center Mid-Rise Scissor Lift - 6,000-lbs. Capacity
$8,195.00
Flush-Mount Mid-Rise Lifting for Longer Wheelbases

Flush-Mount Mid-Rise Lifting for Longer Wheelbases

The BendPak MDS-6EXTF Extended Flush-Mount Open-Center Mid-Rise Scissor Lift combines the extended platform reach of the MDS-6EXT with a recessed, flush-mount installation for shops that want a cleaner floor and better access to longer vehicles. With a 6,000-lb. capacity, extended lift points, and open-center design, it is built for long-wheelbase vehicles, modern EVs, and service bays that need more reach without adding floor clutter. The flush-mount design allows the lift to sit level with the floor when lowered, while extended approach ramps can turn the recessed lift into an easy approach setup for low-stance vehicles and larger tires. For shops that service newer platforms with wide lift point spreads, the MDS-6EXTF gives technicians a more capable mid-rise option.

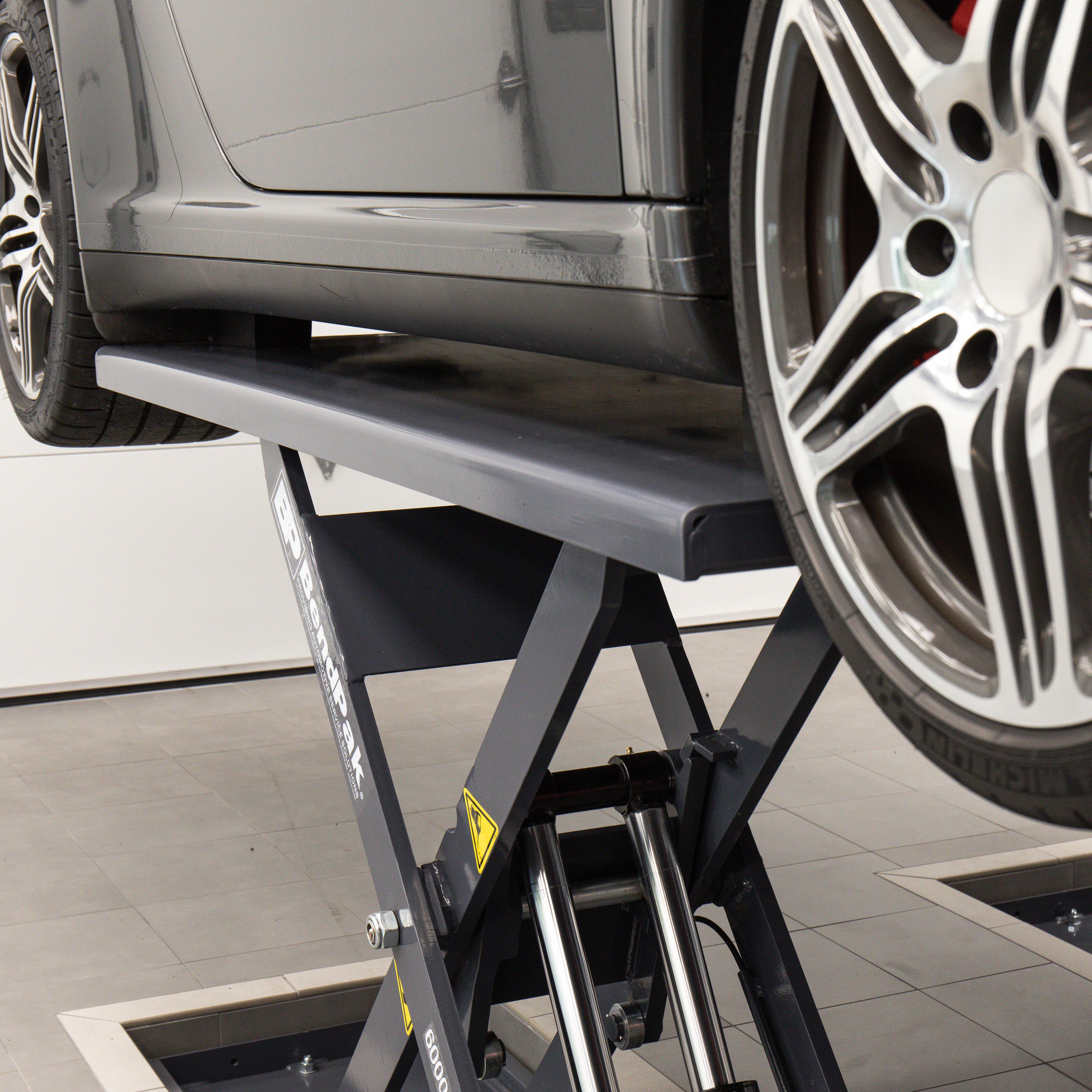

Extended Approach Access with a Zero-Footprint Bay

Extended Approach Access with a Zero-Footprint Bay

The MDS-6EXTF is built to support the unique needs of longer vehicles by reaching farther toward the outer edges of the underbody. That extended reach helps position vehicles more confidently at recommended pick-up points, especially when standard mid-rise platforms feel too short. Because the lift installs flush with the floor, it keeps the bay cleaner when not in use. Add the extended approach ramps when loading, remove them when access matters, and keep the working area more open during service.

Pneumatic Boost and Four-Cylinder Lift Control

A pneumatic kicker boosts the platforms through the initial 6 inches of lift, helping overcome the mechanical challenges common to low-profile scissor lifts. These air-powered boosters assist the hydraulics during the first stage of lifting and are designed to require minimal maintenance. Four hydraulic cylinders work in unison to raise the platforms, while a built-in flow divider helps maintain equal pressure to each hydraulic hose. The result is a quick, efficient rise to about 45 inches with balanced platform movement across the lift.
Pneumatic Boost and Four-Cylinder Lift Control
Safety Locks, Air Release, and Shop-Ready Support

Safety Locks, Air Release, and Shop-Ready Support

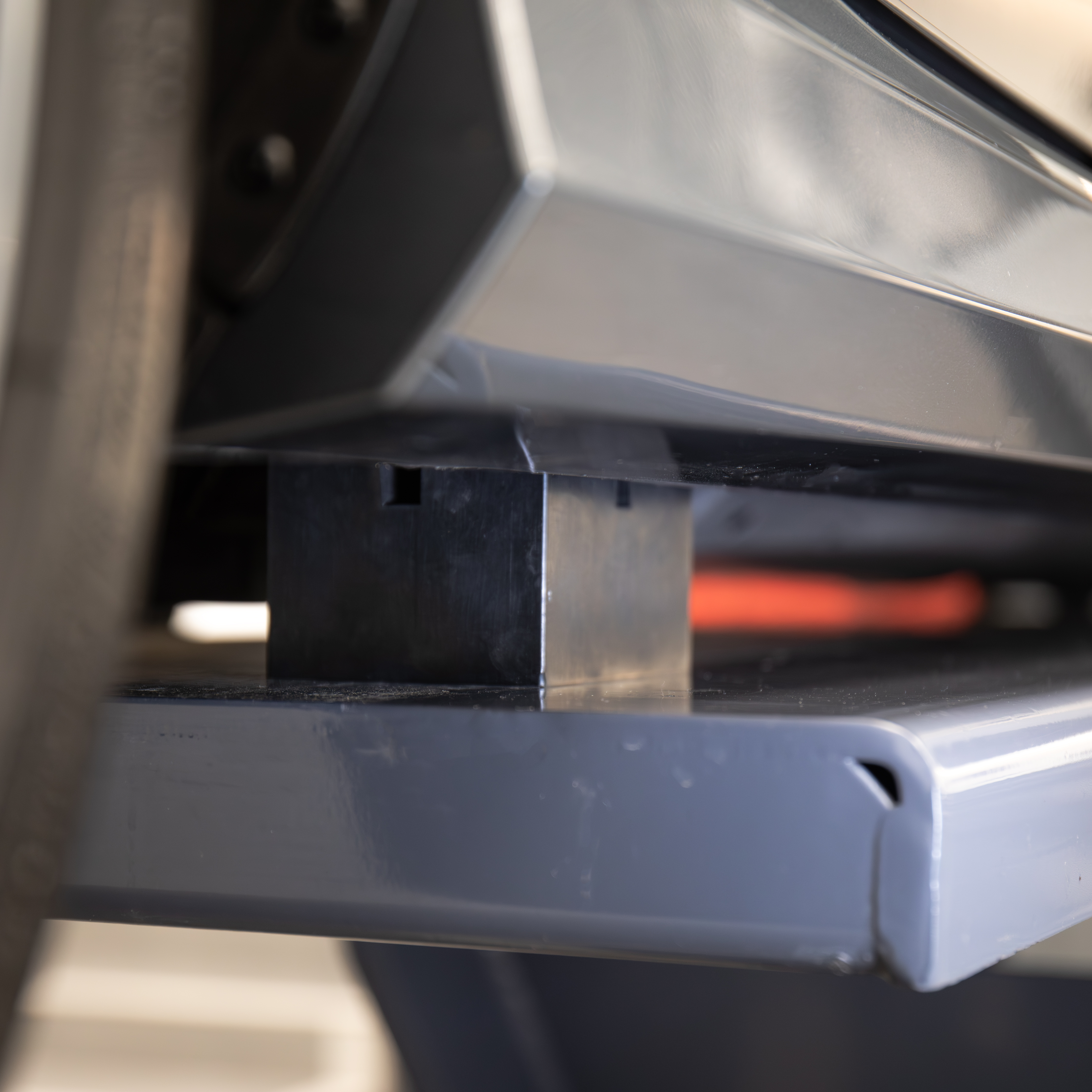

Solid-steel safety arms lock automatically and continuously during ascent, transferring load off the hydraulic system when the lift is secured. Multiple lock positions allow technicians to choose the working height that fits the job, from brake service to underbody access. Air lock releases replace traditional spring releases and disengage the locks during descent with the push of a button. Zerk grease fittings help protect critical wear areas, while rugged rubber lift blocks support secure vehicle contact points during daily shop use.
Extended Flush-Mount Design

Extended Flush-Mount Design

Combines longer platform reach with a recessed floor installation. The MDS-6EXTF helps keep the bay clean when the lift is lowered.

Built for Long Wheelbases

Extended lift points help reach farther across modern underbodies. It is a strong fit for long-wheelbase vehicles and many EV platforms.
6,000-lb. Capacity

6,000-lb. Capacity

Provides mid-rise lifting power for cars and light-duty vehicles. The extended format adds reach without giving up open-center access.

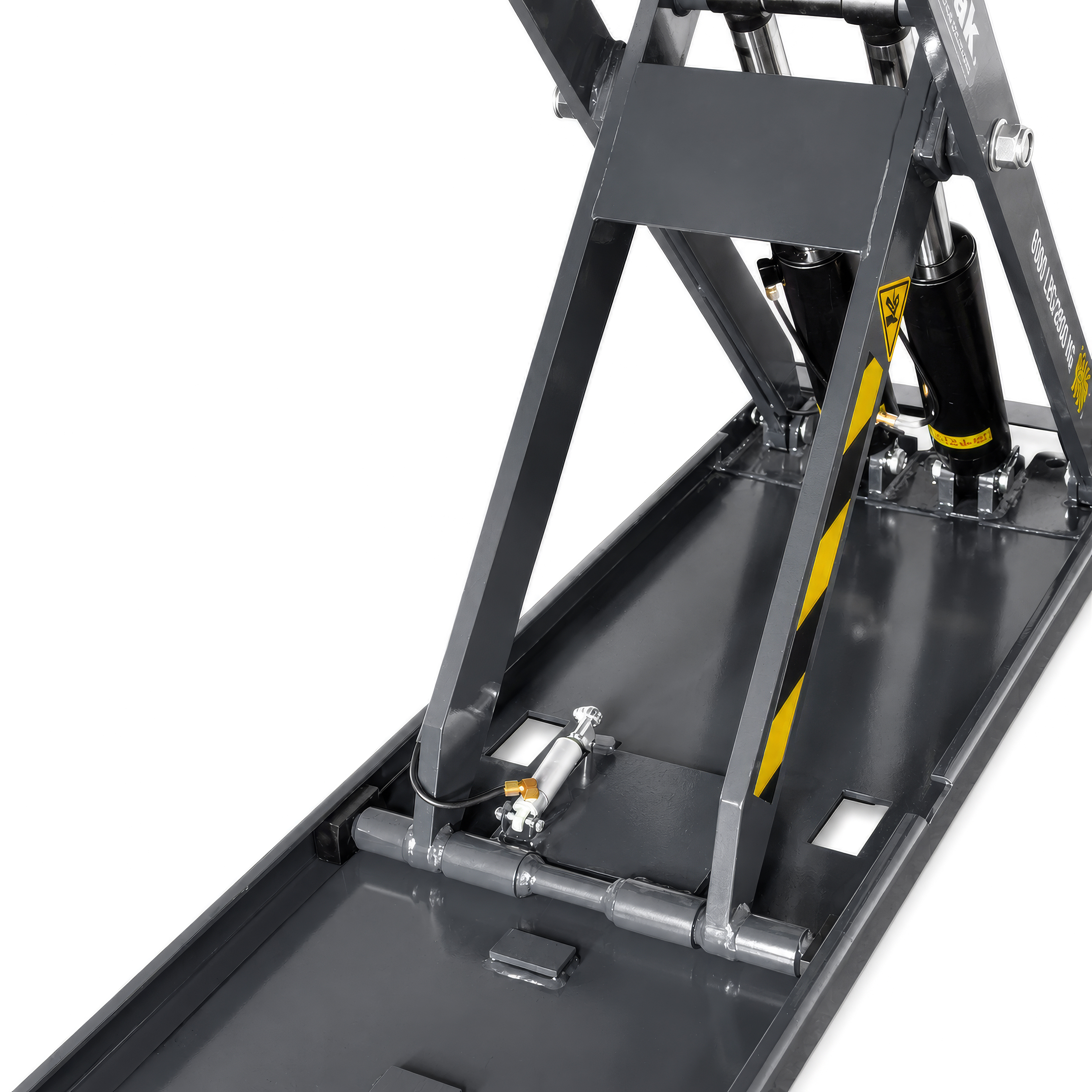

Pneumatic Kicker Boost

Pneumatic Kicker Boost

Air-powered assistance supports the first 6 inches of lift. This helps the platforms rise smoothly from a low, flush-mount start.

Four Hydraulic Cylinders

Four cylinders and a flow divider help maintain even pressure and platform movement. The system is built for balanced lifting.

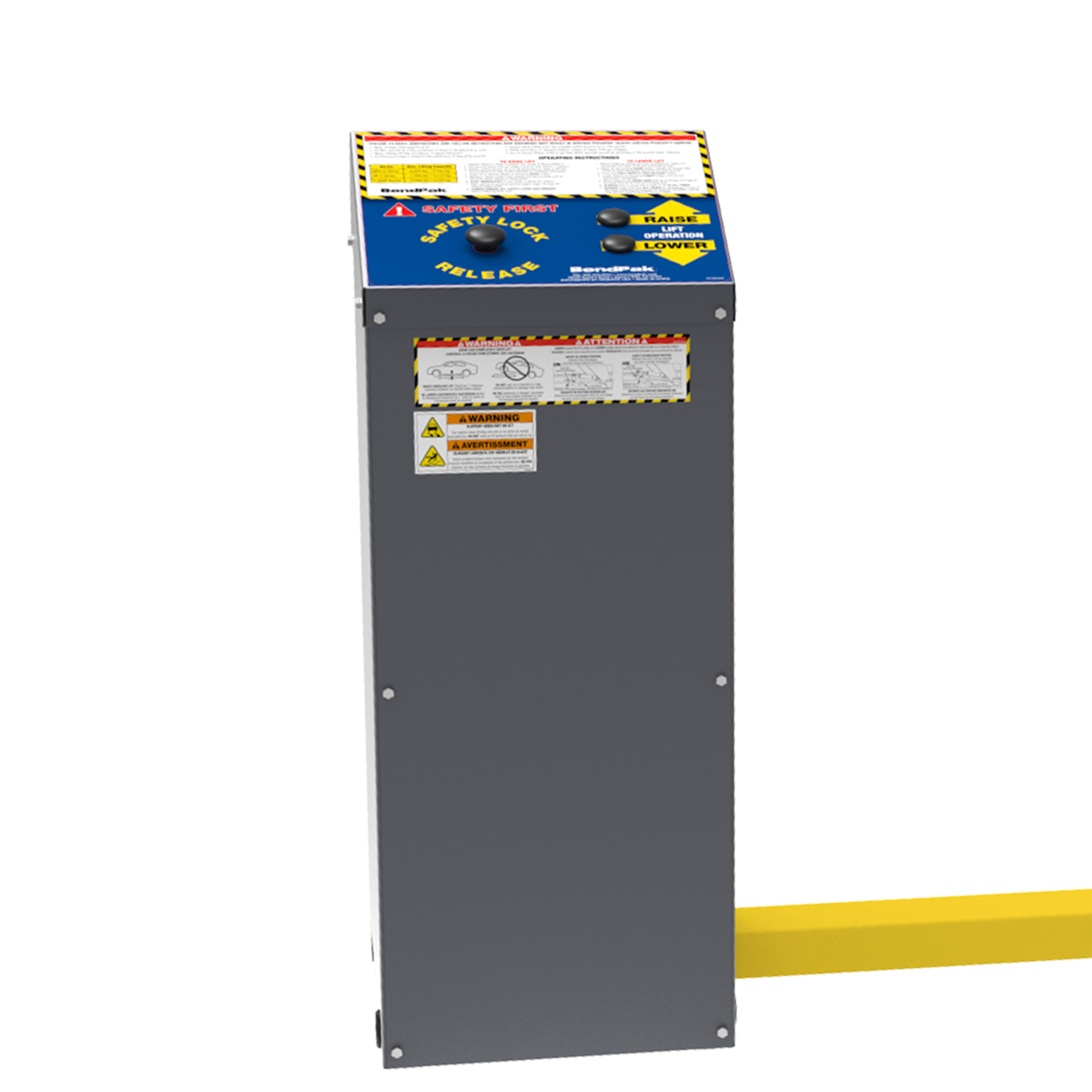

Push-Button Lock Release

Push-Button Lock Release

Air lock releases disengage the safety locks during descent. Operators avoid manual release bars while maintaining controlled operation.

Specifications

Capacity

Lifting Capacity
6000 lb

Rise

Max Lifting Height
36.75 in
Max Lifting Height with Blocks
39.65 in
Lowered Height
5.25 in
Lifting Time
35 seconds

Locking Heights

1st Locking Position
24 in
2nd Locking Position
35 in

Dimensions

Pad Length
78.75 in
Pad Width
19 in
Length
78.75 in
Width Between Platforms
40 - 46 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
110V / 50/60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
62 x 80 x 9.5 in
Shipping Weight
1538 lb
Shipping Method
LTL
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
