BendPak LR-60P Portable Low-Rise Lift - 6,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175728
$3,595.00
Financing as low as $79/moApply now

Flexible business financing available through Navitas.

BendPak LR-60P portable frame-engaging low-rise scissor lift.
Product 3D model preview
Product 3
Product 4
BendPak LR-60P frame-engaging portable scissor lift with rubber contact blocks, drive-on ramps, hydraulic power unit and 6,000-lb. capacity.
Product 6

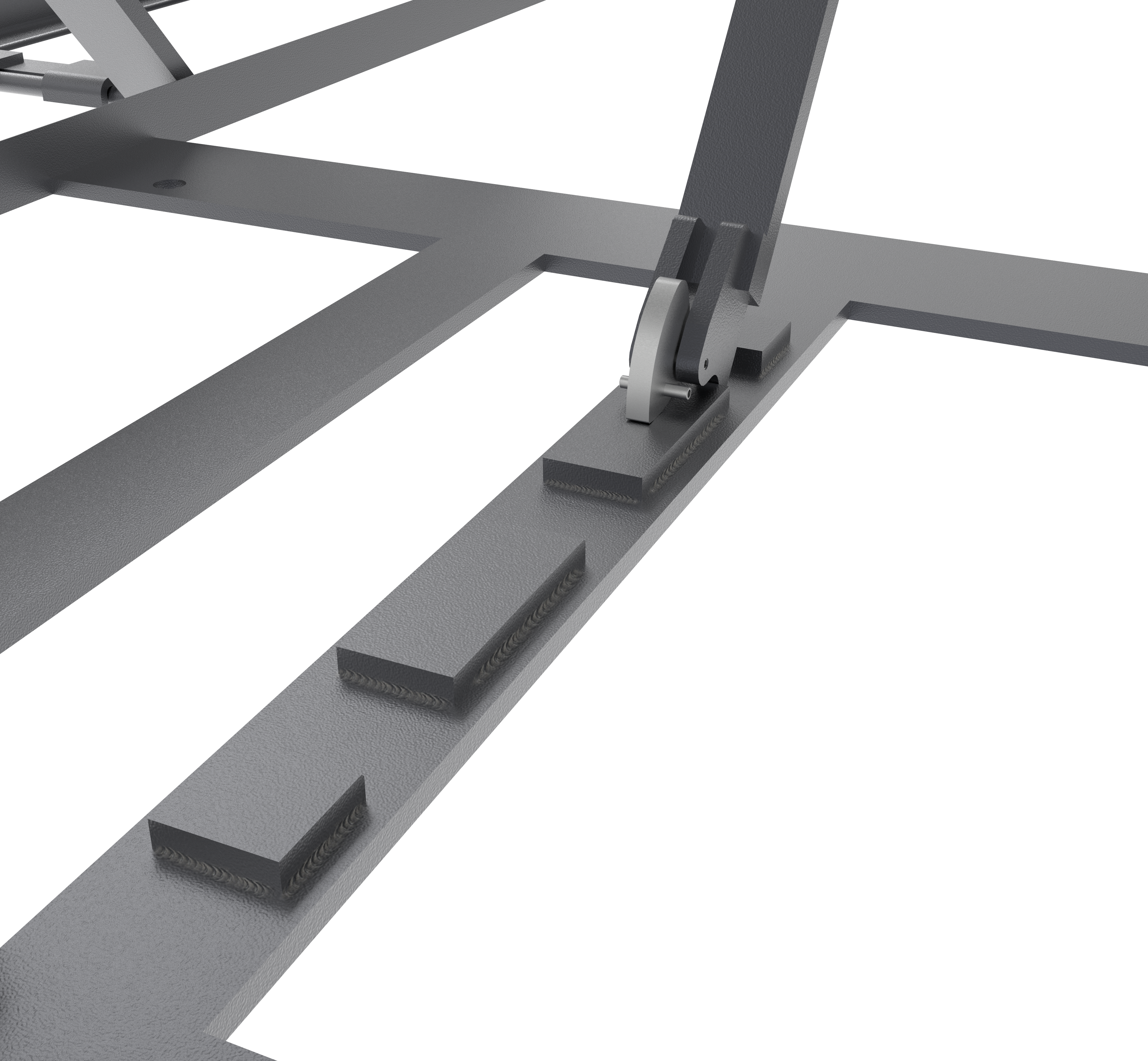

Mechanical safety lock and welded locking blocks on the base frame of a BendPak LR-60P portable scissor lift.
Product 8
Product 9
Product 10
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

BendPak LR-60P Portable Low-Rise Lift - 6,000-lbs. Capacity
$3,595.00

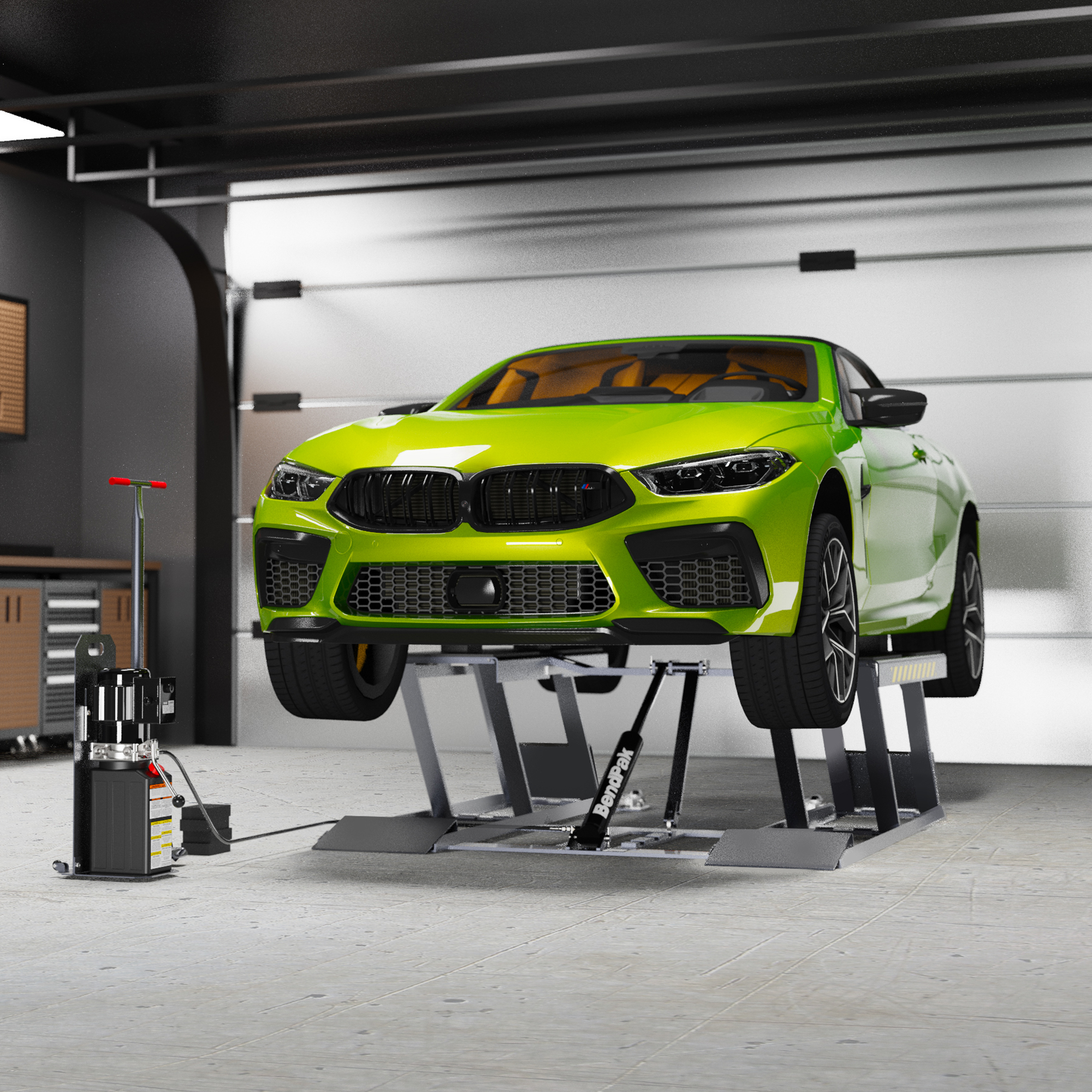

Portable Low-Rise Lift Freedom with 6,000-lb. BendPak Strength

Portable Low-Rise Lift Freedom with 6,000-lb. BendPak Strength

The BendPak LR-60P Portable Low-Rise Lift is built for shops and garages that need compact lifting power they can move where the work is. With a 6,000-lb. lifting capacity, this portable low-rise car lift is designed for wheel service, brake work, suspension access, detailing, and quick maintenance on passenger cars and light trucks. High-density UHMW rollers and a tow handle make the LR-60P easy to move from bay to bay, which is a major advantage for shops with limited floor space or changing service layouts. It gives users the low-rise access of the LR-60 platform with the mobility needed to diversify a work area fast.

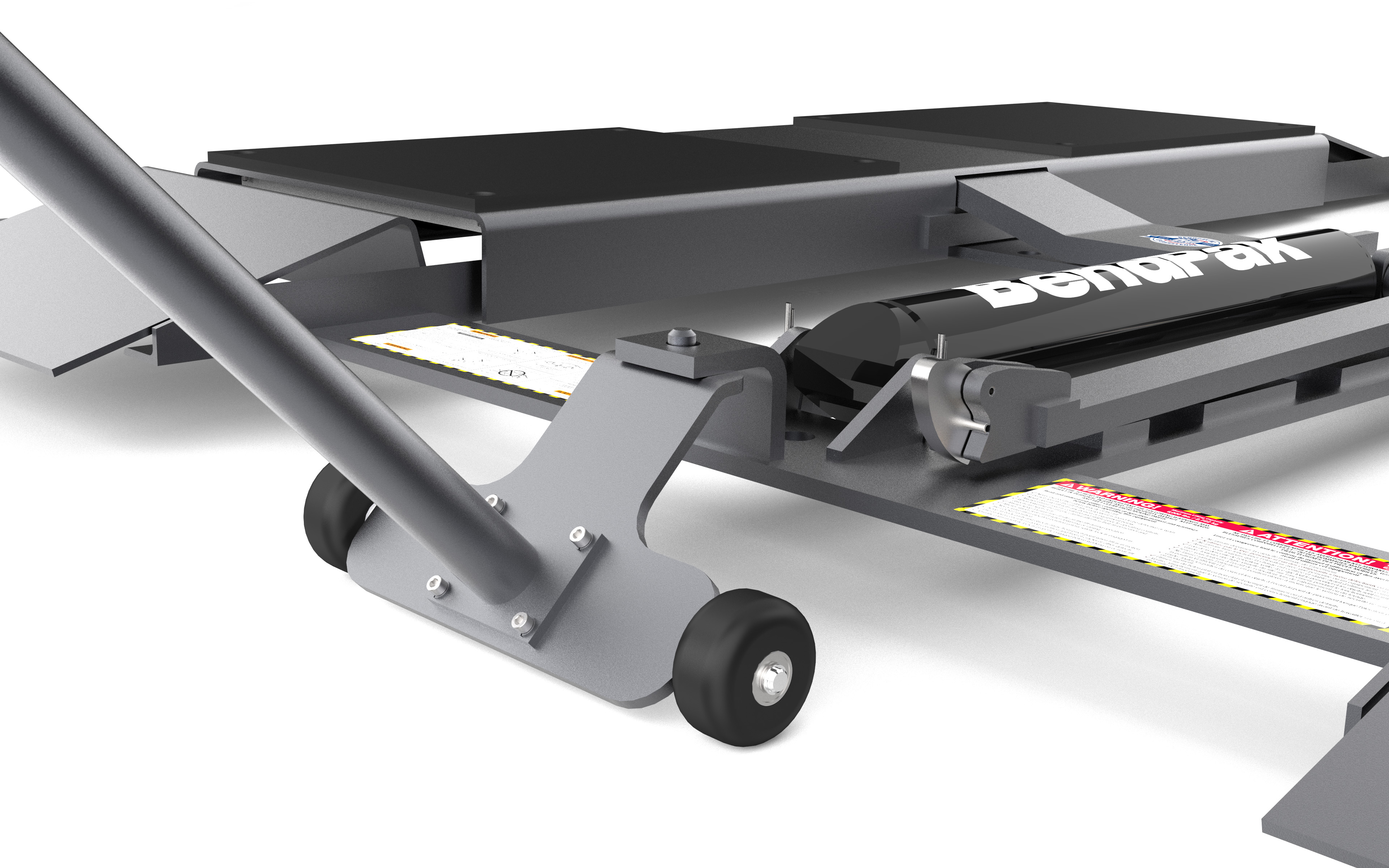

Move the Lift, Not Your Whole Shop Around It

Move the Lift, Not Your Whole Shop Around It

The portable design is the main reason to choose the LR-60P. If your service bays need to flex throughout the day, the lift can be rolled into position, used for the job, and moved aside when the floor needs to open back up. Despite its mobility, the LR-60P keeps a compact 4-inch collapsed profile, making it practical for low-stance vehicles and tight spaces. It is a strong fit for small garages, multi-use bays, and shops that cannot dedicate permanent floor space to every service task.

Low-Rise Access with Safety and Clearance Built In

The LR-60P uses an electric-hydraulic power system with multi-position safety locks for controlled lifting and service support. With the push of a button on the control panel, dual locks release on each frame while the operator remains safely positioned during descent. A dropped crossbar improves drive-over clearance and makes it easier to position vehicles onto the frames. Once raised, the center portion of each frame engages OEM jacking points, giving technicians better access for wheel service, suspension work, and quick repairs.
Low-Rise Access with Safety and Clearance Built In

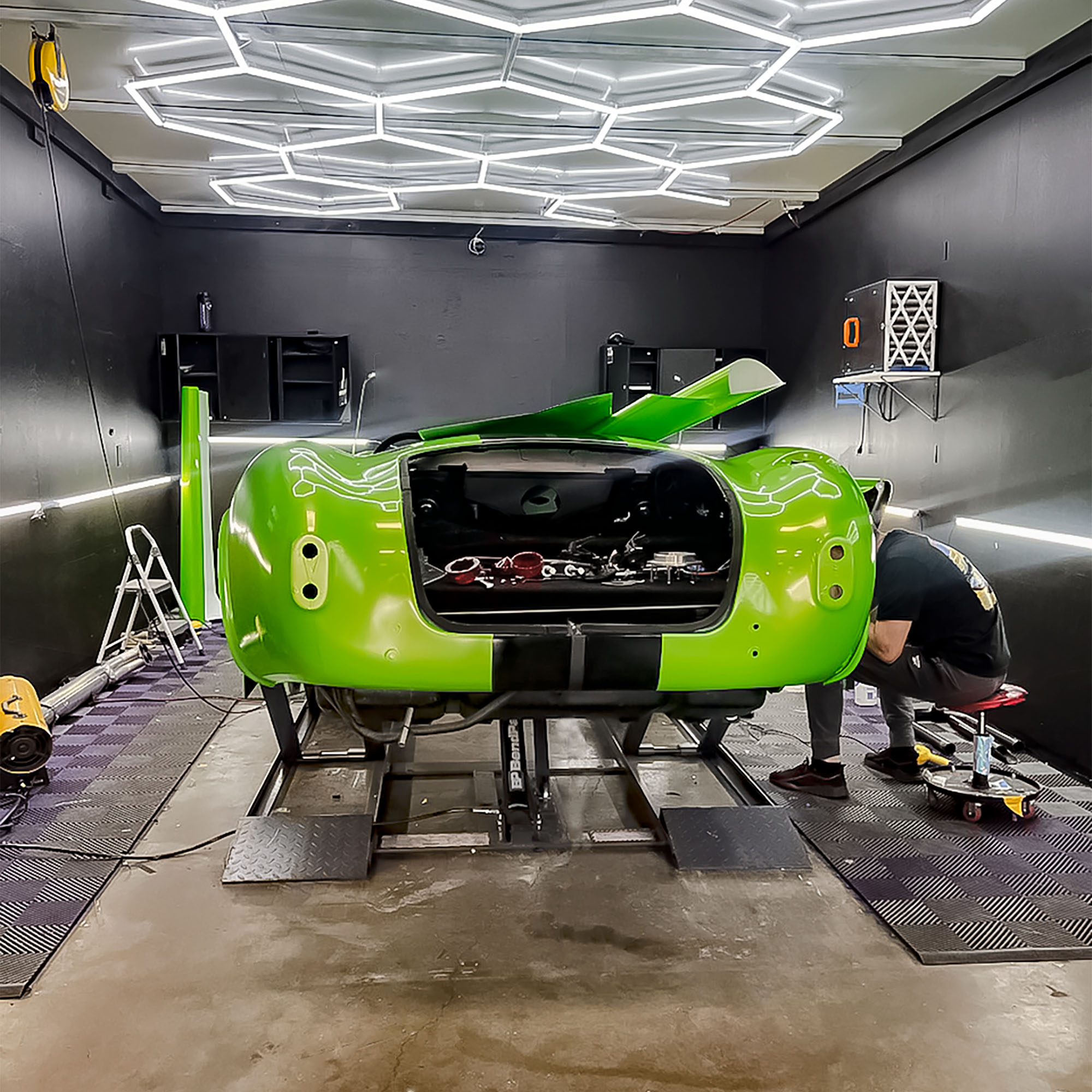

Steel Channel Construction and Industrial Hydraulics

Steel Channel Construction and Industrial Hydraulics

A heavy-duty steel channel frame gives the LR-60P the stability needed for active service bays, while the single hydraulic cylinder uses a machined steel piston, U-cup piston seals, backups, and wear bands to help control fluid bypass. Durable hard-rubber lift blocks come included for contact point protection and long service life. For shops that need a portable low-rise lift without giving up BendPak-level construction, the LR-60P is the moveable workhorse in the lineup.
Portable 6,000-lb. Lift

Portable 6,000-lb. Lift

The LR-60P gives shops low-rise lifting strength with the mobility to move between bays. It is ideal when floor space has to work multiple jobs.

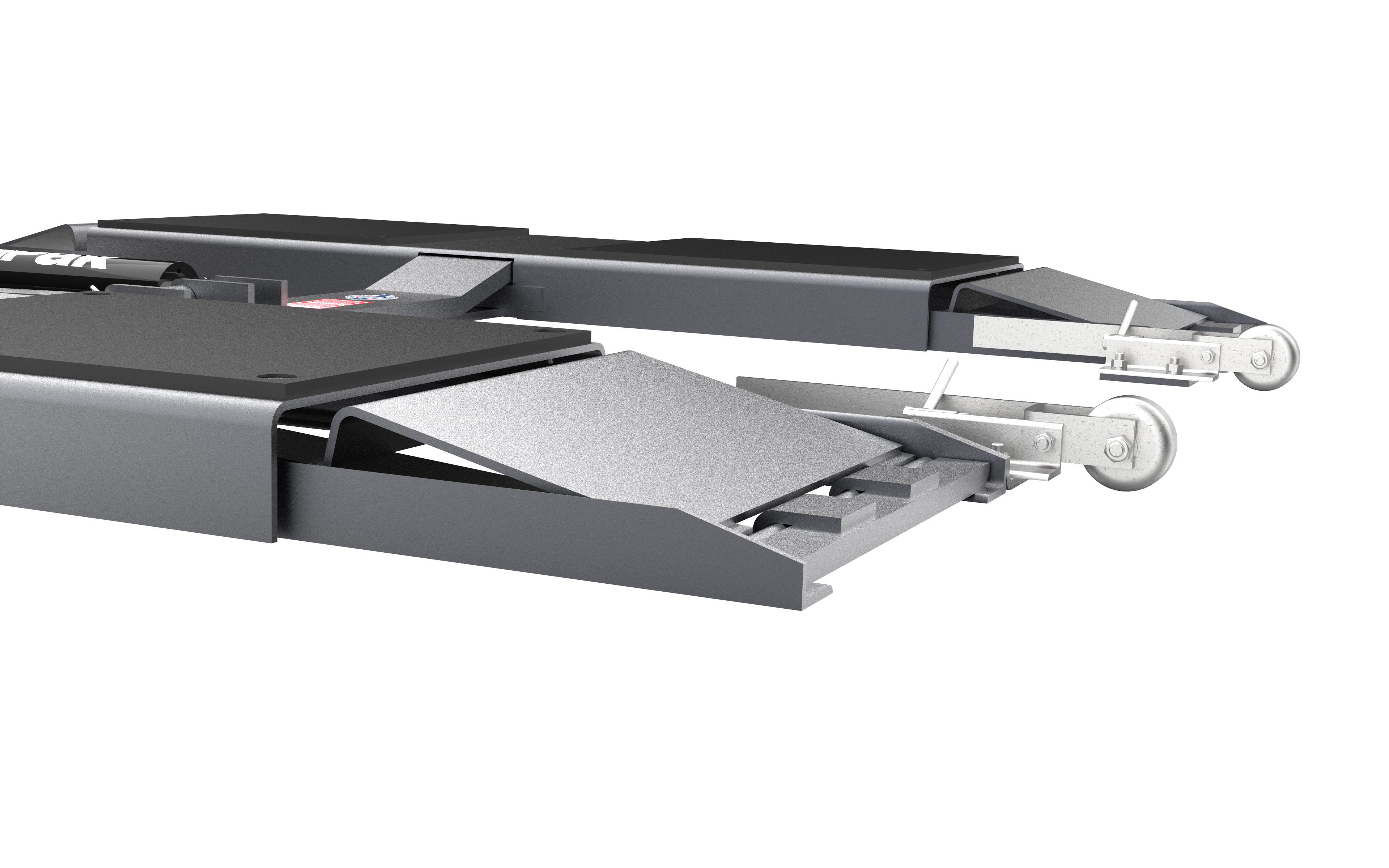

UHMW Roller Mobility

UHMW Roller Mobility

High-density UHMW rollers help one person reposition the lift around the shop or garage. The portable design keeps work flexible without adding bulky equipment.

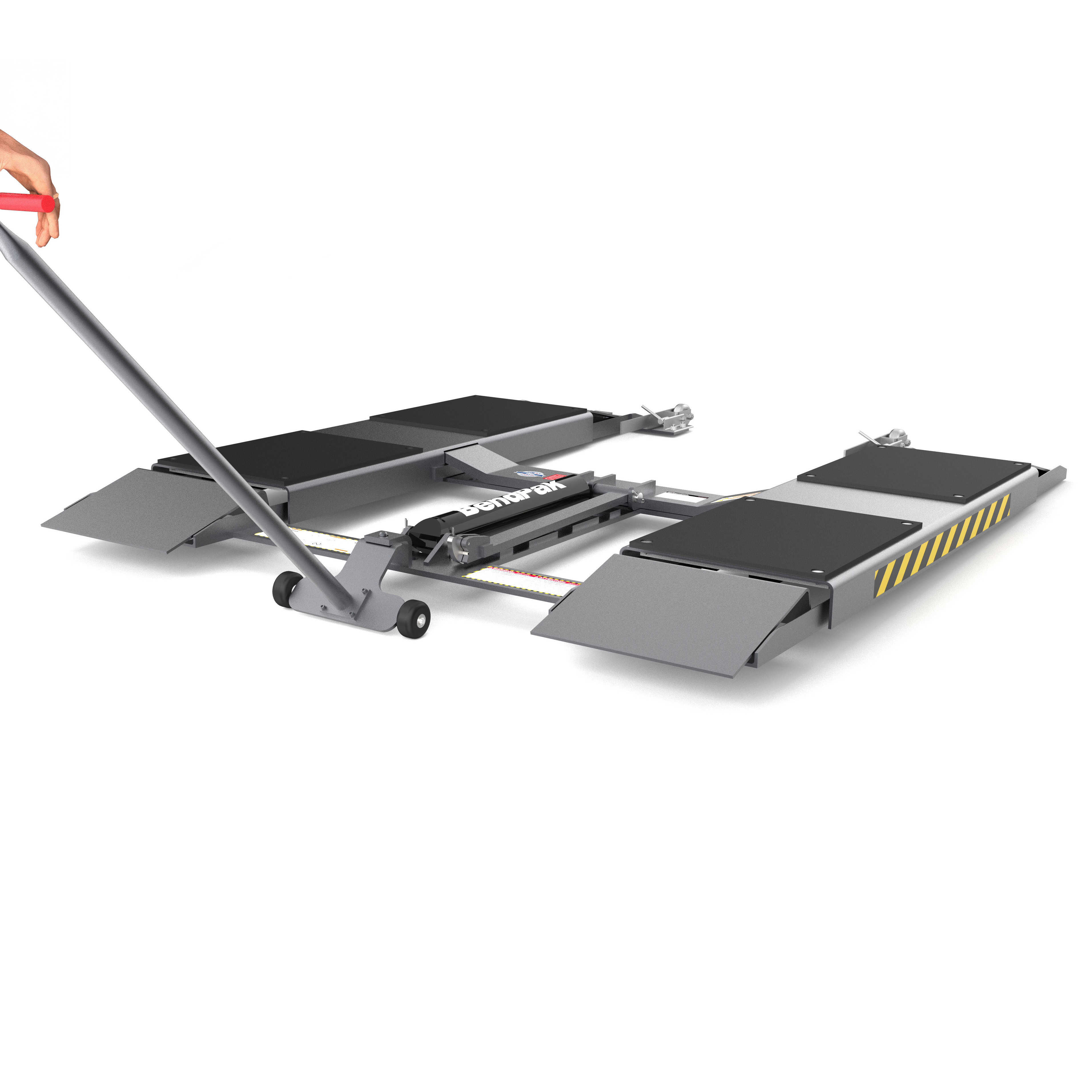

4-Inch Low Profile

4-Inch Low Profile

The lift collapses to just 4 inches high, helping low-stance vehicles clear the frame. It also keeps the footprint manageable in tight work areas.

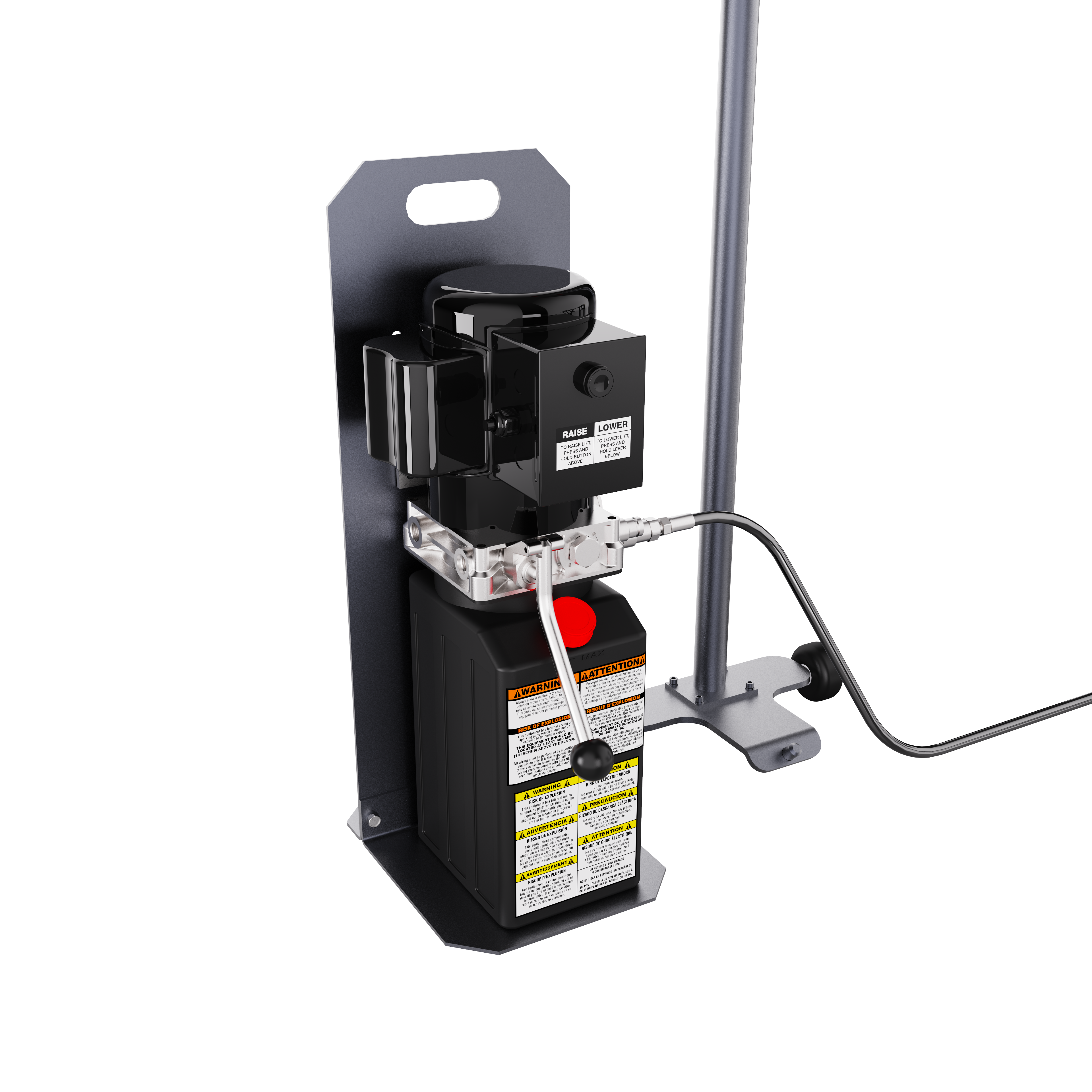

Control-Panel Lock Release

Control-Panel Lock Release

Dual locks release from the control panel, keeping operators away from the lift during descent. The result is smoother, more controlled lowering.

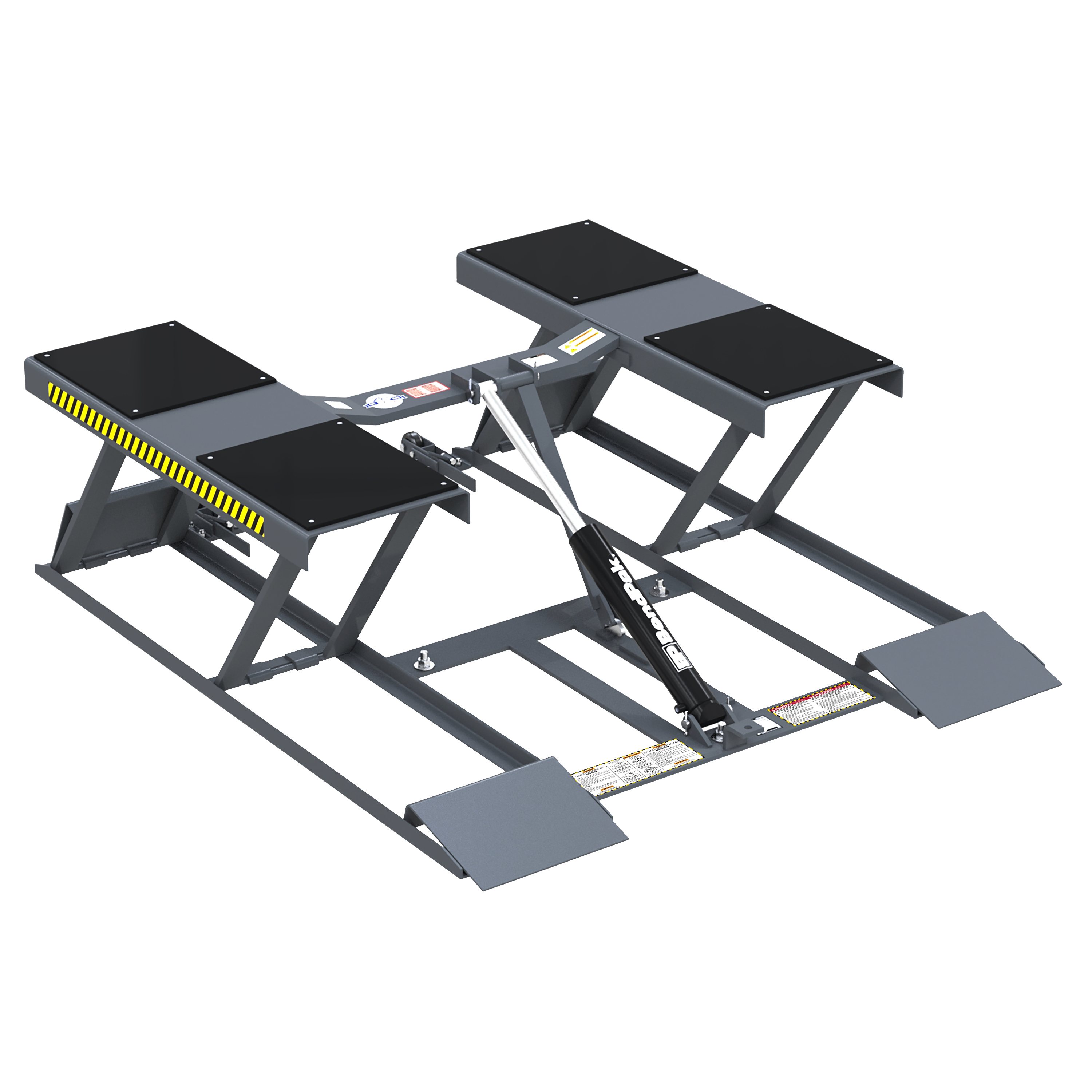

Dropped Crossbar Clearance

Dropped Crossbar Clearance

A dropped crossbar improves vehicle drive-over clearance and helps preserve access for wheel and suspension service. It adds stability without slowing the job.
Included Rubber Blocks

Included Rubber Blocks

Durable hard-rubber lift blocks come standard for protected contact at vehicle lifting points. They are built for years of practical shop use.

Recommended Add-ons

Accessories for the BendPak LR-60P Portable Low-Rise Lift - 6,000-lbs. Capacity

BendPak LR-4A Arm Kit
BendPak LR-4A Arm Kit
$1,050.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
6000 lb

Rise

Max Lifting Height
23 in
Max Lifting Height with Blocks
26 in
Lowered Height
4 in
Lifting Time
45 seconds

Locking Heights

1st Locking Position
15 in
2nd Locking Position
20.25 in
3rd Locking Position
23.5 in

Dimensions

Pad Length
53 in
Pad Width
18 in
Length
81 in
Width Between Platforms
34.75 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
110V / 50/60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
84 x 73 x 20 in
Shipping Weight
974 lb
Shipping Method
LTL
Offload Requirement
Liftgate
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
