BendPak LR-10000 Low-Rise Lift - 10,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175232
$5,495.00
Financing as low as $120/moApply now

Flexible business financing available through Navitas.

BendPak LR-10000 ALI Certified low-rise frame-engaging lift with 10,000-lb. capacity.
Product 3D model preview
BendPak LR-10000 low-rise lift with built-in storage trays for adapters and shop tools.
BendPak LR-10000 low-rise lift safety release detail for controlled lowering operation.
BendPak LR-10000 platform rubber pads and eight-piece adapter set for vehicle lifting points.
BendPak LR-10000 low-rise lift showing integrated drive-over ramps and dual hydraulic cylinders.
BendPak LR-10000 low-profile lift with drive-over platforms for frame-engaging service access.
BendPak LR-10000 low-rise lift showing multi-position safety locks and hydraulic power unit stand.
BendPak LR-10000 eight-piece adapter set for low-rise frame-engaging lift support.
BendPak LR-10000 professional low-rise lift system with drive-over ramps for shop service.
1
Ask An Expert

Expected to Ship: Aug 24, 2026

SALES FLYERMANUALWARRANTY

BendPak LR-10000 Low-Rise Lift - 10,000-lbs. Capacity
$5,495.00

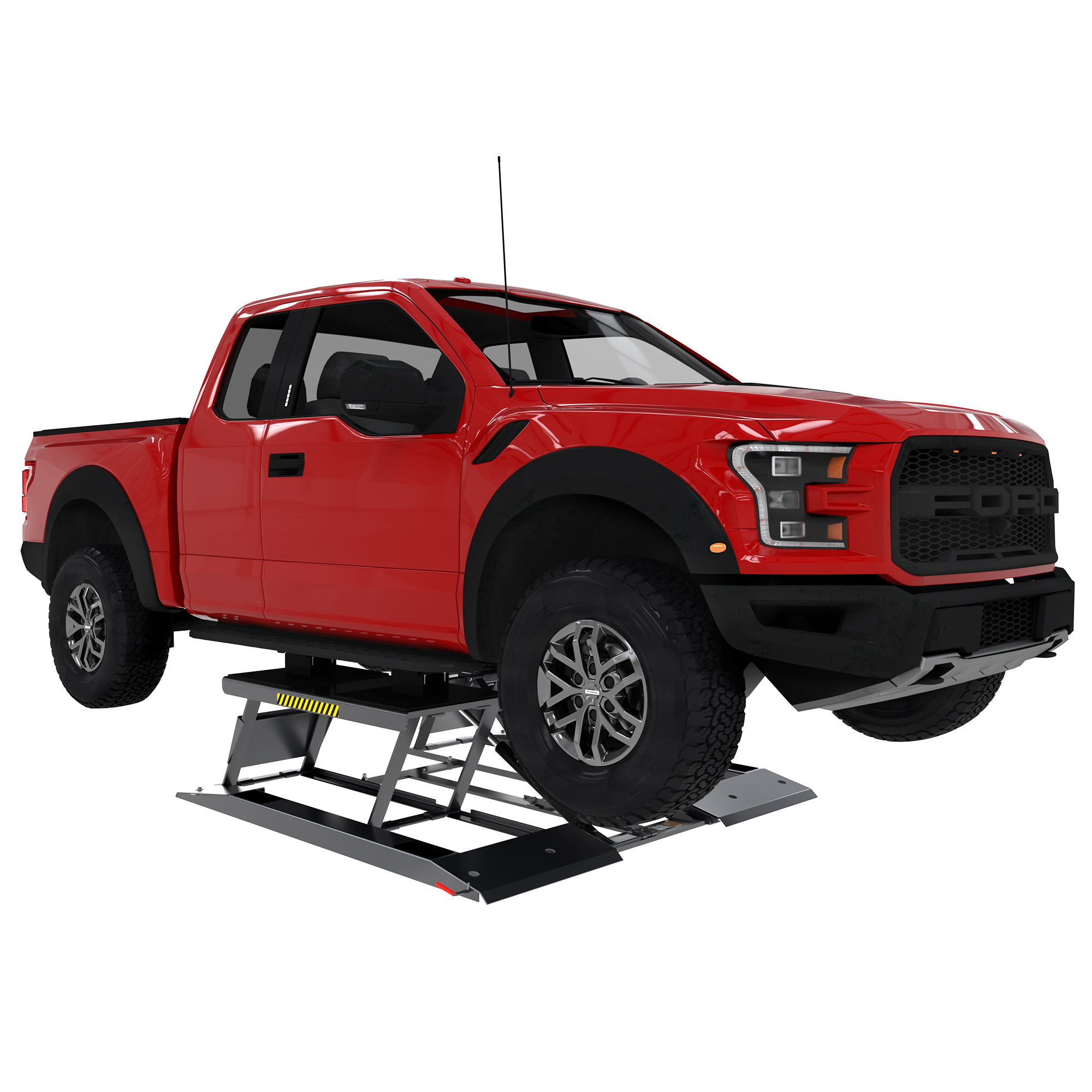

Low-Rise Lift Muscle for Wheel Service That Cannot Wait

Low-Rise Lift Muscle for Wheel Service That Cannot Wait

The BendPak LR-10000 Low-Rise Lift gives busy shops serious lifting strength in a compact, drive-over package. With a 10,000-lb. lifting capacity, this low-rise car lift is built for fast wheel service, brake work, suspension access, detailing, and general maintenance on vehicles that many smaller low-rise lifts cannot handle. Its 4-inch collapsed height keeps the profile low enough for sports cars and race cars while still giving technicians the capacity needed for trucks and SUVs. Built-in storage trays keep lug nuts and small parts within reach, while the lift platform and auxiliary adapters help operators contact recommended pick-up points on a wide range of unibody and frame-contact vehicles.

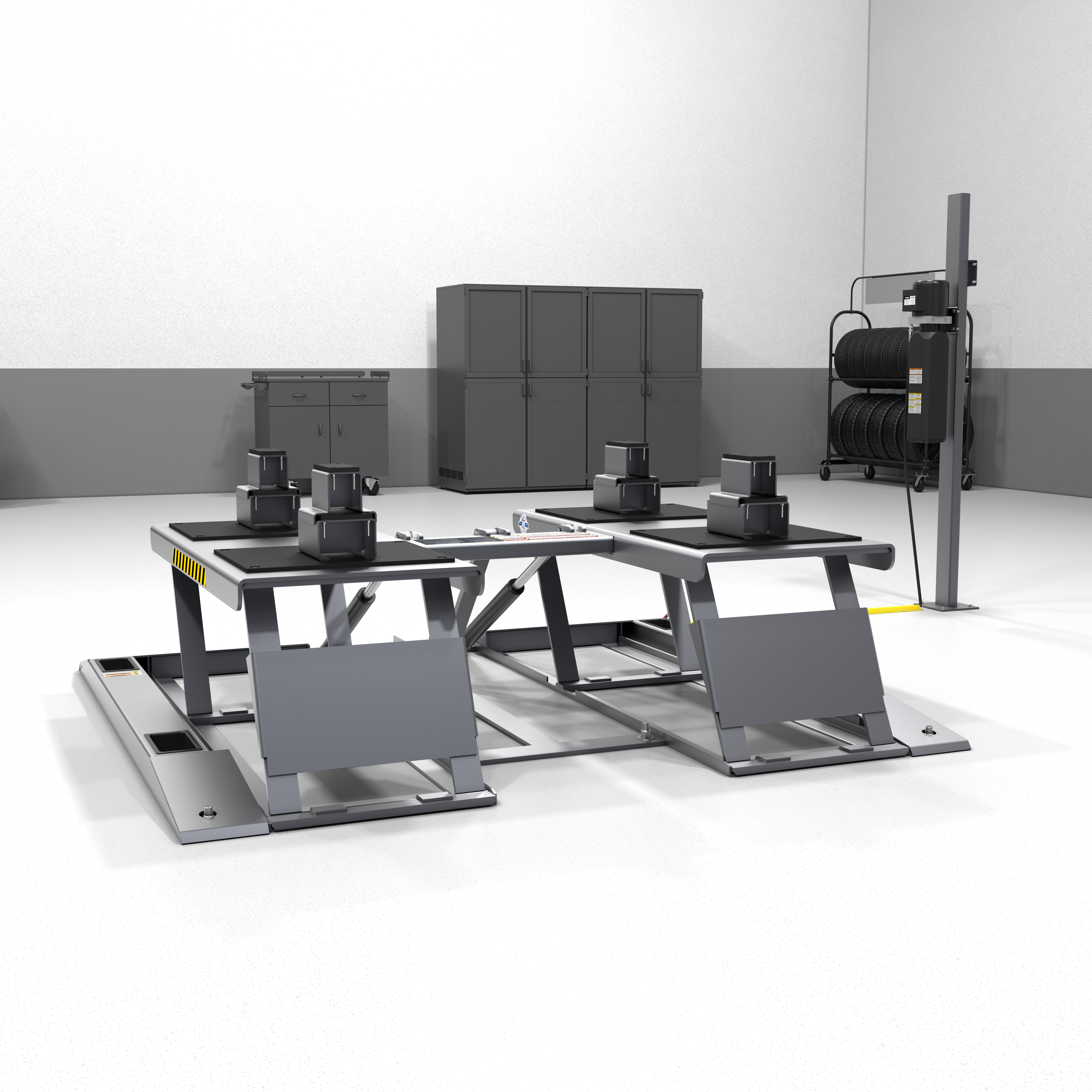

10,000-lb. Capacity in a Compact Shop Footprint

10,000-lb. Capacity in a Compact Shop Footprint

The LR-10000 is made for shops that need more lifting power without giving up valuable floor space. Each lift platform uses four parallelogram frame support bars, giving the lift the strength needed to handle demanding low-rise service work with confidence. Drive-over ramps and side rails help support wider vehicles during approach, while the full-length rubber-topped platforms and multi-height rubber-topped adapters improve vehicle contact versatility. It is a low-rise lift that works harder than its size suggests.

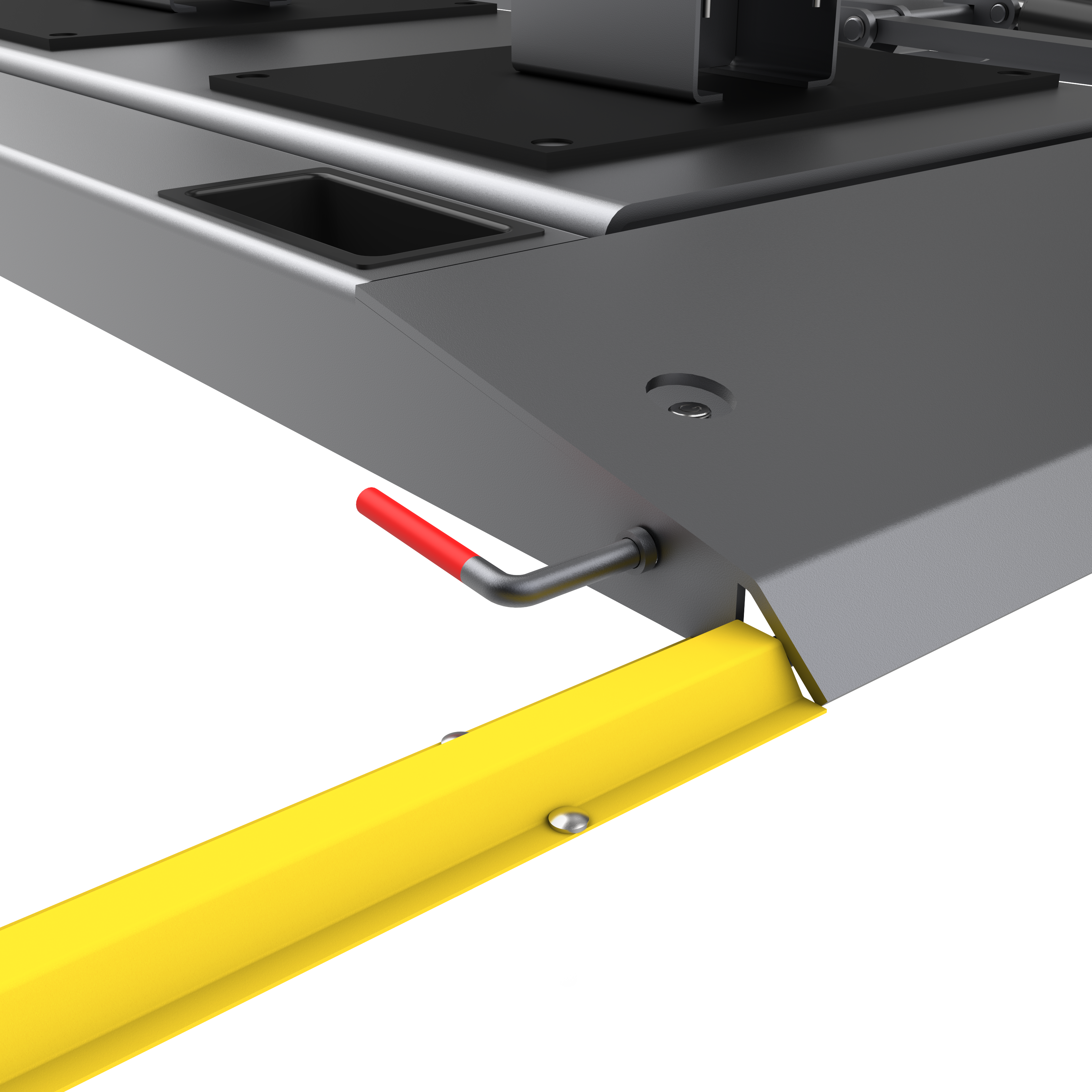

Safer, Smoother Low-Rise Lift Operation

A single-point safety release and dead-man style controls help make the LR-10000 easy to operate while keeping the technician in control during descent. The hands-free safety lock release system is operated away from the lift, so operators can deactivate the locks without pushing or pulling cumbersome release bars. Dual hydraulic cylinders and a flow divider help support even ascents and descents, while three locking positions allow technicians to work at different heights. That means less fatigue, better access, and a smoother workflow during high-volume wheel and brake service.
Safer, Smoother Low-Rise Lift Operation
Built Like a BendPak, Even at Low Rise

Built Like a BendPak, Even at Low Rise

The LR-10000 uses a rugged steel channel frame, diamond-plate approach ramps, and a powder-coat finish for long-term durability in professional shop environments. The dropped center crossbar improves drive-over clearance while preserving the structure needed for stable lifting. Detailed installation and maintenance instructions, safety decals, maintenance decals, a vehicle lifting point guide, and a safety instruction placard are included with every lift. For shops that want low-rise speed without lightweight construction, the LR-10000 brings serious BendPak build quality to the bay.
10,000-lb. Low-Rise Power

10,000-lb. Low-Rise Power

The LR-10000 gives shops low-rise lift speed with enough capacity for many trucks, SUVs, and larger service jobs. It is built for technicians who need fast access without a full-height lift.

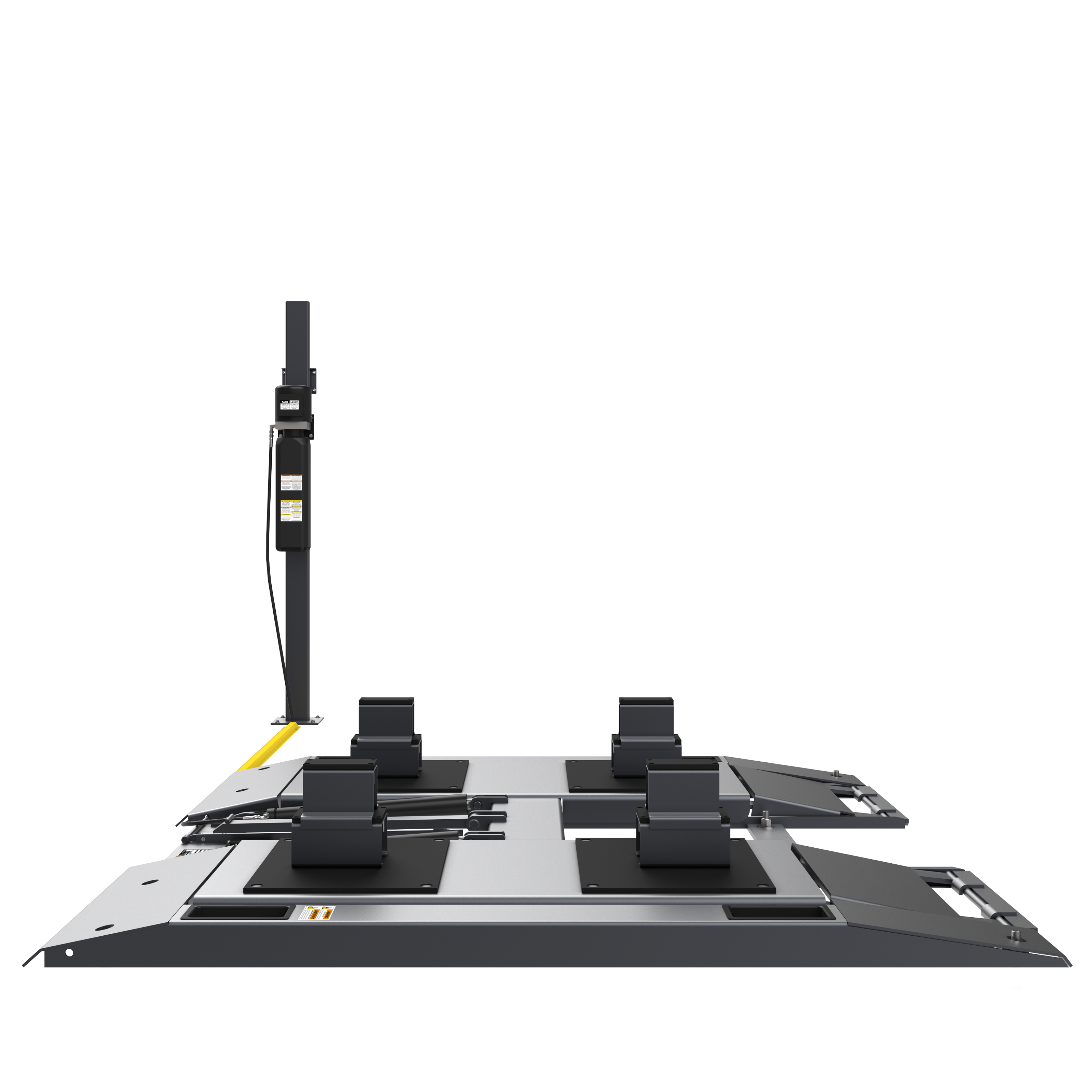

4-Inch Collapsed Height

4-Inch Collapsed Height

A low 4-inch profile helps the lift accommodate many low-stance vehicles, sports cars, race cars, trucks, and SUVs. The compact footprint also helps keep the bay cleaner when the lift is lowered.

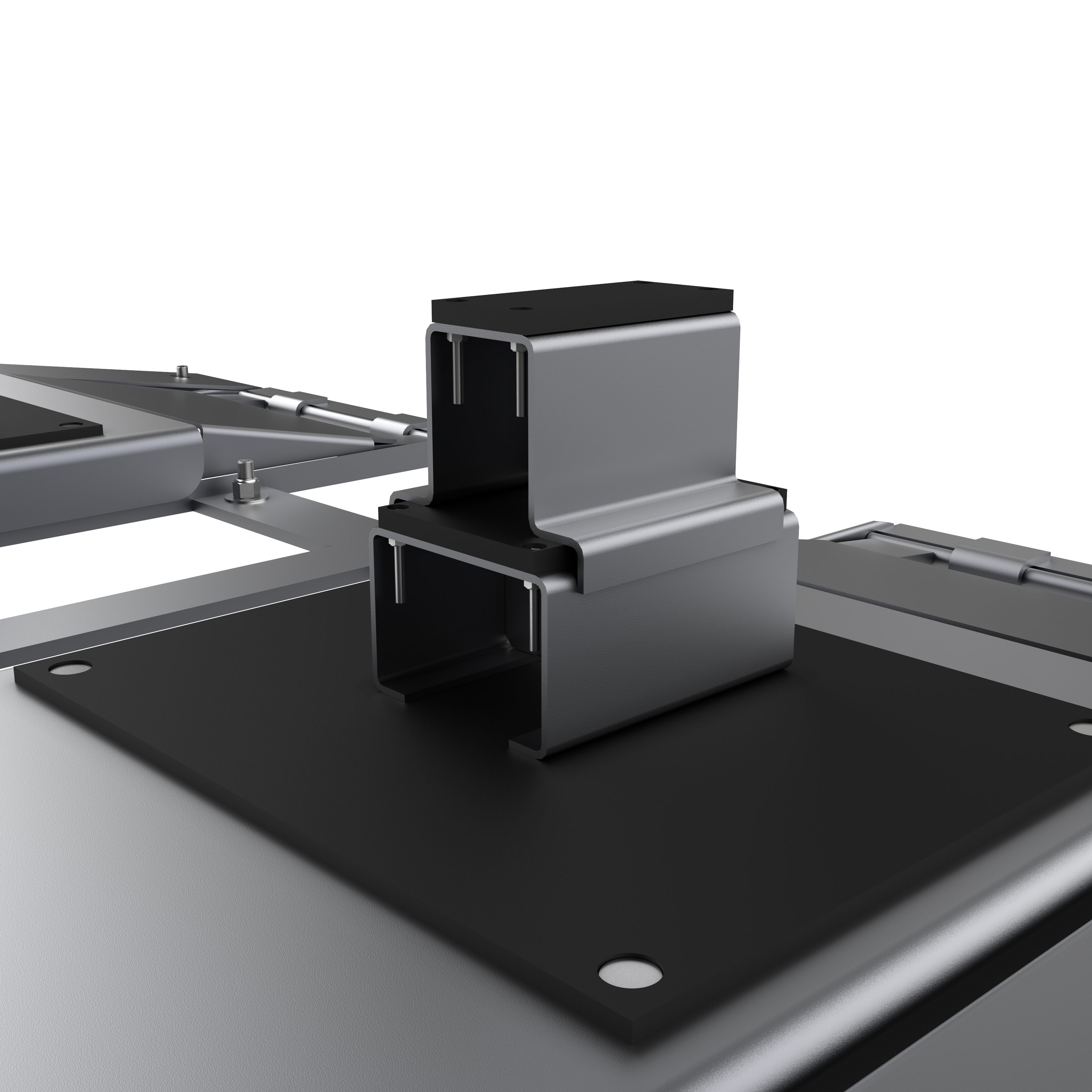

Rubber-Topped Platforms

Rubber-Topped Platforms

Full-length rubber-topped platforms and eight multi-height adapters help support a wide range of lift points. The setup improves vehicle contact versatility during quick-service work.

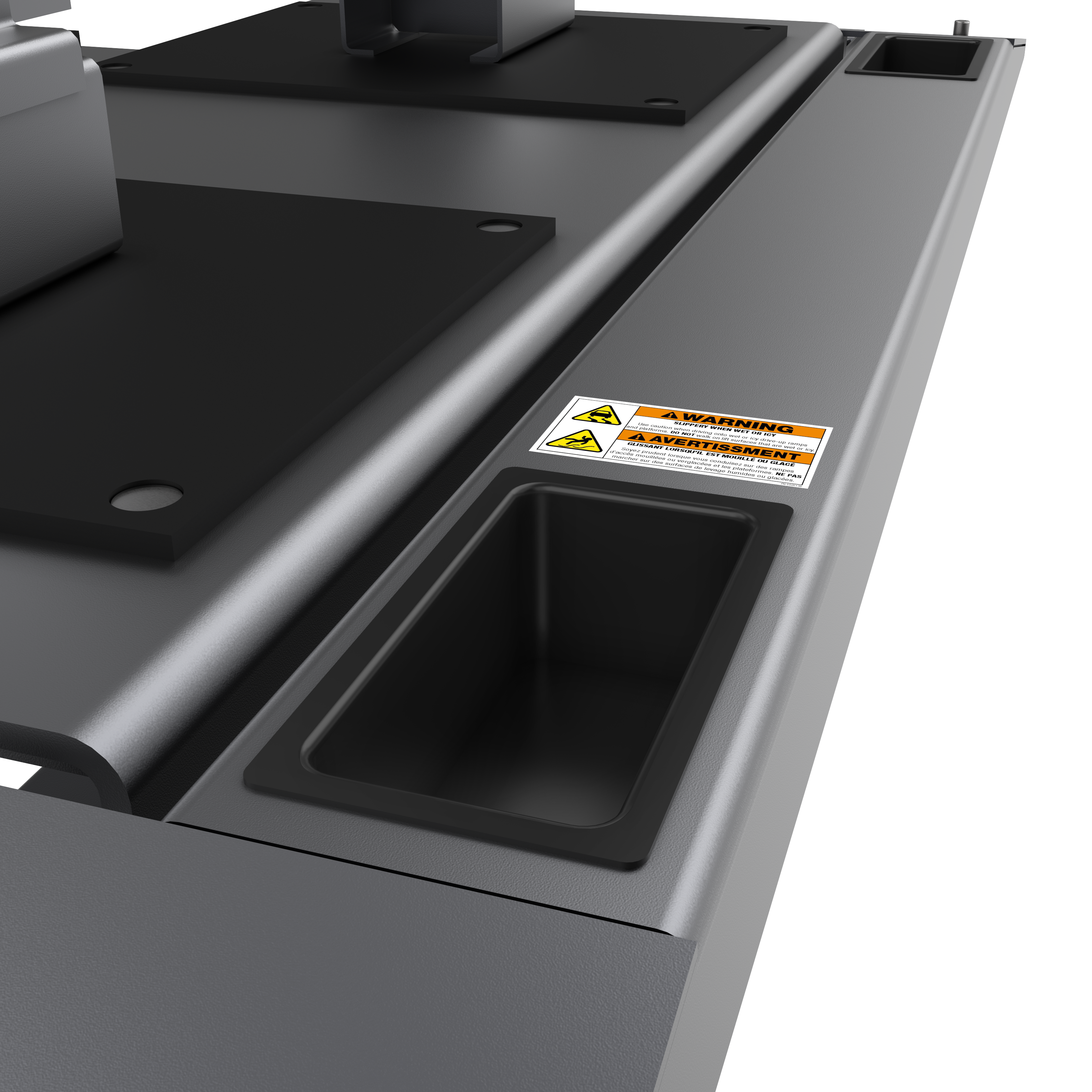

Built-In Parts Trays

Built-In Parts Trays

Storage trays on each side of the platform help keep lug nuts and small parts from disappearing during service. It is a small detail that saves time when the bay is moving fast.

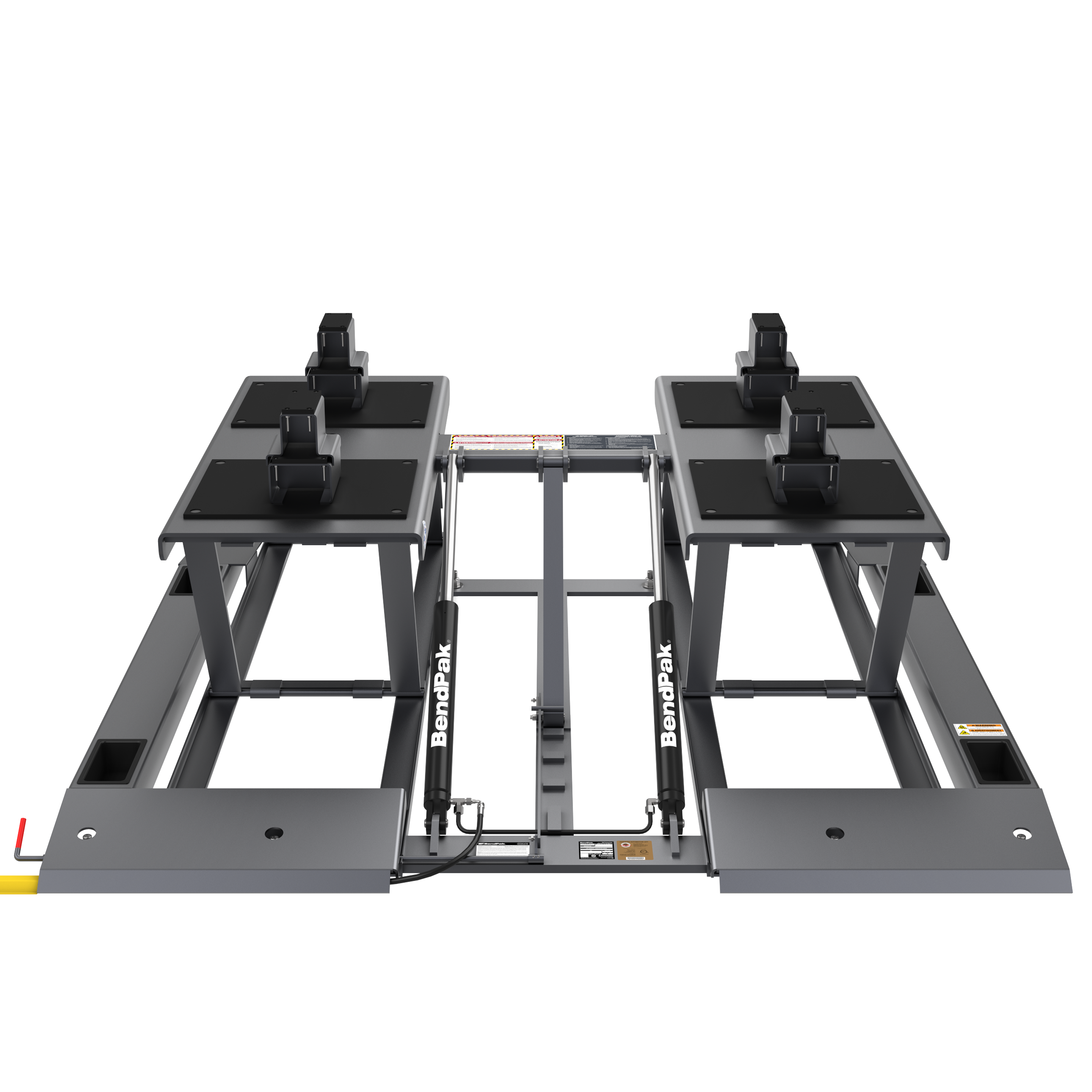

Hands-Free Lock Release

Hands-Free Lock Release

The safety lock release can be operated away from the lift, reducing awkward pushing or pulling on release bars. Technicians get safer, smoother control during lowering.

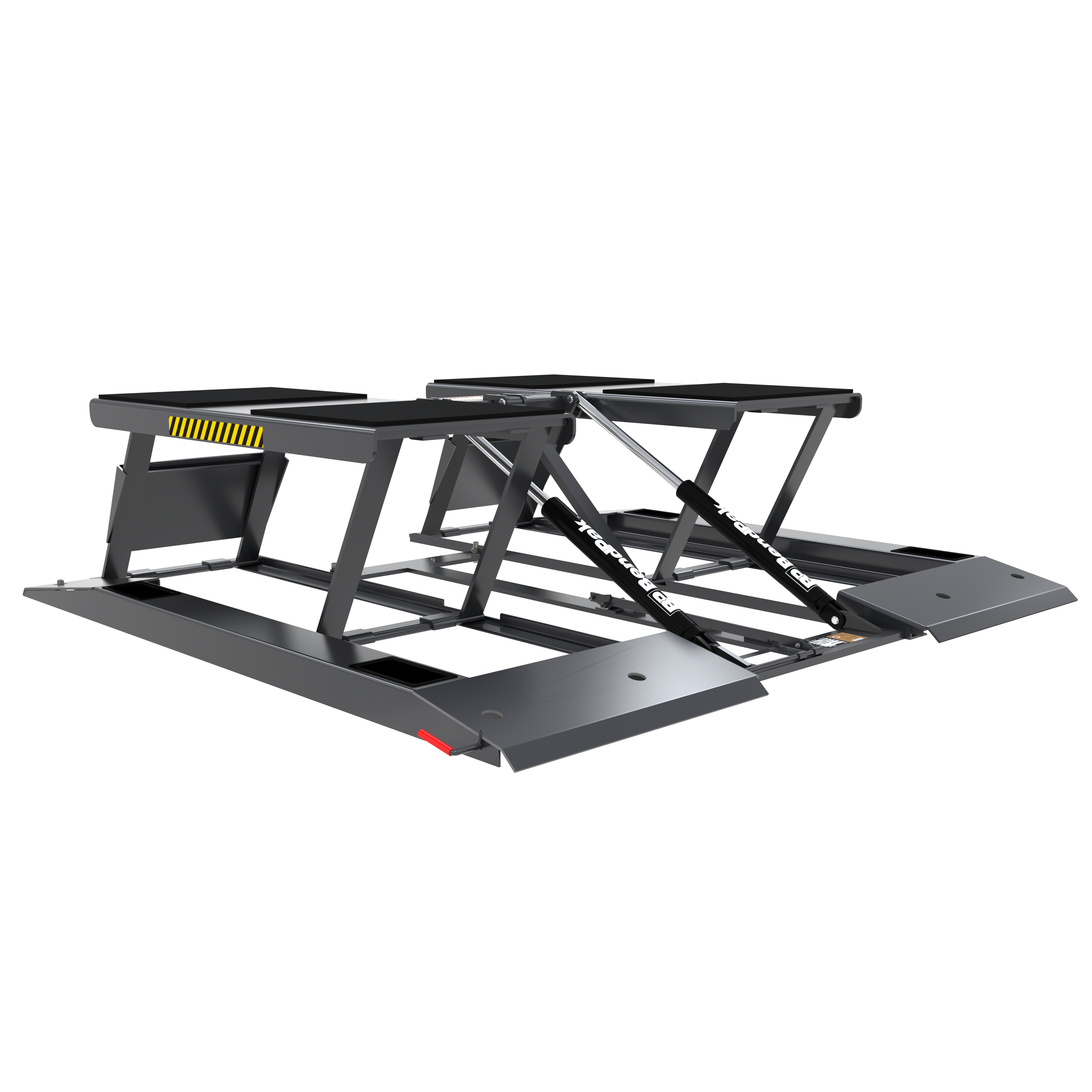

Rugged Steel Frame

Rugged Steel Frame

A steel channel frame, diamond-plate ramps, and powder-coat finish give the LR-10000 the durability expected from BendPak. This is compact lifting without flimsy construction.

Specifications

Capacity

Lifting Capacity
10000 lb

Rise

Max Lifting Height
23 in
Max Lifting Height with Blocks
32 in
Lowered Height
4.5 in
Lifting Time
45 seconds

Locking Heights

1st Locking Position
14 in
2nd Locking Position
18 in
3rd Locking Position
20.75 in
4th Locking Position
22.5 in

Dimensions

Pad Length
53 in
Pad Width
24 in
Length
83.5 in
Width Between Platforms
24 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
208-240V / 50/60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
85 x 88 x 24 in
Shipping Weight
1332 lb
Shipping Method
LTL
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
