Four-Post Lift / 7,500-lbs. Capacity / Vehicle and Boat Storage Lift

BendPak HD-75BXT Four-Post Lift - 7,500-lbs. Capacity
$9,995.00

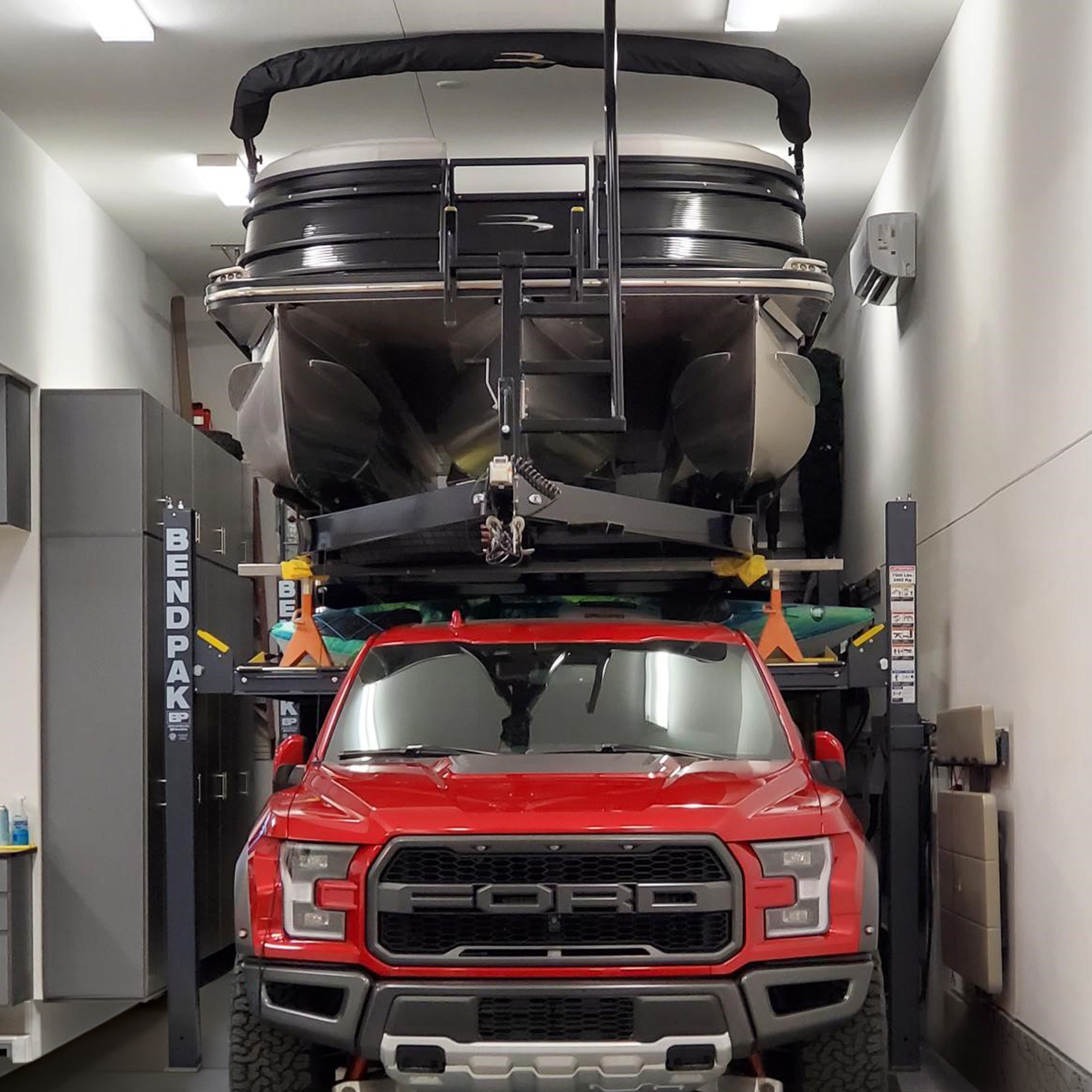

7,500-lb. Dry Docking Confidence for Boats and Trailers

7,500-lb. Dry Docking Confidence for Boats and Trailers

The BendPak HD-75BXT Boat Lift is built for owners who want a safer, smarter way to store their boat high and dry instead of leaving it exposed to unpredictable water conditions. Saltwater corrosion, barnacles, rust damage, coating blemishes, and weather exposure can take a serious toll over time, and this 7,500-lb. boat lift gives users a dependable dry-docking solution for protecting valuable watercraft. Built with the same quality approach expected from BendPak automotive lifts, the HD-75BXT is designed for boat trailer storage, private garages, and storage businesses that need a durable lift with serious everyday utility. It helps reduce reliance on expensive dry-docking fees while giving boat owners more control over how and where their investment is stored.

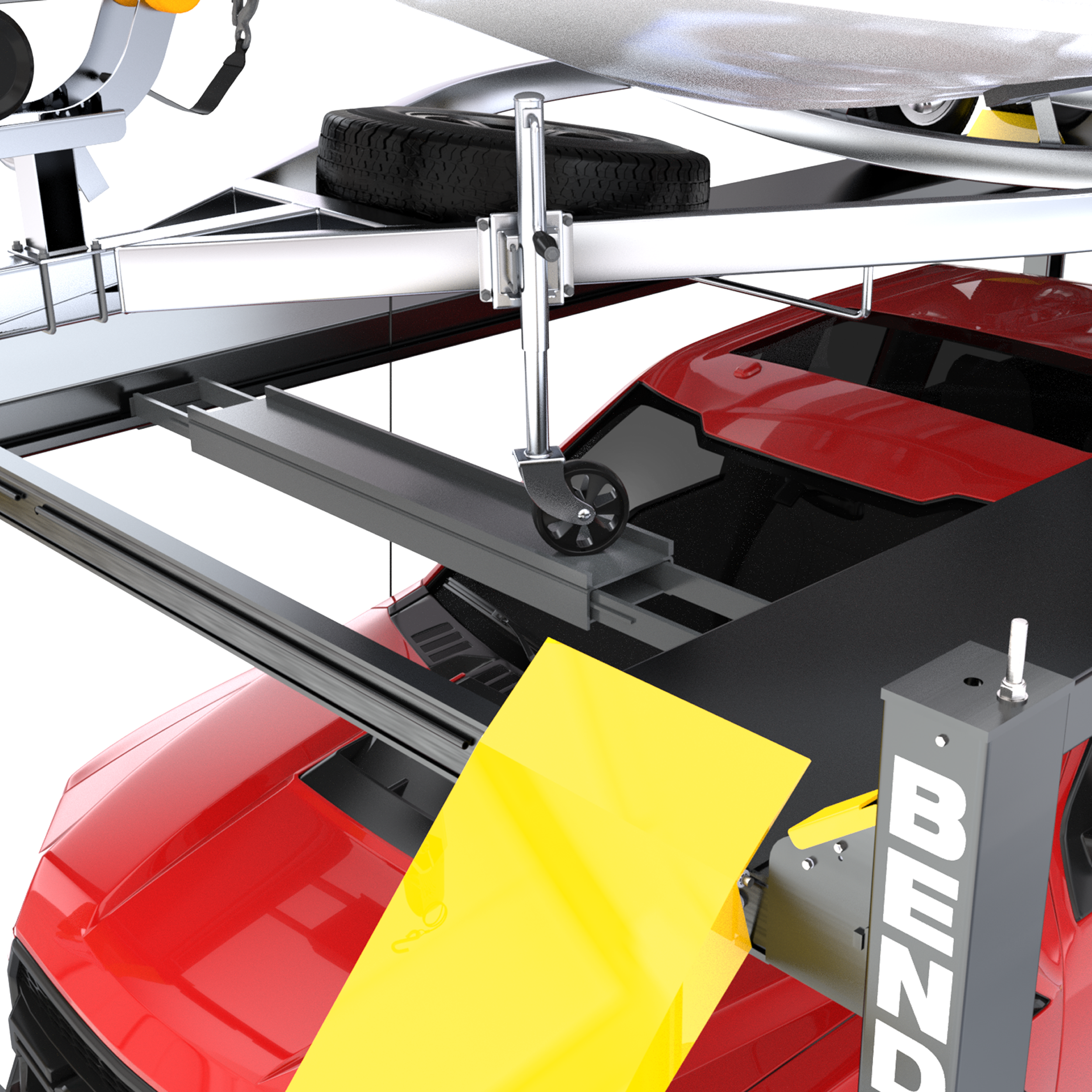

Built for Trailer Fitment, Storage Flexibility, and Daily Use

Built for Trailer Fitment, Storage Flexibility, and Daily Use

The HD-75BXT is designed to accommodate most boat trailers with wide and narrow installation options, helping users adapt the lift to a variety of trailer styles. Low-profile, extended-length approach ramps help trailers load onto the runways with less effort, making storage easier for both personal and commercial users. For boat storage businesses, the HD-75BXT can help expand usable storage capacity and create new storage opportunities. For private owners, it offers a practical way to keep the boat closer, cleaner, and better protected without handing control over to marina schedules or monthly storage bills.

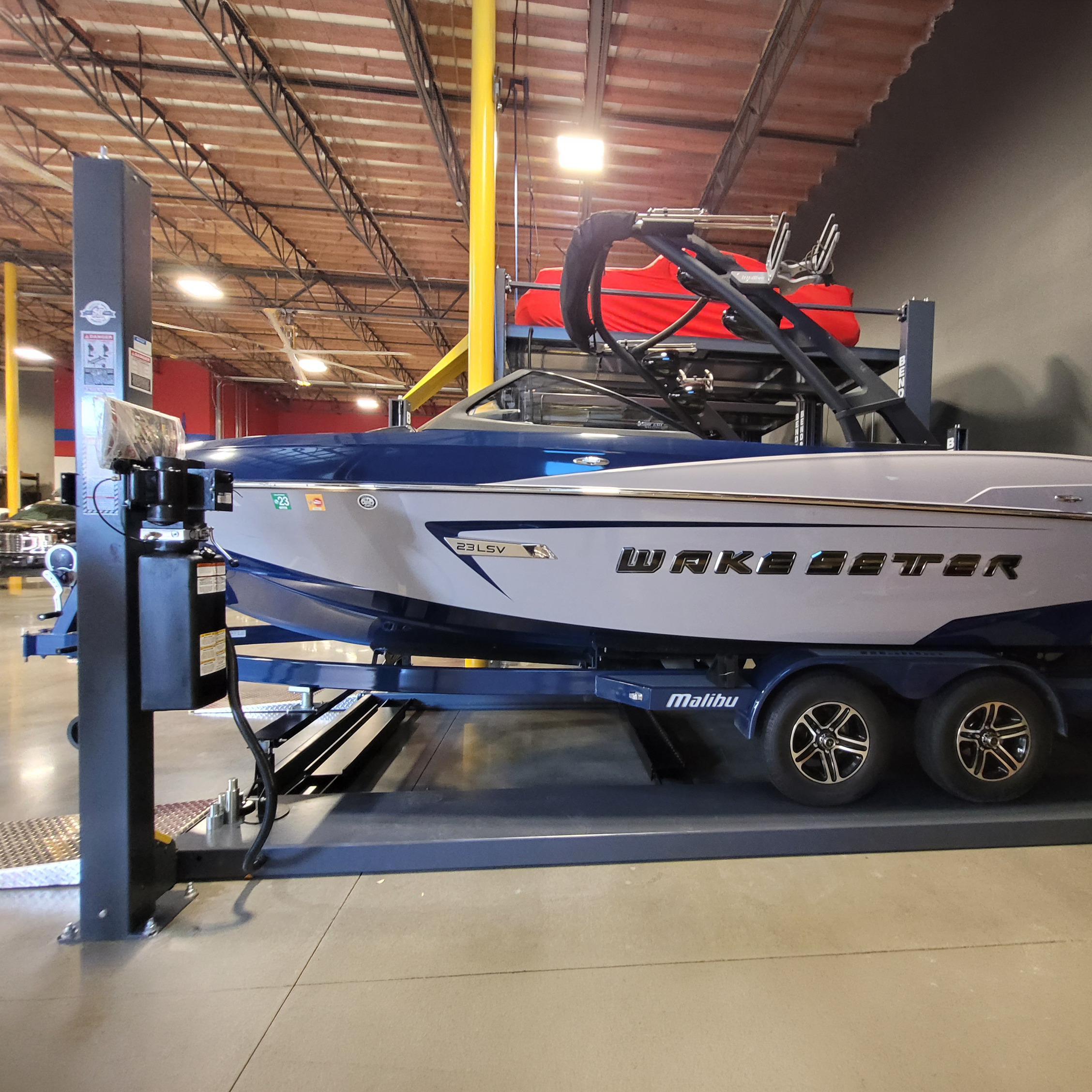

Single-Cylinder Hydraulic Design with Protected Components

The HD-75BXT uses a maintenance-friendly electric-hydraulic power system and a single hydraulic cylinder hidden beneath the runway for minimum exposure and dependable performance. Four heavy-duty stainless steel wire ropes and heavy-duty aircraft cable support the lifting system, while dual-hub wire rope sheaves help reduce stress and fatigue on the axles, sheaves, and cables. Critical components are integrated and protected, including lifting cables, air lines, safety latches, and sheaves. This enclosed design helps extend the life of the lift and supports the kind of long-term reliability boat owners and storage operators need from a serious dry-docking system.
Single-Cylinder Hydraulic Design with Protected Components

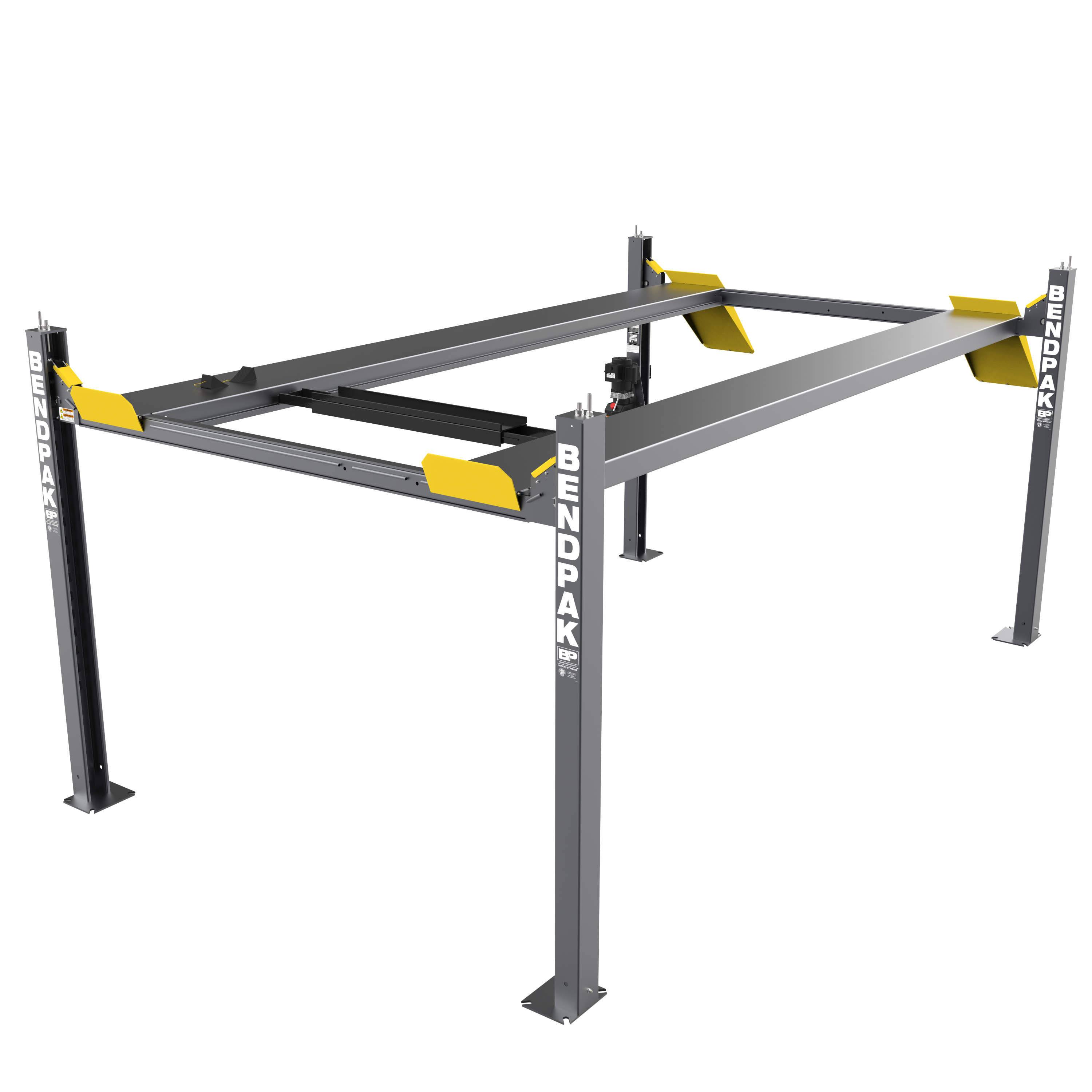

Automatic Safety Locks for Secure Multi-Level Boat Storage

Automatic Safety Locks for Secure Multi-Level Boat Storage

Multi-level locking positions give the HD-75BXT variable-height storage capability, allowing users to position the lift where it best fits the storage setup. Spring-loaded safety locks engage continuously as the lift is raised, and the lock system can release all four independent safety locks at the same time for easier operation. Stainless and aluminum pneumatic cylinders support push-button lock release, while a secondary lock system acts as a slack-cable device for emergency protection. Combined with rugged 1-1/4-inch roller axles, anti-sway column blocks, and a durable powder coat finish, the HD-75BXT is built to keep boats high, dry, and ready for the next trip.

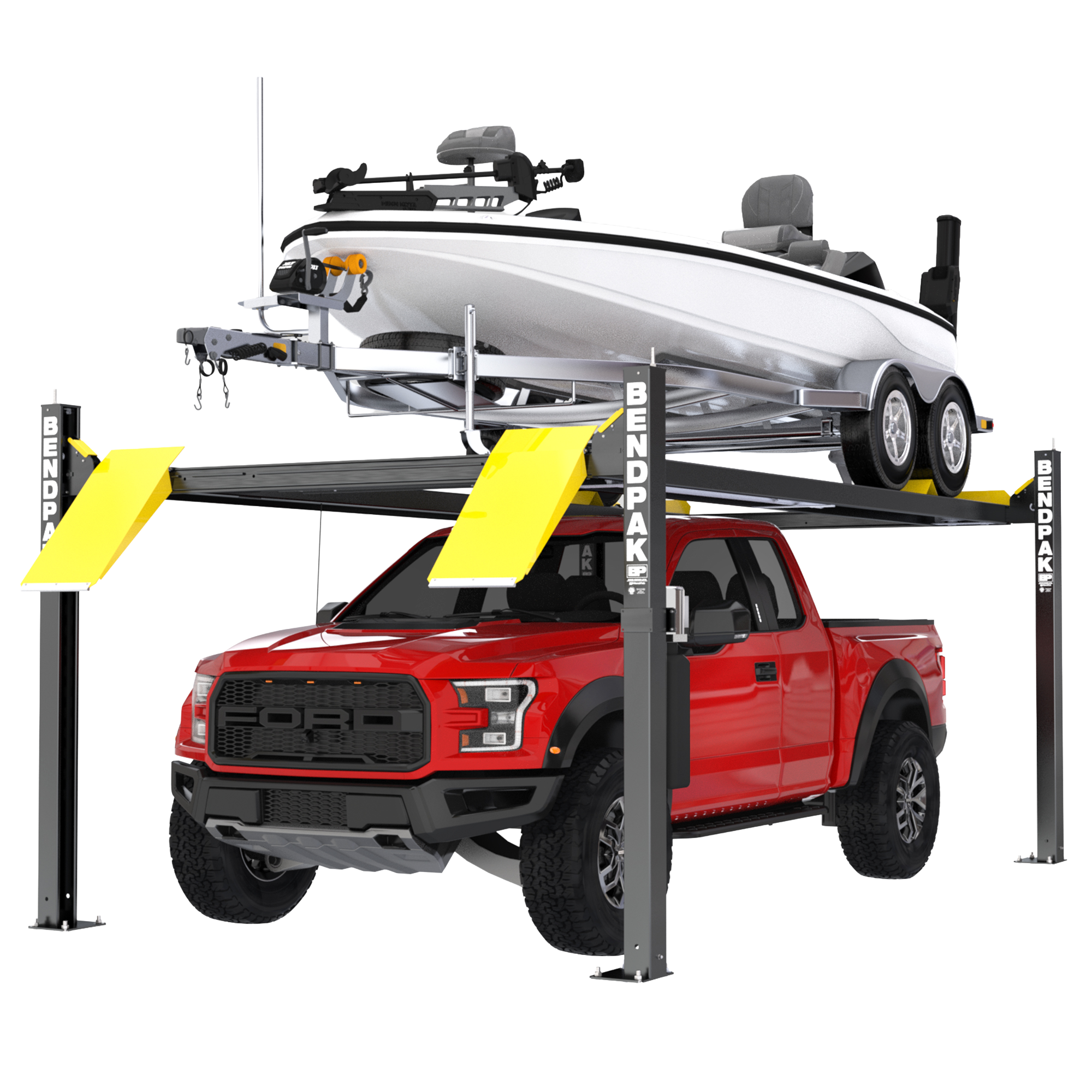

7,500-lb. Boat Lift Capacity

7,500-lb. Boat Lift Capacity

The HD-75BXT is built to support serious boat trailer storage with a 7,500-lb. lifting capacity.
High and Dry Storage

High and Dry Storage

Dry docking helps protect boats from water exposure, corrosion, barnacles, rust, and weather-related damage.
Trailer-Friendly Design

Trailer-Friendly Design

Wide and narrow installation options help the lift accommodate most boat trailer types.

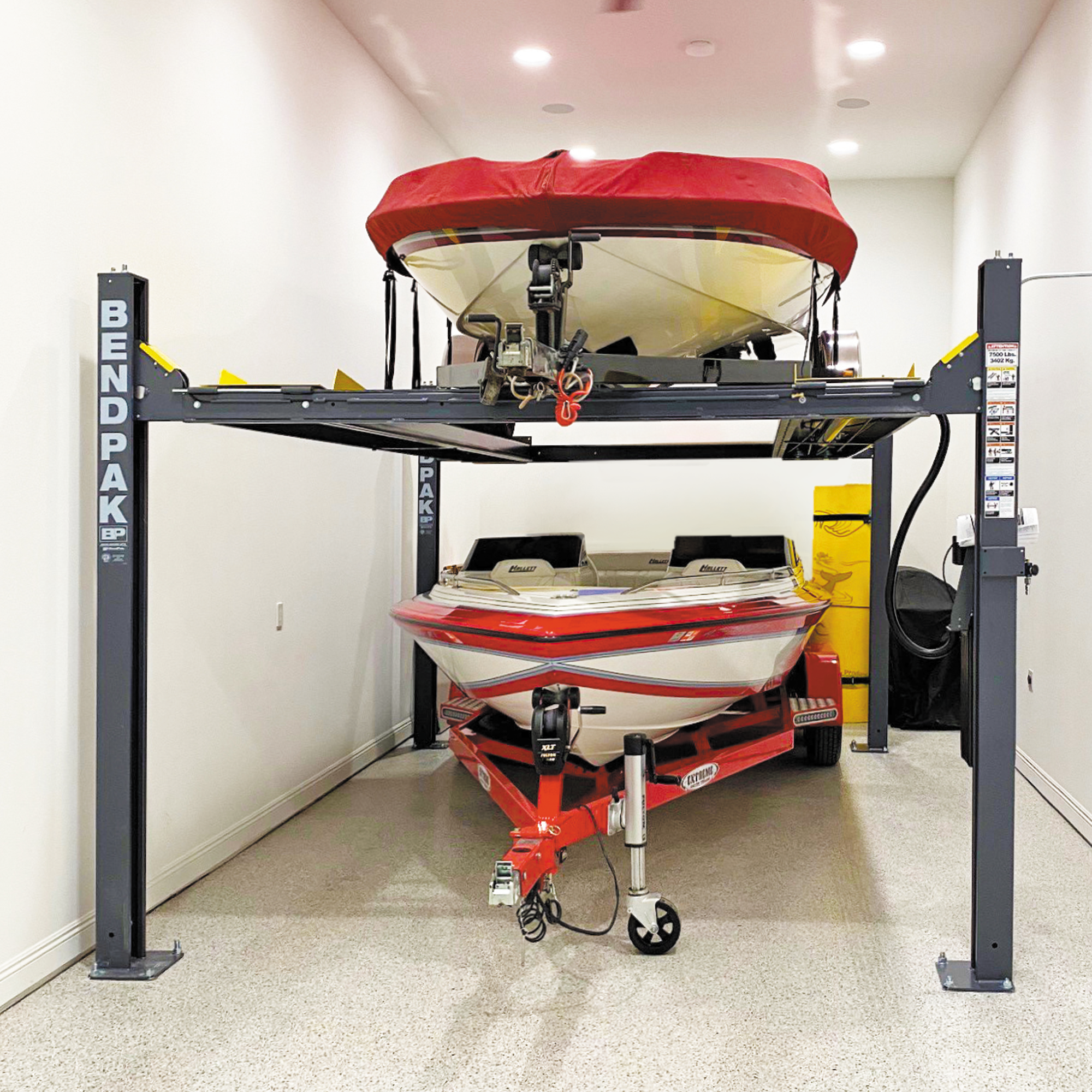

Protected Hydraulic System

Protected Hydraulic System

A single hydraulic cylinder is hidden under the runway for reduced exposure and dependable lifting performance.
Automatic Safety Locks

Automatic Safety Locks

Spring-loaded locks engage as the lift rises, with push-button pneumatic release for easier operation.

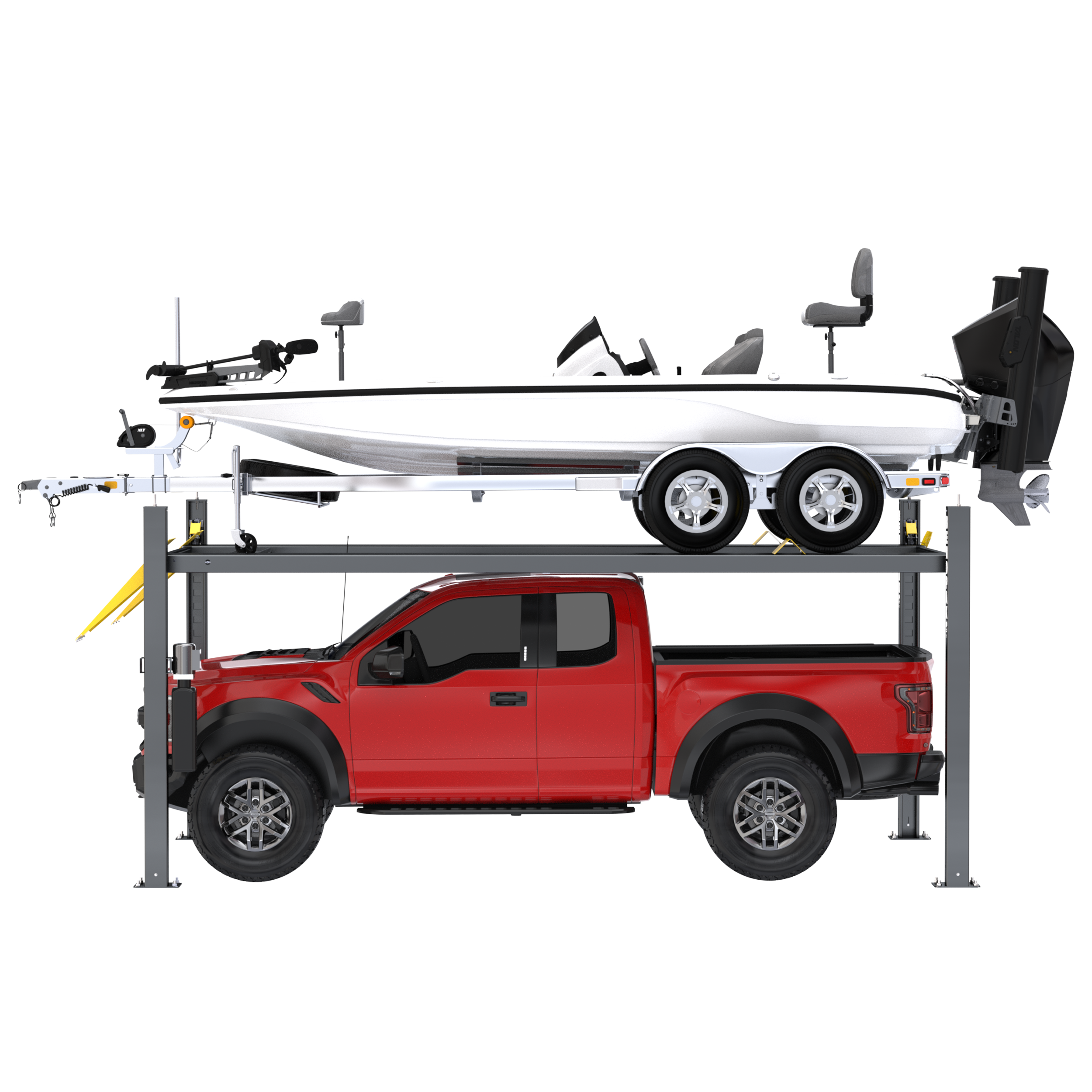

Longer Approach Ramps

Longer Approach Ramps

Low-profile, extended-length ramps help boat trailers load onto the runways more easily.

Specifications

Capacity

Lifting Capacity
7500 lb

Rise

A Min Runway Height
5 in
B Max Rise
82 in
C Max Lifting Height
87 in

Outside Dimensions

D Width
133.75 in
E Outside Length
222 in
F Overall Length
248.5 in
G Height
100 in

Inside Dimensions

H Inside Columns
122 in
I Drive-Thru Clearance
108.5 in

Runways

J Runway Width
19 in
K Runway Length
206.25 in
L Width Between Runways
46.5 - 66.5 in
M Runway Centerline
68.5 - 88.5 in
N Outside Edge of Runways
87.5 - 107.5 in

Minimum Wheelbase

Rated Wheelbase Capacity
150 in
25% Capacity
90 in
50% Capacity
110 in
75% Capacity
130 in

Locking

Locking Positions
17
Locking Spacing
4 in

Power Unit and Voltage

Voltage
208-230V / 60 Hz / 1-Phase
Sound Level
45 dB

Shipping and Delivery

Shipping Dimensions
22 x 214 x 27 in
Shipping Weight
2008 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
