SP-7XEF Flush-Mount Full-Rise Scissor Lift - 7,000-lbs. Capacity

SEE REVIEWS
IN STOCKSKU 5175425
$10,295.00
Financing as low as $217/moApply now

Flexible business financing available through Navitas.

BendPak SP-7XEF flush-mount full-rise scissor lift with 7,000-lb. capacity.
Product 3D model preview
BendPak SP-7XEF full-rise flush-mount scissor lift for tire service
BendPak SP-7XEF flush-mount scissor lift for tires, brakes, and undercarriage access
BendPak SP-7XEF full-rise scissor lift for clean in-ground style service bays
BendPak SP-7XEF 7,000-lb. flush-mount full-rise scissor lift for service bays
BendPak SP-7XEF full-rise scissor lift with flush-mount installation design
Sedan raised on a BendPak SP-7XEF flush-mount full-rise scissor lift in a commercial automotive shop.
1
Ask An Expert

Expected to Ship: Aug 25, 2026

SALES FLYERMANUALWARRANTY

SP-7XEF Flush-Mount Full-Rise Scissor Lift - 7,000-lbs. Capacity
$10,295.00
Full-Rise Lifting That Disappears Into the Floor

Full-Rise Lifting That Disappears Into the Floor

The BendPak SP-7XEF Flush-Mount Full-Rise Scissor Lift gives professional shops the height, access, and 7,000-lb. lifting capacity of a serious service lift with the clean bay layout of a recessed installation. When lowered, the lift sits flush with the floor, creating a drive-over work area that keeps the bay easier to move through when the lift is not in use. For automotive service facilities, quick-lube bays, and modern workshops where floor space matters, the SP-7XEF delivers full-rise performance without leaving bulky raised platforms in the way. Its frame-engaging design supports the vehicle at approved lifting points, helping technicians get the access they need for undercarriage maintenance, inspections, repairs, and general service work.

Flush-Mount Scissor Lift Design With Open-Center Access

The SP-7XEF uses sturdy flat steel platforms, drive-up ramps, ramp extensions, lift pads, hinged sections, and fixed sections to create a stable lifting surface that works with a range of wheelbases. Its open-center scissor layout improves access beneath the vehicle while keeping the lift structure compact and efficient. Because this is a flush-mount scissor lift, the installation is designed around a recessed floor area. When matched to the right bay, the SP-7XEF helps preserve clean floor movement, drive-over convenience, and a more finished shop appearance while still providing the working height expected from a full-rise lift.
Flush-Mount Scissor Lift Design With Open-Center Access

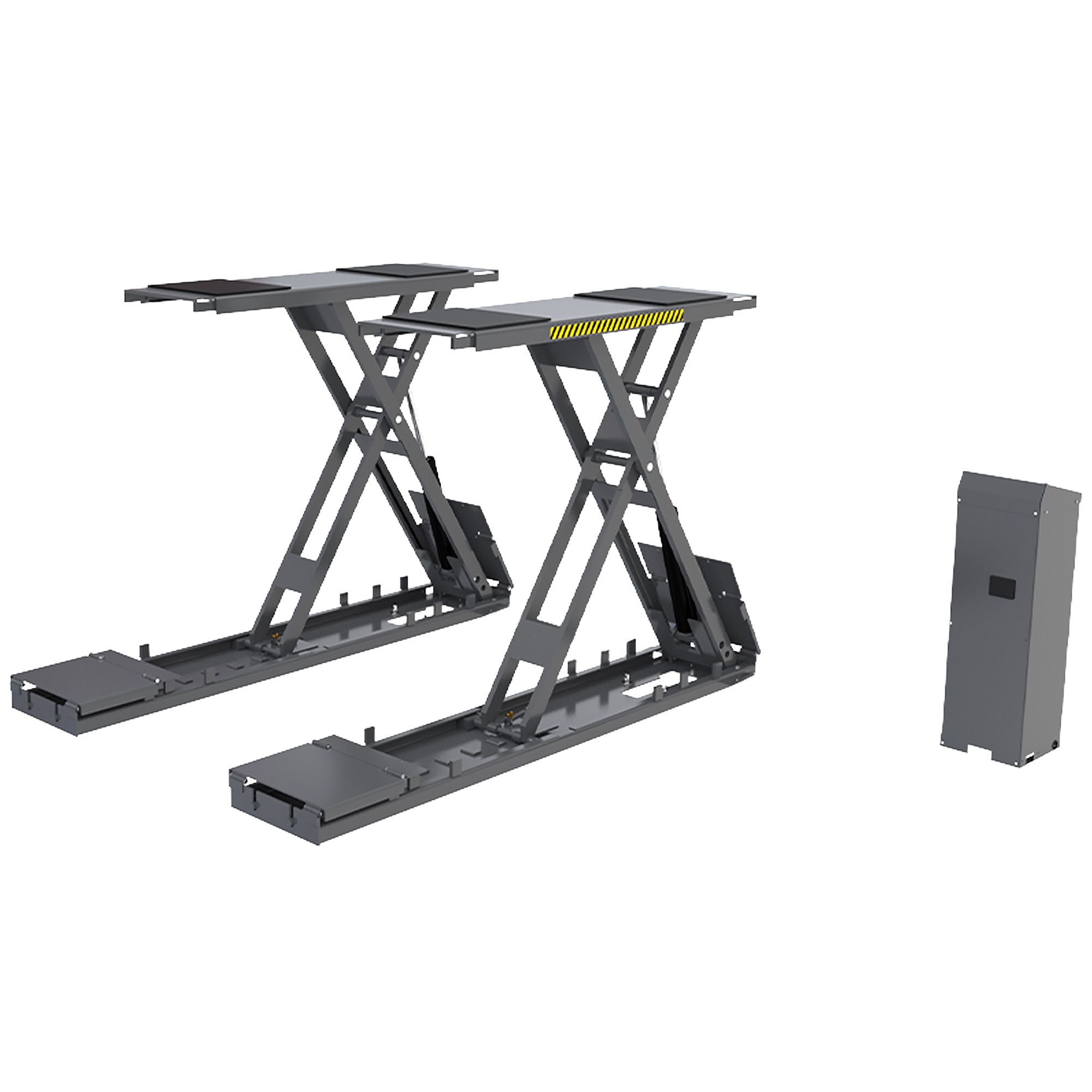

Console-Controlled Hydraulic Power for a Cleaner Bay

Console-Controlled Hydraulic Power for a Cleaner Bay

The lift console houses the controls and power unit, creating a centralized operating station for the SP-7XEF. The power unit generates hydraulic pressure to move the hydraulic cylinders and raise the platforms, while hydraulic hoses and air lines connect through the console for more streamlined operation. A dual-cylinder hydraulic design provides the lifting power needed for vehicles up to 7,000 lbs. The console can also be positioned to better suit different workshop layouts, giving installers and shop owners more flexibility when planning the bay.

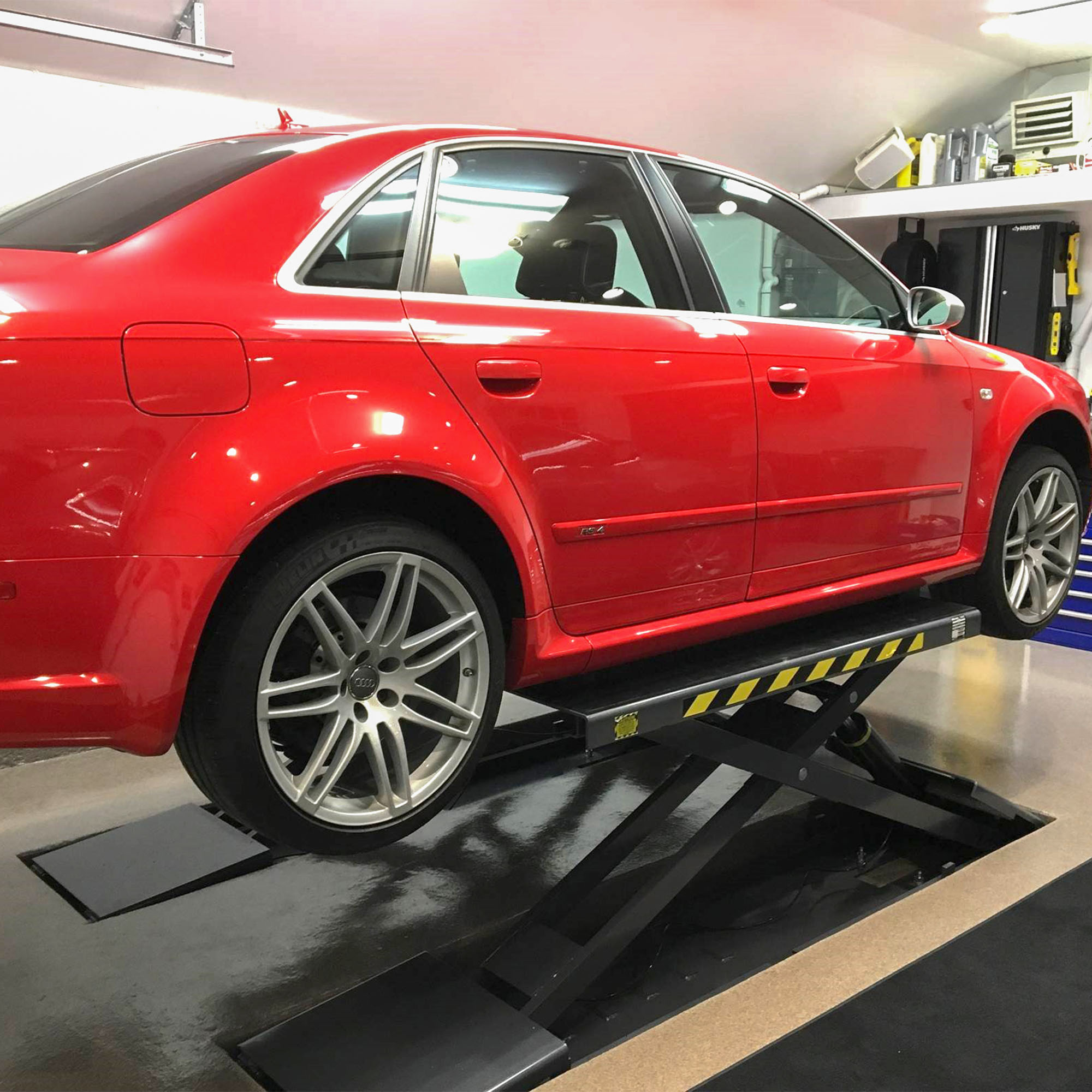

Pneumatic Safety Locks and Frame-Engaging Support

Embedded pneumatic safety locks provide multiple locking positions and help keep the platforms secure during service, including in the event of power loss or hydraulic failure. Lift pads with rubber contact points help engage vehicle lifting points while prioritizing vehicle and operator safety. The bases house key structural and operating components, including the scissor legs, hydraulic cylinders, air cylinders, safety locks, and anchor points. Designed for indoor installation, the SP-7XEF can also be paired with optional attachments such as the Lift Arm Kit to expand compatibility with a wider range of vehicle sizes.
Pneumatic Safety Locks and Frame-Engaging Support

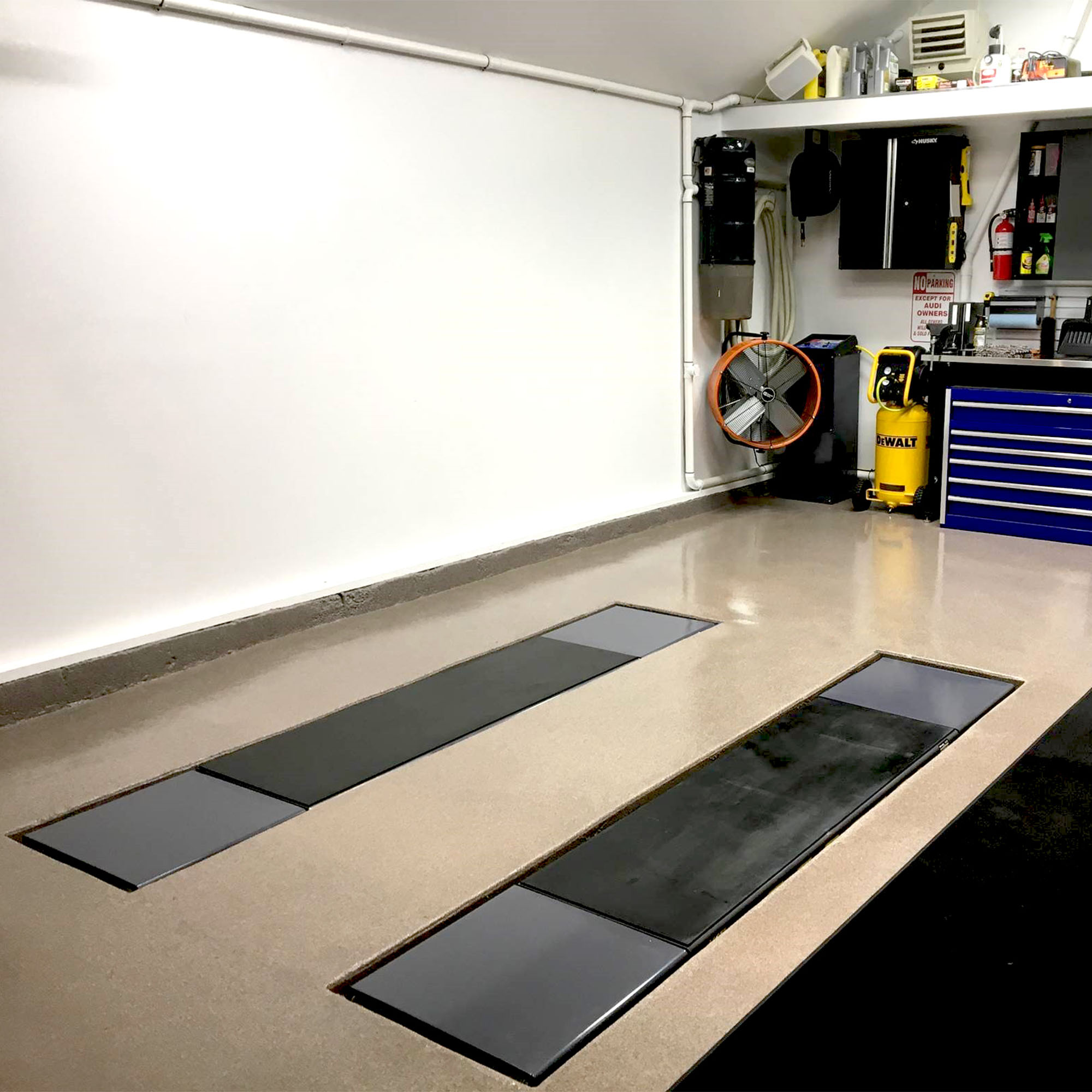

Flush-Mount Full-Rise Design

Flush-Mount Full-Rise Design

Installs into a recessed bay so the lift sits cleanly in the floor when lowered while still delivering full-rise service height.

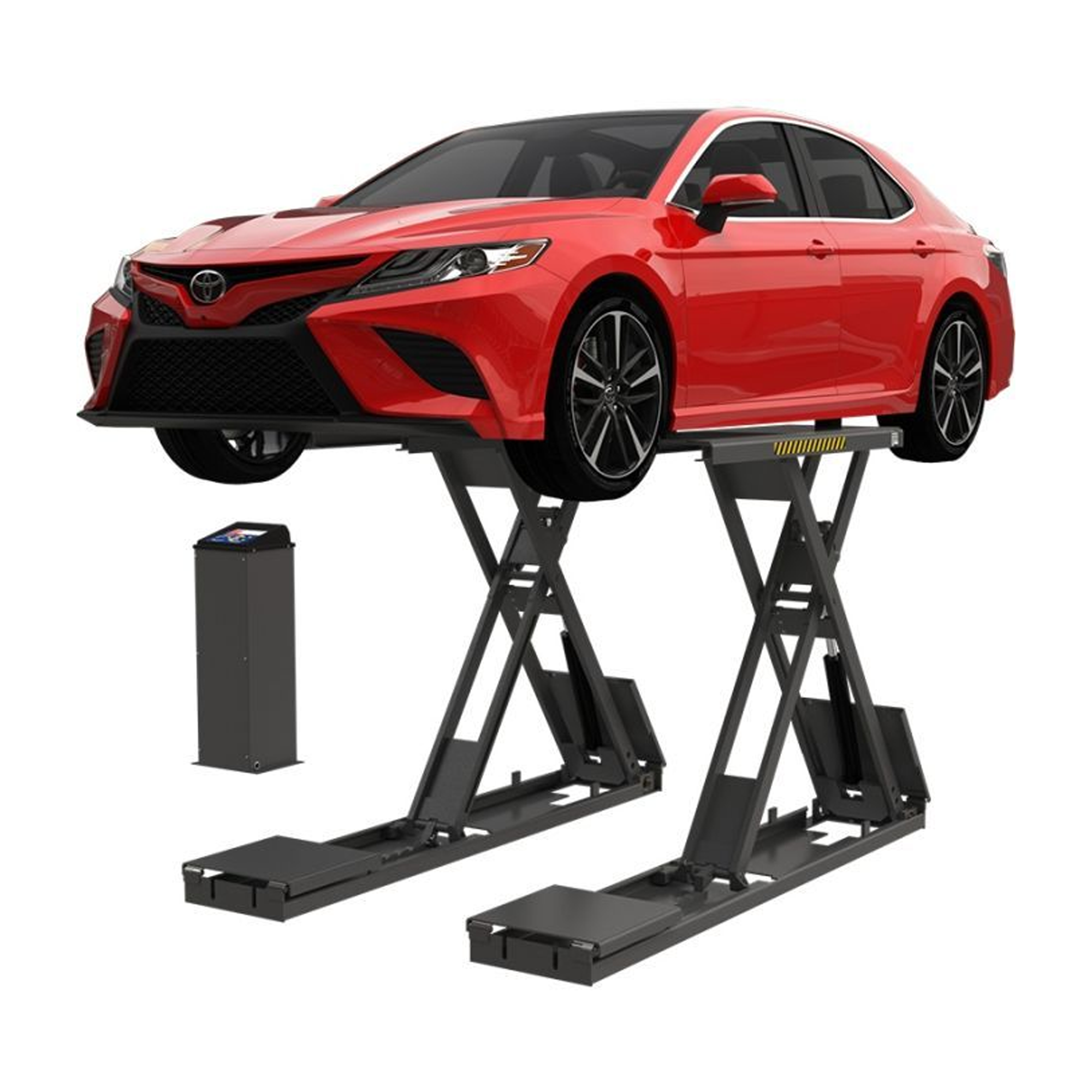

7,000-lb. Lifting Capacity

7,000-lb. Lifting Capacity

Built for professional vehicle service, inspections, and repair work with the strength to handle vehicles up to 7,000 lbs.

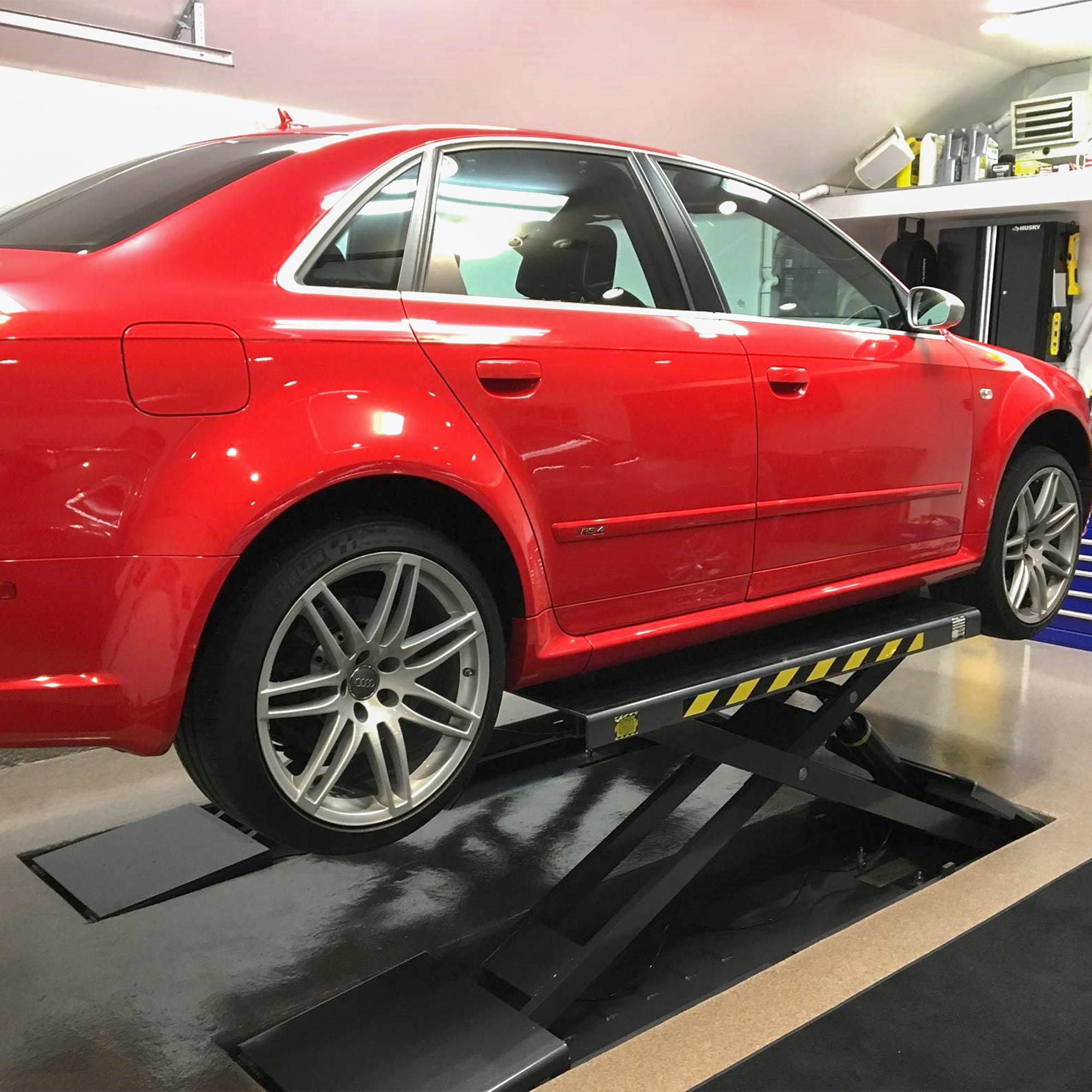

Open-Center Access

Open-Center Access

The frame-engaging scissor layout leaves the center area more accessible for undercarriage service than wheel-engaging platforms.

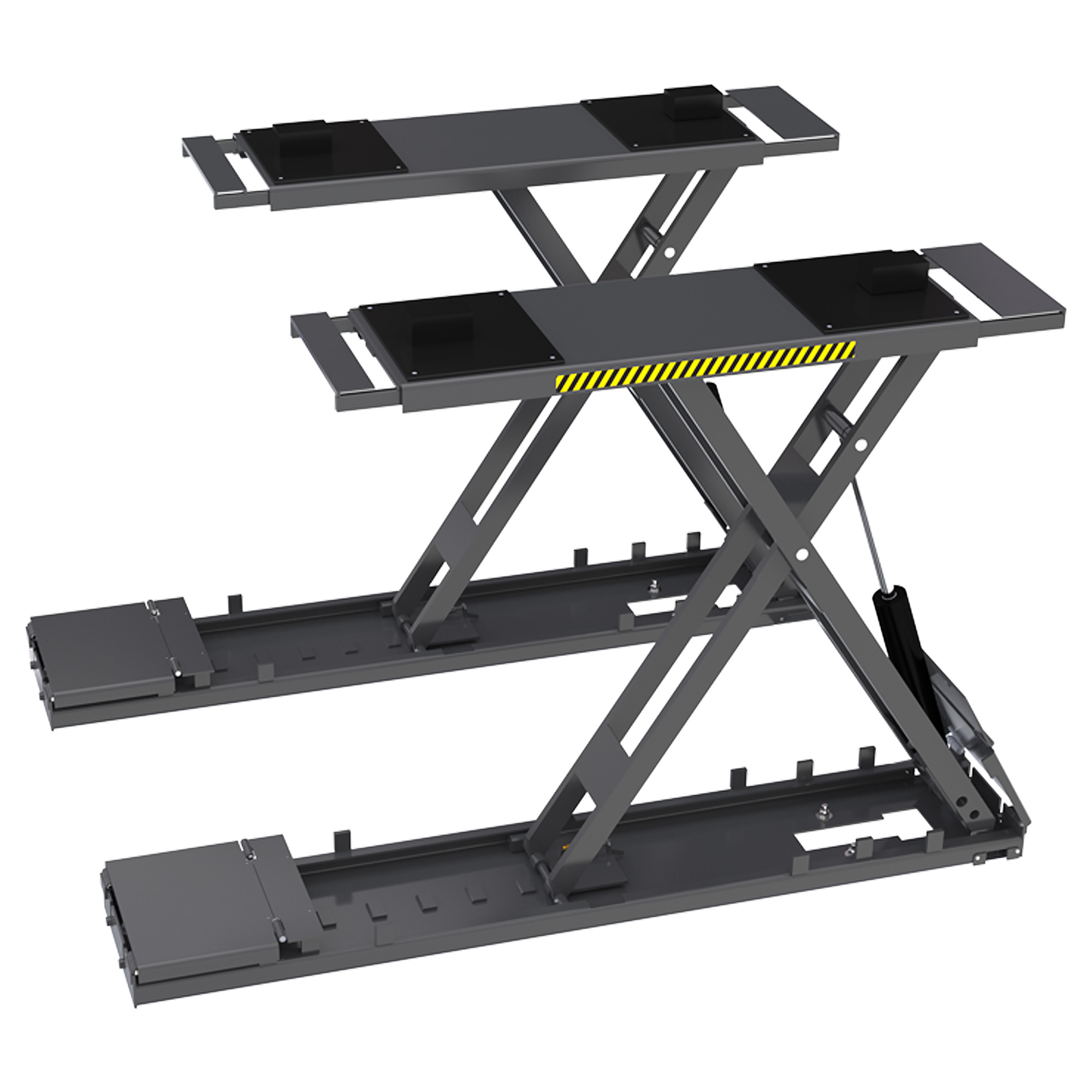

Console-Controlled Operation

Console-Controlled Operation

The console houses the controls and power unit while routing hydraulic hoses and air lines for a cleaner shop setup.

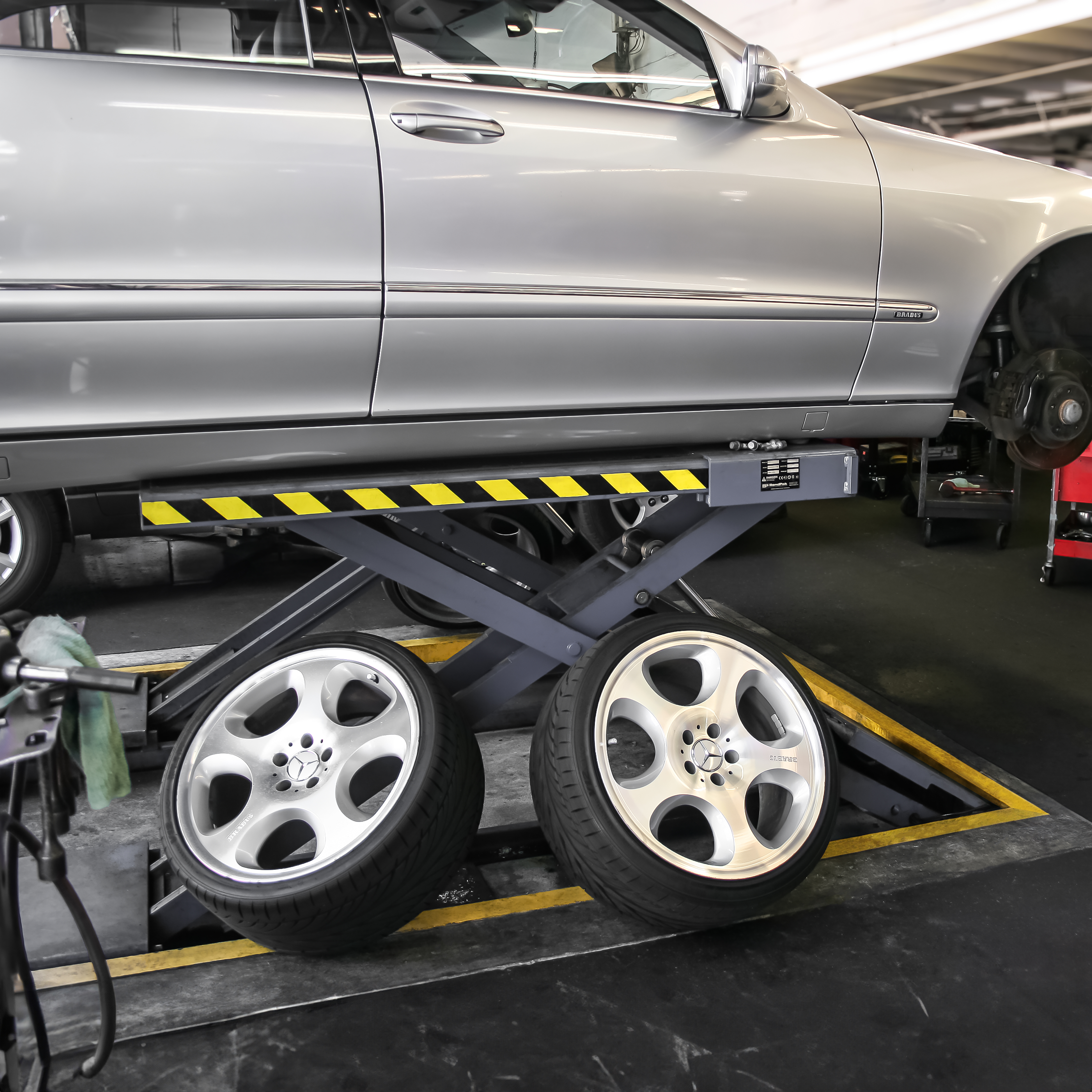

Pneumatic Safety Locks

Pneumatic Safety Locks

Multiple locking positions help keep the platforms secure during service, including in the event of power loss or hydraulic failure.

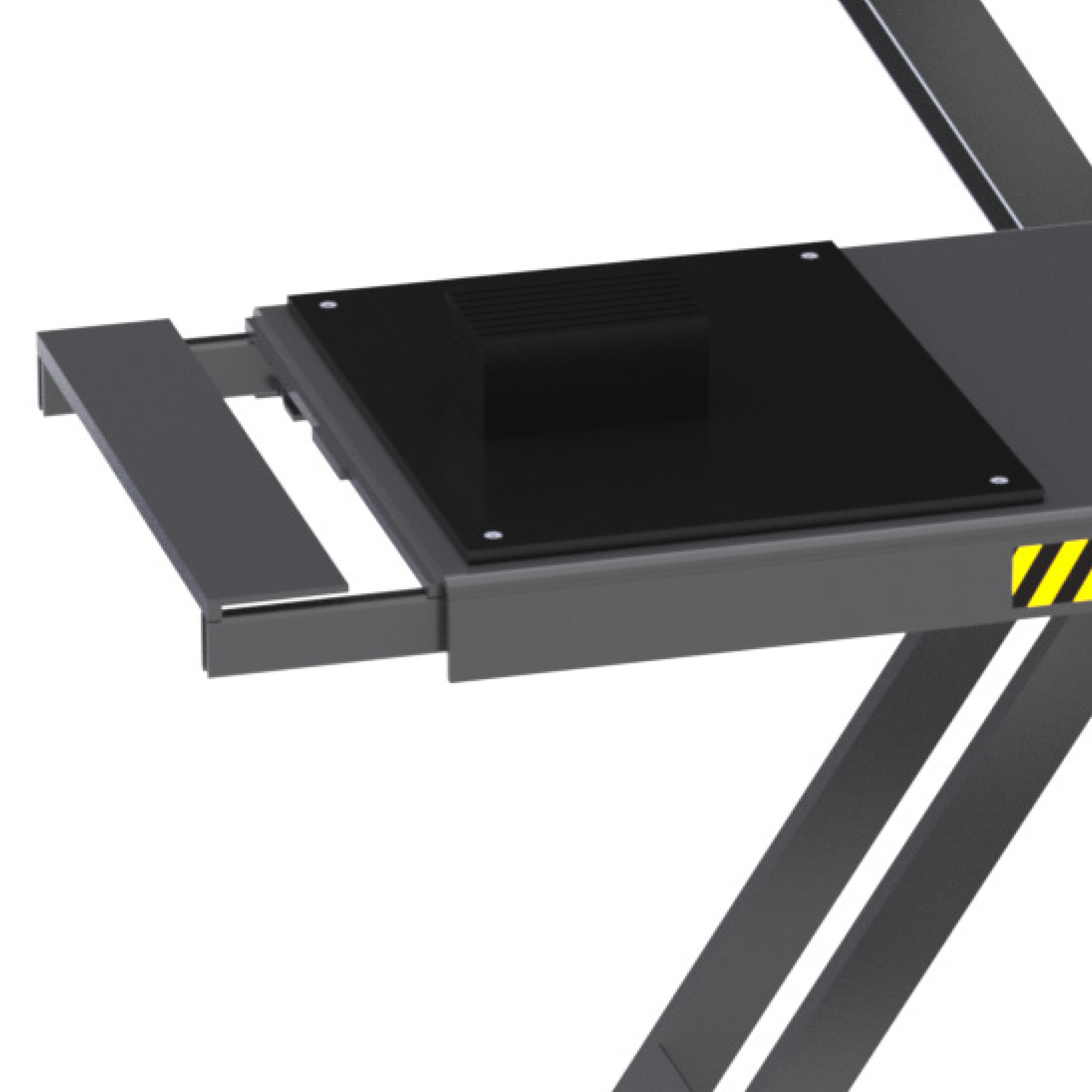

Flexible Vehicle Setup

Flexible Vehicle Setup

Ramp extensions, lift pads, and optional lift arm kit compatibility help the SP-7XEF adapt to more wheelbases and lifting points.

Recommended Add-ons

Accessories for the SP-7XEF Flush-Mount Full-Rise Scissor Lift - 7,000-lbs. Capacity

BendPak SP-7X Arm Kit for Full-Rise Scissor Lifts
BendPak SP-7X Arm Kit for Full-Rise Scissor Lifts
$1,025.00
LEARN MORE

Specifications

Capacity

Lifting Capacity
7000 lb

Rise

Max Lifting Height
70.5 in
Lifting Time
60 seconds

Locking Heights

1st Locking Position
24.5 in
2nd Locking Position
69.75 in

Dimensions

Pad Length
62.5 in
Pad Width
21.75 in
Length
106 in
Width Between Platforms
38 in

Power Unit and Voltage

Horsepower
1.5 HP
Voltage
208-240V / 50/60 Hz / 1-Phase
Sound Level
40 dBA

Shipping and Delivery

Shipping Dimensions
27 x 108 x 35 in
Shipping Weight
2272 lb
Shipping Method
LTL
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
