BendPak PCL-18B-4 Mobile Column Lifts - Set of 4

SEE REVIEWS
IN STOCKSKU 5175292
$60,395.00
Financing as low as $1269/moApply now

Flexible business financing available through Navitas.

BendPak PCL-18B ALI Certified mobile column lift system with 36,000-lb. capacity.
Product 3D model preview
Four BendPak PCL-18B mobile column lifts with wheel-engaging forks and a combined 72,000-lb. capacity.
BendPak PCL-18B mobile column lift arm showing multiple width adjustment positions.
Technician adjusting the wheel-engaging carriage forks on a BendPak PCL-18B mobile column lift.
Front arms on the BendPak PCL-18B commercial mobile column lift for heavy-duty vehicle lifting.
BendPak PCL-18B commercial mobile column lift arm with manual locking mechanism detail.
Heavy-duty caster wheels on the BendPak PCL-18B mobile column lift for shop maneuverability.
Front caster wheel assembly on the BendPak PCL-18B heavy-duty mobile column lift.
Product 10
1
Ask An Expert

Expected to Ship: Sep 1, 2026

SALES FLYERMANUALWARRANTY

BendPak PCL-18B-4 Mobile Column Lifts - Set of 4
$60,395.00

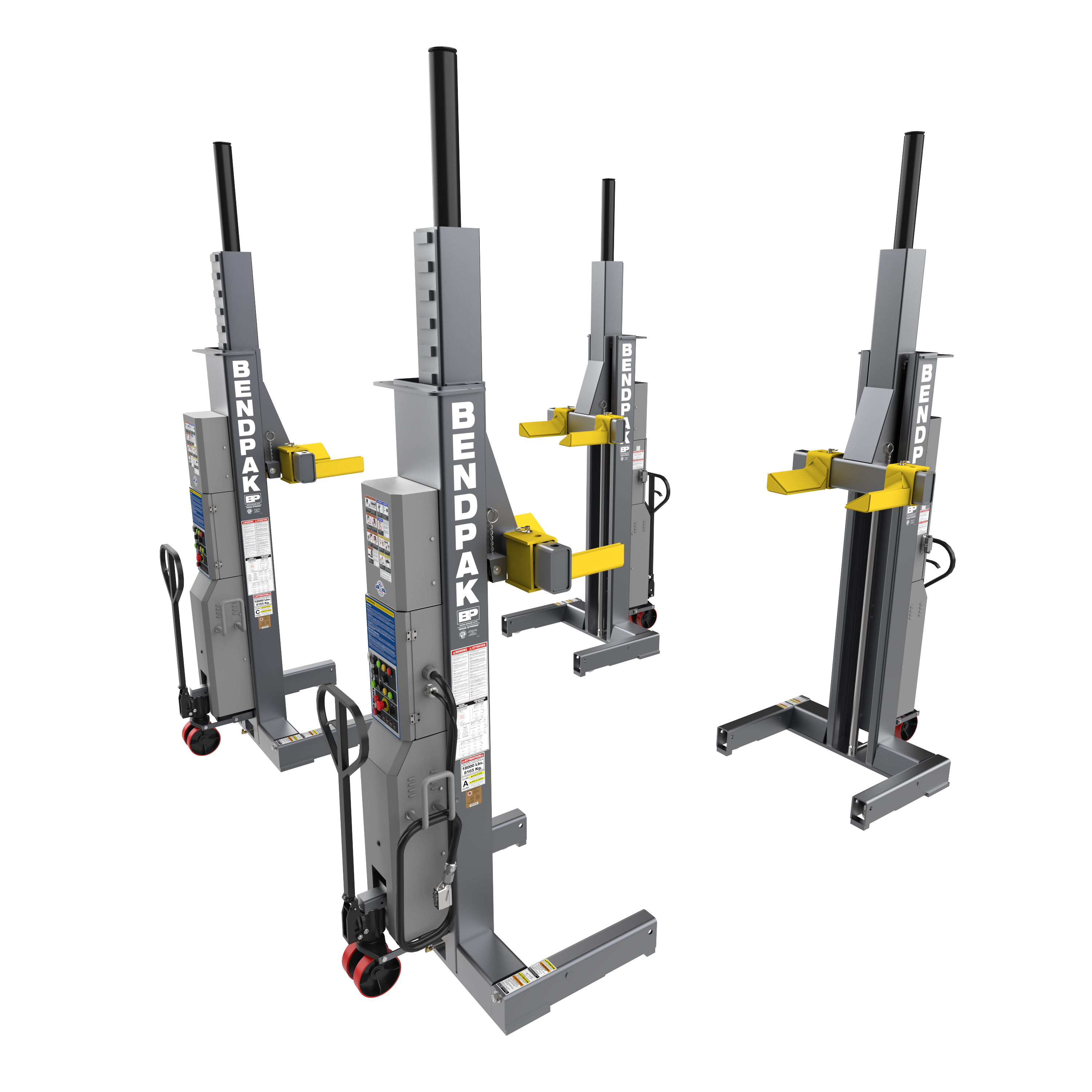

Four PCL-18B Mobile Column Lifts, 72,000 lbs. of Shop Muscle

Four PCL-18B Mobile Column Lifts, 72,000 lbs. of Shop Muscle

The BendPak PCL-18B-4 Mobile Column Lift Set gives commercial shops a full four-column lifting system for heavy-duty trucks, buses, and fleet vehicles up to 72,000 lbs. With an 18,000-lb. individual column capacity, this set is a serious alternative to fixed heavy-duty lifts when your service operation needs more flexibility across the shop floor. A four-column set is the workhorse starting point for mobile column lifting. It gives technicians the ability to raise many heavy-duty commercial vehicles while keeping the bay more adaptable than a permanently installed lift. For shops that need more capacity later, the system can be expanded with additional PCL-18B columns.

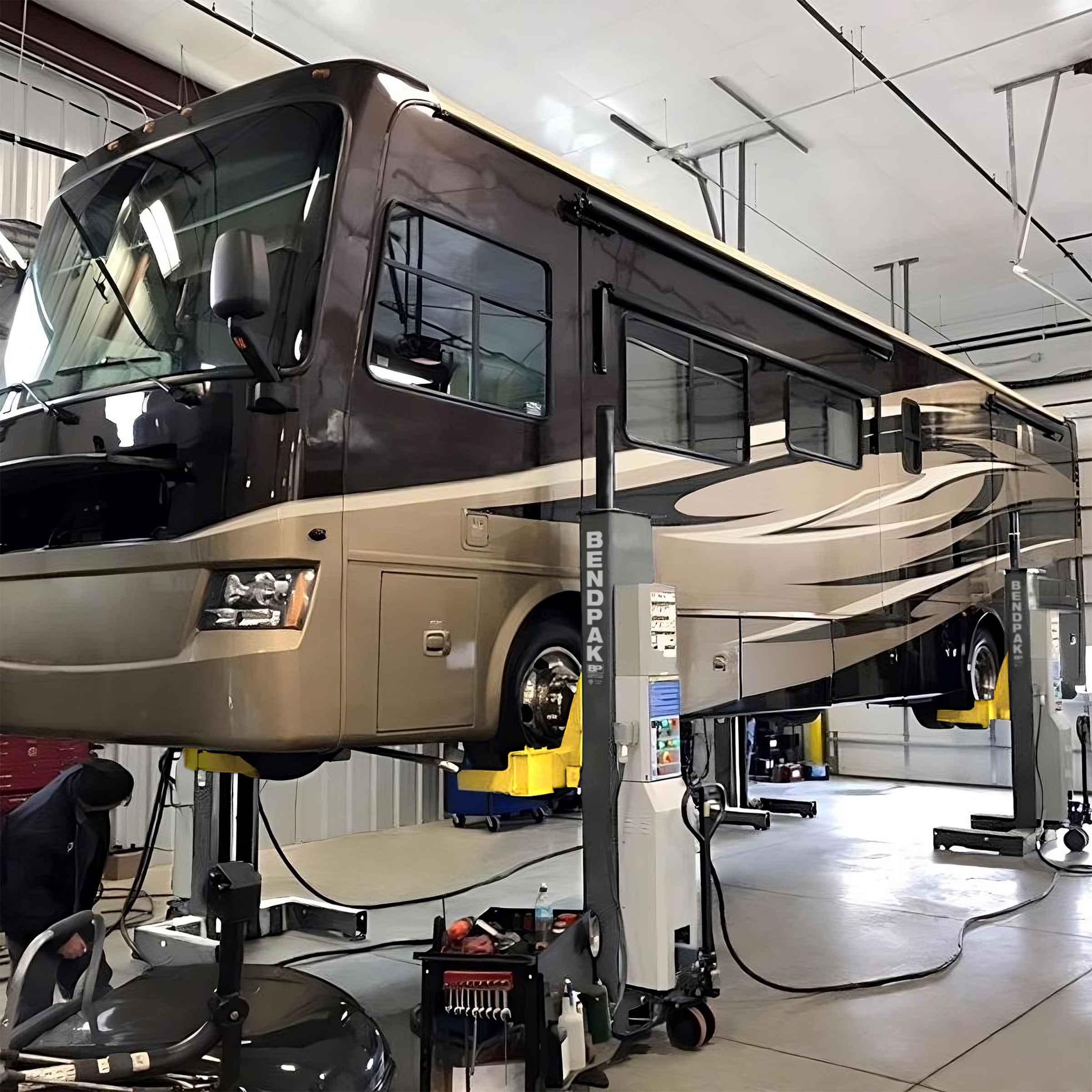

A Full Mobile Column Lift Setup for Heavy-Duty Service

A Full Mobile Column Lift Setup for Heavy-Duty Service

The PCL-18B-4 is designed for facilities that need dependable heavy-vehicle lifting without dedicating one bay to a fixed lift structure. When the job is done, the columns can be moved and stowed, helping shops reclaim floor space and adjust their workflow around changing vehicle schedules. For full wheel service, the set can be paired with a compatible PCL-18B cross beam to support frame-engaging work. That gives shops another path for tire removal, brake work, and wheel-end service on large vehicles when the application calls for it.

Synchronized Controls Without Cable Chaos

For a standard four-column set, just three 30-foot cables are used, leaving the front or back of the lift clear of cable obstructions. Controls can be programmed and managed from any column, while smart electronics, self-diagnostics, self-calibration, and sealed linear potentiometers help maintain accurate synchronization. The system supports SINGLE, PAIR, or TEAM operation, allowing trained operators to manage column movement with the level of control the job requires. Programmable height limits and two-speed lowering give shops more control over lift height and descent speed in real service environments.
Synchronized Controls Without Cable Chaos

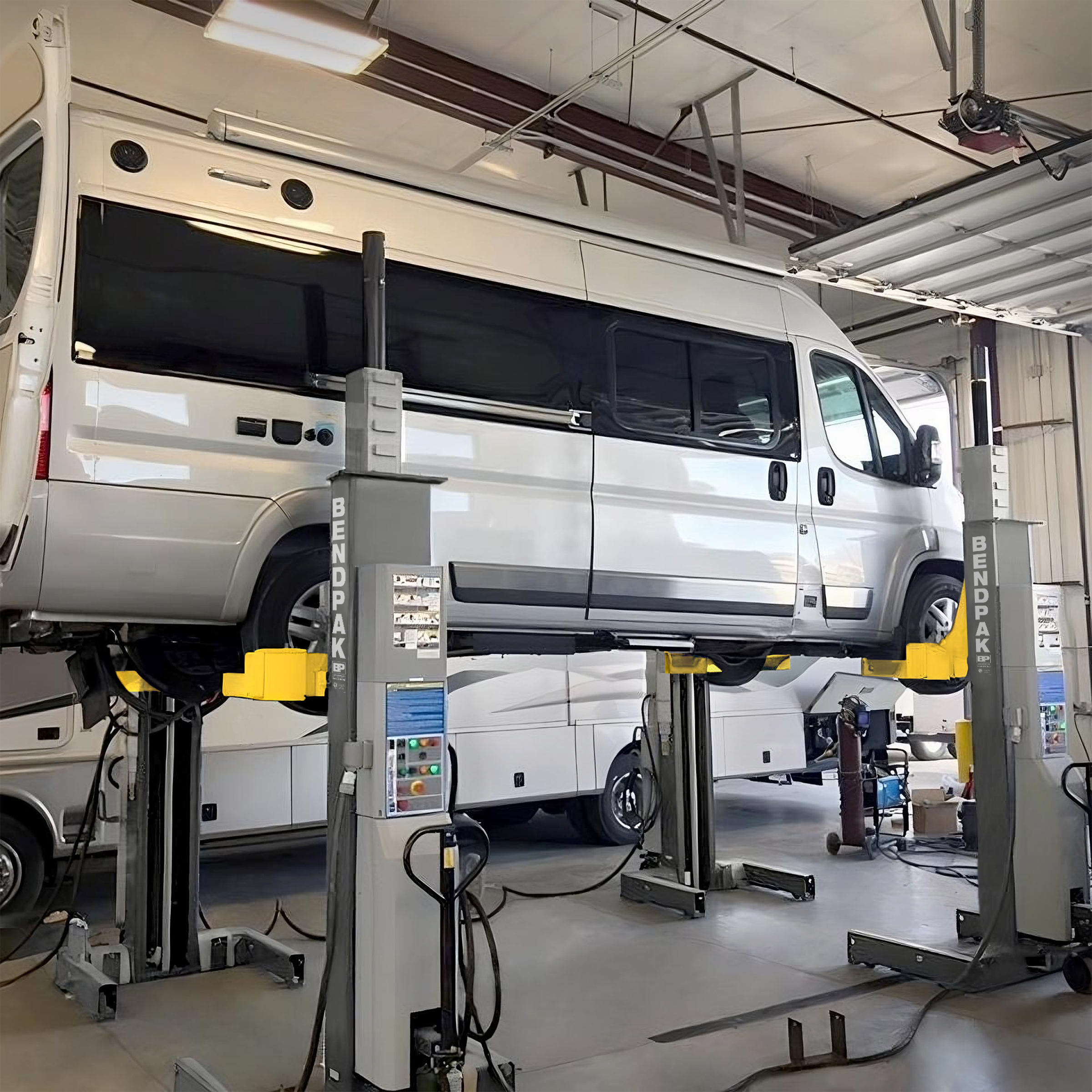

Built for Long Service Life and Safer Heavy Lifting

Built for Long Service Life and Safer Heavy Lifting

The PCL-18B-4 combines an enclosed electric-hydraulic power system, 24-volt safety circuitry, multi-fuse protected electronics, and standard off-the-shelf PLC components that help reduce service complexity compared with proprietary control systems. It is built for simple operation, long service life, and minimum maintenance. Each column includes warning lights, audible alarms, emergency shut-off switches, independent automatic safety locks, and inverted hydraulic cylinders with integrated safety valves. Heavy-duty steel carriage rollers, extended forks, wheel-fork locking pins, forklift pockets, and durable powder coat construction help the system stand up to daily commercial shop use.

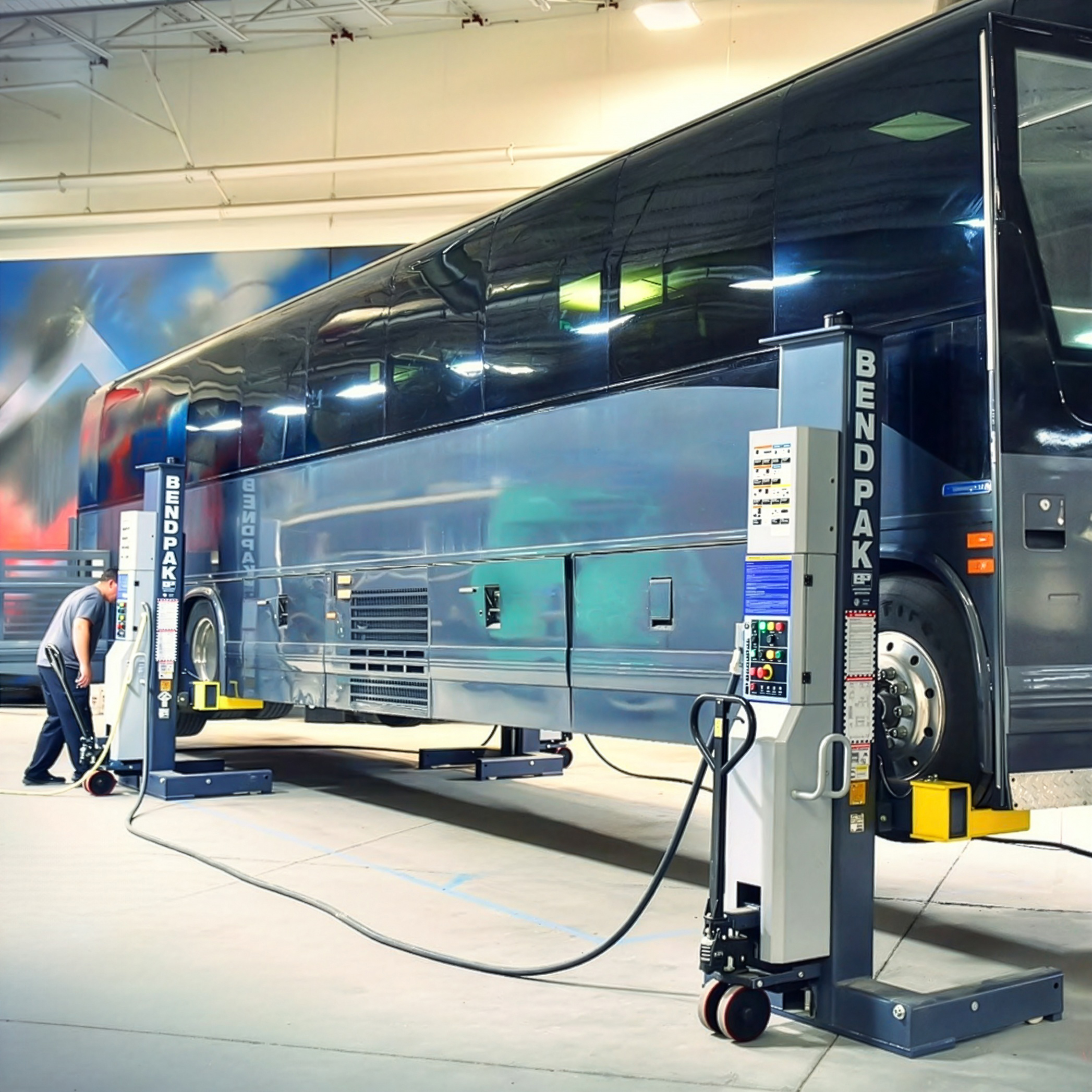

72,000-lb. Four-Column Setup

72,000-lb. Four-Column Setup

A complete four-column PCL-18B set supports heavy-duty commercial vehicles up to 72,000 lbs. for serious fleet service.
Mobile Bay Flexibility

Mobile Bay Flexibility

Raise large vehicles when needed, then move the columns out of the way when the lift bay needs to change roles.

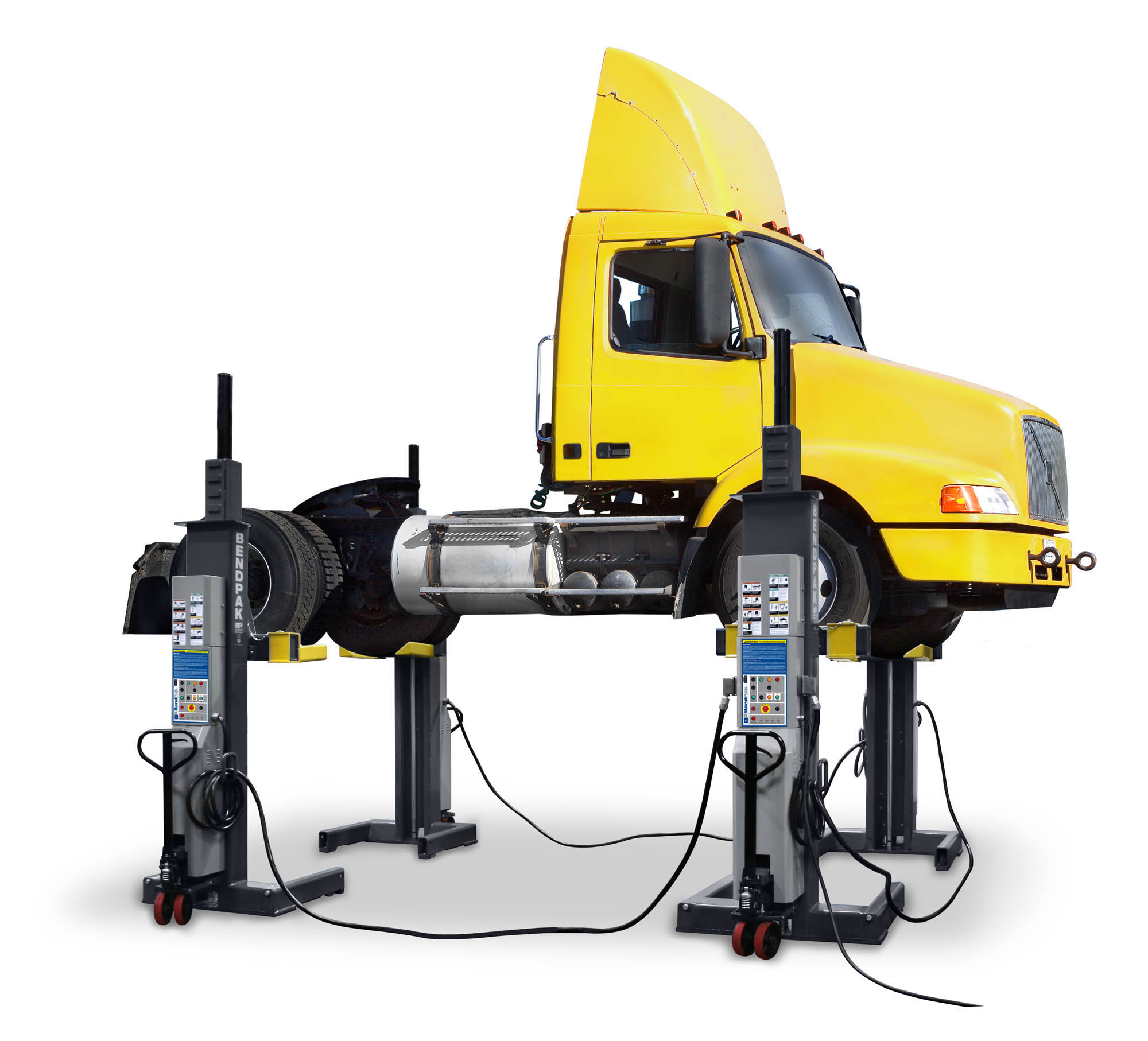

Clearer Four-Column Layout

Clearer Four-Column Layout

A standard four-column setup uses just three 30-foot cables, helping keep one end of the lift clear of cable obstructions.

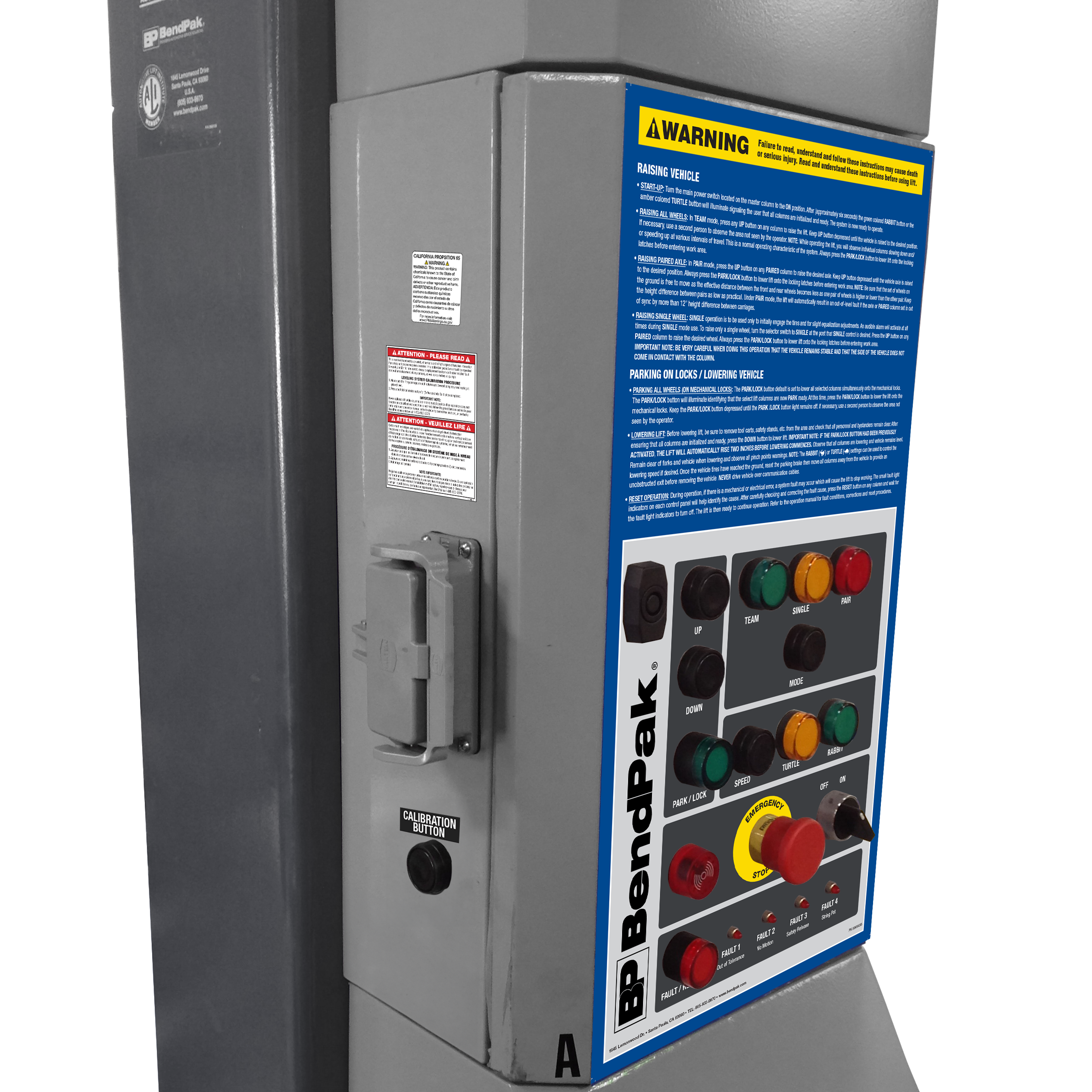

Control from Any Column

Control from Any Column

Technicians can program and operate the lift from any column, with smart synchronization supporting level lifting.

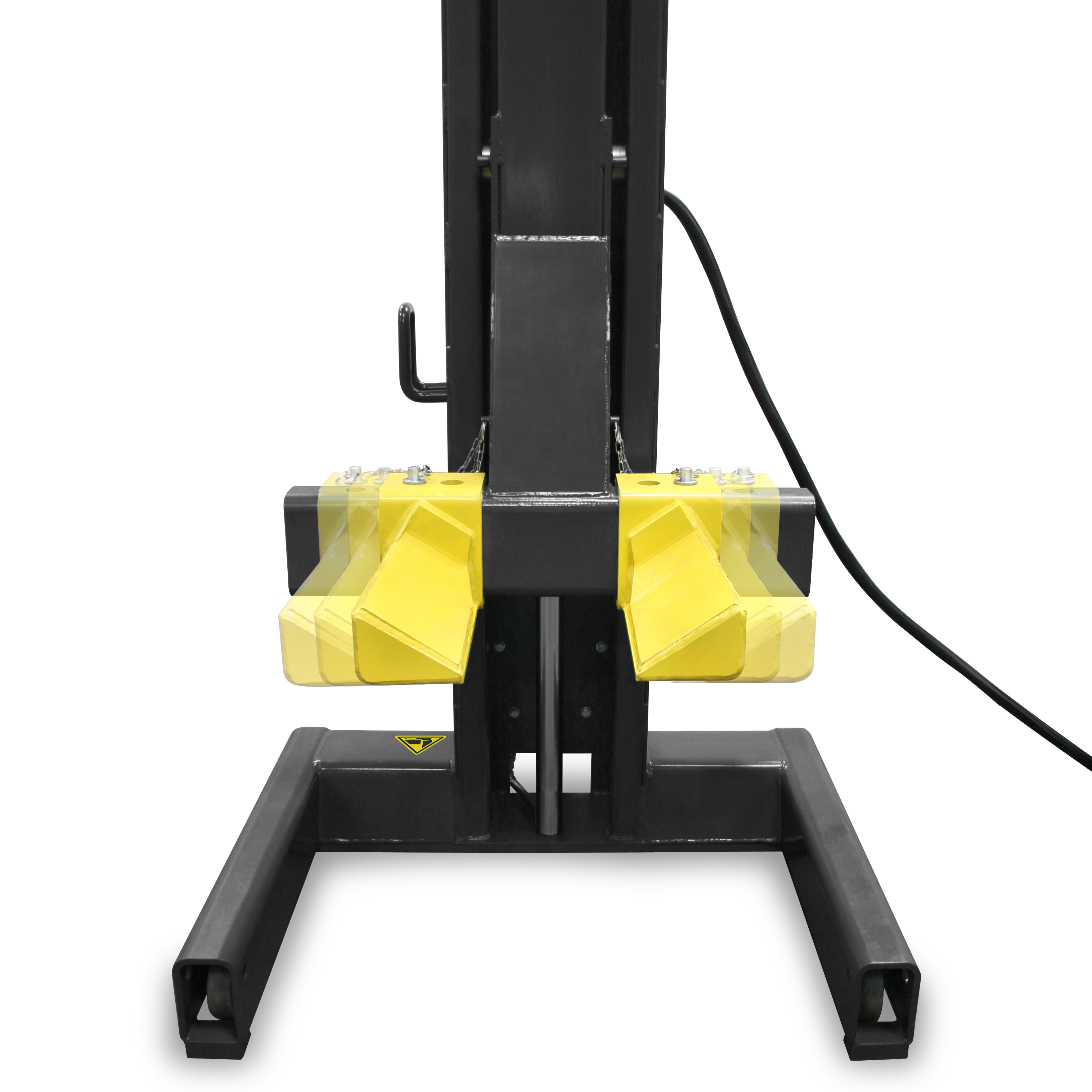

Heavy-Vehicle Wheel Forks

Heavy-Vehicle Wheel Forks

Extended forks and multi-width locking wheel forks help accommodate wide tires and deep wheel configurations.

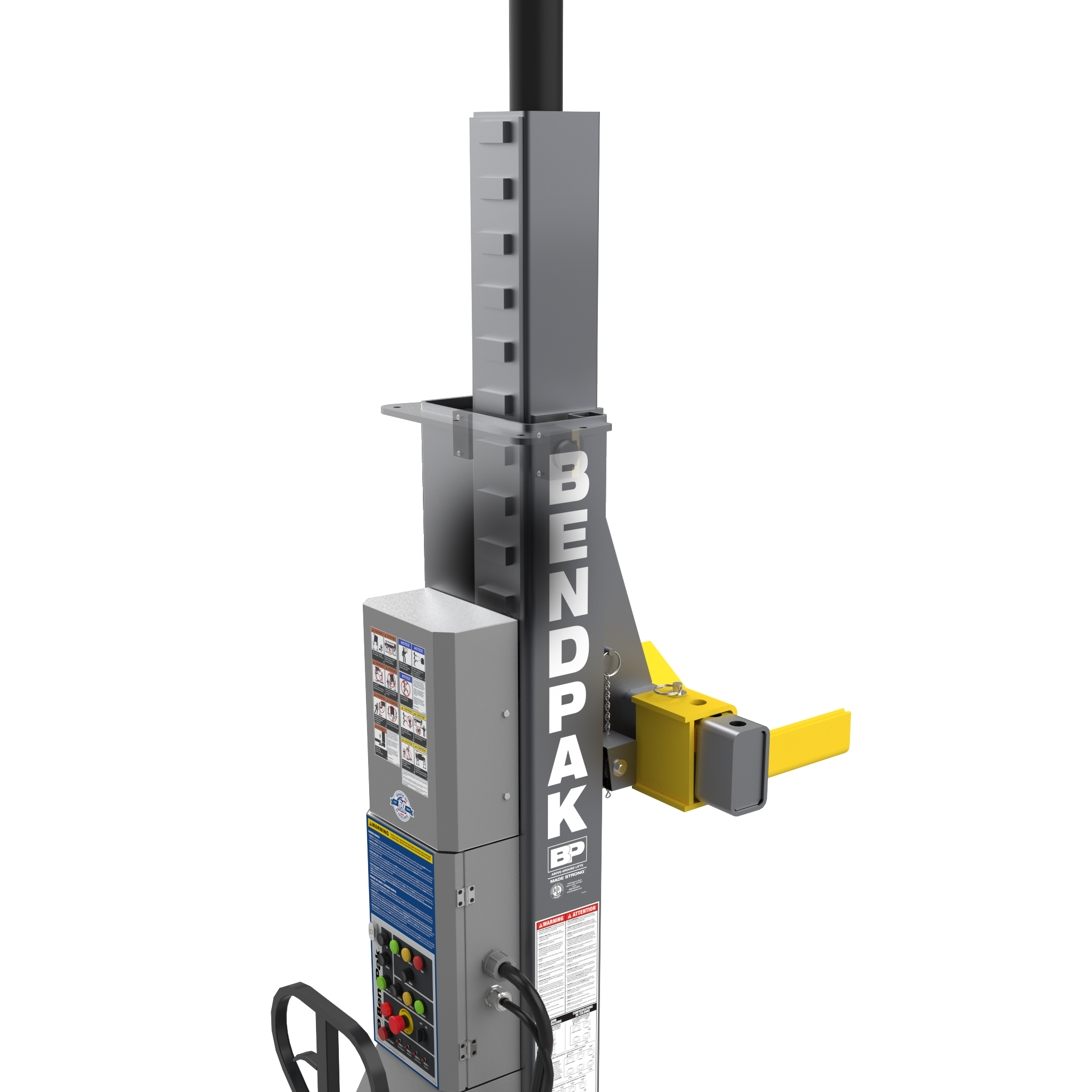

Built-In Safety Locks

Built-In Safety Locks

Multiple automatic independent safety locks, warning alerts, and emergency shut-off switches support safer work under load.

Specifications

Specification Diagram 1
Specification Diagram 2

Capacity

Lifting Capacity
18000 lb
System Lifting Capacity
72000 lb

Rise

B Max Lifting Height
71.5 in
C Lifting Time
85 seconds

Dimensions

D Height
101 in
E Width
45 in
F Depth
48.75 in
G Chassis Length
32.25 in

Lifting Fork

H Lifting Fork Width
9.5 - 35 in
I Lifting Fork Length
11.5 in

Power Unit and Voltage

Voltage
208-230V / 60 Hz / 3-Phase

Shipping and Delivery

Shipping Dimensions
54 x 48 x 107 in
Shipping Weight
1496 lb
Shipping Method
Flatbed
Offload Requirement
Forklift
Permits, Codes & Certification Disclaimer

Product requirements vary by location. Unless expressly stated on the applicable product page or in an official BendPak publication, BendPak does not represent or warrant that any BendPak or Ranger product complies with the permits, licenses, building codes, seismic requirements, certifications, standards, laws or regulations applicable to the buyer’s location or intended use.

The buyer is solely responsible for determining and obtaining all approvals required for the purchase, installation and operation of the product, including permits, licenses, inspections and structural, electrical, seismic or building-code compliance. BendPak is not responsible for related costs, modifications, delays, fines, penalties, liens or other charges imposed by any governmental authority, agency, utility, property owner or other third party.

Not all BendPak lift models are ALI Certified or meet the applicable requirements of ANSI/ALI ALCTV and ANSI/UL 201. Current certification information is available through the Automotive Lift Institute’s Directory of Certified Lifts at autolift.org or by contacting BendPak at [email protected]
